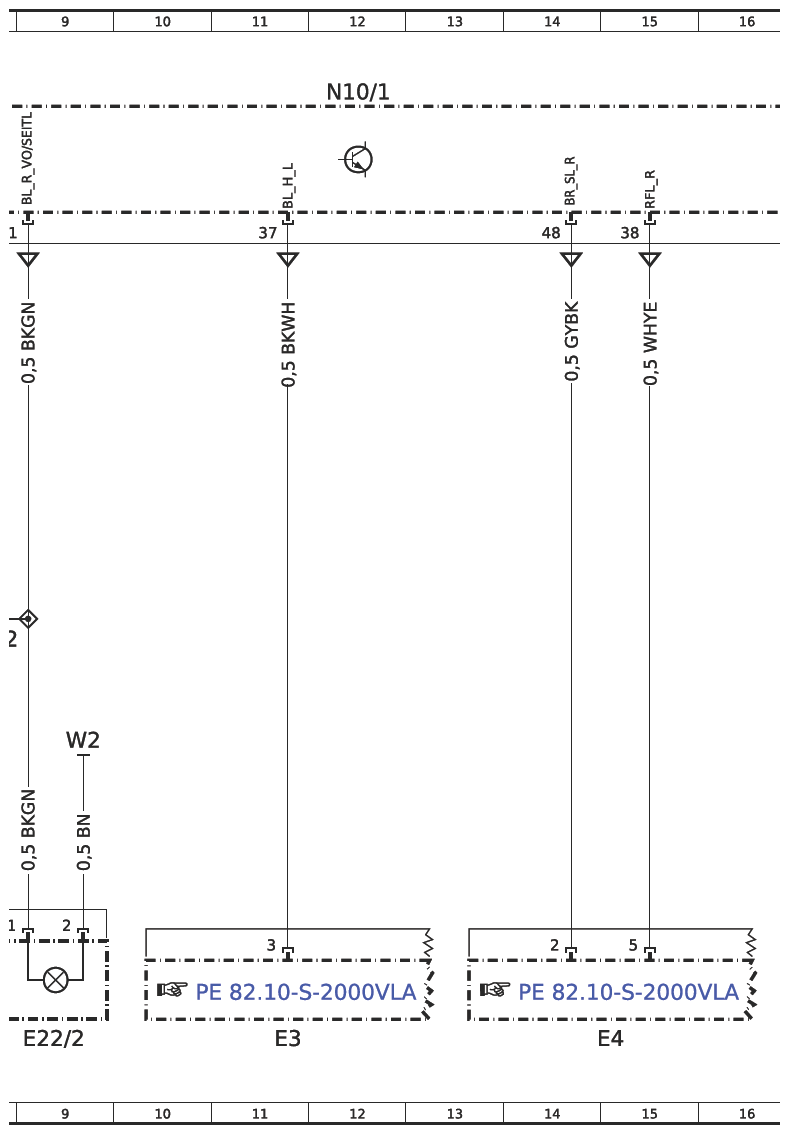

(Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-S-2127-97VLC)
Model 447.6 with Code ZL3 (National version for Latin America) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) N10/1, connector B2, B3
Model 447.7 with Code ZL3 (National version for Latin America) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) N10/1, connector B2, B3
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 80L |
| B95 | Battery sensor | 40L |
| CAN B | Interior CAN | 37K |
| Code E07 | Start-off assist | 64D |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 60D |
| Code L16 | Halogen front fog lamps | 17D |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 46D |

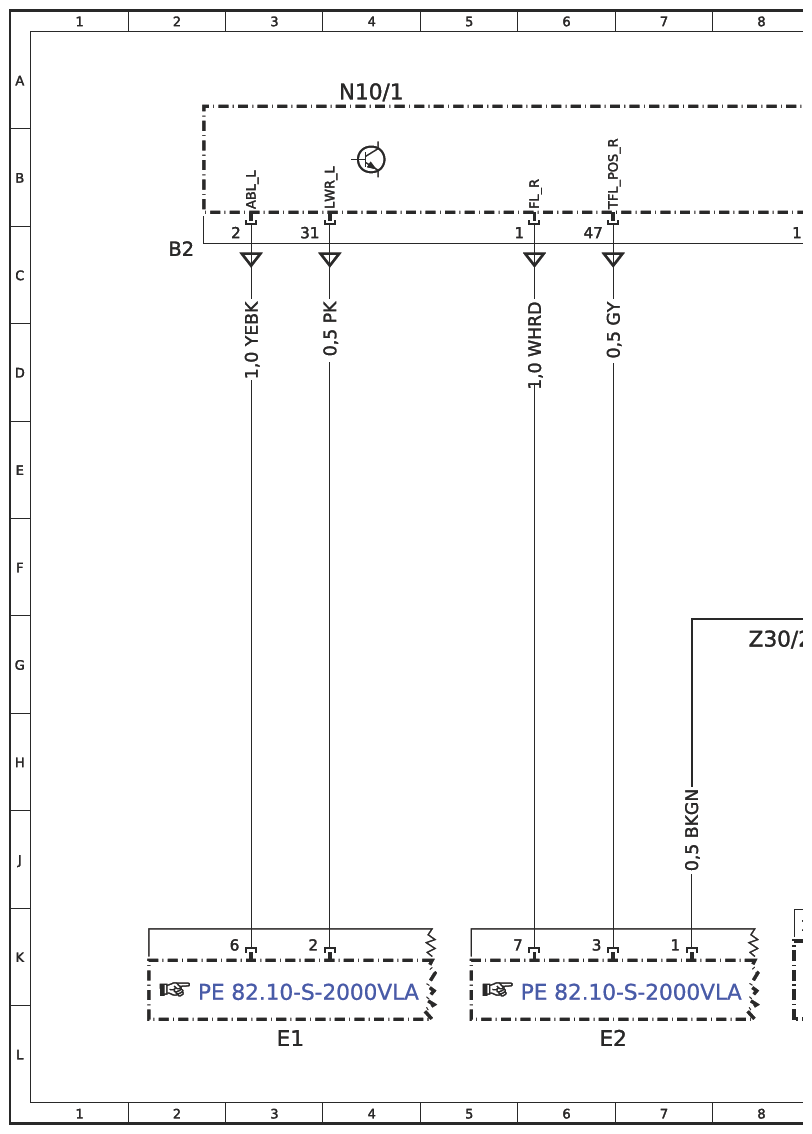

| E1 | Left front lamp unit | 3L |
| E2 | Right front lamp unit | 6L |
| E22/2 | Right additional turn signal lamp | 9L |
| E3 | Left rear lamp unit | 11L |
| E4 | Right rear lamp unit | 15L |

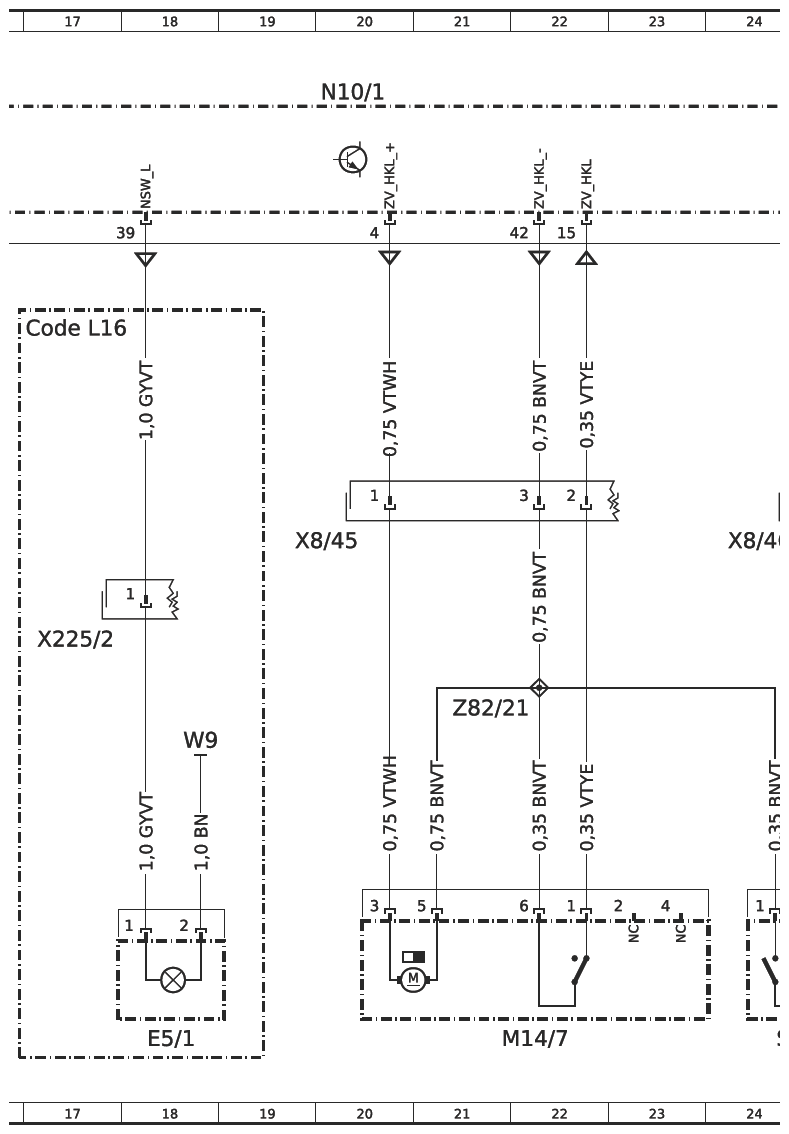

| E5/1 | Left fog lamp | 18L |

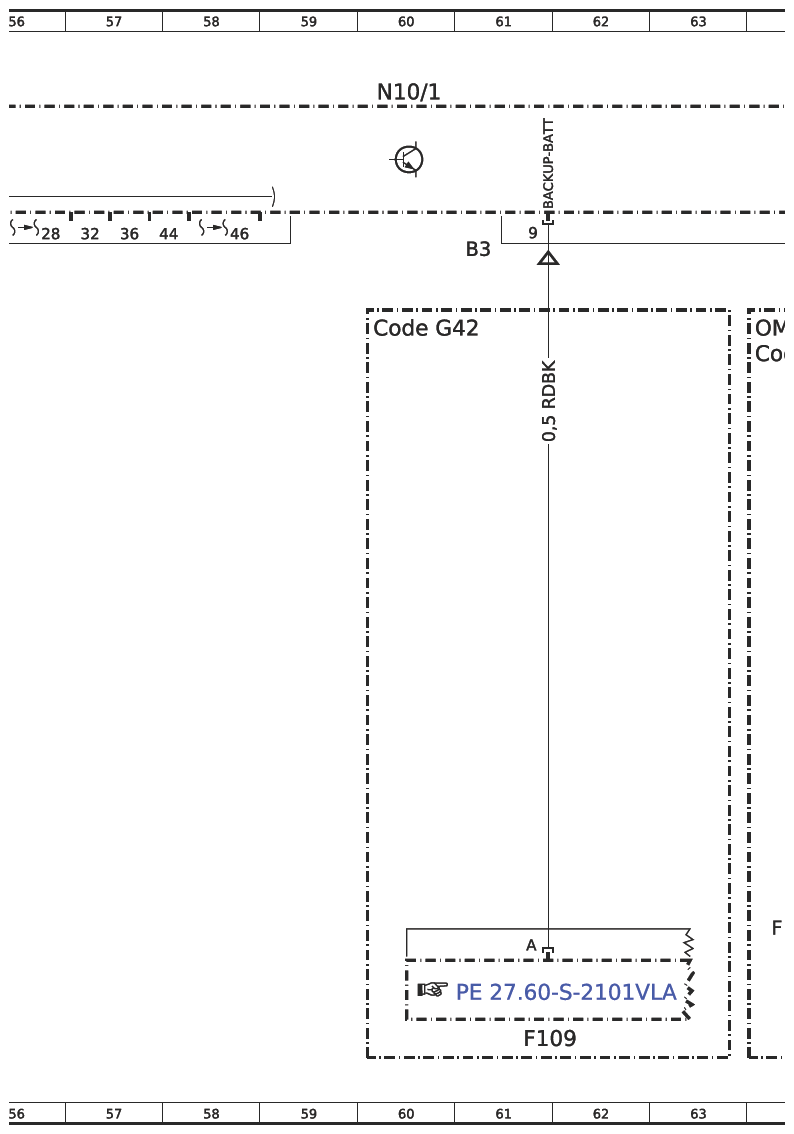

| F109 | Emergency-P battery or backup battery fuse | 61L |

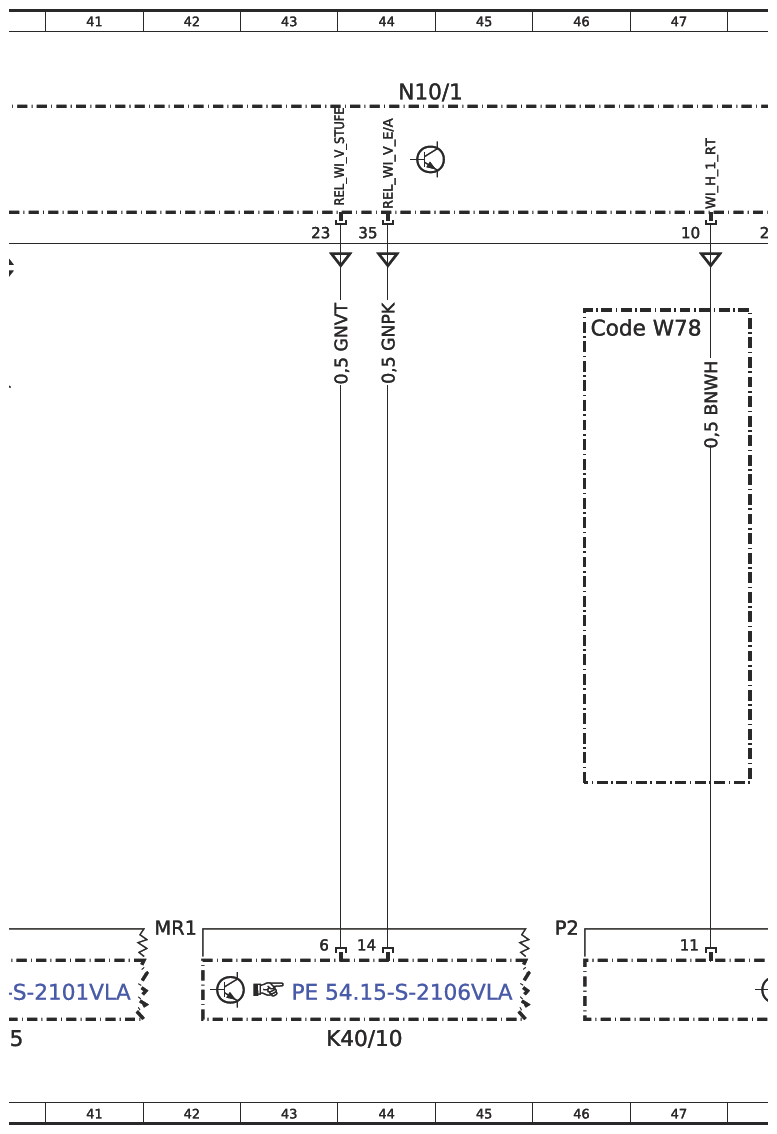

| K40/10 | Engine compartment fuse and relay module | 44L |

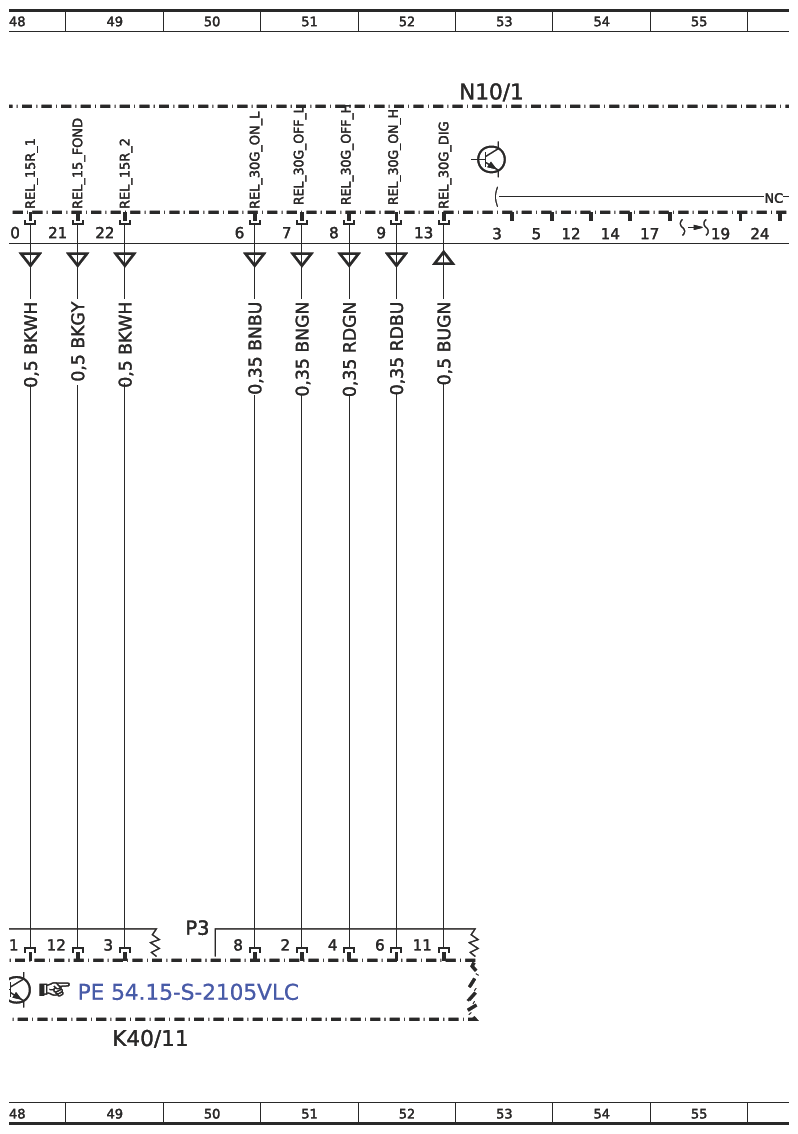

| K40/11 | Firewall fuse and relay module | 49L |
| M14/7 | Liftgate opening assist | 22L |

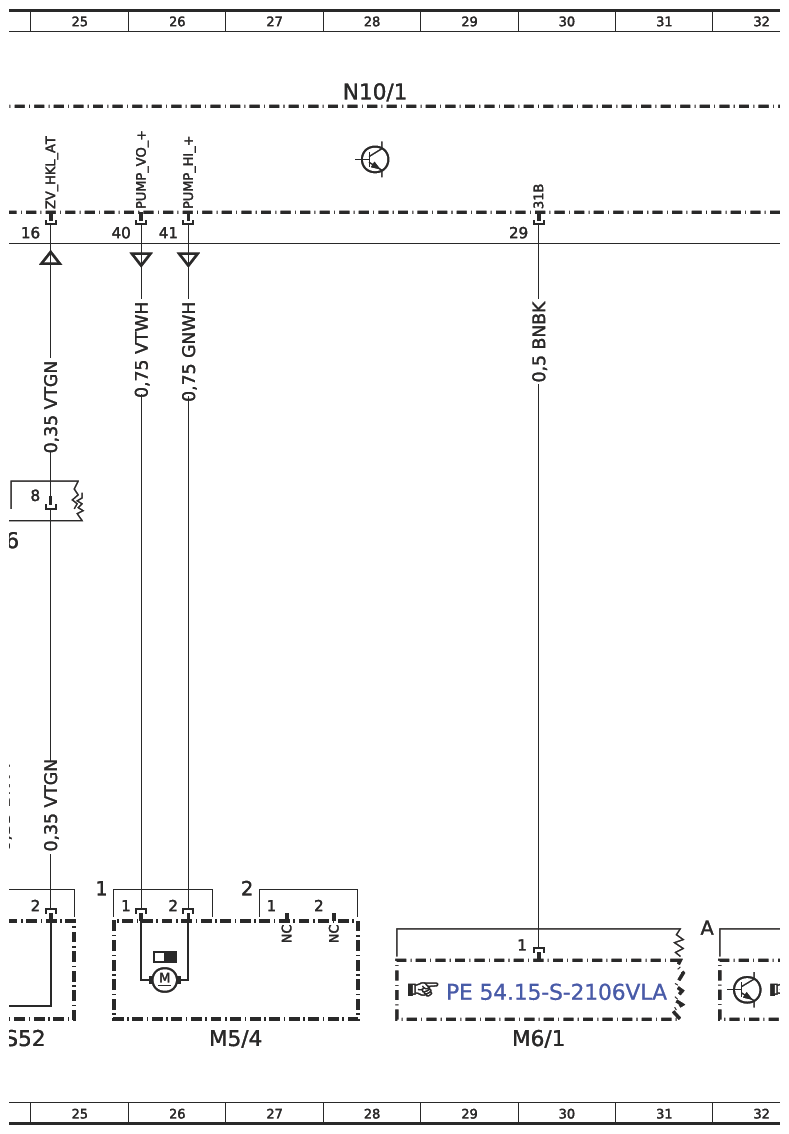

| M5/4 | Windshield washer system pump | 26L |
| M6/1 | Wiper motor | 30L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 20A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 28A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 36A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 44A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 53A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 60A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 68A |

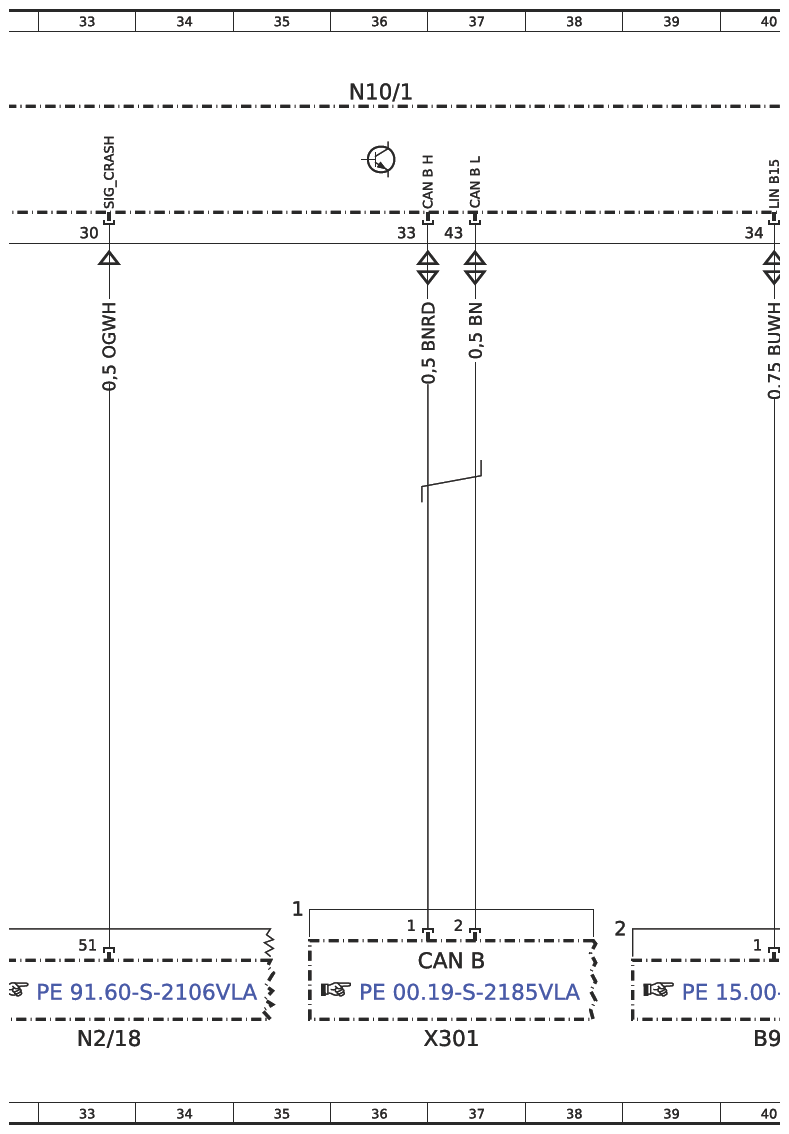

| N2/18 | Supplemental restraint system (SRS) control unit | 33L |

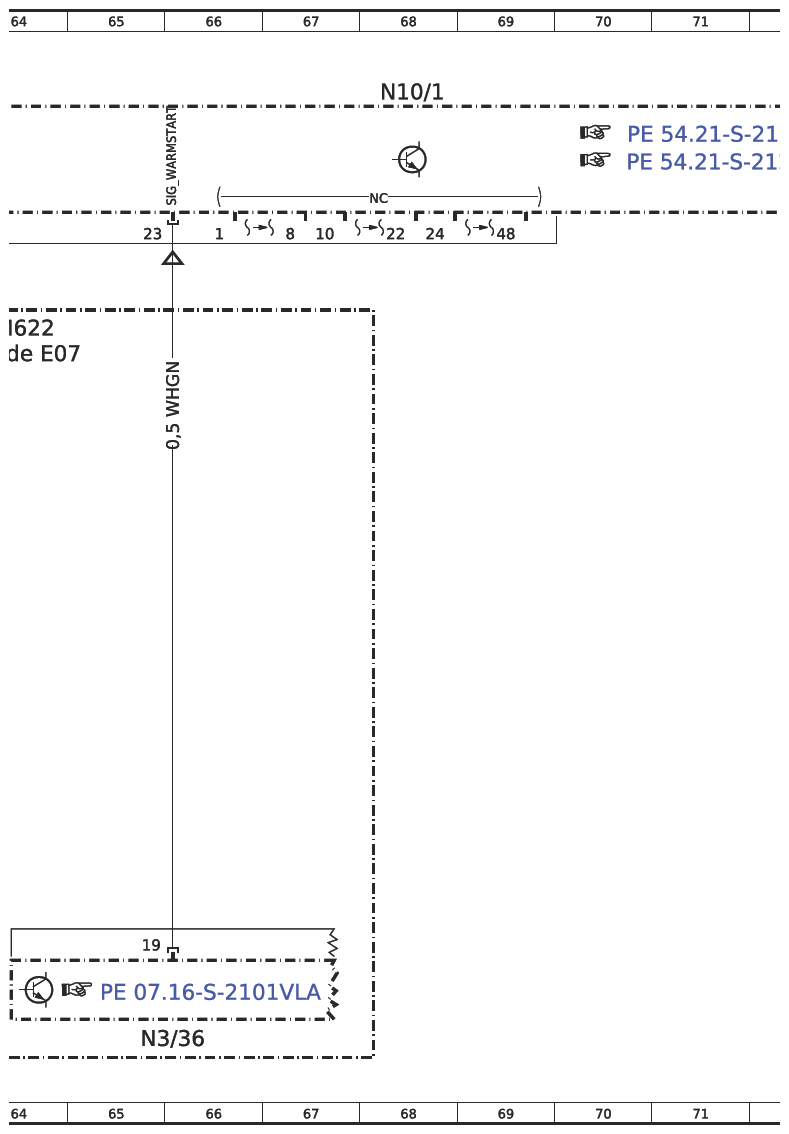

| N3/36 | CDI control unit | 65L |
| S52 | Liftgate open switch, external operation | 24L |
| W2 | Right front lamp unit ground point | 9H |
| W9 | Left front lamp unit ground point | 18H |
| X225/2 | Main wiring harness/firewall main wiring harness 3 electrical connector | 17G |
| X301 | Interior CAN (CAN B) potential distributor electrical connector | 37L |
| X8/45 | Right liftgate electrical connector 1 | 20F |
| X8/46 | Right liftgate electrical connector 2 | 24F |
| Z30/2 | Right turn signal lamp connector sleeve | 8G |
| Z82/21 | Liftgate tml. 31 central locking connector sleeve | 21H |
