(Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-S-2127-97VLB)
Model 447.6 with Code ZL3 (National version for Latin America) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) N10/1, connector B1
Model 447.7 with Code ZL3 (National version for Latin America) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) N10/1, connector B1
| Code : | Designation: | Position: |
|---|---|---|

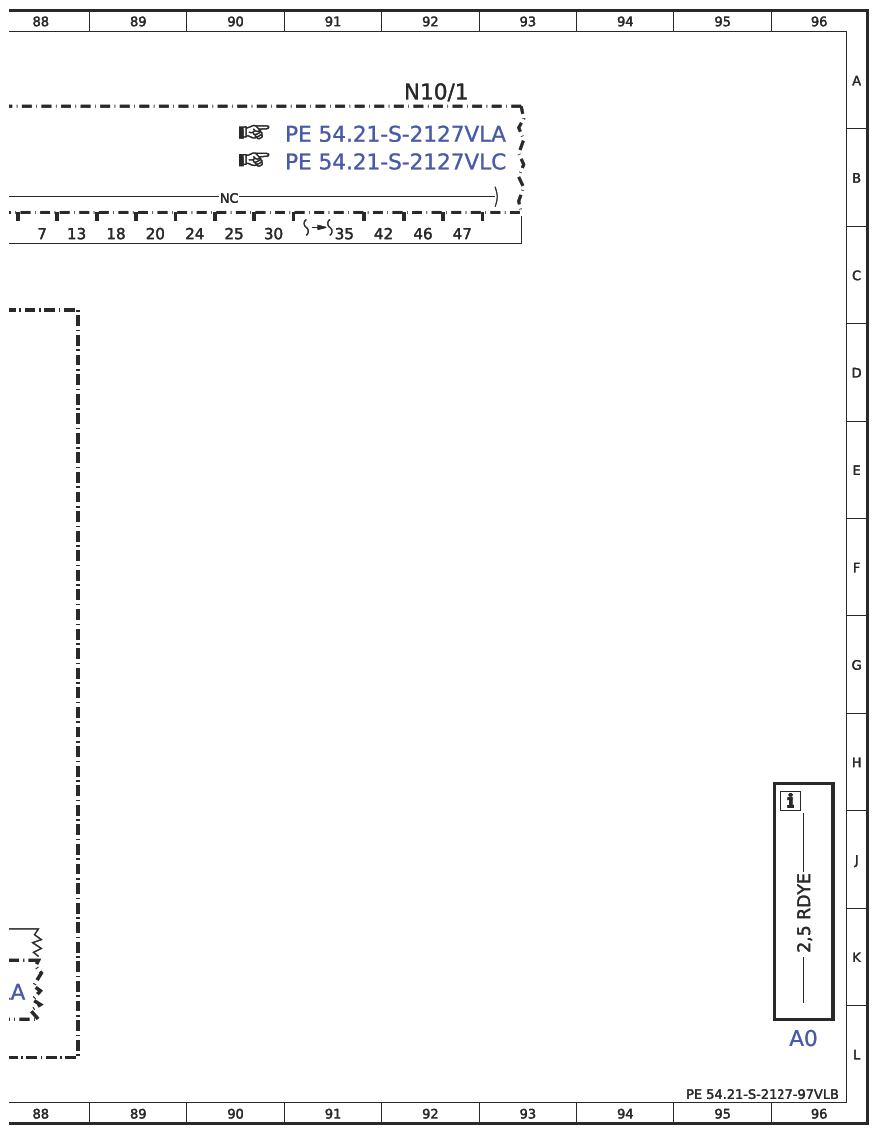

| AO | Color Code key | 96L |
| B14 | Outside temperature sensor | 54L |
| Code ES3 | 12V sockets for right and left rear seat rows | 85D |
| Code FZ5 | ATA I, anti-theft alarm system | 59D |
| Code L16 | Halogen front fog lamps | 17D |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 19D |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 37A |
| Code W65 | Liftgate | 29D |
| Code W65 | Liftgate | 46A |

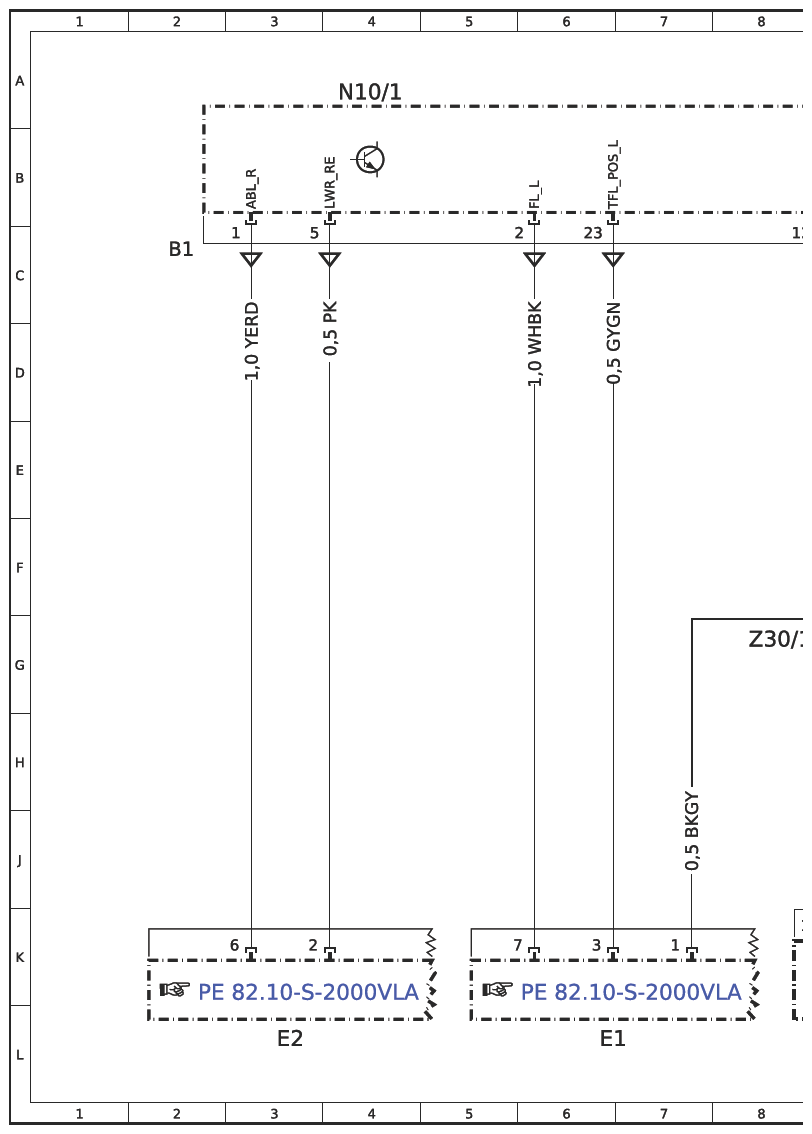

| E1 | Left front lamp unit | 6L |

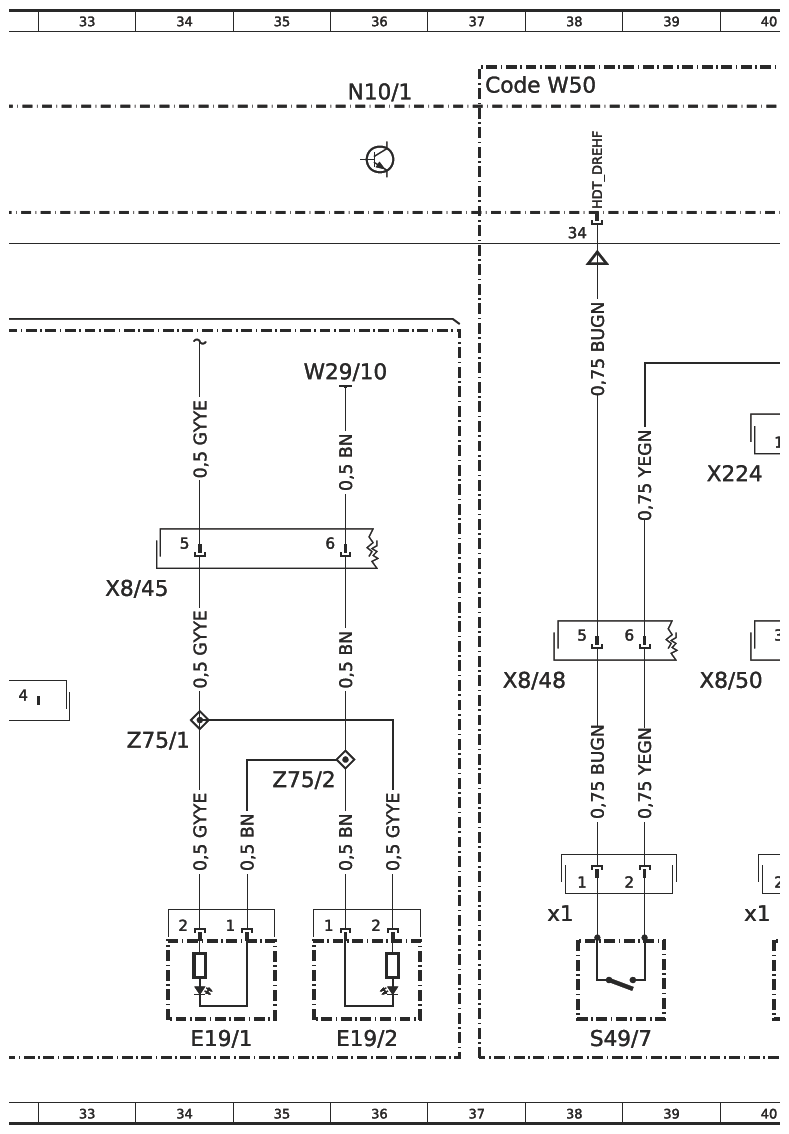

| E19/1 | Left license plate lamp | 34L |
| E19/2 | Right license plate lamp | 36L |

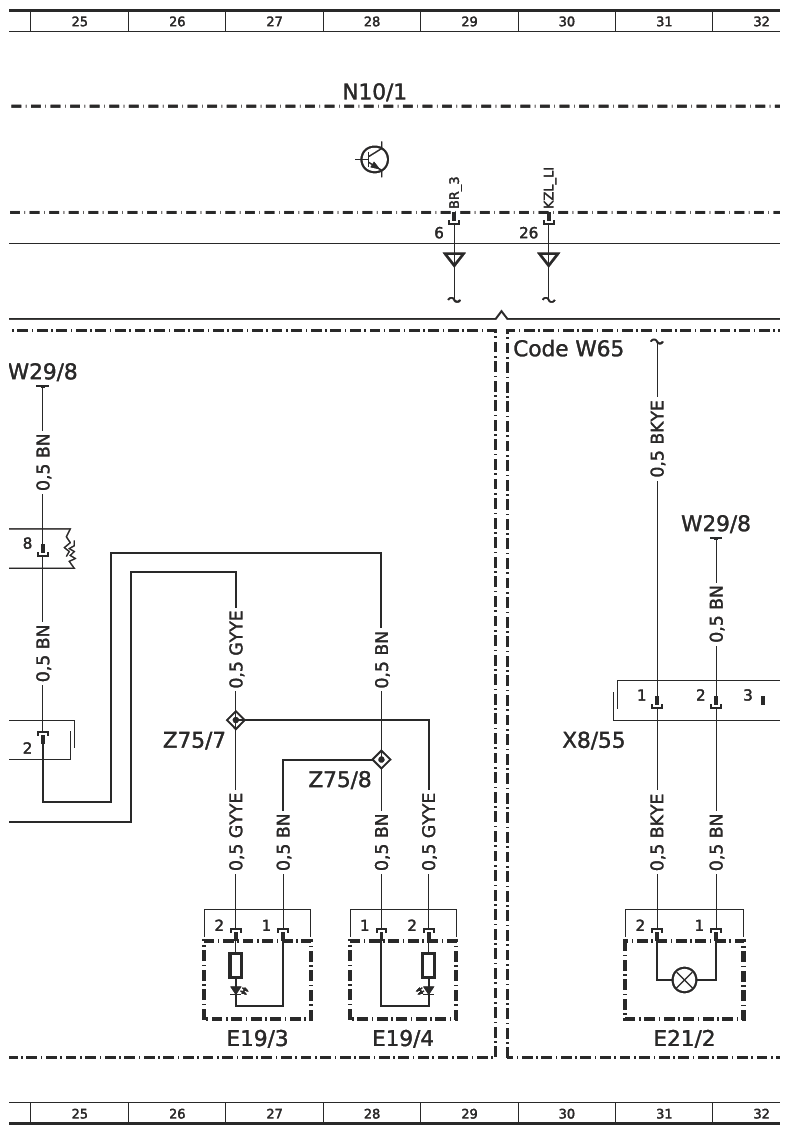

| E19/3 | Left rear-end door license plate lamp | 27L |
| E19/4 | Right rear-end door license plate lamp | 28L |
| E2 | Right front lamp unit | 3L |
| E21/1 | Rear-end door third brake light | 21L |
| E21/2 | Liftgate third brake light | 31L |

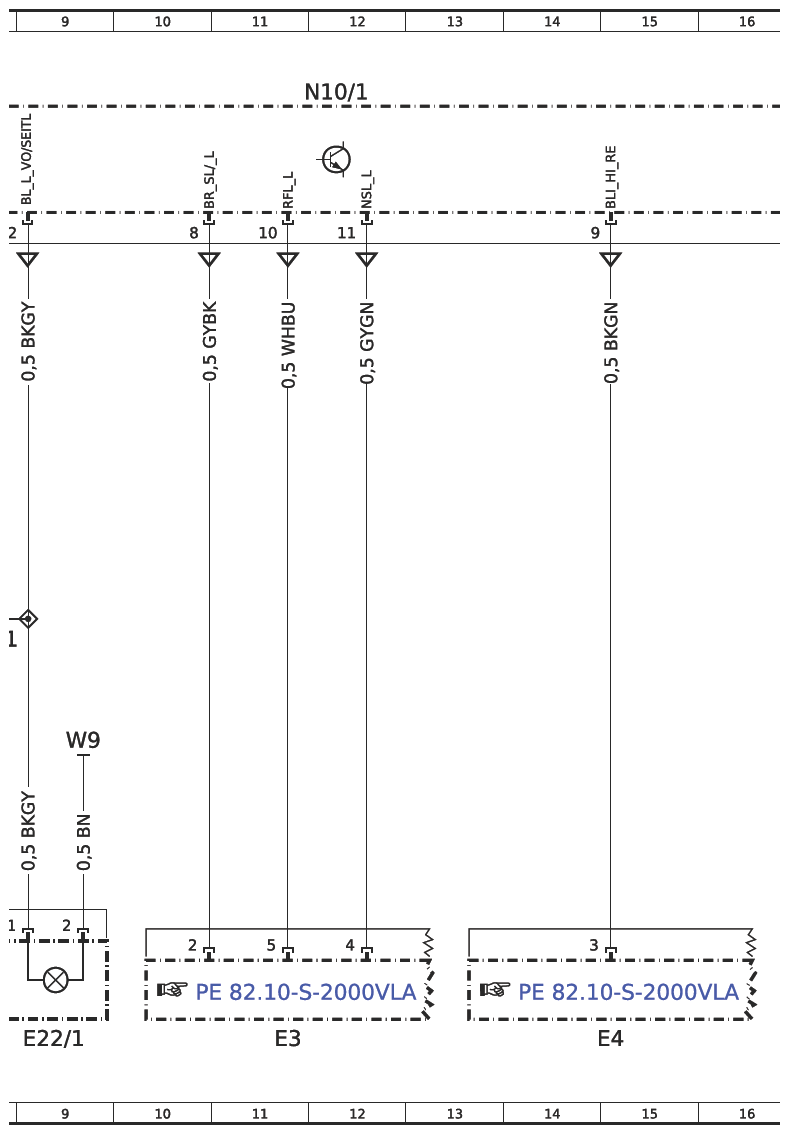

| E22/1 | Left additional turn signal lamp | 9L |
| E3 | Left rear lamp unit | 11L |
| E4 | Right rear lamp unit | 15L |

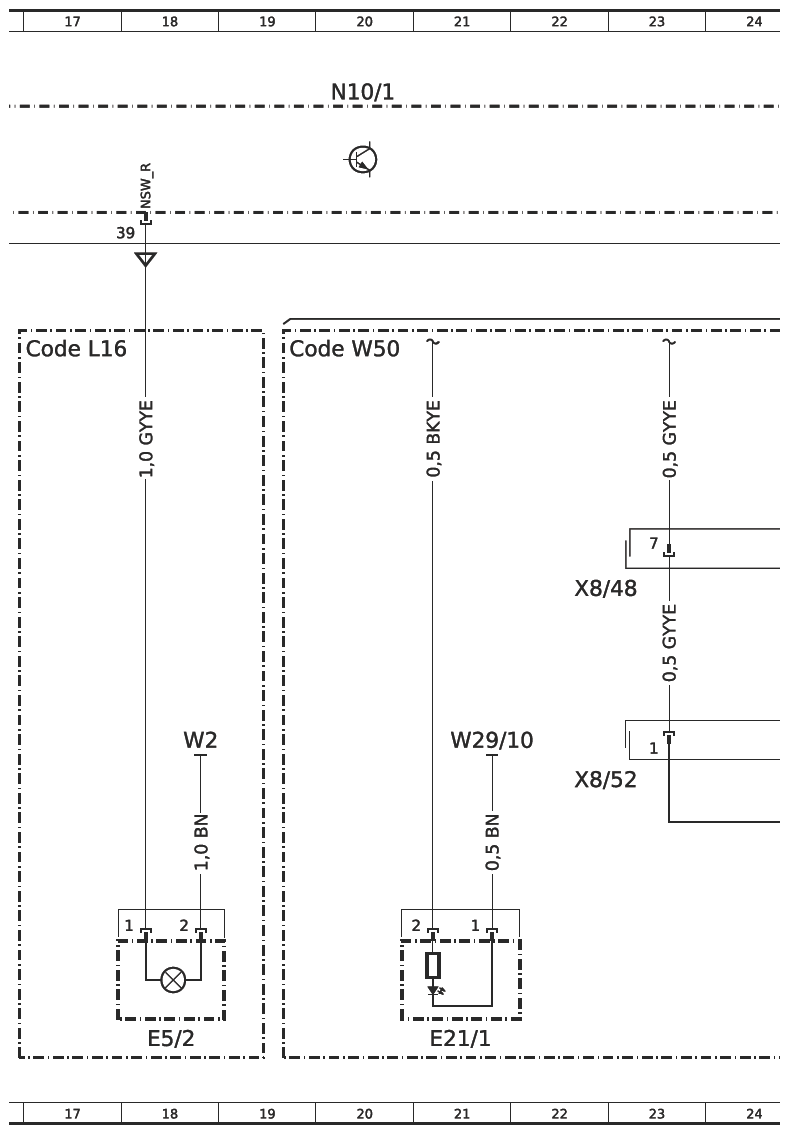

| E5/2 | Right fog lamp | 18L |
| K127 | Rear passenger compartment socket relay | 86L |
| K40/10 | Engine compartment fuse and relay module | 70L |

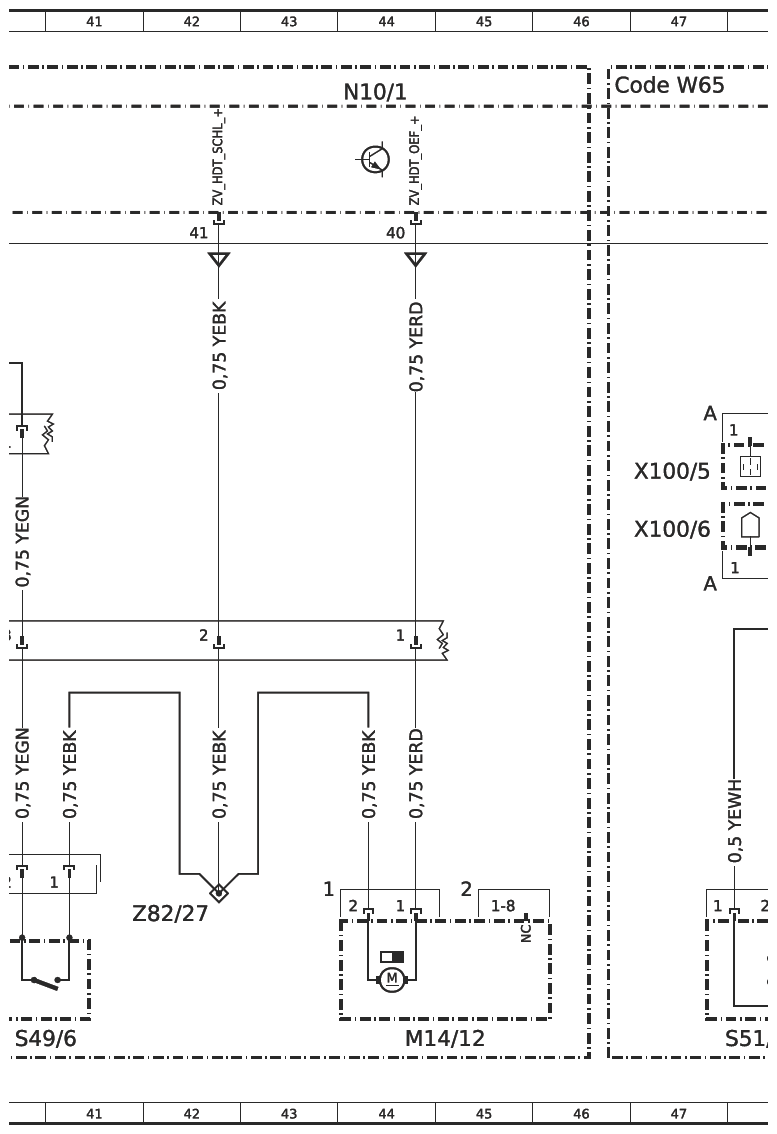

| M14/12 | Rear-end door operation central locking motor | 44L |

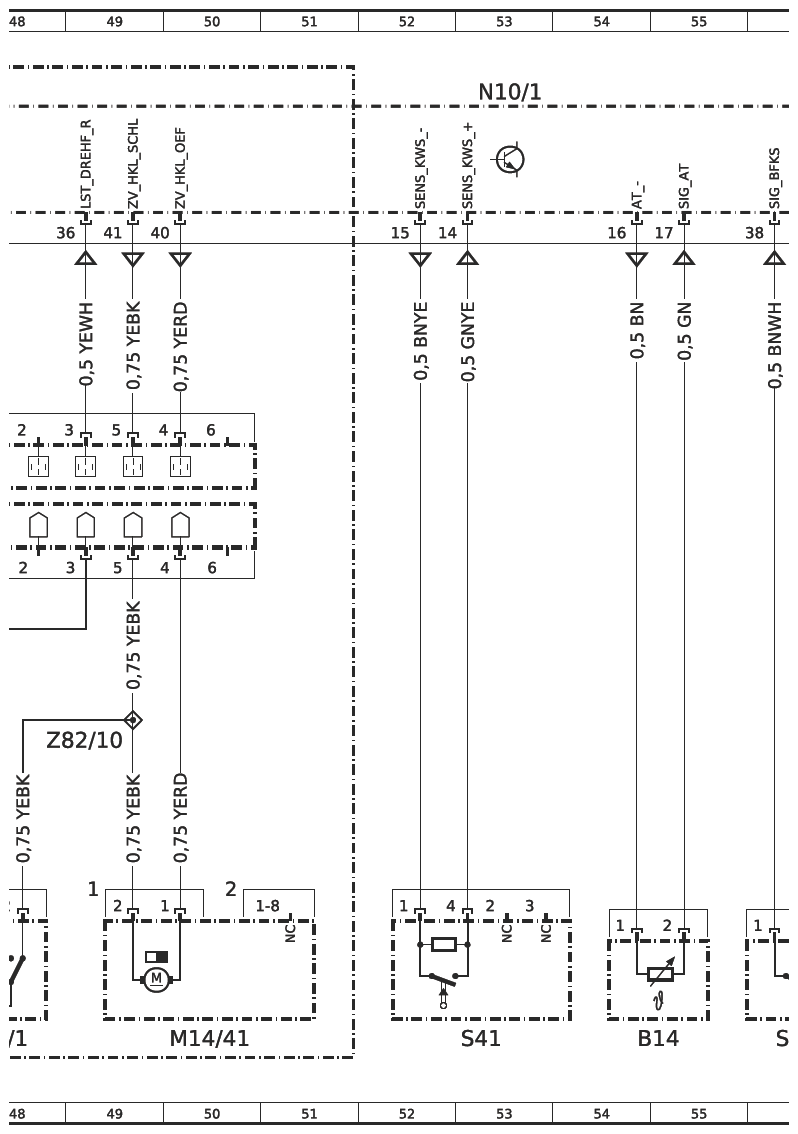

| M14/41 | Right manual sliding door central locking actuator | 50L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 92A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 20A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 28A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 36A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 44A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 53A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 60A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 68A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 76A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 84A |

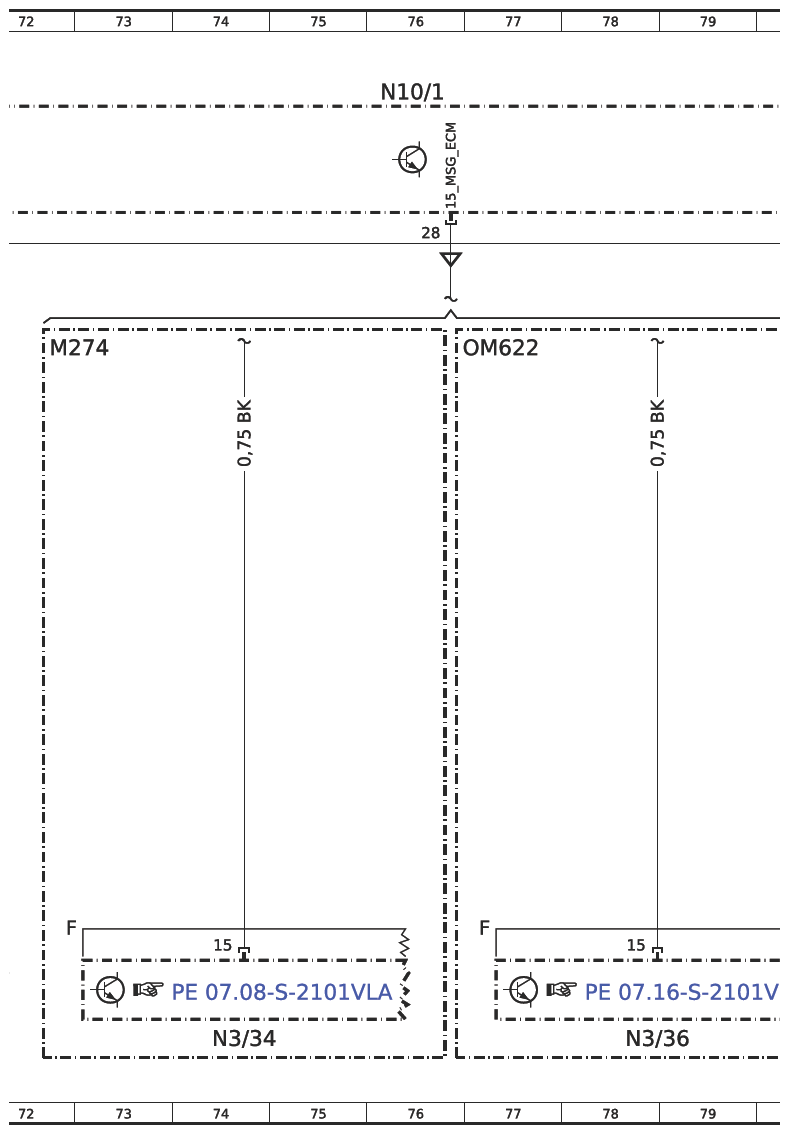

| N3/34 | ME-SFI [ME] control unit | 74L |
| N3/36 | CDI control unit | 78L |

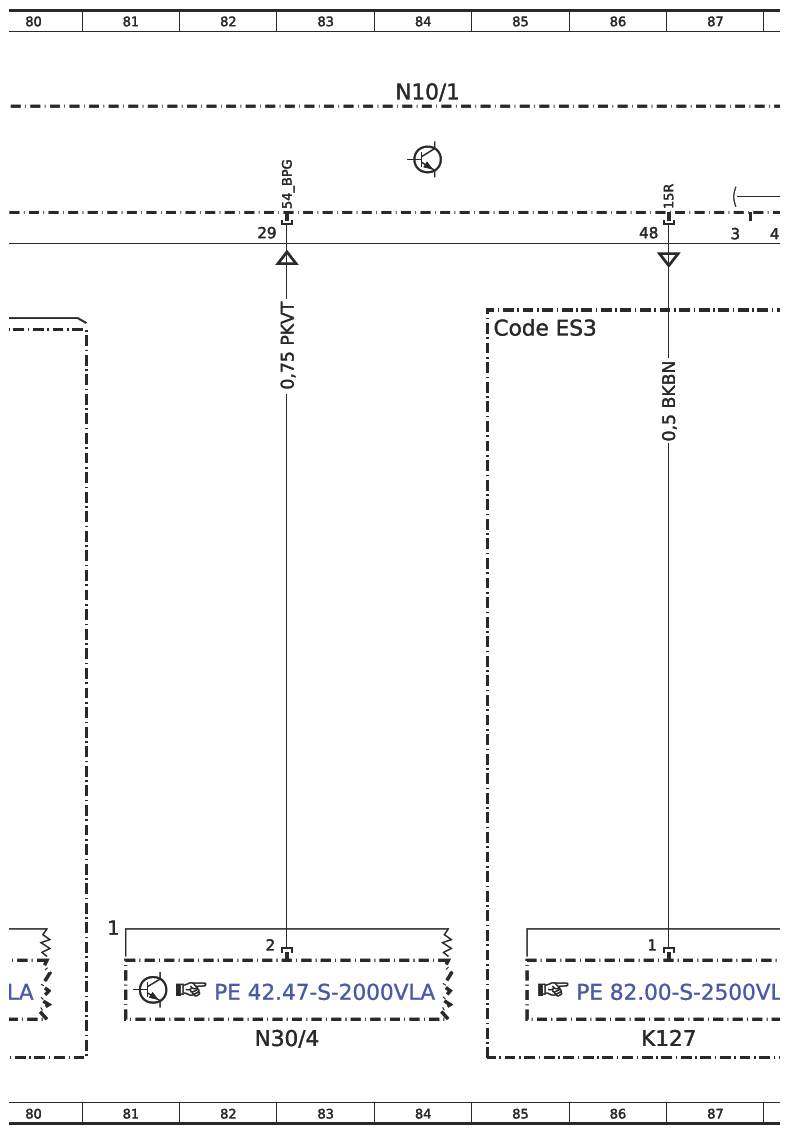

| N30/4 | Electronic Stability Program (ESP) control unit | 82L |

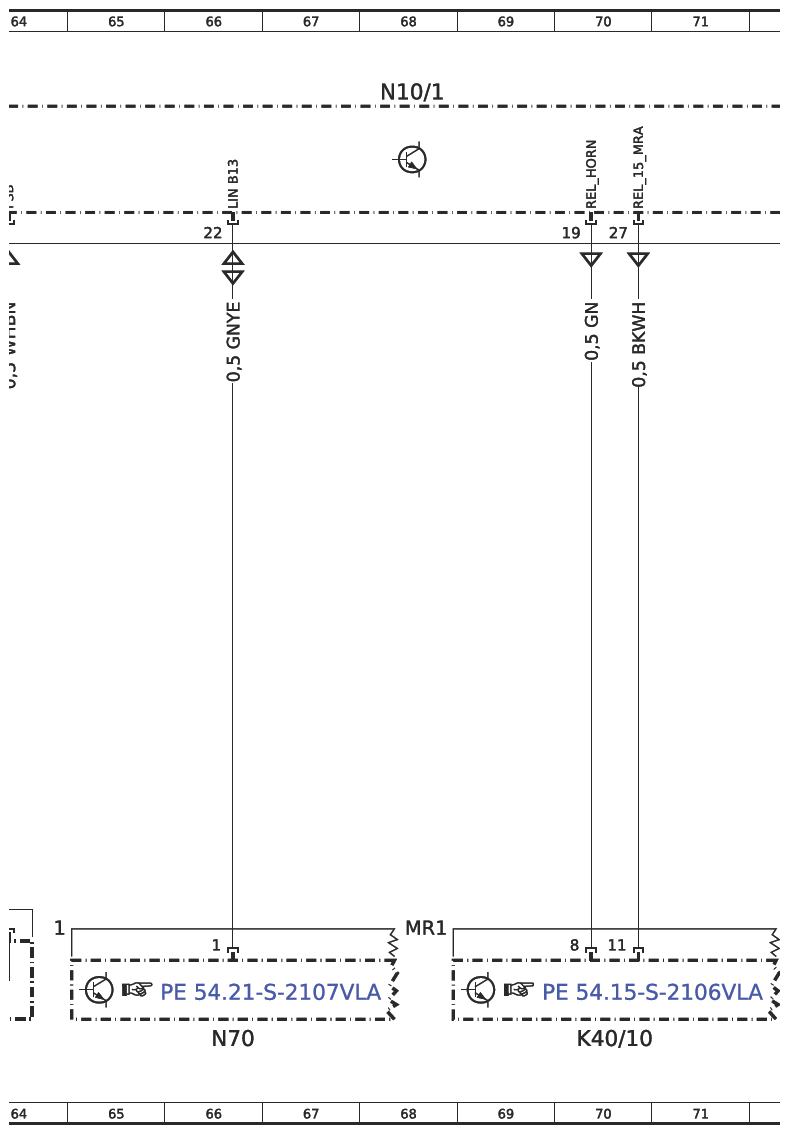

| N70 | Overhead control panel (OCP [DBE]) control unit | 66L |

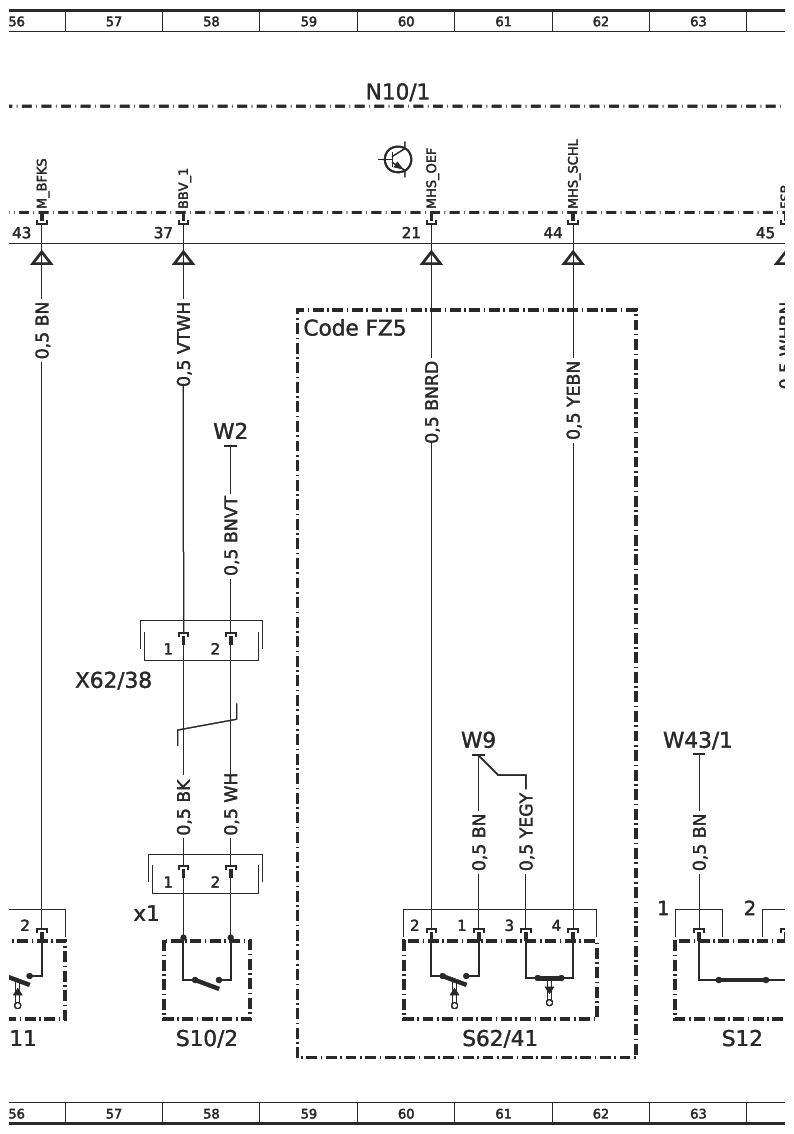

| S10/2 | Right front brake wear sensor | 58L |
| S11 | Brake fluid level switch | 56L |
| S12 | Parking brake indicator switch | 63L |
| S41 | Coolant level indicator switch | 53L |
| S49/6 | Right rear-end door rotary tumbler switch | 40L |
| S49/7 | Left rear-end door rotary tumbler switch | 38L |
| S51/1 | Right manual sliding door central locking main lock switch | 48L |
| S62/41 | Engine hood switch | 61L |
| W2 | Right front lamp unit ground point | 58E |
| W2 | Right front lamp unit ground point | 18H |
| W29/10 | Right D-pillar ground point | 21H |
| W29/10 | Right D-pillar ground point | 35D |
| W29/8 | Left D-pillar ground point | 31F |
| W29/8 | Left D-pillar ground point | 24D |
| W43/1 | Left vehicle interior firewall ground point | 63H |
| W9 | Left front lamp unit ground point | 61H |
| W9 | Left front lamp unit ground point | 9H |
| X100/5 | Right sliding door contact plate separation point | 47E |
| X100/6 | Right sliding door pin contact separation point | 47F |
| X224 | Right/left rear-end door electrical connector | 40E |
| X62/38 | Front axle service brake valve electrical connector, right | 57G |
| X8/45 | Right liftgate electrical connector 1 | 34F |
| X8/48 | Electric sliding door INR/rear-end door electrical connector | 23F |
| X8/48 | Electric sliding door INR/rear-end door electrical connector | 38G |
| X8/50 | Right rear-end door electrical connector | 40G |
| X8/52 | 23H | |
| X8/55 | Left liftgate electrical connector 2 | 30H |
| Z30/1 | Left turn signal lamp connector sleeve | 8G |
| Z75/1 | License plate lamp connector sleeve | 34H |
| Z75/2 | License plate lamp connector sleeve | 35H |
| Z75/7 | 26H | |
| Z75/8 | 28H | |
| Z82/10 | Right close sliding door central locking connector sleeve | 49H |
| Z82/27 | Rear-end door central locking connector sleeve | 42K |
