(Wiring Diagram For Overhead Control Panel (OCP) Control Unit - PE54.21-S-2107-97VMA)
Model 447.6/7 with Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) N70
Model 447.6 with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) N70
Model 447.7 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) N70
Model 447.7 with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) N70
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 144L |

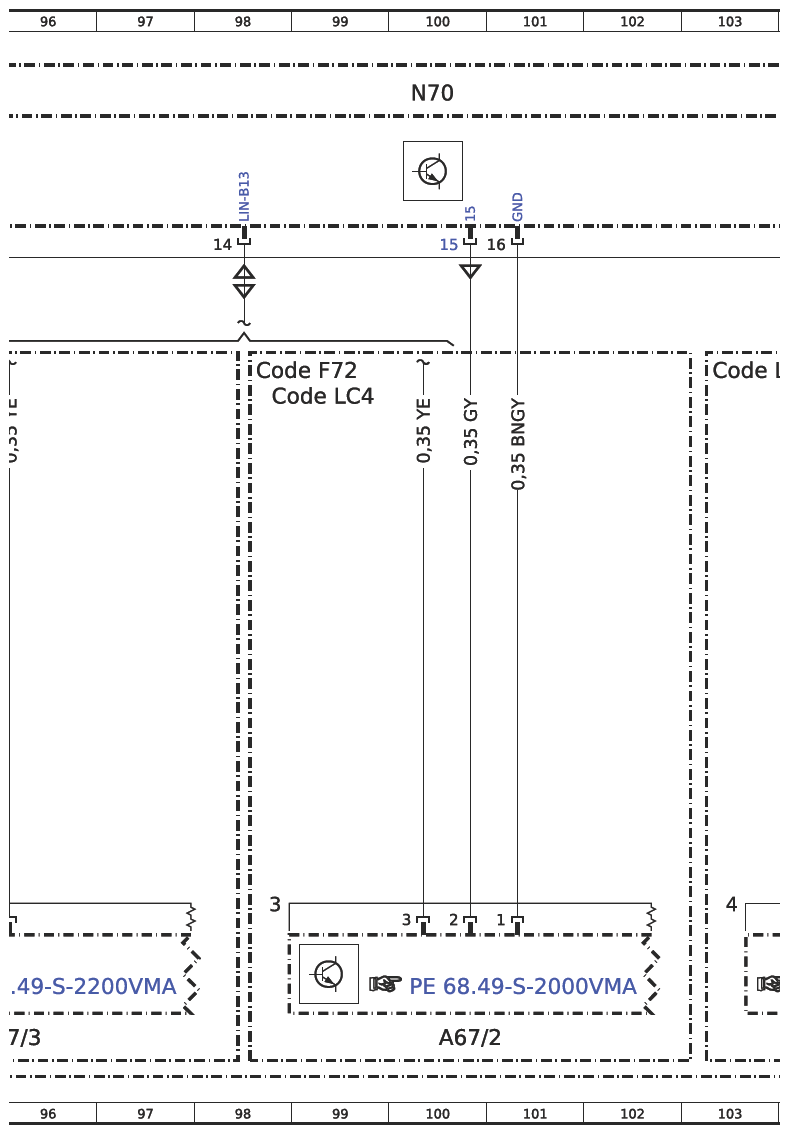

| A67/2 | Automatically dimming inside rearview mirror/mirror taximeter | 60L |
| A67/2 | Automatically dimming inside rearview mirror/mirror taximeter | 100L |
| A67/3 | Digital inside rearview mirror | 56L |
| A67/3 | Digital inside rearview mirror | 95L |
| B38/1 | Light sensor | 11L |
| B38/2 | Humidity sensor/light sensor/rain sensor | 11L |
| B38/5 | Rain/light sensor with additional functions | 11L |

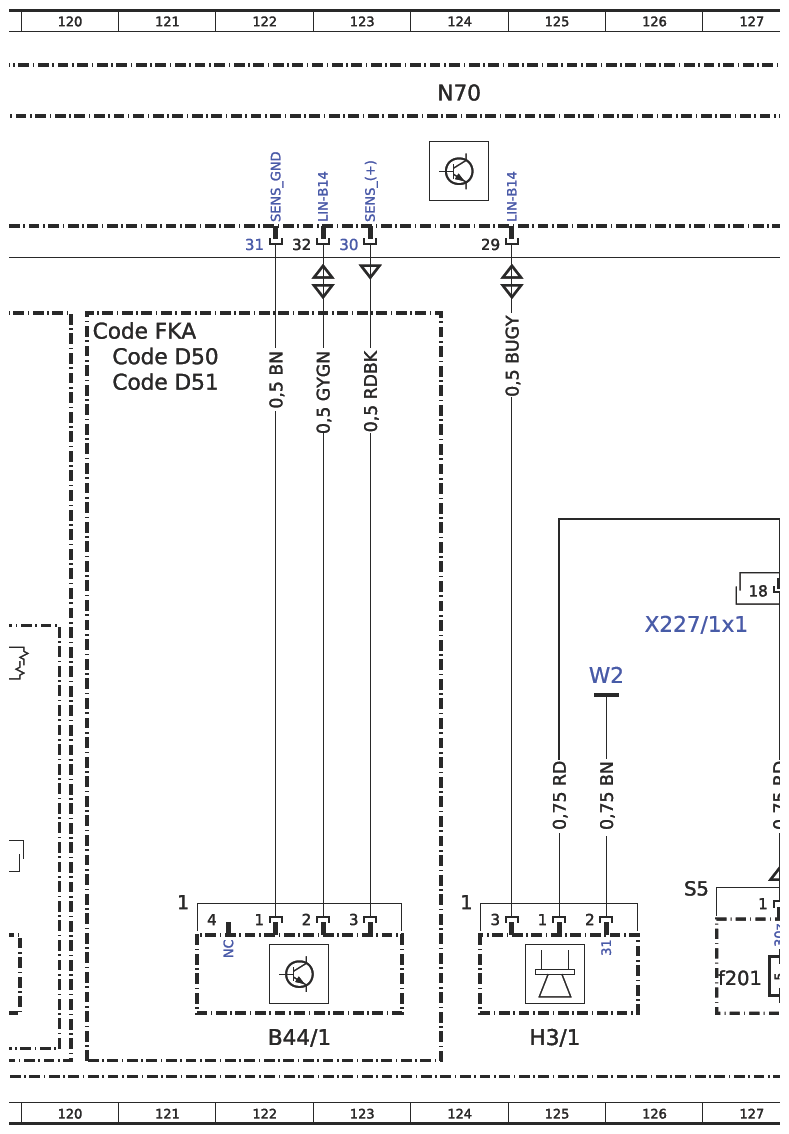

| B44/1 | Interior protection sensor | 122L |
| CAN B | Interior CAN | 105K |
| CAN B | Interior CAN | 133K |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 131D |
| Code D50 | Full-width partition wall | 120D |
| Code D51 | Full-width partition wall with 1 window | 120D |
| Code D57 | Full-width partition wall at C-pillar with window | 23D |
| Code D57 | Full-width partition wall at C-pillar with window | 27D |
| Code F72 | Automatically dimming outside mirror and inside rearview mirror | 98D |
| Code F72 | Automatically dimming outside mirror and inside rearview mirror | 58D |
| Code F84 | Digital inside rearview mirror | 54D |
| Code F84 | Digital inside rearview mirror | 93D |
| Code FKA | Panel van | 46G |
| Code FKA | Panel van | 13A |
| Code FKA | Panel van | 17A |
| Code FKA | Panel van | 68G |
| Code FKA | Panel van | 107G |
| Code FKA | Panel van | 120D |
| Code FKB | Vito Mixto and Tourer | 47G |
| Code FKB | Vito Mixto and Tourer | 48D |
| Code FKB | Vito Mixto and Tourer | 23A |
| Code FKB | Vito Mixto and Tourer | 76G |
| Code FKB | Vito Mixto and Tourer | 131D |
| Code FKB | Vito Mixto and Tourer | 115G |
| Code FS5 | Illuminated mirrors for sun visors | 68D |
| Code FS5 | Illuminated mirrors for sun visors | 107D |
| Code FY1 | Theft protection package | 54A |
| Code FY1 | Theft protection package | 81A |
| Code FY1 | Theft protection package | 138A |
| Code FY1 | Theft protection package | 42A |
| Code HH4 | THERMOTRONIC automatic air conditioning | 10B |
| Code JFI | Rain sensor | 10A |
| Code LA2 | Auto on/off driving lights | 10A |
| Code LC2 | LED light strip in load compartment | 43D |
| Code LC3 | Illumination in rear grab handle | 89D |
| Code LC4 | Comfort overhead control panel | 58E |
| Code LC4 | Comfort overhead control panel | 68D |
| Code LC4 | Comfort overhead control panel | 63D |
| Code LC4 | Comfort overhead control panel | 103D |
| Code LC4 | Comfort overhead control panel | 107D |
| Code LC4 | Comfort overhead control panel | 98D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 89D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 81D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 138A |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 41A |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 63D |
| Code LC8 | Liftgate ambient illumination | 51G |
| Code LC8 | Liftgate ambient illumination | 53G |
| Code LC8 | Liftgate ambient illumination | 14A |
| Code LC8 | Liftgate ambient illumination | 17A |
| Code LC8 | Liftgate ambient illumination | 38E |
| Code LDO | Overhead control panel with 2 reading spotlamps | 58D |
| Code LDO | Overhead control panel with 2 reading spotlamps | 68D |
| Code LP1 | Panel van interior and ambient illumination | 68D |
| Code LP1 | Panel van interior and ambient illumination | 107D |
| Code LP2 | Crewbus interior and surround lighting | 107D |
| Code LP2 | Crewbus interior and surround lighting | 68E |
| Code M7E | Electric motor 150 kW/battery 60 kWh (usable) | 10B |
| Code ME4 | Electric motor 145 kW | 10B |
| Code V36 | Headliner | 48D |
| Code V36 | Headliner | 33G |
| Code VD2 | Standard headliner, B-D pillar | 26G |

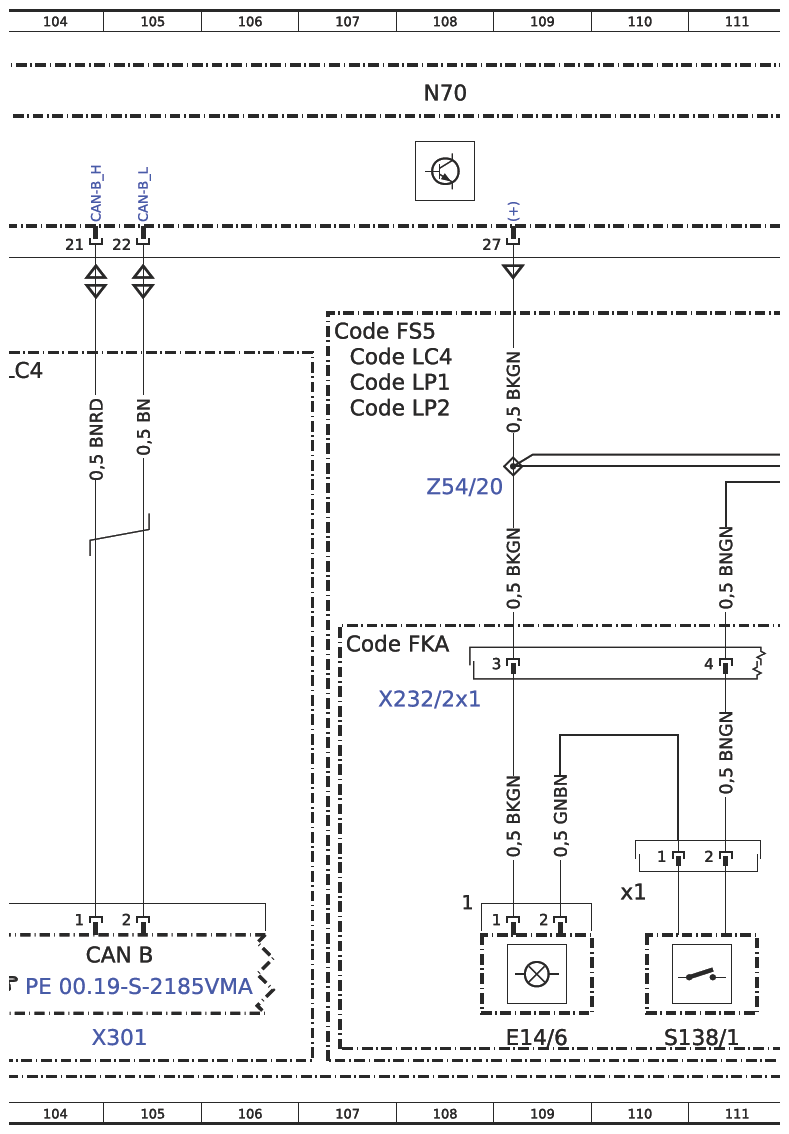

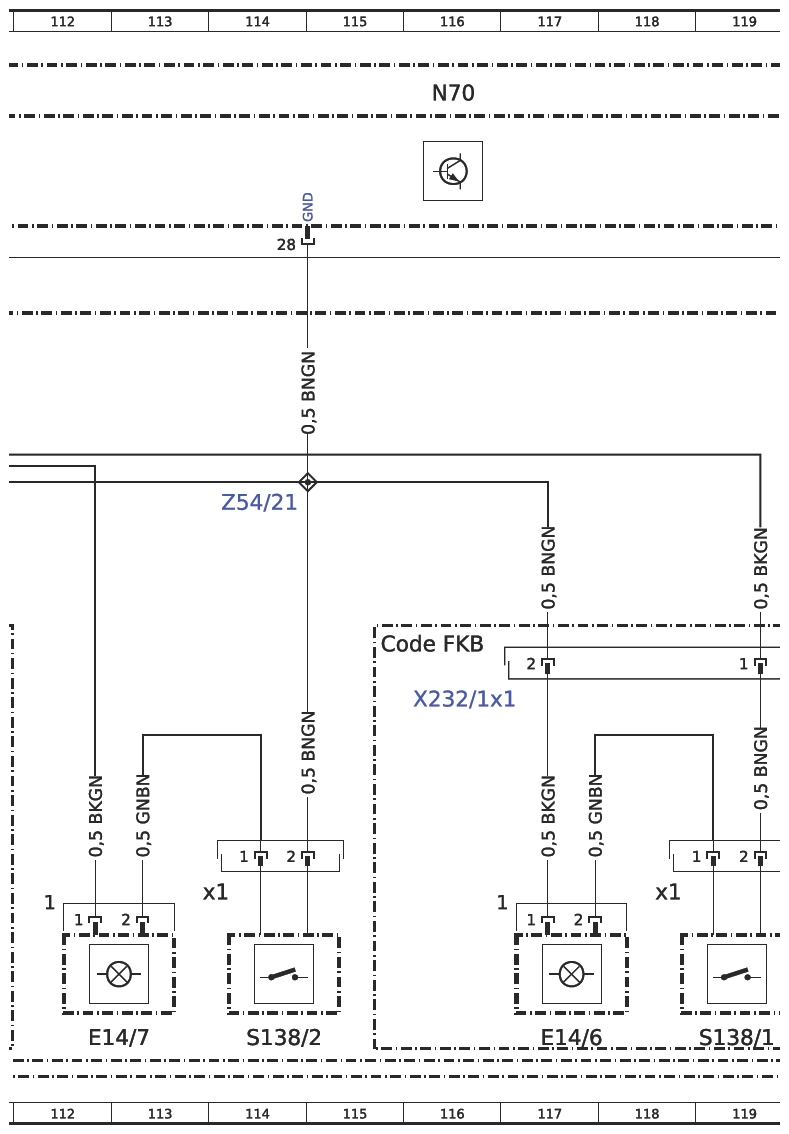

| E14/6 | Left front vanity mirror illumination | 70L |
| E14/6 | Left front vanity mirror illumination | 109L |
| E14/6 | Left front vanity mirror illumination | 78L |
| E14/6 | Left front vanity mirror illumination | 117L |
| E14/7 | Right front vanity mirror illumination | 73L |
| E14/7 | Right front vanity mirror illumination | 112L |

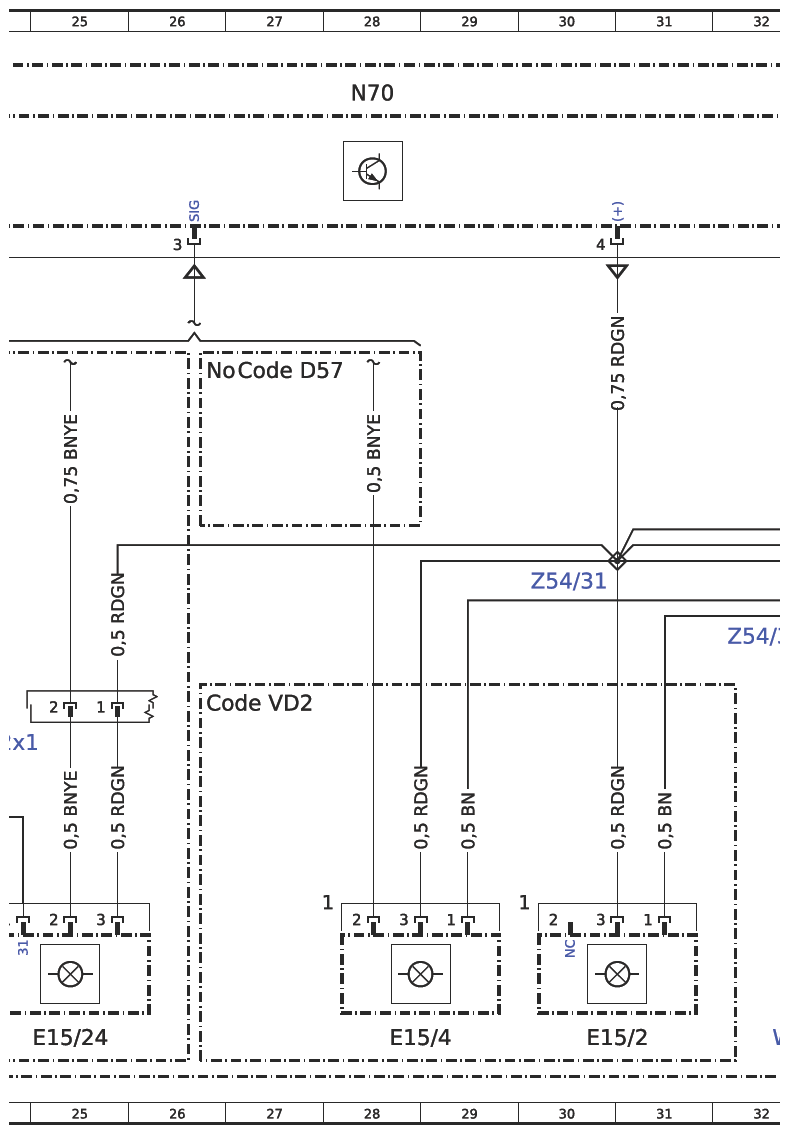

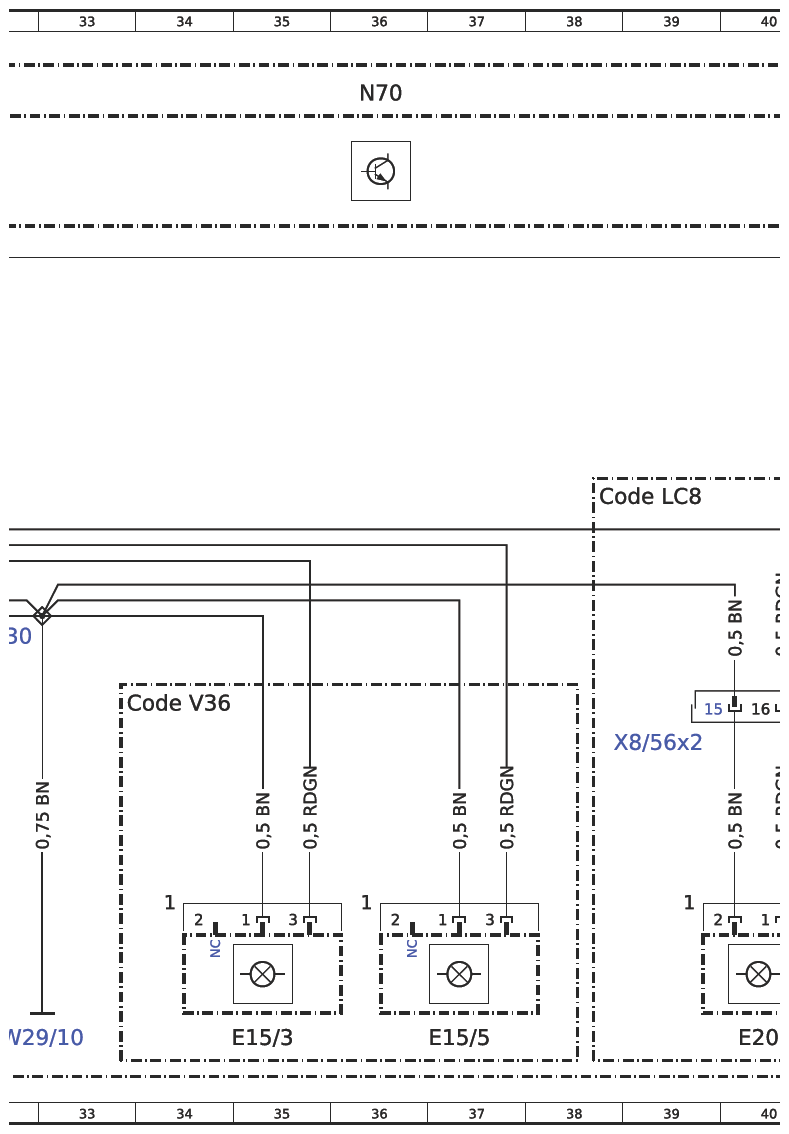

| E15/2 | Dome lamp, front of rear | 30L |
| E15/24 | Left rear load compartment lamp | 15L |
| E15/24 | Left rear load compartment lamp | 25L |
| E15/24 | Left rear load compartment lamp | 19L |
| E15/3 | Dome lamp, front of rear | 35L |
| E15/4 | Dome lamp, rear of rear | 28L |
| E15/5 | Dome lamp, rear of rear | 37L |

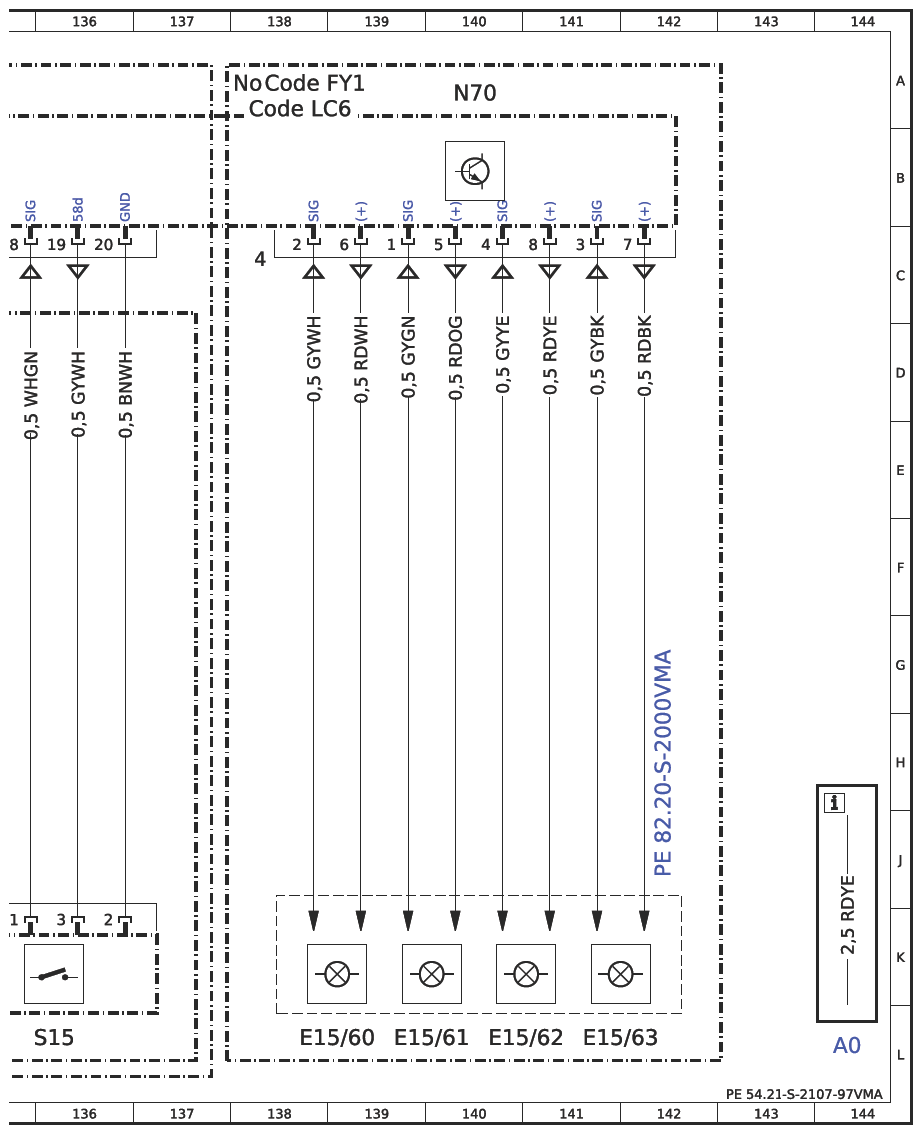

| E15/60 | Left front grab handle ambiance illumination | 83L |
| E15/60 | Left front grab handle ambiance illumination | 138L |
| E15/61 | Right front grab handle ambiance illumination | 84L |
| E15/61 | Right front grab handle ambiance illumination | 139L |
| E15/62 | Left rear grab handle ambiance illumination | 85L |
| E15/62 | Left rear grab handle ambiance illumination | 140L |
| E15/63 | Right rear grab handle ambiance illumination | 86L |
| E15/63 | Right rear grab handle ambiance illumination | 141L |
| E18/1 | Center trunk lamp | 50L |
| E20 | Liftgate ambient illumination | 40L |
| E20 | Liftgate ambient illumination | 21L |
| E27 | Load compartment work lamp LED light strip | 45L |
| H3/1 | Alarm siren with additional battery | 125L |
| K40/10 | Engine compartment fuse and relay module | 128L |
| K40/10f201 | Fuse 201 | 127K |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11fl01 | Fuse 101 | 2K |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 8L |

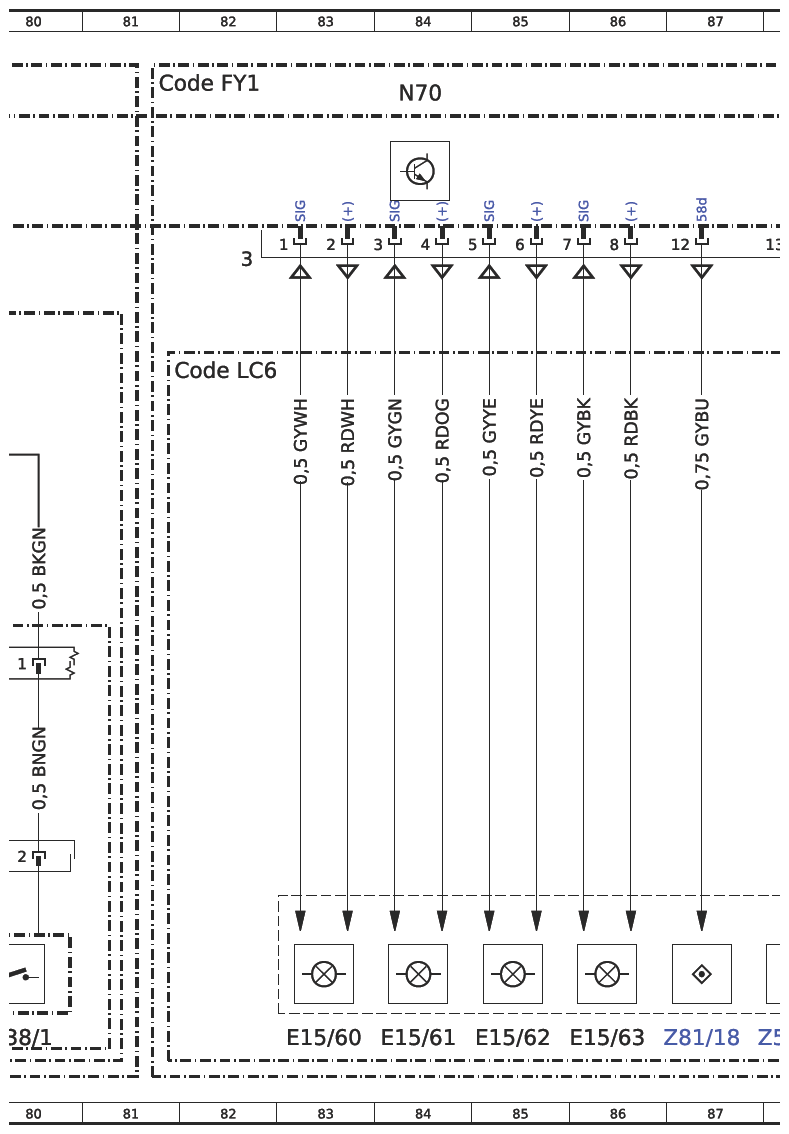

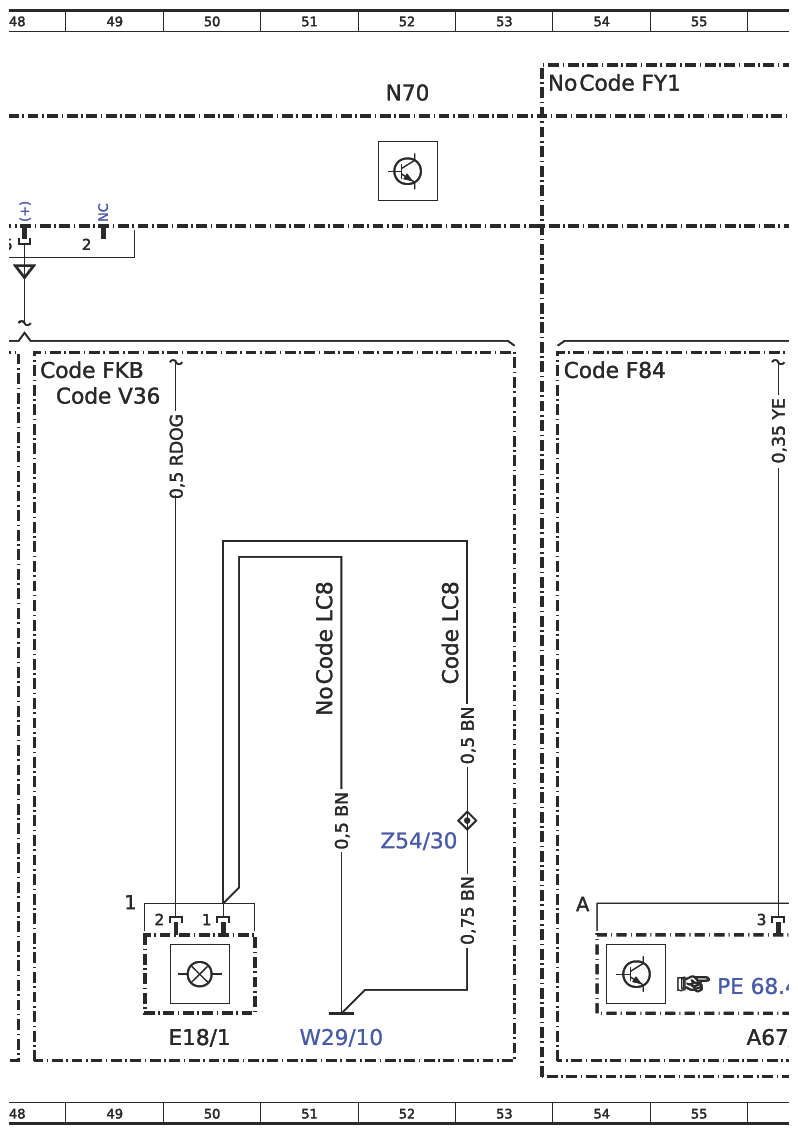

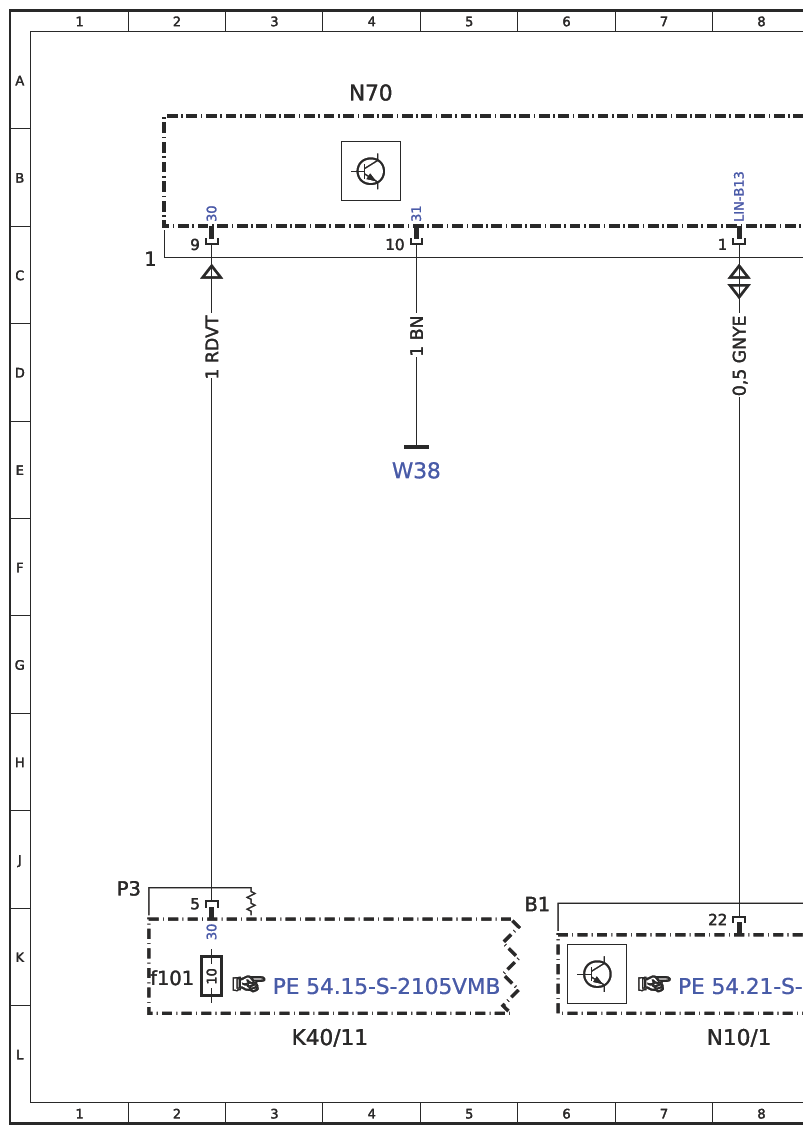

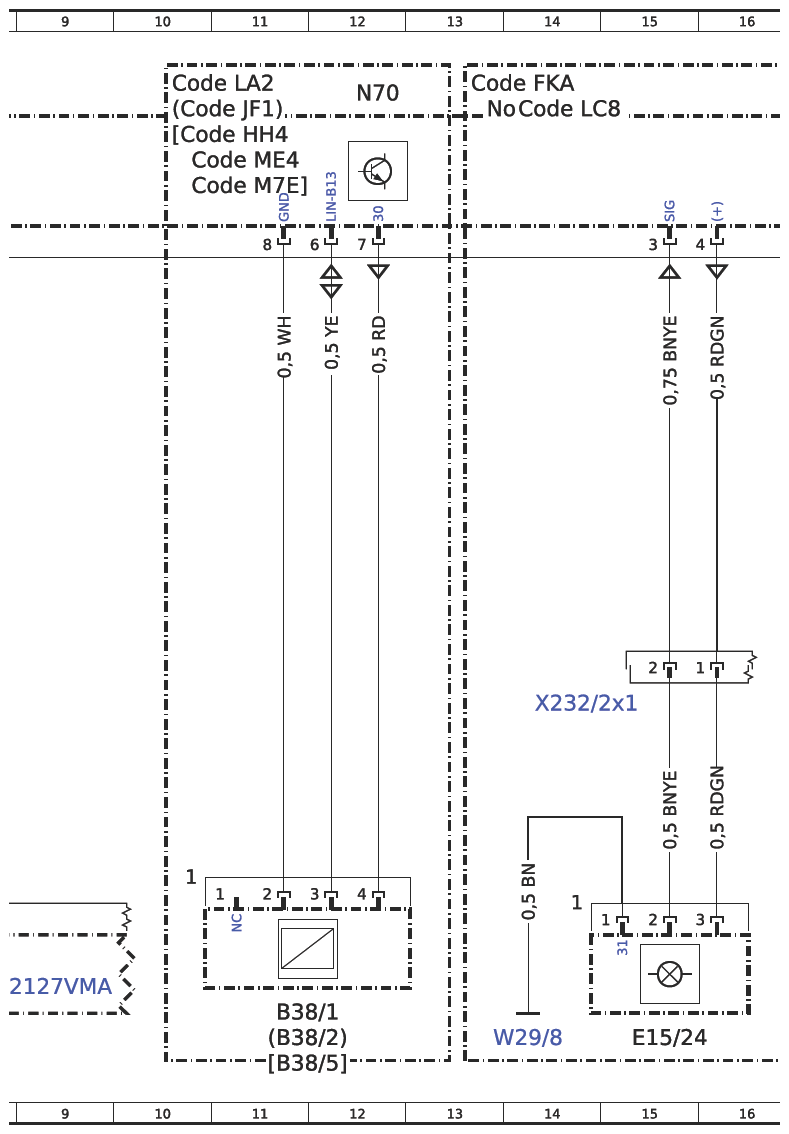

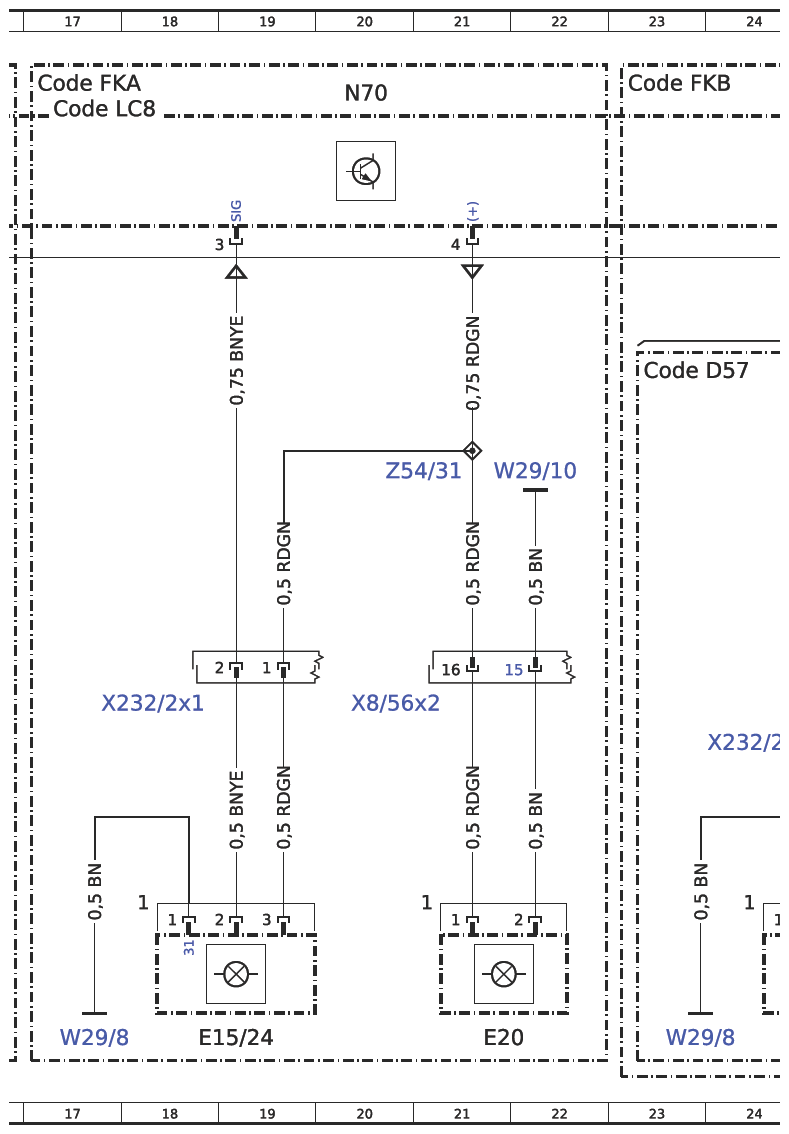

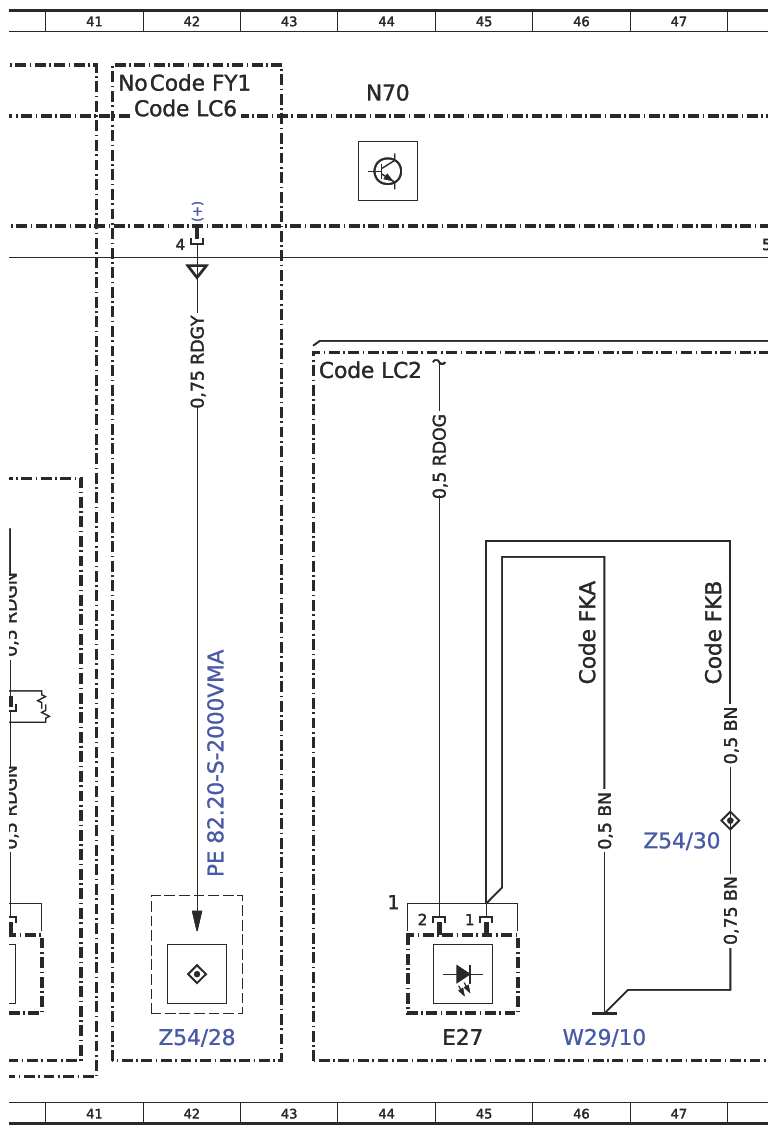

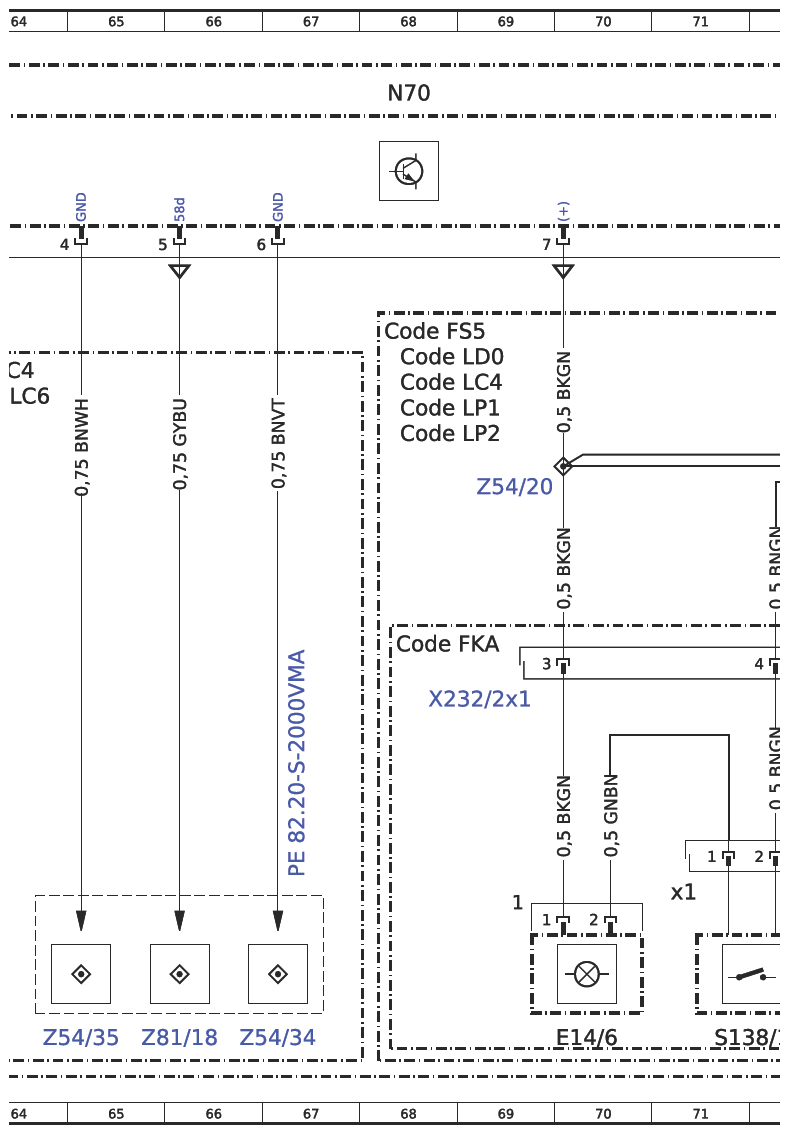

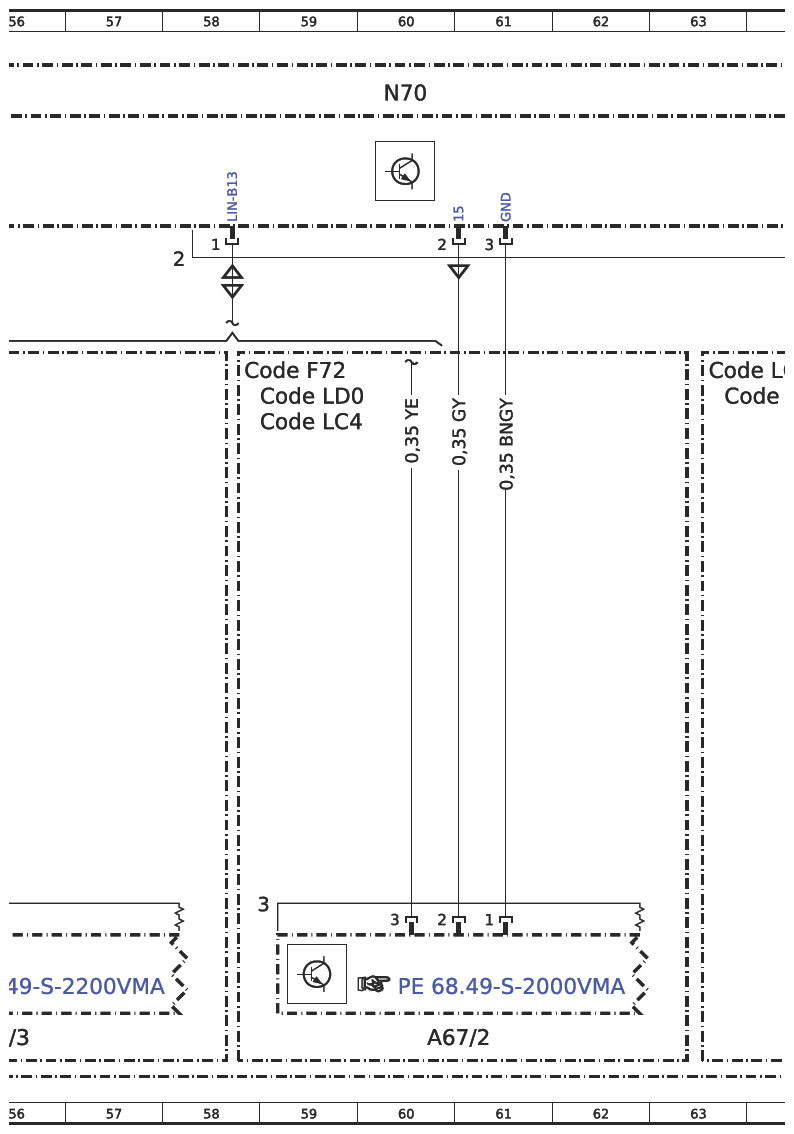

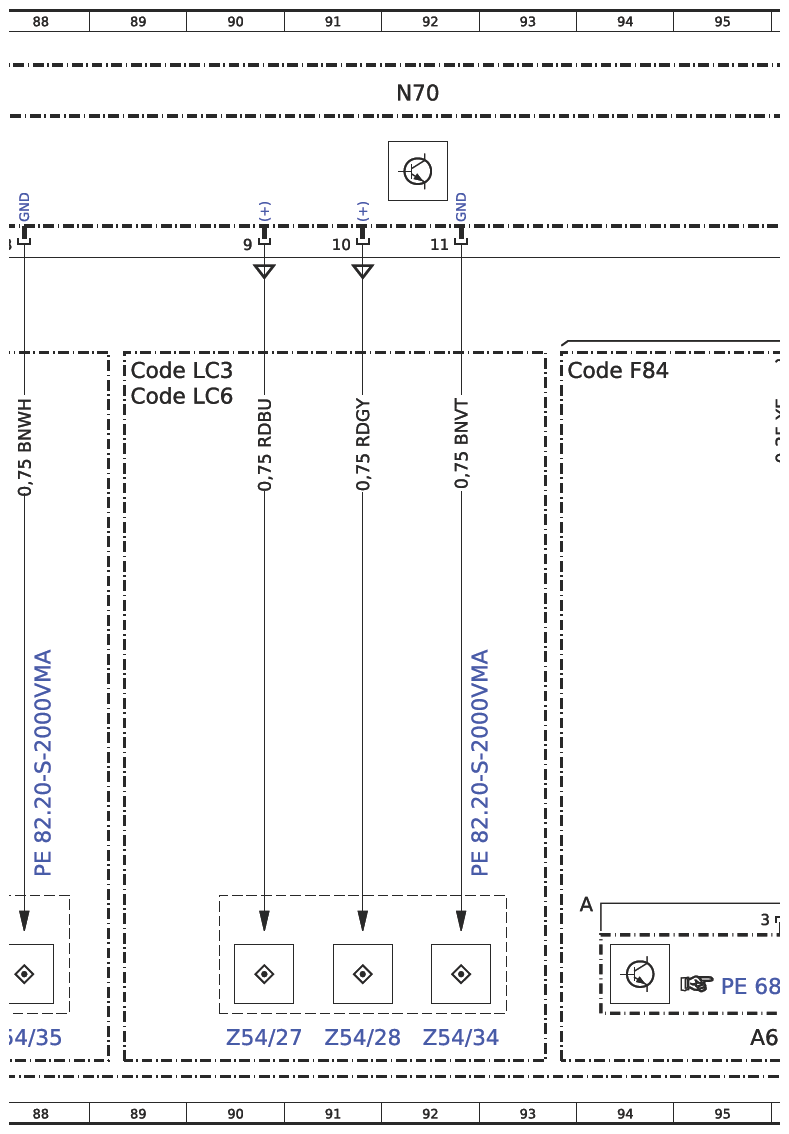

| N70 | Overhead control panel (OCP [DBE]) control unit | 4A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 12A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 20A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 28A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 36A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 44A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 52A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 60A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 68A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 84A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 108A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 124A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 132A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 76A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 116A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 92A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 100A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 140A |

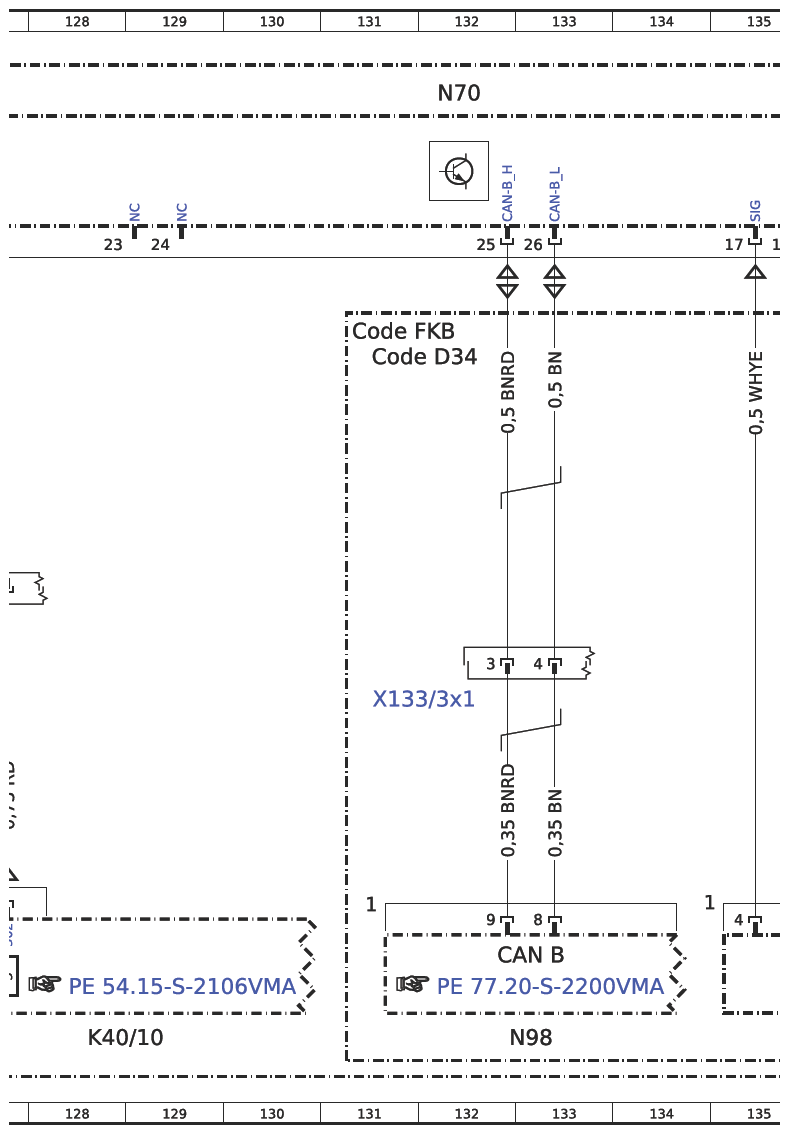

| N98 | Panoramic sliding sunroof (PSD) control unit | 133L |
| S138/1 | Left sun visor illumination switch | 71L |
| S138/1 | Left sun visor illumination switch | 110L |
| S138/1 | Left sun visor illumination switch | 80L |
| S138/1 | Left sun visor illumination switch | 119L |
| S138/2 | Right sun visor illumination switch | 75L |
| S138/2 | Right sun visor illumination switch | 114L |
| S15 | Panoramic sliding sunroof roller sun blind switch | 136L |
| W2 | Right front lamp unit ground point | 125G |
| W29/10 | Right D-pillar ground point | 46L |
| W29/10 | Right D-pillar ground point | 51L |
| W29/10 | Right D-pillar ground point | 22E |
| W29/10 | Right D-pillar ground point | 32L |
| W29/8 | Left D-pillar ground point | 17L |
| W29/8 | Left D-pillar ground point | 14L |
| W29/8 | Left D-pillar ground point | 23L |
| W38 | Roof frame ground point 1 | 4E |
| X133/3x1 | Panoramic sliding roof electrical connector | 132G |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 127G |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 77G |
| X232/1 x1 | Main wiring harness/roof main wiring harness electrical connector | 116G |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 14G |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 24H |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 18G |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 69G |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 108G |
| X301 | Interior CAN (CAN B) potential distributor electrical connector | 105L |
| X8/56x2 | Right liftgate electrical connector 2 | 39H |
| X8/56x2 | Right liftgate electrical connector 2 | 20G |

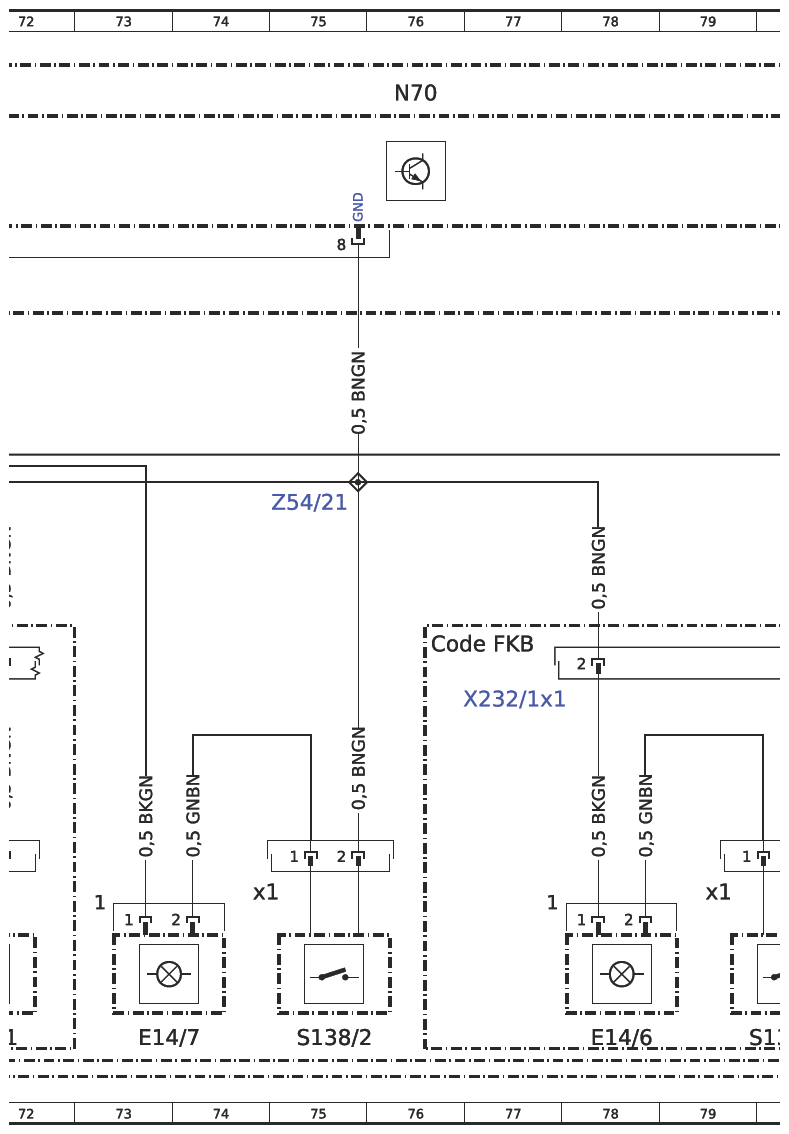

| Z54/20 | Vanity mirror supply connector sleeve | 69E |
| Z54/20 | Vanity mirror supply connector sleeve | 108E |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 75E |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 114E |
| Z54/27 | Left grab handle lamps supply connector sleeve | 90L |
| Z54/28 | Right grab handle lamps supply connector sleeve | 91L |
| Z54/28 | Right grab handle lamps supply connector sleeve | 42L |
| Z54/30 | Roof interior lighting circuit 31 end sleeve | 47J |
| Z54/30 | Roof interior lighting circuit 31 end sleeve | 52J |
| Z54/30 | Roof interior lighting circuit 31 end sleeve | 32G |
| Z54/31 | Roof interior lighting power supply end sleeve | 21E |
| Z54/31 | Roof interior lighting power supply end sleeve | 30F |
| Z54/34 | Right grab handle/interior lamps ground connection end sleeve | 66L |
| Z54/34 | Right grab handle/interior lamps ground connection end sleeve | 92L |
| Z54/35 | Switch and controls illumination right grab handle lamps ground connection end sleeve | 64L |
| Z54/35 | Switch and controls illumination right grab handle lamps ground connection end sleeve | 88L |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 65L |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 87L |
