(Wiring Diagram For Passenger-Side Fuse And Relay Module - PE54.15-S-2105-97VLD)
Model 447.6 with Code ZL3 (National version for Latin America) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) K40/11, S1, S2, S3
Model 447.7 with Code ZL3 (National version for Latin America) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) K40/11, S1, S2, S3
| Code : | Designation: | Position: |
|---|---|---|

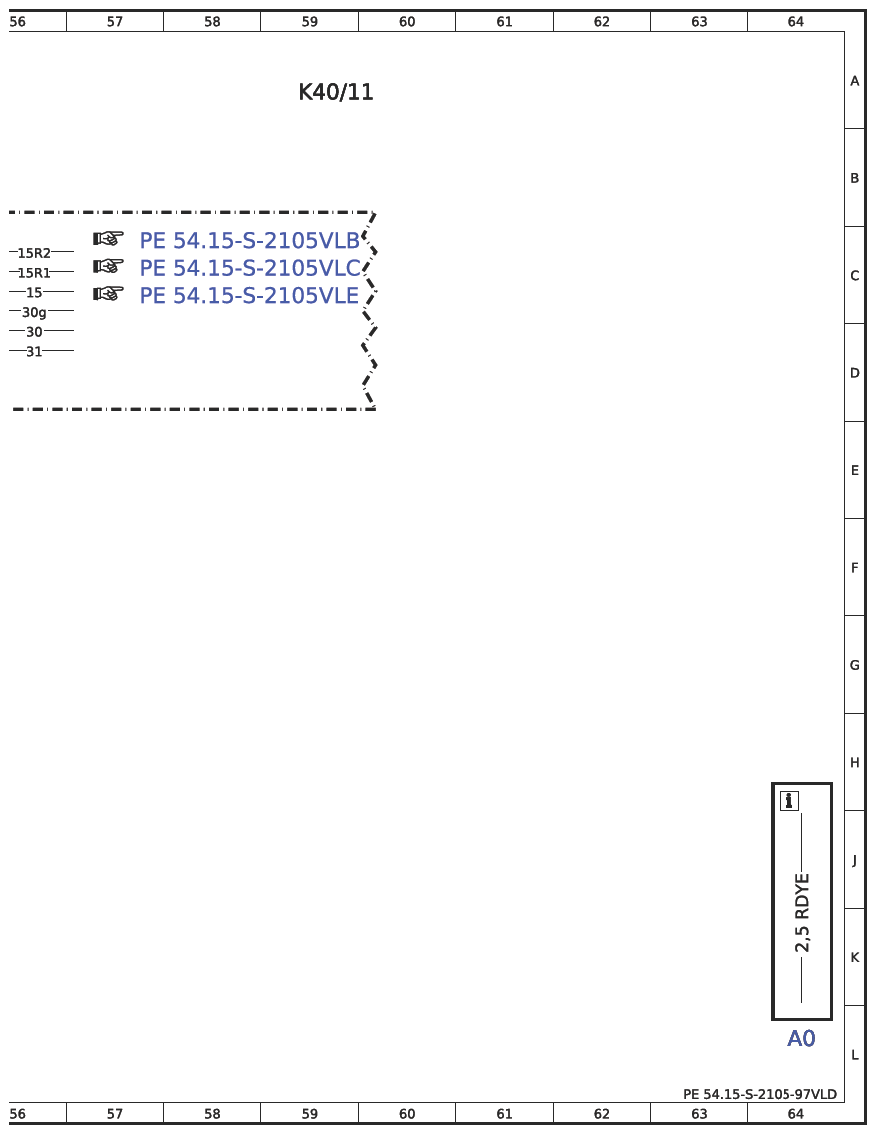

| A0 | Color Code key | 64L |
| Code EN6 | Audio 10 | 18F |
| Code EN6 | Audio 10 | 5F |
| Code ER0 | Radio preinstallation | 2F |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 14F |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 48F |
| K40/10 | Engine compartment fuse and relay module | 28L |
| K40/11 | Firewall fuse and relay module | 4A |
| K40/11 | Firewall fuse and relay module | 12A |
| K40/11 | Firewall fuse and relay module | 21A |
| K40/11 | Firewall fuse and relay module | 29A |
| K40/11 | Firewall fuse and relay module | 35A |
| K40/11 | Firewall fuse and relay module | 44A |
| K40/11 | Firewall fuse and relay module | 59A |
| K40/11 | Firewall fuse and relay module | 52A |

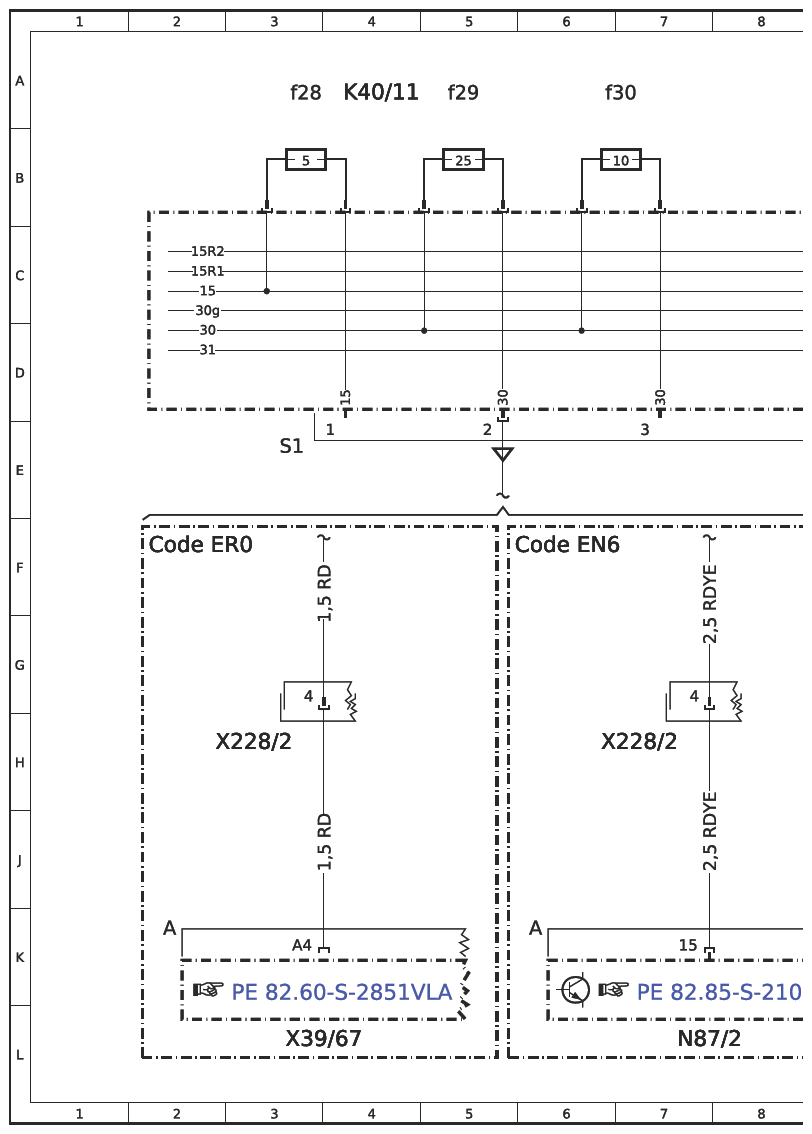

| K40/11f28 | Fuse 28 | 3A |
| K40/11f29 | Fuse 29 | 5A |
| K40/11f30 | Fuse 30 | 6A |

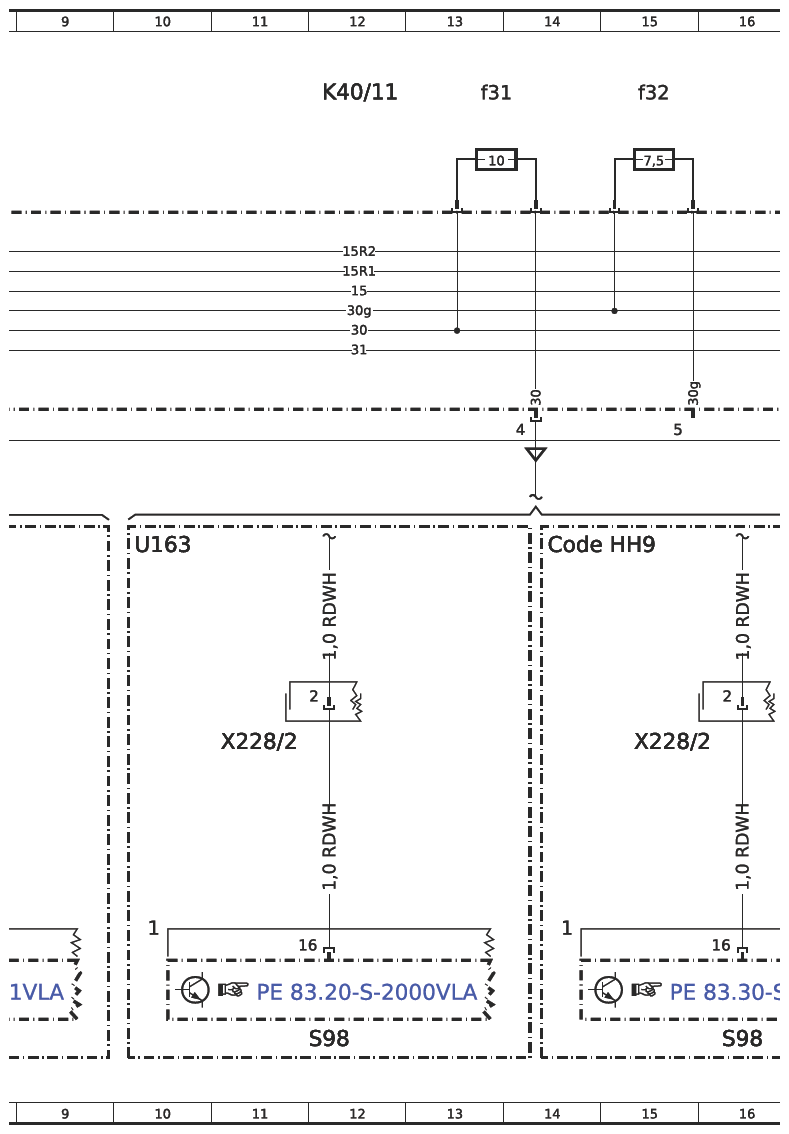

| K40/11f31 | Fuse 31 | 13A |
| K40/11f32 | Fuse 32 | 15A |

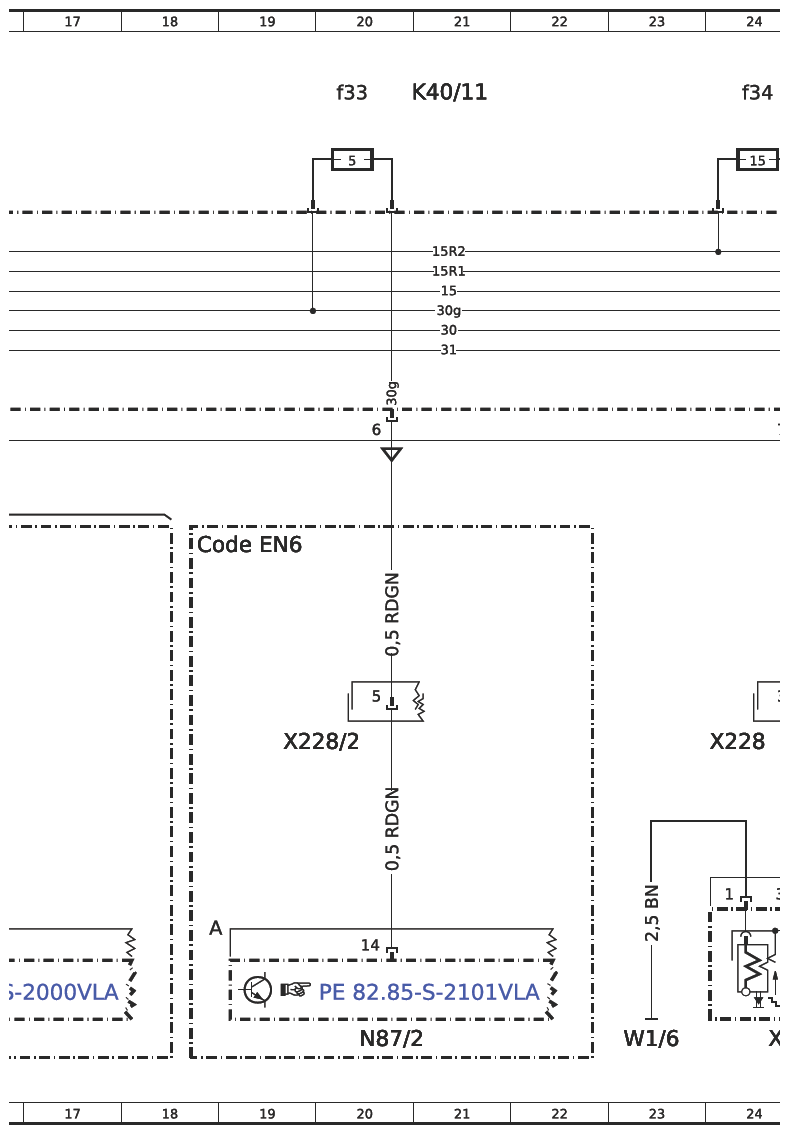

| K40/11f33 | Fuse 33 | 20A |
| K40/11f34 | Fuse 34 | 24A |

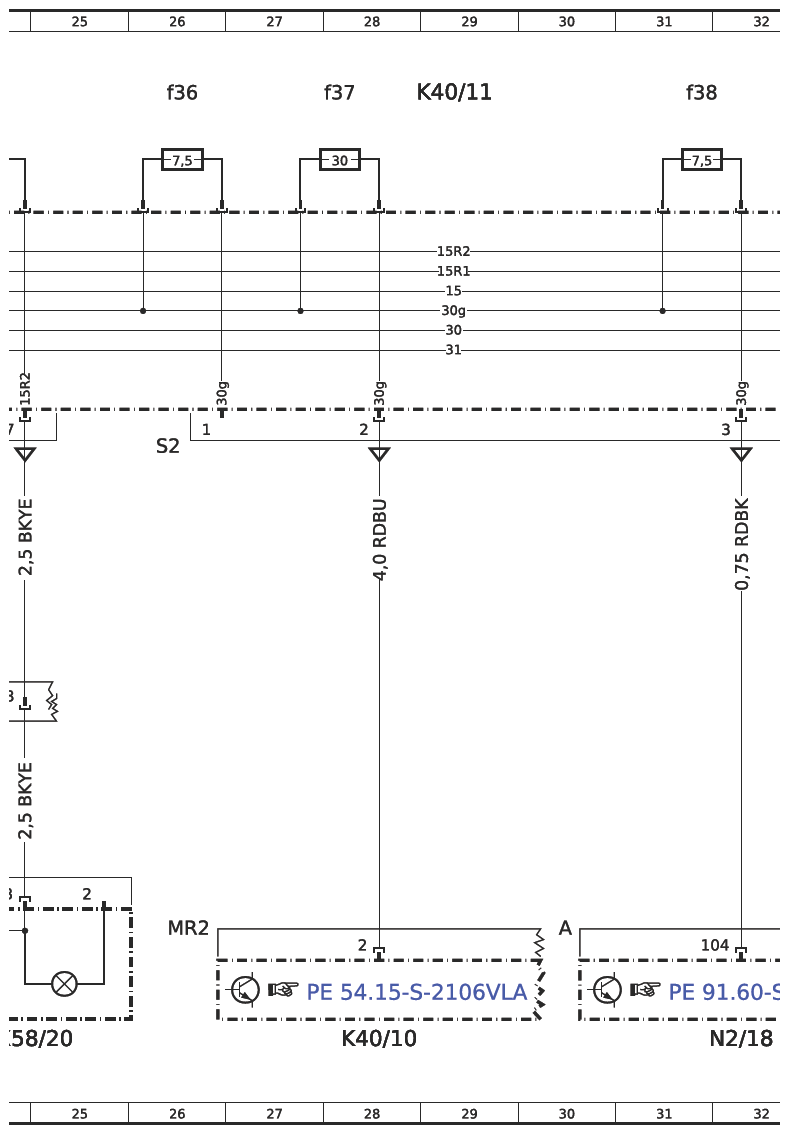

| K40/11f36 | Fuse 36 | 26A |
| K40/11f37 | Fuse 37 | 28A |
| K40/11f38 | Fuse 38 | 31A |

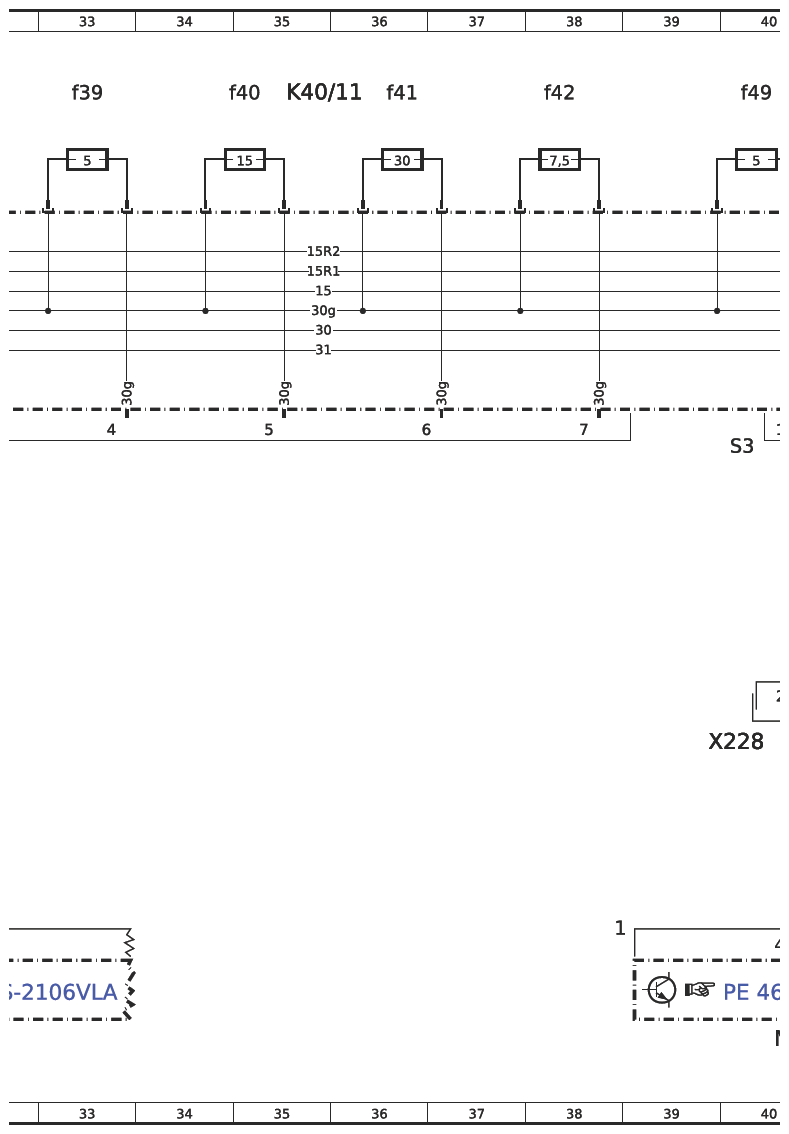

| K40/11f39 | Fuse 39 | 33A |
| K40/11f40 | Fuse 40 | 35A |
| K40/11f41 | Fuse 41 | 36A |
| K40/11f42 | Fuse 42 | 38A |
| K40/11f49 | Fuse 49 | 40A |

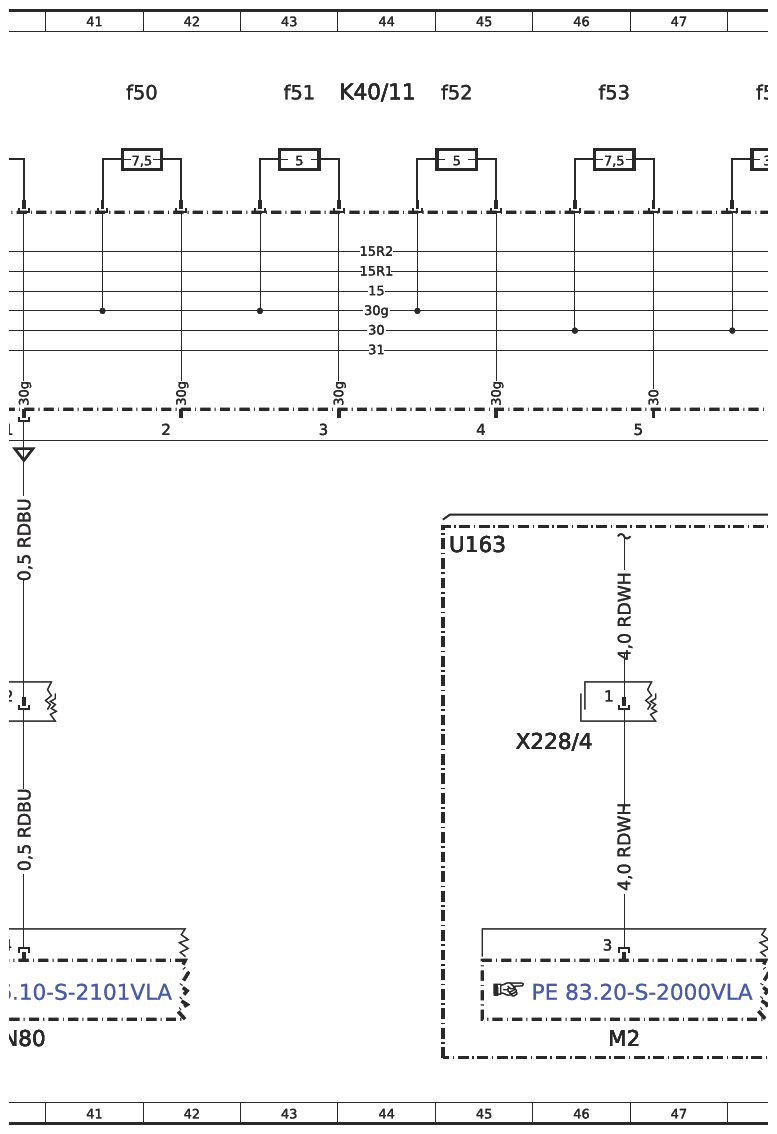

| K40/11f50 | Fuse 50 | 41A |
| K40/11f51 | Fuse 51 | 43A |
| K40/11f52 | Fuse 52 | 45A |
| K40/11f53 | Fuse 53 | 46A |
| K40/11f54 | Fuse 54 | 48A |

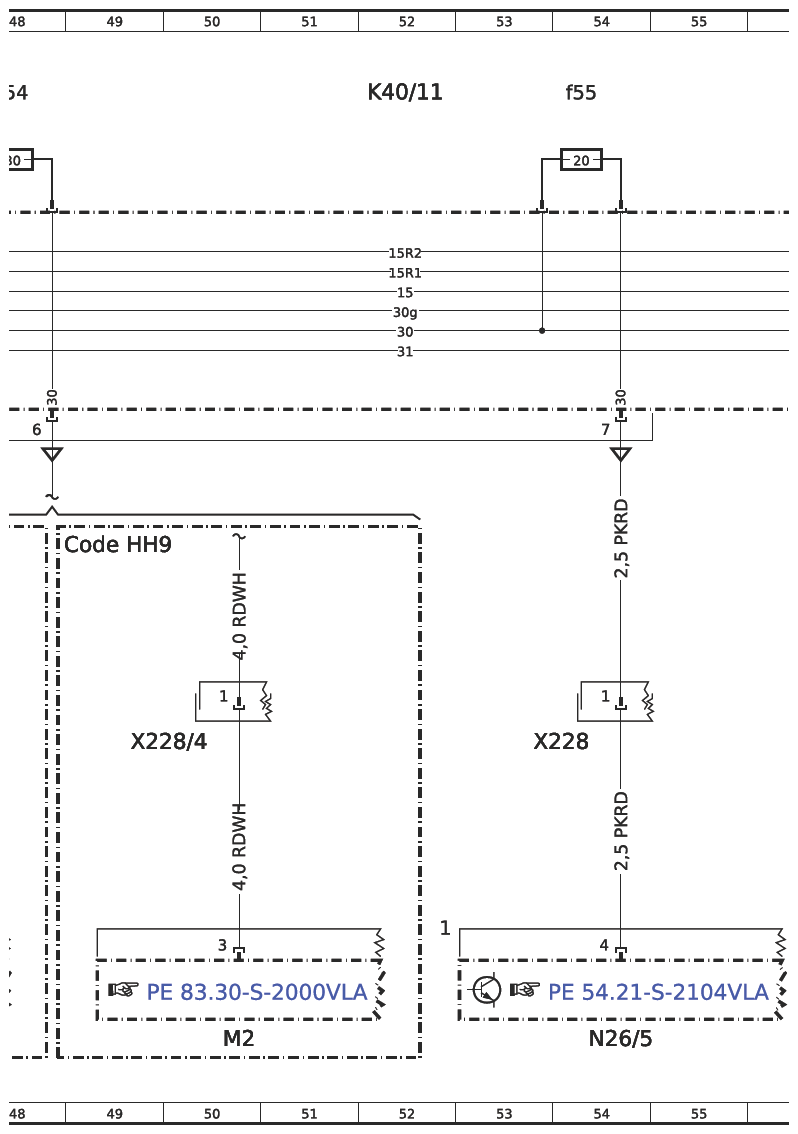

| K40/11f55 | Fuse 55 | 54A |
| M2 | Blower motor | 50L |
| M2 | Blower motor | 46L |
| N2/18 | Supplemental restraint system (SRS) control unit | 32L |
| N26/5 | Electric steering lock control unit | 54L |
| N80 | Steering column tube module (MRM) control unit | 40L |
| N87/2 | Radio (Audio) | 20L |
| N87/2 | Radio (Audio) | 7L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 16L |
| S98 | Air conditioning control and operating unit (front & rear KLA) | 12L |
| U163 | Valid without Code HH9 Semi-automatic air conditioning, TEMPMATIC | 10F |
| U163 | Valid without Code HH9 Semi-automatic air conditioning, TEMPMATIC | 45F |
| W1/6 | Cockpit ground point | 23L |
| X228 | Cockpit wiring harness/fuse and relay module electrical connector 1 | 24H |
| X228 | Cockpit wiring harness/fuse and relay module electrical connector 1 | 40H |
| X228 | Cockpit wiring harness/fuse and relay module electrical connector 1 | 54H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 20H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 11H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 15H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 7H |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 3H |
| X228/4 | Cockpit wiring harness/fuse and relay module electrical connector 4 | 46H |
| X228/4 | Cockpit wiring harness/fuse and relay module electrical connector 4 | 50H |
| X39/67 | Radio preinstallation electrical connector | 3L |
| X58/20 | Cigarette lighter electrical connector | 24L |
