(Wiring Diagram For Engine Compartment Fuse And Relay Module - PE54.15-S-2106-97VLA)
Model 447.6 with Code ZL3 (National version for Latin America) except Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II) K40/10, connector MR1, MR2, S1
Model 447.7 with Code ZL3 (National version for Latin America) except Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code ME0 (Electric motor 85 kW) except Code ME4 (Electric motor 145 kW) except Code XM0 (Facelift) except Code XM7 (MOPF II)
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 56L |

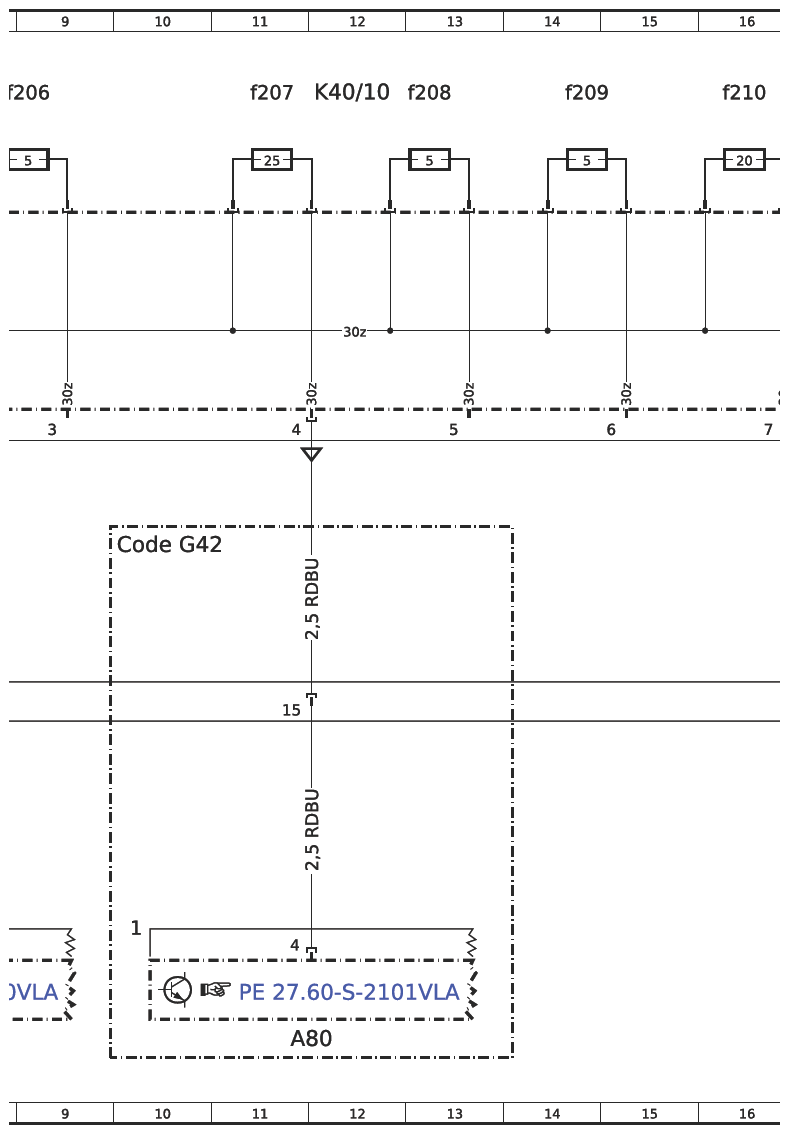

| A80 | Intelligent servo module (ISM) control unit for DIRECT SELECT | 11L |
| Code G42 | 7G-TRONIC PLUS automatic transmission | 10F |

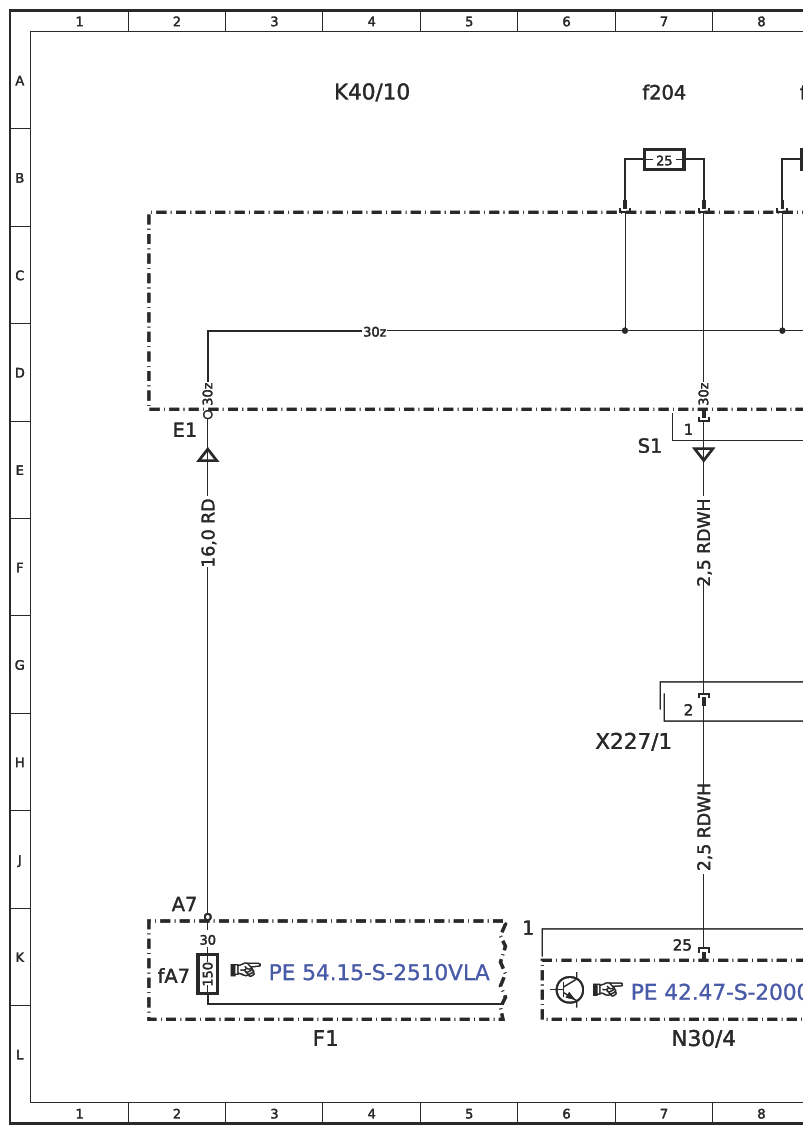

| F1 | Pre-fuse box | 3L |
| F1fA7 | Pre-fuse A7 | 2K |

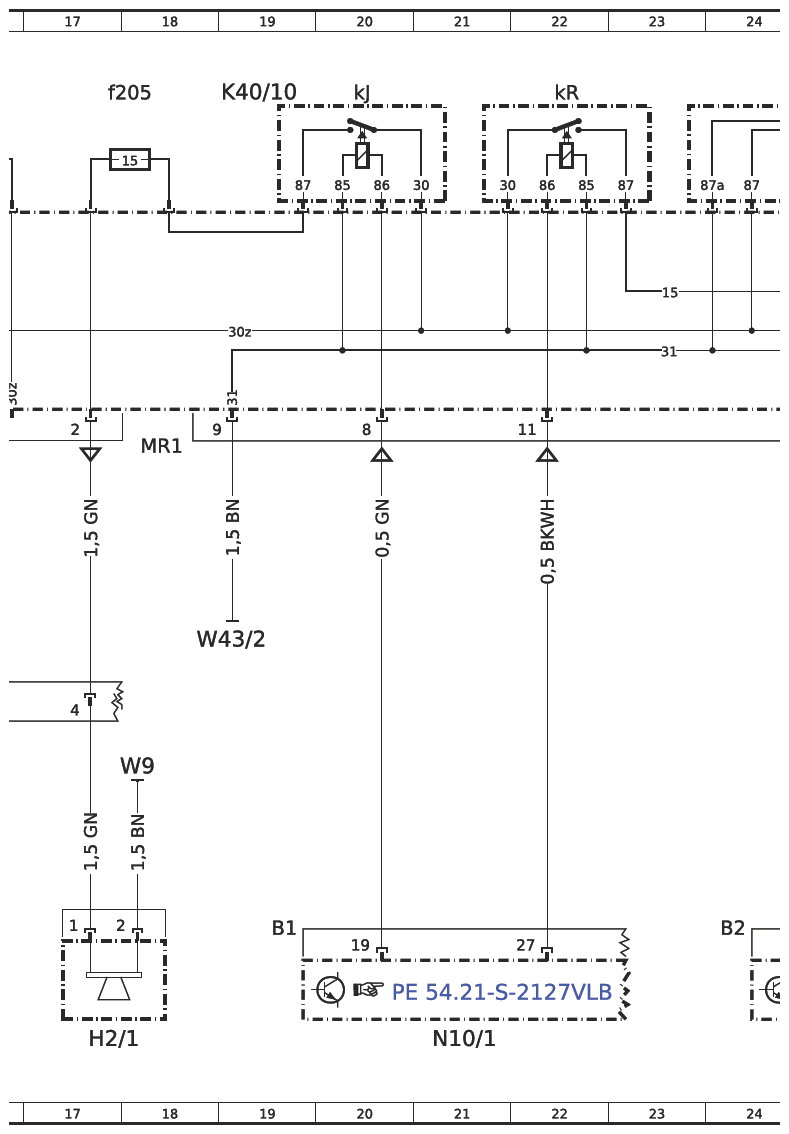

| H2/1 | Left fanfare horn | 17L |
| K40/10 | Engine compartment fuse and relay module | 4A |
| K40/10 | Engine compartment fuse and relay module | 27A |
| K40/10 | Engine compartment fuse and relay module | 37A |
| K40/10 | Engine compartment fuse and relay module | 43A |
| K40/10 | Engine compartment fuse and relay module | 52A |
| K40/10 | Engine compartment fuse and relay module | 12A |
| K40/10 | Engine compartment fuse and relay module | 19A |
| K40/10f204 | Fuse 204 | 7A |
| K40/10f205 | Fuse 205 | 17A |
| K40/10f206 | Fuse 206 | 9A |
| K40/10f207 | Fuse 207 | 11A |
| K40/10f208 | Fuse 208 | 13A |
| K40/10f209 | Fuse 209 | 14A |
| K40/10f210 | Fuse 210 | 16A |
| K40/10f220 | Fuse 220 | 46A |
| K40/10f238 | Fuse 238 | 50A |
| K40/10f239 | Fuse 239 | 26A |
| K40/10f240A | Fuse240A | 36A |
| K40/10kJ | Fanfare horn relay | 20A |
| K40/1 OkK | Wiper level 1/2 relay | 28A |
| K40/10kL | Windshield wiper ON/OFF relay | 24A |

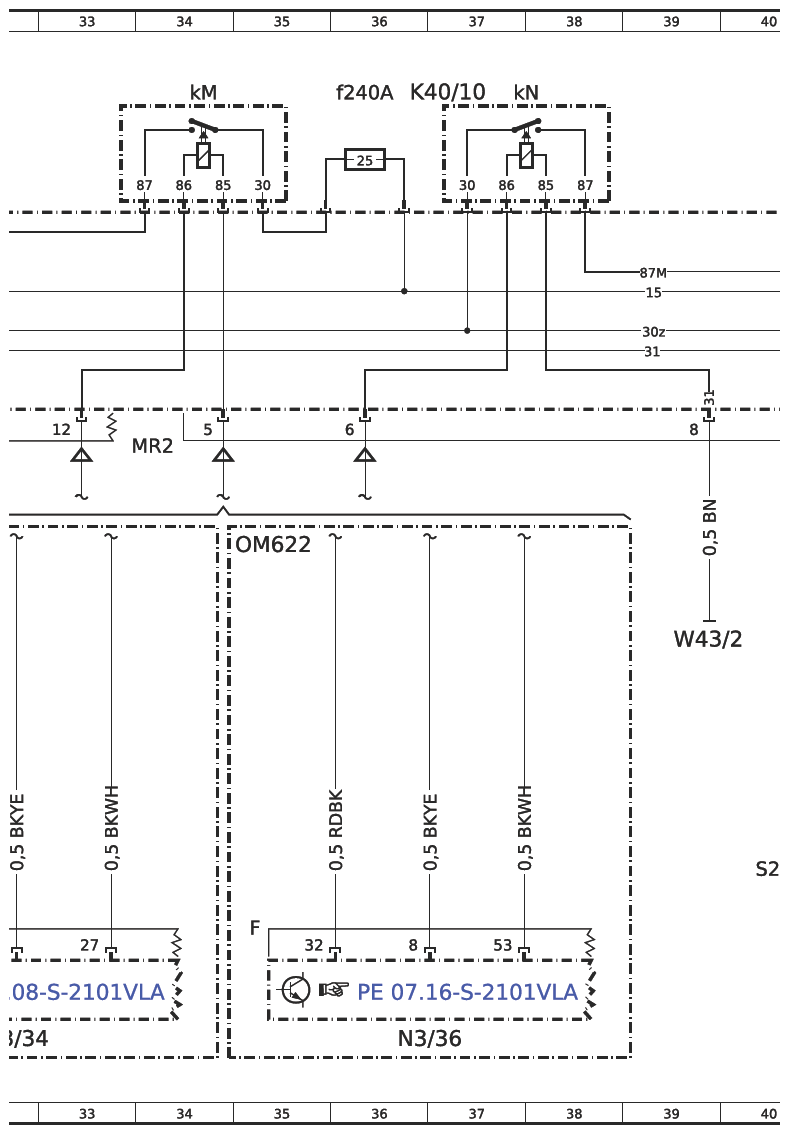

| K40/10kM | Starter circuit 50 relay | 34A |
| K40/1 OkN | Circuit 87M relay | 37A |
| K40/10k0 | Backup relay | 45A |
| K40/10kR | Circuit 15 relay | 22A |

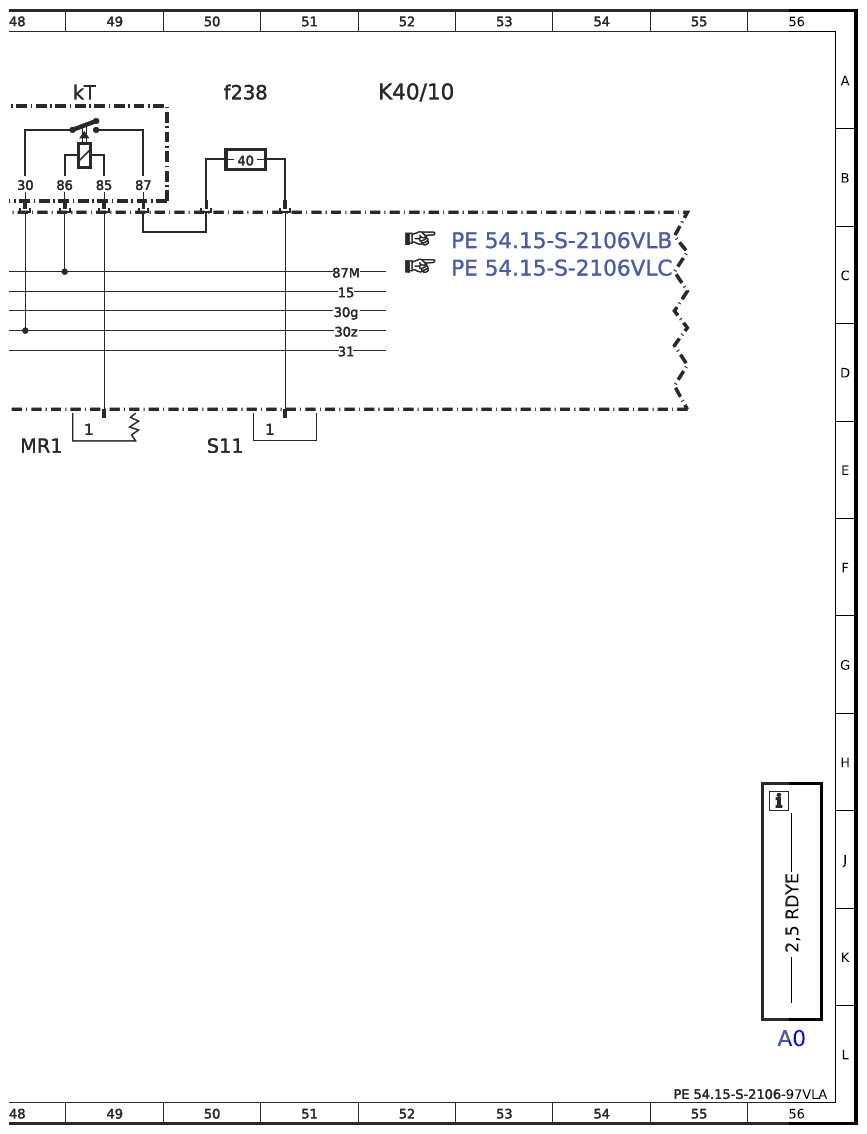

| K40/10kT | Backup relay | 49A |

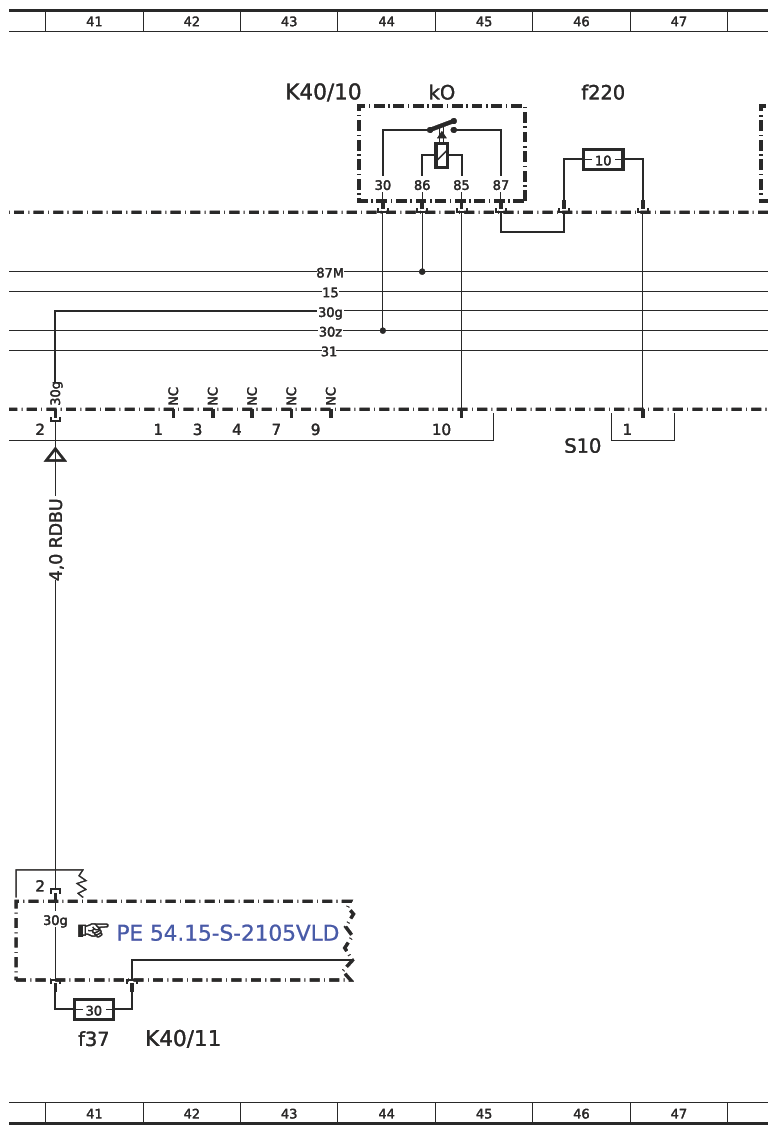

| K40/11 | Firewall fuse and relay module | 42L |
| K40/11f37 | Fuse 37 | 41L |
| M6/1 | Wiper motor | 29L |

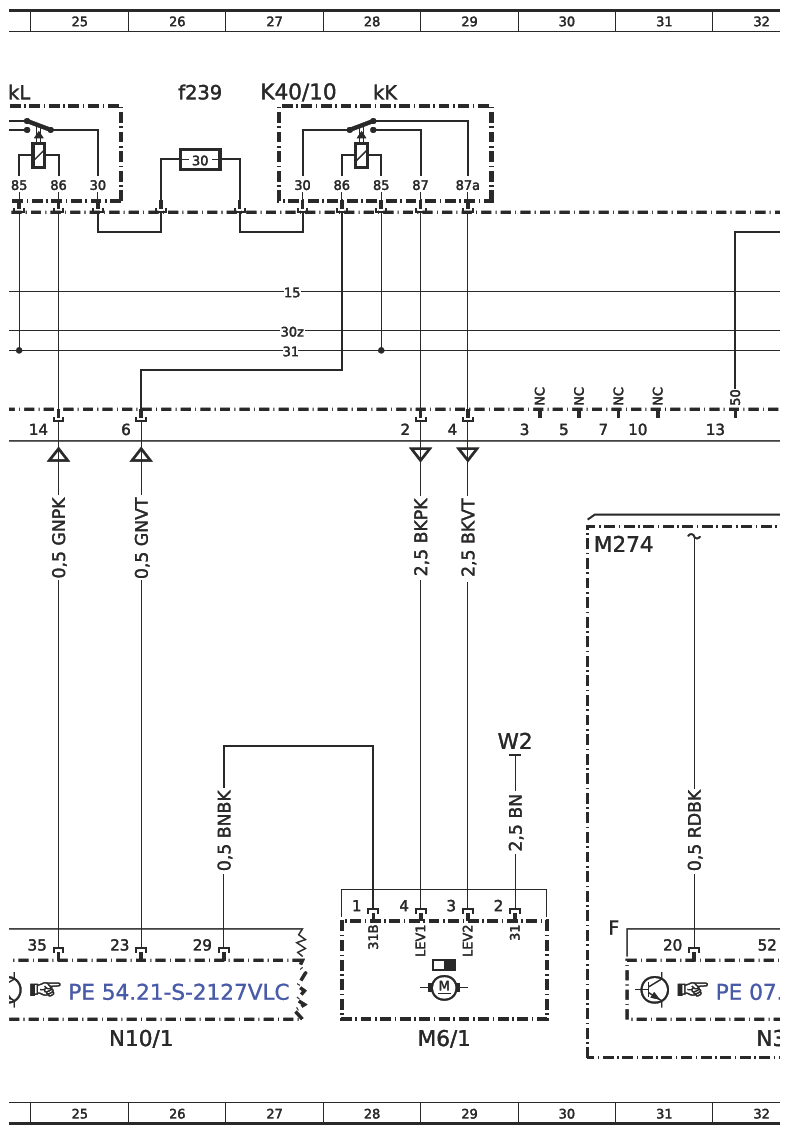

| N10/1 | Signal acquisition and actuation module (SAM) control unit | 21L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 25L |
| N3/34 | ME-SFI [ME] control unit | 32L |
| N3/36 | CDI control unit | 36L |
| N30/4 | Electronic Stability Program (ESP) control unit | 7L |
| W2 | Right front lamp unit ground point | 29H |
| W43/2 | Right vehicle interior firewall ground point | 18G |
| W43/2 | Right vehicle interior firewall ground point | 39G |
| W9 | Left front lamp unit ground point | 18H |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 7H |
