(Wiring Diagram For Battery Management Control Unit - PE54.10-S-2104-97VMA)
Model 447.6/7 with Code ME0 (Electric motor 85 kW) except Code XM7 (MOPF II) N82/2
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 32L |
| CAN BAT | Battery management system CAN | 11K |
| CAN BAT | Battery management system CAN | 15K |
| CAN BAT | Battery management system CAN | 19K |
| CAN L | Hybrid CAN | 7K |
| F55/1 | Fuse block (1, 9-pin) | 3L |
| F55/1f6 | Fuse 6 | 2K |

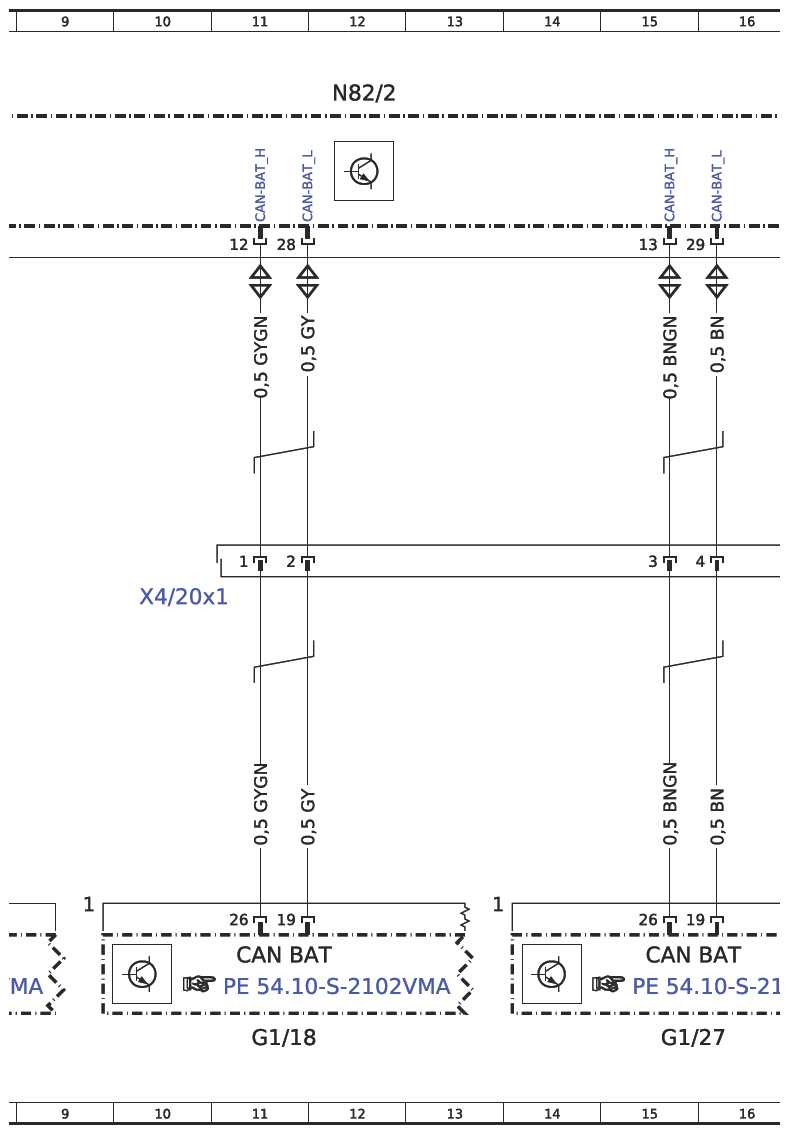

| G1/18 | High-voltage battery 1 | 11L |
| G1/27 | High-voltage battery 2 | 15L |

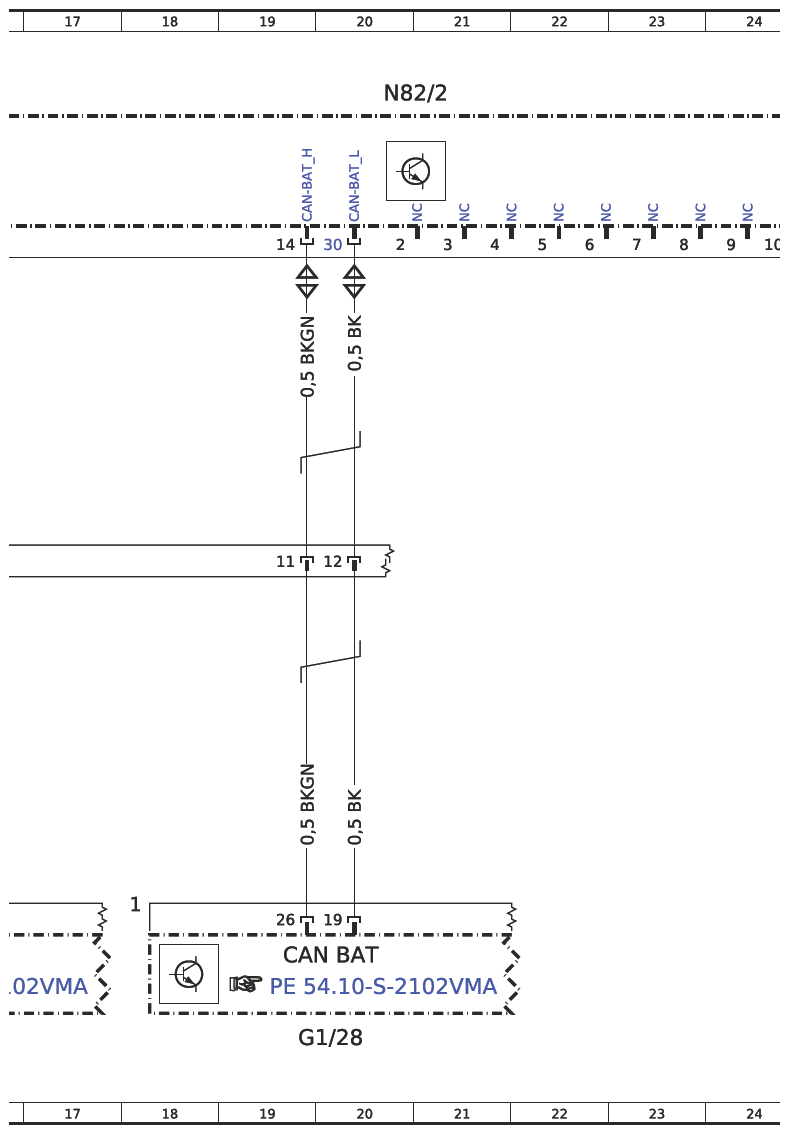

| G1/28 | High-voltage battery 3 | 20L |

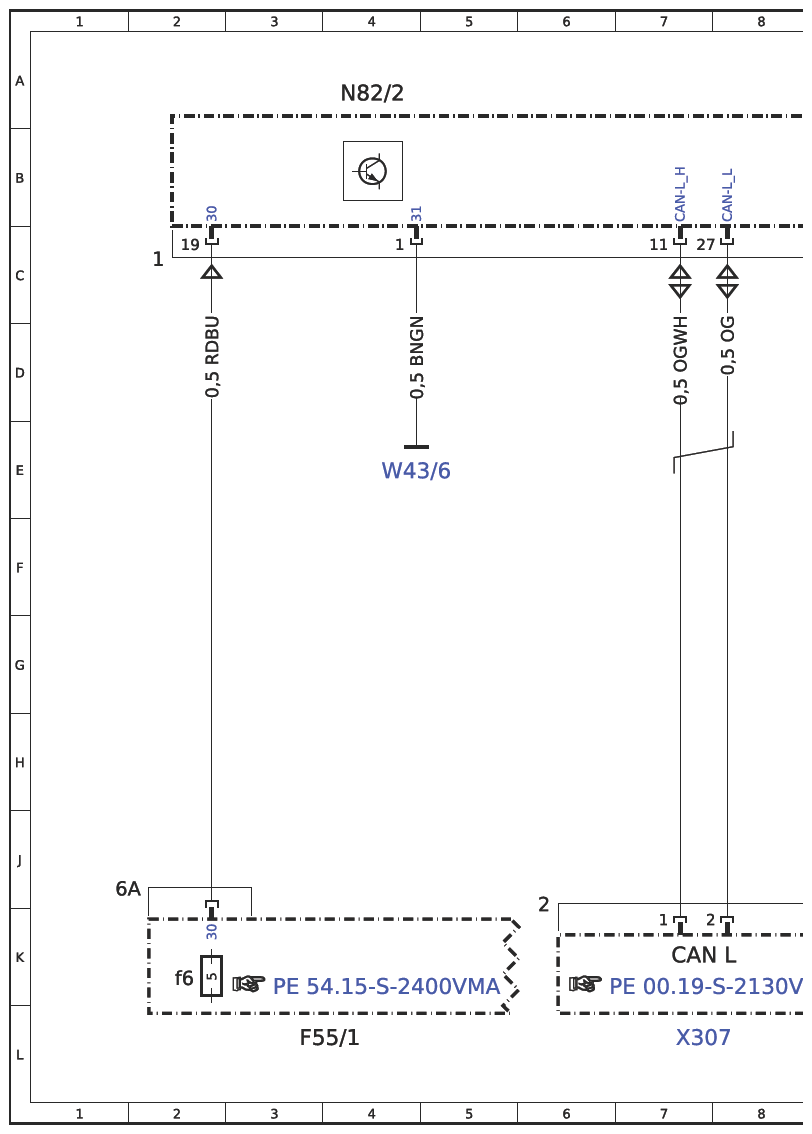

| N82/2 | Battery management system control unit | 4A |
| N82/2 | Battery management system control unit | 12A |
| N82/2 | Battery management system control unit | 20A |
| N82/2 | Battery management system control unit | 28A |
| W43/6 | Left vehicle interior firewall ground point 2 | 4E |
| X307 | Hybrid CAN (CAN L) potential distributor electrical connector | 7L |
| X4/20x1 | High-voltage battery connecting point 1 | 10F |
