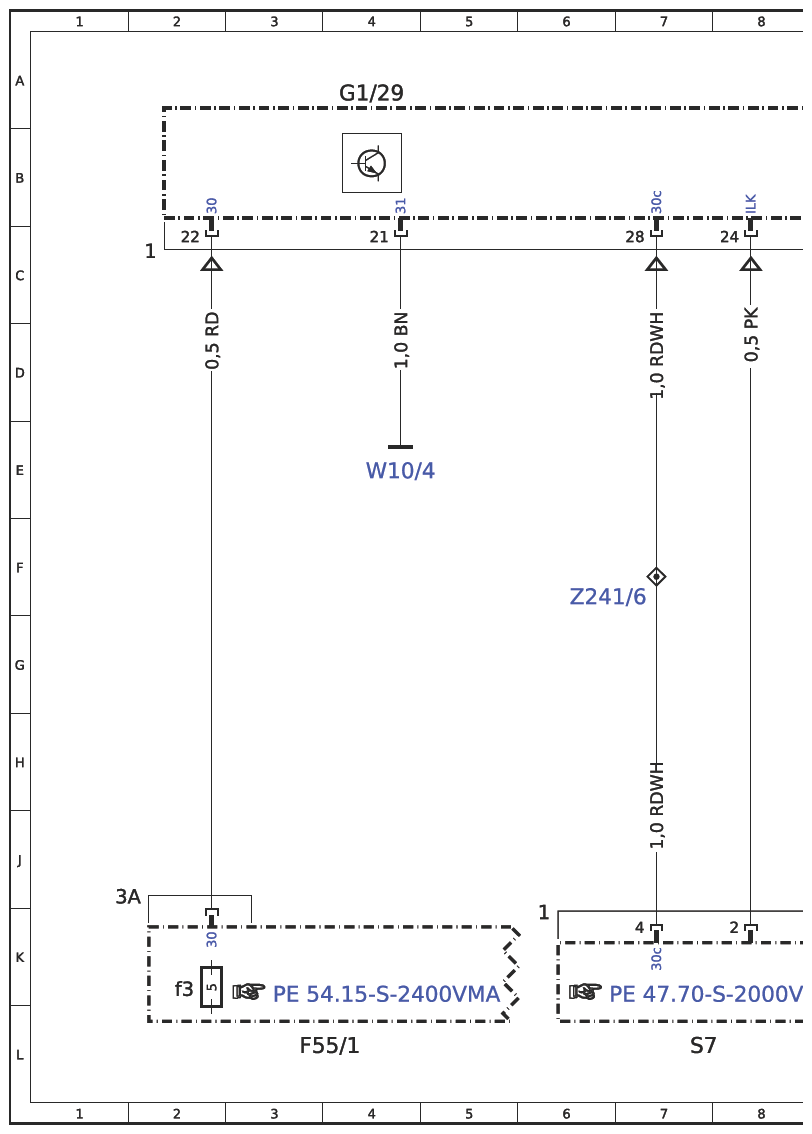

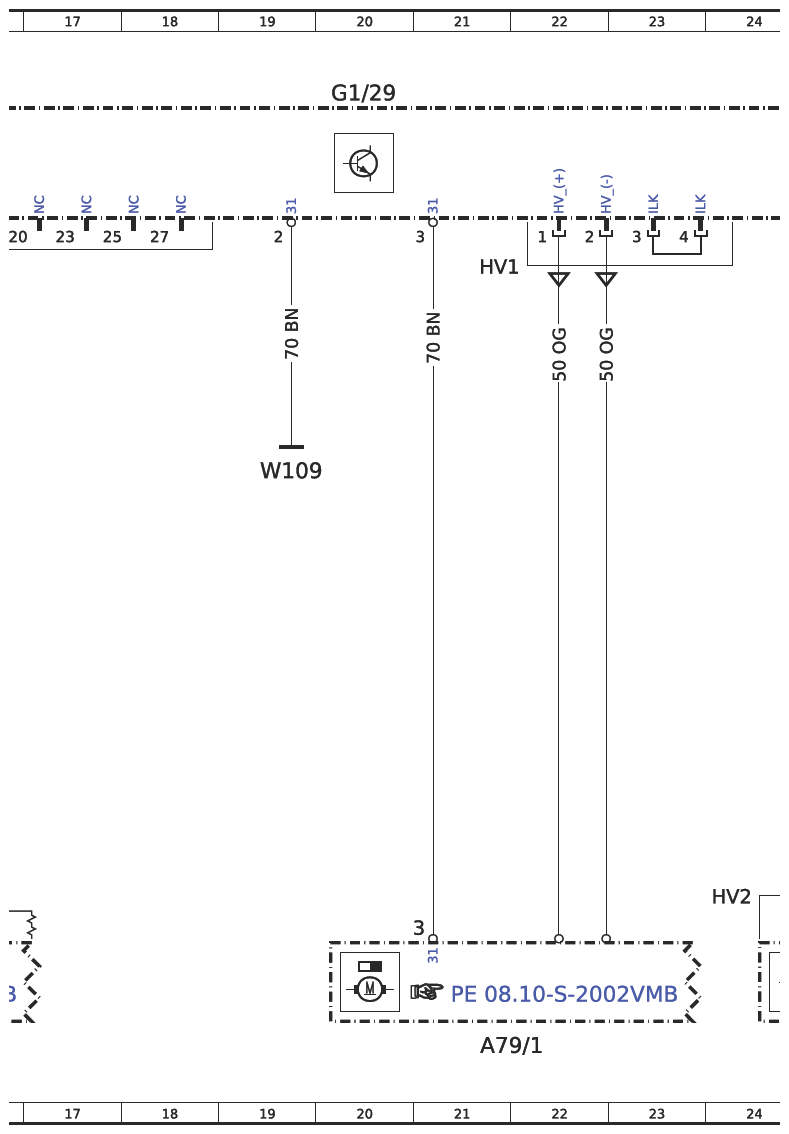

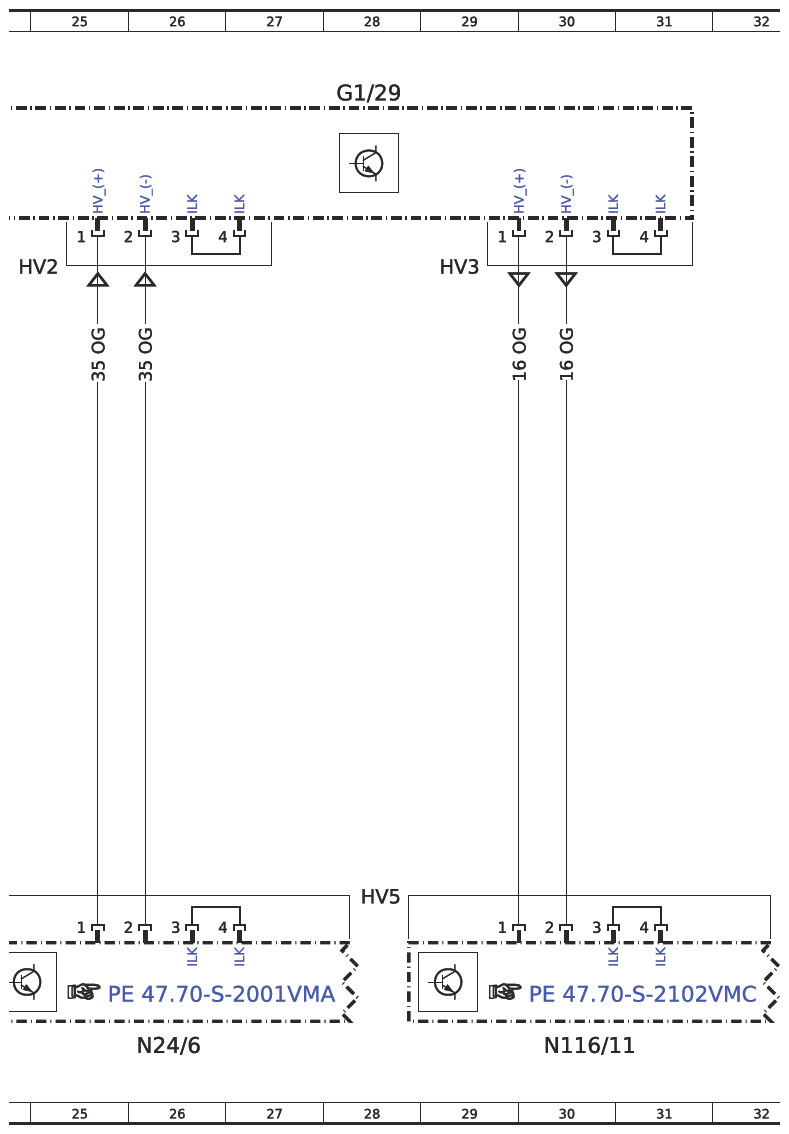

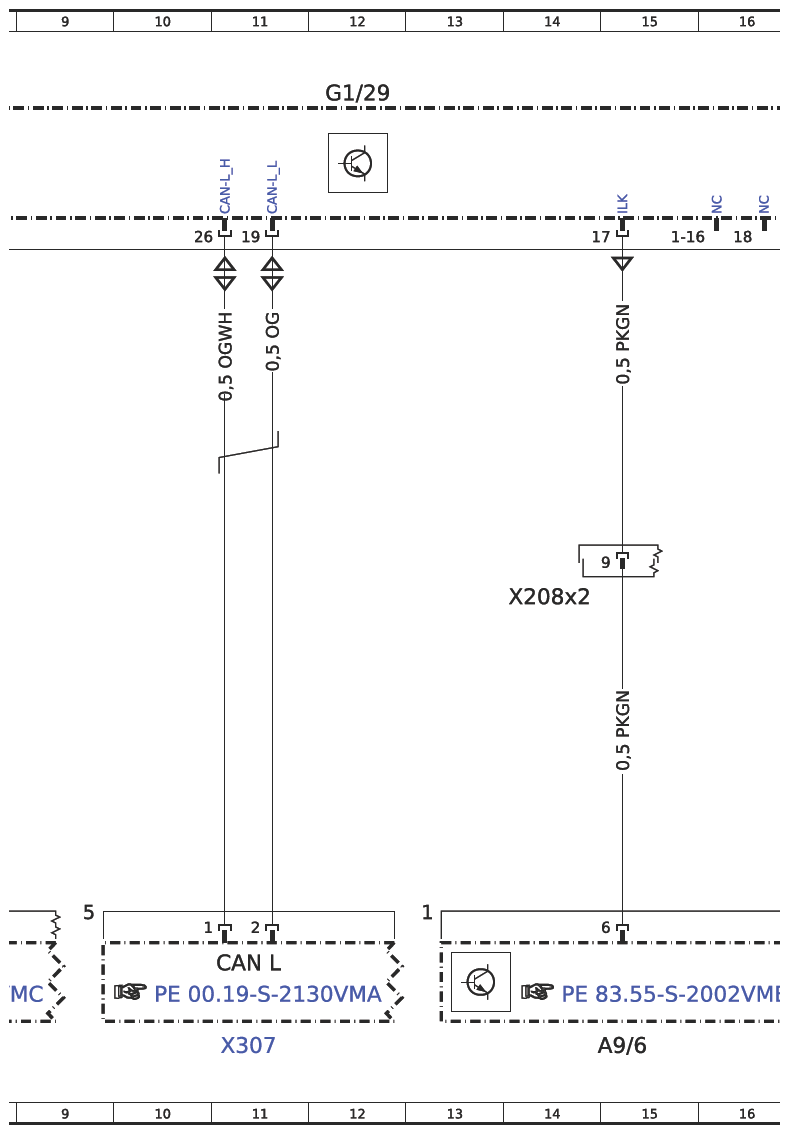

(Wiring Diagram Battery/Control Unit - PE54.10-S-2102-97VMB)
Model 447.6 with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) G1/29
Model 447.7 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except Code XM7 (MOPF II) G1/29
Model 447.7 with Code ME4 (Electric motor 145 kW) except Code XM7 (MOPF II) G1/29
| Code : | Designation: | Position: |
|---|---|---|
| A0 | Color Code key | 40L |
| A79/1 | Electric machine | 21L |
| A9/6 | Electric refrigerant compressor | 15L |
| CAN L | Hybrid CAN | 11K |
| F55/1 | Fuse block (1, 9-pin) | 3L |
| F55/1f3 | Fuse 3 | 2K |
| G1/29 | High-voltage battery | 4A |
| G1/29 | High-voltage battery | 12A |
| G1/29 | High-voltage battery | 28A |
| G1/29 | High-voltage battery | 20A |
| N116/11 | High-voltage power distributor | 30L |
| N24/6 | DC/DC converter charger | 26L |
| S7 | High-voltage disconnect device | 7L |
| W10/4 | Additional battery ground point | 4E |
| W109 | High-voltage battery ground point | 19E |
| X208x2 | Electric machine electrical connector 2 | 14F |
| X307 | Hybrid CAN (CAN L) potential distributor electrical connector | 11L |
| Z241/6 | Circuit 30c end sleeve 1 | 7F |
