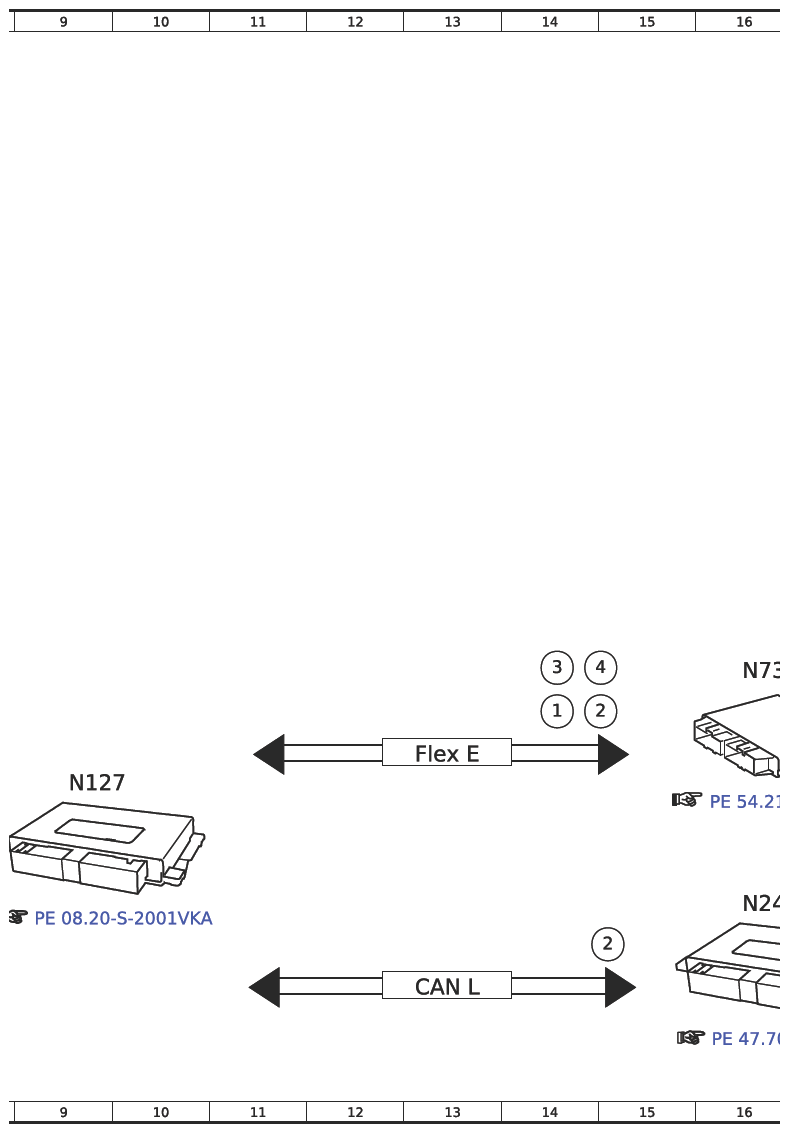

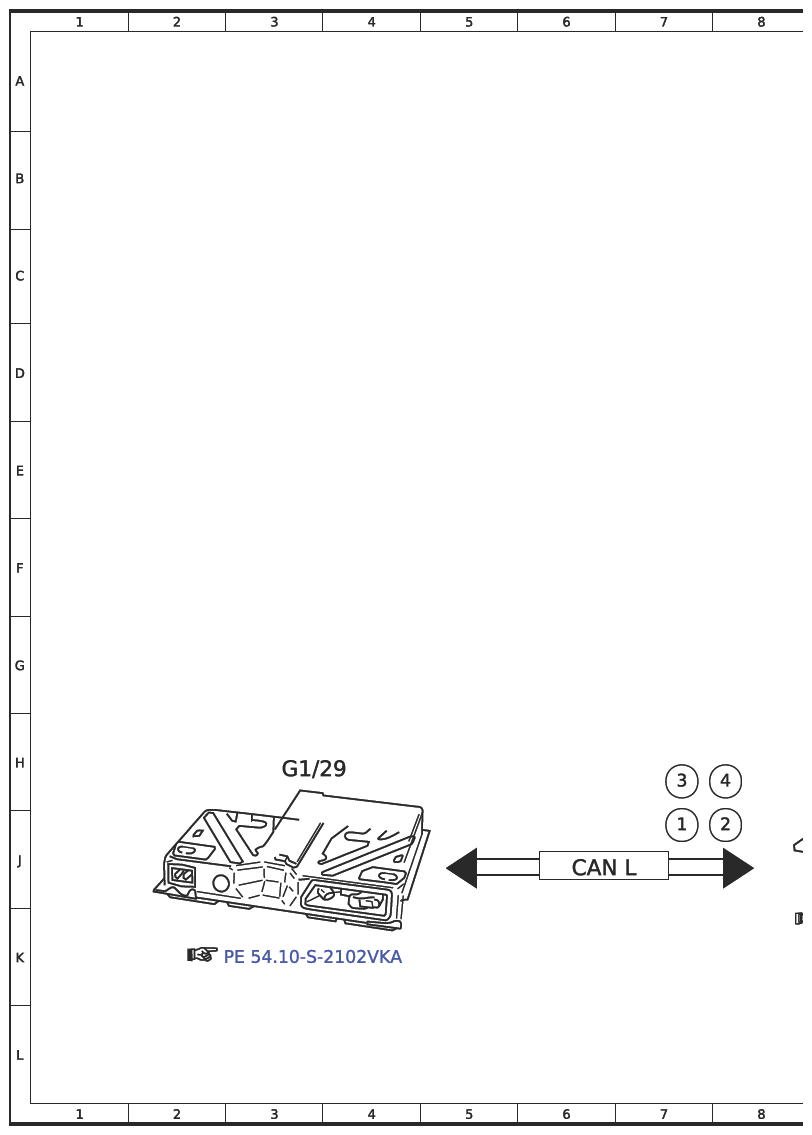

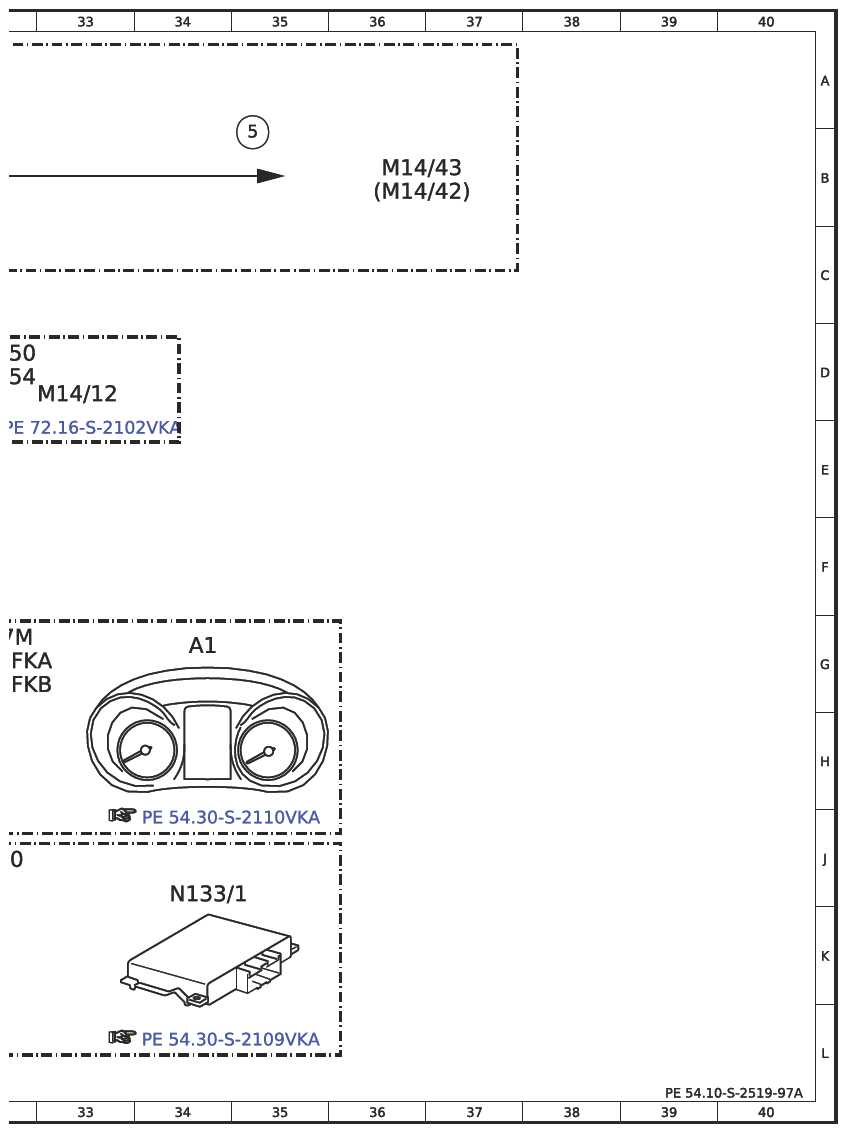

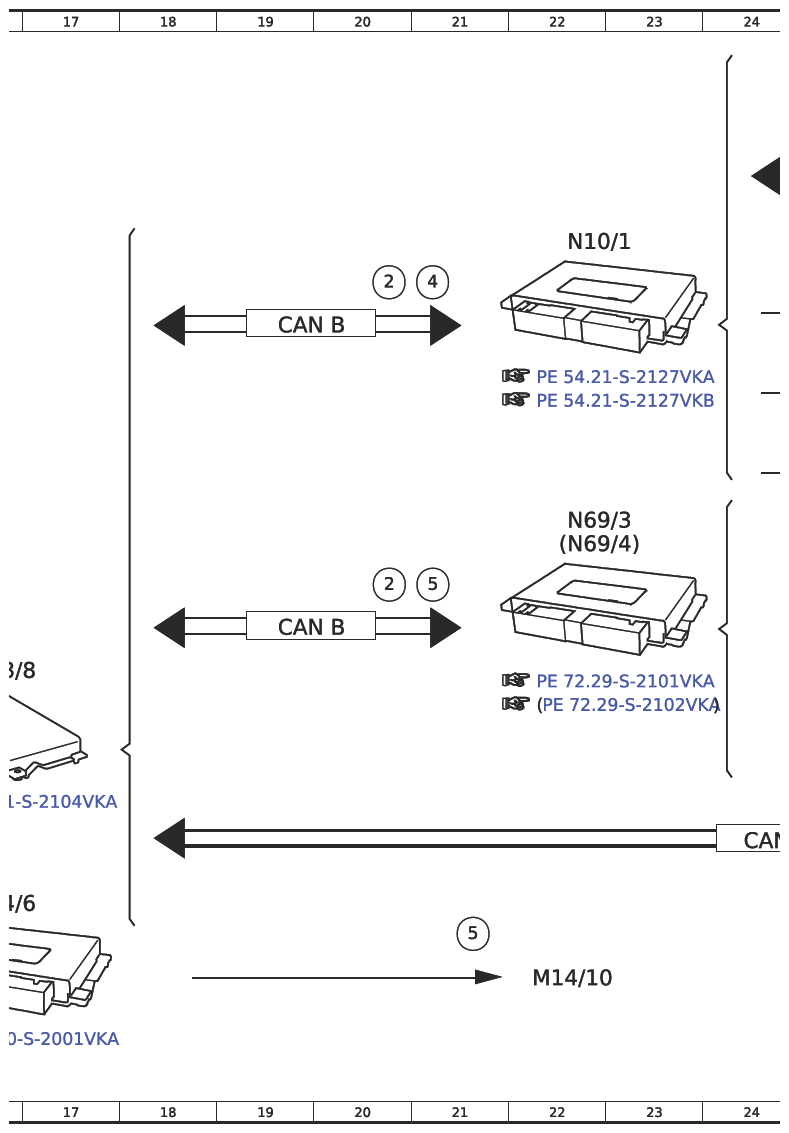

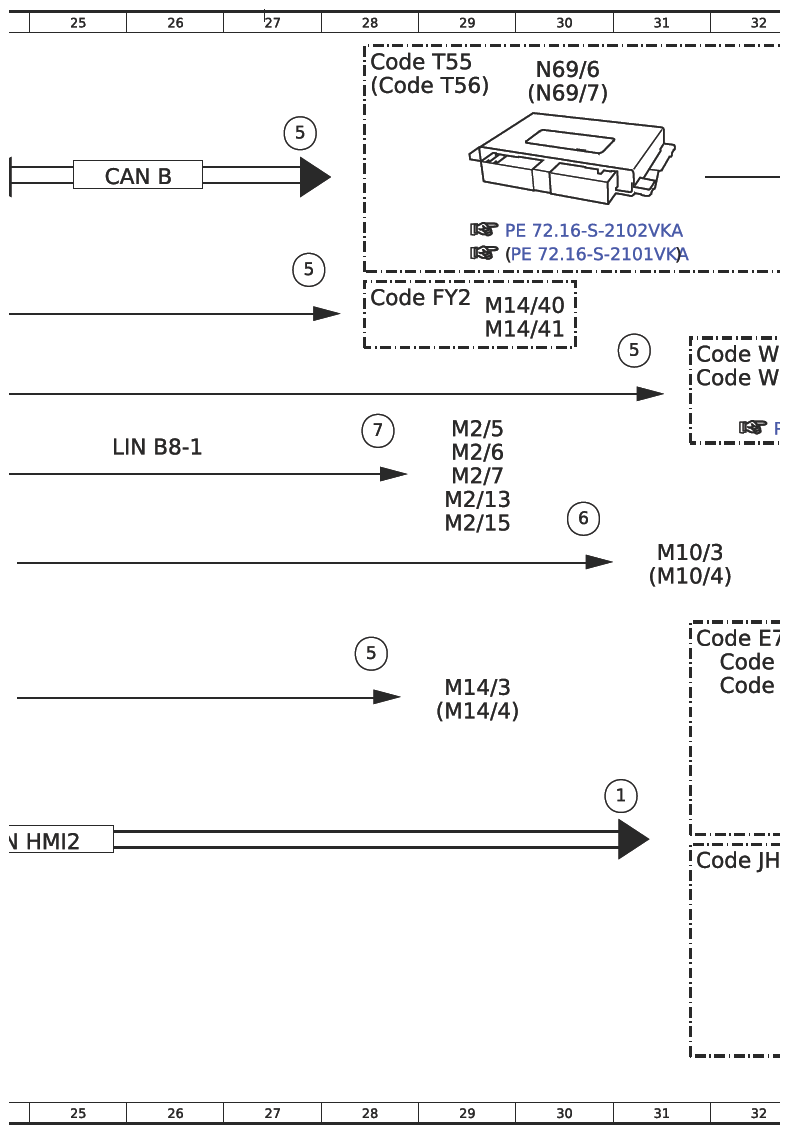

(Function Schematic Of Battery Cell Monitoring - PE54.10-S-2519-97A)
Model447 with Code M7E (Electric motor 150 kW/battery 60 kWh (usable)) with Code M8E (Electric motor 85 kW/battery 60 kWh (usable)) with Code ME4 (Electric motor 145 kW) with Code XM7 (MOPF II)
| Code : | Designation: | Position: |
|---|---|---|
| 1 | 31H | |
| 1 | 7J | |
| 1 | 14H | |
| 2 | Lock/unlock central locking, request | 8J |
| 2 | Lock/unlock central locking, request | 15K |
| 2 | Lock/unlock central locking, request | 20F |
| 2 | Lock/unlock central locking, request | 20C |
| 2 | Lock/unlock central locking, request | 14H |
| 3 | 7H | |
| 3 | 14G | |
| 4 | 21C | |
| 4 | 8H | |
| 4 | 14G | |
| 5 | Central locking motor, actuation | 21K |
| 5 | Central locking motor, actuation | 28G |
| 5 | Central locking motor, actuation | 21F |
| 5 | Central locking motor, actuation | 31D |
| 5 | Central locking motor, actuation | 27C |
| 5 | Central locking motor, actuation | 27B |
| 5 | Central locking motor, actuation | 35B |
| 6 | Central locking Power window, actuation | 30F |
| 7 | 28E | |
| A1 | Instrument cluster | 34G |
| CAN B | Interior CAN | 19G |
| CAN B | Interior CAN | 19D |
| CAN B | Interior CAN | 25B |
| CAN HMI2 | User interface CAN 2 | 24J |
| CAN L | Hybrid CAN | 6J |
| CAN L | Hybrid CAN | 13K |
| Code E7M | MBUX multimedia system | 31G |
| Code FKA | Panel van | 32G |
| Code FKB | Vito Mixto and Tourer | 32G |
| Code FY2 | Additional door lock | 28C |
| Code JH0 | Display package | 3U |
| Code T55 | Electric controls for right sliding door | 28A |
| Code T56 | Electric controls for left sliding door | 28A |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 31D |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 31D |
| FlexE | Chassis FlexRay | 13H |
| G1/29 | High-voltage battery | 3H |
| LIN B8-1 | Front air conditioning control LIN | 26E |
| M10/3 | Left front power window motor | 31F |
| M10/4 | Right front power window motor | 31F |
| M14/10 | Socket flap central locking system actuator | 22K |
| M14/12 | Rear-end door operation central locking motor | 33D |
| M14/3 | Left front door central locking actuator | 29G |
| M14/4 | Right front door central locking actuator | 29H |
| M14/40 | Left manual sliding door central locking actuator | 29C |
| M14/41 | Right manual sliding door central locking actuator | 29D |
| M14/42 | Left electric sliding door central locking actuator | 36B |
| M14/43 | Right electric sliding door central locking actuator | 36B |
| M2/13 | Fresh air/ram air/air recirculation flap actuator motor | 29E |
| M2/15 | Air distribution actuator motor | 29F |
| M2/5 | Fresh air/air recirculation flap actuator motor | 29E |
| M2/6 | Left blending air flap actuator | 29E |
| M2/7 | Right blending air flap actuator | 29E |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 22C |
| N127 | Drivetrain control unit | 9H |
| N133/1 | Instrument cluster control unit | 34J |
| N24/6 | DC charge-connection unit | 16K |
| N69/3 | Left front door control unit | 22F |
| N69/4 | Right front door control unit | 22F |
| N69/6 | Right sliding door (E-LSTR) control unit | 30A |
| N69/7 | Left sliding door (E-LSTL) control unit | 30A |
| N73/8 | Electronic ignition lock (EZS) control unit | 16G |
