Check Indicator Lamps - AP54.00-S-5451-01E
Model 447, 448
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes Do not touch hot or rotating parts. Model 447 with engine 254, 274, 622, 651, 654 Model 448 |
AS00.00-Z-0005-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |

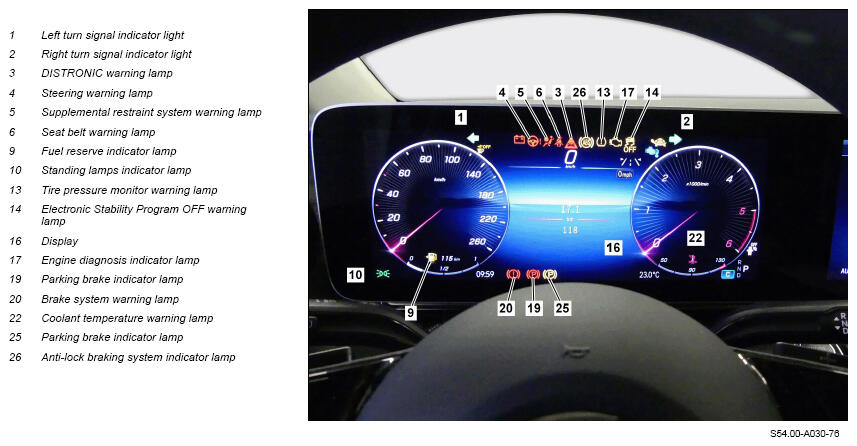

Shown on model 447.8 With Code XM7 (Facelift II)

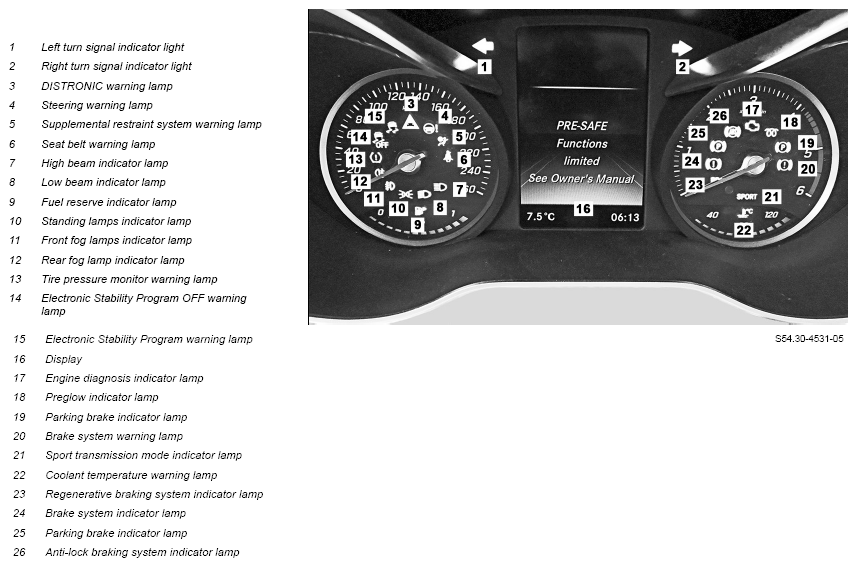

Shown on model 447.8 Except Code XM7 (Facelift II)
System errors are indicated in the display (16) or by constant illumination of the respective indicator or warning lamps.
- Switch on ignition and check indicator and warning lamps and display (16) for proper operation.
To do so, the engine hood, all doors and the liftgate must be closed.
The following indicator and warning lamps (if installed) must light up:
- DISTRONIC warning lamp (3)
- Steering warning lamp (4)
- Supplemental restraint system warning lamp (5)
- Seat belt warning lamp (6)
- Fuel reserve warning lamp (9)
- Standing lights indicator lamp (10)
- Tire pressure monitor warning lamp (13)
- Electronic Stability Program OFF warning lamp (14)
- Electronic Stability Program warning lamp (15)
- Engine diagnosis indicator lamp (17)
- Preglowing indicator lamp (18)
- Parking brake warning lamp (19)
- Brake system warning lamp (20)
- Sport transmission mode indicator lamp (21)
- Coolant temperature warning lamp (22)
- Regenerative braking system indicator lamp (23)
- Brake system indicator lamp (24)
- Parking brake indicator lamp (25)
- Anti-lock braking system indicator lamp (26)
-
- Model 447 with engine 254, 274, 622, 651, 654 Model 448
Start engine and check that indicator and warning lamps have switched off.
- Model 447 with engine 780
Activate drive system and check that indicator and warning lamps go out.
- Model 447 with engine 254, 274, 622, 651, 654 Model 448
- Check all further indicator and warning lamps for proper operation.
- Left turn signal light indicator lamp (1)
- Right turn signal light indicator lamp (2)
- High beams indicator lamp (7)
- Low beams indicator lamp (8)
- Front fog lamp indicator lamp (11)
- Rear fog light indicator lamp (12)
- Switch off ignition.
