Outputs Interface, PSM, Function - GF54.21-D-3002TSB
Model 447, 448
with code ED5 (Parameterisable special module)
with code XM7 (MOPF II)
Model 907, 910
with code ED5 (Parameterisable special module)
with code XJ4 (Modification year G4-I)
Multifunction outputs (MFA):
The parameterizable special module (PSM) control unit (N26/16) has a total of 25 discrete outputs. These MFAs can be configured individually. There are various types of multifunction outputs that have different properties.
However, all outputs can be parameterized so that they "flash" on activation ("Soft PWM", maximum frequency 10 Hz).
Special PWM outputs are available for higher frequencies.
| MFA_POWER | 2 high-side outputs | with operating current 10 A | MFA 02, 04 | |
| 6 high-side outputs | with operating current 5 A | MFA 01, 03, 05-08 | ||
| MFA_PWM | 2 low-side outputs | with operating current 1 A | PWM-capable | MFA 13, 14 |
| 5 high-side outputs | with operating current 0.5 A | PWM-capable | MFA 9-12, 25 | |
| 4 low-side outputs | with operating current 0.5 A | PWM-capable | MFA 15-18 | |
| MFA_ASYMMETRIC_HALF_B RIDGE | 4 asymmetric half bridges | with operating current 5 A | PWM-capable | MFA 19-22 |
| MFA_RELAY | 2 relay outputs | with 1 A each | MFA 23, 24 |
All outputs can hold their respective rated load for an unlimited time. The simultaneous use of all rated currents at all outputs is also permissible.
One of the eight PWM 0.5 A outputs (MFA 9-12 and MFA 15-18) can be loaded with up to 0.6 A, provided that the others have a maximum of 0.5 A and the sum of the currents of these eight outputs does not exceed 4 A.
| Number | Function |
|---|---|
| MFA_01 | Digitaler_Ausgang_High_5A_1 |
| MFA_02 | Digitaler_Ausgang_High_10A_1 |
| MFA_03 | Digitaler_Ausgang_High_5A_2 |
| MFA_04 | Digitaler_Ausgang_High_10A_2 |
| MFA_05 | Digitaler_Ausgang_High_5A_3 |
| MFA_06 | Digitaler_Ausgang_High_5A_4 |
| MFA_07 | Digitaler_Ausgang_High_5A_5 |
| MFA_08 | Digitaler_Ausgang_High_5A_6 |
| MFA_09 | Digitaler_PWM_Ausgang_High_1 |
| MFA_10 | Digitaler_PWM_Ausgang_High_2 |
| MFA_11 | Digitaler_PWM_Ausgang_High_3 |
| MFA_12 | Digitaler_PWM_Ausgang_High_4 |
| MFA_13 | Digitaler_PWM_Ausgang_Low_5kHz_1A_1 |
| MFA_14 | Digitaler_PWM_Ausgang_Low_5kHz_1A_2 |
| MFA_15 | Digitaler_PWM_Ausgang_Low_300Hz_500mA_1 |
| MFA_16 | Digitaler_PWM_Ausgang_Low_300Hz_500mA_2 |
| MFA_17 | Digitaler_PWM_Ausgang_Low_300Hz_500mA_3 |
| MFA_18 | Digitaler_PWM_Ausgang_Low_300Hz_500mA_4 |
| MFA_19 | Digital_PWM_Output_Half_1 |
| MFA_20 | Digital PWM Output Half 2 |
| MFA_21 | Digital_PWM_Output_Half_3 |
| MFA_22 | Digital_PWM_Output_Half_4 |
| MFA_23 | Relay output 1-Common contact (Com) Open contact in rest state (NO) Closed contact in rest state (NC) |
| MFA_24 | Relay output 2-Common contact (Com) Open contact in rest state (NO) Closed contact in rest state (NC) |
| MFA_25 | Digitaler_PWM_Ausgang_High_5 |

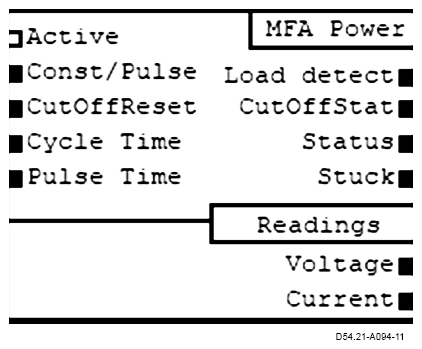

The picture shows the module input "Active" on the left side, to which a signal ID from the signal pool is assigned. Below this on the left side are the parameterizable input factors of the module (Const/Pulse, CutOffReset, etc.). The output factors that can be found in the signal pool as signals are shown on the right side.
Each multifunction output is assigned a physical pin of the control unit at which the output voltage can be tapped.
Function category MFA_POWER
Contents
- Multifunction output
- Properties
- Parameter
- Inputs signal
- Result signal
| Number | Rated current | Description |
|---|---|---|
| MF_A01 | 5 A | Digitaler_Ausgang_High_5A_1 |
| MF_A02 | 10 A | Digitaler_Ausgang_High_ 10A_1 |
| MF_A03 | 5 A | Digitaler_Ausgang_High_ 5A_2 |
| MF_A04 | 10 A | Digitaler_Ausgang_High_ 10A_2 |
| MFA_05 | 5 A | Digitaler_Ausgang_High_ 5A_3 |
| MF_A06 | 5 A | Digitaler_Ausgang_High_ 5A_4 |
| MFA_07 | 5 A | Digitaler_Ausgang_High_ 5A_5 |
| MF_A08 | 5 A | Digitaler_Ausgang_High_ 5A_6 |
Properties
Soft PWM
Turn signal function up to 10 Hz. Configurable via the "Const/Pulse", "Cycle Time" and "Pulse Time" signal inputs.
Current measurement
The measured current can be accessed via the "Current" result signal. Measuring range of outputs: typically 1.5 - 49 A.
Measurement of voltage
Measured voltage is accessible via the "Voltage" result signal.
Load detection
Configurable load detection. The limit value can be configured using the "Open load threshold" parameter. If the output is activated and an operating current exceeds the configured limit value, a load is detected which is signaled by the "Load detect" result signal.
Short circuit detection and open circuit detection
Short circuit detection and open circuit detection is active when the output is activated. Detection takes place via the measurement of the output current.
Safety
The parameters for "Safety objective active" and "Safety status" can be configured individually for each MFA.
| Name | Description |
|---|---|
| Safety objective active | Configures the status of the MFA when "Safety objective active" is activated and the control unit switches to a safe state. In other words, if the control unit changes to a safe state, this output can take on a defined status (SWITCHED ON or SWITCHED OFF) if this has been parameterized accordingly. |
| Safety status | |
| Reactivation attempts | Determines how many reactivation attempts are performed in the event of overload or short circuit before the MFA is switched off. |
| Check "Stuck at" fault. | Configures short circuit monitoring in the switching direction. |
| Open load threshold | Configures the threshold value for detecting the open load in mA. |
| Name | Description | |
|---|---|---|
| Active | If the assigned result signal value is not equal to 0, the MFA is active. | |
| Const/pulse | Soft PWM | If the assigned result signal value is not equal to 0, the MFA pulses with a defined cycle and pulse time. |
| CutOffReset | If the assigned result signal value changes from 0 to 1, the MFA is enabled again after the overload shut-off. | |
| Cycle time | Soft PWM | The assigned result signal value defines the cycle time in ms. |
| Pulse time | Soft PWM | The assigned result signal value defines the pulse time in ms. |
| Pull-up | If assigned, a 3.65 kΩ pull-up is activated. Available for MFA_02, MFA_05 and MFA_06. |
| Name | Description |
|---|---|
| CutOffStat (MFA_0x_Overl_Cutoff_Stat) | The logical result signal value is TRUE if the MFA is in the state of overload shut-off. |
| Status (MFA_0x_Stat) | The logical result signal value is TRUE if the MFA is active. |
| Stuck (MFA_0x_Stuck_High) | The logical result signal value is TRUE if the MFA has detected a short circuit in the switching direction while the MFA is switched off. |
| Voltage (U_MFA_0x) | The result signal value during the voltage measurement in 1 mV/bit. |
| Current (I_MFA_0x) | The result signal value for current measurement in 1 mA/bit. |
Examples
If a logical "0" is present at module input '"const/pulse", soft PWM is not active In this example: As long as MFE 10 is not switched on, the MFA is constantly switched on.

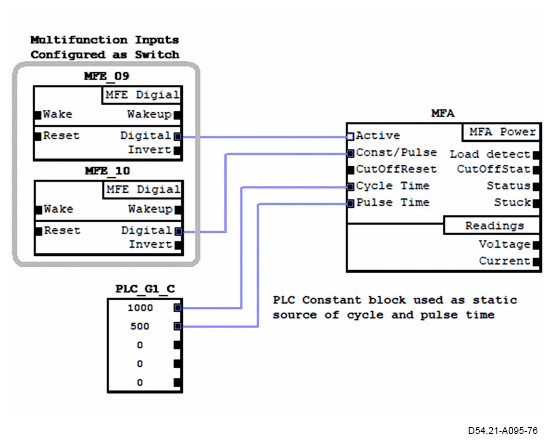

The soft PWM is active by switching on MFE 10. The signal result assigned to the "cycle time" signal input is 1000 and the signal result assigned to the "pulse time" signal input is 500 by configuring the PLC constants block:
Use of MFA with soft PWM
| Cycle time | 1, 000 ms |
| Pulse time | 500 ms |
| Results in a duty cycle of 50%: | |
| 500 ms every second |
The MFA now flashes instead of being constantly lit when MFE_09 and MFE_10 are switched on.
Multifunction output (with "PWM" function)

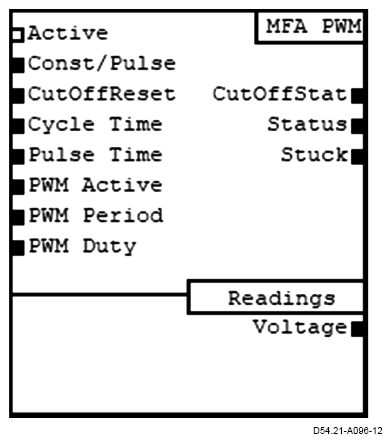

The picture shows the module input "Active" on the left side, to which a signal ID from the signal pool is assigned. Below this on the left side are the parameterizable input factors of the module (Const/Pulse, CutOffReset, etc.). The output factors that can be found in the signal pool as signals are shown on the right side.
Each multifunction output is assigned a physical pin of the control unit at which the output voltage can be tapped.
Function category MFA_PWM
Contents
- Multifunction output
- Properties
- Parameter
- Inputs signal
- Result signal
| Number | Rated current | Description |
|---|---|---|
| MFA 09 | 0.5 A | Digitaler_PWM_Ausgang_High_1 |
| MFA_10 | 0.5 A | Digitaler_PWM_Ausgang_High_2 |
| MFA_11 | 0.5 A | Digitaler_PWM_Ausgang_High_3 |
| MFA_12 | 0.5 A | Digitaler_PWM_Ausgang_High_4 |
| MFA_13 | 1 A | Digitaler_PWM_Ausgang_Low_5kHz_1A_1 |
| MFA 14 | 1 A | Digitaler_PWM_Ausgang_Low_5kHz_1A_2 |
| MFA_15 | 0.5 A | Digitaler_PWM_Ausgang_Low_300Hz_500mA_1 |
| MFA_16 | 0.5 A | Digitaler_PWM_Ausgang_Low_300Hz_500mA_2 |
| MFA_17 | 0.5 A | Digitaler_PWM_Ausgang_Low_300Hz_500mA_3 |
| MFA_18 | 0.5 A | Digitaler_PWM_Ausgang_Low_300Hz_500mA_4 |
Properties
Configurable PWM
MFA_09 to 12 and MFA_15 to 18: Configurable PWM between 4 and 300 Hz. The frequency and duty cycle can be selected individually.
MFA_13 and MFA_14: Configurable PWM between 4 and 5, 000 Hz. Frequency for all outputs can be adjusted together, duty cycle can be selected individually.
Soft PWM
Turn signal function up to 10 Hz. Configurable via "Const/Pulse", "Cycle Time" and "Pulse Time" signal inputs individually for each output.
Measurement of voltage
Measured voltage is accessible via the "Voltage" result signal.
Short circuit and overload detection
Overload detection takes place by monitoring the output voltage in the ON state.
Safety
The parameters for "Safety objective active" and "Safety status" can be configured individually for each MFA.
| Name | Description |
|---|---|
| Safety objective active | Configures the status of the MFA when "Safety objective active" is activated and the control unit switches to a safe state. |
| Safety status | |
| Reactivation attempts | Determines how many reactivation attempts are performed in the event of overload or short circuit before the MFA is switched off. |
| Check "Stuck at" fault. | Configures short circuit monitoring in the switching direction. |
| PWM type | Configures the type of evaluation of the PWM Period and PWM Duty signal inputs. |
| Pull-up | For assignment to MFA_11, a 3.65 kΩ pull-up is activated. For assignment to MFA_13 and MFA_14, a 2.74 kΩ pull-up is provided. |
| Name | Description | |
|---|---|---|
| Active | If the assigned result signal value is not equal to 0, the MFA is active. | |
| Const/pulse | Soft PWM | If the assigned result signal value is not equal to 0, the MFA pulses with a defined cycle and pulse time. |
| CutOffReset | If the assigned result signal value changes from 0 to 1, the MFA is enabled again after the overload shut-off. | |
| Cycle time | Soft PWM | The assigned result signal value defines the cycle time in ms. |
| Pulse time | Soft PWM | The assigned result signal value defines the pulse time in ms. |
| PWM Active | If the assigned result signal value is not equal to 0, the configurable PWM of the MFA is active. | |
| PWM Period | The evaluation of the assigned result signal value depends on the configured parameter PWM type: Frequency The assigned result signal value is evaluated as a frequency in 0.1 Hz. Time The assigned result signal value is evaluated as time in μs. |
|
| PWM Duty Cycle | The evaluation of the assigned result signal value depends on the configured parameter PWM type: Frequency The assigned result signal value is evaluated as a duty cycle in 0.01%. Time The assigned result signal value is evaluated as a cycle time in μs. |
| Name | Description |
|---|---|
| CutOffStat (MFA_x_Overl_Cutoff_Stat) | The logical result signal value is TRUE if the MFA is in the state of overload shut-off. |
| Status (MFA_x_Stat) | The logical result signal value is TRUE if the MFA is active. |
| Stuck (MFA_x_Stuck_High or MFA_x_Stuck_Low) |
The logical result signal value is TRUE if the MFA has detected a short circuit in the switching direction while the MFA is switched off. |
| Voltage (U_MFA_x) | The result signal value during the voltage measurement in 1 mV/bit. |
Multifunction output (with "Asymmetric half bridge" function)

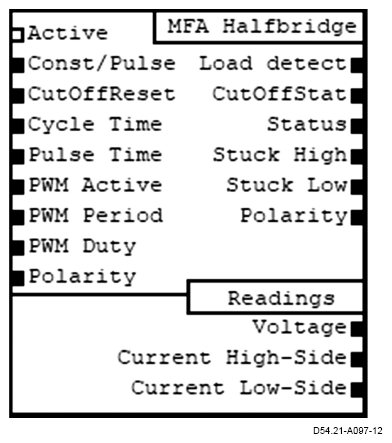

The picture shows the module input "Active" on the left side, to which a signal ID from the signal pool is assigned. Below this on the left side are the parameterizable input factors of the module (Const/Pulse, CutOffReset, etc.). The output factors that can be found in the signal pool as signals are shown on the right side.
Each multifunction output is assigned a physical pin of the control unit at which the output voltage can be tapped.
It is possible to combine two asymmetric half bridges into a full bridge.
Function category MFA_HALFBRIDGE
Contents
- Multifunction output
- Properties
- Parameter
- Inputs signal
- Result signal
| Number | Rated current | Description |
|---|---|---|
| MFA_19 | 5 A | Configurable high-/low-side switch with overload protection. Can be used individually as an asymmetric half bridge or together with MFA_20 as a full bridge. Digital_PWM_Output_Half_1 |
| MFA_20 | 5 A | Configurable high-/low-side switch with overload protection. Can be used individually as an asymmetric half bridge or together with MFA_19 as a full bridge. Digital_PWM_Output_Half_2 |
| MFA21 | 5 A | Configurable high-/low-side switch with overload protection. Can be used individually as an asymmetric half bridge or together with MFA_22 as a full bridge. Digital_PWM_Output_Half_3 |
| MFA_22 | 5 A | Configurable high-/low-side switch with overload protection. Can be used individually as an asymmetric half bridge or together with MFA_21 as a full bridge. Digital_PWM_Output_Half_4 |
Properties
Configurable PWM
Configurable PWM between 4-3, 000 Hz. Frequency and duty cycle can be generated individually when the high side output is active.
Soft PWM
Turn signal function up to 10 Hz. Configurable via the "Const/Pulse", "Cycle Time" and "Pulse Time" signal inputs.
Current measurement
The measured current is accessible via the Current High Side and Current Low Side result signals.
Measurement of voltage
Measured voltage is accessible via the "Voltage" result signal.
Load detection
Configurable load detection. The limit value can be configured using the "Open load threshold" parameter. If the output is activated and an operating current exceeds the configured limit value, a load is detected which is signaled by the "Load detect" result signal.
Short circuit and overload detection
Short circuit and overload detection takes place in active mode through current measurement.
Safety
The parameters for "Safety objective active" and "Safety status" can be configured individually for each MFA.
| Name | Description |
|---|---|
| Safety objective active | Configures the status of the MFA when 'Safety objective active' is activated and the control unit switches to a safe state. |
| Safety status | |
| Reactivation attempts | Determines how many reactivation attempts are performed in the event of overload or short circuit before the MFA is switched off. |
| Check "Stuck at" fault. | Configures short circuit monitoring in the switching direction. |
| PWM type | Configures the type of evaluation of the PWM Period and PWM Operation signal inputs. |
| Open load threshold | Configures the threshold value for detecting the open load in mA. |
| Full bridge | Configures the asymmetrical half bridge to a full bridge with its partner asymmetric half bridge function block. |
| Braking time | Braking times are available with full bridge function. It switches both outputs in the same direction (low-side) for the specified time (resolution 10 ms) when a change in direction of the outputs is requested. |
| Input | Not equal to 0 | Equal to 0 |
|---|---|---|
| MFA_19_active_Input | MFA_19 high-side MFA_20 low-side |
MFA_19 low-side MFA_20 high-side |
| MFA_20_active_Input | MFA_19/MFA_20: On | MFA_19/MFA_20: Off |
| Input | Not equal to 0 | Equal to 0 |
|---|---|---|
| MFA_21_active_Input | MFA_21 high-side MFA_22 low-side |
MFA_21 low-side MFA_22 high-side |
| MFA_22_active_Input | MFA_21/MFA_22: On | MFA_21/MFA_22: Off |
| Name | Description | |
|---|---|---|
| Active | If the assigned result signal value is not equal to 0, the MFA is active. | |
| Const/pulse | Soft PWM | If the assigned result signal value is not equal to 0, the MFA pulses with a defined cycle and pulse time. |
| CutOffReset | If the assigned result signal value changes from 0 to 1, the MFA is enabled again after the overload shut-off. Undefined behavior when exceeded: CutOffReset is controlled by the FET Protection Strategy. | |
| Cycle time | Soft PWM | The assigned result signal value defines the cycle time in ms. |
| Pulse time | Soft PWM | The assigned result signal value defines the pulse time in ms. |
| PWM Active | If the assigned result signal value is not equal to 0, the configurable PWM of the MFA is active. | |
| PWM Period | The evaluation of the assigned result signal value depends on the configured parameter PWM type: Frequency The assigned result signal value is evaluated as a frequency in 0.1 Hz. Time The assigned result signal value is evaluated as time in μs. |
|
| PWM Duty Cycle | The evaluation of the assigned result signal value depends on the configured parameter PWM type: Frequency The assigned result signal value is evaluated as a duty cycle in 0.01%. Time The assigned result signal value is evaluated as a cycle time in μs. |
|
| Polarity | If the assigned result signal value is not equal to 0, the switching direction of the MFA is set to high-side. Otherwise to low-side. |
| Name | Description |
|---|---|
| Detect load (MFA_x_load_detect) | The logical result signal value is TRUE if the configured 'Open load threshold' is exceeded. |
| CutOffStat (MFA_x_Overl_Cutoff_Stat) | The logical result signal value is TRUE if the MFA is in the state of overload shut-off. |
| Status (MFA_x_Stat) | The logical result signal value is TRUE if the MFA is active. |
| Stuck High (MFA_x_Stuck_High) | The logical result signal value is TRUE if the MFA has detected a short circuit in the high switching direction. |
| Stuck Low (MFA_x_Stuck_Low) | The logical result signal value is TRUE if the MFA has detected a short circuit in the low switching direction. |
| Polarity (MFA_x_Polarity) | The logical result signal value is TRUE if the switching direction of the MFA is toward the high side. |
| Voltage (U_MFA_x) | The result signal value during the voltage measurement in 1 mV/bit. |
| High Side Current Intensity (I_MFA_x_HS) | The result signal value for current measurement in 1 mA/bit. |
| Low Side Current Intensity (I_MFA_x_LS) | The result signal value for current measurement in 1 mA/bit |
Multifunction output (internal relay)

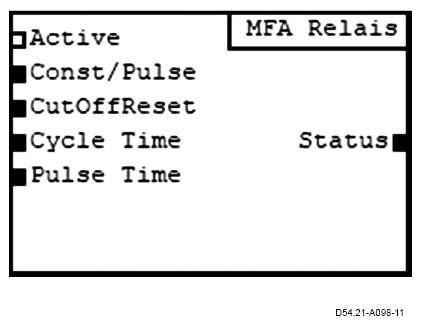

The picture shows the module input "Active" on the left side, to which a signal ID from the signal pool is assigned. Below this on the left side are the parameterizable input factors of the module (Const/Pulse, CutOffReset, etc.). The output factors that can be found in the signal pool as signals are shown on the right side.
Relays are equipped on the printed circuit board of the PSM. Using these outputs, galvanically isolated loads can be switched.
Three pins are available to the user for the secondary side (changer: open, closed, common) for each relay.
Function category MFA_RELAY
Contents
- Multifunction output
- Properties
- Inputs signal
- Result signal
| Number | Rated current | Description |
|---|---|---|
| MFA_23 | 1 A | Relay 1, with supported PWM frequency of 10 Hz. |
| MFA_24 | 1 A | Relay 2, with supported PWM frequency of 10 Hz. |
Properties
Soft PWM
Flash function up to 10 Hz. Configurable via the "Const/Pulse", "Cycle Time" and "Pulse Time" signal inputs.
Maximum switching current:
The maximum load for each output is 1 A.
Minimum switching current:
To comply with the service life specification, the typical switching current must be at least 10 μA.
No diagnosis, no overload/short circuit protection:
These outputs do NOT provide diagnosis functions, voltage feedback measurements or current measurements. They also do not offer overload protection. Any safety precaution must be implemented in the external electric circuit, which is closed via the relay contacts. The specifications must not be exceeded.
Appropriate protective devices must be provided for capacitive and/or inductive loads.
| Name | Description | |
|---|---|---|
| Active | If the assigned result signal value is not equal to 0, the MFA is active. | |
| Const/pulse | Soft PWM | If the assigned result signal value is not equal to 0, the MFA pulses with a defined cycle and pulse time. |
| CutOffReset | If the assigned result signal value changes from 0 to 1, the MFA is enabled again after the overload shut-off. Undefined behavior when exceeded: CutOffReset is controlled by the FET Protection Strategy. |
|
| Cycle time | Soft PWM | The assigned result signal value defines the cycle time in ms. |
| Pulse time | Soft PWM | The assigned result signal value defines the pulse time in ms. |
| Name | Description |
|---|---|
| Status (MFA_2x_Stat) | The logical result signal value is TRUE if the MFA is active. |
