Functional Scope Of Engine, PSM, Function - GF54.21-D-3007TSF
Model 447, 448
with code ED5 (Parameterisable special module)
with code XM7 (MOPF II)
Working speed control
Model 907, 910
with code ED5 (Parameterisable special module)
with code XJ4 (Modification year G4-I)
Working speed control

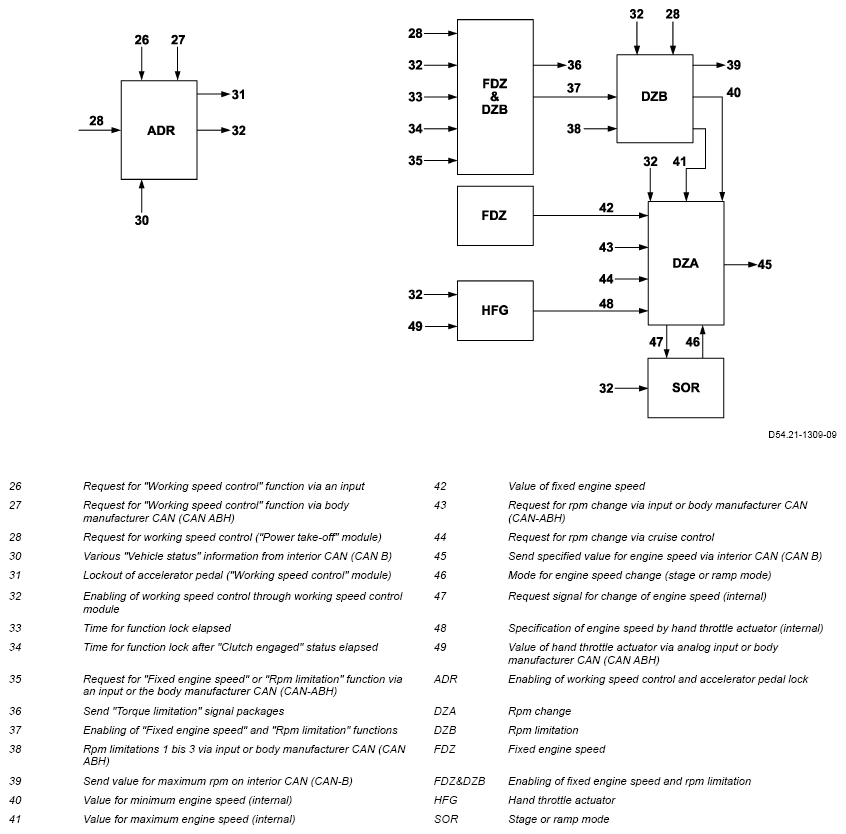

Engine functions
Engine speed control function
The parameterizable special module (PSM) control unit (N26/16) enables functions in the CDI control unit (N3/28, N3/31, N3/33, N3/40, N3/47) or ME-SFI control unit (N3/34, N3/36) to be influenced.
For this purpose, the parameterizable function module for engine speed control has been implemented, which ensures correct operation of the CDI control unit (N3/28, N3/31, N3/33, N3/40, N3/47) or the ME-SFI control unit (N3/34, N3/36).
It is possible to set a specified value for engine speed, maximum engine speed, maximum engine torque and maximum vehicle speed via the engine speed control module. These functions are distributed across various sub-modules (see picture below). If a function is not required, it can be deactivated via the associated sub-module.
However, in order to map a function such as working speed control, for example, it is generally necessary to parameterize multiple sub-modules. The individual modules for engine speed control are shown in the picture below.
Working speed control function
The actual rpm of the engine can be regulated via the working speed control function.
Multiple fixed rpm values can be specified, and the rpm can also be freely adjusted via a pushbutton.
For safety reasons, the working speed control function can only be used on a stationary vehicle with the parking brake applied.
Engine speed control
The input factors and initial parameters are described in general in the overview picture. A detailed description of the inputs and outputs of the module, including possible settings, can be found in the respective sub-module.
The parameterizable special module (PSM) control unit (N26/16) can activate the output of rpm limits, torque limits and speed limits via inputs or signals from the body manufacturer CAN (CAN ABH).
The following conditions must be fulfilled for this function:
- The correct function module for the limitation is active.
- Circuit 15 ON
- Working speed control not active
If these conditions are fulfilled, it is then possible to activate the output of limit values via the inputs of the respective module.
Working speed control enables the body manufacturer (ABH) to adjust the engine speed.
- Use of a cruise control switch to increase, reduce or resume rpm
- Use of the body manufacturer CAN (CAN ABH) for direct specification of the rpm
- Use of the body manufacturer CAN (CAN ABH) to increase, reduce or resume the rpm
Working speed control ensures that sudden changes in rpm or exceeding the parameterized minimum and maximum rpm are not possible. In the event of a fault, the system attempts to set the lowest possible rpms (idle speed) or to completely deactivate working speed control.
With working speed control, the following input conditions can be parameterized for internal function enabling:
- Parameterization of internal inputs via menu items: "Special functions → Engine speed control → Working speed control, input":
- Requirement for enabling of working speed control: Transmission in neutral position
- Requirement for enabling of working speed control: Freely parameterizable CAN signal
- Request for "Working speed control" function via an input
- Request for "Working speed control" function via body manufacturer CAN (CAN ABH)
- Parameterization of module via menu items: "Special functions → Engine speed control → Working speed control, properties":
- Activate "Working speed control" function
- Request for "Working speed control" function via power take-off
- Requirement for enabling of working speed control: Engine at idle
- Requirement for enabling of working speed control: Clutch
- Freely parameterizable CAN signal: Threshold value
- Freely parameterizable CAN signal: Evaluation of threshold value
- Freely parameterizable CAN signal: Inversion (with bit signals only)
- Waiting time until enabling of function
- Waiting time after operation of clutch pedal
- Limitation of minimum engine speed via the "Working speed control" function
- Limitation of maximum engine speed via the "Working speed control" function
- Limitation of maximum engine torque via the "Working speed control" function
- Maximum speed in working speed control mode
- Accelerator pedal lock

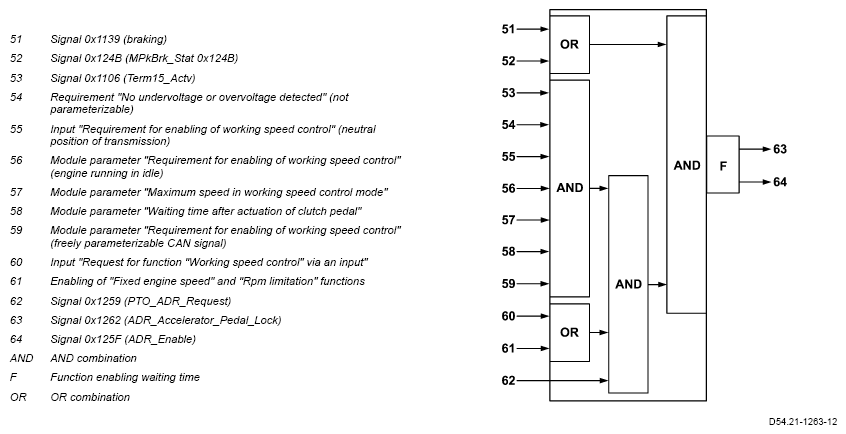

The following conditions are always checked to enable the "Working speed control" function, i.e. these conditions are fixed:
- Parking brake "ACTUATED".
- Brake "ACTUATED".
- Circuit 15 "ON"
- Power supply in normal range
When these conditions are fulfilled, the internal function enabling can be activated via an input or via the body manufacturer CAN (CAN ABH).
If internal function enabling has been activated, the rpm specification in the PSM control unit can then be output and changed. The possibilities for changing the rpm are listed below in the sequence corresponding to their priority (fixed engine speed, hand throttle actuator, increase, reduction or resumption).

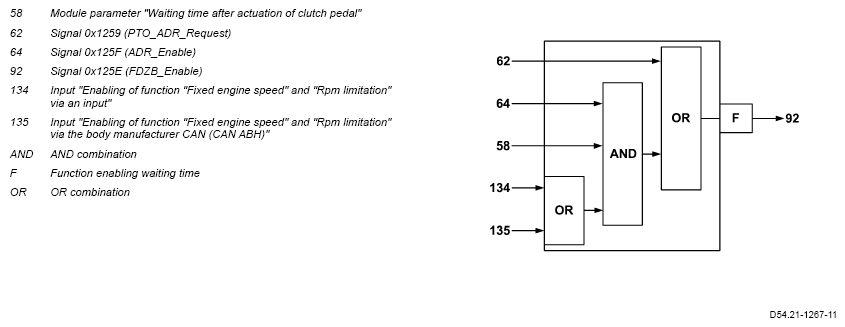

"Rpm limitation" function
The PSM control unit can activate output of rpm limits, torque limits and vehicle speed limits via inputs or signals from the body manufacturer CAN (CAN ABH).
The following conditions must be fulfilled for this function:
- The correct function module for the limitation is active.
- Circuit 15 "ON"
- Working speed control not active
If these conditions are fulfilled, it is then possible to activate the output of limit values via the inputs of the respective module.

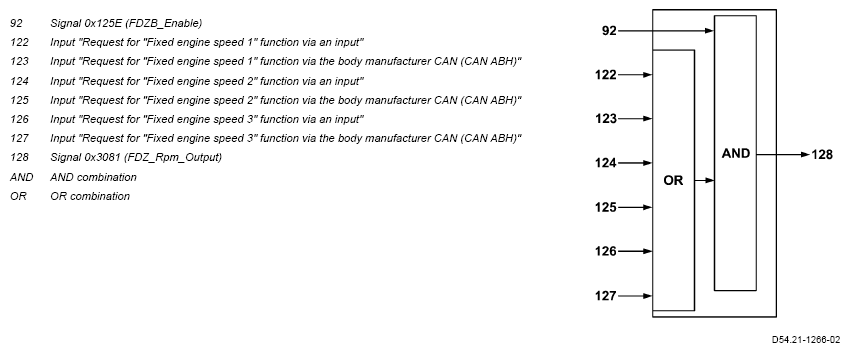

"Fixed engine speed" function
3 different fixed rpms can be output via inputs or the body manufacturer CAN (CAN ABH). Each fixed engine speed can be assigned a run-on time of up to 25.5 s. If a fixed engine speed is selected, it is approached using a ramp. If no fixed engine speed is selected, the lower rpm limit of the working speed control is approached with a ramp when none of the other rpm changes is active.

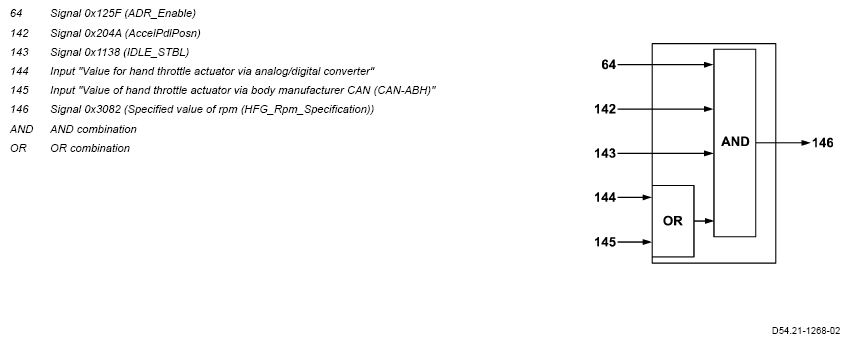

Hand throttle actuator
The hand throttle actuator can be operated either via an analog input (input 07 or 08) of the parameterizable special module (PSM) control unit (N26/16) or via the body manufacturer CAN (CAN ABH) (signal 0x3053 (Requested engine speed for working speed control)). In both cases, the rpm is pegged between the parameterized limits (minimum and maximum) of the hand throttle actuator.
To activate the hand throttle actuator, the accelerator pedal module must be in a rest position and the engine speed must be in a stable condition.
When using an analog input, it is possible to switch the hand throttle actuator on and off via the input "Value for hand throttle actuator via analog/digital converter".
When the hand throttle actuator is activated, a ramp is initially used to approach the set rpm. Once this rpm has been reached, the changes made at the hand throttle actuator are forwarded directly.
Use commercially available hand throttle actuators, e.g. those used on Mercedes-Benz trucks. Use a high-side output of the PSM control unit as a power supply for these hand throttle actuators. Failure to do so may result in severe fluctuations in engine speed.

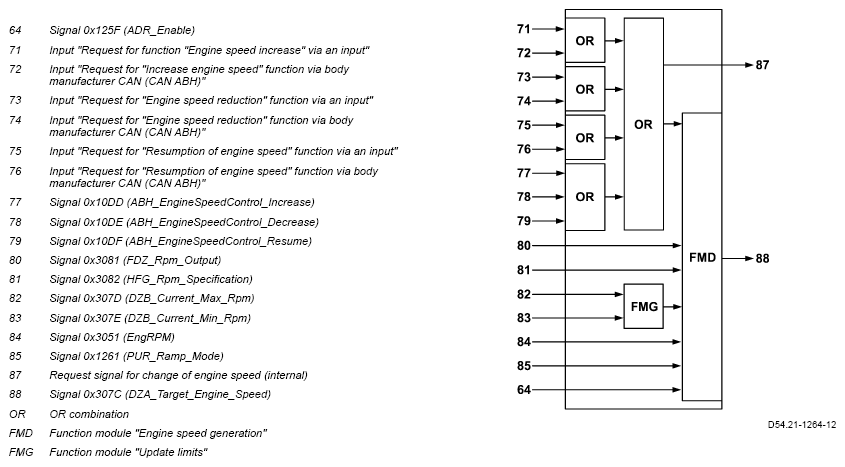

"Rpm change" function
This operating mode has the lowest priority and can therefore only be used when neither the fixed engine speed nor the hand throttle actuator are active.
The input sources are either the cruise control switch, inputs at the PSM control unit or signals from the body manufacturer CAN (CAN ABH). The functions are "Increase rpm", "Reduce rpm" and "Resume rpm".
The rpm changes have 2 operating modes: the stage mode and the ramp mode.
In the stage mode, the rpm is reduced or increased by the parameterized stage height each time an input is actuated. If the input remains actuated, the system changes to ramp mode. A ramp with the parameterized ramp slope is then output. This ramp stops either when a rpm limit is reached or when actuation of the input is canceled.
If the "Hand throttle actuator" or "Fixed engine speed" function is activated, then it will not be possible to switch between stage and ramp mode.
The rpm resumption functions similarly to cruise control. If this input is actuated, a previously stored rpm is approached again. This is done using a ramp.
The rpm is stored each time an input used for increasing or reducing the rpm (in stage or ramp mode) is actuated. If working speed control is deactivated and reactivated, the current engine speed is adopted as the new start value. Actuating the resumption function sets the original rpm again.
The value for resume is only stored until the PSM control unit changes to rest mode (e.g. if the vehicle is parked for an extended period). The value is stored for the duration of "Circuit 15 ON".
Parameters for working speed control function
Request for "Working speed control" function via an input
Request for activation of working speed control. An event entry is made if an unfulfilled condition for activation of working speed control is detected when this input is actuated. The freeze frame data for the event contains the information indicating which conditions are not yet fulfilled.
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Working speed control" function via body manufacturer CAN (CAN ABH)
Request via body manufacturer CAN (CAN ABH) for activation of working speed control. The "B18319A" event is set with its freeze frame data in the same manner as for the request via an input.
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Working speed control" function via power take-off
Request of power take-off for activation of working speed control.
| Request for working speed control, function module for power take-off (signal ID 0x1259) | The request of the "Power take-off function" is taken into account for activation of working speed control. |
| Query DEACTIVATED (0x3083). | Query of this condition deactivated |
Brake
Activation input (bit signal) as condition for activation of working speed control.
Parameterization possibilities:
| Brake light ACTUATED (signal ID 0xx9034). | Query of brake for activation of working speed control |
| Continuous low (signal ID 0x1000) | Query of this condition deactivated |
Parking brake
Querying of this condition cannot be deactivated.
Activation input (bit signal) as condition for enabling of working speed control.
Parameterization possibilities:
| Parking brake ACTUATED (signal ID 0x124B). | Query of parking brake for activation of working speed control |
Requirement for enabling of working speed control: Transmission in neutral position, with transmission 722.9
The availability of the signal depends on the vehicle equipment.
Activation input (bit signal) as condition for working speed control.
Parameterization possibilities:
| Selector lever in position "N" (signal ID 0x90D1) | Query of neutral position for activation of working speed control |
| Query DEACTIVATED (signal ID 0x3083). | Query of this condition deactivated |
Requirement for enabling of working speed control: Engine running at idle
Activation input (bit signal) as condition for working speed control.
Parameterization possibilities:
| Engine at idle (signal ID 0x1138) | Query of engine idle for activation of working speed control |
| Query DEACTIVATED (signal ID 0x3083). | Query of this condition deactivated |
Requirement for enabling of working speed control: Clutch
The availability of the signal "Clutch pedal fully depressed" depends on the vehicle equipment.
Activation input (bit signal) as condition for working speed control.
Parameterization possibilities:
| Clutch pedal ACTUATED (signal ID 0x1192). | Query of whether clutch pedal is slightly depressed for activation of working speed control |
| Clutch pedal FULLY DEPRESSED (signal ID 0x1193) | Query of whether clutch pedal is fully depressed for activation of working speed control |
| Query DEACTIVATED (signal ID 0x3083). | Query of this condition deactivated |
The transmission neutral position switch is installed on vehicles with at least one of the following equipment codes:
- With code B25 (Electric parking brake)
- With code E07 (Hill Start Assist)
- With code GE9 (6-speed manual transmission)
- With code MJ8 (ECO start/stop function)
- With code M53 (Constant-rpm control)
- With code MS1 (Cruise control)
- With code MT4 (Variable electronic rpm governor)
- With code MW1 (Engine run-on control)
Requirement for enabling of working speed control: Freely parameterizable CAN signal
Activation input as condition for working speed control.
The procedure is as follows:
- Signal = Any signal
- Type of signal = Bit or other signal
- Type of evaluation:
- With bit signal = Signal inverted or non-inverted
- With other signals = Threshold and whether signal needs to be above or below threshold.
Parameterization possibilities:
| Any signal | Any signal can be used for this. |
| Query DEACTIVATED (signal ID 0x3083). | Query of this condition deactivated |
Further parameters for freely parameterizable CAN signal for working speed control
Parameterize these in working speed control properties:
- Threshold (value range = 0 to 65, 535 rpm)
- Threshold evaluation, selection = Value must be higher or lower than threshold.
- Invert (only with bit signals), selection = "Yes" or "No" Waiting time after operation of clutch pedal
The status of the clutch must be in the parameterized state (DEPRESSED/FULLY DEPRESSED) for the parameterized period so that the "Working speed control" function is enabled.
If the parameter for waiting time after "Clutch depressed" is set to 0, checking of the clutch status is deactivated in the function module for working speed control.
Waiting time until enabling of function
In order for this condition to be regarded as fulfilled in the function module for working speed control, the time which is stored in the parameter "Waiting time until enabling of function" must expire after all other input conditions have been fulfilled. If the parameter "Waiting time until enabling of function" is set to 0, checking of this waiting time is deactivated in the function module for working speed control.
Further parameters for working speed control:
- Maximum engine speed
- Maximum engine torque
- Maximum vehicle speed
Parameters for rpm change function
Request for "Engine speed increase" function via an input
Request for rpm increase from input (bit signal) for rpm increase in rpm change function module.
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Increase engine speed" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for rpm resumption in rpm change function module.
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Engine speed reduction" function via an input
Activation input (bit signal) for rpm reduction in rpm change function module.
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Engine speed reduction" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for rpm reduction in rpm change function module.
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Resumption of engine speed" function via an input
Activation input (bit signal) for rpm resumption in rpm change function module.
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Resumption of engine speed" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for rpm resumption in rpm change function module.
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Further parameters for rpm change
The following parameters are available for rpm change:
- Ramp slope (in ramp mode)
- Rpm change per second = 0 to 255 rpm
- Jump height (in stage mode)
- Rpm change = 0 to 255 rpm
- Switchover time from stage to ramp mode
- Switchover time = 0 to 25.5 s, in increments of 100 ms

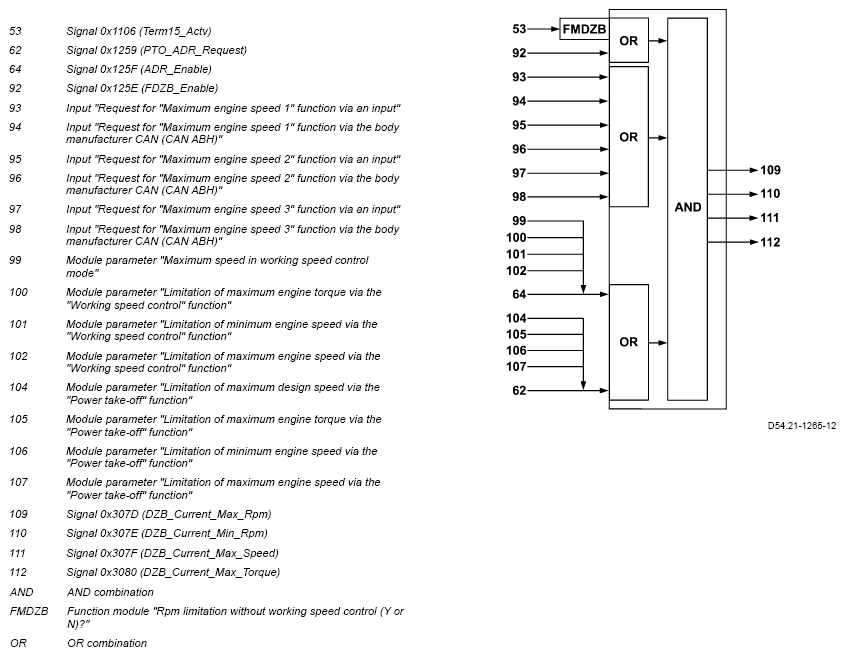

Request for "Maximum engine speed 1" function via an input
Activation input (bit signal) for selection of maximum rpm limitation 1. Triggers output of "Maximum engine speed 1" parameter or output of limit set 1 (for parameterization of "Output of limits without working speed control" function) at the output of the rpm limitation function module. Limit set 1 consists of the following parameters:
- "Maximum engine speed 1" (rpm limitation without working speed control)
- "Maximum design speed 1" (rpm limitation without working speed control)
- "Maximum engine torque 1" (rpm limitation without working speed control)
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for function "Maximum engine speed 2" via an input
Activation input (bit signal) for selection of maximum rpm limitation 2. Triggers output of "Maximum engine speed 2" parameter or output of limit set 2 (for parameterization of function for output of limits without working speed control) at the output of the rpm limitation function module. Limit set 2 consists of the following parameters:
- "Maximum engine speed 2" (rpm limitation without working speed control)
- "Maximum design speed 2" (rpm limitation without working speed control)
- "Maximum engine torque 2" (rpm limitation without working speed control)
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Maximum engine speed 3" function via an input
Activation input (bit signal) for selection of maximum rpm limitation 3. Triggers output of "Maximum engine speed 3" parameter or output of limit set 3 (for parameterization of function for output of limits without working speed control) at the output of the rpm limitation function module. Limit set 3 consists of the following parameters:
- "Maximum engine speed 3" (rpm limitation without working speed control)
- "Maximum design speed 3" (rpm limitation without working speed control)
- "Maximum engine torque 3" (rpm limitation without working speed control)
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Maximum engine speed 1" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for selection of maximum rpm limitation 1. Triggers output of "Maximum engine speed 1" parameter or output of limit set 1 (for parameterization of function for output of limits without working speed control) at the output of the rpm limitation function module. Limit set 1 consists of the following parameters:
- "Maximum engine speed 1" (rpm limitation without working speed control)
- "Maximum design speed 1" (rpm limitation without working speed control)
- "Maximum engine torque 1" (rpm limitation without working speed control)
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Maximum engine speed 2" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for selection of maximum rpm limitation 2. Triggers output of "Maximum engine speed 2" parameter or output of limit set 2 (for parameterization of function for output of limits without working speed control) at the output of the rpm limitation function module.
Limit set 2 consists of the following parameters:
- "Maximum engine speed 2" (rpm limitation without working speed control)
- "Maximum design speed 2" (rpm limitation without working speed control)
- "Maximum engine torque 2" (rpm limitation without working speed control)
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Maximum engine speed 3" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for selection of maximum rpm limitation 3.
Triggers output of "Maximum engine speed 3" parameter or output of limit set 3 (for parameterization of function for output of limits without working speed control) at the output of the rpm limitation function module. Limit set 3 consists of the following parameters:
- "Maximum engine speed 3" (rpm limitation without working speed control)
- "Maximum design speed 3" (rpm limitation without working speed control)
- "Maximum engine torque 3" (rpm limitation without working speed control)
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Enabling of "Fixed engine speed" and "Rpm limitation" functions via an input
Activation input (bit signal) for engine speed enabling in function module for fixed engine speed and rpm limitation.
Enabling of the "Fixed engine speed" and "Rpm limitation" functions via an input or enabling of the "Fixed engine speed" and "Rpm limitation" functions via the body manufacturer CAN (CAN ABH) must be set so that activation of a fixed engine speed or an rpm limitation (or a limit set) is possible. At one of these inputs, it must be possible to apply a logical 1, either by means of bit information in the signal pool or by means of parameterization to "Continuous HIGH" (signal ID 0x1001).
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Enabling of "Fixed engine speed" and "Rpm limitation" functions via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for rpm enabling in fixed engine speed and rpm limitation.
Enabling of the "Fixed engine speed" and "Rpm limitation" functions via an input or enabling of the "Fixed engine speed" and "Rpm limitation" functions via the body manufacturer CAN (CAN ABH) must be set so that activation of a fixed engine speed or an rpm limitation (or a limit set) is possible. At one of these inputs, it must be possible to apply a logical "1", either by means of optional bit information in the signal pool or by means of parameterization to "Continuous HIGH" (signal ID 0x1001).
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Further parameters for rpm limitation
The following additional parameters are also available for rpm limitation:
- Minimum engine speed and maximum engine speed 1 to 3 (rpm limitation without working speed control)
- Maximum engine torque 1 to 3 (rpm limitation without working speed control)
- Maximum design speed 1 to 3 (rpm limitation without working speed control)
Parameters for fixed engine speed function
Request for "Fixed engine speed 1" function via an input
Activation input (bit signal) for selection of fixed engine speed 1. Triggers output of the parameter "Output of fixed engine speed 1" at the output of the function module for fixed engine speed.
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Fixed engine speed 2" function via an input
Activation input (bit signal) for selection of fixed engine speed 2. Triggers output of the parameter "Output of fixed engine speed 2" at the output of the function module for fixed engine speed.
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Fixed engine speed 3" function via an input
Activation input (bit signal) for selection of fixed engine speed 3. Triggers output of the parameter "Output of fixed engine speed 3" at the output of the function module for fixed engine speed.
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Fixed engine speed 1" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for selection of fixed engine speed 1. Triggers output of the parameter "Output of fixed engine speed 1" at the output of the function module for fixed engine speed.
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Fixed engine speed 2" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for selection of fixed engine speed 2. Triggers output of the parameter "Output of fixed engine speed 2" at the output of the function module for fixed engine speed.
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Request for "Fixed engine speed 3" function via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for selection of fixed engine speed 3. Triggers output of the parameter "Output of fixed engine speed 3" at the output of the function module for fixed engine speed.
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Enabling of "Fixed engine speed" and "Rpm limitation" functions via an input
Activation input (bit signal) for engine speed enabling in function module for fixed engine speed and rpm limitation.
Enabling of the "Fixed engine speed" and "Rpm limitation" functions via an input or enabling of the "Fixed engine speed" and "Rpm limitation" functions via the body manufacturer CAN (CAN ABH) must be set so that activation of a fixed engine speed or an rpm limitation (or a limit set) is possible. At one of these inputs, it must be possible to apply a logical "1", either by means of optional bit information in the signal pool or by means of parameterization to "Continuous HIGH" (signal ID 0x1001).
| Any signal | Any signal can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Enabling of "Fixed engine speed" and "Rpm limitation" functions via body manufacturer CAN (CAN ABH)
Activation input (bit signal) for engine speed enabling in function module for fixed engine speed and rpm limitation.
Enabling of the "Fixed engine speed" and "Rpm limitation" functions via an input or enabling of the "Fixed engine speed" and "Rpm limitation" functions via the body manufacturer CAN (CAN ABH) must be set so that activation of a fixed engine speed or an rpm limitation (or a limit set) is possible. At one of these inputs, it must be possible to apply a logical "1", either by means of optional bit information in the signal pool or by means of parameterization to "Continuous HIGH" (signal ID 0x1001).
| Any signal from body manufacturer CAN (CAN ABH) | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Continuous low (signal ID 0x1000) | Function deactivated |
Waiting time after operation of clutch pedal
Depending on the parameterization, the clutch status must be "Clutch depressed" or "Clutch fully depressed" and this must be the case for the period of time that is stored in the parameter "Waiting time after actuation of clutch pedal". This condition is therefore fulfilled in the function module for fixed engine speed and rpm limitation.
If the waiting time is set to "0", checking of the clutch status is deactivated in the function module for fixed engine speed and rpm limitation.
Waiting time until enabling of function
After all other input conditions have been fulfilled, the time that is stored in the parameter "Waiting time until enabling of function" must expire in order for this condition to be regarded as fulfilled in the function module for fixed engine speed and rpm limitation.
If the waiting time is set to "0", checking of this waiting time is deactivated in the function module for fixed engine speed and rpm limitation.
Further parameters for fixed engine speed function
The following additional parameters are also available for fixed engine speed:
- Output of fixed engine speed 1 to 3
- Switch-off delay 1 to 3
Parameters for hand throttle actuator function
Value for hand throttle actuator via analog/digital converter
Depending on the parameterization of this output, the hand throttle actuator function module uses (active) or does not use (inactive) the results of input 07 or 08 for calculating the hand throttle actuator rotational speed.
It is possible to use an arbitrary signal for the activation. You could use e.g. an input to enable the hand throttle actuator to be switched on or off.
| Continuous high (signal ID 0x1001) | Hand throttle actuator activated via analog/digital converter |
| Continuous low (signal ID 0x1000) | Hand throttle actuator deactivated via analog/digital converter |
Value for hand throttle actuator via body manufacturer CAN (CAN ABH)
16-bit value from body manufacturer CAN (CAN ABH). The hand throttle actuator function module uses this to calculate the hand throttle actuator rotational speed specification. The value is interpreted as the desired engine speed. Valid rpm range = 0 to 65, 535 rpm.
| Any signal from body manufacturer CAN | Any signal from the body manufacturer CAN (CAN ABH) can be used for this. |
| Query DEACTIVATED (signal ID 0x3083). | Function deactivated |
Further parameters for hand throttle actuator function
The following additional parameters are also available for the hand throttle actuator:
- Maximum and minimum engine speed via hand throttle actuator
- Selection of analog input for hand throttle actuator, selection option = Input 07 or 08
Signals of working speed control function that are stored in the signal pool
Enabling of working speed control
This bit signal is used as an enabling signal for additional function modules for working speed control. It is set by the function module for working speed control.
This signal is set when the inputs of the function module for working speed control are valid, the times for function enabling and the clutch waiting time have elapsed and one of the working speed control requests (input, body manufacturer CAN (CAN ABH), power take-off) is active. The request to activate the working speed control is forwarded via the interior CAN (CAN B).
Specified value of rpm ("Rpm change" module)
This 16-bit value is calculated by the rpm change function module and is the specification for the rpm forwarded via the interior CAN (CAN B). This rpm is always within the range of the current minimum value and maximum value of the rpm limitation and is calculated based on the inputs at the rpm change function module.
This value is valid whenever the inputs of the function module for rpm change and the signal "Enable working speed control" is active.
Current maximum rpm limit ("Rpm limitation" module)
This 16-bit value is selected by the function module for rpm limitation based on the parameterization for the maximum rpms from the inputs. If more than one input is active at the same time, the lowest maximum engine speed is selected in each case.
This value is determined depending on the status of the bit signals "Enable working speed control" and "Request for working speed control ("Power take-off module)" based on the following parameters:
- Limitation of maximum engine speed via the "Working speed control" function
- Limitation of maximum engine speed via the "Power take-off" function
This value is valid if the inputs of the function module for rpm limitation are valid and the "Enable fixed engine speed" signal is active.
Current minimum rpm limit ("Rpm limitation" module)
This 16-bit value is selected by the function module for rpm limitation based on the parameterization for the minimum rpms If more than one input is active at the same time, the highest minimum engine speed is selected in each case.
This value is determined depending on the status of the bit signals "Enable working speed control" and "Request for working speed control ("Power take-off module)" based on the following parameters:
- Limitation of minimum engine speed via the "Working speed control" function
- Limitation of minimum engine speed via the "Power take-off function"
This value is valid if the inputs of the function module for rpm limitation are valid and the "Enable fixed engine speed" signal is active.
Current maximum torque ("Rpm limitation" module)
This 16-bit value is selected by the function module for rpm limitation based on the parameterization for the maximum torques. If more than one input is active at the same time, the lowest torque is selected in each case.
This value is determined depending on the status of the bit signals "Enable working speed control" and "Request for working speed control ("Power take-off" module) 2" based on the following parameters:
- Limitation of maximum engine torque via the "Working speed control" function
- Limitation of maximum engine torque via the "Power take-off" function
This value is valid if the inputs of the function module for rpm limitation are valid and the "Enable fixed engine speed" signal is active.
Current maximum speed ("Rpm limitation" module)
This 8-bit value is selected by the function module for rpm limitation based on the parameterization for the maximum speed. If more than one input is active at the same time, the lowest speed is selected in each case.
This value is determined depending on the status of the bit signals "Enable working speed control" and "Request for working speed control ("Power take-off" module)" based on the following parameters:
- Maximum speed in working speed control mode
- Limitation of maximum speed via the "Power take-off" function
This value is valid if the inputs of the function module for rpm limitation are valid and the "Enable fixed engine speed" signal is active.
Specified value of rpm ("Fixed engine speed" module)
This 16-bit value is selected by the function module for fixed engine speed based on the parameterization for the fixed engine speed from the inputs.
This value is valid if the inputs of the function module for rpm limitation are valid and the "Enable fixed engine speed" signal is active.
Enabling of fixed engine speed
This bit signal is used as an enabling signal for additional function modules for working speed control. It is set by the function module for fixed engine speed and rpm limitation.
This signal is set when the inputs of the function module for fixed engine speed are valid, the times for function enabling and the clutch waiting time have elapsed and either the signal "Enable working speed control" or "Request for working speed control ("Power take-off" module)" is active.
Specified value of rpm ("Hand throttle actuator" module)
This 16-bit value is calculated by the hand throttle actuator function module from the inputs. The rpm is converted on a linear basis between the parameterizable limits "Minimum engine speed via the hand throttle actuator" and "Maximum engine speed via the hand throttle actuator".
This value is valid if the inputs of the function module for rpm limitation are valid and the "Enable fixed engine speed" signal is active.
Ramp mode "ACTIVE" (otherwise pulse mode)
This bit signal is used by the rpm change function module in order to switch from stage mode to ramp mode For this purpose the function module for pulse and ramp mode evaluates the actuation duration of the inputs for rpm change and sets this signal as soon as the actuation duration exceeds the time stored in the "Ramp switchover time (stage or ramp mode)" parameter.
This value is valid if the inputs of the function module for rpm limitation are valid and the "Enable fixed engine speed" signal is active.
Description of associated function modules for working speed control enabling and accelerator pedal lock
Rpm change function module
Function module for rpm limitation
Function module for fixed engine speed
Function module for enabling of fixed engine speed and rpm limitation
Hand throttle actuator function module
Function module for stage and ramp mode
| Overview of system components for parameterizable special module (PSM) | GF54.21-D-9998TSB |
