Multifunction Camera, Component Description - GF54.21-S-3300A
Model 447
With Code JA3 (Intelligent body control.)
With Code JB4 (Active lane keeping Assist)
With Code XM7 (MOPF II)

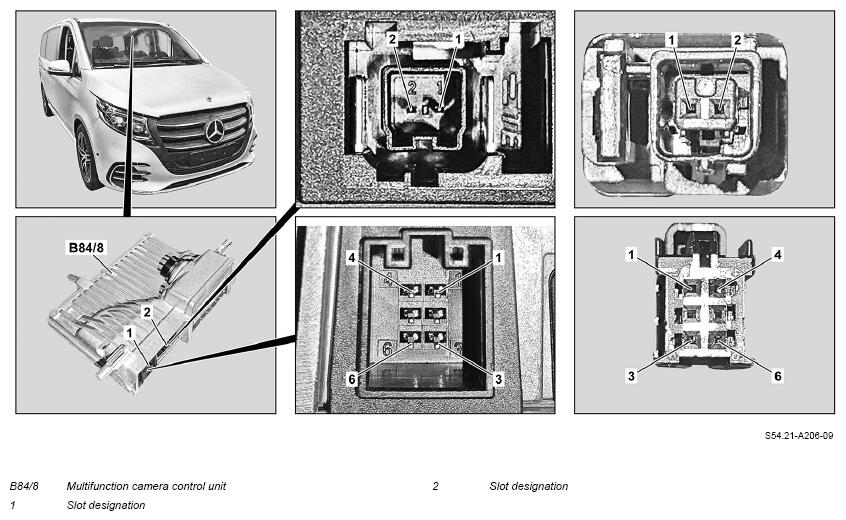

Multifunction camera, shown on model 447.8
Overview
This document contains information on:
- General
- Function
General
The multifunction camera control unit (B84/8) is mounted directly above the inside mirror on the top center of the windshield.
Function
The camera records lane markings on the roadway in front of the vehicle, which are used in the multifunction camera control unit (B84/8) to implement the camera-supported driver assistance systems.
The following input factors and initial parameters are read in and output via direct lines from the multifunction camera control unit (B84/8):
| Input factors over a direct line | Initial parameters over a direct line |
|---|---|
| Terminal 30t | - |
| Terminal 31 | - |
| - | Power supply of heater field for windshield multifunction camera (R22/7) |
| - | Ground connection for heater field for windshield multifunction camera (R22/7) |
Input factors and initial parameters for the following control units are sent or received by the multifunction camera (B84/8) via suspension FlexRay (Flex E):
| Input factors and initial parameters via suspension FlexRay (Flex E) | Supplemental information |
|---|---|
| Active Brake Assist controller unit (B92) | With code BA3 (Active Brake Assist) |
| Active Distance Assist DISTRONIC electric controller unit (B92/1) | With code ET4 (Active Distance Assist DISTRONIC) |
| ESP® control unit (N30/4) | - |
| AIRMATIC control unit (N51/3) | With code CA4 (AIRMATIC) |
| Parking system control unit (N62/3) | With code EZ5 (Active Parking Assist with reversing camera) With code EZ6 (Parking Package with 360° camera) With code JB6 (Parking Package with 360° camera) With code JB7 (Parking Package with reversing camera) |
| Electric power steering (ES) control unit (N68) | - |
| Electronic ignition lock (EZS) control unit (N73/8) | - |
| Steering column tube module control unit (N80) | - |
| Powertrain control unit (N127) | - |
