Instrument Cluster (IC) Control Unit, Component Description - GF54.21-S-6004A

Model 447.6/7

With Code XM7 (MOPF II)

Instrument cluster (IC) control unit

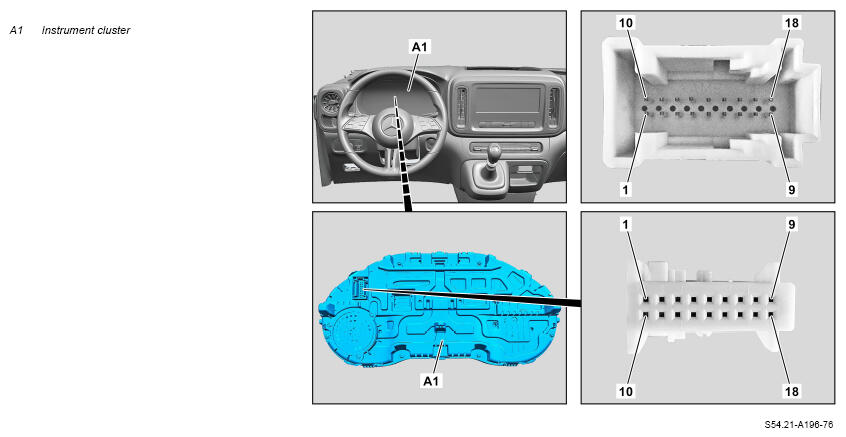

Fig 1: Instrument Cluster (IC) Control Unit Components Location - Model 447.6/7 With Code XM7

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

General
Function
- Task
- Networking
  - Ground connection
  - Power supply

General

The instrument cluster (A1) is located in the instrument panel of the vehicle behind the steering wheel.

The instrument cluster (A1) takes over the function of a gateway for the tachograph control unit (A56).

Function

Task

The instrument cluster (A1) is the display and information unit and is used for visualizing driving-relevant information for the driver. The instrument cluster (A1) contains, e.g. the speedometer, the tachometer, the fuel and engine temperature gauges and various warning and indicator lamps.

Networking

The instrument cluster (A1) has connections via direct lines and via the telematics CAN (CAN B), user interface CAN 2 (CAN HMI2) and the tachograph CAN (CAN TCO).

The following input factors and initial parameters are read in or output via direct lines by the instrument cluster (A1):

Input factors over a direct line	Initial parameters over a direct line
Terminal 30t	-
Terminal 31	-

Input factors and initial parameters for the following control units are sent or received by the instrument cluster (A1) via the telematics CAN (CAN A):

Input factors and initial parameters via telematics CAN (CAN A)	Supplemental information
Head unit (A26/17)	With code E7M (MBUX multimedia system)
Audio/COMAND display control unit (A40/18)	With code E7M (MBUX multimedia system)
Head unit control panel control unit (N72/11)	With code E7M (MBUX multimedia system)
Mobile phone cradle control unit (N123/8)	With code EI0 (Wireless charging system for mobile terminals)

Input factors and initial parameters for the following control units are sent or received by the instrument cluster (A1) via the user interface CAN 2 (CAN HMI2):

Input factors and initial parameters via user interface CAN 2 (CAN HMI2)	Supplemental information
Head unit (A26/17)	-
Electronic ignition lock (EZS) control unit (N73/8)	-

Input factors and initial parameters for the following control units are sent or received by the instrument cluster (A1) via the tachograph CAN (CAN TCO):

Input factors and initial parameters via tachograph CAN (CAN TCO)	Supplemental information
Tachograph control unit (A56)	-

Ground connection

"Terminal 31" ground connection is made via a right cockpit ground point (W1/9).

Power supply

The instrument cluster (A1) is supplied with voltage by "terminal 30t".
