Service Information: New Test Method For Batteries - SI54.10-Z-0003KOA

Model 414

Model 415

Model 447

Model 636

Model 639

Model 667, 668, 669, 670

Model 900, 901, 902, 903, 904, 905, 906, 909

Model 907, 910

18.11.2021

Op. no.: 54 0642 for models 907 and 910 added.

Battery test with Midtronics

The battery models used by Mercedes-Benz (wet-cell and fleece battery) are tested using the Midtronics battery test device.

Starter or on-board electrical system batteries in models 907 and 910 must be checked using XENTRY Diagnosis. Refer to SI54.10-D-0074SG document.

Auxiliary batteries with cold test current details (model 907/910) must still be tested using the Midtronics.

Auxiliary batteries without cold-discharge test current details (such as Emergency-P battery (G1/13) in model 447 or model 907/910) cannot be tested using Midtronics. On these only the voltage can be checked.

New operation items simplify warranty processing.

The battery data and the test code (except Emergency-P battery (G1/13) in model 447 or model 907/910) may already be registered on the repair order. This means that there is no need to fill out the "Test sheet for on-board electrical system batteries".

The new  operation items are:

Model 414

• 54 1109

  Check status of battery

Terminal stamp:Batt. part no.:Test code:

Model 415

• 54 1107

  Check starter battery condition (battery removed)

Terminal stamp:Batt. part no.:Test code:

• 54 1108

  Check starter battery for condition

Terminal stamp:Batt. part no.:Test code:

Model 447

• 54 1107

  Check starter battery condition (battery removed)

Terminal stamp:Batt. part no.:Test code:

• 54 1136

  Check condition of additional battery for ECO start/stop function

Terminal stamp:Batt. part no.:Test code:

• 54 1229

  Check park pawl emergency shift additional battery for proper condition

Terminal stamp:Batt. part no.:Test code:

For Emergency-P battery (G1/13), fill out the test code area with "EMERGENCY-P BATTERY". Refer to SI54.10-S-0050A  document.

Model 636, 639

• 54 1107

  Check starter battery condition (battery removed)

Terminal stamp:Batt. part no.:Test code:

Model 900, 901, 902, 903, 904, 905, 906, 909

• 54 1108

  Check starter battery for condition

Terminal stamp:Batt. part no.:Test code:

Model 907, 910

• 54 0642

  Check condition of battery of 12 V on-board electrical system (after quick test)

• 54 1200

  Check auxiliary battery for park pawl emergency shift mode (battery removed)

Terminal stamp:Batt. part no.:Test code:

For Emergency-P battery (G1/13), fill out the test code area with "EMERGENCY-P BATTERY". Refer to SI54.10-S-0050A  document.

MODEL 667, 668, 669, 670

• 54 1158

  Check condition of batteries (both)

Terminal stamp:Batt. part no.:Test code:

These operation items replace the following operation items:

• 54 1105 Check battery for capacity and condition.
• 54 1107 Check batteries (both) for capacity and condition.

The procedure given in the article WR 04-02-020 from the Extended Warranty Manual Retail (EWMR) or from the Warranty Manual Wholesale (WMW) must be observed when submitting a warranty and goodwill claim.

The Midtronics printout must be filed in a tamperproof manner (except for Emergency-P battery (G1/13) in model 447 or model 907/910).

Practical example

Refer to document SI54.10-S-0050A  for Emergency-P battery (G1/13) in model 447 or model 907/910.

• Data determined:

  Terminal stamp... 06/05

  Batt. part no.... 000 545 82 12

  Midtronics test code...

• On the repair order:

  54 1109 Check battery condition

  Terminal stamp:06/05...

  Batt. part no.:005458212...

  Test code:7A3L-G9600. 7A3L-G9600

• On the W & G order in the message field:

  P-06/05 ET-005458212

  Code 7A3LG9600

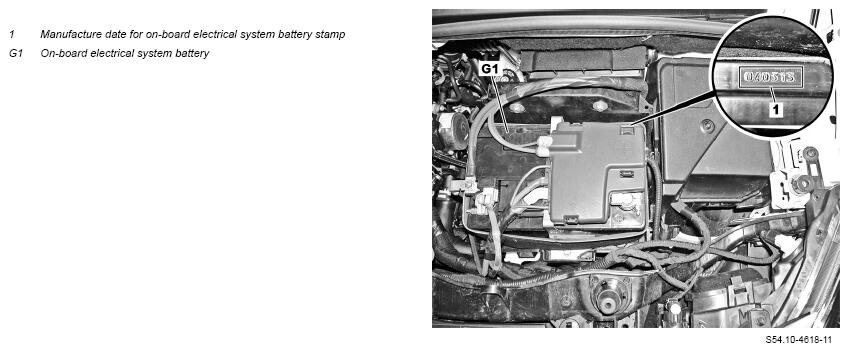

Special feature, model 415:  The manufacture date on the on-board electrical system battery (G1) is not on the terminal, but rather stamped into the housing. The stamped manufacture date for the on-board electrical system battery (1) is normally on the upper edge of the housing.

Special feature, model 415

Courtesy of MERCEDES-BENZ USA

	Check battery	Model 415	AR54.10-S-1129-01C
		Model 447	AR54.10-S-1129-01E
		Except Emergency-P battery (G1/13). Model 907, 910	AR54.10-D-1129-01TS
		Except Emergency-P battery (G1/13). Model 414, 636, 639, 667, 668, 669, 670, 900, 901, 902, 903, 904, 905, 906, 909	AR54.10-D-1129-01KOA
	Reduce increased voltage after charging process	Model 415	AR54.10-S-1129-03C
		Model 447 Except Emergency-P battery (G1/13).	AR54.10-S-1129-03E
		Model 907, 910 Only auxiliary batteries.	AR54.10-D-1129-03TS
		Model 414 Model 667, 668, 669, 670 Model 900, 901, 902, 903, 904, 905, 906, 909	AR54.10-P-1129-03A
	Notes on fault causes during battery testing		AR54.10-D-1129-06A
	Service Information: Testing method for additional battery for park pawl emergency shift mode	Model 447 with engine 780 except code G42 (7G-TRONIC PLUS) except code G43 (9G-TRONIC) Model 447 with code G42 (7G-TRONIC PLUS) except code MJ8 (ECO start/stop function) Model 447 with code G43 (9G-TRONIC) except code MJ8 (ECO start/stop function) Model 907 with code G42 (7G-TRONIC PLUS) Model 907 with code G43 (9G-TRONIC) Model 910 with engine 780.703 Only with Emergency-P battery (G1/13).	SI54.10-S-0050A
	Service Information: Testing a 12 V battery with XENTRY Diagnosis	Model 907, 910	SI54.10-D-0074SG
