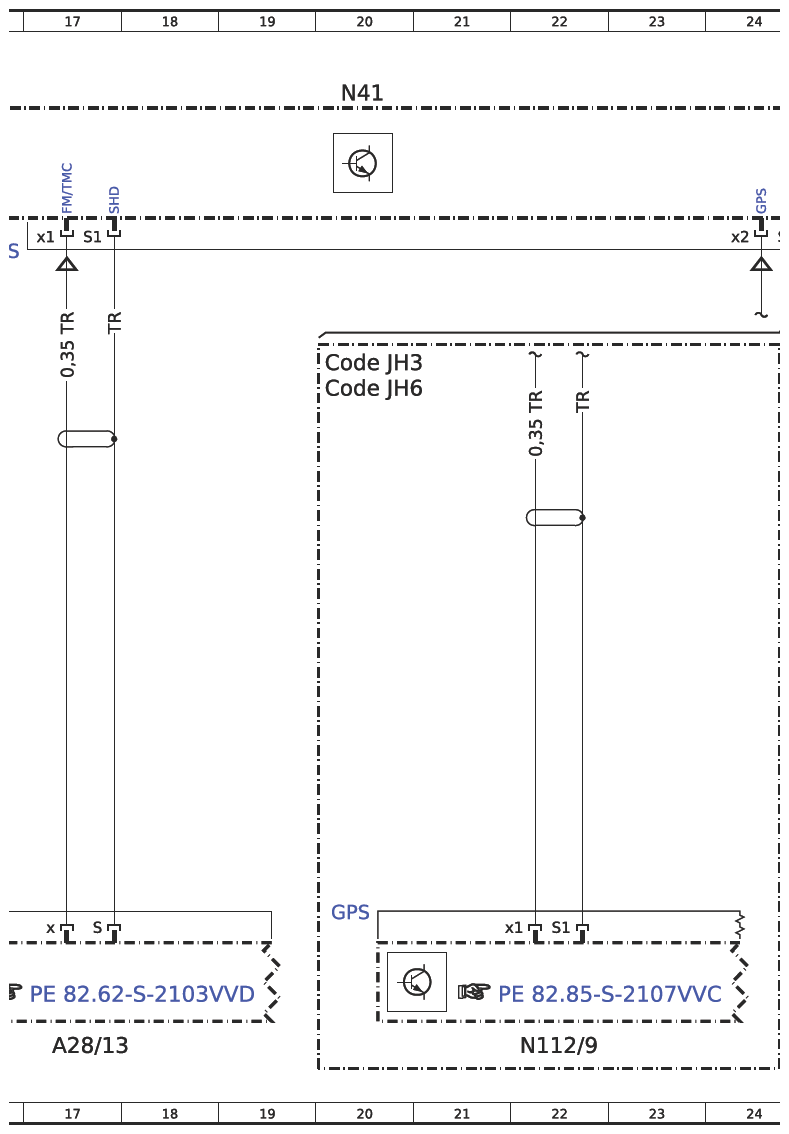

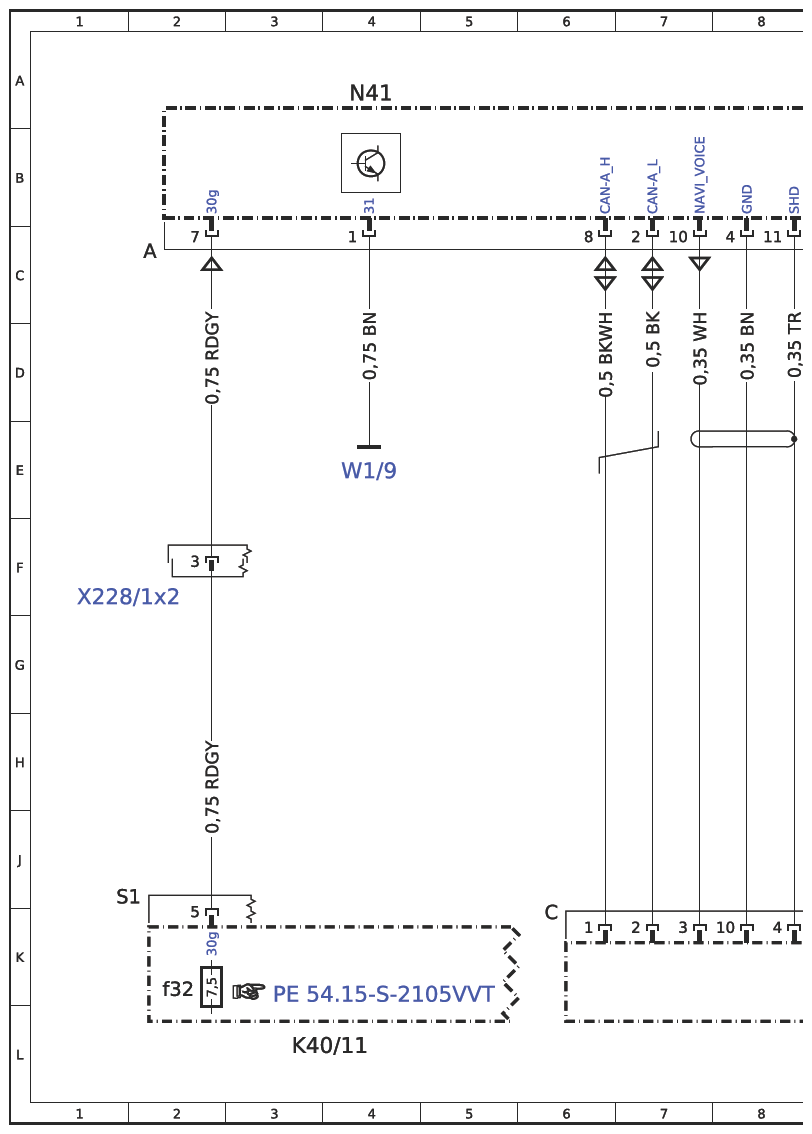

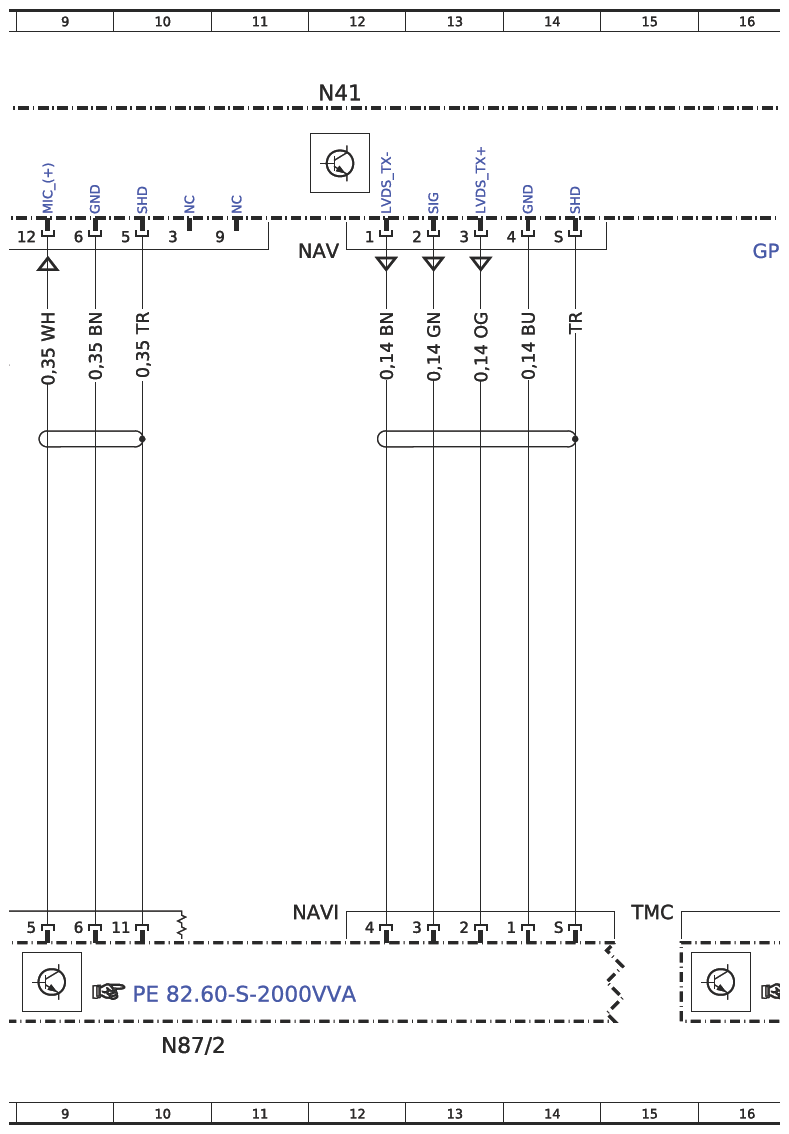

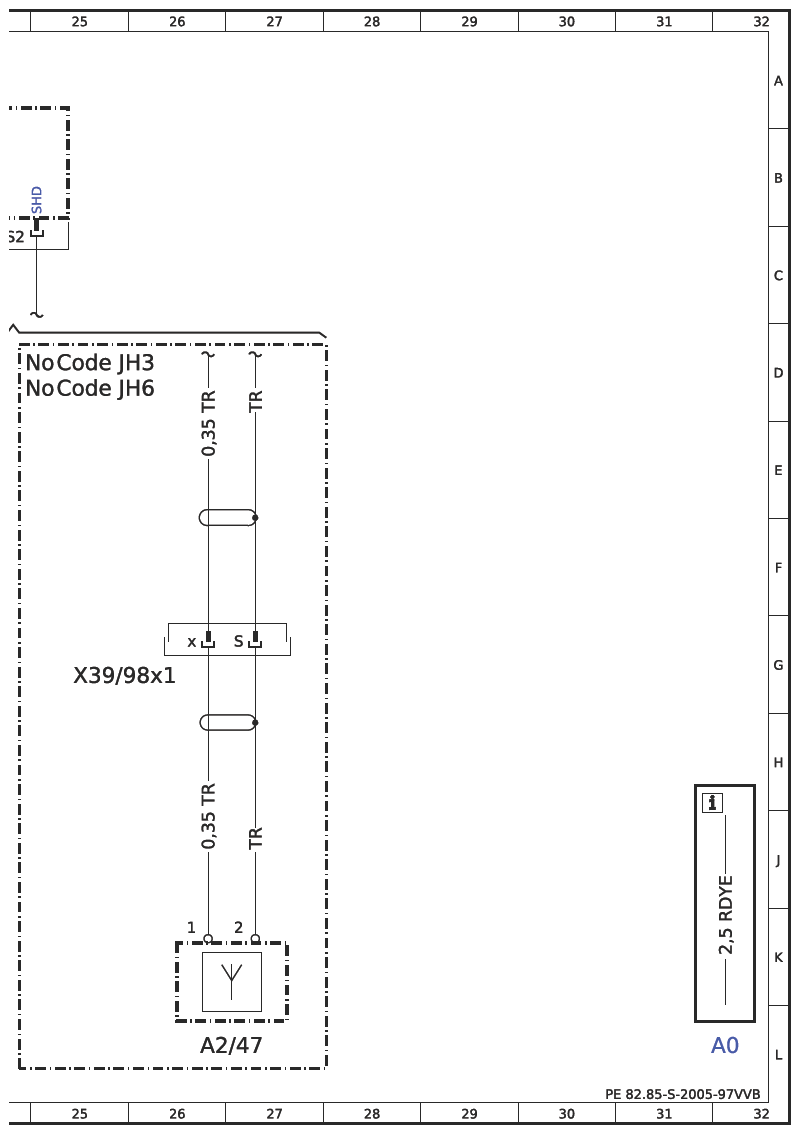

Wiring Diagram Of Navigation System - PE82.85-S-2005-97VVB
Model 447.6 with code E1N (Becker® MAP PILOT) with code EV6 (Becker® MAP PILOT pre-installation) with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) N41
Model 447.7 with code E1N (Becker® MAP PILOT) with code EV6 (Becker® MAP PILOT pre-installation) with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) N41
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2/47 | GPS antenna | 26L |
| A28/13 | TMC antenna splitter | 17L |
| Code JH3 | Communication module (LTE) for digital services | 20D |
| Code JH3 | Communication module (LTE) for digital services | 25D |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 25D |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 20D |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f32 | Fuse 32 | 2K |
| N112/9 | HERMES control unit | 22L |
| N41 | Becker® MAP PILOT control unit | 4A |
| N41 | Becker® MAP PILOT control unit | 12A |
| N41 | Becker® MAP PILOT control unit | 20A |
| N87/2 | Radio (Audio) | 10L |
| W1/9 | Right cockpit ground point | 4E |
| X228/1x2 | Cockpit wiring harness/fuse and relay module electrical connector 2 | 2F |
| X39/98x1 | GPS antenna electrical connector | 26G |
