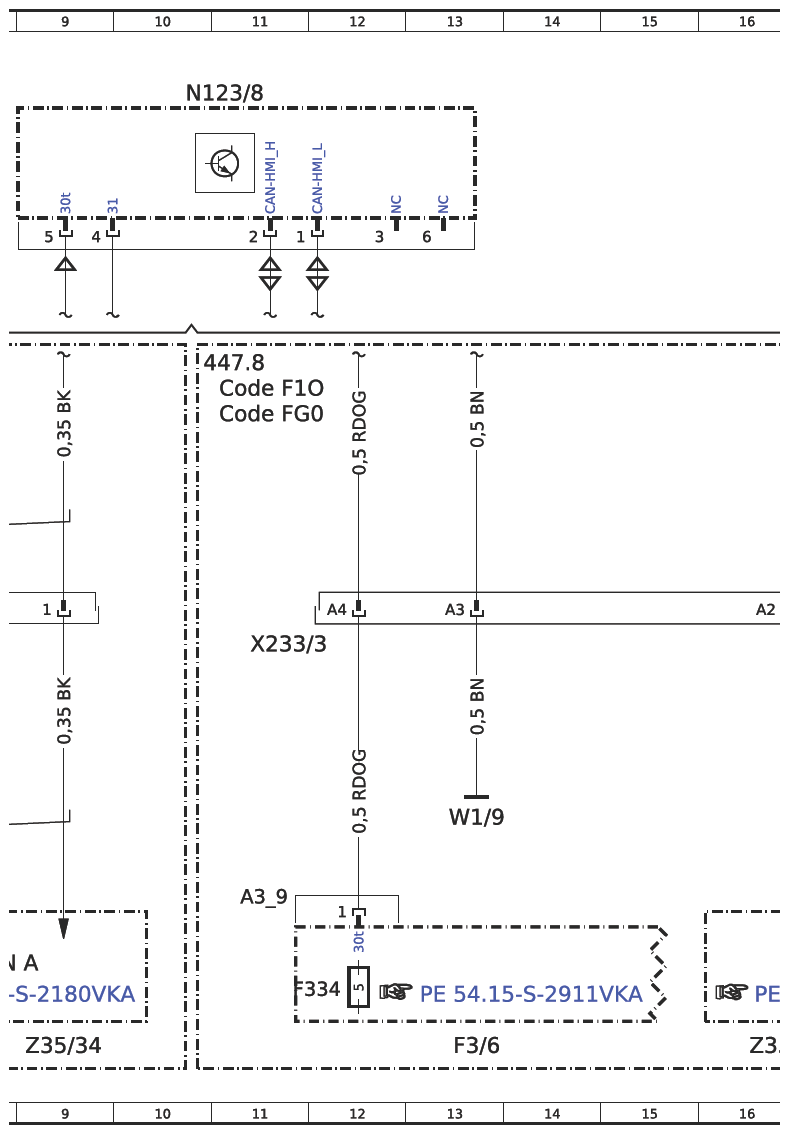

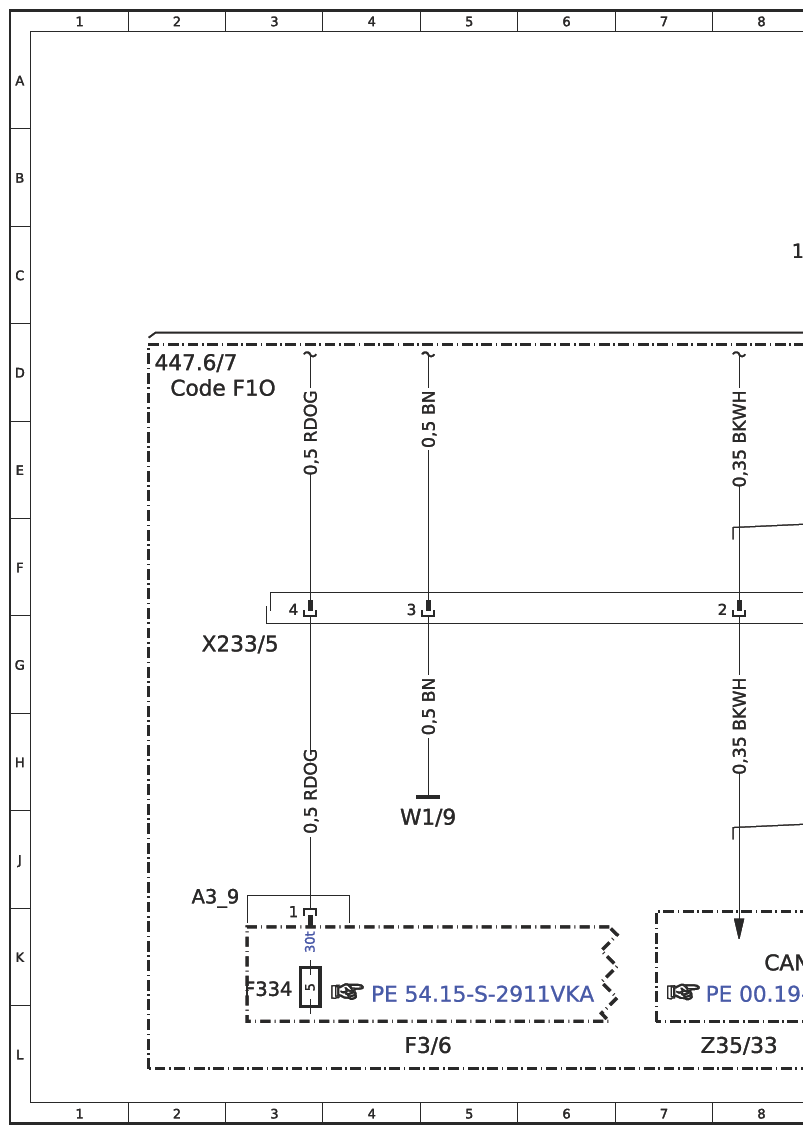

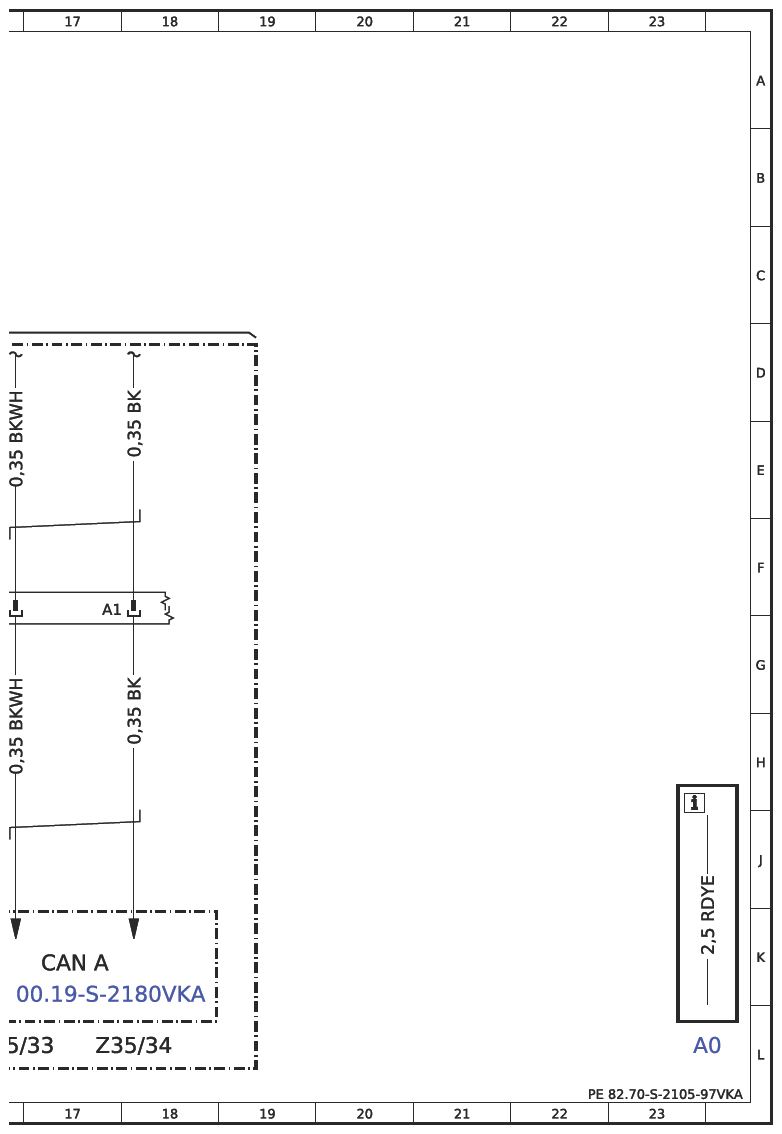

Wiring Diagram Of Mobile Phone Cradle Control Unit - PE82.70-S-2105-97VKA
Model 447 with code EI0 (Wireless charging system for mobile devices) with code XM7 (MOPF II) N123/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| CAN A | Telematics CAN | 17K |
| CAN A | Telematics CAN | 8K |
| Code F1O | Center console with stowage compartment and cup holder, cent. vers. | 2D |
| Code F1O | Center console with stowage compartment and cup holder, cent. vers. | 11D |
| Code FG0 | Center console with roller shutter door | 11E |
| F3/6 | Cockpit circuit 30/30t fuse box | 13L |
| F3/6 | Cockpit circuit 30/30t fuse box | 4L |
| F3/6f334 | Fuse 334 | - |
| F3/6f334 | Fuse 334 | - |
| N123/8 | Mobile phone cradle control unit | 10A |
| W1/9 | Right cockpit ground point | 13J |
| W1/9 | Right cockpit ground point | 4J |
| X233/3 | USB/AUX interface electrical connector | 11G |
| X233/5 | USB electrical connector 2 | 3G |
| Z35/33 | Telematics CAN (high) connector sleeve | 16L |
| Z35/33 | Telematics CAN (high) connector sleeve | 8L |
| Z35/34 | Telematics CAN (low) connector sleeve | 17L |
| Z35/34 | Telematics CAN (low) connector sleeve | 9L |
