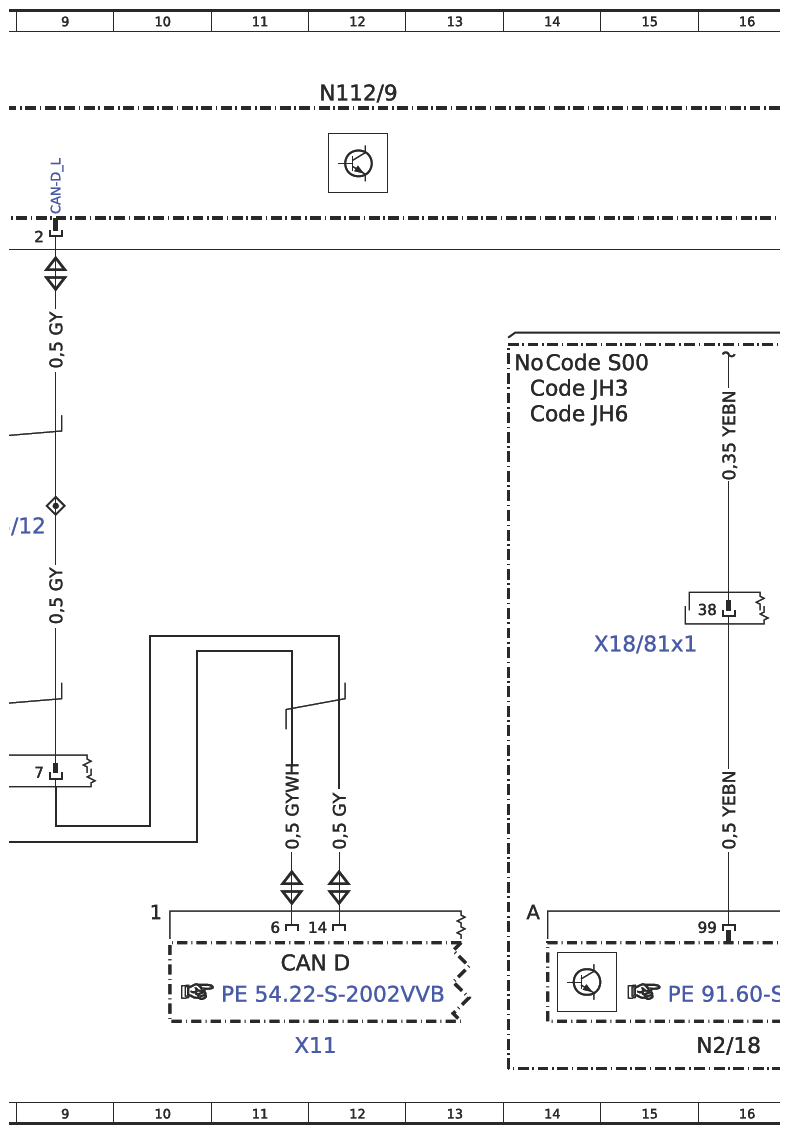

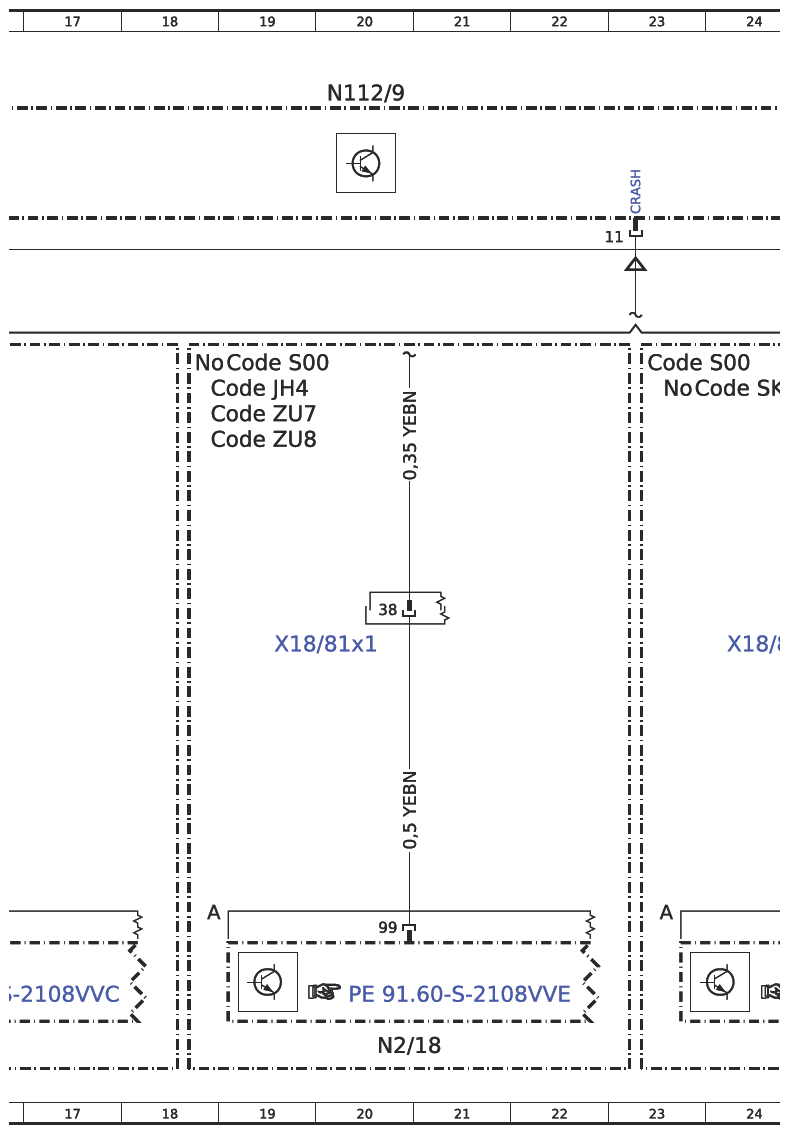

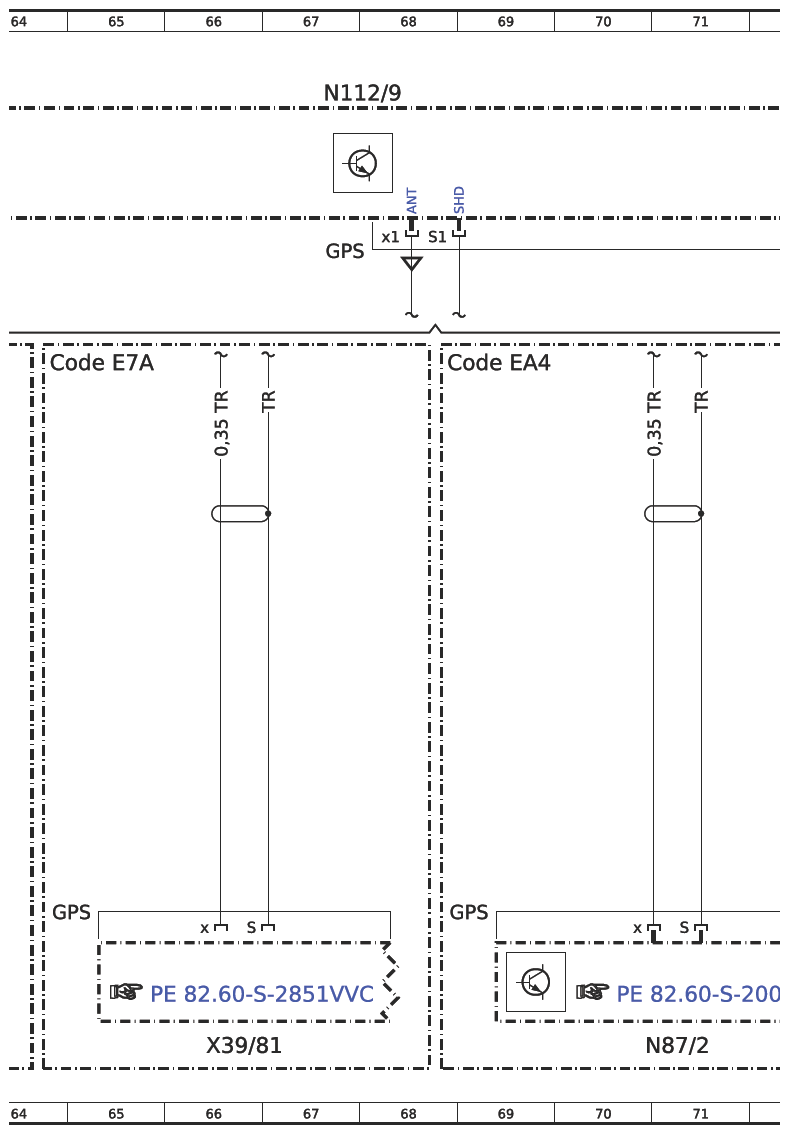

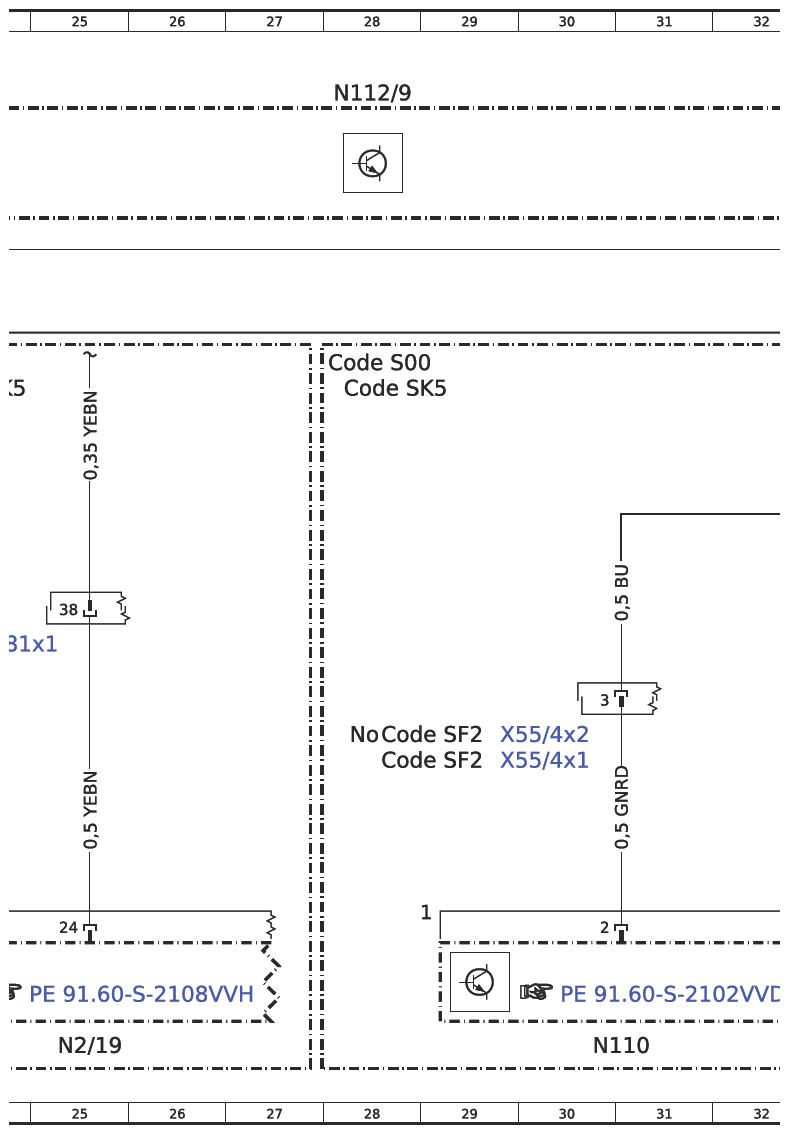

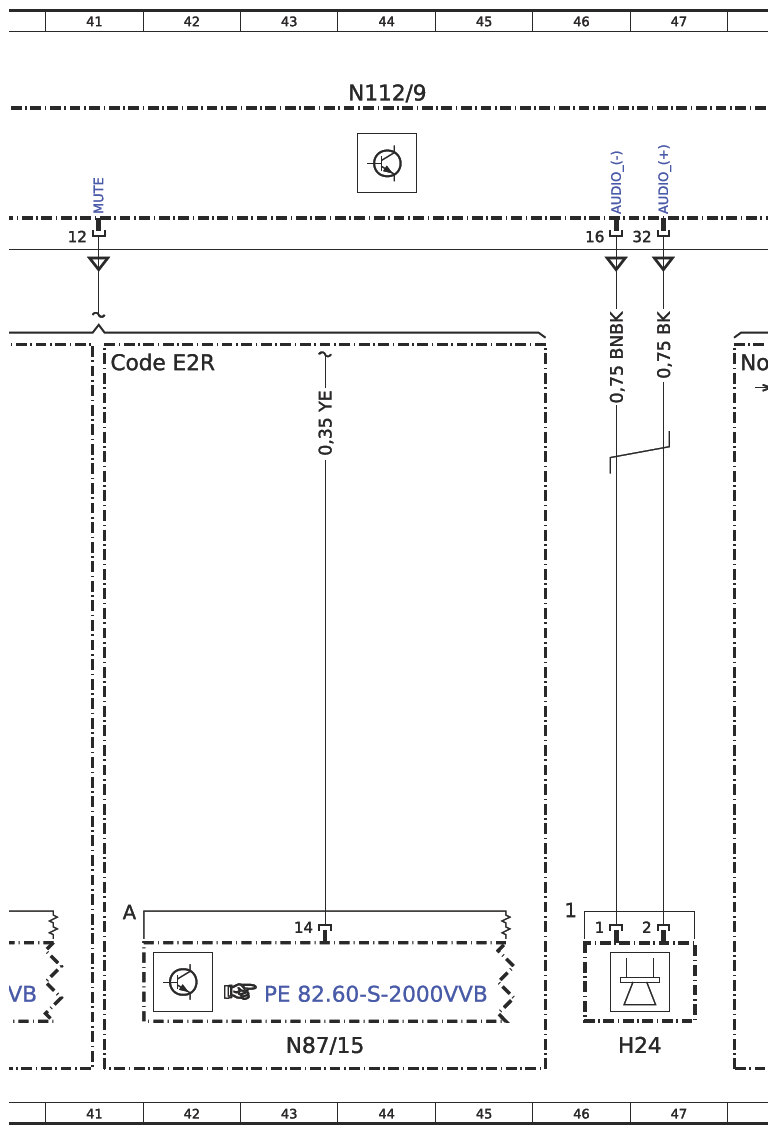

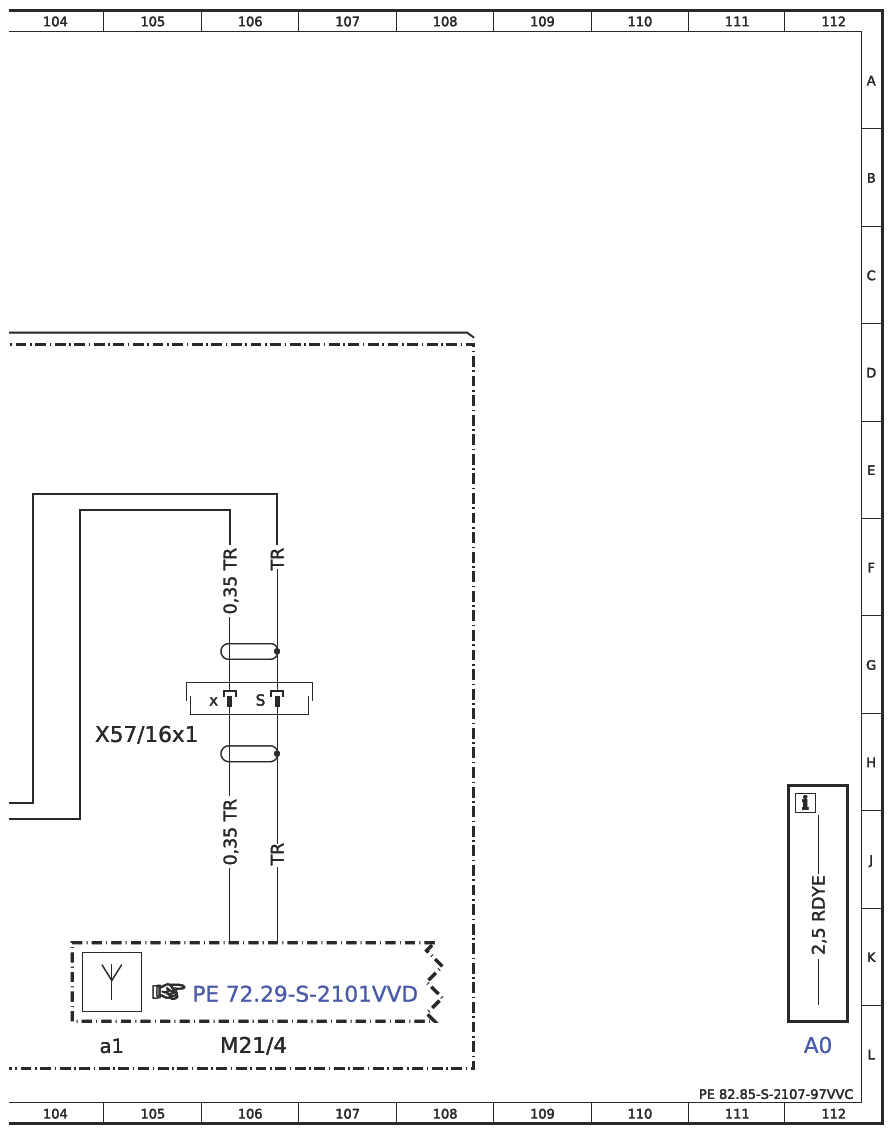

Wiring Diagram Of HERMES Control Unit - PE82.85-S-2107-97VVC
Model 447.6 with code JH3 (Communication module (LTE) for digital services) with code JH4 (Communication module (LTE) for ERA-Glonass) with code JH6 (Pre-installation for communications module for digital services (LTE)) with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) N112/9
Model 447.7 with code JH3 (Communication module (LTE) for digital services) with code JH4 (Communication module (LTE) for ERA-Glonass) with code JH6 (Pre-installation for communications module for digital services (LTE)) with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) N112/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 112L |

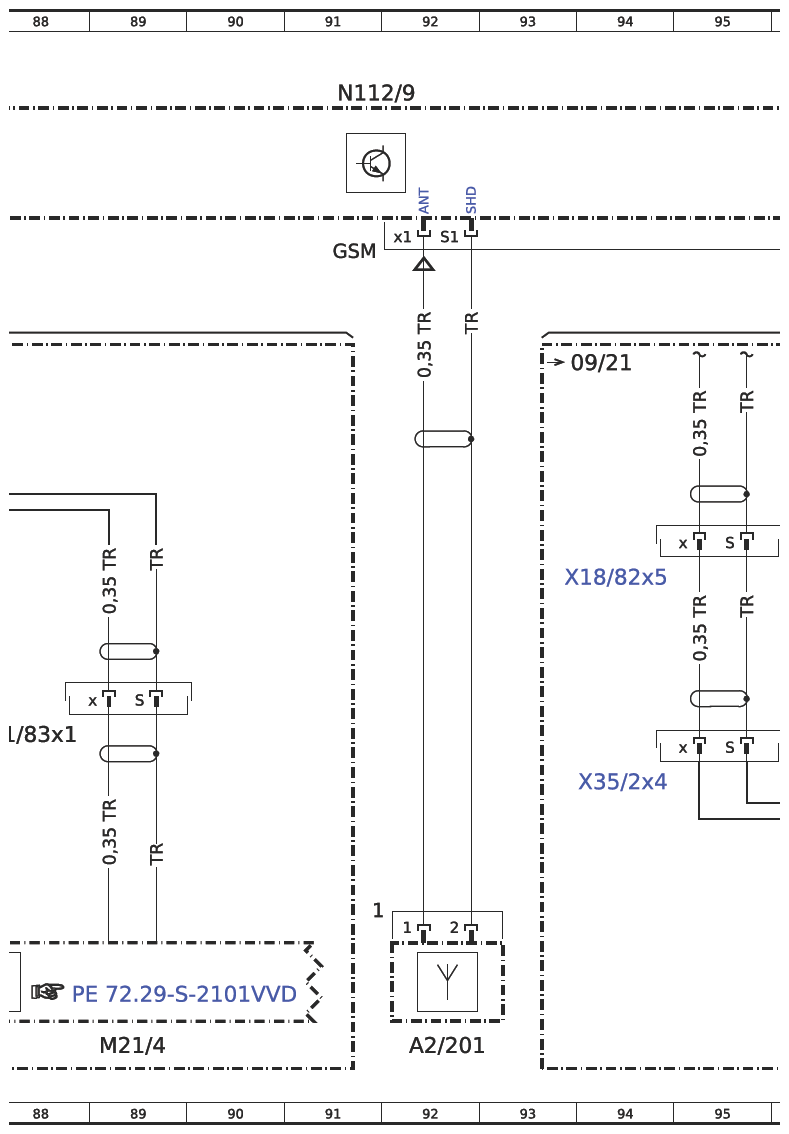

| A2/201 | HERMES GSM antenna | 92L |

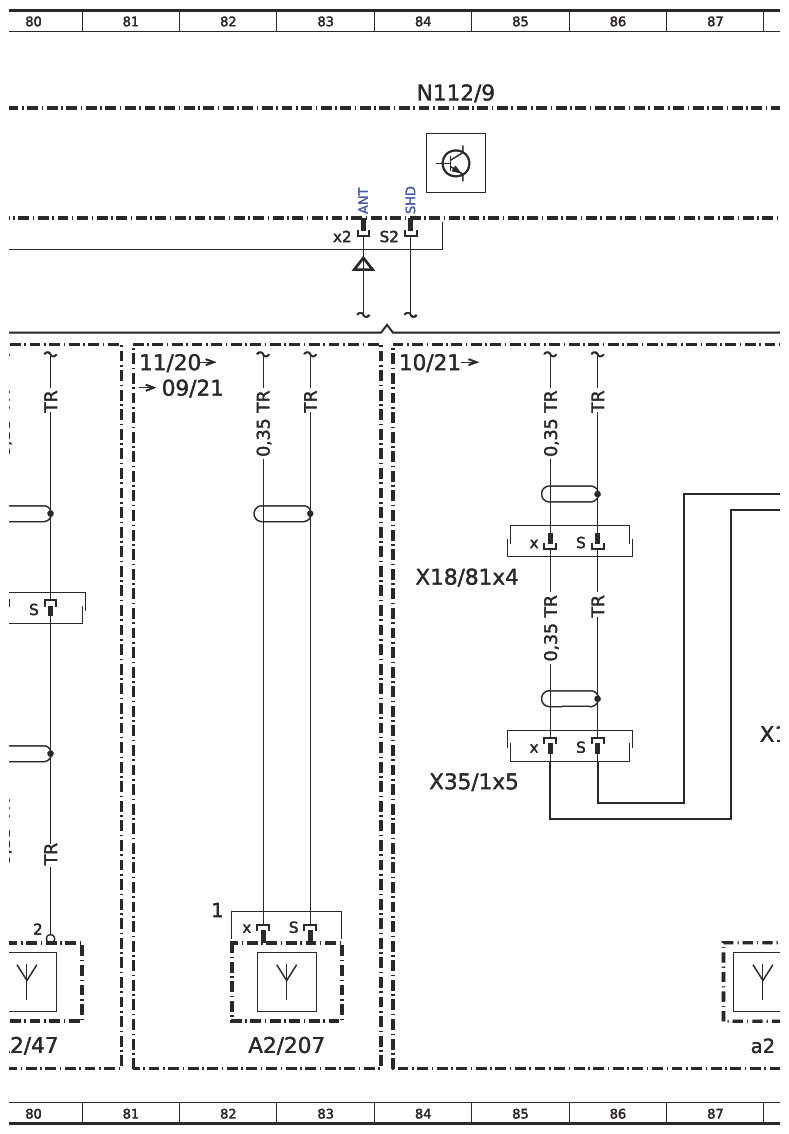

| A2/207 | GNSS antenna | 82L |
| A2/47 | GPS antenna | 80L |

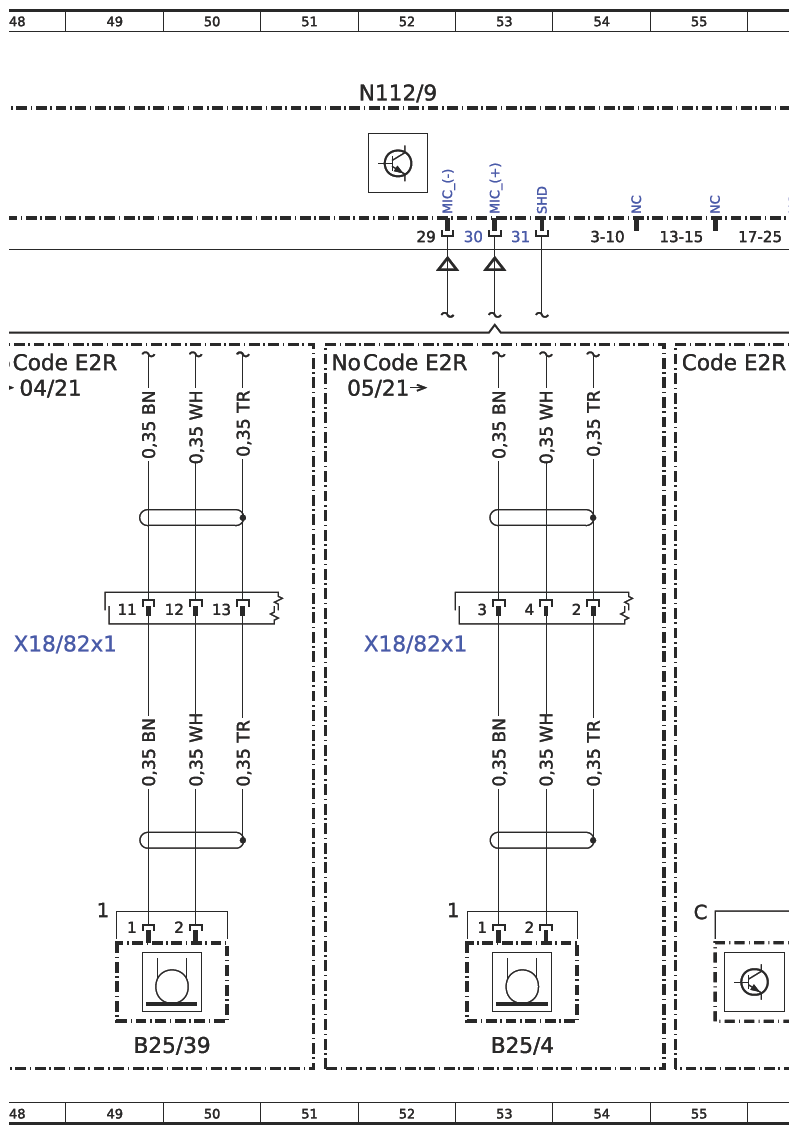

| B25/39 | HERMES microphone | 49L |
| B25/4 | Hands-free system microphone | 53L |
| CAN D | Diagnostic CAN | 11K |
| Code E1N | Becker® MAP PILOT | 60D |
| Code E2R | Radio generation 2 | 41D |
| Code E2R | Radio generation 2 | 55D |
| Code E2R | Radio generation 2 | 48D |
| Code E2R | Radio generation 2 | 73D |
| Code E2R | Radio generation 2 | 52D |
| Code E7A | Digital radio (DAB) pre-installation | 64D |
| Code EA4 | Audio 40 | 68D |
| Code ER0 | Radio preinstallation | 37D |
| Code EV6 | Preinstallation for Becker® MAP PILOT | 60D |
| Code HY1 | Radio remote control for auxiliary water heater | 2F |
| Code HY1 | Radio remote control for auxiliary water heater | 4E |
| Code JH3 | Communication module (LTE) for digital services | 14D |
| Code JH4 | Communication module (LTE) for ERA-GLONASS | 18D |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 14E |
| Code L | Valid for left-hand drive vehicles | 5J |
| Code R | Valid for right-hand drive vehicles | 5J |
| Code S00 | Airbag control unit generation AB12 | 14D |
| Code S00 | Airbag control unit generation AB12 | 23D |
| Code S00 | Airbag control unit generation AB12 | 28D |
| Code S00 | Airbag control unit generation AB12 | 19D |
| Code SF2 | Electrically adjustable front passenger seat | 28H |
| Code SF2 | Electrically adjustable front passenger seat | 28H |
| Code SK5 | Automatic child seat recognition (ACSR) in front passenger seat | 23D |
| Code SK5 | Automatic child seat recognition (ACSR) in front passenger seat | 28D |
| Code ZU7 | Canada version | 18E |
| Code ZU8 | USA version | 18E |
| H24 | HERMES speaker | 47L |

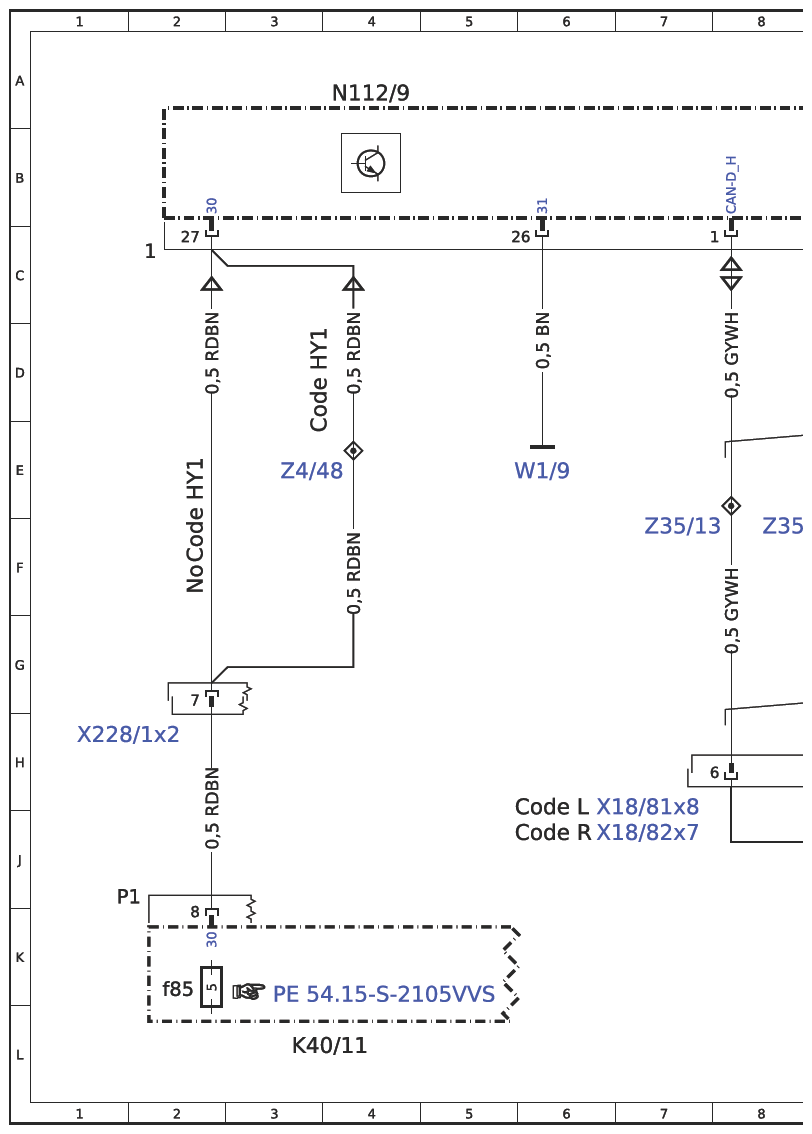

| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f85 | Fuse 85 | 2K |
| M21/4 | Left outside mirror | 89L |
| M21/4 | Left outside mirror | 106L |
| M21/4a1 | LTE antenna | 105L |
| M21/4a2 | GNSS antenna | 87L |

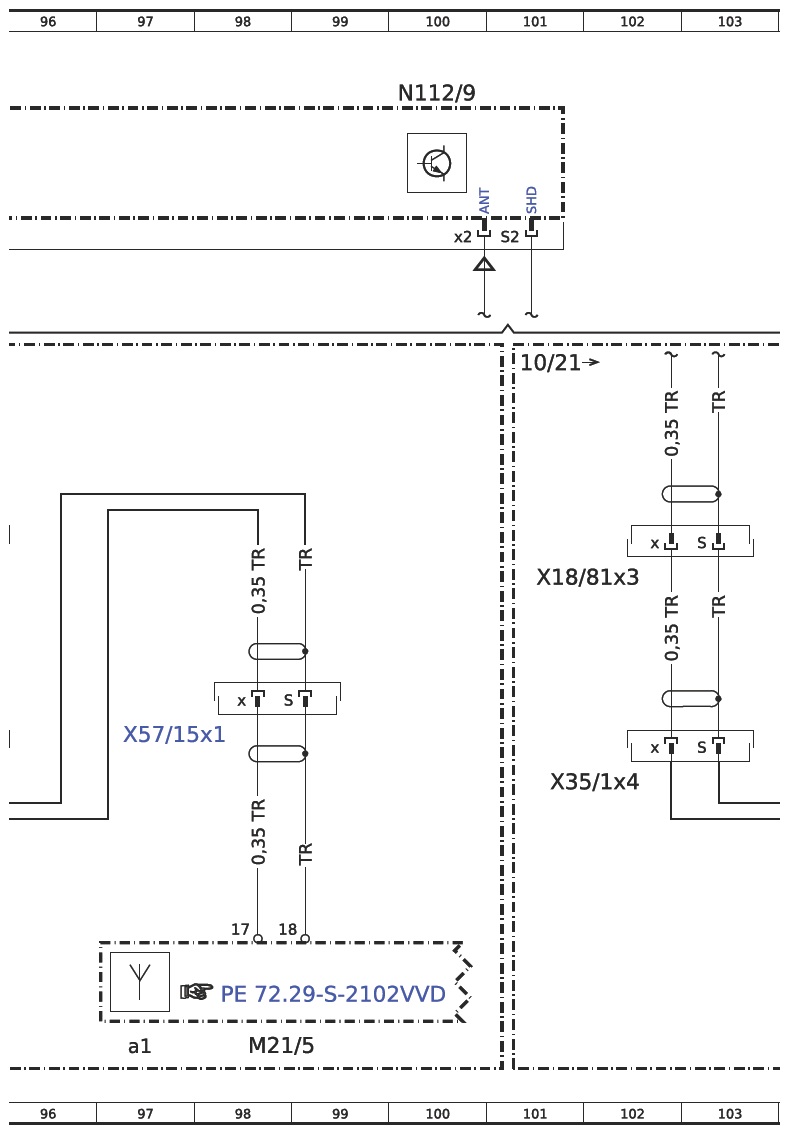

| M21/5 | Right outside mirror | 98L |
| M21/5a1 | Telephone antenna | 97L |
| N110 | Weight Sensing System (WSS) control unit | 30L |
| N112/9 | HERMES control unit | 4A |
| N112/9 | HERMES control unit | 12A |
| N112/9 | HERMES control unit | 84A |
| N112/9 | HERMES control unit | 44A |
| N112/9 | HERMES control unit | 52A |
| N112/9 | HERMES control unit | 20A |
| N112/9 | HERMES control unit | 28A |
| N112/9 | HERMES control unit | 36A |
| N112/9 | HERMES control unit | 76A |
| N112/9 | HERMES control unit | 60A |
| N112/9 | HERMES control unit | 67A |
| N112/9 | HERMES control unit | 91A |
| N112/9 | HERMES control unit | 100A |
| N2/18 | Supplemental restraint system (SRS) control unit | 16L |
| N2/18 | Supplemental restraint system (SRS) control unit | 20L |

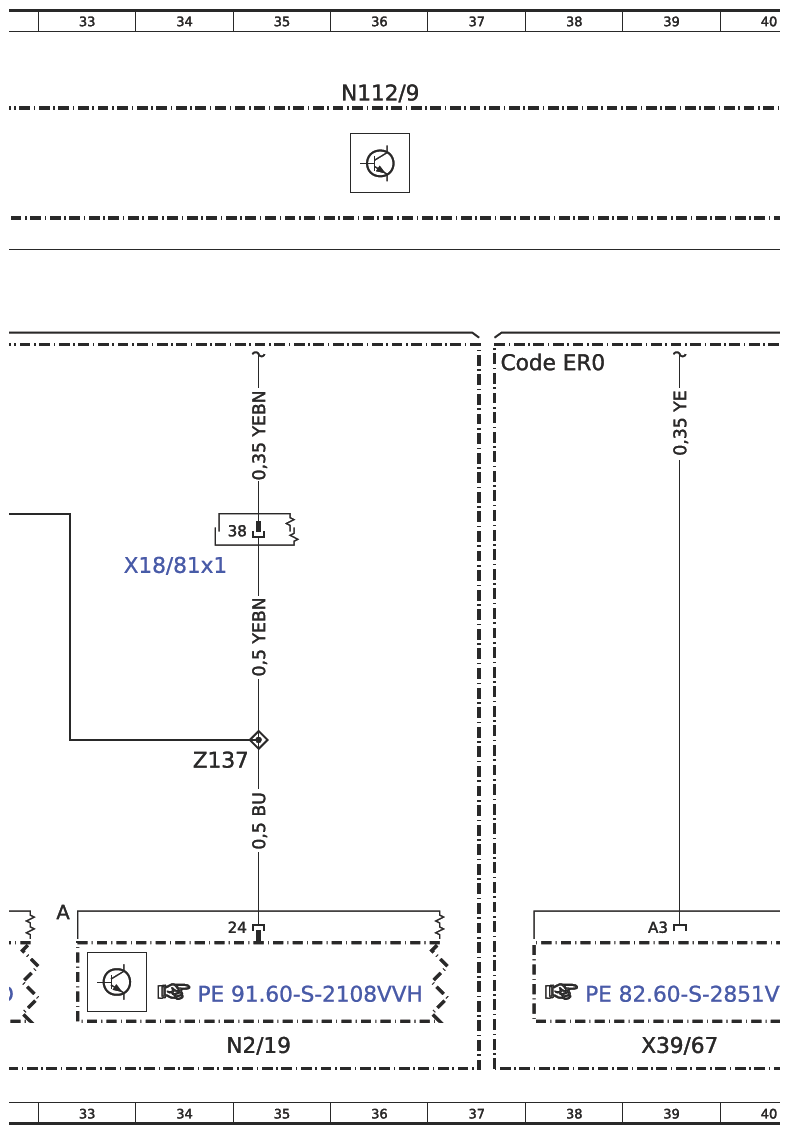

| N2/19 | Supplemental restraint system (SRS) control unit | 25L |
| N2/19 | Supplemental restraint system (SRS) control unit | 35L |

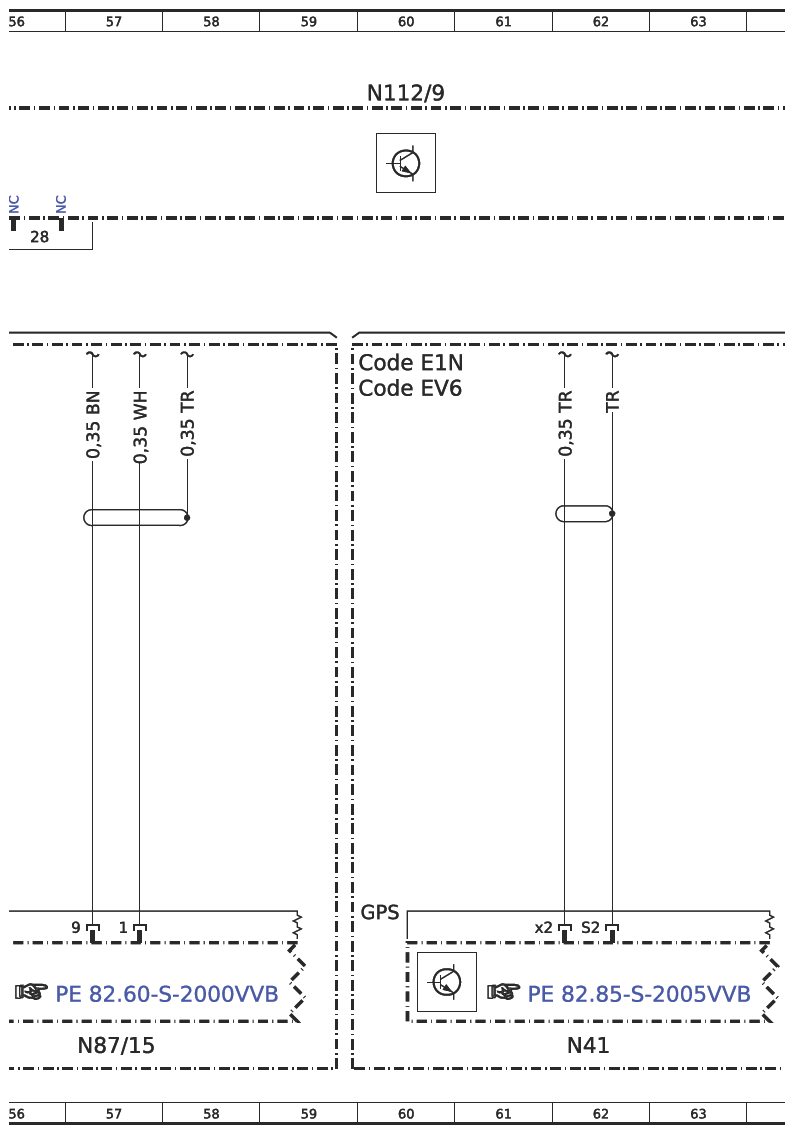

| N41 | Becker® MAP PILOT control unit | 62L |

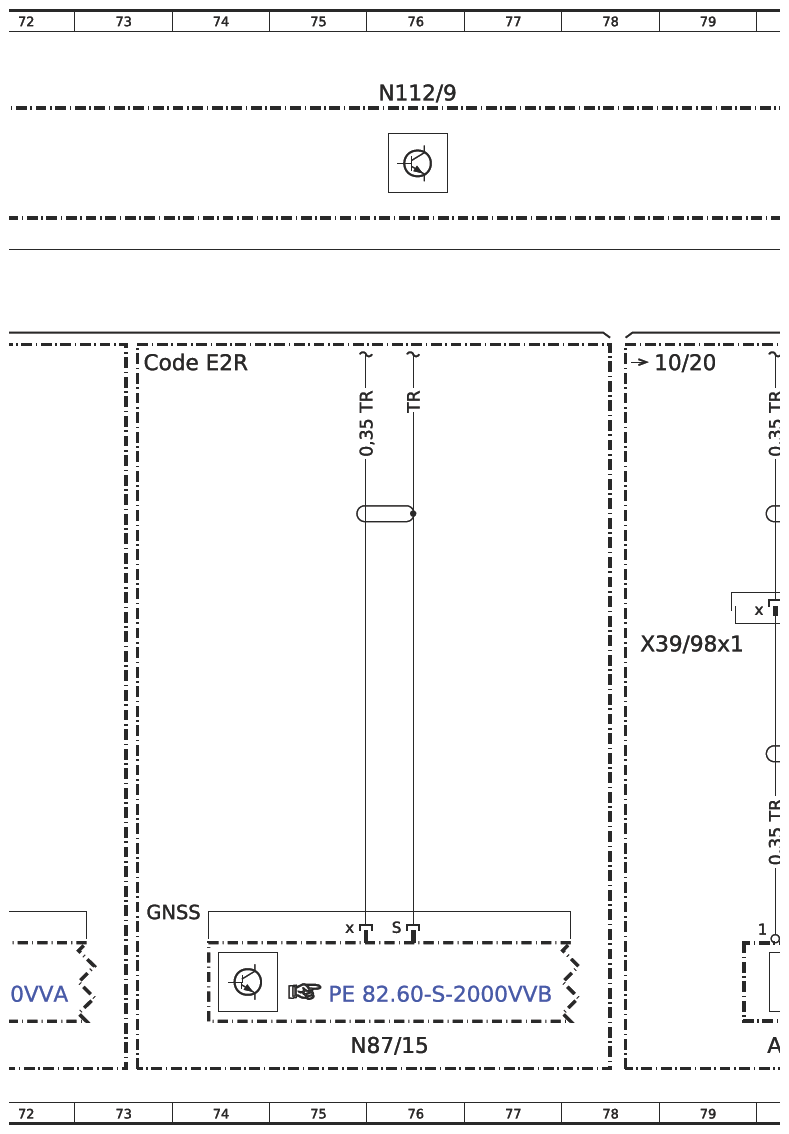

| N87/15 | Radio/radio navigation | 43L |
| N87/15 | Radio/radio navigation | 57L |
| N87/15 | Radio/radio navigation | 76L |
| N87/2 | Radio (Audio) | 71L |
| W1/9 | Right cockpit ground point | 6E |
| X1/83x1 | Left outside mirror GNSS antenna electrical connector | 88H |
| X11 | Diagnostic connector | 11L |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 15G |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 24G |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 34F |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 20G |
| X18/81x3 | Left cockpit/main wiring harness electrical connector 3 | 102F |
| X18/81x4 | Left cockpit/main wiring harness electrical connector 4 | 85F |
| X18/81x8 | Left cockpit/main wiring harness electrical connector 8 | 7J |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 49G |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 52G |
| X18/82x5 | Right cockpit/main wiring harness electrical connector 5 | 94F |
| X18/82x7 | Right cockpit/main wiring harness electrical connector 7 | 7J |
| X228/1x2 | Cockpit wiring harness/fuse and relay module electrical connector 2 | 2H |
| X35/1x4 | Left front door electrical connector 4 | 102H |
| X35/1x5 | Left front door electrical connector 5 | 85H |
| X35/2x4 | Right front door electrical connector 4 | 94H |
| X39/67 | Radio preinstallation electrical connector | 39L |
| X39/81 | Digital radio pre-installation electrical connector | 66L |
| X39/98x1 | GPS antenna electrical connector | 79G |
| X55/4x1 | Front passenger seat contact strip electrical connector | 30H |
| X55/4x2 | Front passenger seat contact strip electrical connector | 30H |
| X57/15x1 | Telephone antenna electrical connector | 97H |
| X57/16x1 | Left outside mirror LTE antenna electrical connector | 105H |
| Z137 | LIN for seat occupancy recognition end sleeve | 34H |
| Z35/12 | Diagnostic CAN low connector sleeve | 8F |
| Z35/13 | Diagnostic CAN high connector sleeve | 7F |
| Z4/48 | Stationary heater radio remote control tml. 30 end sleeve | 3E |
