Wiring Diagram Of HERMES Control Unit - PE82.85-S-2107-97VKA
Model 447 with code JH3 (Communication module (LTE) for digital services) with code JH6 (Pre-installation for communications module for digital services (LTE)) with code XM7 (MOPF II) N112/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |

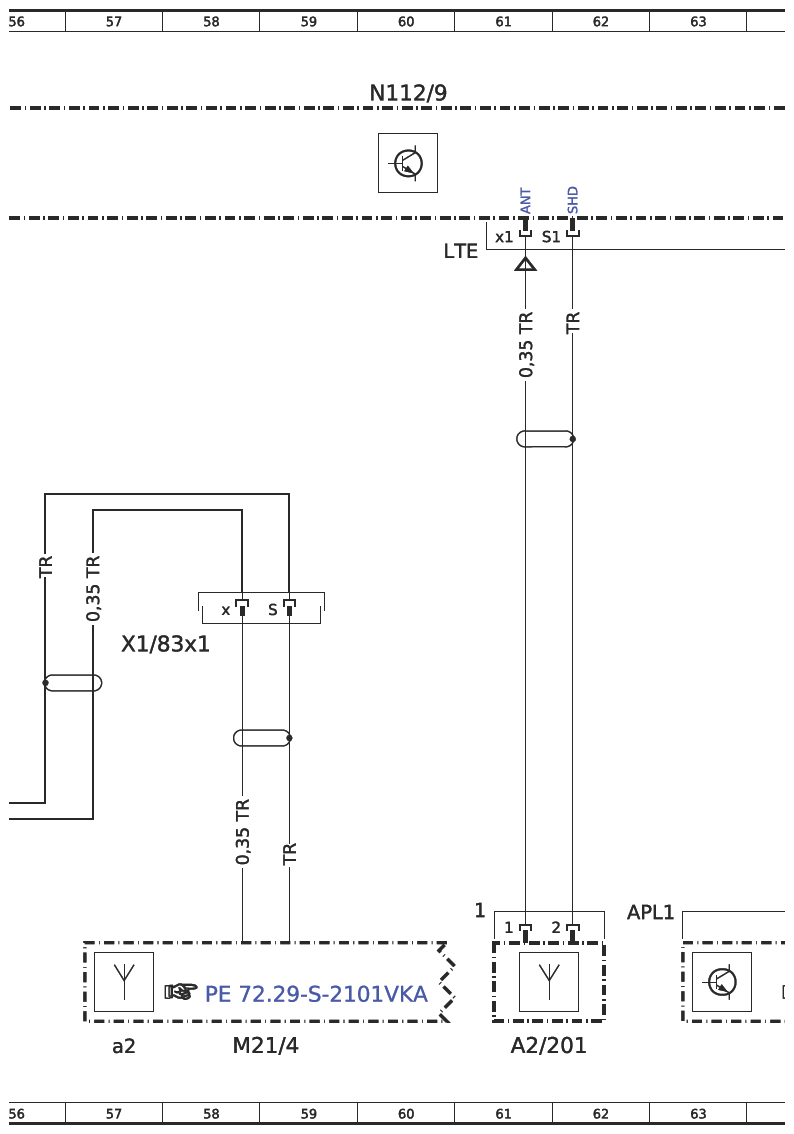

| A2/201 | HERMES GSM antenna | 61L |

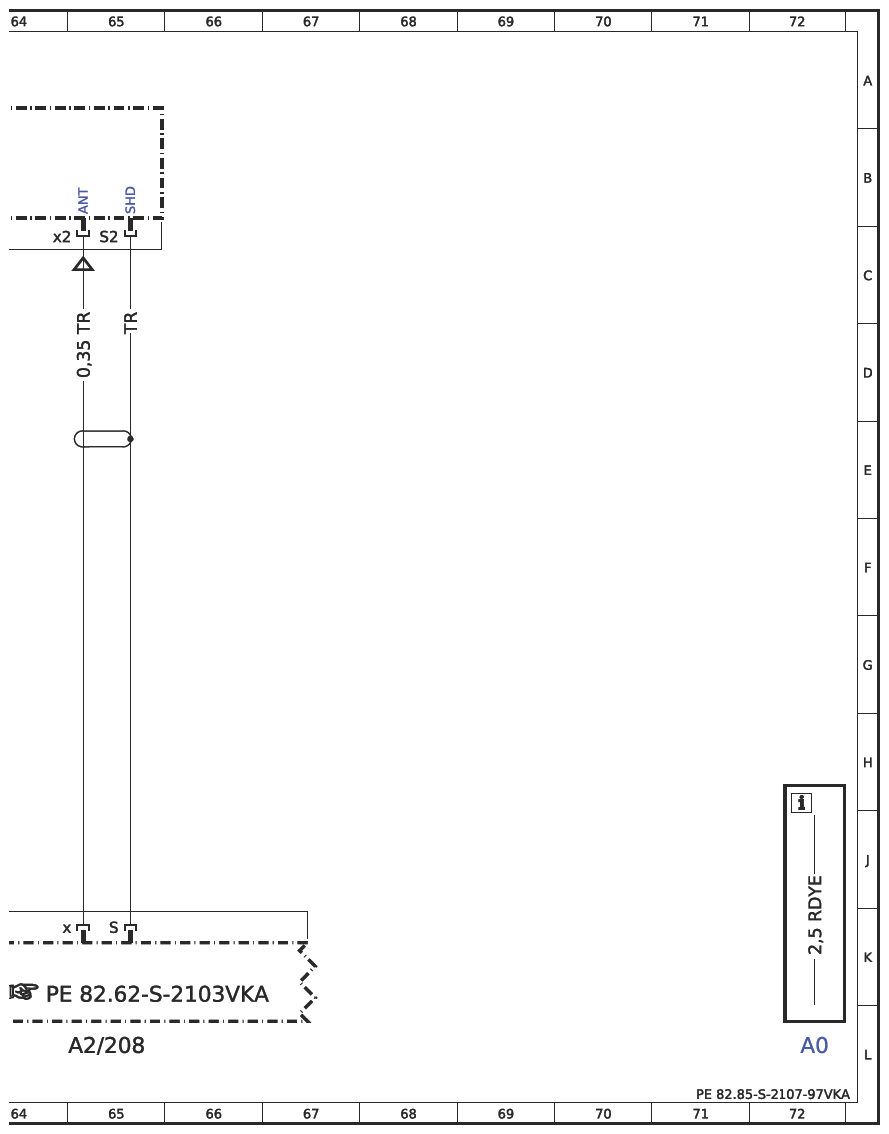

| A2/208 | LTE antenna splitter | 65L |
| A26/17 | Head unit | 40L |
| A26/17 | Head unit | 46L |
| A26/17 | Head unit | 52L |

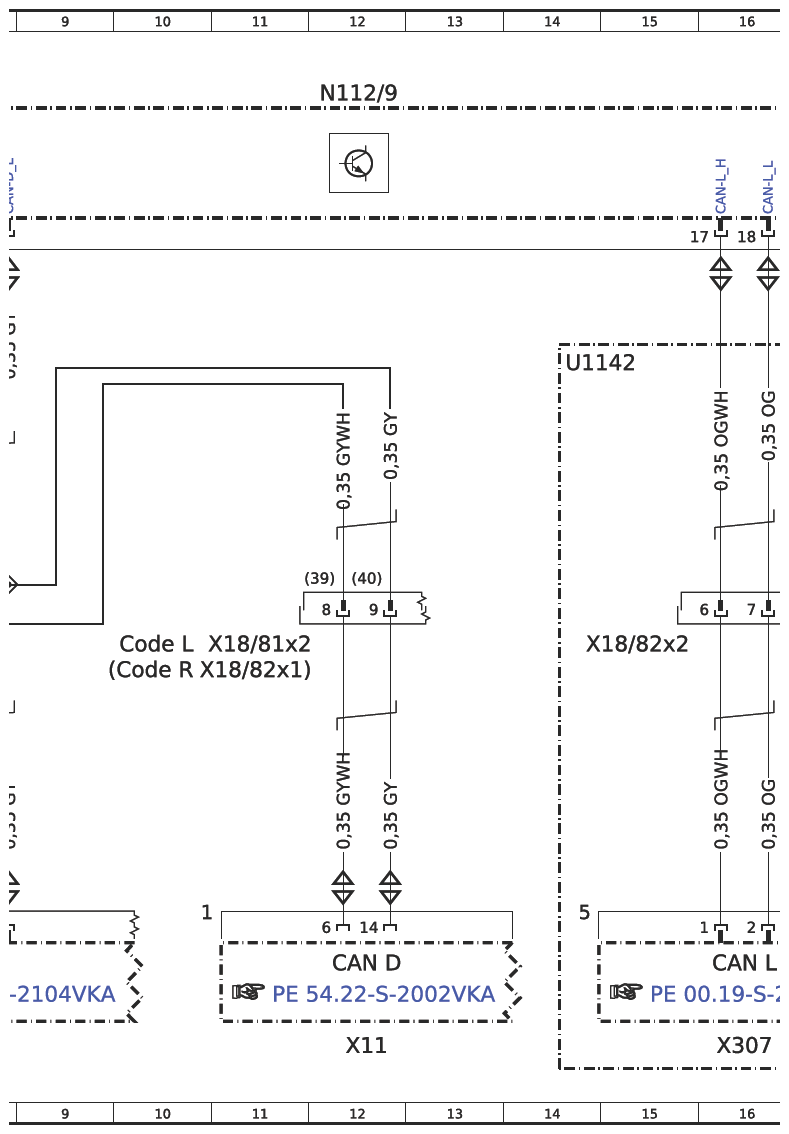

| CAN D | Diagnostic CAN | 8K |
| CAN D | Diagnostic CAN | 12K |
| CAN L | Hybrid CAN | 16K |
| Code E65 | Burmester surround sound system | 33D |
| Code E65 | Burmester surround sound system | 37D |
| Code L | Valid for left-hand drive vehicles | 10G |
| Code R | Valid for right-hand drive vehicles | 10G |
| Code SF2 | Electrically adjustable front passenger seat | 23H |
| Code SF2 | Electrically adjustable front passenger seat | 23H |

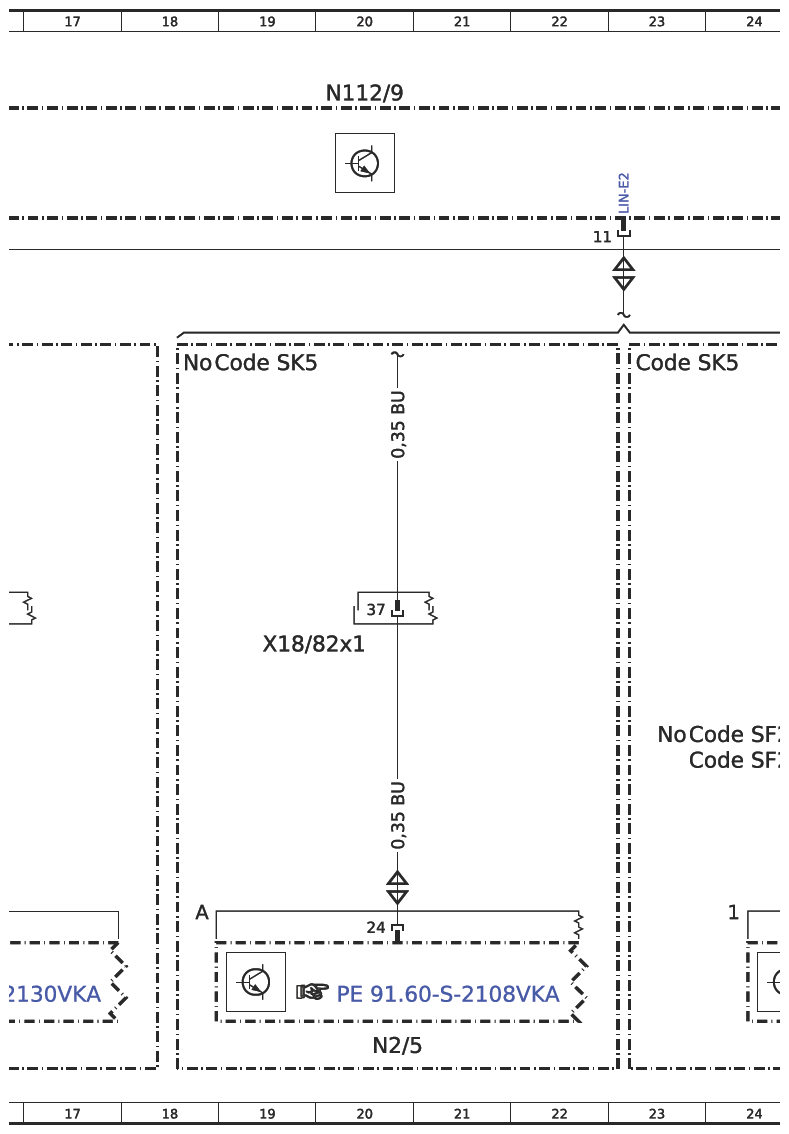

| Code SK5 | Automatic child seat recognition (ACSR) in front passenger seat | 18D |
| Code SK5 | Automatic child seat recognition (ACSR) in front passenger seat | 23D |
| F3/6 | Cockpit circuit 30/30t fuse box | 3L |

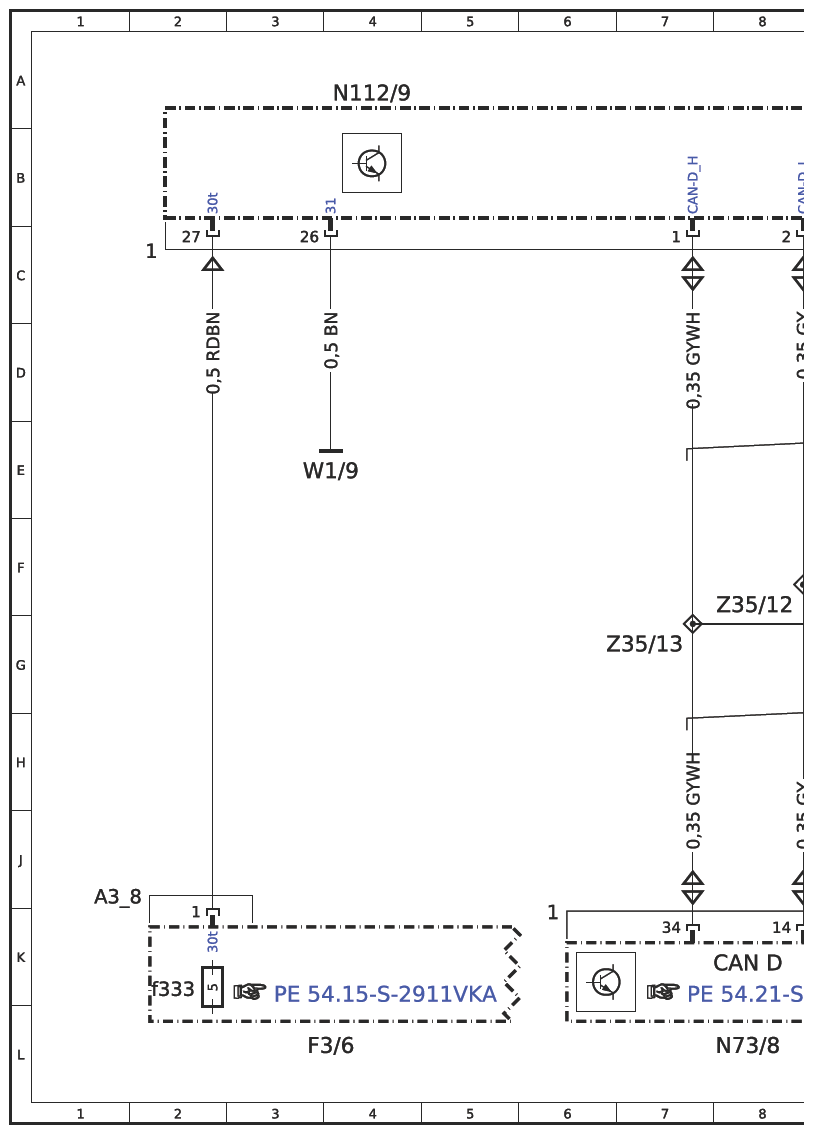

| F3/6f333 | Fuse 333 | 2K |
| H6/1 | Right center cockpit taxi two-way radio/ERA-GLONASS/Hermes speaker | 43L |
| M21/4 | Left outside mirror | 58L |
| M21/4a2 | GNSS antenna | 57L |
| N110 | Weight Sensing System (WSS) control unit | 26L |

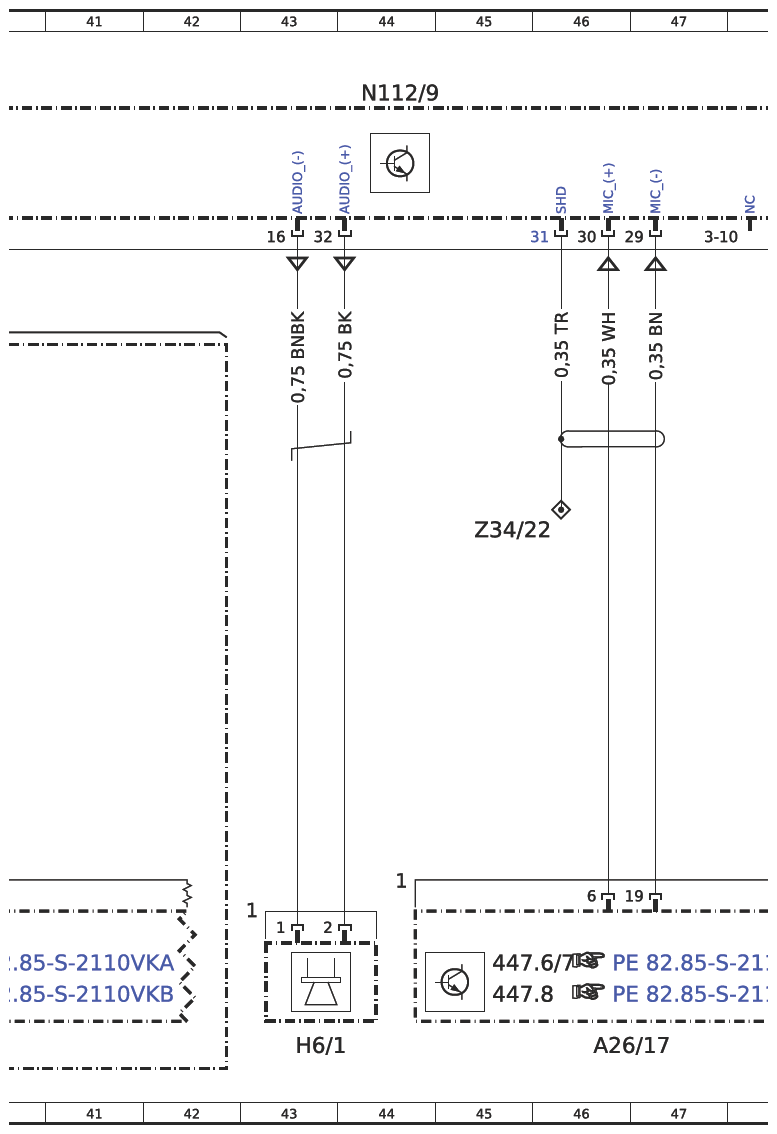

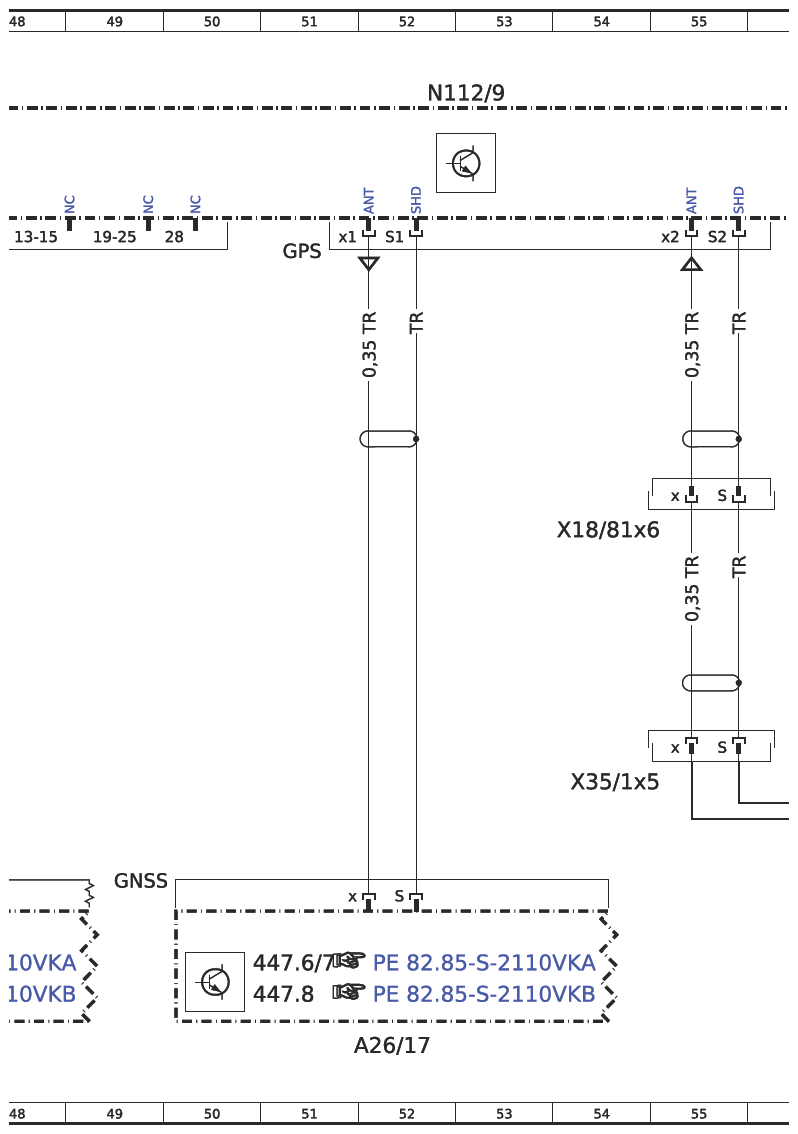

| N112/9 | HERMES control unit | 4A |
| N112/9 | HERMES control unit | 12A |
| N112/9 | HERMES control unit | 44A |
| N112/9 | HERMES control unit | 52A |
| N112/9 | HERMES control unit | 60A |
| N112/9 | HERMES control unit | 20A |
| N112/9 | HERMES control unit | 28A |
| N112/9 | HERMES control unit | 36A |
| N2/5 | Supplemental restraint system (SRS) control unit | 20L |
| N2/5 | Supplemental restraint system (SRS) control unit | 30L |

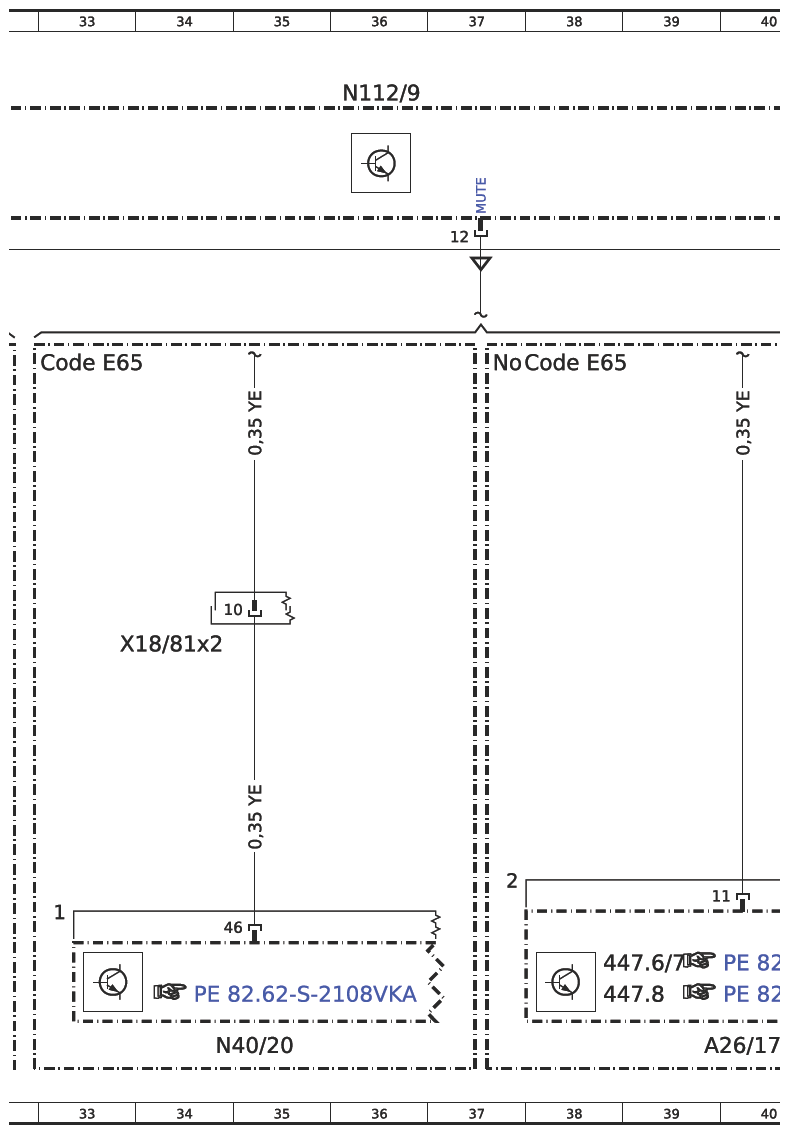

| N40/20 | Sound system control unit | 35L |
| N73/8 | Electronic ignition lock (EZS) control unit | 8L |
| U1142 | Valid for electric vehicle | 14D |
| W1/9 | Right cockpit ground point | 3E |
| X1/83x1 | Left outside mirror GNSS antenna electrical connector | 58G |
| X11 | Diagnostic connector | 12L |
| X18/81x2 | Left cockpit/main wiring harness electrical connector 2 | 34G |
| X18/81x2 | Left cockpit/main wiring harness electrical connector 2 | 11G |
| X18/81x6 | Left cockpit/main wiring harness electrical connector 6 | 54F |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 20G |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 29F |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 11G |
| X18/82x2 | Right cockpit/main wiring harness electrical connector 2 | 15G |
| X307 | Hybrid CAN (CAN L) potential distributor electrical connector | 16L |
| X35/1x5 | Left front door electrical connector 5 | 54H |
| X55/4x1 | Front passenger seat contact strip electrical connector | 25H |
| X55/4x2 | Front passenger seat contact strip electrical connector | 25H |

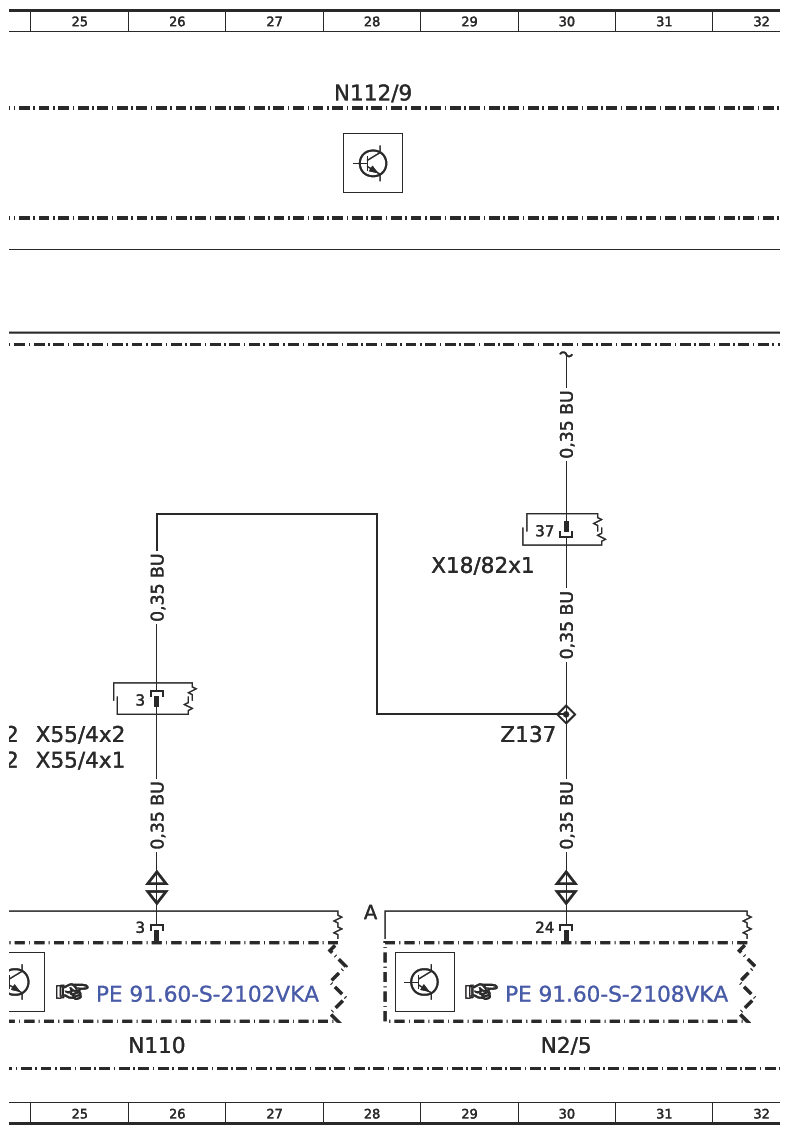

| Z137 | LIN for seat occupancy recognition end sleeve | 30H |
| Z34/22 | Shielding connector sleeve | 45F |
| Z35/12 | Diagnostic CAN low connector sleeve | 8F |
| Z35/13 | Diagnostic CAN high connector sleeve | 7G |
