Function Schematic For Navigation Mode - PE82.85-S-2502-97TRH
Model 447.6/7 with code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|

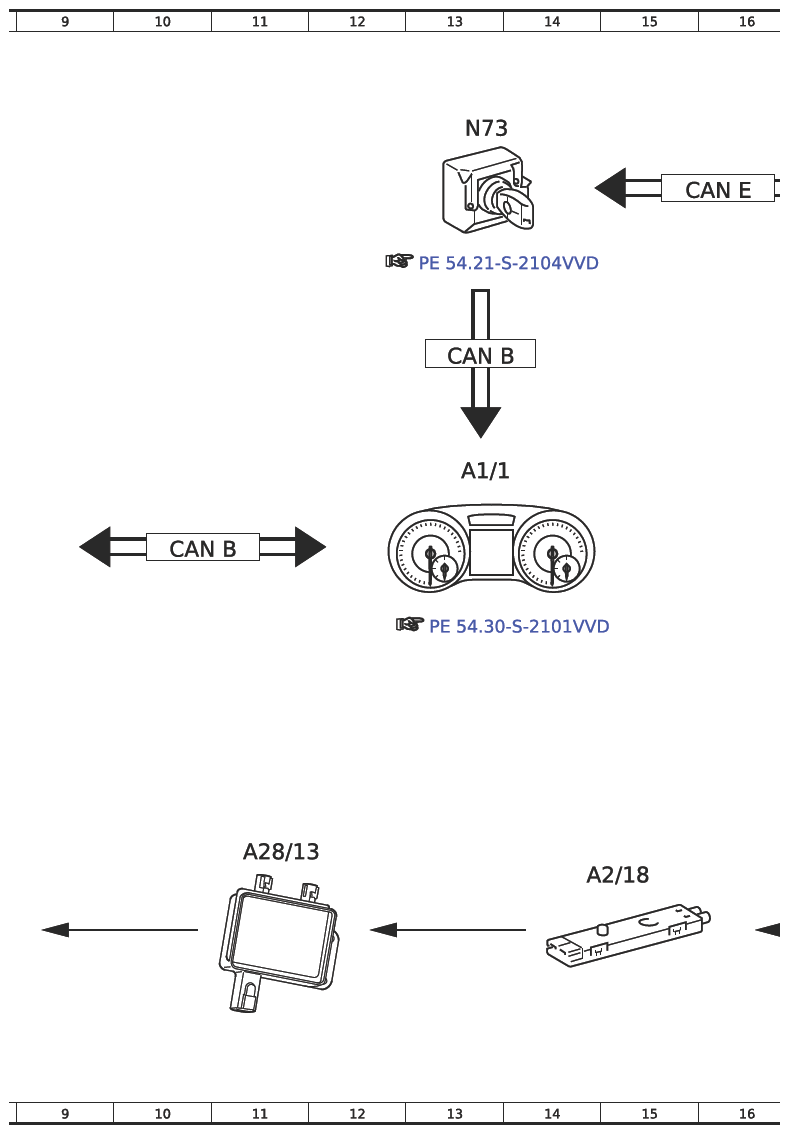

| A1/1 | Instrument cluster (KI) control unit | 13E |
| A2/18 | FM/AM antenna amplifier | 15J |

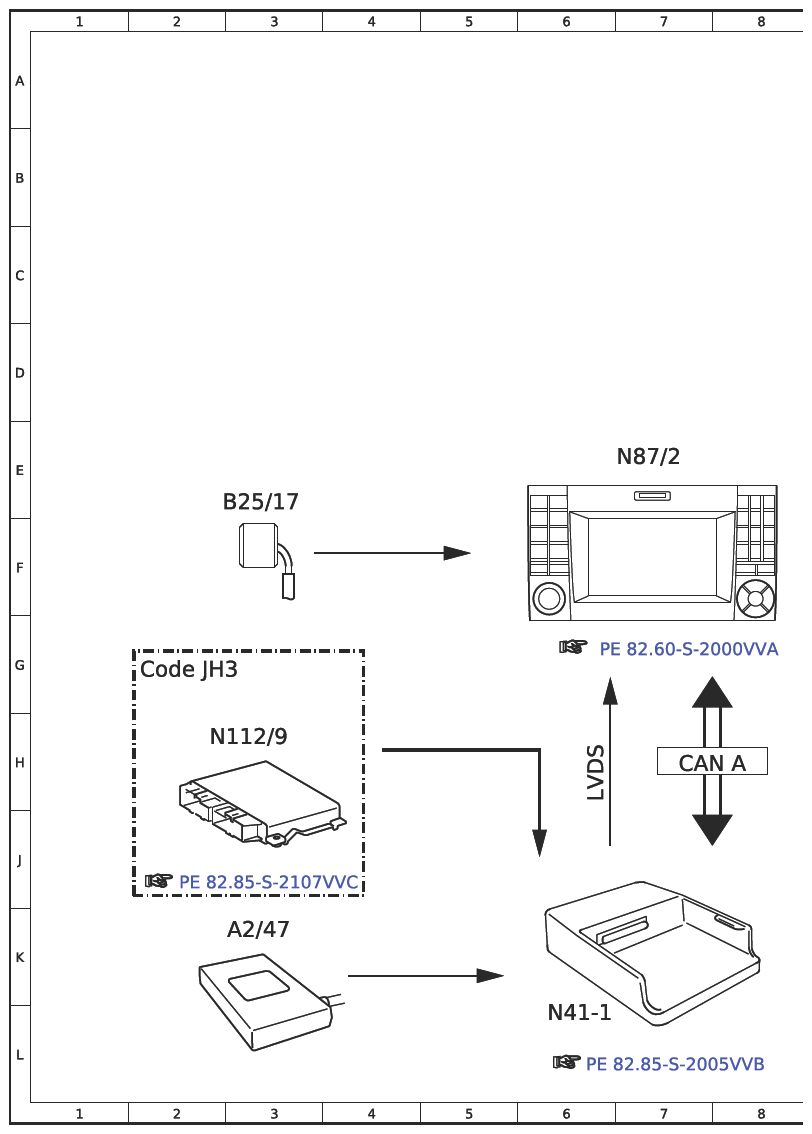

| A2/47 | GPS antenna | 3K |
| A2/51 | FM/AM antenna | 19L |
| A28/13 | TMC antenna splitter | 11J |
| B25/17 | Hands-free system microphone | 3E |
| CAN A | Telematics CAN | 7H |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 13D |
| CAN E | Chassis CAN | 16B |
| Code JH3 | Communication module (LTE) for digital services | 2G |

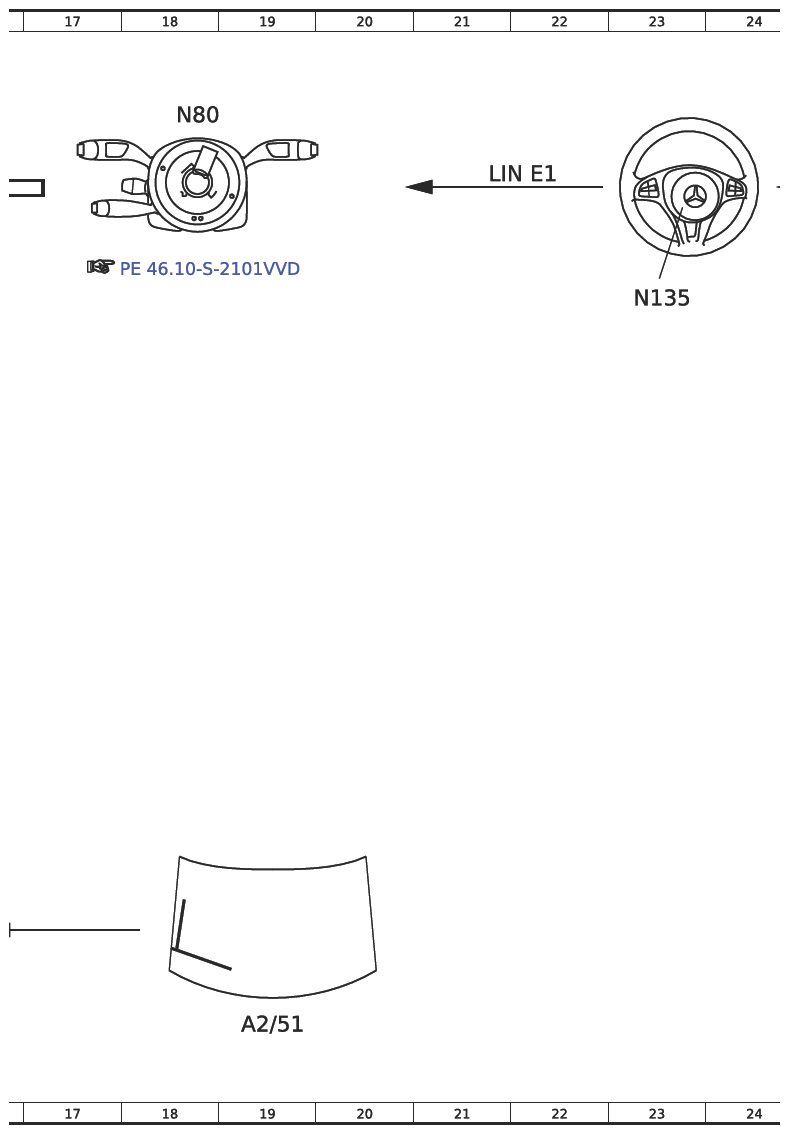

| LIN E1 | Steering LIN | 21B |
| LVDS | Low voltage differential signal | 6H |
| N112/9 | HERMES control unit | 3H |
| N135 | Steering wheel electronics | 23C |
| N41-1 | Becker® MAP PILOT control unit mount | 6L |
| N73 | Electronic ignition lock (EZS) control unit | 13B |
| N80 | Steering column tube module (MRM) control unit | 18A |
| N87/2 | Radio (Audio) | 7E |

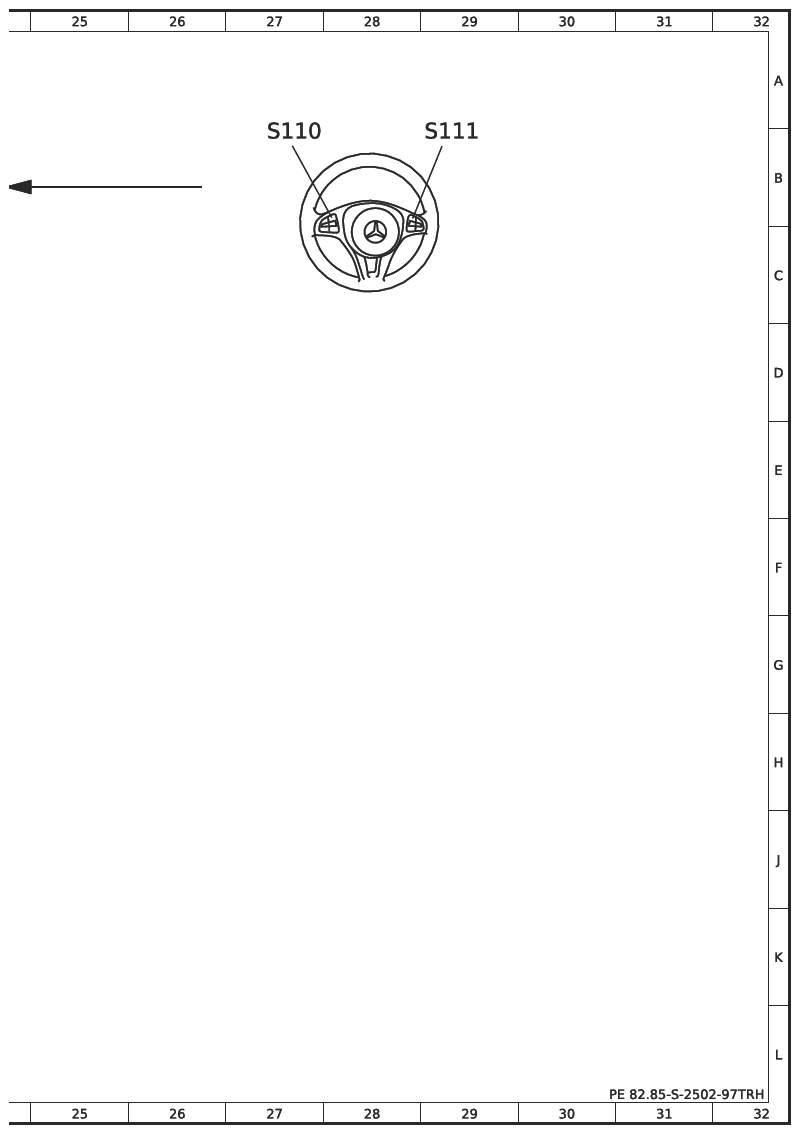

| S110 | Left multifunction steering wheel button group | 27B |
| S111 | Right multifunction steering wheel button group | 29B |
