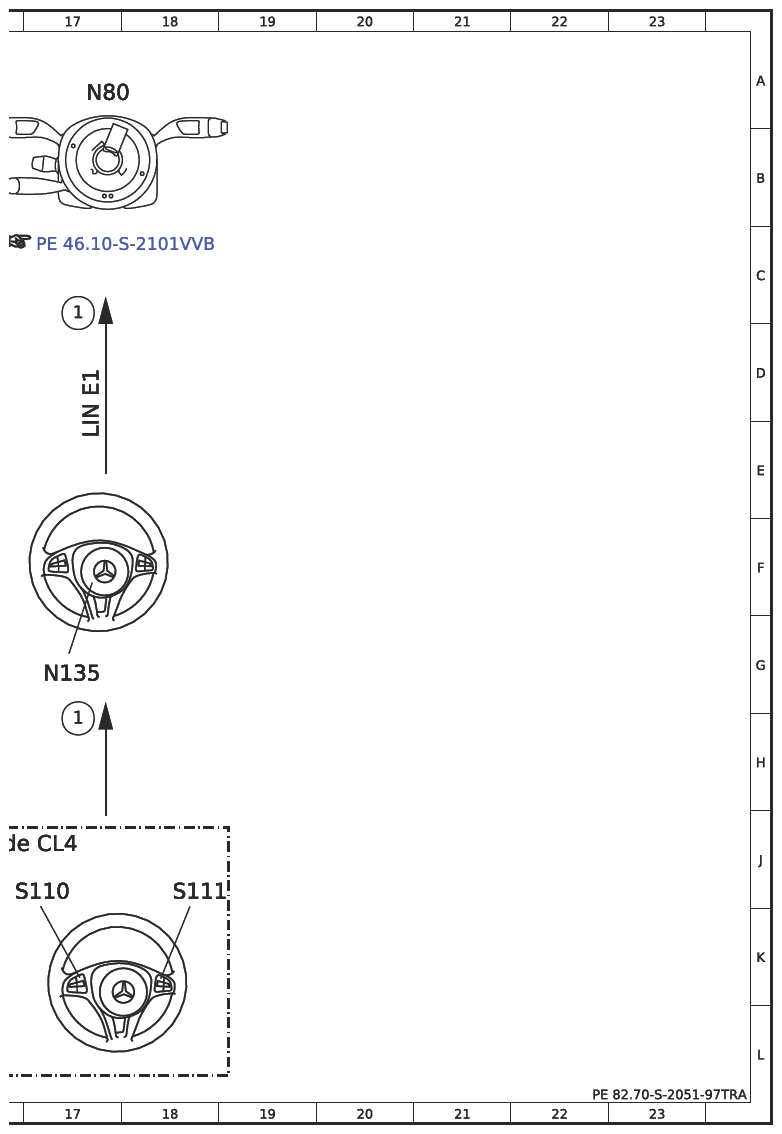

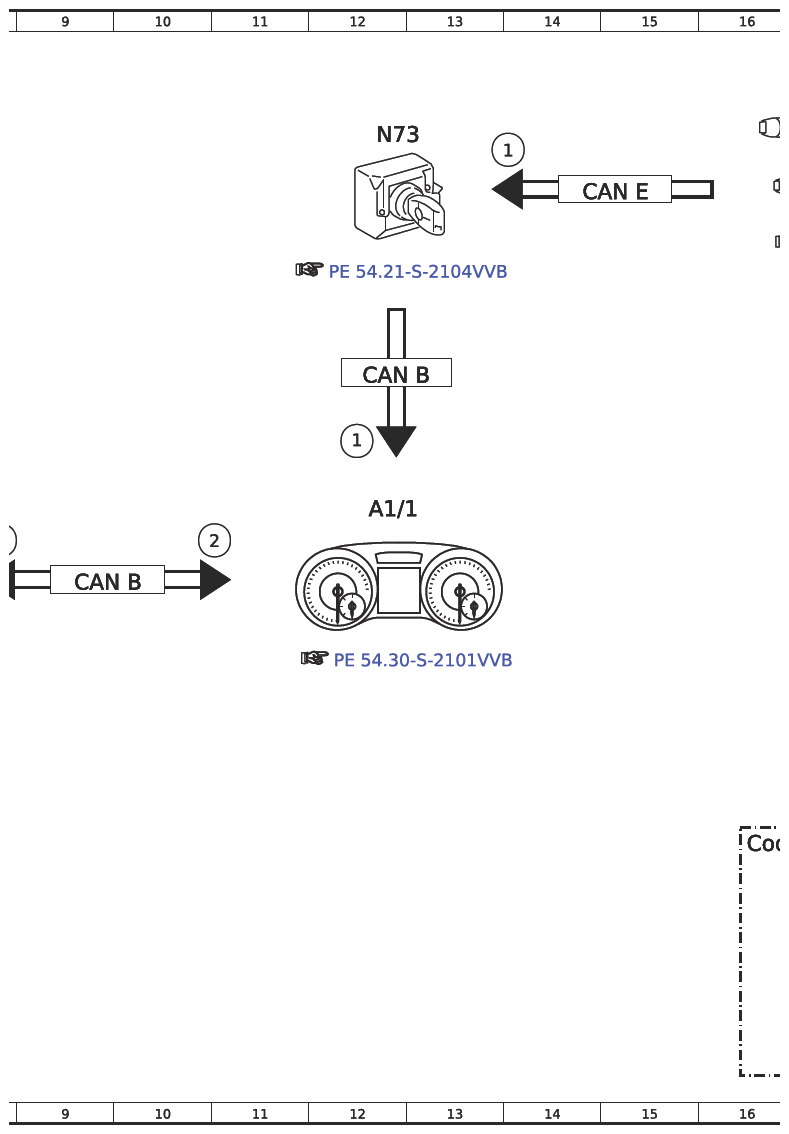

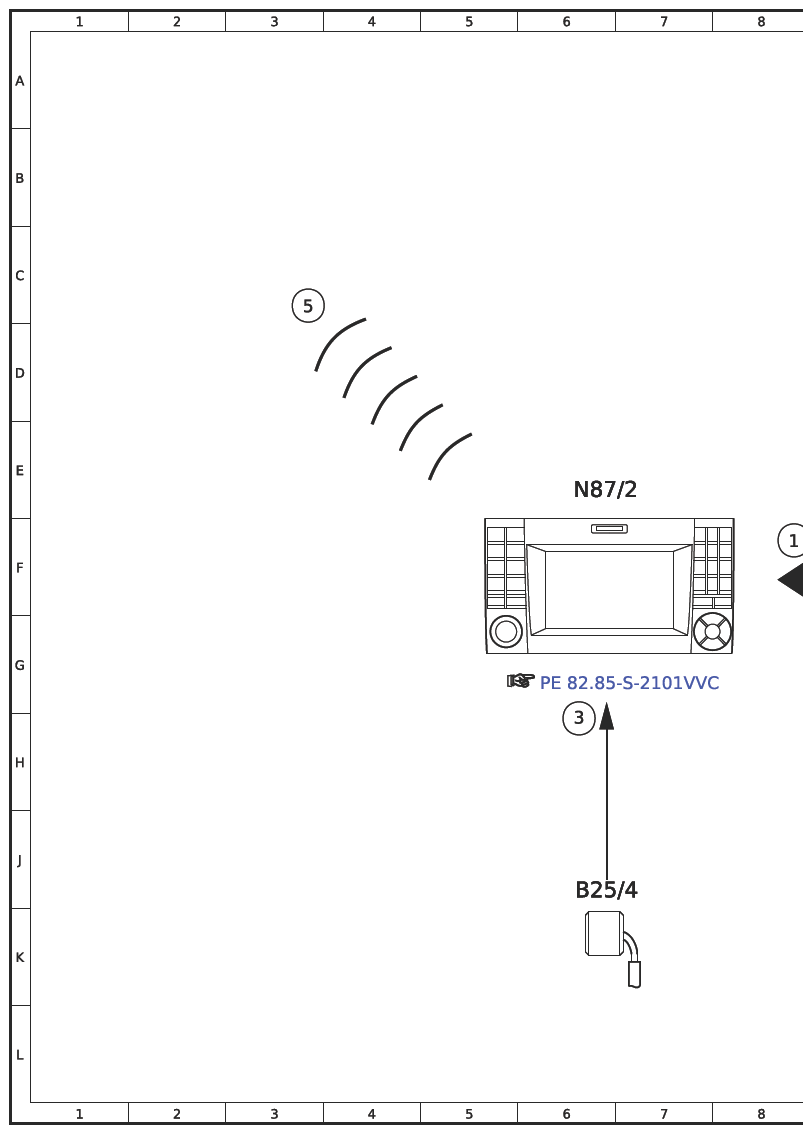

Electrical Function Schematic For Cellular Phone - PE82.70-S-2051-97TRA
Model 447.6/7 except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 8F |
| 1 | Multifunction steering wheel button group, signal | 12E |
| 1 | Multifunction steering wheel button group, signal | 17H |
| 1 | Multifunction steering wheel button group, signal | 17C |
| 1 | Multifunction steering wheel button group, signal | 14B |
| 2 | Instrument cluster, message | 11F |
| 3 | Voice input, signal | 6H |
| 5 | Bluetooth®, signal | 3C |
| A1/1 | Instrument cluster (KI) control unit | 12E |
| B25/4 | Hands-free system microphone | 6J |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 9F |
| CAN E | Chassis CAN | 15B |
| Code CL4 | Multifunction steering wheel with trip computer | 16J |
| LIN E1 | Steering LIN | 17D |
| N135 | Steering wheel electronics | 17G |
| N73 | Electronic ignition lock (EZS) control unit | 12B |
| N80 | Steering column tube module (MRM) control unit | 17A |
| N87/2 | Radio (Audio) | 6E |
| S110 | Left multifunction steering wheel button group | 16J |
| S111 | Right multifunction steering wheel button group | 18J |
