Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram - PE82.85-S-2101-97VVC
Model 447.6 except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) N87/2
Model 447.7 except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) N87/2
| Code: | Designation: | Position: |
|---|---|---|

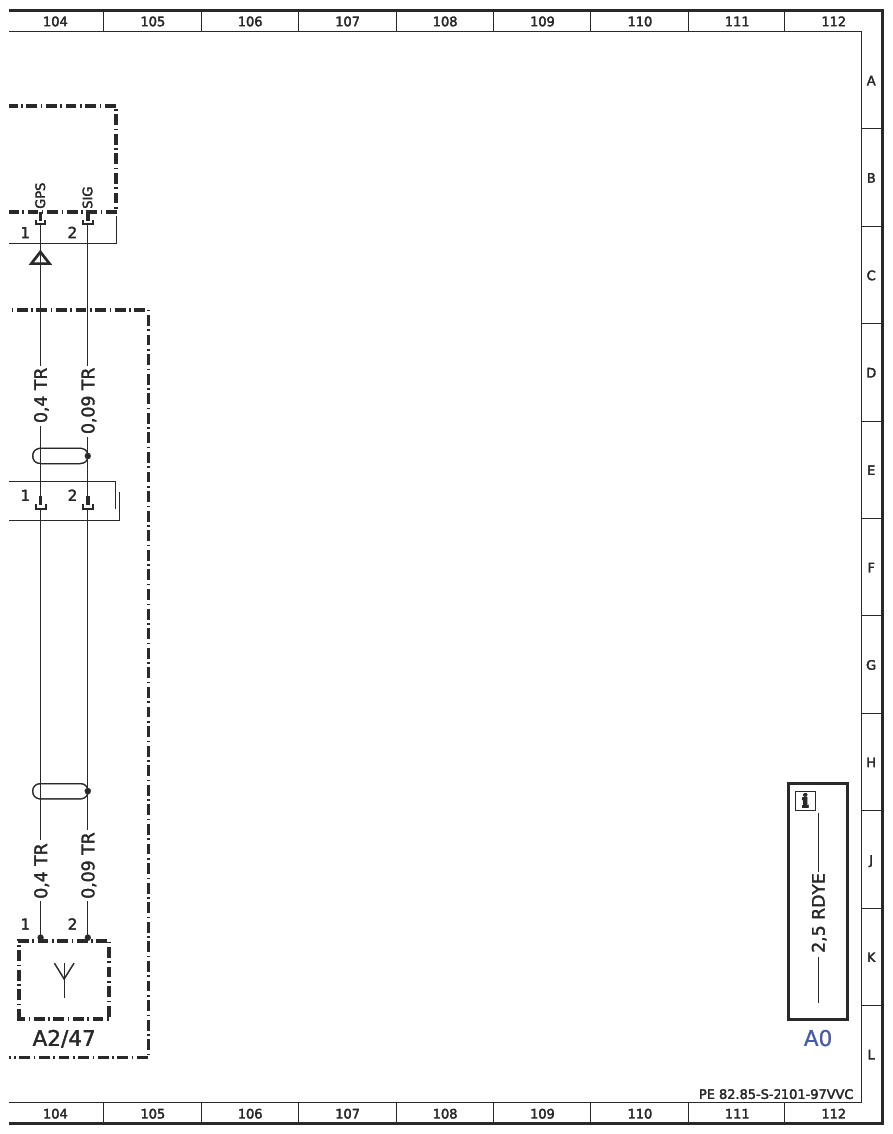

| A0 | Color code key | 112L |

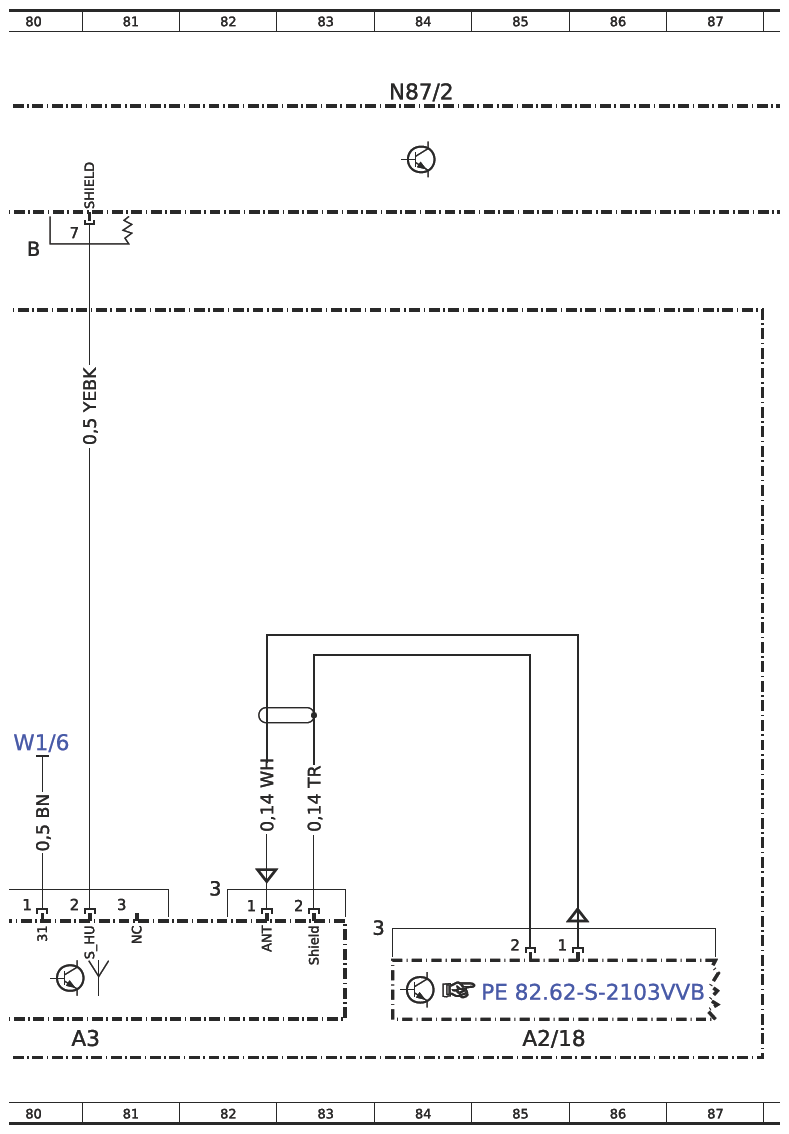

| A2/18 | FM/AM antenna amplifier | 74L |

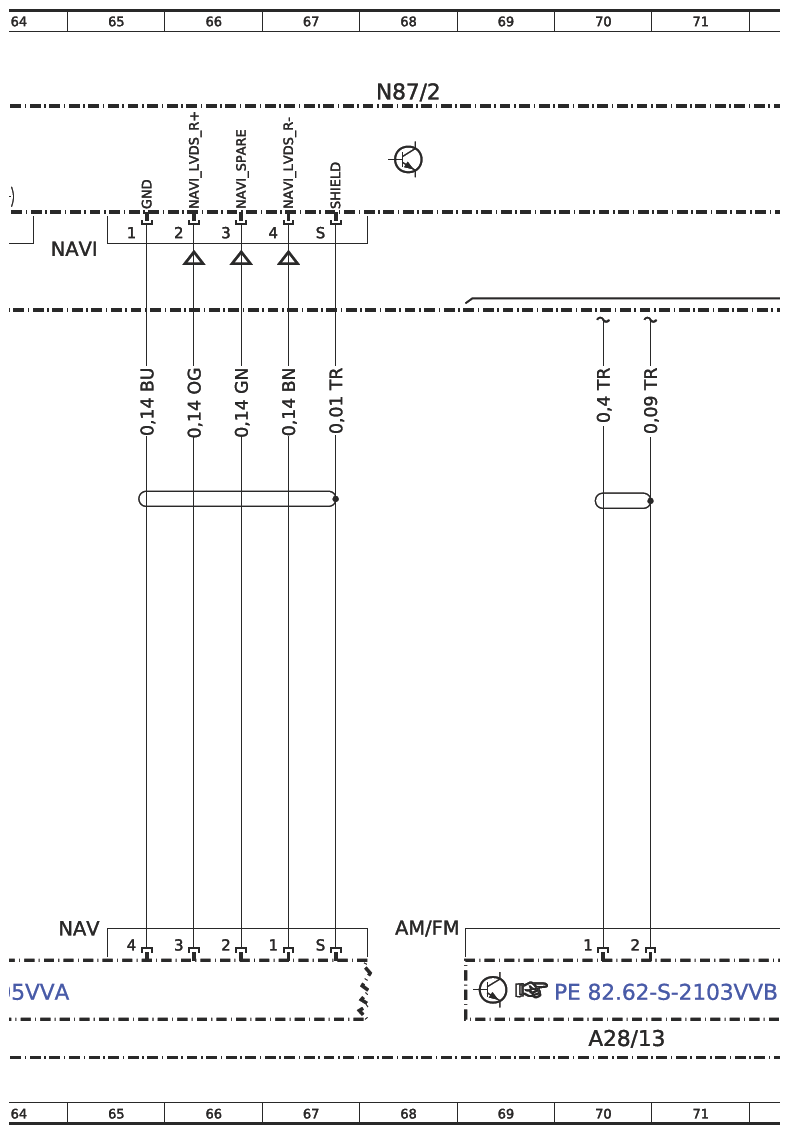

| A28/13 | TMC antenna splitter | 70L |

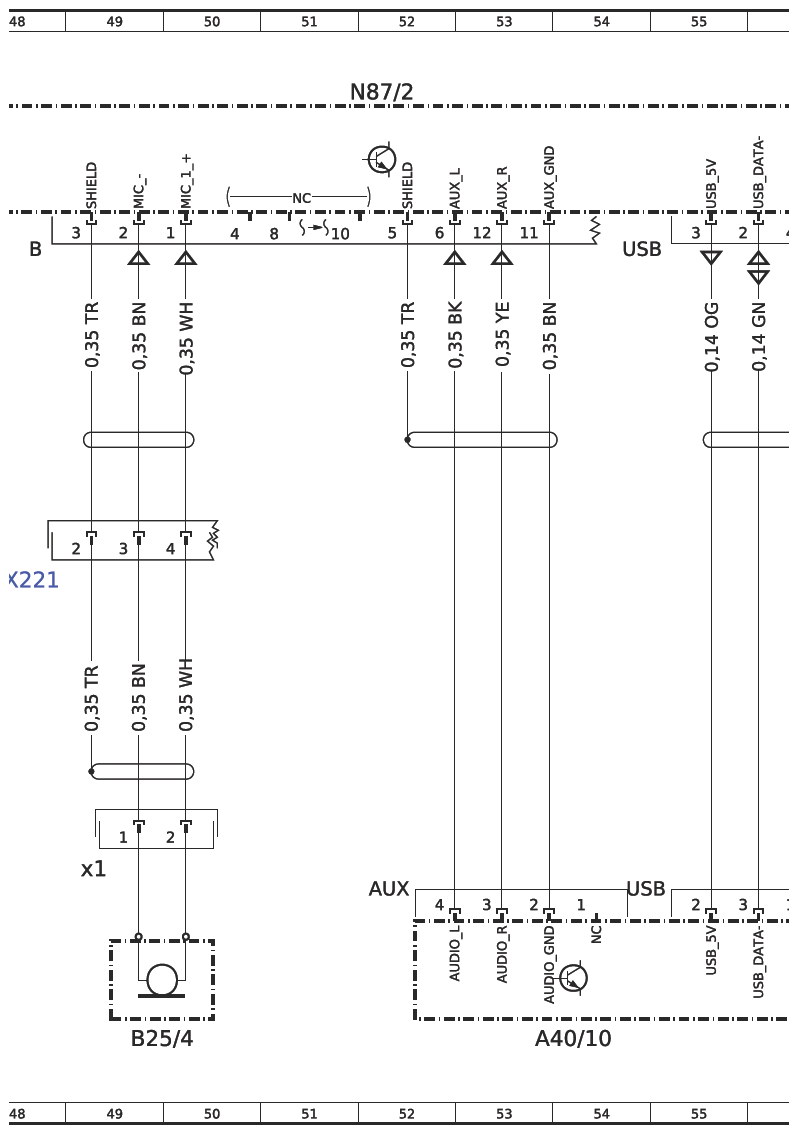

| A40/10 | USB/AUX connection | 54L |
| B25/4 | Hands-free system microphone | 49L |
| B25/4x1 | Hands-free system microphone electrical connector | 49J |

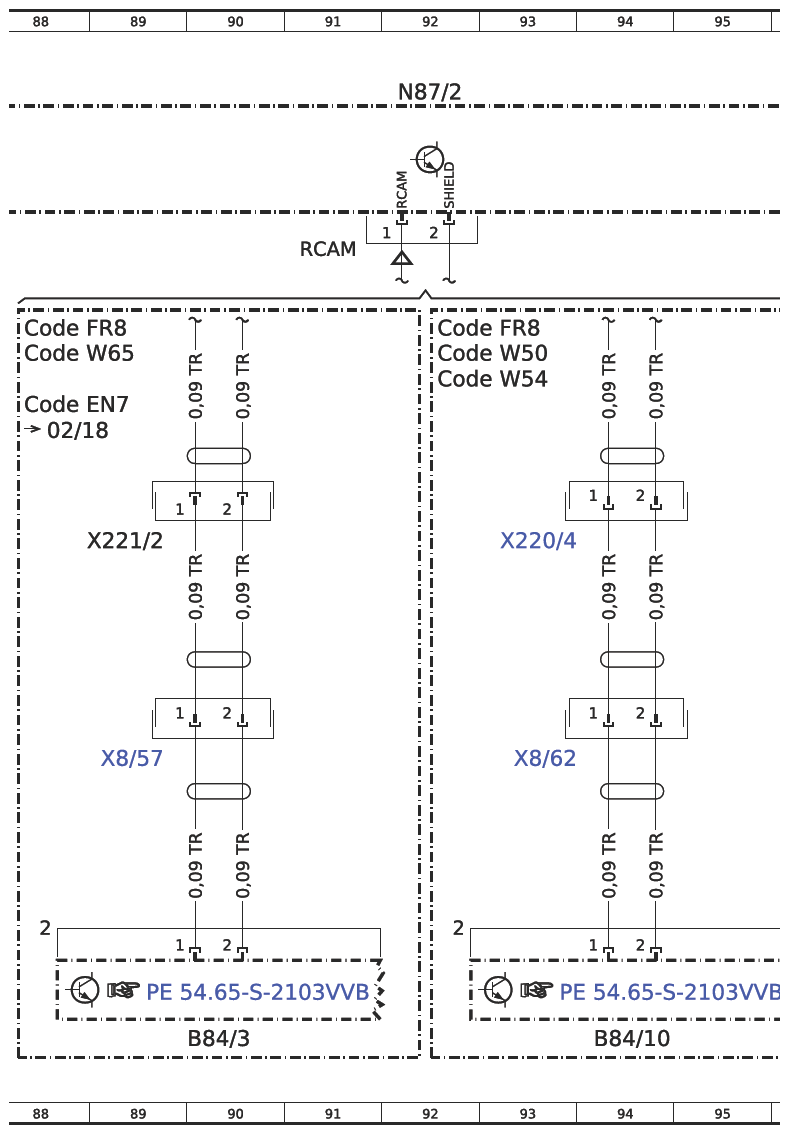

| B84/10 | Rear-end door reversing camera (RFK) control unit | 94L |
| B84/3 | Reversing camera (RFK) control unit | 90L |
| CAN B | Interior CAN | 9K |
| Code E1N | Becker® MAP PILOT | 57D |
| Code EL8 | Front two-way speaker | 11C |
| Code EL9 | Front and rear two-way speakers | 11D |
| Code EL9 | Front and rear two-way speakers | 24C |
| Code EN7 | Audio 15 | 88D |
| Code EV6 | Preinstallation for Becker® MAP PILOT | 57D |
| Code FR8 | Backup camera | 88D |
| Code FR8 | Backup camera | 92D |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 92D |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 92D |
| Code W65 | Liftgate | 88D |

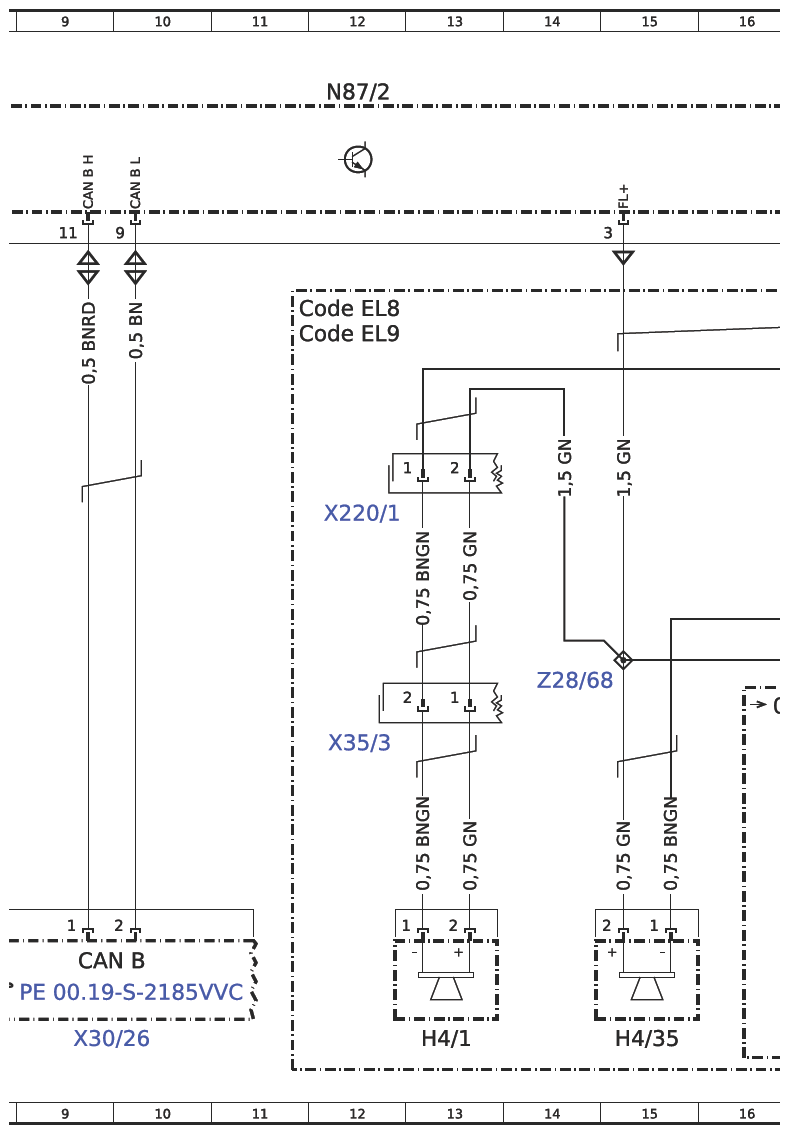

| H4/1 | Left front door bass/midrange speaker | 13L |
| H4/2 | Right front door bass/midrange speaker | 23L |

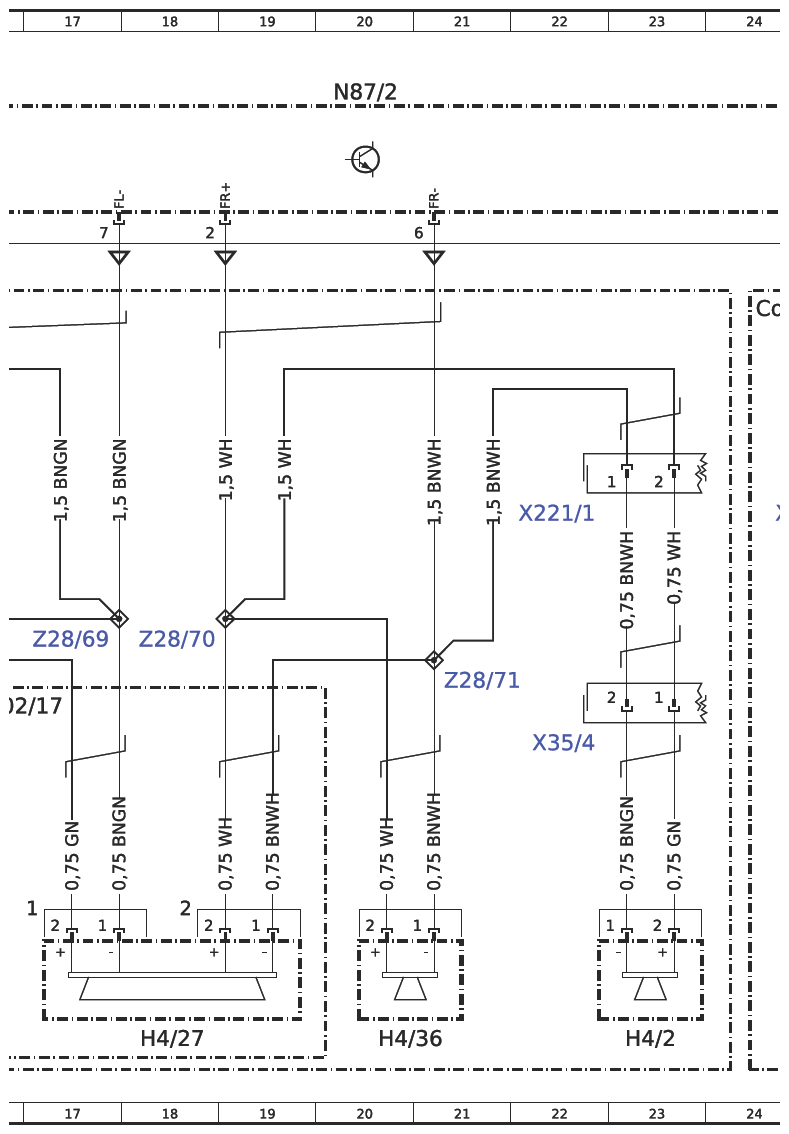

| H4/27 | Center instrument panel speaker | 18L |

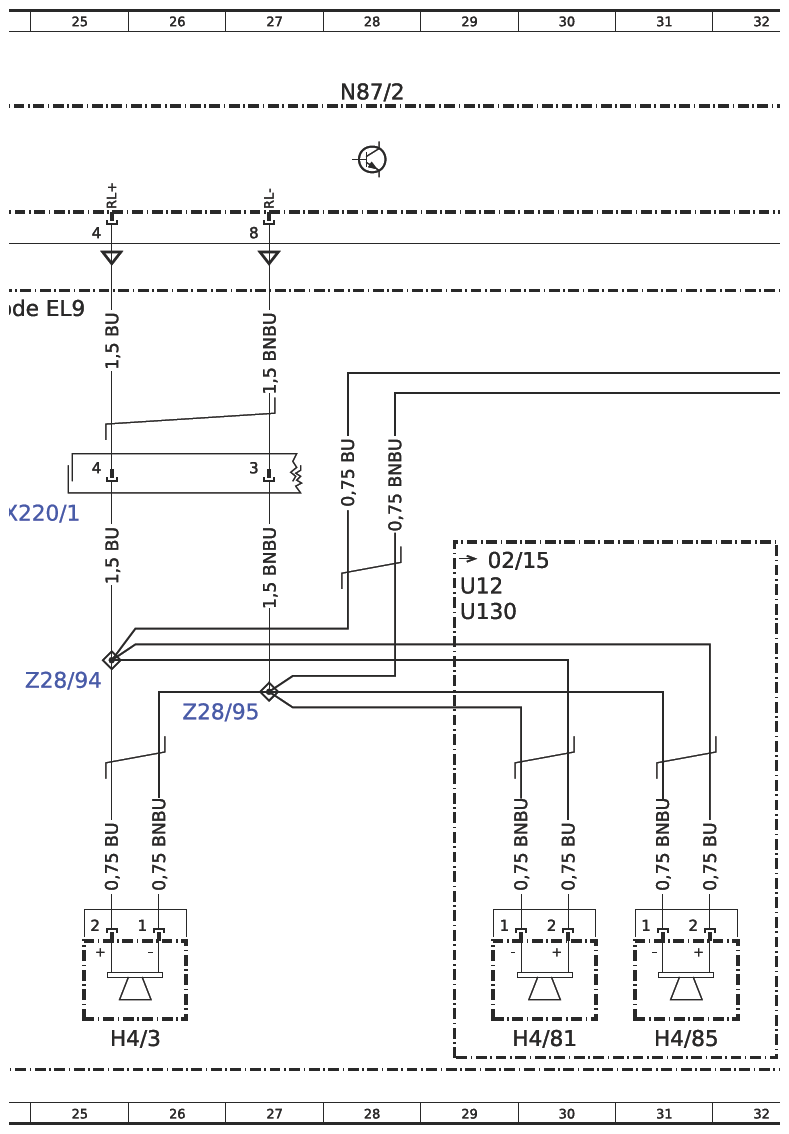

| H4/3 | Left rear side wall speaker | 25L |
| H4/35 | Left instrument panel speaker | 15L |
| H4/36 | Right instrument panel speaker | 20L |

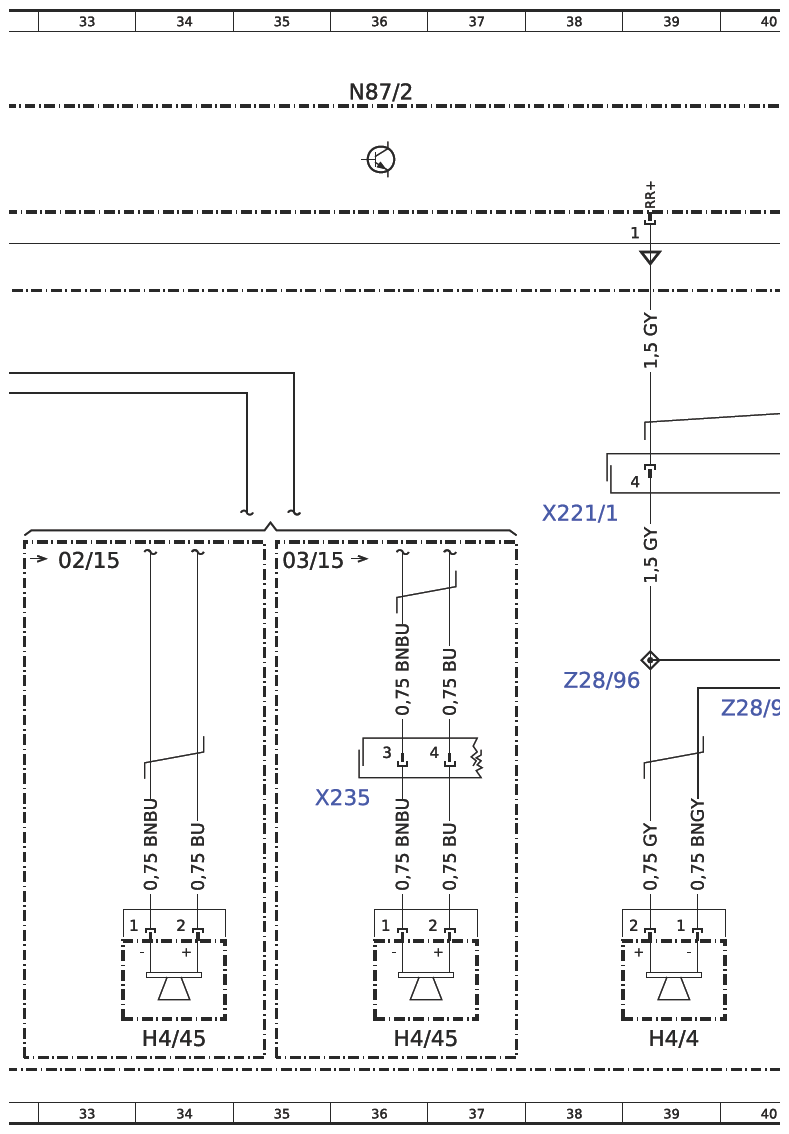

| H4/4 | Right rear side wall speaker | 39L |

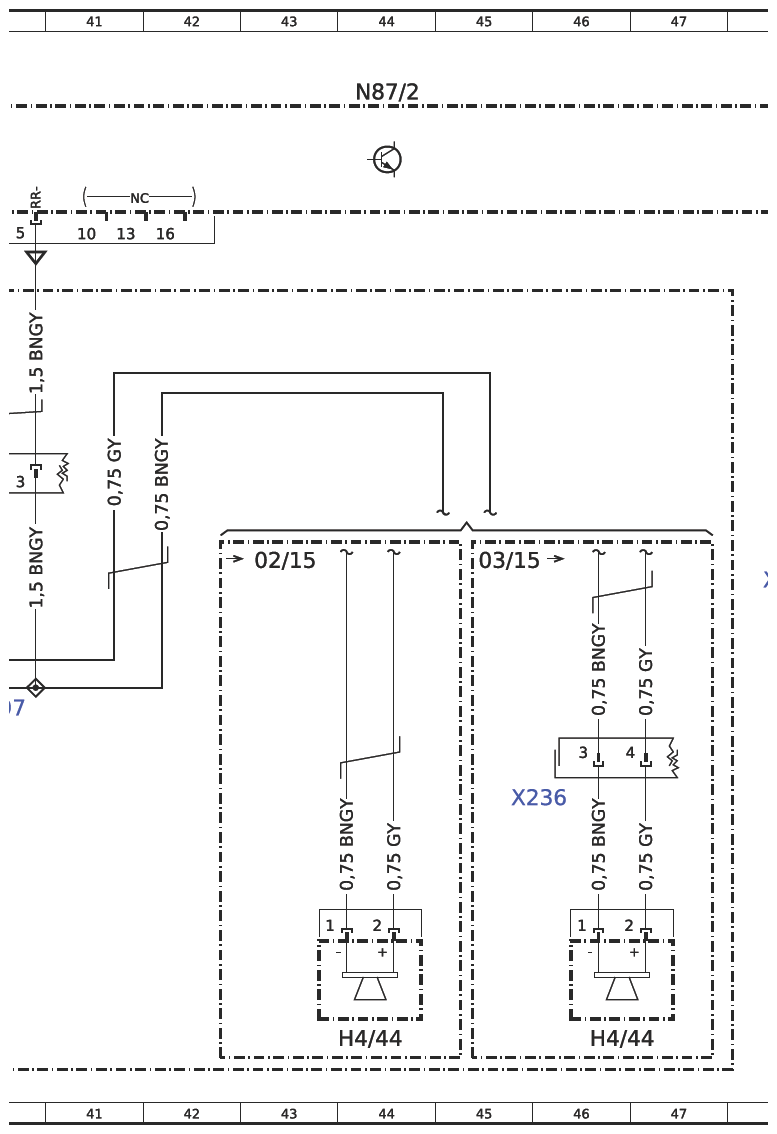

| H4/44 | Right rear side wall tweeter | 44L |
| H4/44 | Right rear side wall tweeter | 46L |
| H4/45 | Left rear side wall tweeter | 34L |
| H4/45 | Left rear side wall tweeter | 36L |
| H4/81 | Left side wall tweeter | 30L |
| H4/85 | Left side wall bass midrange speaker | 31L |

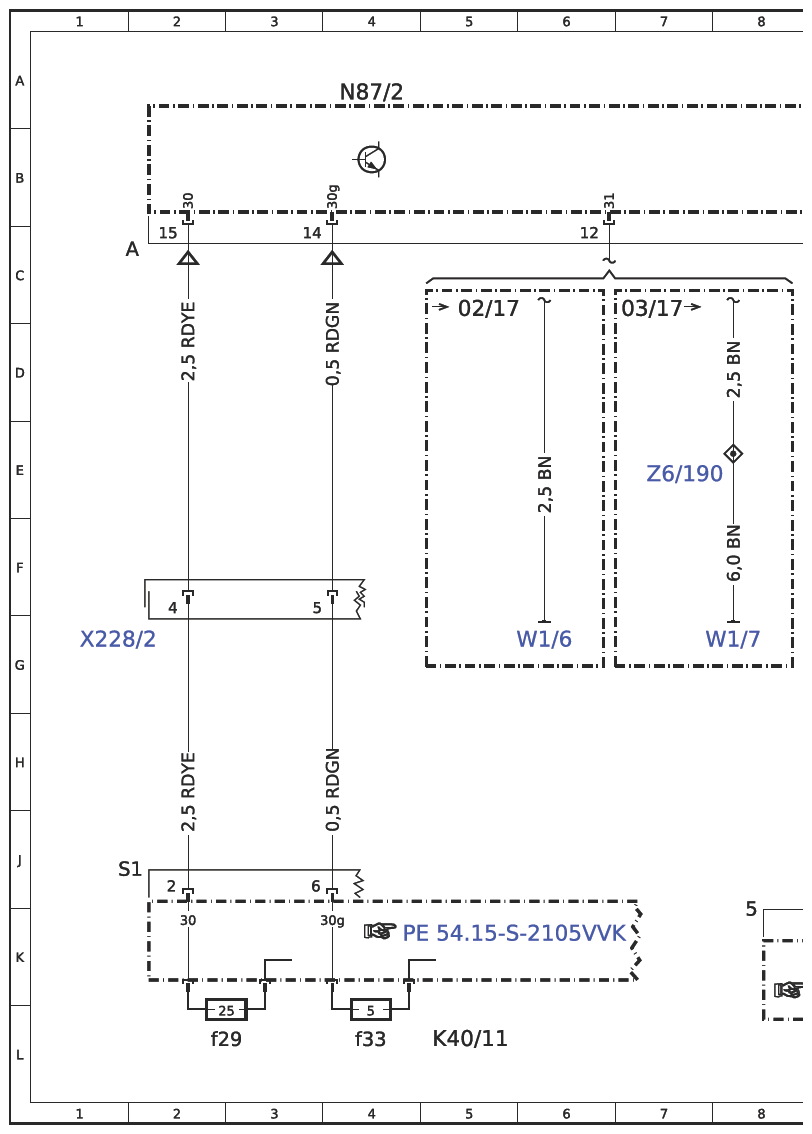

| K40/11 | Firewall fuse and relay module | 5L |
| K40/11f29 | Fuse 29 | 2L |
| K40/11f33 | Fuse 33 | 4L |

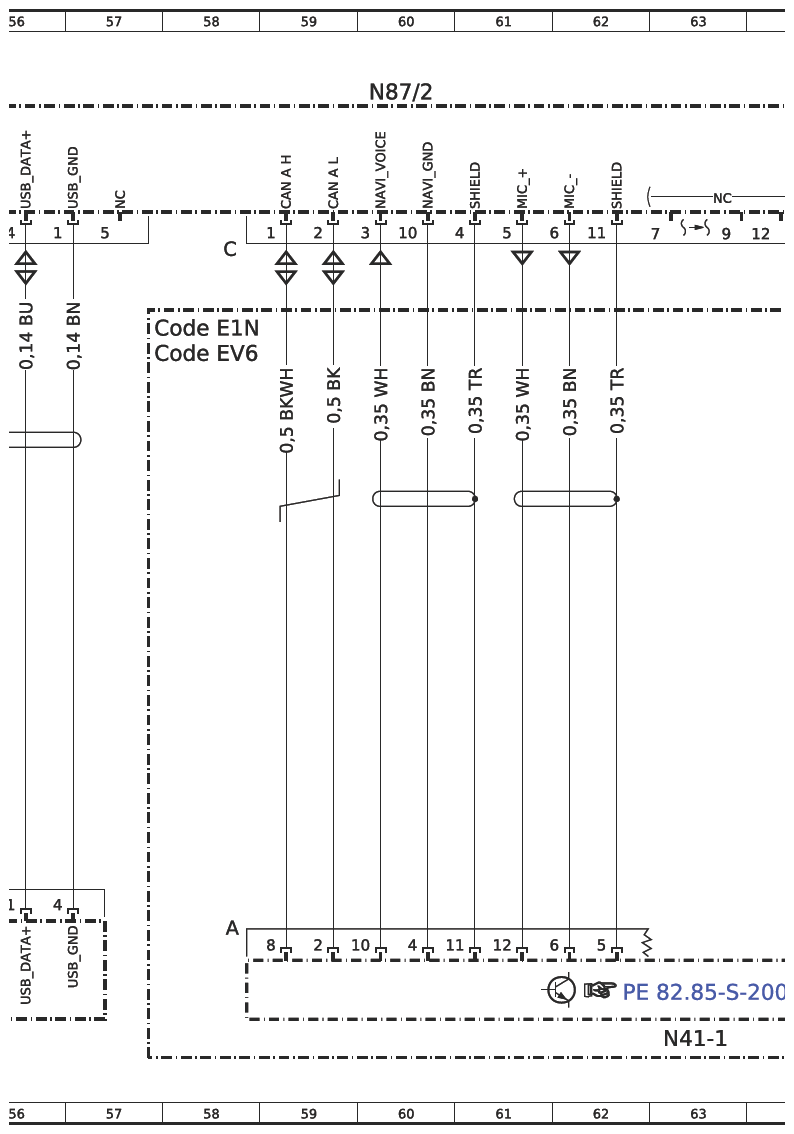

| N41-1 | Becker® MAP PILOT control unit mount | 63L |

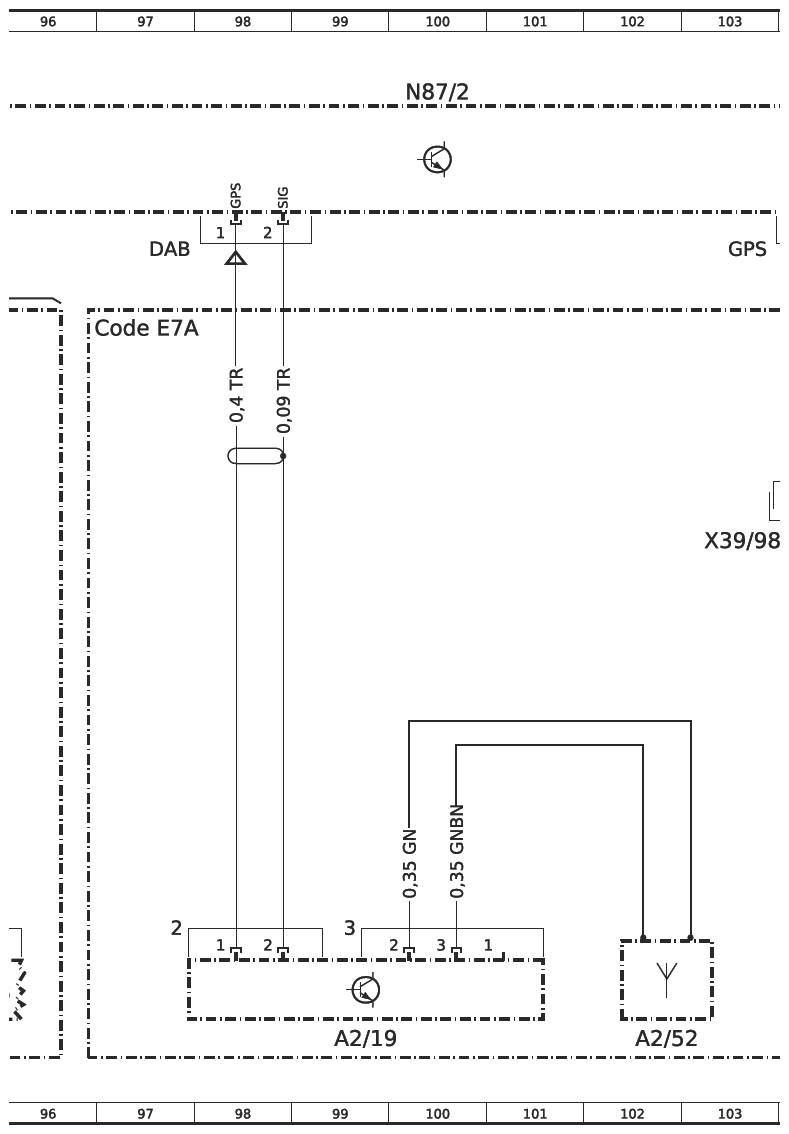

| N87/2 | Radio (Audio) | 4A |
| N87/2 | Radio (Audio) | 12A |
| N87/2 | Radio (Audio) | 20A |
| N87/2 | Radio (Audio) | 28A |
| N87/2 | Radio (Audio) | 36A |
| N87/2 | Radio (Audio) | 44A |
| N87/2 | Radio (Audio) | 52A |
| N87/2 | Radio (Audio) | 60A |
| N87/2 | Radio (Audio) | 68A |
| N87/2 | Radio (Audio) | 76A |
| U12 | Valid for left-hand drive vehicles | 29F |
| U130 | Valid without code T19 Left sliding door | 29G |

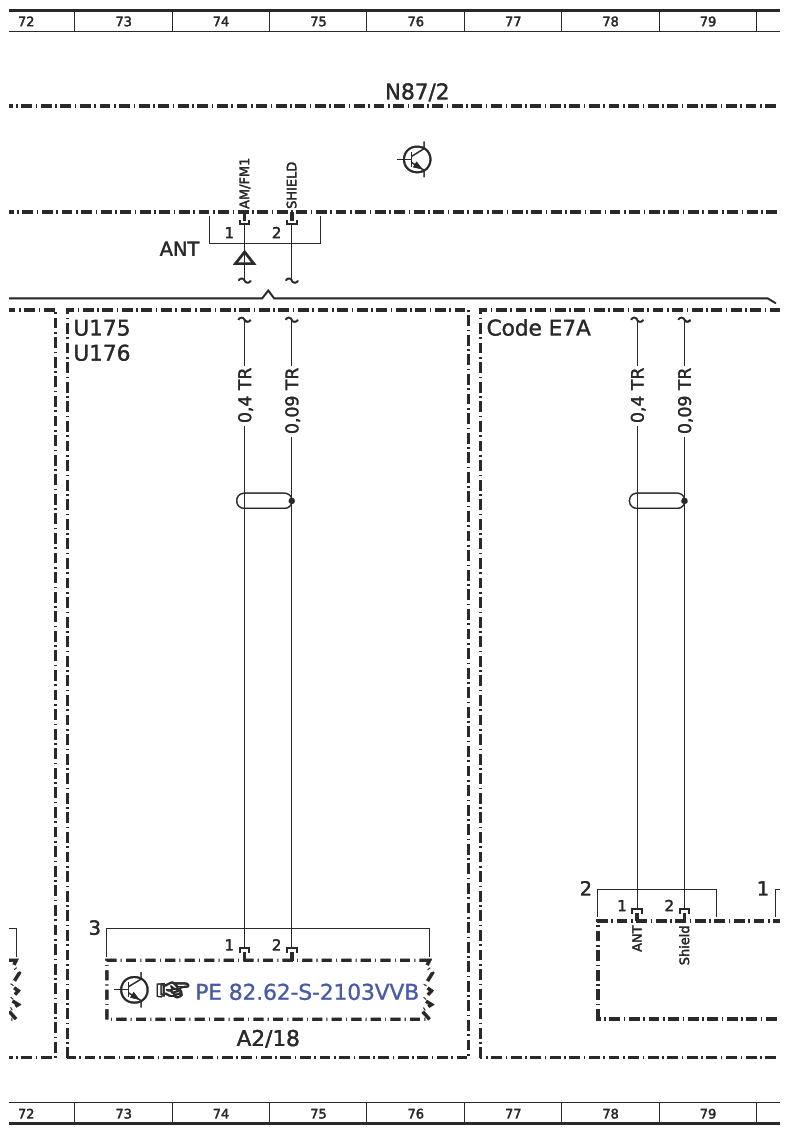

| U175 | Valid without code E1N Becker® MAP PILOT | 72D |
| U176 | Valid without code EV6 Becker® MAP PILOT preinstallation | 72D |
| W1/6 | Cockpit ground point | 6G |
| W1/7 | Cockpit ground point | 8G |
| X220/1 | Left main wiring harness/cockpit wiring harness electrical connector 2 | 12F |
| X220/1 | Left main wiring harness/cockpit wiring harness electrical connector 2 | 25F |
| X220/4 | Left main wiring harness/cockpit wiring harness electrical connector 5 | 93F |
| X221 | Right main wiring harness/cockpit wiring harness electrical connector 1 | 48F |
| X221/1 | Right main wiring harness/cockpit wiring harness electrical connector 2 | 22F |
| X221/1 | Right main wiring harness/cockpit wiring harness electrical connector 2 | 38F |
| X221/2 | Right main wiring harness/cockpit wiring harness electrical connector 3 | 89F |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 1G |
| X235 | Main wiring harness/left sidewall electrical connector | 36H |
| X236 | Main wiring harness/right sidewall electrical connector | 46H |
| X30/26 | Interior CAN (CAN B) potential distributor electrical connector | 9L |
| X35/3 | Left front electrical connector 2 | 12H |
| X35/4 | Right front electrical connector 2 | 22H |
| X8/57 | Right liftgate electrical connector 4 | 89H |
| X8/62 | Left rear-end door electrical connector 3 | 93H |
| Z28/68 | Left cockpit speaker (+) connector sleeve | 14G |
| Z28/69 | Left cockpit speaker (-) connector sleeve | 17G |
| Z28/70 | Right cockpit speaker (+) connector sleeve | 18G |
| Z28/71 | Right cockpit speaker (-) connector sleeve | 21G |
| Z28/94 | Left side wall speaker (+) connector sleeve | 25G |
| Z28/95 | Left side wall speaker (-) connector sleeve | 27H |
| Z28/96 | Right side wall speaker (+) connector sleeve | 38G |
| Z28/97 | Right side wall speaker (-) connector sleeve | 40H |
| Z6/190 | Cockpit ground connection connector sleeve 6 | 7E |
