(eCall Control Unit Wiring Diagram, Russia (GLONASS)) - PE82.95-S-2102-97VVD
Model 447.6 with code EC0 (eCall Russia (ERA-Glonass) incl. camera) with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) Camera B84/11
Model 447.7 with code EC0 (eCall Russia (ERA-Glonass) incl. camera) with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) Camera B84/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |

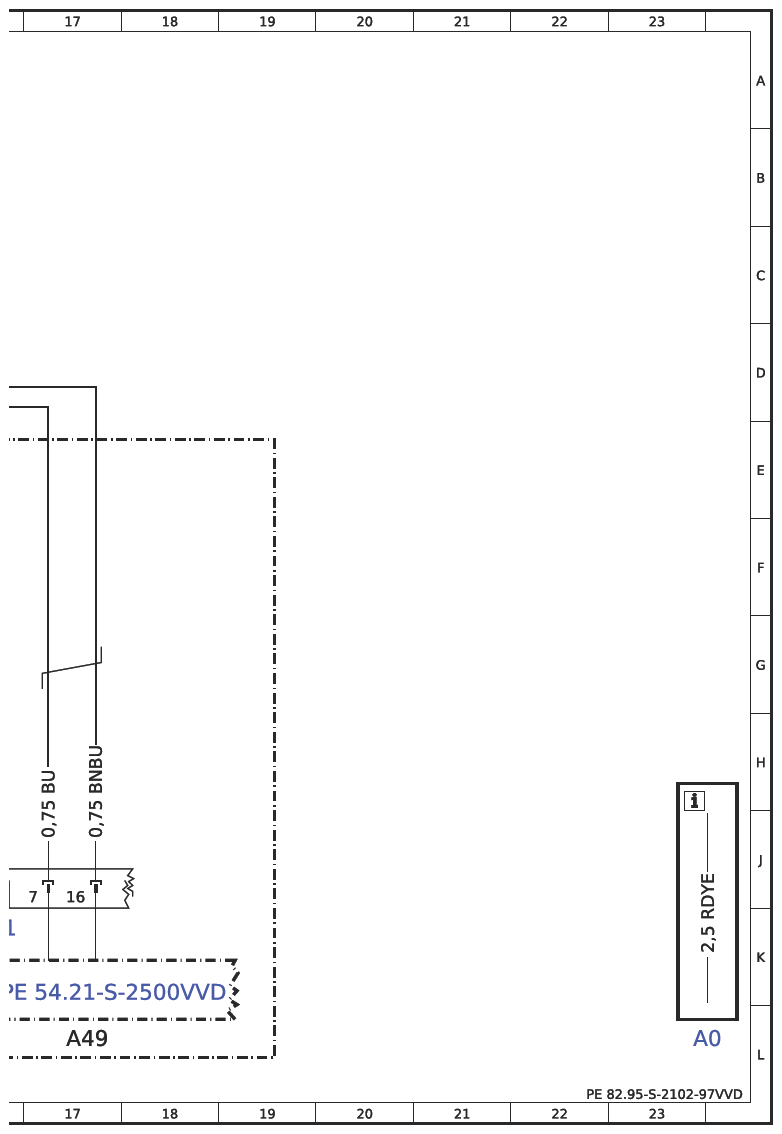

| A49 | Taxi two-way radio | 17L |

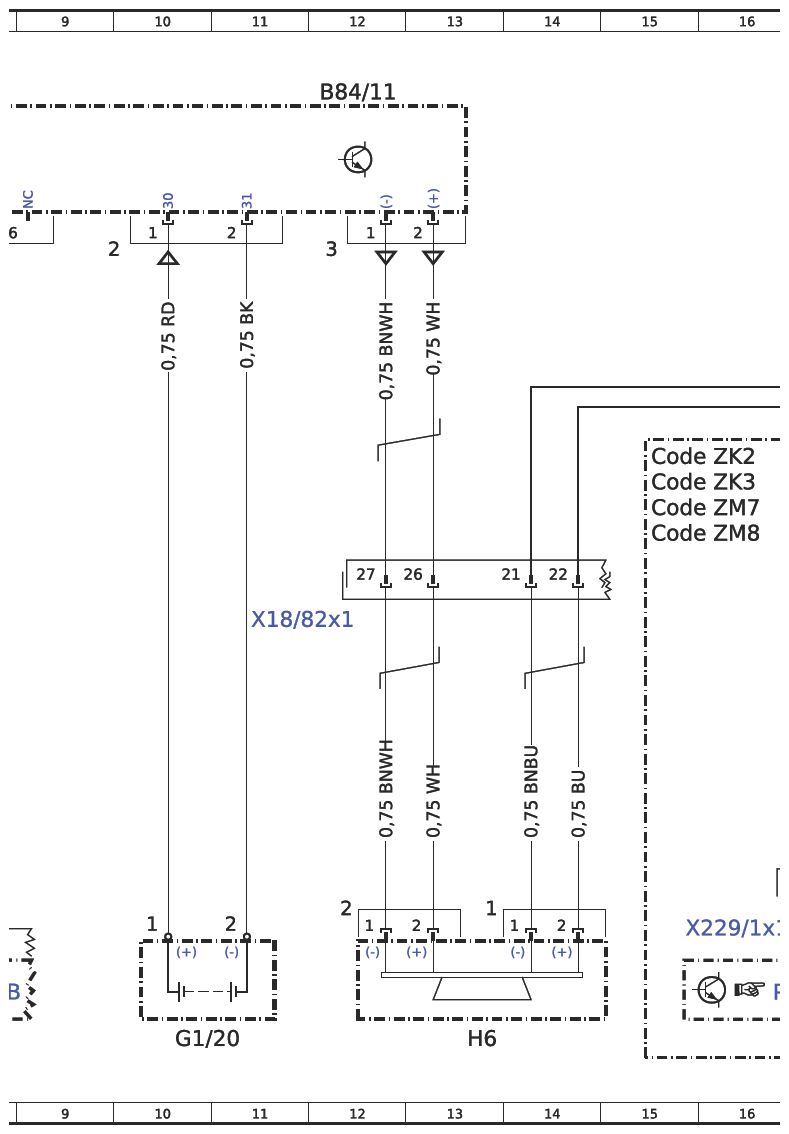

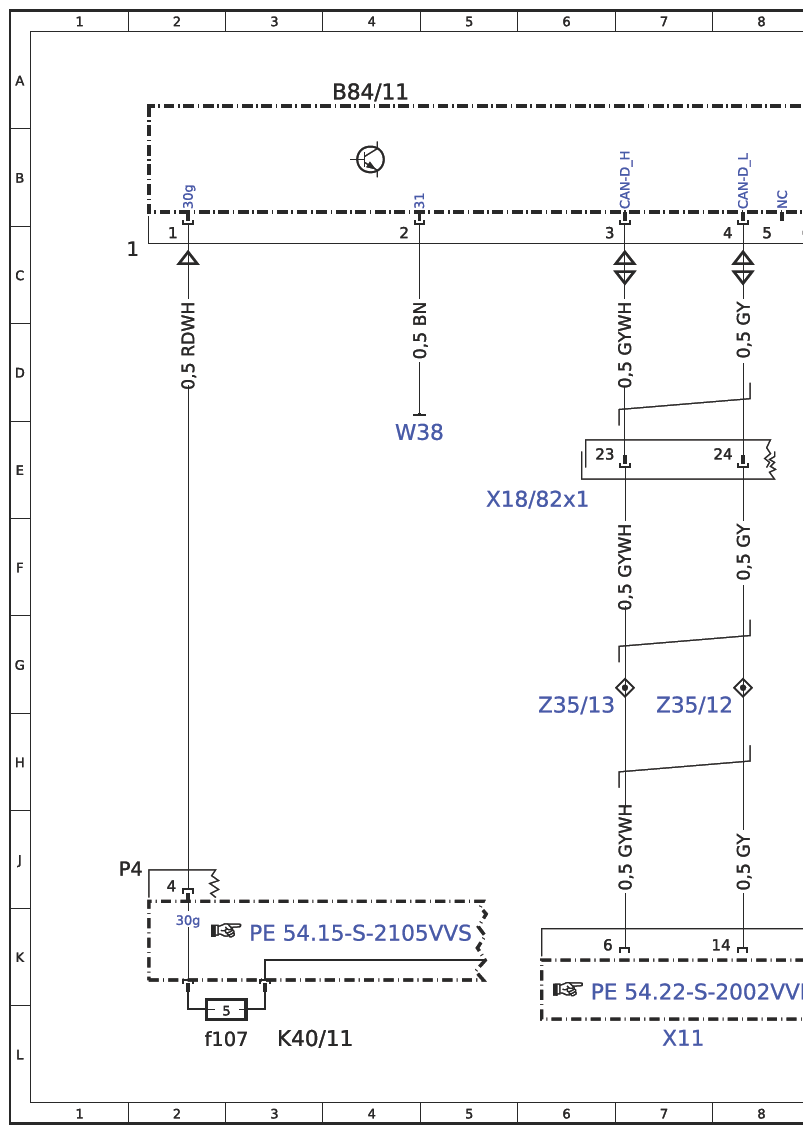

| B84/11 | ERA-Glonass control unit | 4A |
| B84/11 | ERA-Glonass control unit | 12A |
| Code ZK2 | Taxi version with emergency alarm system | 15E |
| Code ZK3 | Taxi version without emergency alarm system | 15E |
| Code ZM7 | Rental vehicle package with emergency alarm system | 15E |
| Code ZM8 | Rental vehicle package without emergency alarm system | 15F |
| G1/20 | E-Call Russia (ERA-Glonass) backup battery | 10L |
| H6 | Taxi two-way radio speaker | 13L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f107 | Fuse 107 | 2L |
| W38 | Roof frame ground point 1 | 4E |
| X11 | Diagnostic connector | 7L |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 6E |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 12G |
| X229/1x1 | Two-way radio 2 electrical connector | 16K |
| Z35/12 | Diagnostic CAN low connector sleeve | 7G |
| Z35/13 | Diagnostic CAN high connector sleeve | 6G |
