Wiring Diagram Of Radio - PE82.60-S-2000-97VVB
Model 447.6 with code E2R (Radio generation 2) with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) N87/15
Model 447.7 with code E2R (Radio generation 2) with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) N87/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |

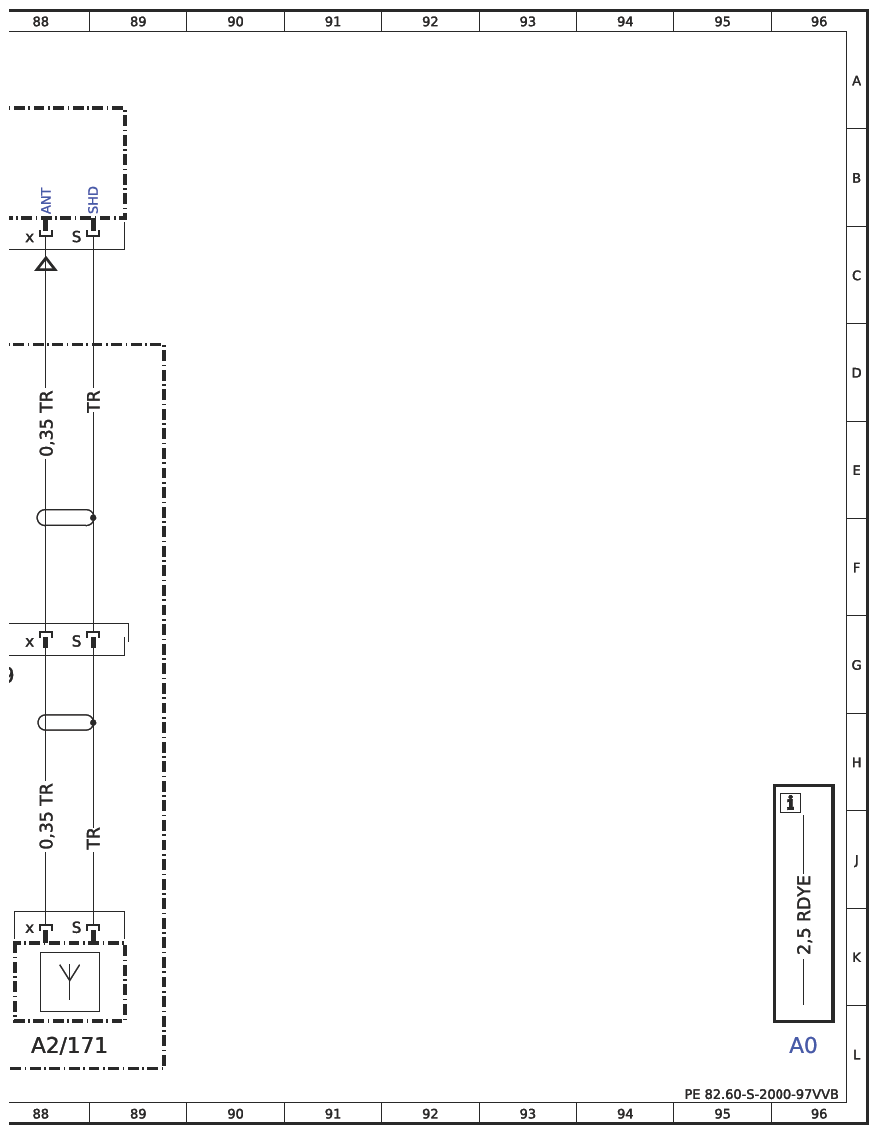

| A2/171 | Satellite Digital Audio Radio Service (SDARS) antenna | 88L |

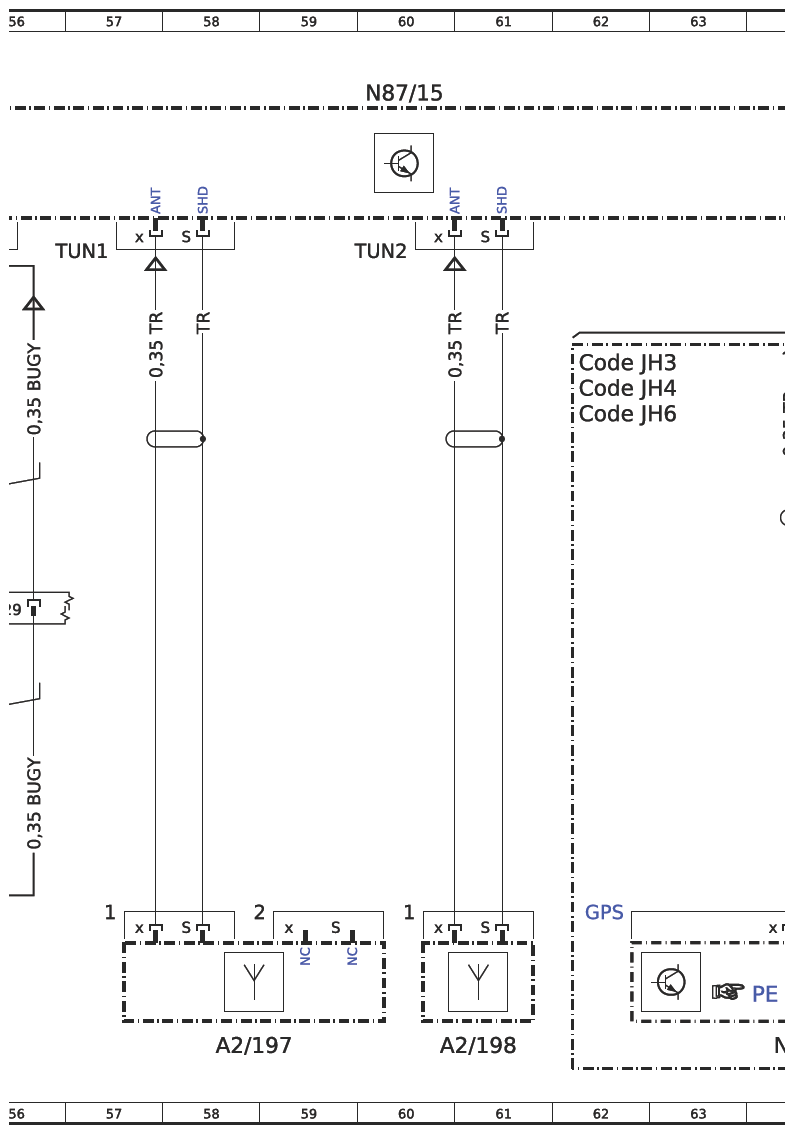

| A2/197 | AM, FM1, DAB1 antenna | 58L |
| A2/198 | AM, FM2, DAB2 antenna | 61L |

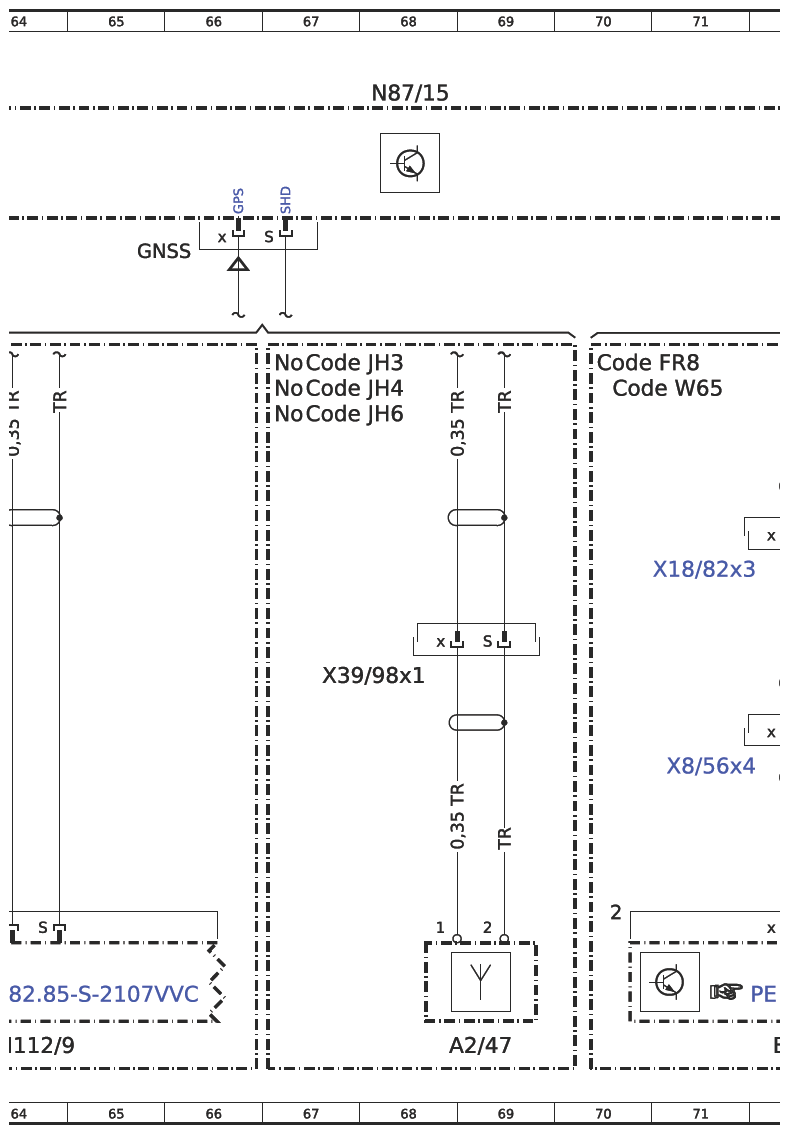

| A2/47 | GPS antenna | 69L |

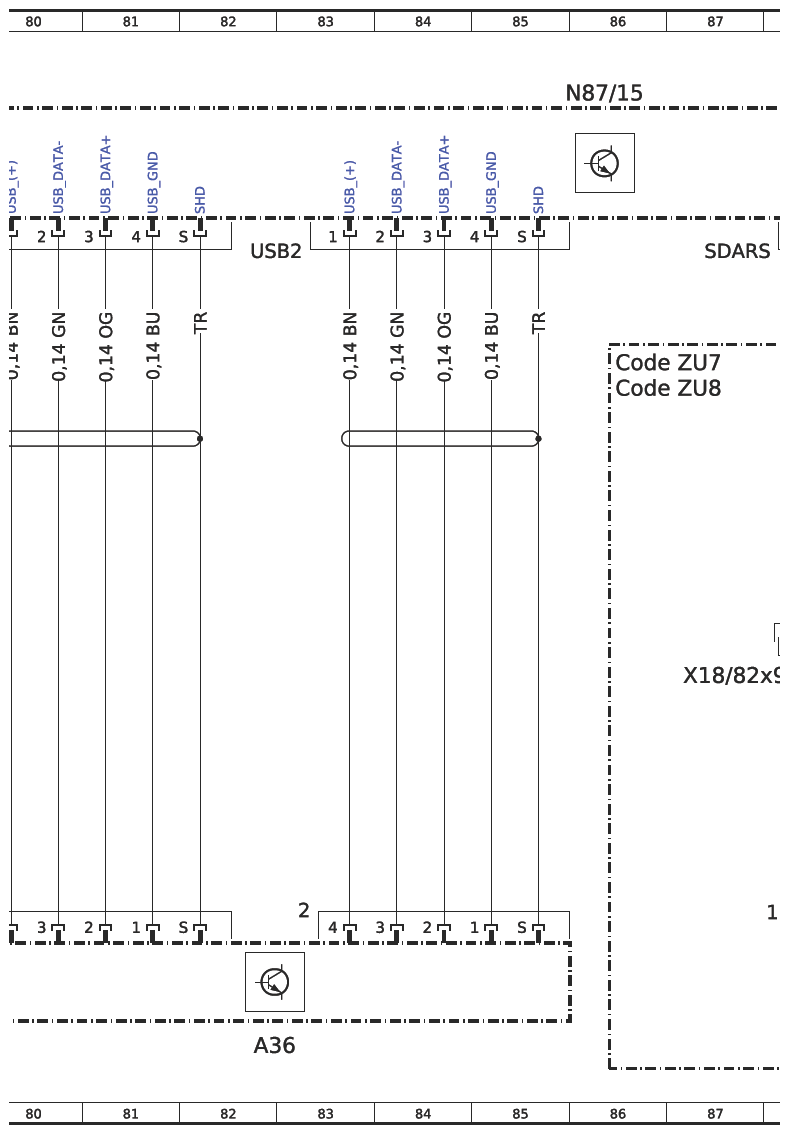

| A36 | Multimedia connection unit | 82L |

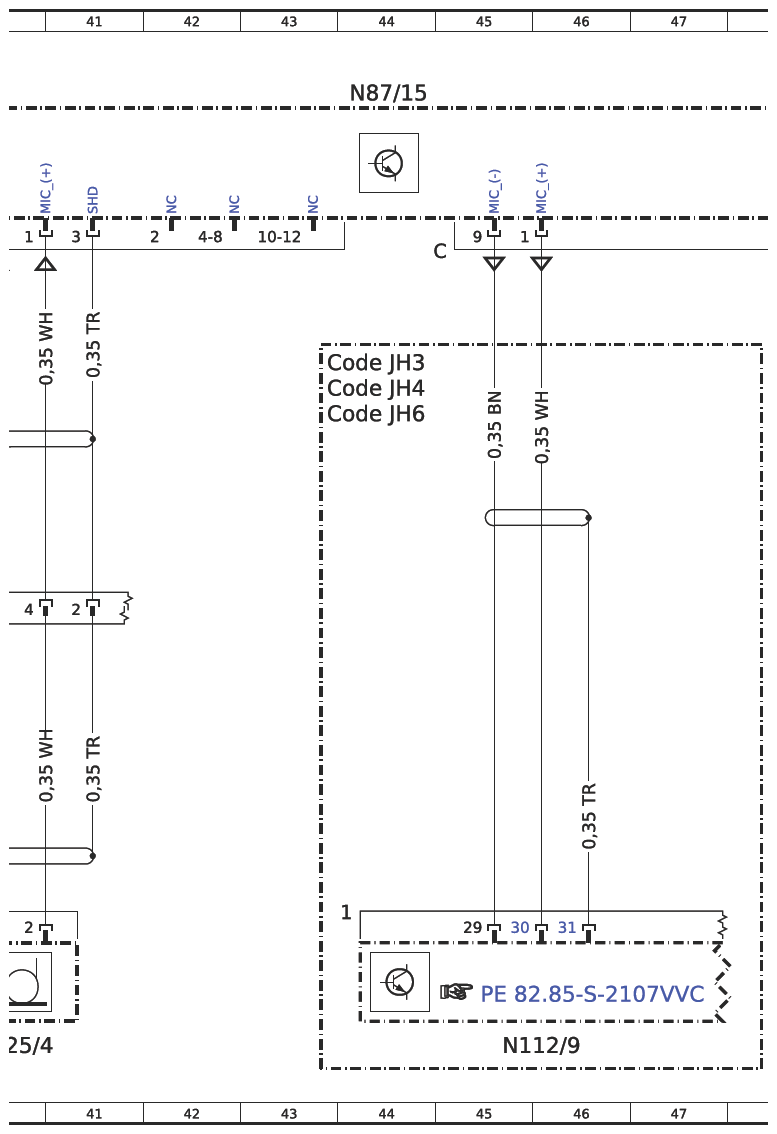

| B25/4 | Hands-free system microphone | 40L |

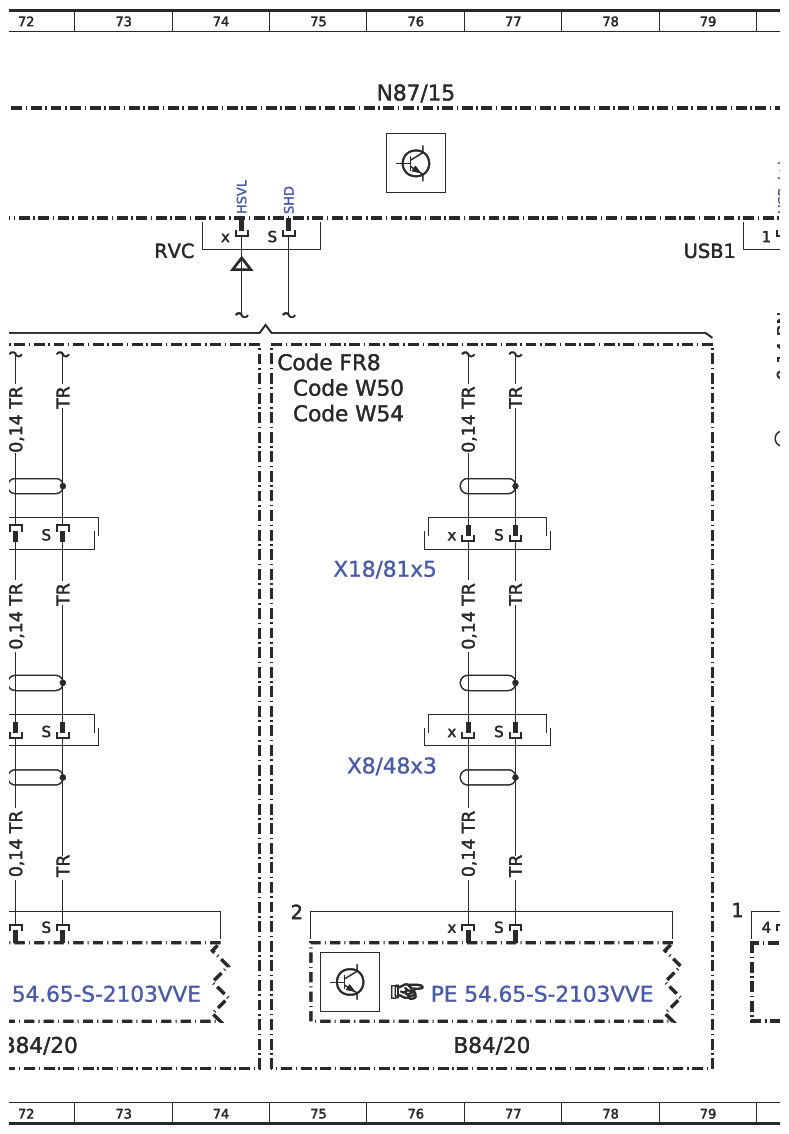

| B84/20 | Reversing camera (RFK) control unit | 72L |
| B84/20 | Reversing camera (RFK) control unit | 77L |
| CAN B | Interior CAN | 7K |
| Code EL8 | Front two-way speaker | 14A |
| Code EL9 | Front and rear two-way speakers | 14A |
| Code EL9 | Front and rear two-way speakers | 27A |
| Code FR8 | Backup camera | 70D |
| Code FR8 | Backup camera | 75D |
| Code JH3 | Communication module (LTE) for digital services | 9D |
| Code JH3 | Communication module (LTE) for digital services | 43D |
| Code JH3 | Communication module (LTE) for digital services | 62D |
| Code JH3 | Communication module (LTE) for digital services | 67D |
| Code JH4 | Communication module (LTE) for ERA-GLONASS | 9D |
| Code JH4 | Communication module (LTE) for ERA-GLONASS | 43D |
| Code JH4 | Communication module (LTE) for ERA-GLONASS | 67D |
| Code JH4 | Communication module (LTE) for ERA-GLONASS | 62D |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 9E |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 43E |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 67E |
| Code JH6 | Pre-installation for communication module for digital services (LTE) | 62E |
| Code L | Valid for left-hand drive vehicles | 48G |
| Code L | Valid for left-hand drive vehicles | 53F |
| Code R | Valid for right-hand drive vehicles | 48G |
| Code R | Valid for right-hand drive vehicles | 55F |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 75D |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 75E |
| Code W65 | Liftgate | 70D |
| Code ZU7 | Canada version | 86D |
| Code ZU8 | USA version | 86D |

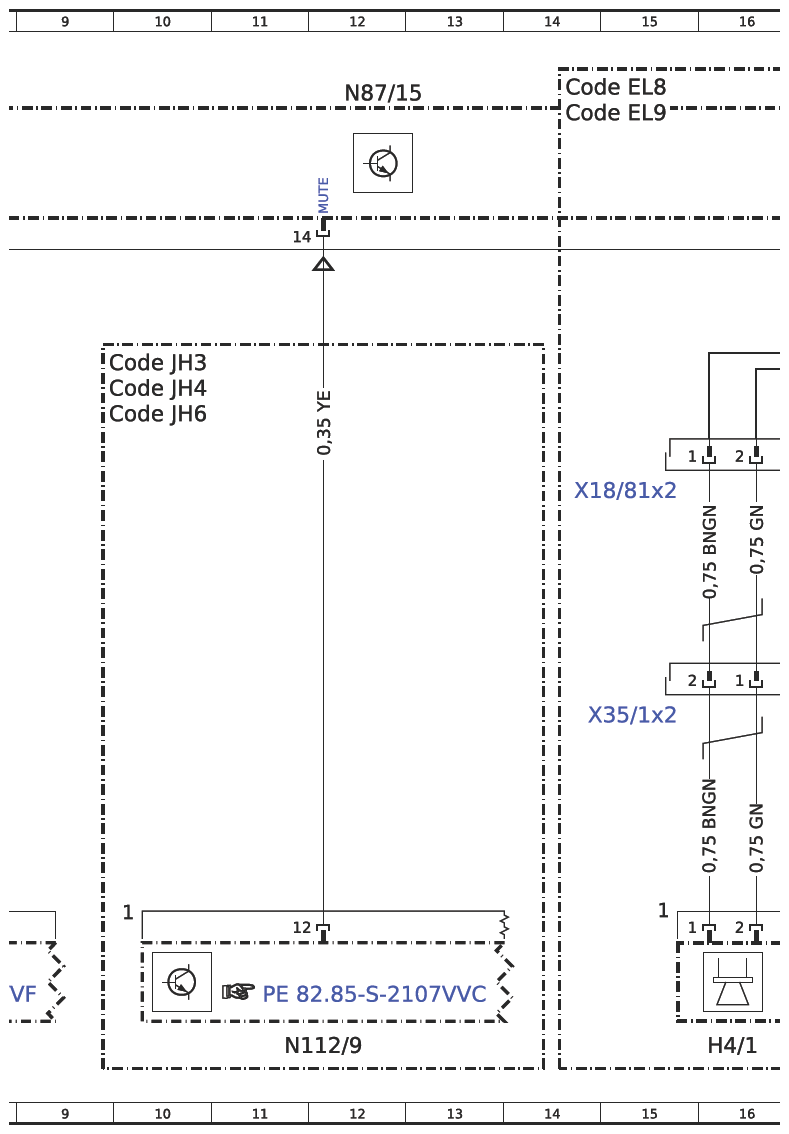

| H4/1 | Left front door bass/midrange speaker | 16L |
| H4/2 | Right front door bass/midrange speaker | 25L |

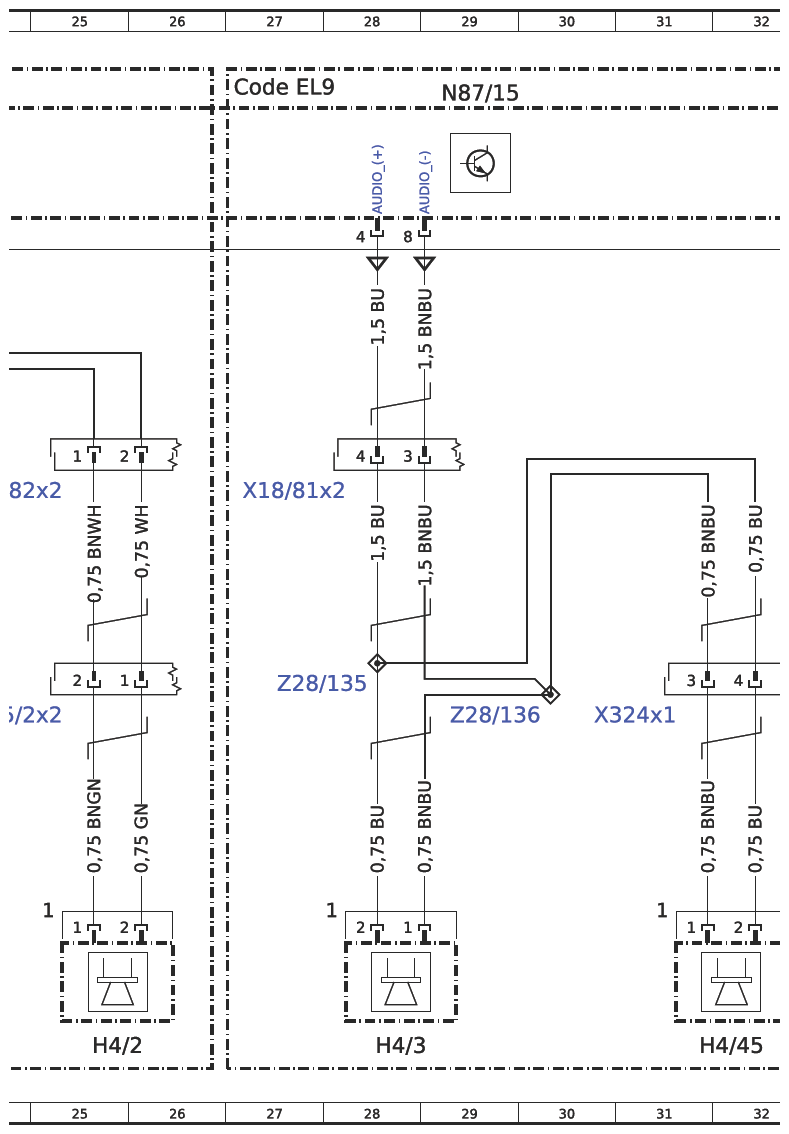

| H4/3 | Left rear side wall speaker | 28L |
| H4/35 | Left instrument panel speaker | 18L |

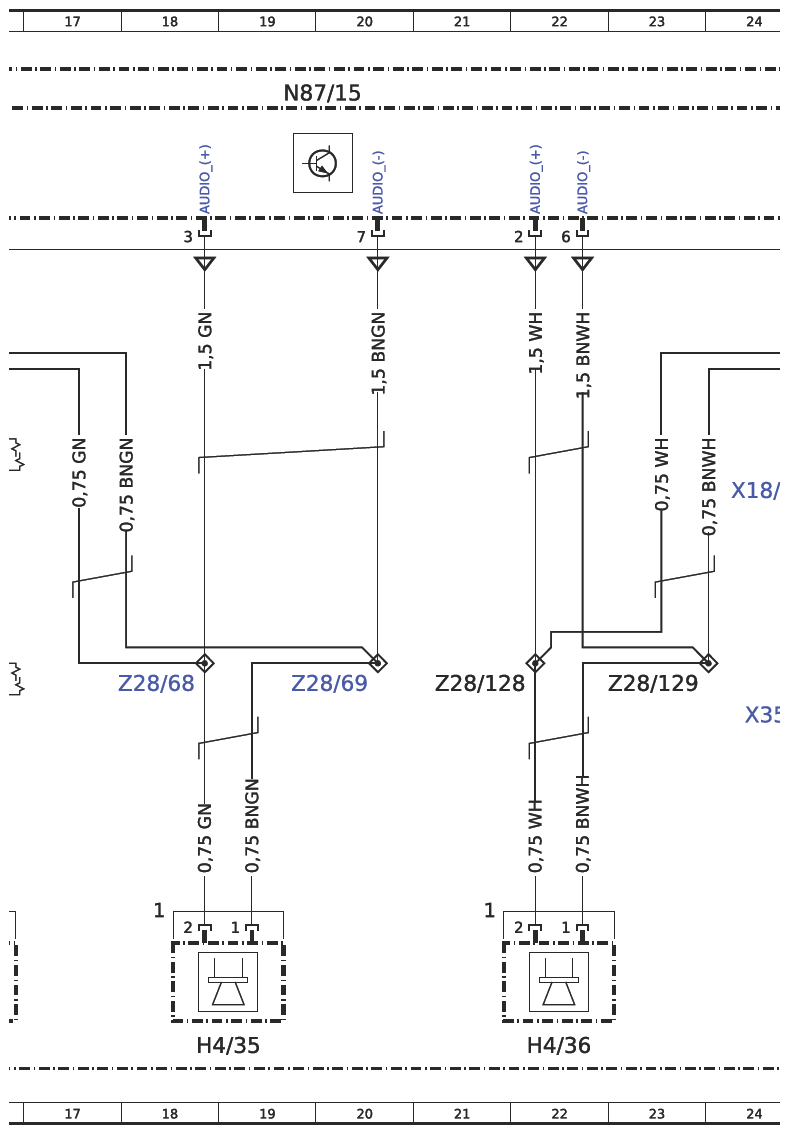

| H4/36 | Right instrument panel speaker | 22L |

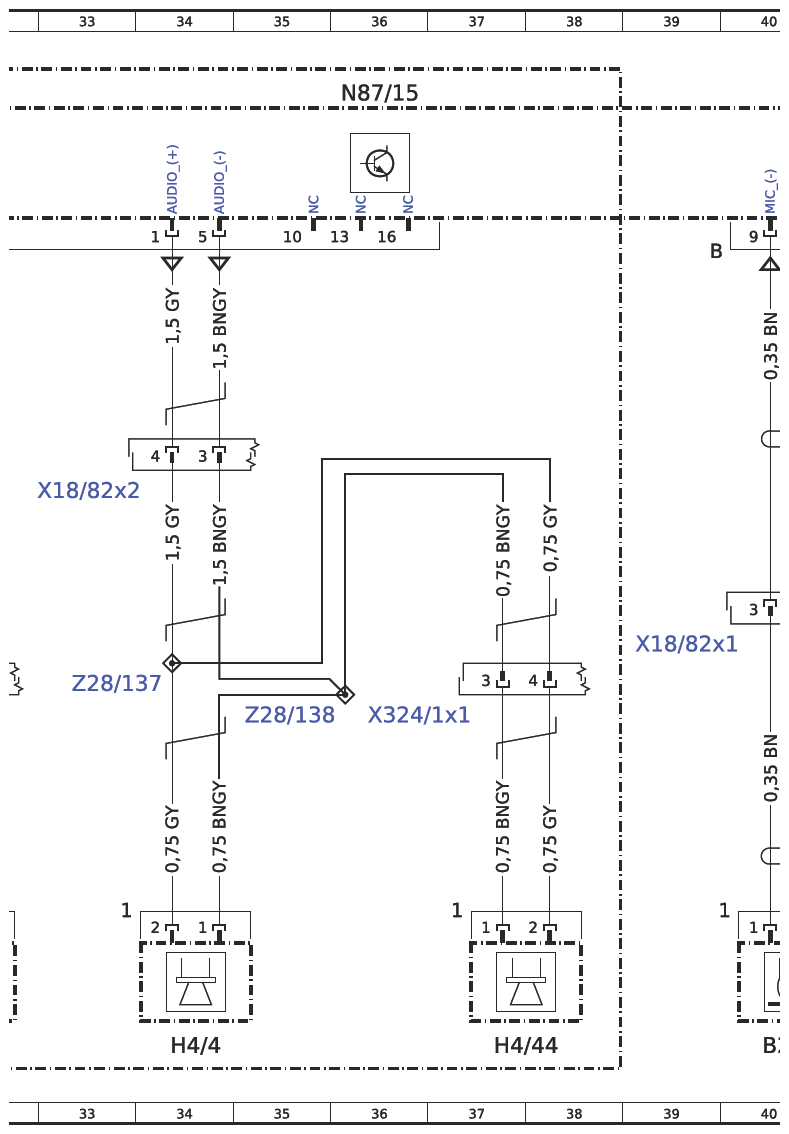

| H4/4 | Right rear side wall speaker | 34L |
| H4/44 | Right rear side wall tweeter | 37L |
| H4/45 | Left rear side wall tweeter | 32L |

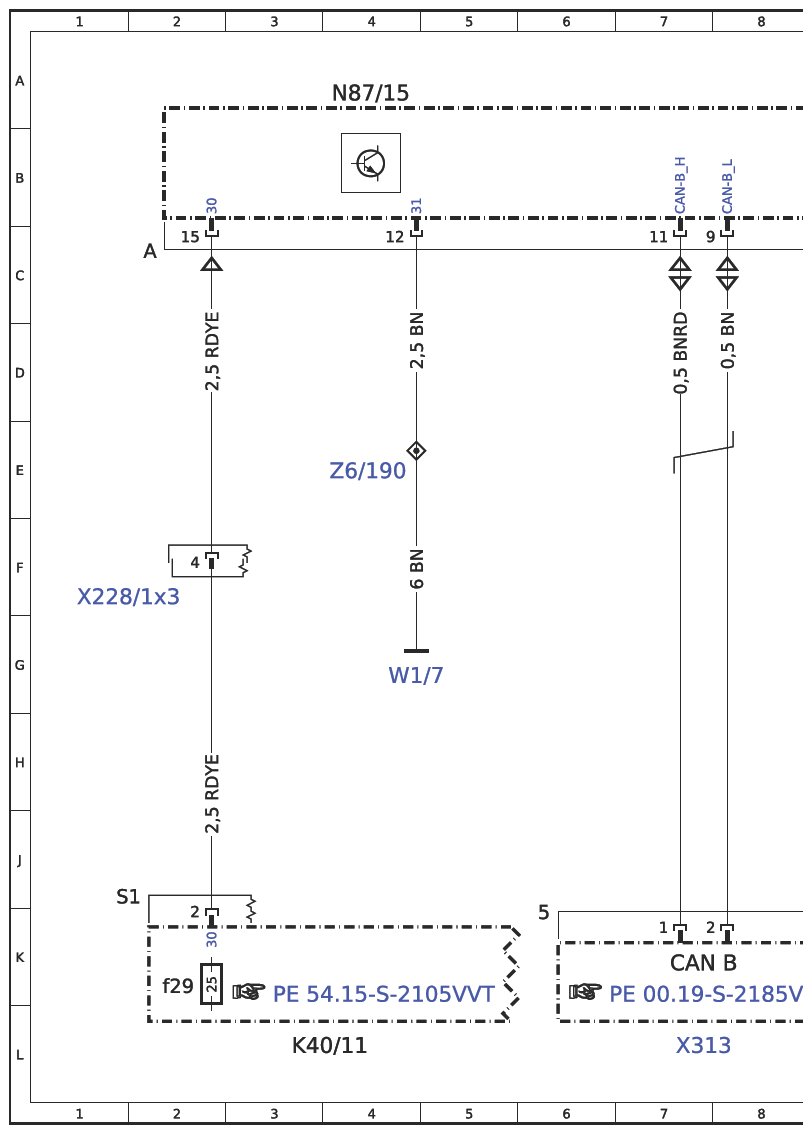

| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f29 | Fuse 29 | 2K |
| N112/9 | HERMES control unit | 11L |
| N112/9 | HERMES control unit | 45L |
| N112/9 | HERMES control unit | 64L |
| N87/15 | Radio/radio navigation | 4A |
| N87/15 | Radio/radio navigation | 12A |
| N87/15 | Radio/radio navigation | 19A |
| N87/15 | Radio/radio navigation | 29A |
| N87/15 | Radio/radio navigation | 36A |
| N87/15 | Radio/radio navigation | 44A |
| N87/15 | Radio/radio navigation | 52A |
| N87/15 | Radio/radio navigation | 60A |
| N87/15 | Radio/radio navigation | 68A |
| N87/15 | Radio/radio navigation | 76A |
| N87/15 | Radio/radio navigation | 86A |
| W1/7 | Cockpit ground point | 4G |

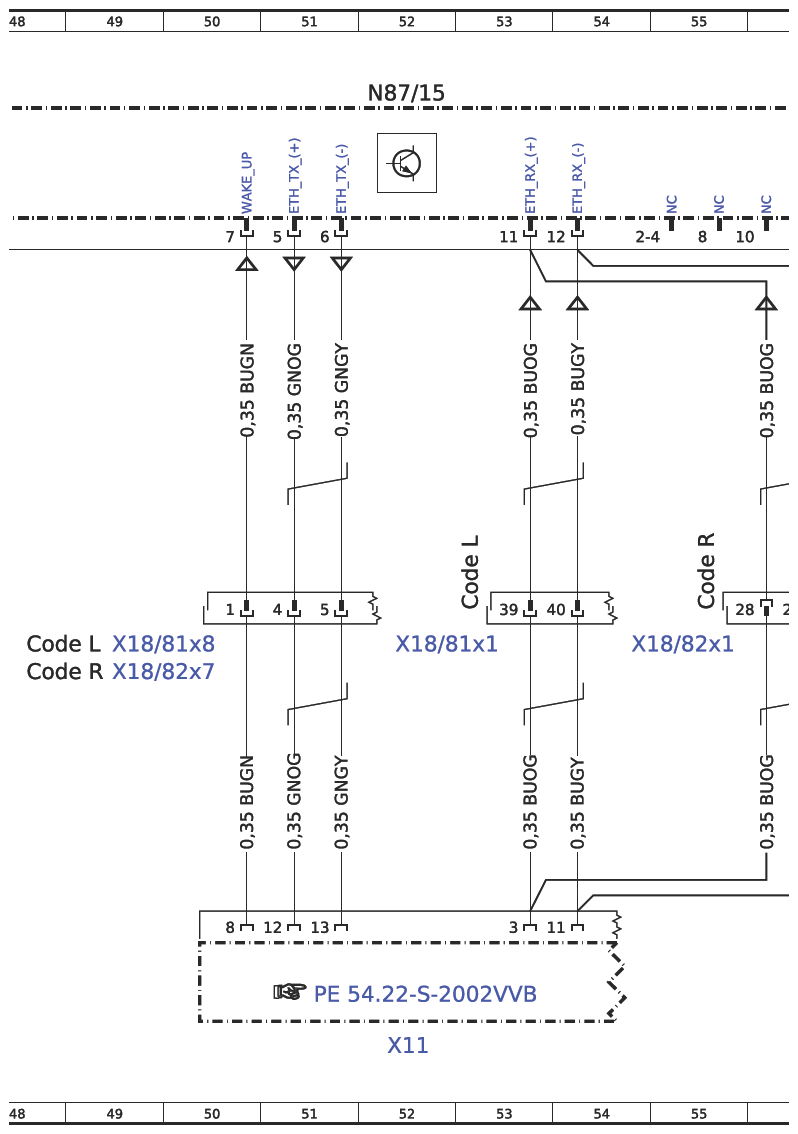

| X11 | Diagnostic connector | 52L |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 53G |
| X18/81x2 | Left cockpit/main wiring harness electrical connector 2 | 15E |
| X18/81x2 | Left cockpit/main wiring harness electrical connector 2 | 27E |
| X18/81x5 | Left cockpit/main wiring harness electrical connector 5 | 76F |
| X18/81x8 | Left cockpit/main wiring harness electrical connector 8 | 50G |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 39G |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 55G |
| X18/82x2 | Right cockpit/main wiring harness electrical connector 2 | 24E |
| X18/82x2 | Right cockpit/main wiring harness electrical connector 2 | 33E |
| X18/82x3 | Right cockpit/main wiring harness electrical connector 3 | 71F |
| X18/82x7 | Right cockpit/main wiring harness electrical connector 7 | 50G |
| X18/82x9 | Right cockpit/main wiring harness electrical connector 9 | 87G |
| X228/1x3 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 2F |
| X313 | Interior CAN (CAN B) potential distributor electrical connector | 7L |
| X324/1x1 | Main wiring harness/right sidewall electrical connector | 37H |
| X324x1 | Main wiring harness/left sidewall electrical connector | 31H |
| X35/1x2 | Left front door electrical connector 2 | 15H |
| X35/2x2 | Right front door electrical connector 2 | 24H |
| X39/98x1 | GPS antenna electrical connector | 68G |
| X8/48x3 | Left rear-end door electrical connector 3 | 76H |
| X8/56x4 | Right liftgate electrical connector 4 | 71H |
| Z28/128 | Right cockpit speaker (+) connector sleeve | 21G |
| Z28/129 | Right cockpit speaker (-) connector sleeve | 23G |
| Z28/135 | Left side wall speaker (+) connector sleeve | 28G |
| Z28/136 | Left side wall speaker (-) connector sleeve | 29H |
| Z28/137 | Right side wall speaker (+) connector sleeve | 33G |
| Z28/138 | Right side wall speaker (-) connector sleeve | 35H |
| Z28/68 | Left cockpit speaker (+) connector sleeve | 18G |
| Z28/69 | Left cockpit speaker (-) connector sleeve | 20G |
| Z6/190 | Cockpit ground connection connector sleeve 6 | 4E |
