Wiring Diagram Of Exterior Lights - PE82.10-S-2000-97VVG
Model 447.6 with code LG2 (LED Intelligent Light System) with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) E1/1, E2/1, E3/1, E4/1
Model 447.7 with code LG2 (LED Intelligent Light System) with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) E1/1, E2/1, E3/1, E4/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 128L |

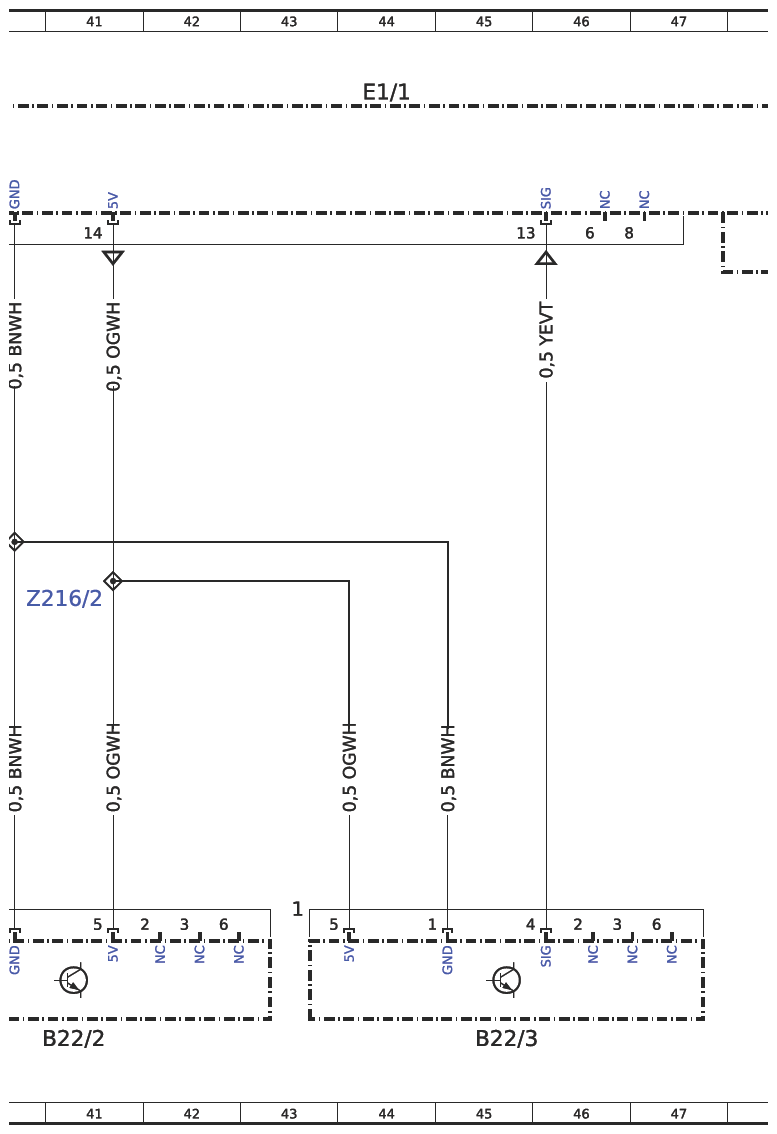

| B22/2 | Front axle level sensor | 41L |
| B22/3 | Rear axle level sensor | 45L |

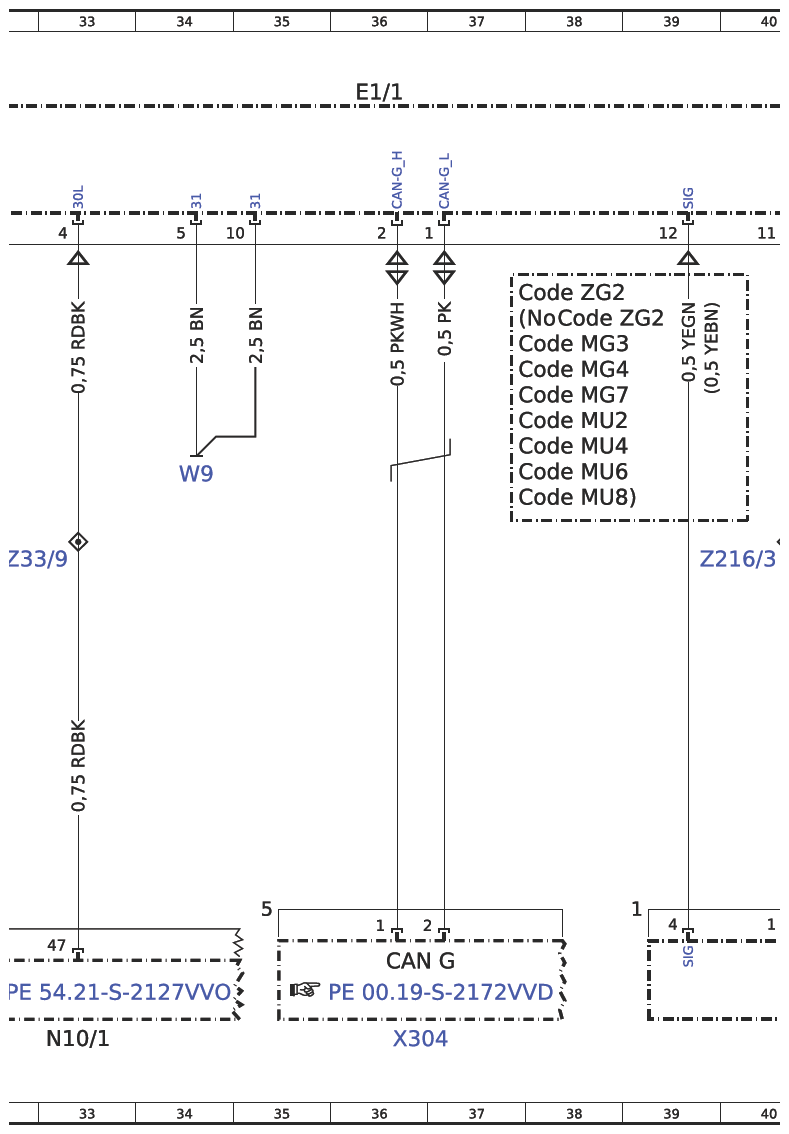

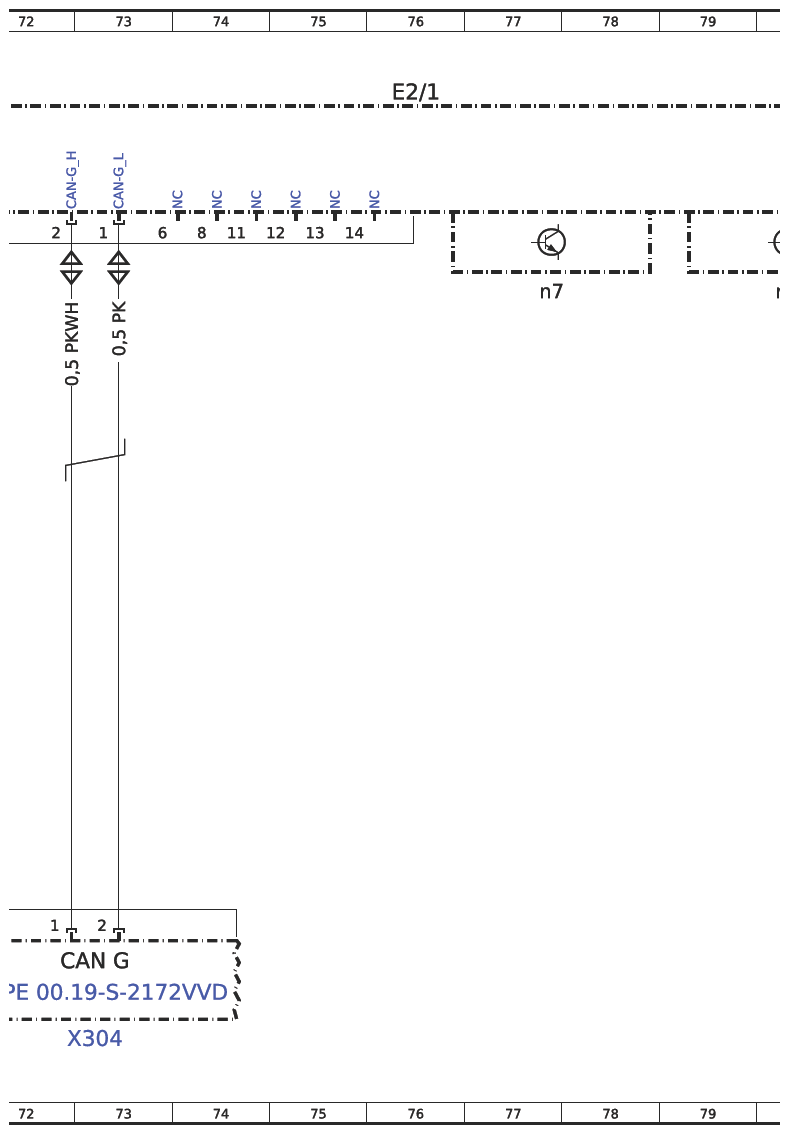

| CAN G | Front end CAN | 36K |
| CAN G | Front end CAN | 73K |
| Code ER0 | Radio preinstallation | 8D |
| Code ER0 | Radio preinstallation | 11D |
| Code JW0 | Backup warning system | 102D |
| Code JW0 | Backup warning system | 100D |

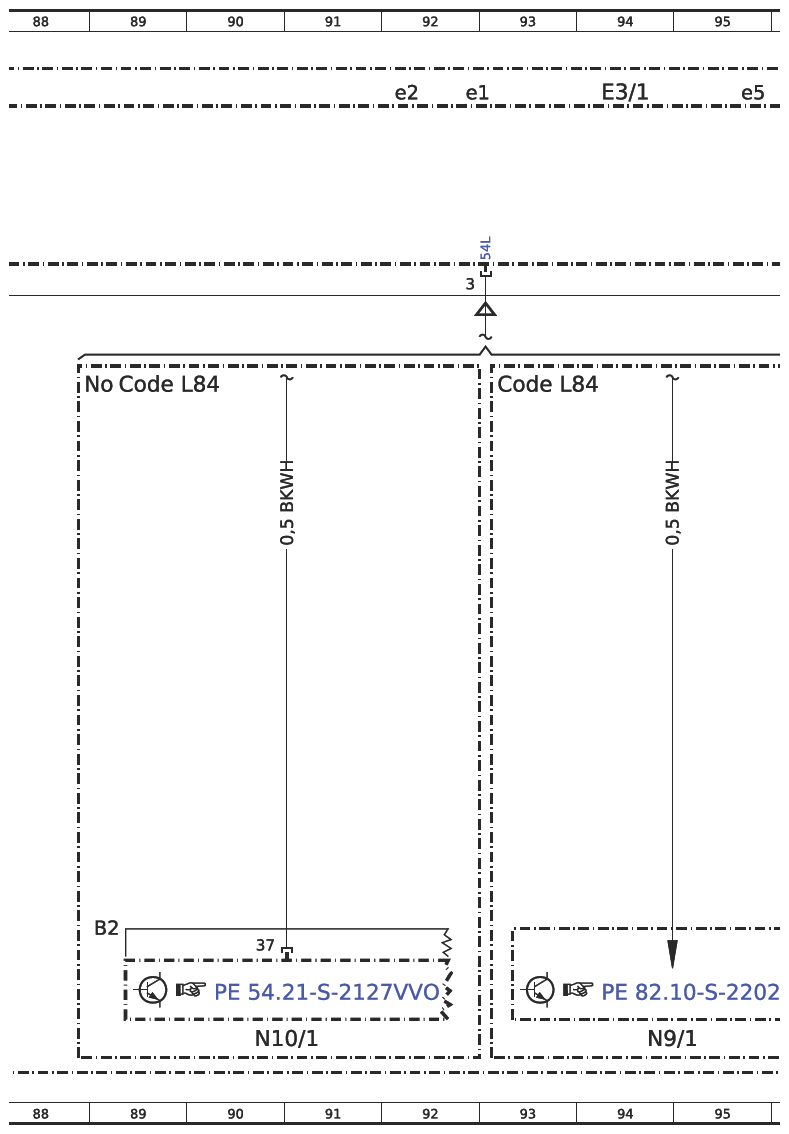

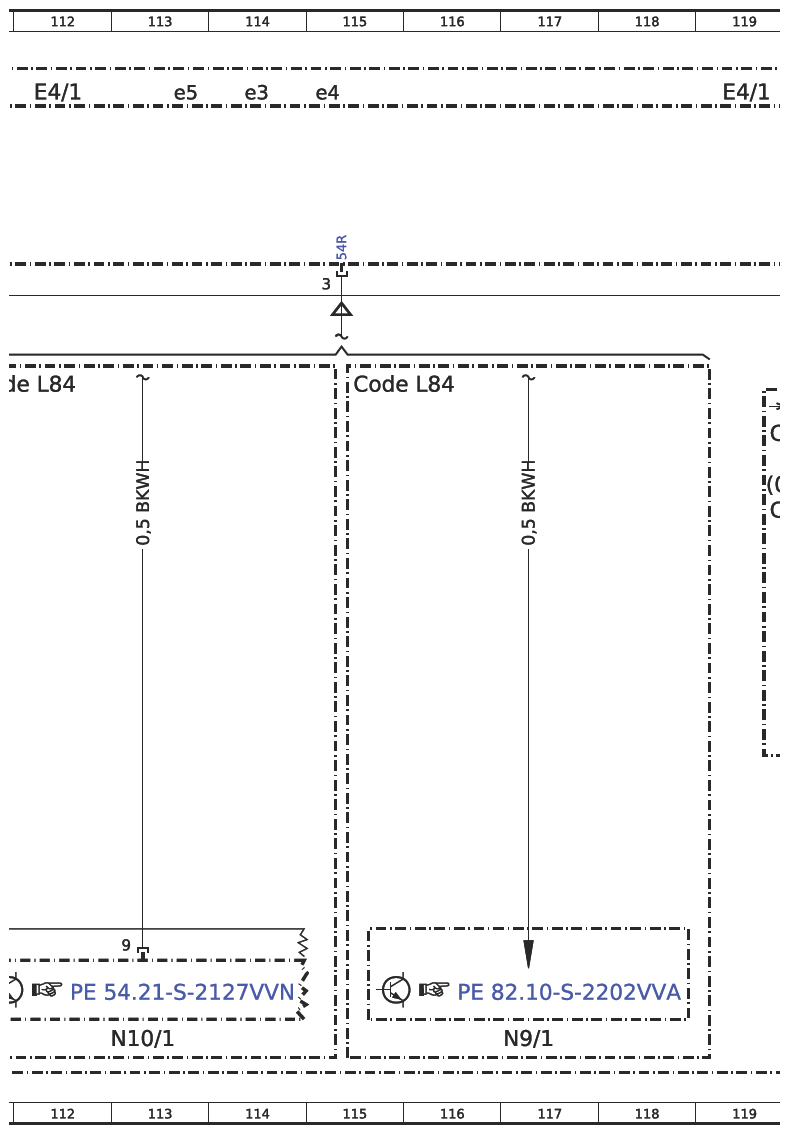

| Code L84 | Additional rear turn signal lamps on roof | 89D |
| Code L84 | Additional rear turn signal lamps on roof | 93D |
| Code L84 | Additional rear turn signal lamps on roof | 111D |
| Code L84 | Additional rear turn signal lamps on roof | 115D |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 83A |
| Code MG3 | Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 rpm | 37D |
| Code MG4 | Engine OM 651 DE 22 LA 140 kW (190 hp) 3800 rpm | 37D |
| Code MG7 | Engine OM 651 DE 22 LA 100 kW 3800 rpm | 37D |
| Code MU2 | OM 654 DE 20 LA 100 kW (136 hp) 3800 rpm | 37E |
| Code MU4 | OM 654 DE 20 LA 120 kW (163 hp) 3800 rpm | 37E |
| Code MU6 | OM 654 DE 20 LA 140 kW (190 hp) 3800 rpm | 37E |
| Code MU8 | OM 654 DE 20 LA 176 kW (239 hp) 3800 rpm | 37E |
| Code R | Valid for right-hand drive vehicles | 119E |
| Code R | Valid for right-hand drive vehicles | 119E |
| Code V85 | Smoker's package | 8D |
| Code V85 | Smoker's package | 11D |
| Code ZG2 | All-wheel drive | 37C |
| Code ZG2 | All-wheel drive | 38D |
| Code ZK2 | Taxi version with emergency alarm system | 8D |
| Code ZK2 | Taxi version with emergency alarm system | 11D |
| Code ZK3 | Taxi version without emergency alarm system | 8D |
| Code ZK3 | Taxi version without emergency alarm system | 11D |
| Code ZM3 | Right-hand drive vehicle version | 120E |
| Code ZM3 | Right-hand drive vehicle version | 120F |
| Code ZM7 | Rental vehicle package with emergency alarm system | 8E |
| Code ZM7 | Rental vehicle package with emergency alarm system | 11E |
| Code ZM8 | Rental vehicle package without emergency alarm system | 8E |
| Code ZM8 | Rental vehicle package without emergency alarm system | 11E |
| Code ZU7 | Canada version | 120F |
| Code ZU8 | USA version | 120F |

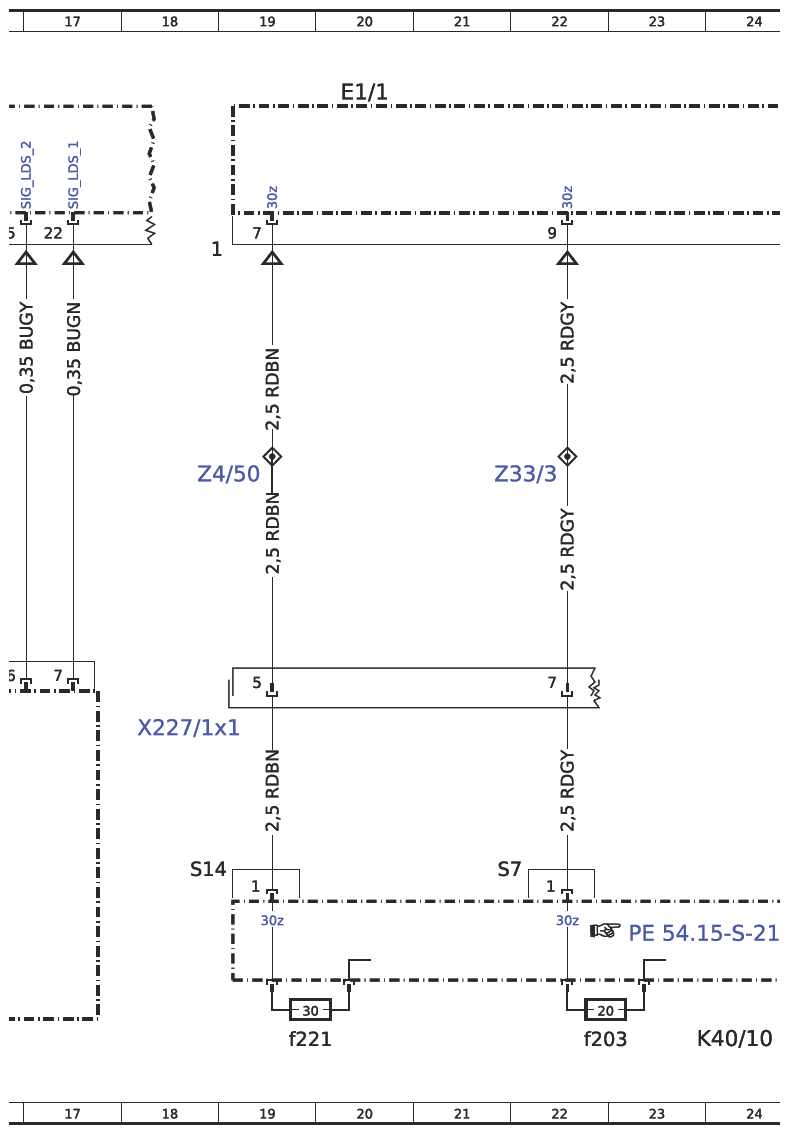

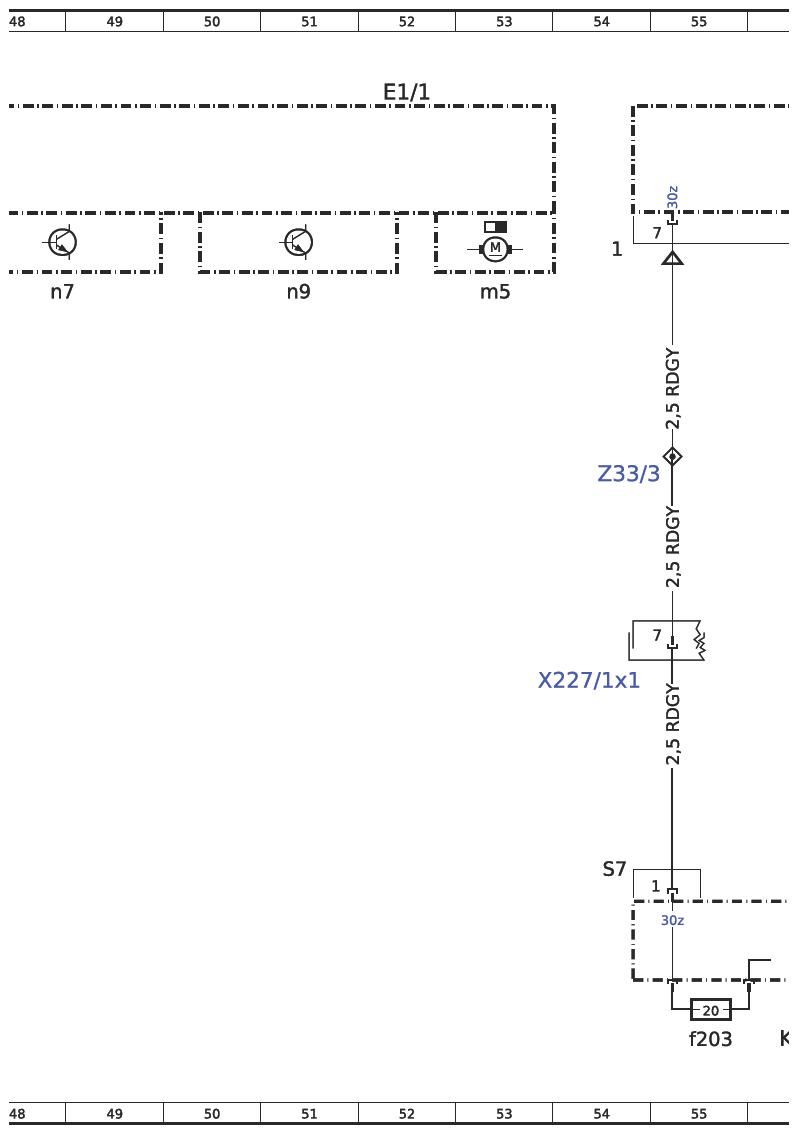

| E1/1 | Left front LED lamp unit | 20A |
| E1/1 | Left front LED lamp unit | 28A |
| E1/1 | Left front LED lamp unit | 36A |
| E1/1 | Left front LED lamp unit | 44A |
| E1/1 | Left front LED lamp unit | 52A |
| E1/1m5 | Left front lamp unit fan motor | 53C |
| E1/1n7 | Actuation module for left front exterior lights LED | 48C |
| E1/1n9 | Left headlamp control unit | 51C |
| E2/1 | Right front LED lamp unit | 60A |
| E2/1 | Right front LED lamp unit | 76A |
| E2/1 | Right front LED lamp unit | 82A |
| E2/1 | Right front LED lamp unit | 68A |
| E2/1m5 | Right front lamp unit fan motor | 82C |
| E2/1n7 | Actuation module for right front exterior lights LED | 77C |
| E2/1n9 | Right headlamp control unit | 80C |

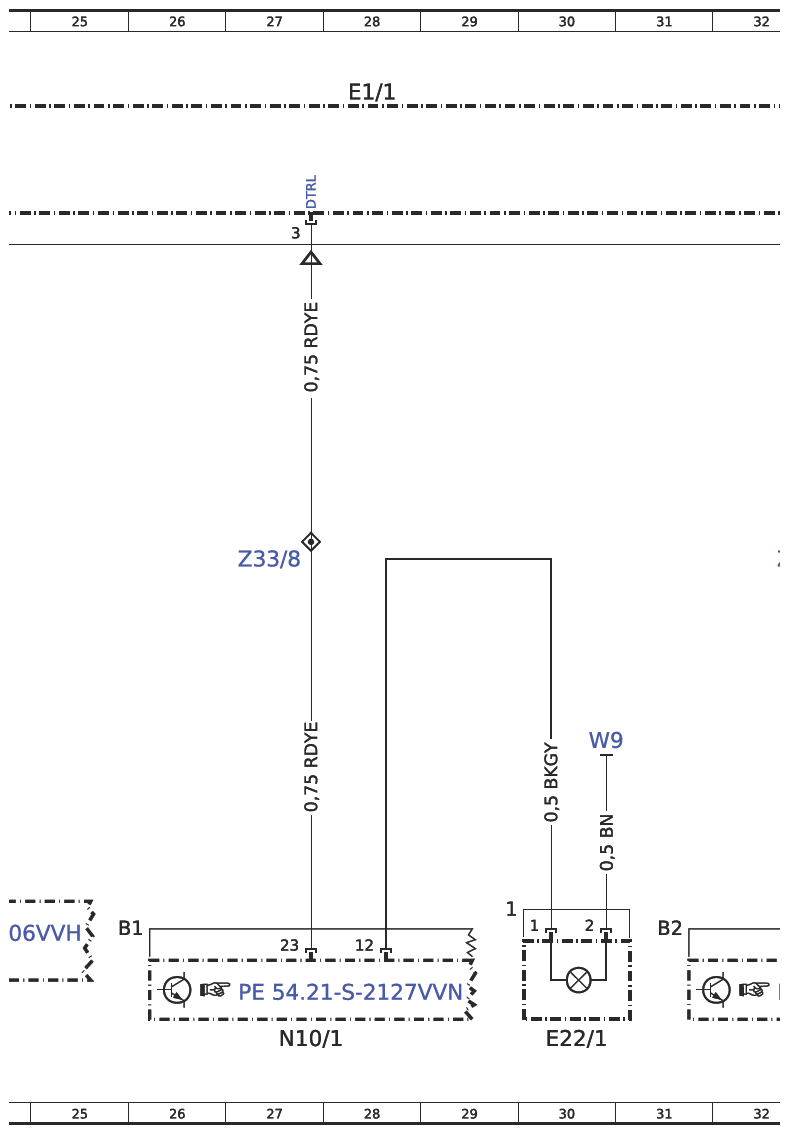

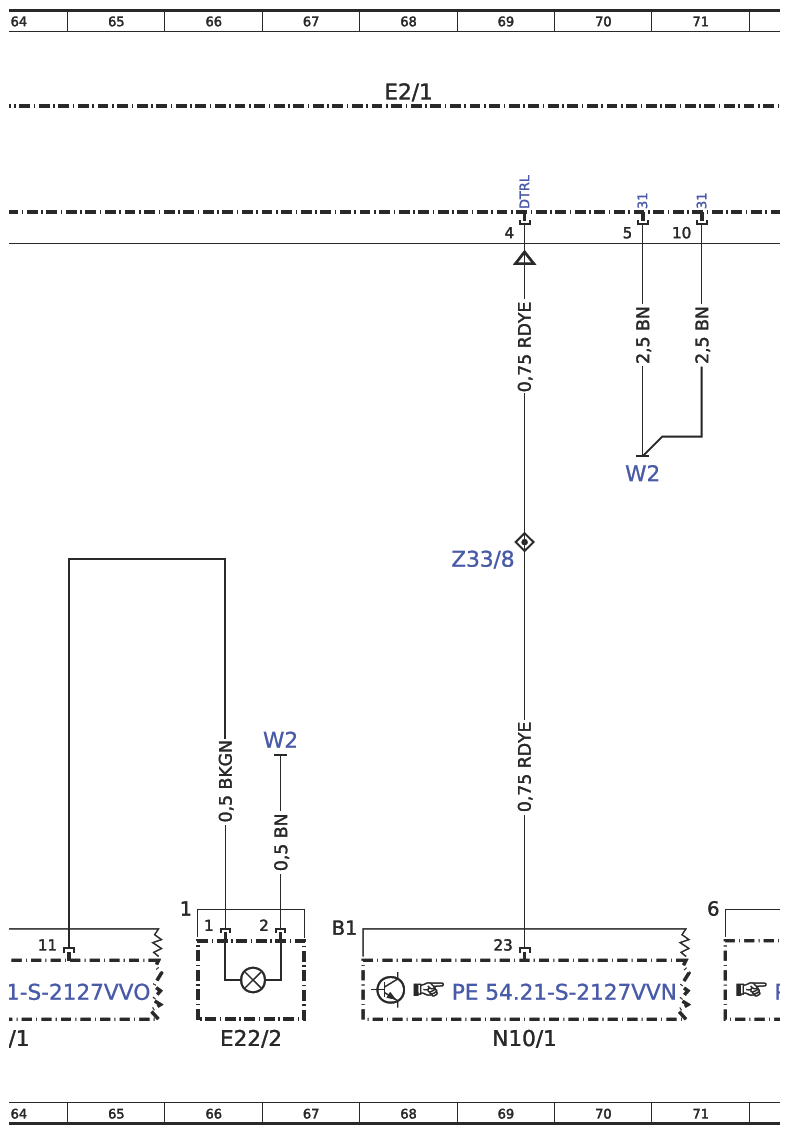

| E22/1 | Left additional turn signal lamp | 30L |
| E22/2 | Right additional turn signal lamp | 66L |

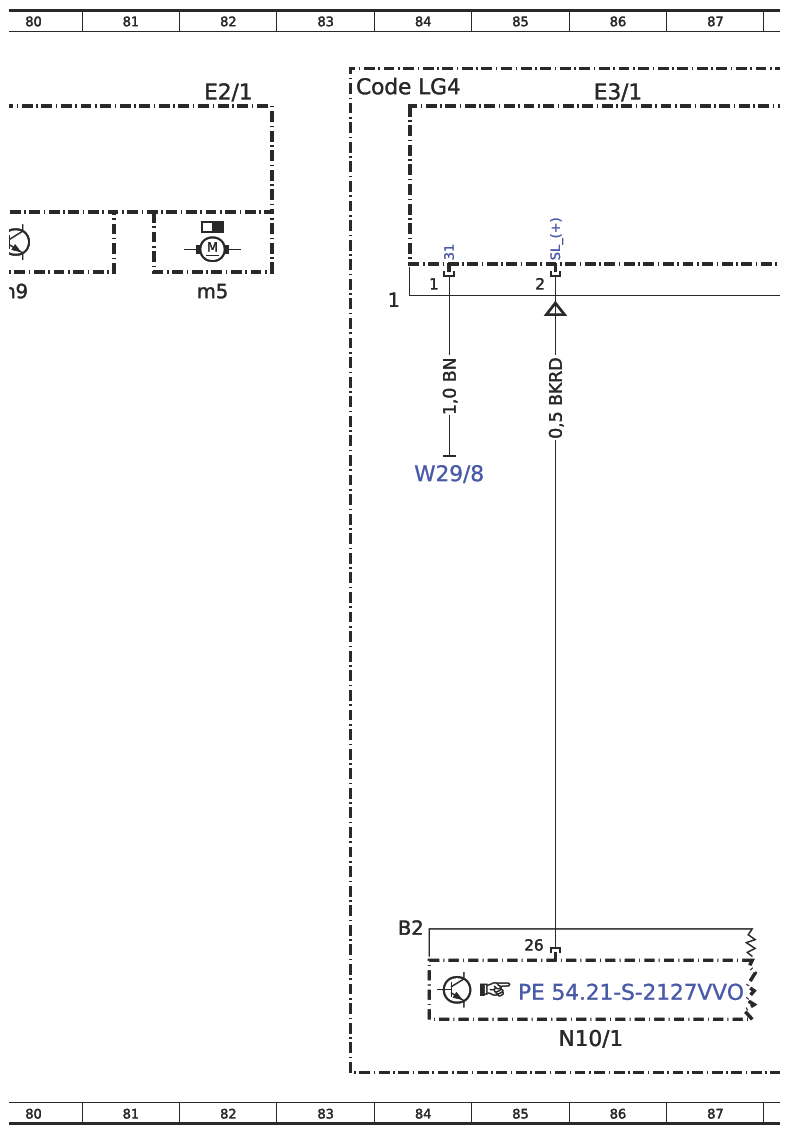

| E3/1 | Left rear LED lamp unit | 86A |
| E3/1 | Left rear LED lamp unit | 94A |
| E3/1 | Left rear LED lamp unit | 102A |
| E3/1e1 | Left rear turn signal lamp | 92A |
| E3/1e2 | Left LED taillight | 92A |
| E3/1e3 | Backup lamp, left | 96A |
| E3/1e4 | Left stop lamp | 97A |
| E3/1e5 | Left rear fog lamp | 95A |
| E4/1 | Right rear LED lamp unit | 112A |
| E4/1 | Right rear LED lamp unit | 119A |
| E4/1e1 | Right rear turn signal lamp | 110A |
| E4/1e2 | Right LED taillight | 110A |
| E4/1e3 | Right backup lamp | 114A |
| E4/1e4 | Right stop lamp | 115A |
| E4/1e5 | Right rear fog lamp | 113A |

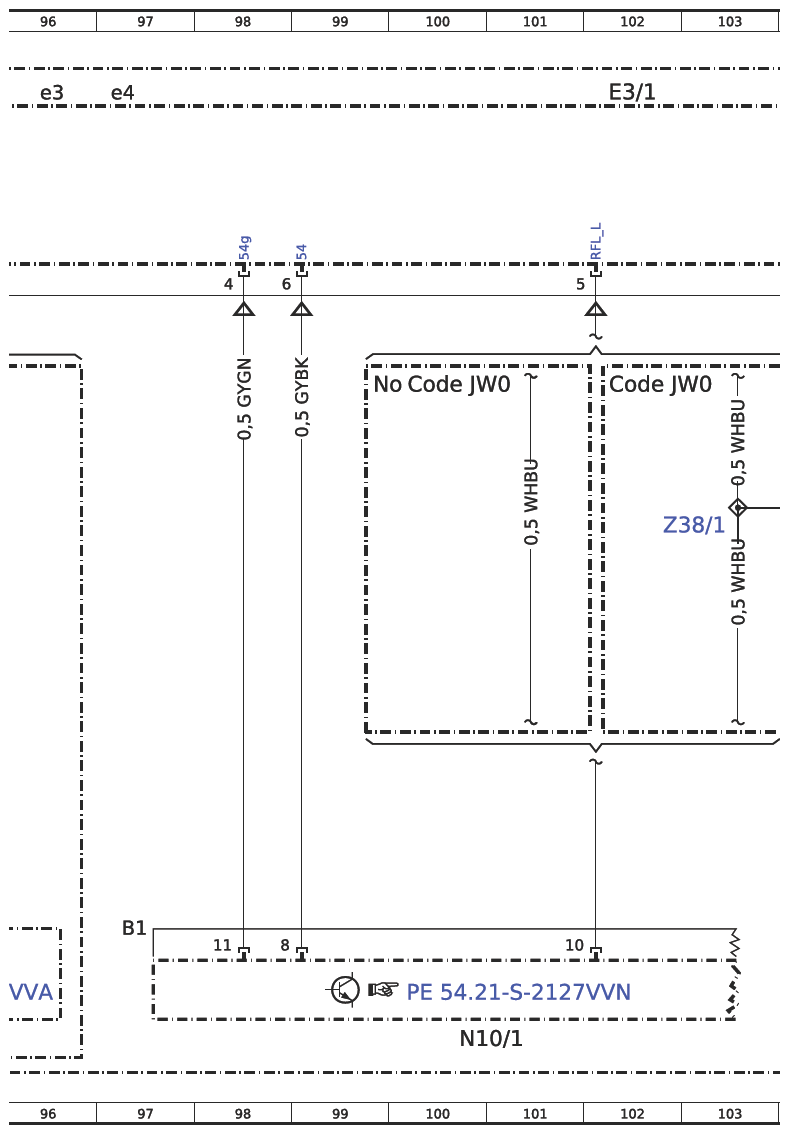

| H3/4 | Backup warning system horn | 104L |
| K40/10 | Engine compartment fuse and relay module | 24L |
| K40/10 | Engine compartment fuse and relay module | 56L |
| K40/10f203 | Fuse 203 | 22L |
| K40/10f203 | Fuse 203 | 55L |

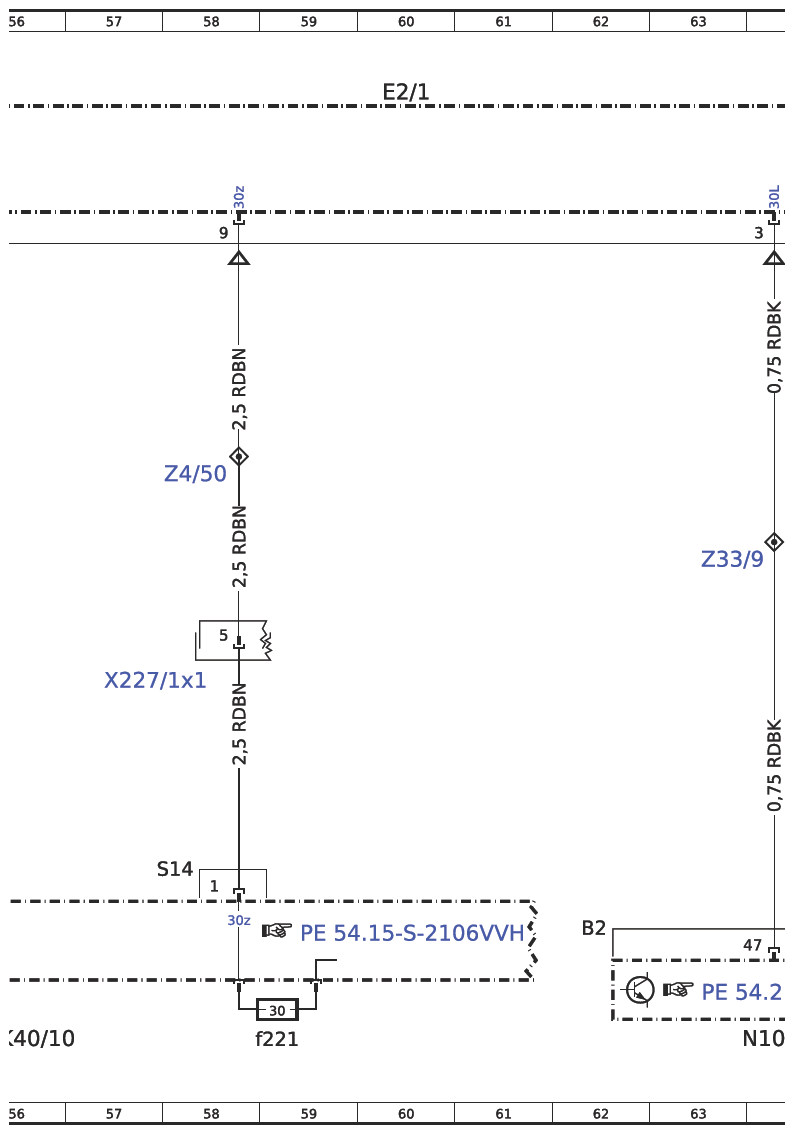

| K40/10f221 | Fuse 221 | 19L |
| K40/10f221 | Fuse 221 | 59L |

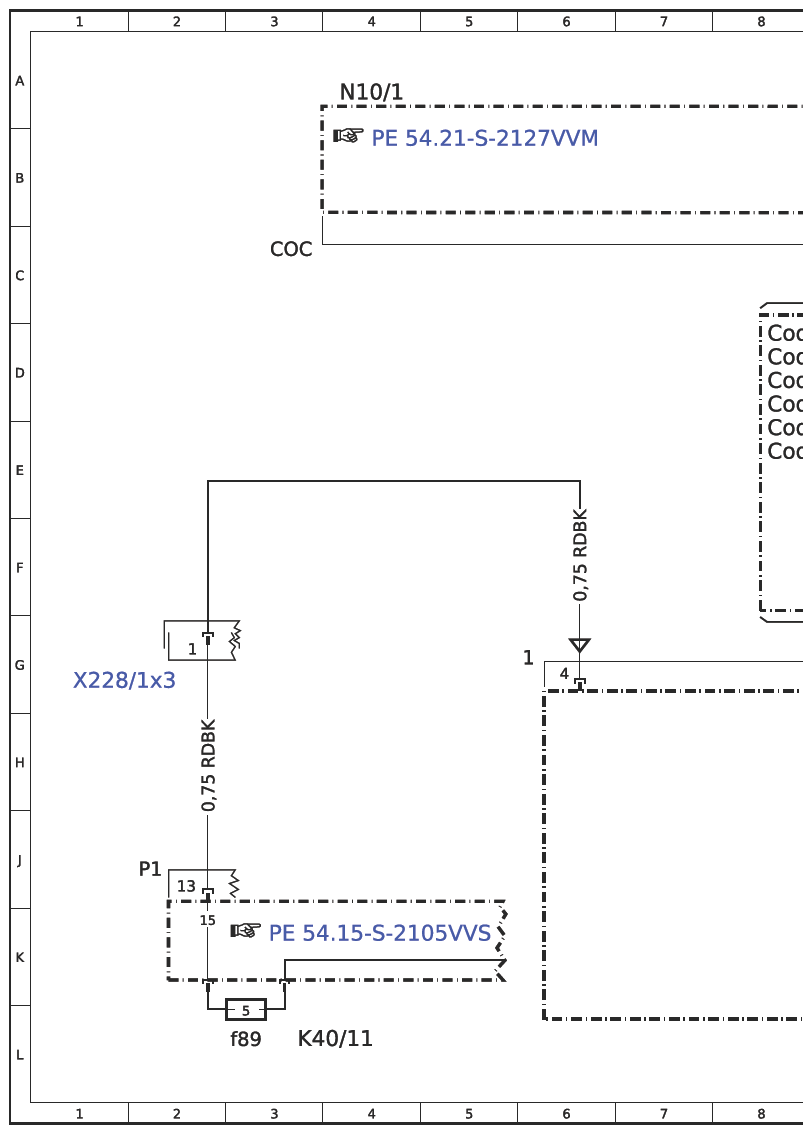

| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f89 | Fuse 89 | 3L |

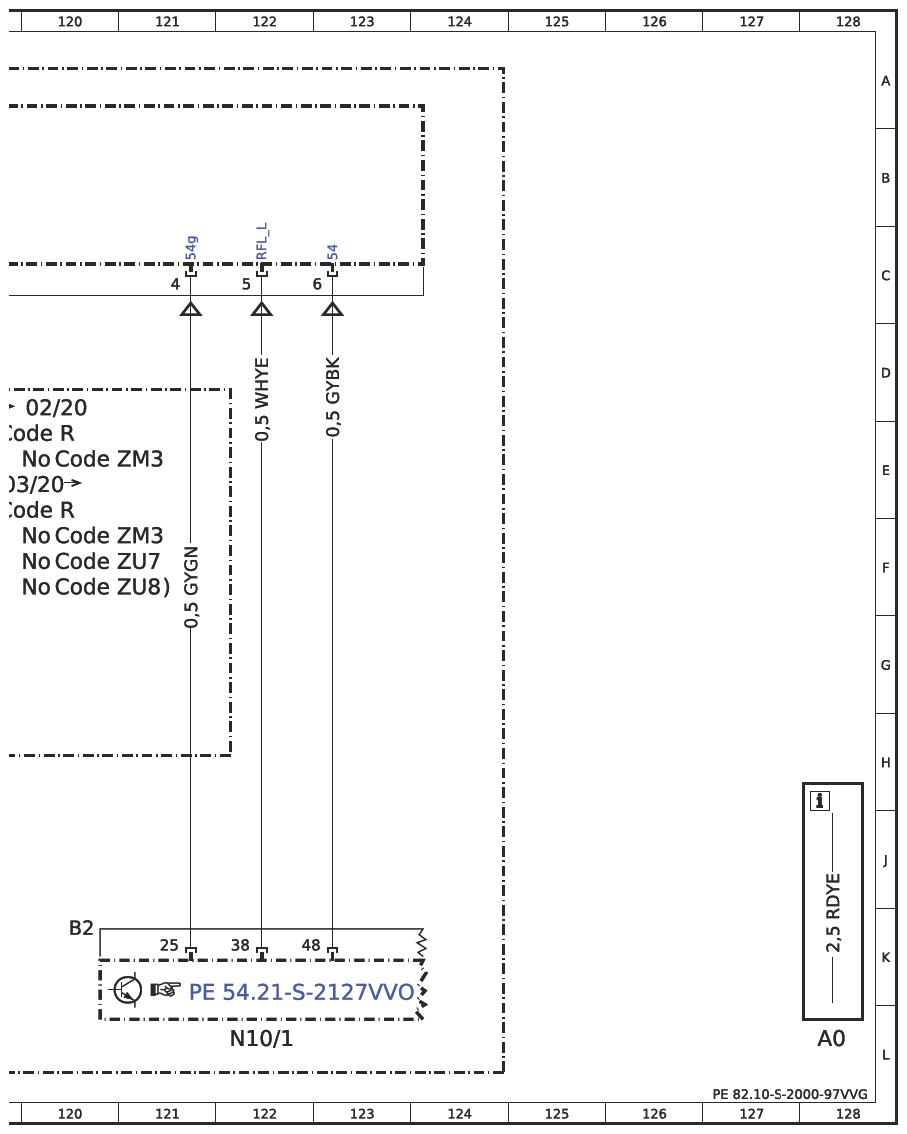

| N10/1 | Signal acquisition and actuation module (SAM) control unit | 100L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 122L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 27L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 33L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 64L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 69L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 86L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 90L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 108L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 113L |
| N9/1 | Additional turn signal module control unit | 117L |
| N9/1 | Additional turn signal module control unit | 94L |

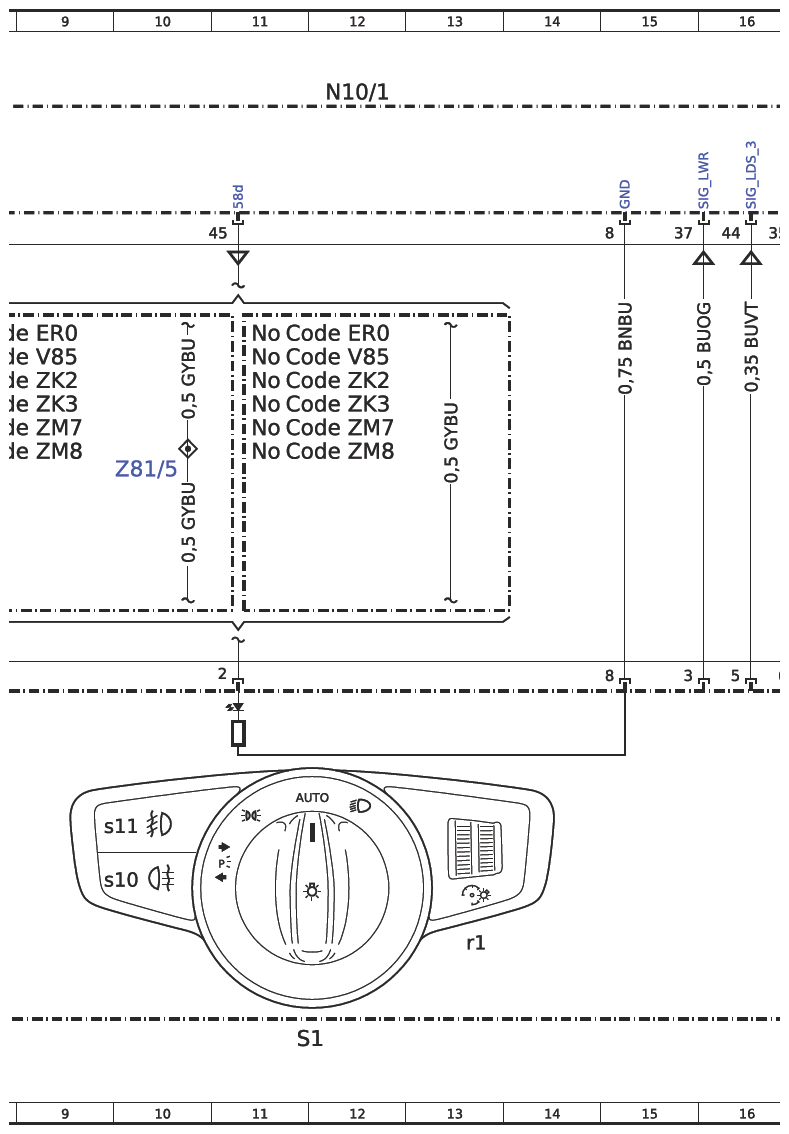

| S1 | Light switch | 11L |
| S1r1 | Instrument illumination brightness control | 13K |
| S1s10 | Rear fog light button | 9J |
| S1s11 | Front fog lamp button | 9J |
| W2 | Right front lamp unit ground point | 70E |
| W2 | Right front lamp unit ground point | 67H |

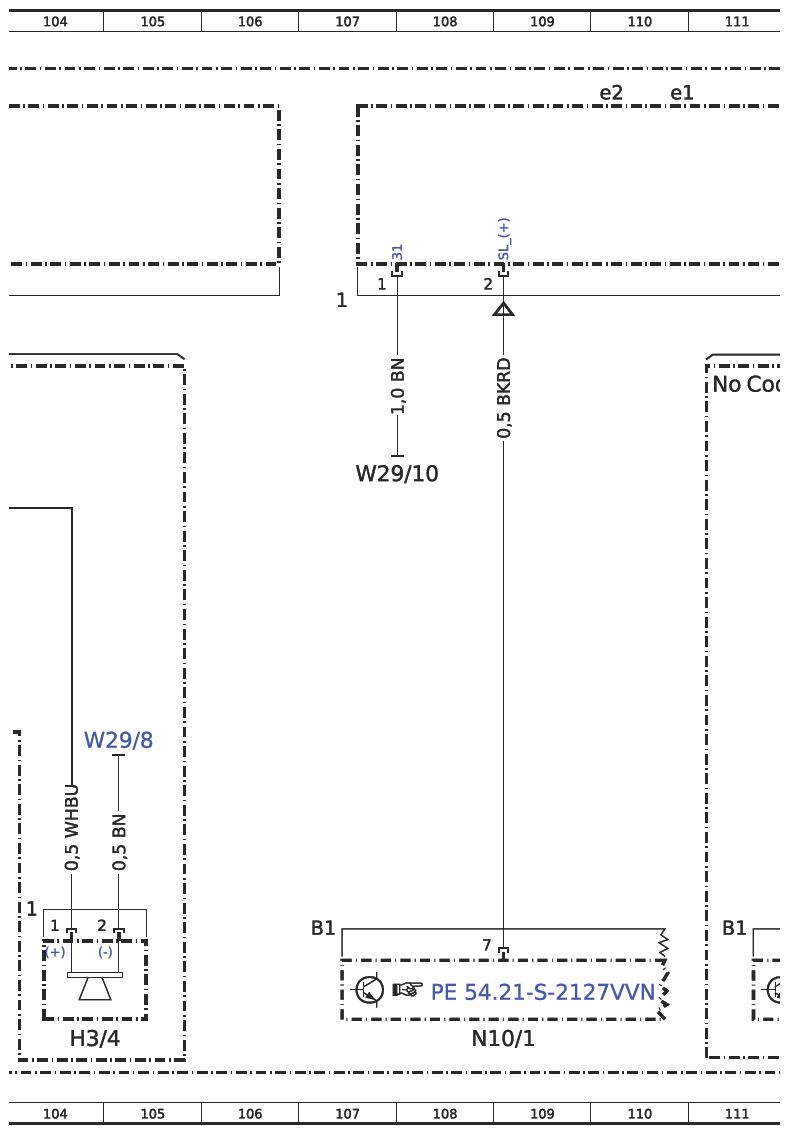

| W29/10 | Right D-pillar ground point | 107E |
| W29/8 | Left D-pillar ground point | 84E |
| W29/8 | Left D-pillar ground point | 105H |
| W9 | Left front lamp unit ground point | 34E |
| W9 | Left front lamp unit ground point | 30H |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 18H |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 54G |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 58G |
| X228/1x3 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 2G |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 36L |
| X304 | Front end CAN (CAN G) potential distributor electrical connector | 73L |
| Z216/2 | Level sensors supply connector sleeve | 41F |
| Z216/3 | Level sensors ground connection connector sleeve | 40F |
| Z33/3 | LED low beams connector sleeve | 22E |
| Z33/3 | LED low beams connector sleeve | 54E |
| Z33/8 | Left LED headlamp tml. 30 connector sleeve | 27F |
| Z33/8 | Left LED headlamp tml. 30 connector sleeve | 69F |
| Z33/9 | Right LED headlamp tml. 30 connector sleeve | 33F |
| Z33/9 | Right LED headlamp tml. 30 connector sleeve | 63F |
| Z38/1 | Backup lamp connector sleeve | 103F |
| Z4/50 | Intelligent Light System tml. 30 connector sleeve | 19E |
| Z4/50 | Intelligent Light System tml. 30 connector sleeve | 58E |
| Z81/5 | Cockpit terminal 58d connector sleeve | 10E |
