Wiring Diagram Of Exterior Lights - PE82.10-S-2000-97VVD
Model 447.6 except code LG2 (LED Intelligent Light System) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) S1
Model 447.7 except code LG2 (LED Intelligent Light System) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) S1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| Code JW0 | Backup warning system | 56D |
| Code L84 | Additional rear turn signal lamps on roof | 64D |
| Code L84 | Additional rear turn signal lamps on roof | 82D |
| Code ZU7 | Canada version | 68A |
| Code ZU7 | Canada version | 87A |
| Code ZU7 | Canada version | 23A |
| Code ZU7 | Canada version | 42A |
| Code ZU8 | USA version | 68A |
| Code ZU8 | USA version | 87A |
| Code ZU8 | USA version | 23A |
| Code ZU8 | USA version | 42A |

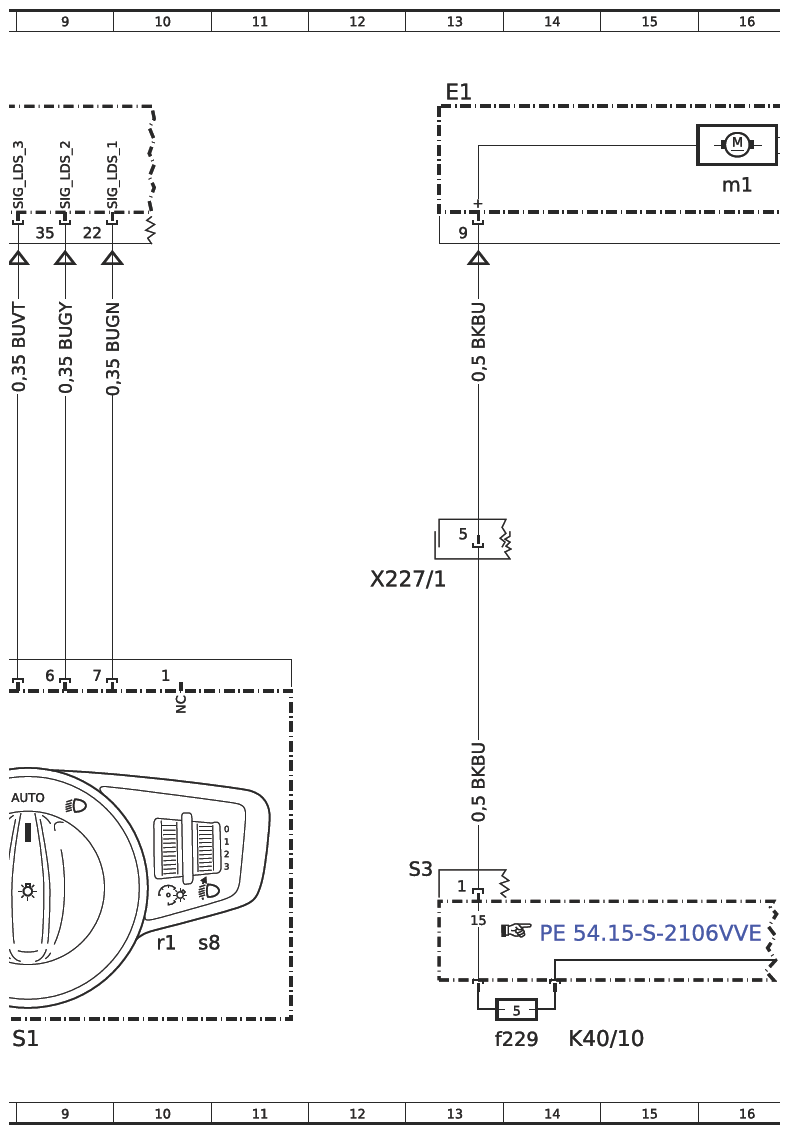

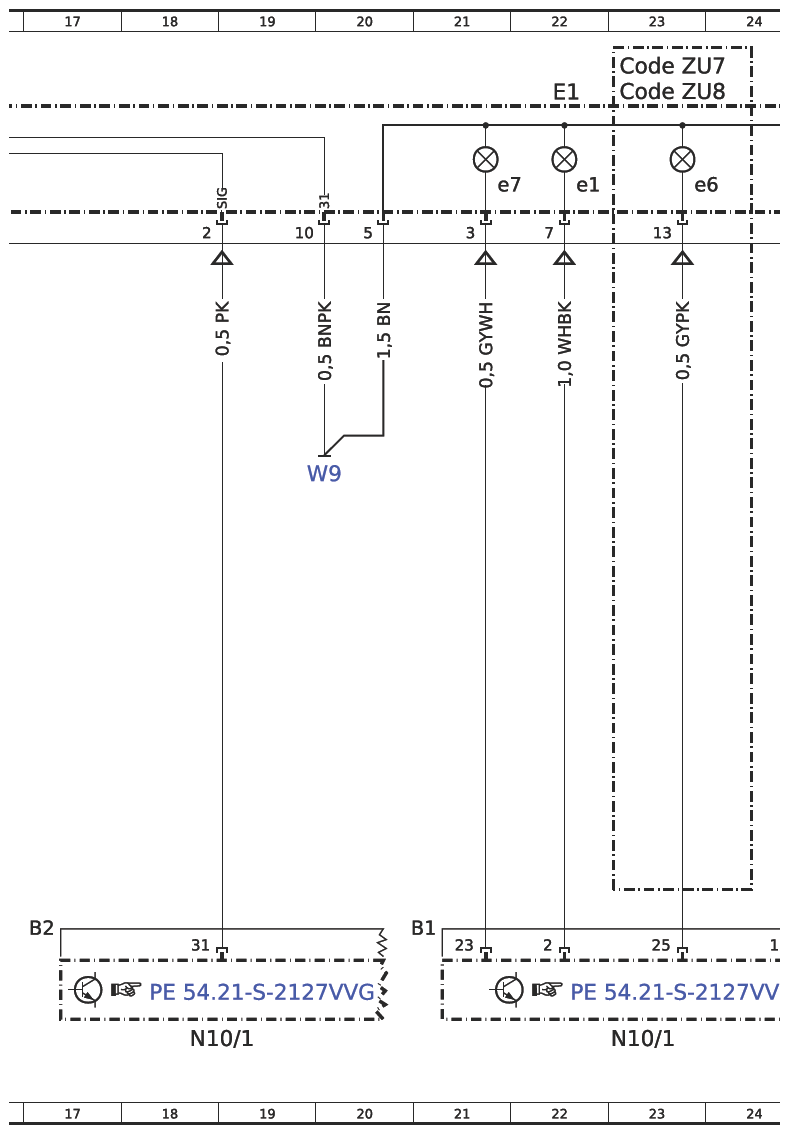

| E1 | Left front lamp unit | 13A |
| E1 | Left front lamp unit | 22A |
| E1 | Left front lamp unit | 31A |
| E1e1 | Left high beam | 22B |
| E1e2 | Left low beam | 29B |
| E1e5 | Left front turn signal lamp | 26B |
| E1e6 | Left front side-marker lamp | 23B |
| E1e7 | Left parking light, standing light and daytime running light | 21B |
| E1m1 | Left headlamp range adjustment actuator motor | 16B |

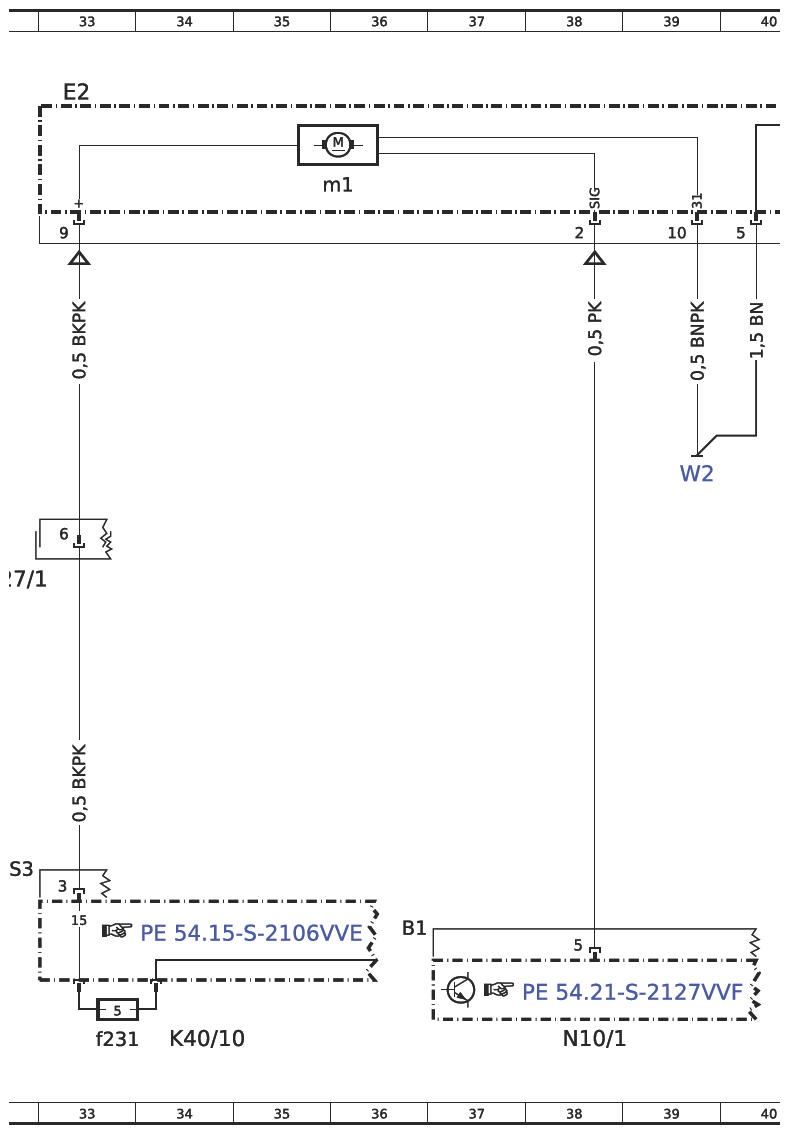

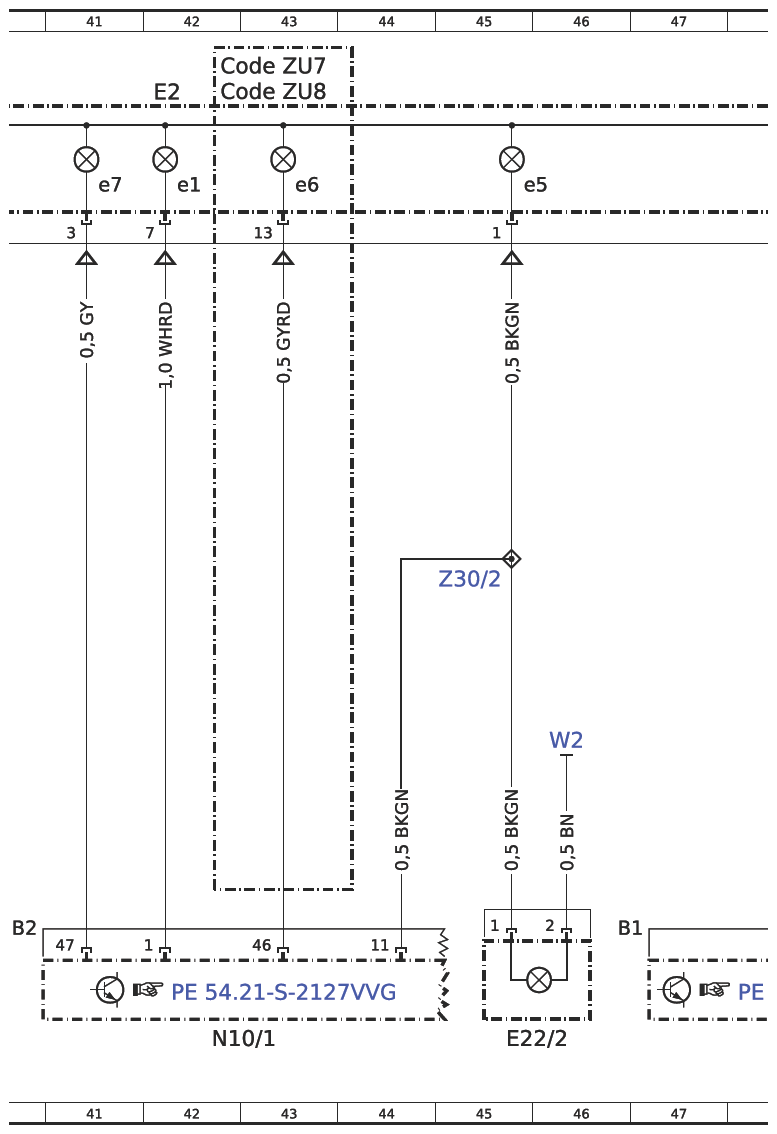

| E2 | Right front lamp unit | 33A |
| E2 | Right front lamp unit | 51A |
| E2 | Right front lamp unit | 42A |

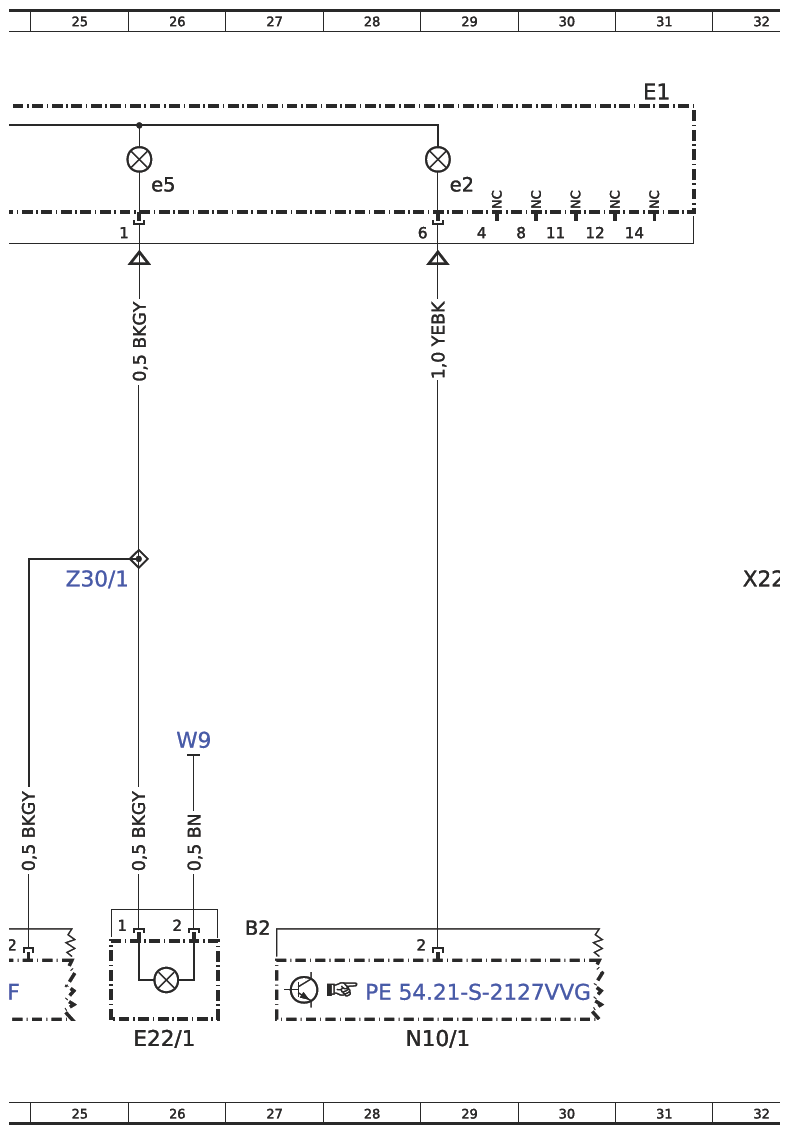

| E22/1 | Left additional turn signal lamp | 26L |
| E22/2 | Right additional turn signal lamp | 45L |
| E2e1 | Right high beam | 42B |
| E2e2 | Right low beam | 48B |
| E2e5 | Right front turn signal lamp | 45B |
| E2e6 | Right front side-marker lamp | 43B |
| E2e7 | Right parking light, standing light and daytime running light | 41B |
| E2m1 | Right headlamp range adjustment actuator motor | 36B |

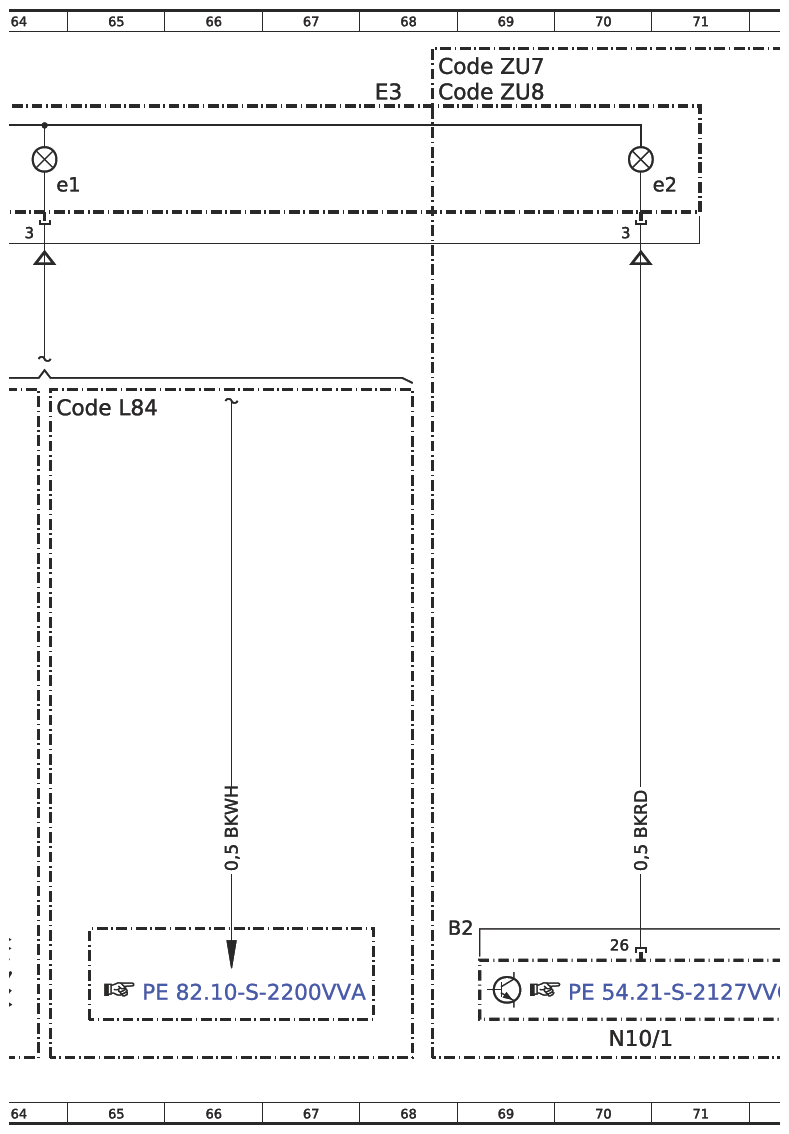

| E3 | Left rear lamp unit | 52A |
| E3 | Left rear lamp unit | 60A |
| E3 | Left rear lamp unit | 68A |
| E3e1 | Left rear turn signal lamp | 64B |
| E3e2 | Left tail light, brake light and turn signal light | 70B |
| E3e3 | Left backup lamp | 56B |
| E3e4 | Left taillight and brake light | 55B |
| E3e5 | Left rear fog lamp | 54B |

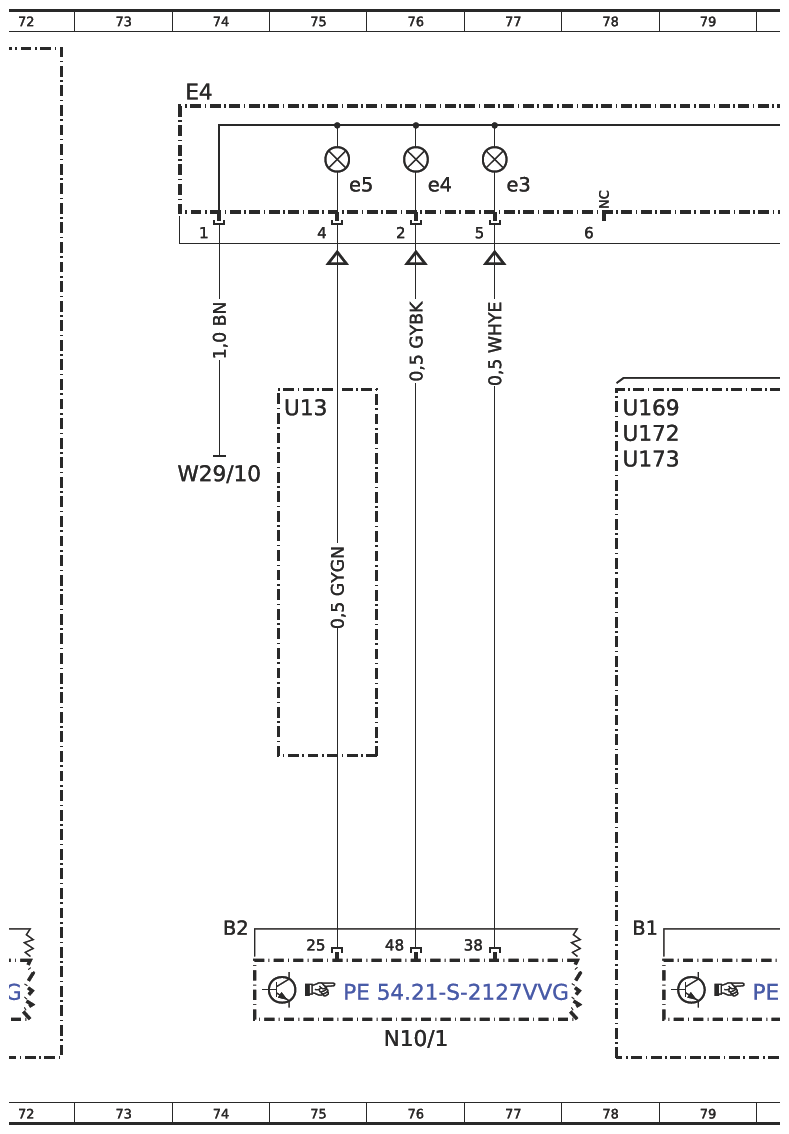

| E4 | Right rear lamp unit | 74A |
| E4 | Right rear lamp unit | 81A |

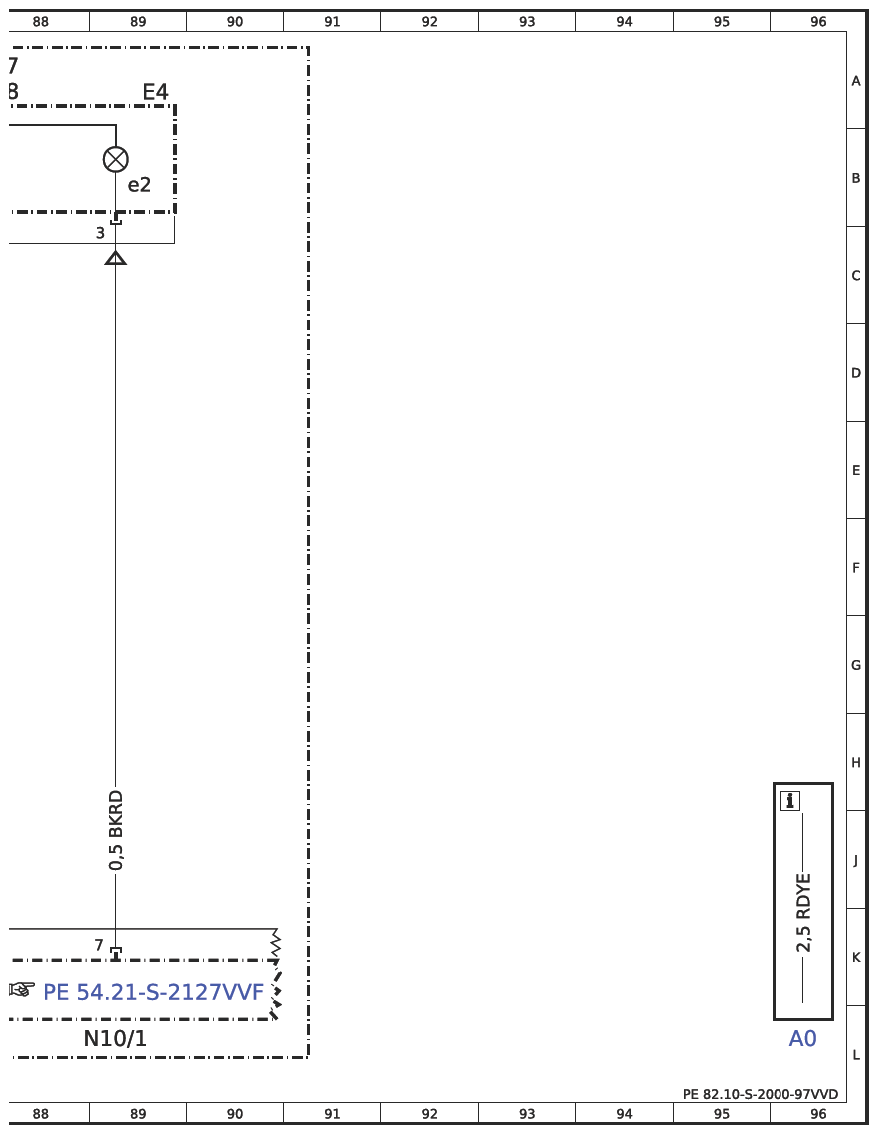

| E4 | Right rear lamp unit | 89A |

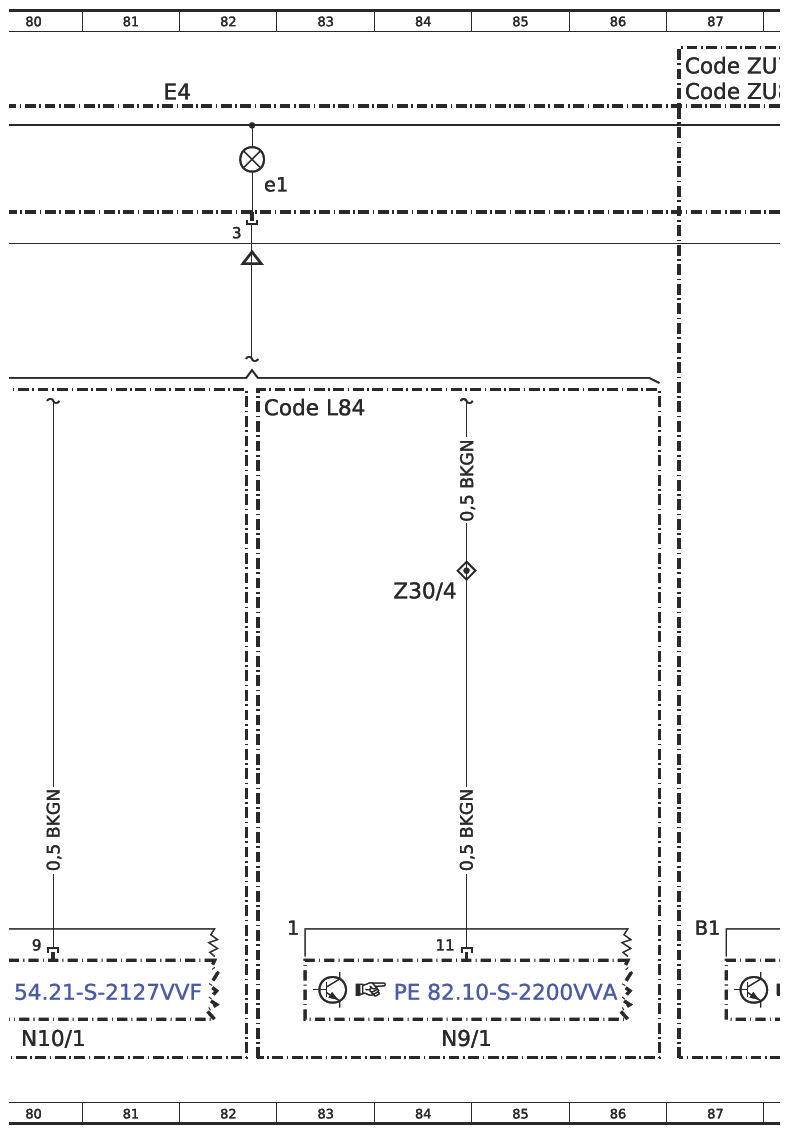

| E4e1 | Right rear turn signal lamp | 82B |
| E4e2 | Right tail light, brake light and turn signal light | 89B |
| E4e3 | Right backup lamp | 77B |
| E4e4 | Right taillight and brake light | 76B |
| E4e5 | Right rear fog lamp | 75B |

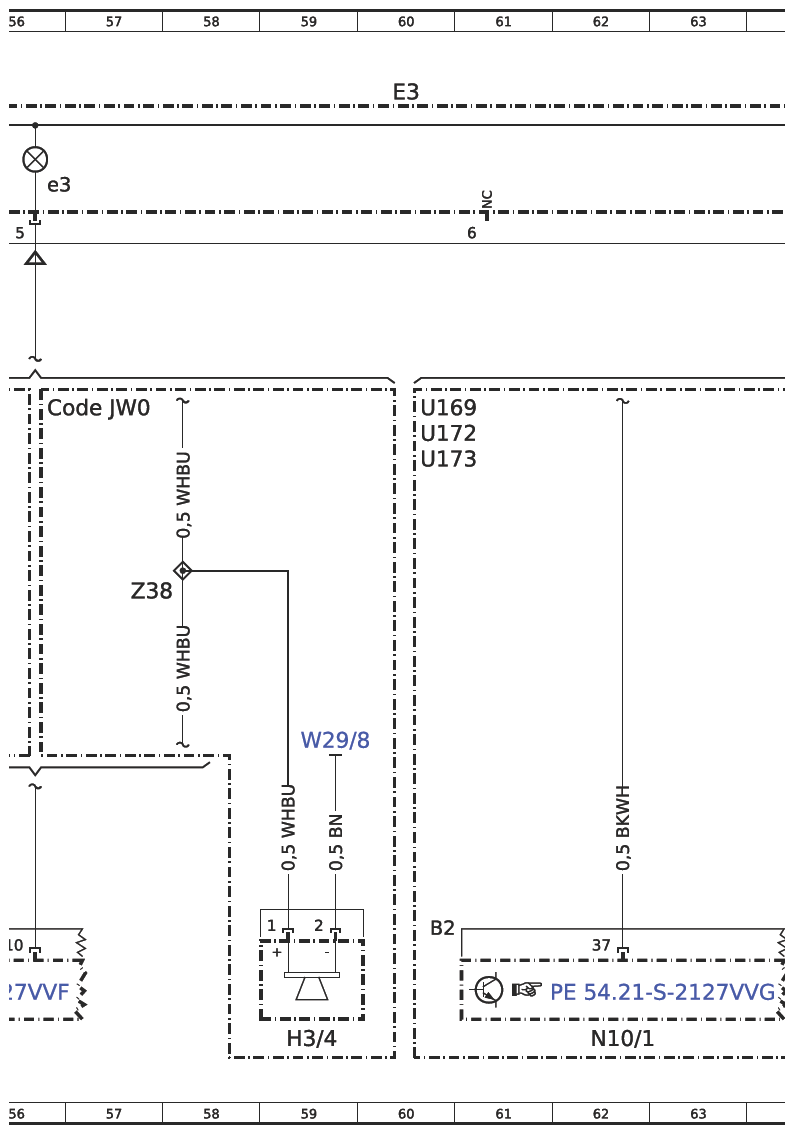

| H3/4 | Backup warning system horn | 59L |
| K40/10 | Engine compartment fuse and relay module | 14L |
| K40/10 | Engine compartment fuse and relay module | 34L |
| K40/10f229 | Fuse 229 | 14L |
| K40/10f231 | Fuse 231 | 33L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f89 | Fuse 89 | 3L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 18L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 23L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 29L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 38L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 48L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 55L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 76L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 7A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 42L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 62L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 80L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 70L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 89L |
| N9/1 | Additional turn signal module control unit | 84L |

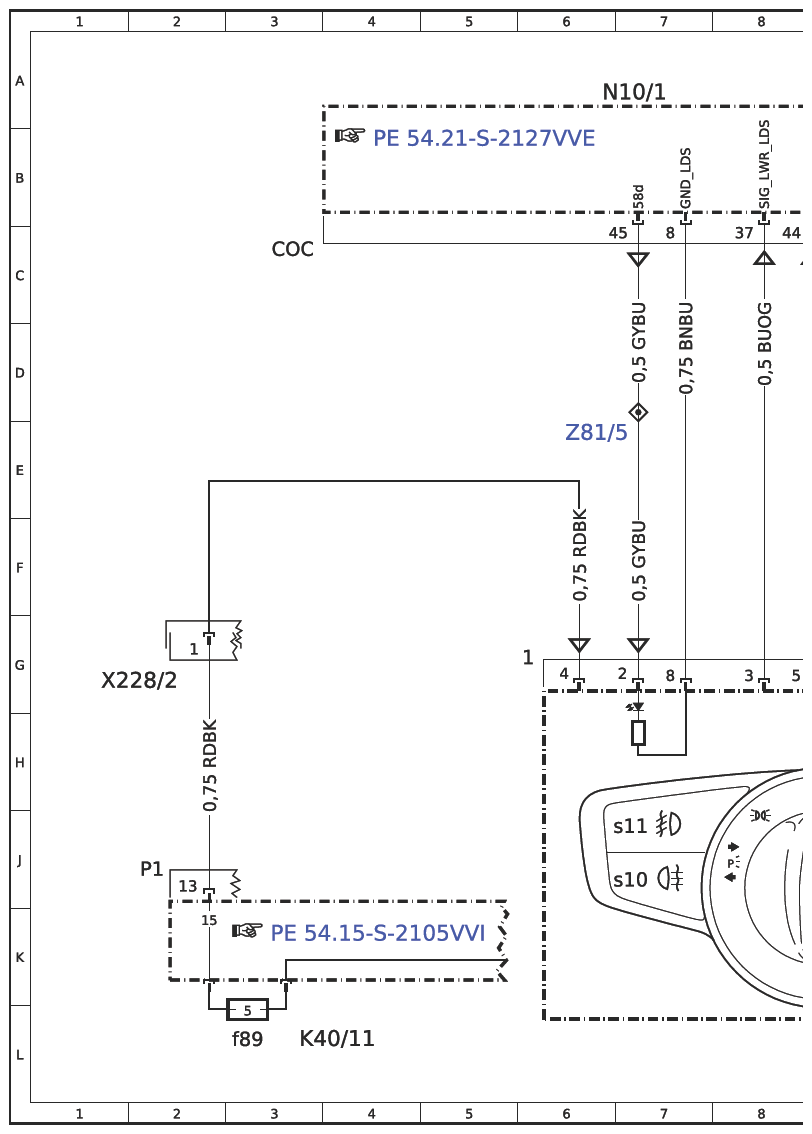

| S1 | Light switch | 9L |
| S1r1 | Instrument illumination brightness control | 10K |
| S1s10 | Rear fog light button | 7J |
| S1s11 | Front fog lamp button | 7J |
| S1s8 | Headlamp range controller | 10K |

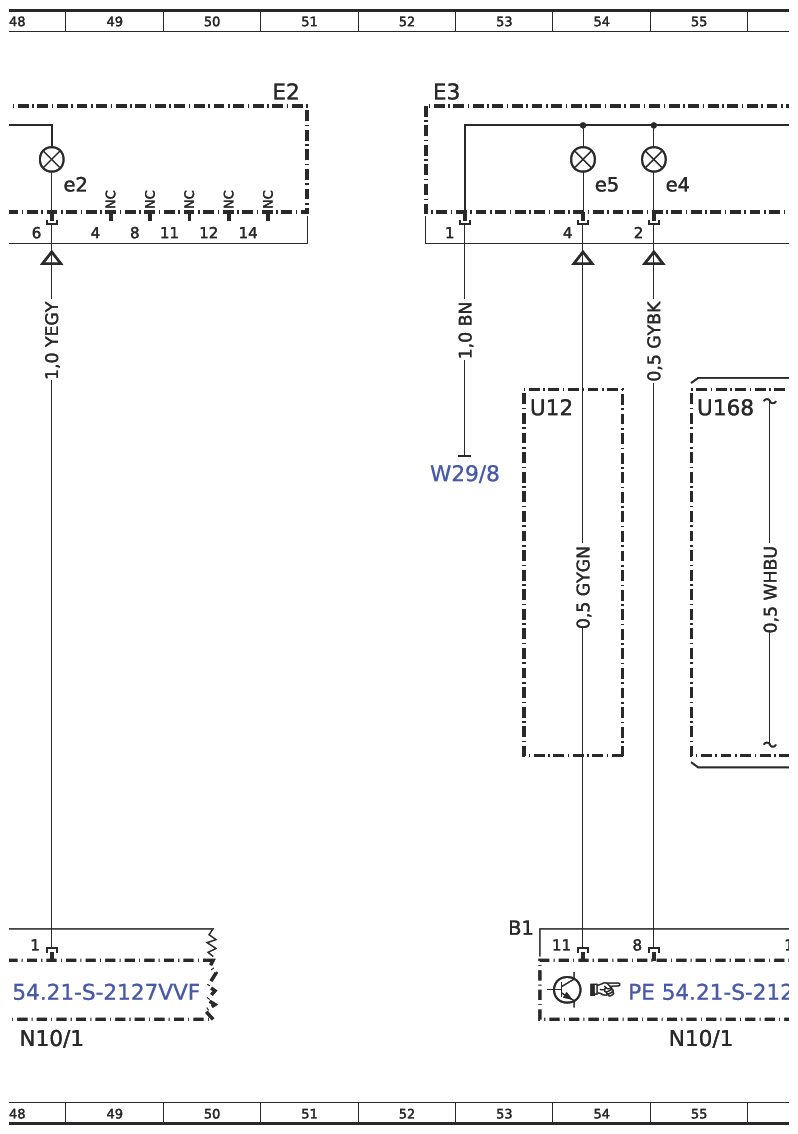

| U12 | Valid for left-hand drive vehicles | 53D |
| U13 | Valid for right-hand drive vehicles | 75D |
| U168 | Valid without code JW0 Backup warning system | 55D |
| U169 | Valid without code L84 Additional rear turn signal lamps on roof | 60D |
| U169 | Valid without code L84 Additional rear turn signal lamps on roof | 78D |
| U172 | Valid without code ZU7 Canada version | 60E |
| U172 | Valid without code ZU7 Canada version | 78E |
| U173 | Valid without code ZU8 USA version | 60E |
| U173 | Valid without code ZU8 USA version | 78E |
| W2 | Right front lamp unit ground point | 39E |
| W2 | Right front lamp unit ground point | 46H |
| W29/10 | Right D-pillar ground point | 74E |
| W29/8 | Left D-pillar ground point | 52E |
| W29/8 | Left D-pillar ground point | 59H |
| W9 | Left front lamp unit ground point | 20E |
| W9 | Left front lamp unit ground point | 26H |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 13F |
| X227/1 | Main wiring harness/fuse and relay module electrical connector 2 | 32F |
| X228/2 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 2G |
| Z30/1 | Left turn signal lamp connector sleeve | 25F |
| Z30/2 | Right turn signal lamp connector sleeve | 45F |
| Z30/4 | Right rear turn signal light connector sleeve | 84F |
| Z38 | Backup lamp connector sleeve | 57F |
| Z81/5 | Cockpit terminal 58d connector sleeve | 6E |
