Wiring Diagram Of Exterior Lights - PE82.10-S-2000-97VKA
Model 447
with code L45 (Multibeam LED with high beam assist plus)
with code LG4 (Taillights, brake lights and turn signal light in LED technology)
with code XM7 (MOPF II) E1/1, E2/1, E3/1, E4/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 104L |

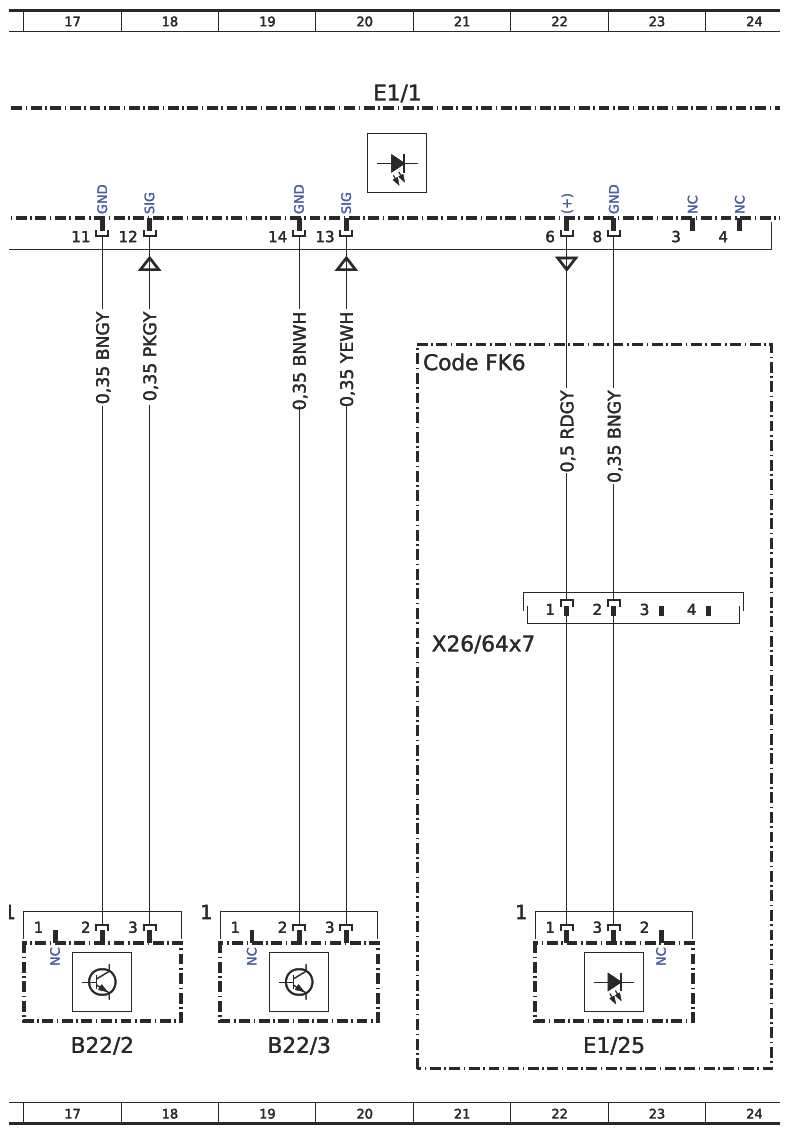

| B22/2 | Front axle level sensor | 17L |
| B22/3 | Rear axle level sensor | 19L |
| CAN PER | Peripherals CAN | 14K |
| CAN PER | Peripherals CAN | 51K |
| Code FK6 | Radiator shell with light-emitting diode strip | 21D |
| Code FK6 | Radiator shell with light-emitting diode strip | 54D |
| Code JW0 | Backup warning system | 78G |
| Code JW0 | Backup warning system | 74D |
| Code L84 | Additional rear turn signal lamps on roof | 80G |
| Code L84 | Additional rear turn signal lamps on roof | 82D |
| Code L84 | Additional rear turn signal lamps on roof | 92G |
| Code L84 | Additional rear turn signal lamps on roof | 94D |
| Code R | Valid for right-hand drive vehicles | 89G |

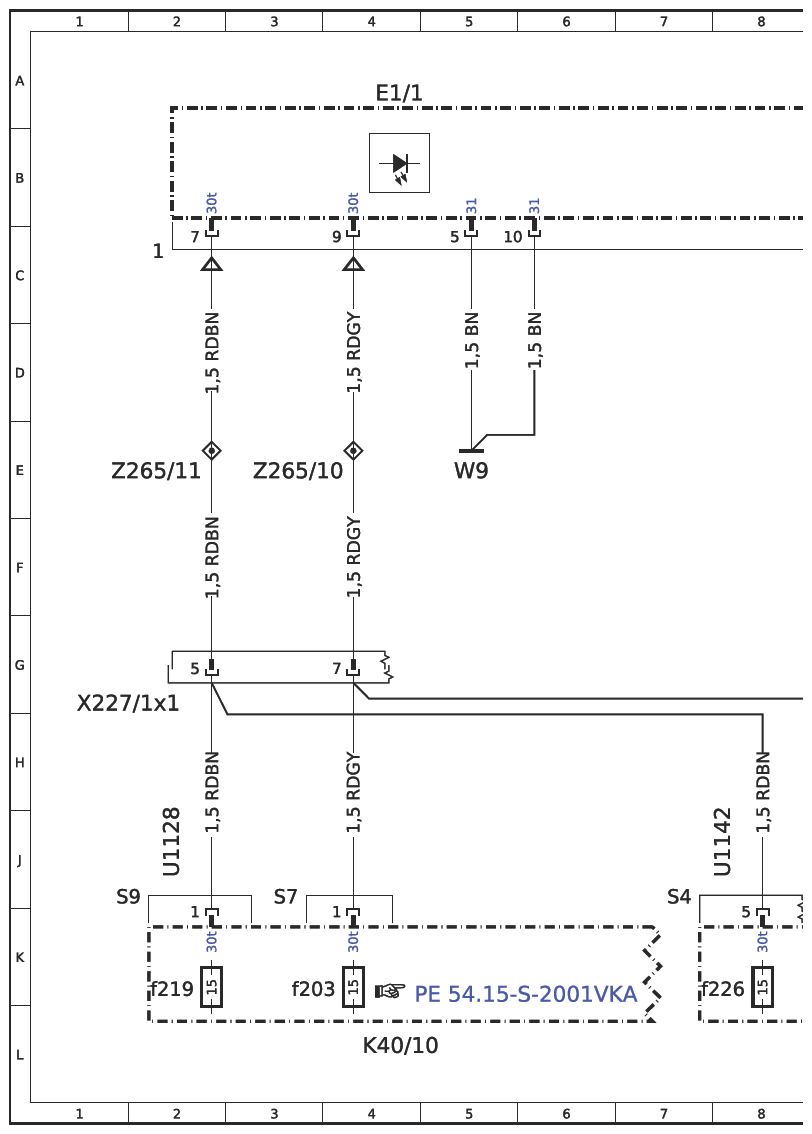

| E1/1 | Left front LED lamp unit | 4A |
| E1/1 | Left front LED lamp unit | 20A |
| E1/1 | Left front LED lamp unit | 12A |
| E1/1 | Left front LED lamp unit | 28A |
| E1/1 | Left front LED lamp unit | 36A |
| E1/1e2 | Left low beam | 30C |
| E1/1e23 | - | 36C |
| E1/1e24 | - | 34C |
| E1/1e28 | - | 36C |
| E1/1e29 | - | 37C |
| E1/1e5 | Left front turn signal lamp | 35C |
| E1/1e6 | Left side-marker lamp | 31C |

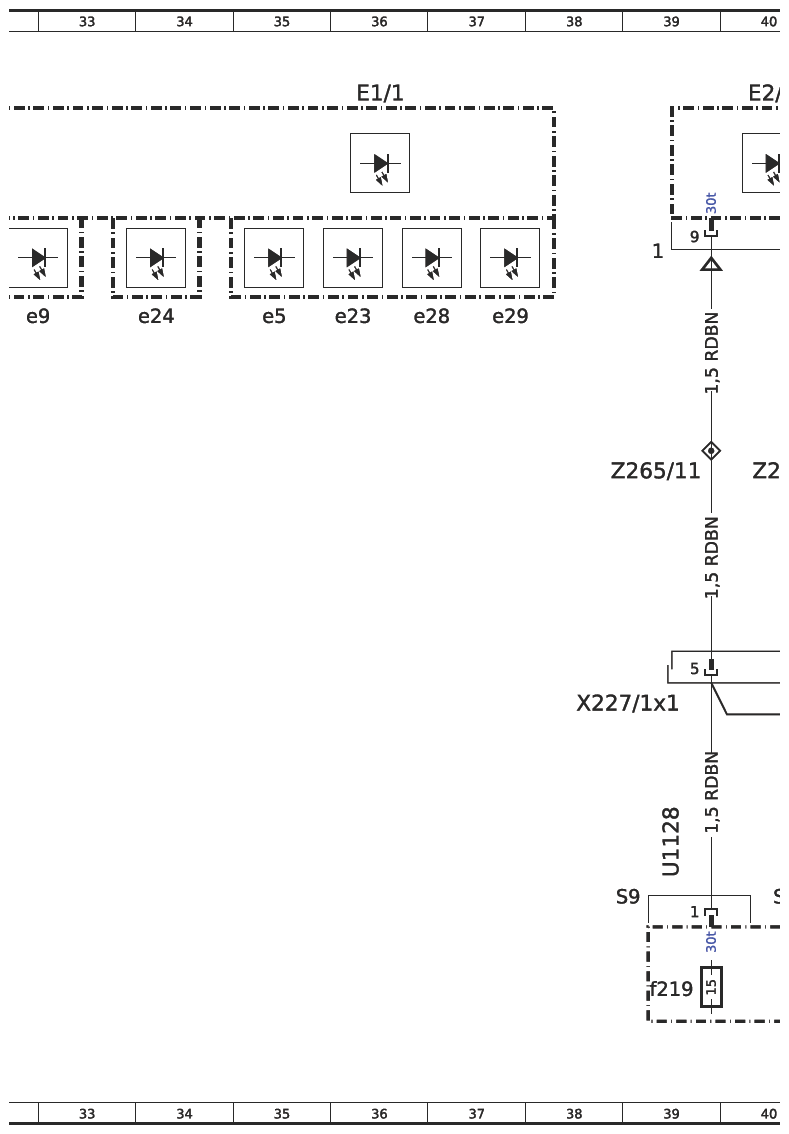

| E1/1e9 | Left cornering illumination | 32C |
| E1/1m1 | Left headlamp range adjustment actuator motor | 28C |
| E1/1m5 | Left front lamp unit fan motor | 29C |

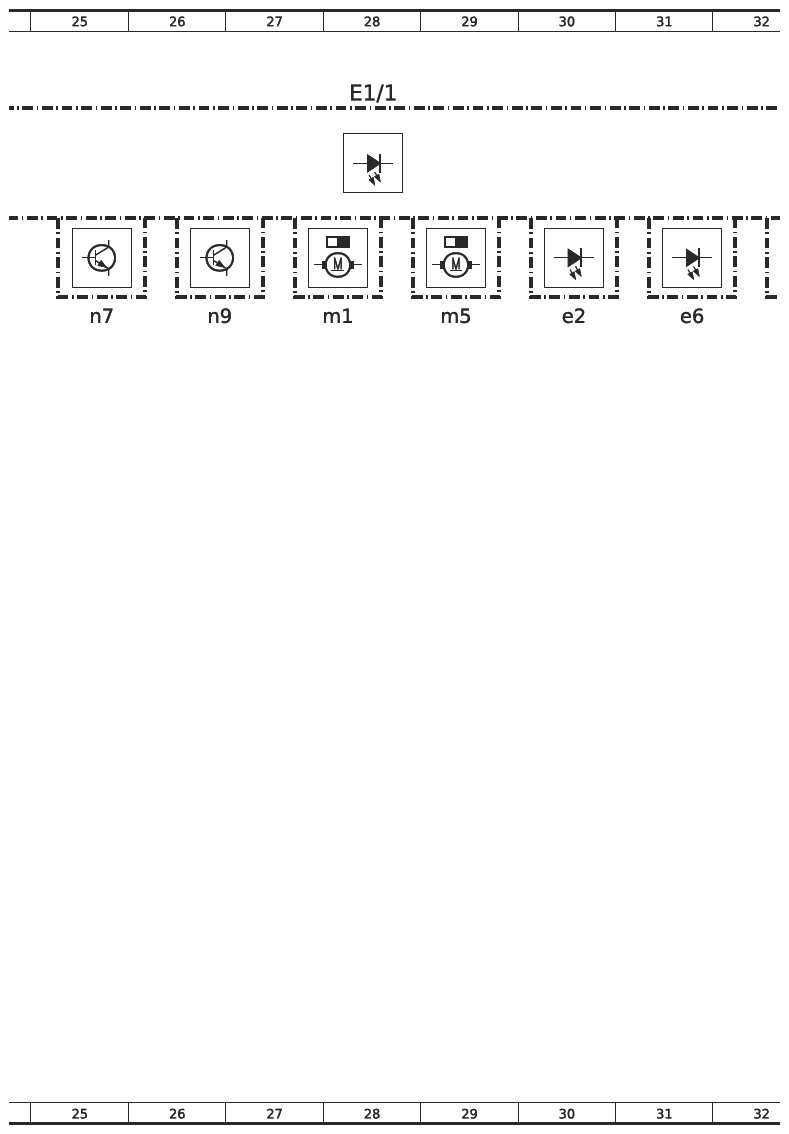

| E1/1n7 | Actuation module for left front exterior lights LED | 25C |
| E1/1n9 | Left headlamp control unit | 26C |
| E1/25 | Left radiator shell light-emitting diode strip | 22L |
| E2/1 | Right front LED lamp unit | 40A |
| E2/1 | Right front LED lamp unit | 48A |
| E2/1 | Right front LED lamp unit | 56A |
| E2/1 | Right front LED lamp unit | 64A |
| E2/1 | Right front LED lamp unit | 71A |

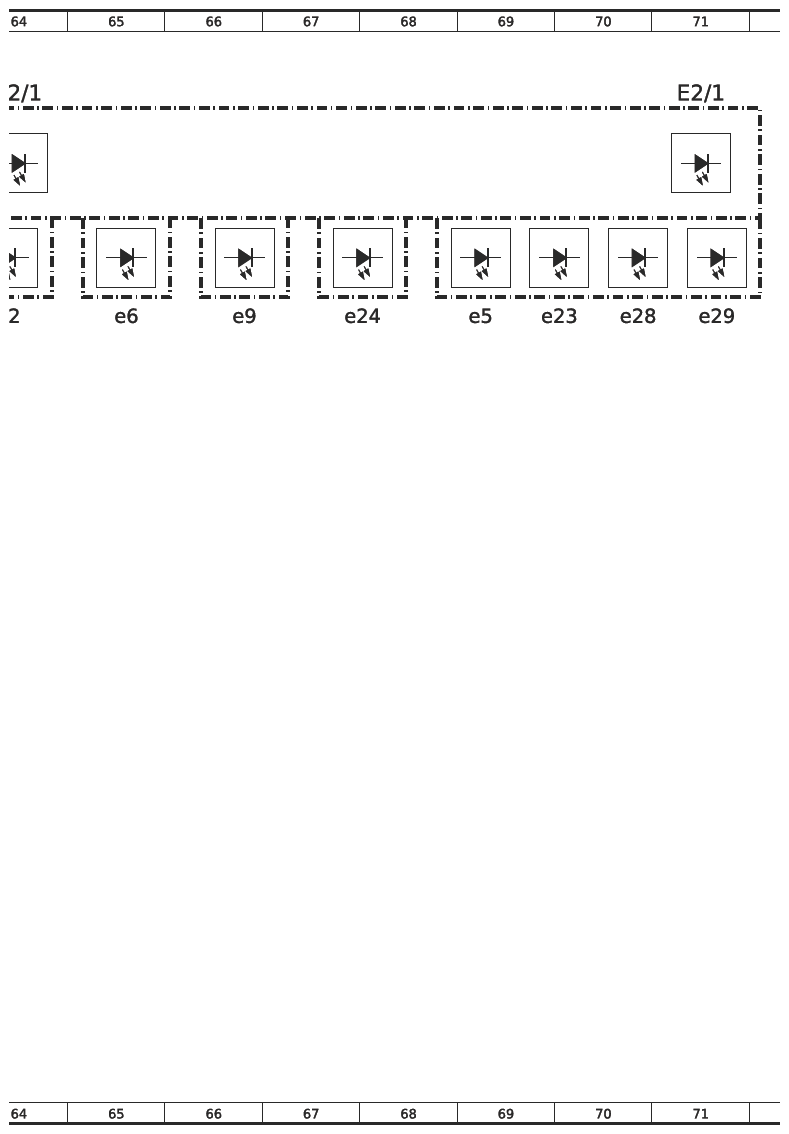

| E2/1e2 | Right low beam | 64C |
| E2/1e23 | - | 69C |
| E2/1e24 | - | 67C |
| E2/1e28 | - | 70C |
| E2/1e29 | - | 71C |
| E2/1e5 | Right front turn signal lamp | 69C |
| E2/1e6 | Right side-marker lamp | 65C |
| E2/1e9 | Right cornering illumination | 66C |
| E2/1m1 | Right headlamp range adjustment actuator motor | 61C |
| E2/1m5 | Right front lamp unit fan motor | 63C |

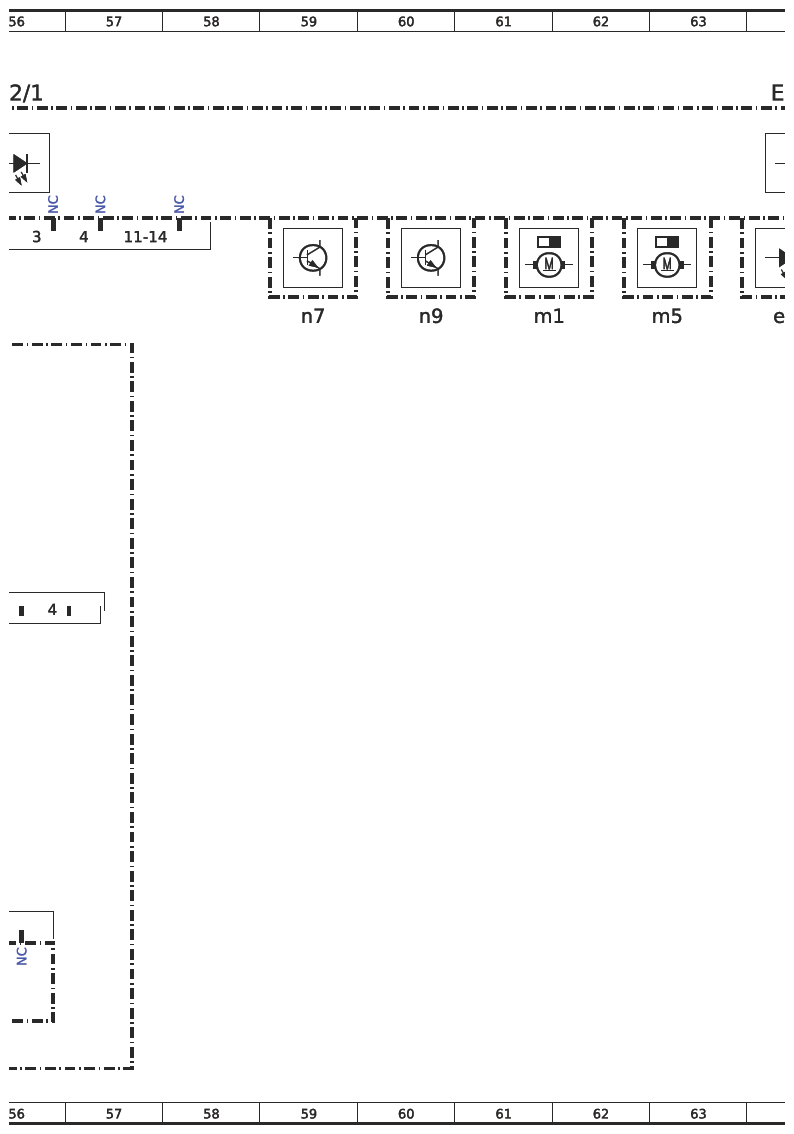

| E2/1n7 | Actuation module for right front exterior lights LED | 59C |
| E2/1n9 | Right headlamp control unit | 60C |
| E2/25 | Right radiator shell light-emitting diode strip | 55L |

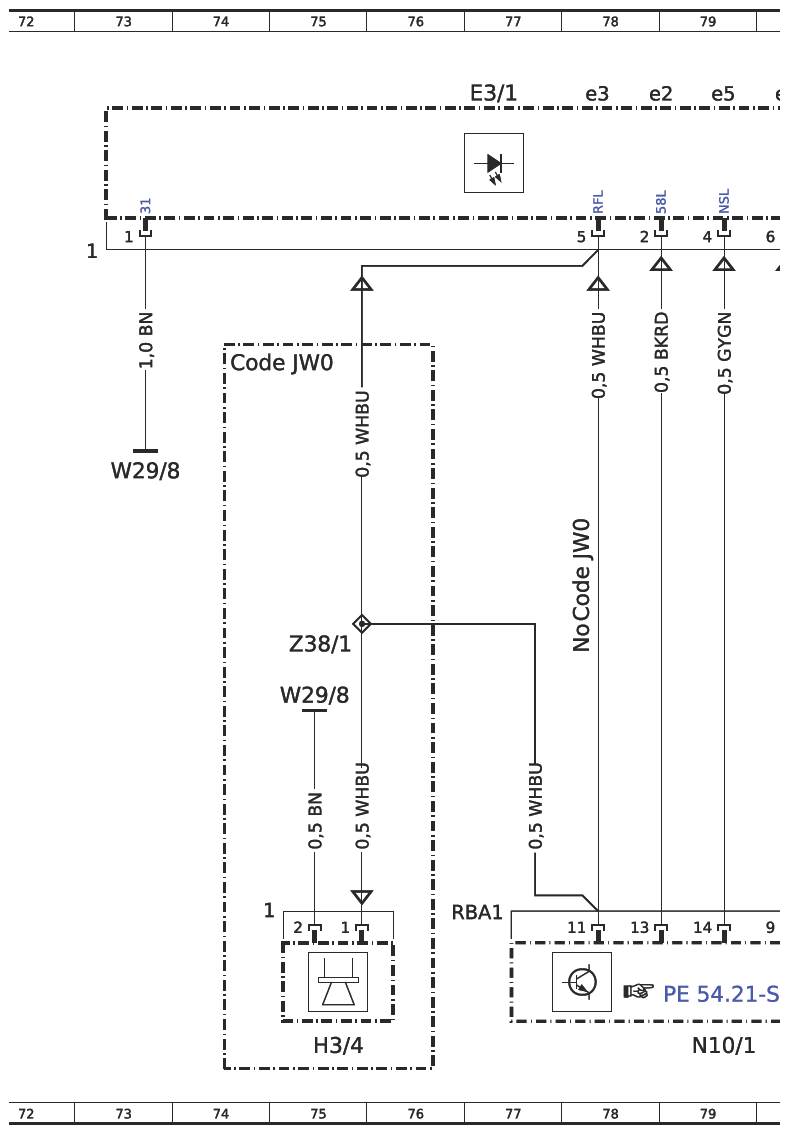

| E3/1 | Left rear LED lamp unit | 77A |
| E3/1e1 | Left rear turn signal lamp | 80A |
| E3/1e2 | Left LED taillight | 78A |
| E3/1e3 | Backup lamp, left | 78A |
| E3/1e4 | Left stop lamp | 80A |
| E3/1e5 | Left rear fog lamp | 79A |

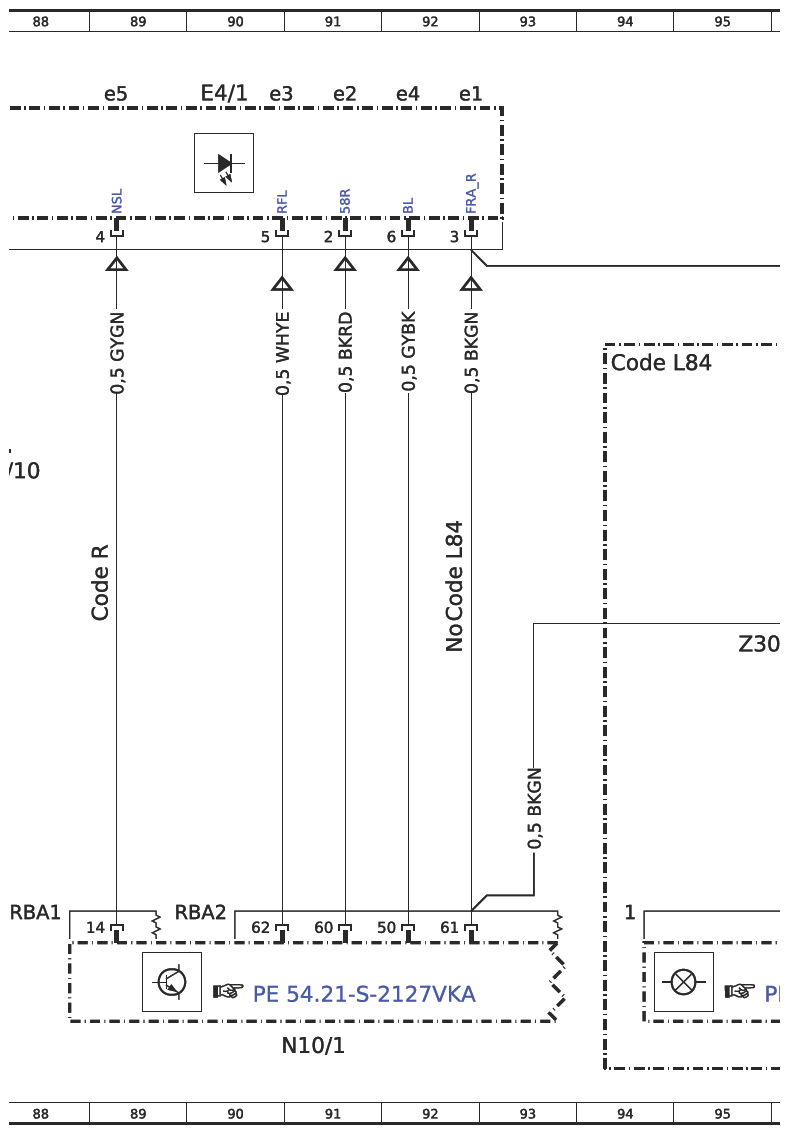

| E4/1 | Right rear LED lamp unit | 90A |
| E4/1e1 | Right rear turn signal lamp | 92A |
| E4/1e2 | Right LED taillight | 91A |
| E4/1e3 | Right backup lamp | 90A |
| E4/1e4 | Right stop lamp | 92A |
| E4/1e5 | Right rear fog lamp | 89A |
| H3/4 | Backup warning system horn | 75L |
| K40/10 | Engine compartment fuse and relay module | 4L |
| K40/10 | Engine compartment fuse and relay module | 10L |
| K40/10 | Engine compartment fuse and relay module | 41L |
| K40/10 | Engine compartment fuse and relay module | 47L |
| K40/10f202 | Fuse 202 | 9K |
| K40/10f202 | Fuse 202 | 46K |
| K40/10f203 | Fuse 203 | 3K |
| K40/10f203 | Fuse 203 | 40K |
| K40/10f219 | Fuse 219 | 2K |
| K40/10f219 | Fuse 219 | 39K |
| K40/10f226 | Fuse 226 | 8K |
| K40/10f226 | Fuse 226 | 45K |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 79L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 91L |

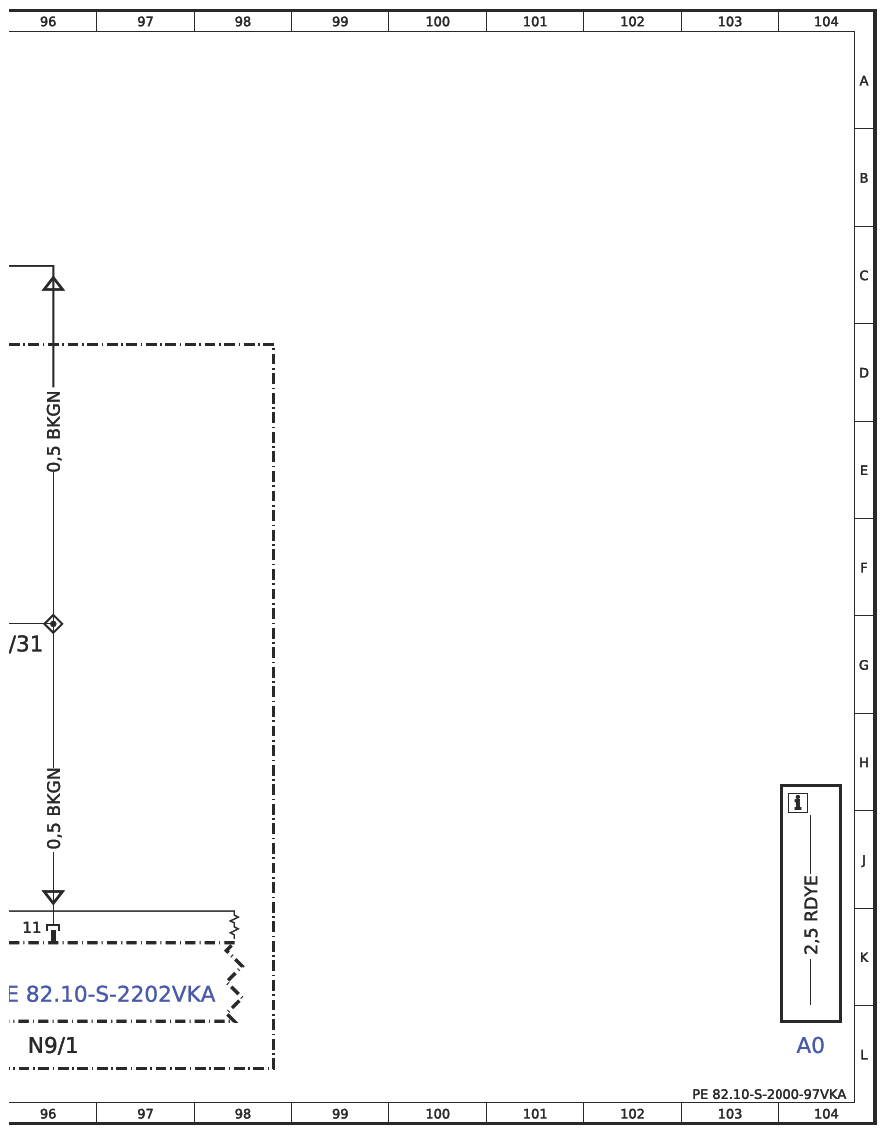

| N9/1 | Additional turn signal module control unit | 84L |
| N9/1 | Additional turn signal module control unit | 96L |
| U1128 | Valid for combustion engine | 2J |
| U1128 | Valid for combustion engine | 39J |
| U1142 | Valid for electric vehicle | 8J |
| U1142 | Valid for electric vehicle | 45J |

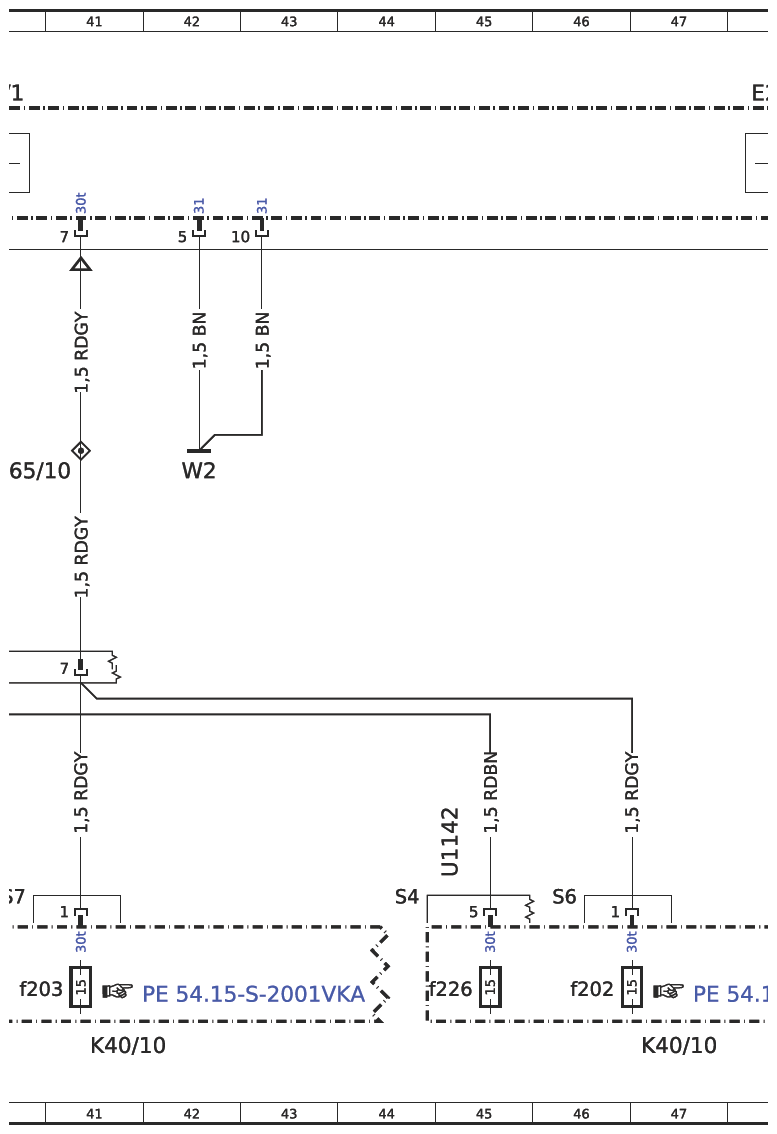

| W2 | Right front lamp unit ground point | 42E |
| W29/10 | Right D-pillar ground point | 87E |
| W29/8 | Left D-pillar ground point | 73E |
| W29/8 | Left D-pillar ground point | 75G |
| W9 | Left front lamp unit ground point | 5E |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 2G |
| X227/1x1 | Main wiring harness/fuse and relay module electrical connector 1 | 39G |
| X26/64x7 | Front bumper electrical connector 7 | 21G |
| X26/64x8 | Front bumper electrical connector 8 | 54G |

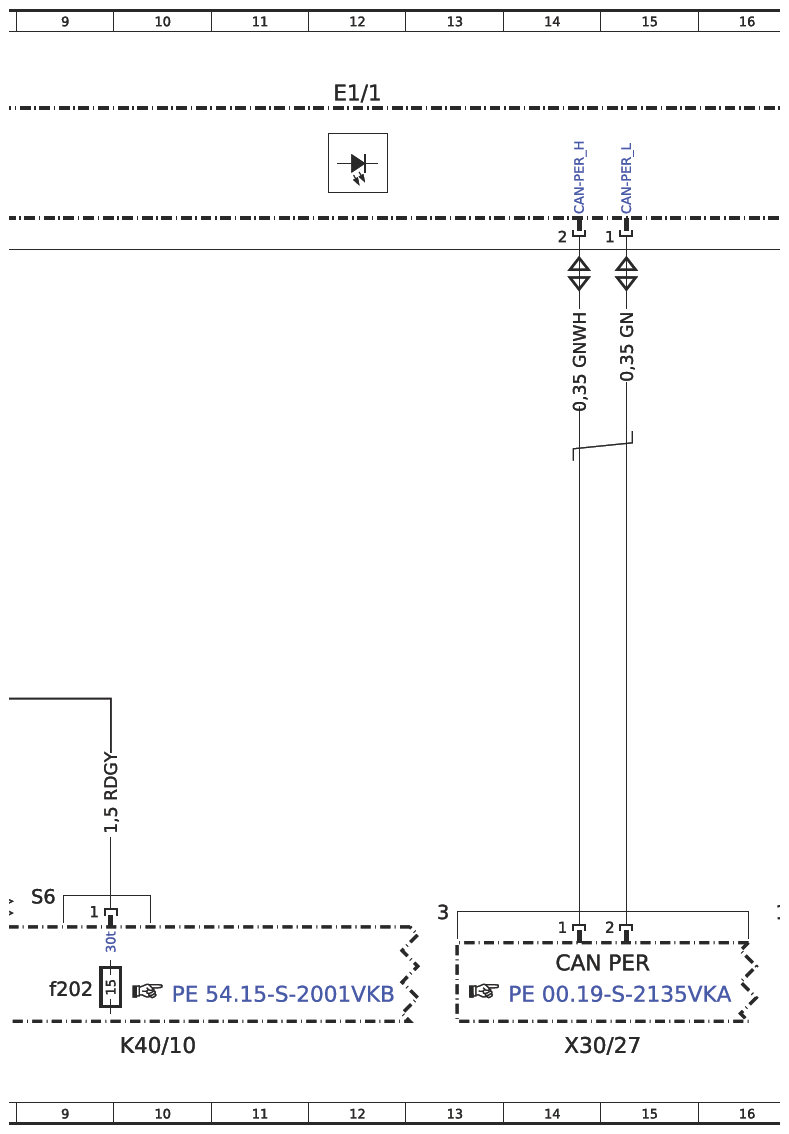

| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 14L |

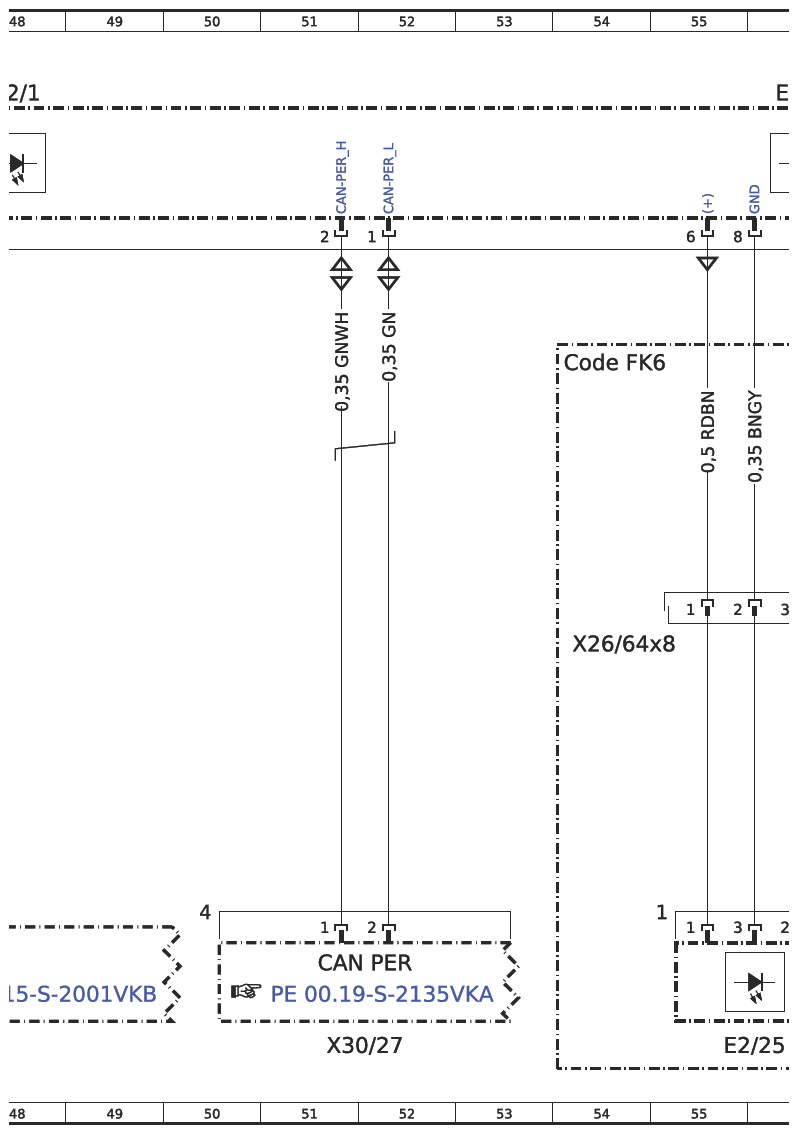

| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 51L |
| Z265/10 | Terminal 30t connector sleeve | 3E |
| Z265/10 | Terminal 30t connector sleeve | 40E |
| Z265/11 | Terminal 30t connector sleeve | 2E |
| Z265/11 | Terminal 30t connector sleeve | 39E |

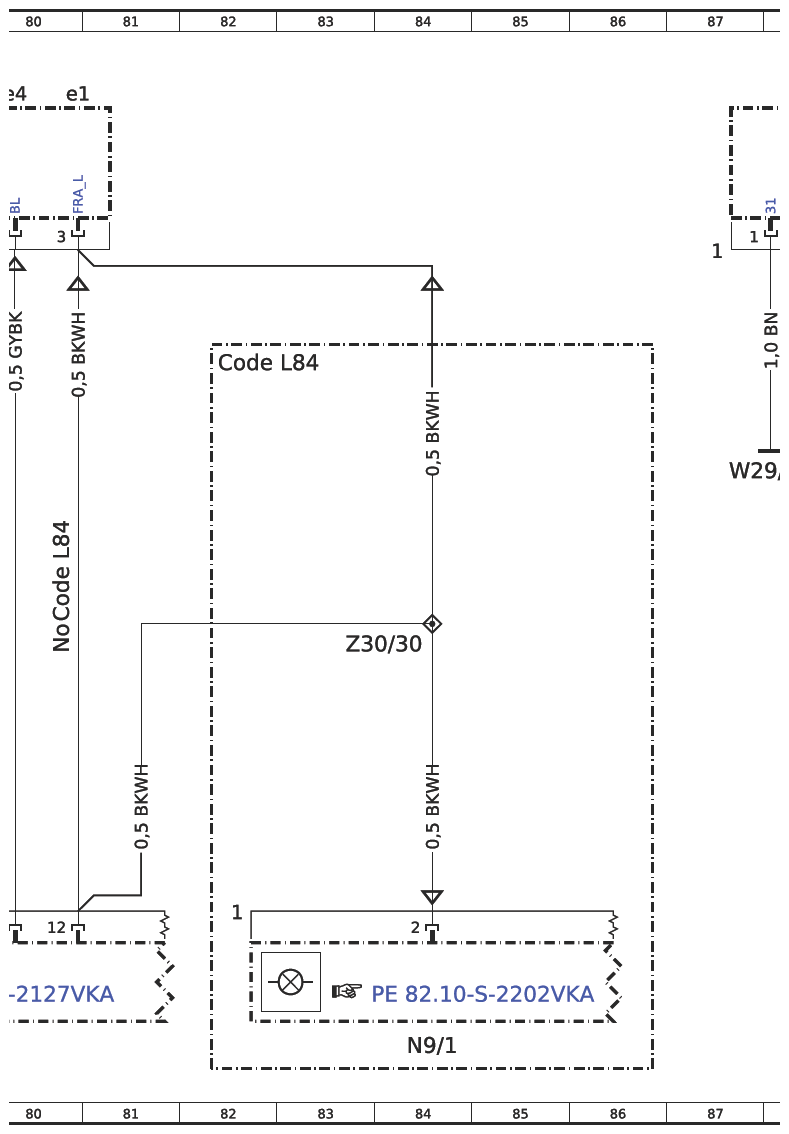

| Z30/30 | Left additional turn signal connector sleeve | 84G |
| Z30/31 | Right additional turn signal connector sleeve | 96G |
| Z38/1 | Backup lamp connector sleeve | 75G |
