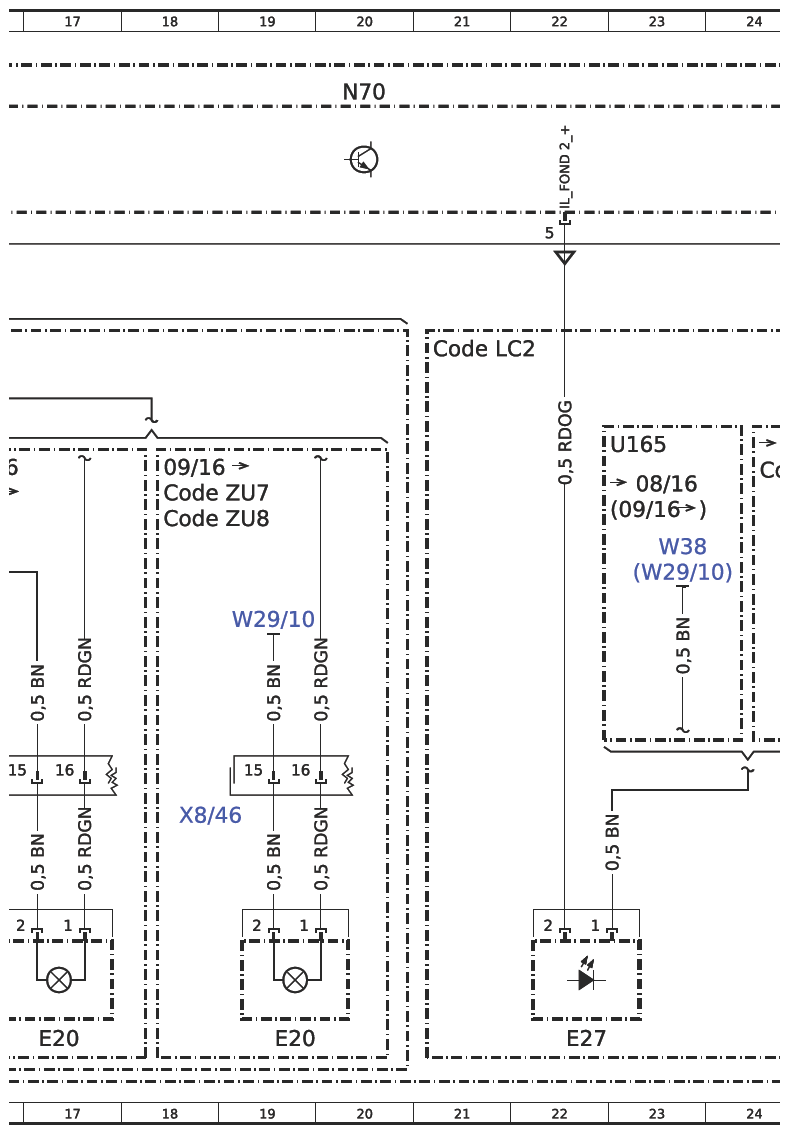

Wiring Diagram Interior Illumination - PE82.20-S-2000-97VVC
Model 447.6 except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) Sheet 1
Model 447.7 except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| Code D57 | Full-width partition wall at C-pillar with window | 27D |
| Code FS5 | Illuminated mirrors for sun visors | 56D |
| Code LC2 | LED light strip in load compartment | 46D |
| Code LC2 | LED light strip in load compartment | 13E |
| Code LC2 | LED light strip in load compartment | 21D |
| Code LC8 | Liftgate ambient illumination | 53E |
| Code LC8 | Liftgate ambient illumination | 7E |
| Code LC8 | Liftgate ambient illumination | 44E |
| Code LD9 | Interior lights in rear passenger compartment | 53E |
| Code LP1 | Panel van interior and ambient illumination | 24E |
| Code LP1 | Panel van interior and ambient illumination | 7D |
| Code V36 | Headliner | 50D |
| Code V36 | Headliner | 38G |
| Code VD2 | Standard headliner, B-D pillar | 32G |
| Code ZK4 | Mixto | 27D |
| Code ZK4 | Mixto | 32D |
| Code ZK4 | Mixto | 56G |
| Code ZU7 | Canada version | 18E |
| Code ZU8 | USA version | 18F |

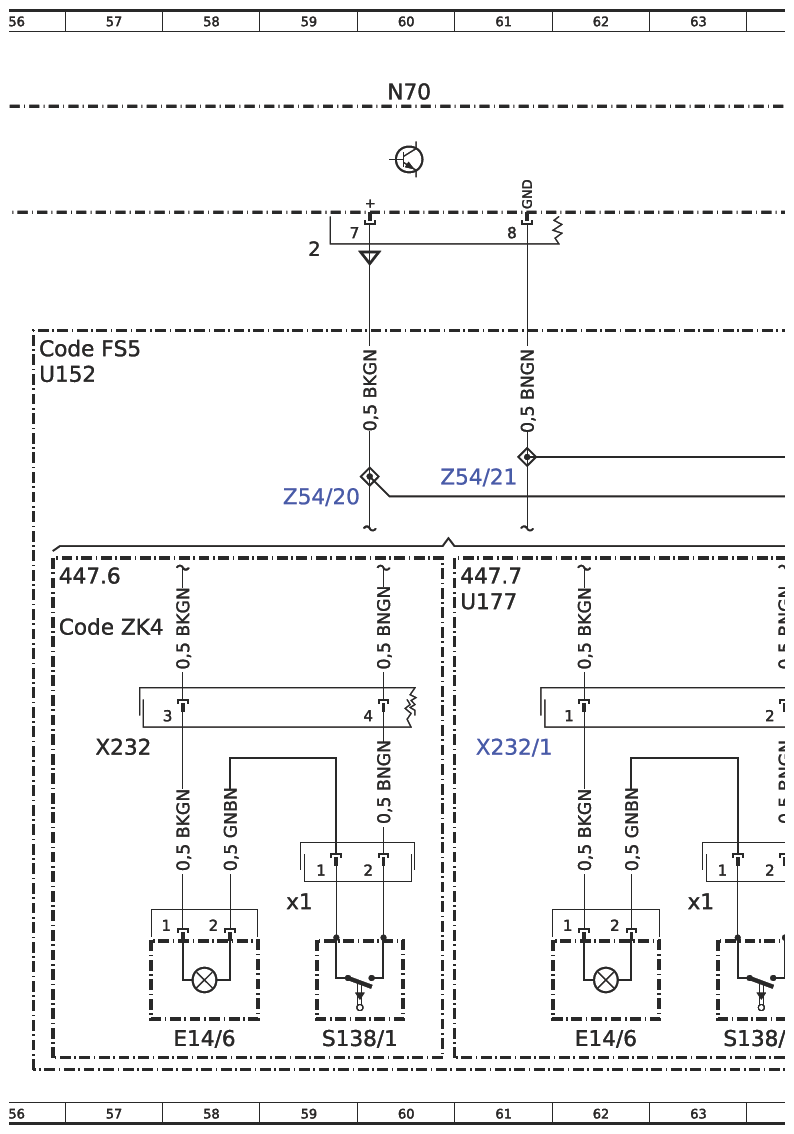

| E14/6 | Left front vanity mirror illumination | 58L |
| E14/6 | Left front vanity mirror illumination | 62L |

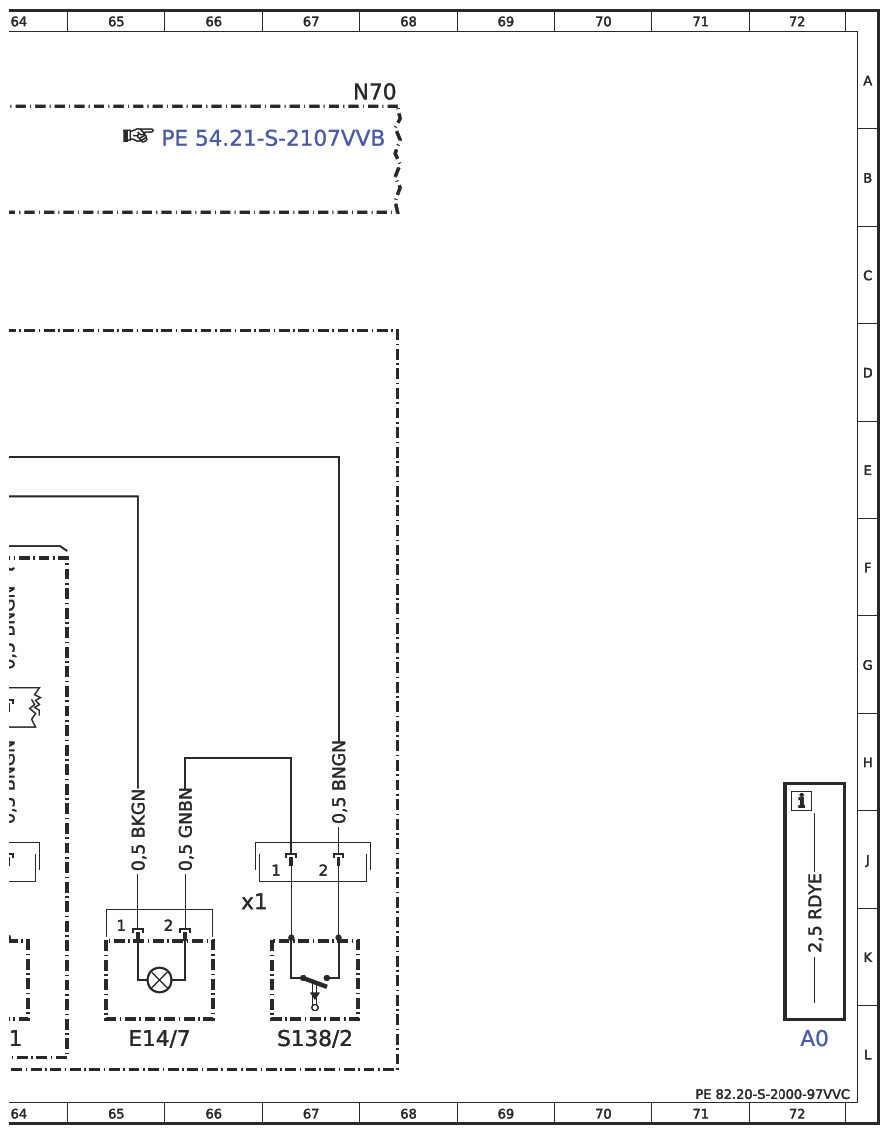

| E14/7 | Right front vanity mirror illumination | 65L |

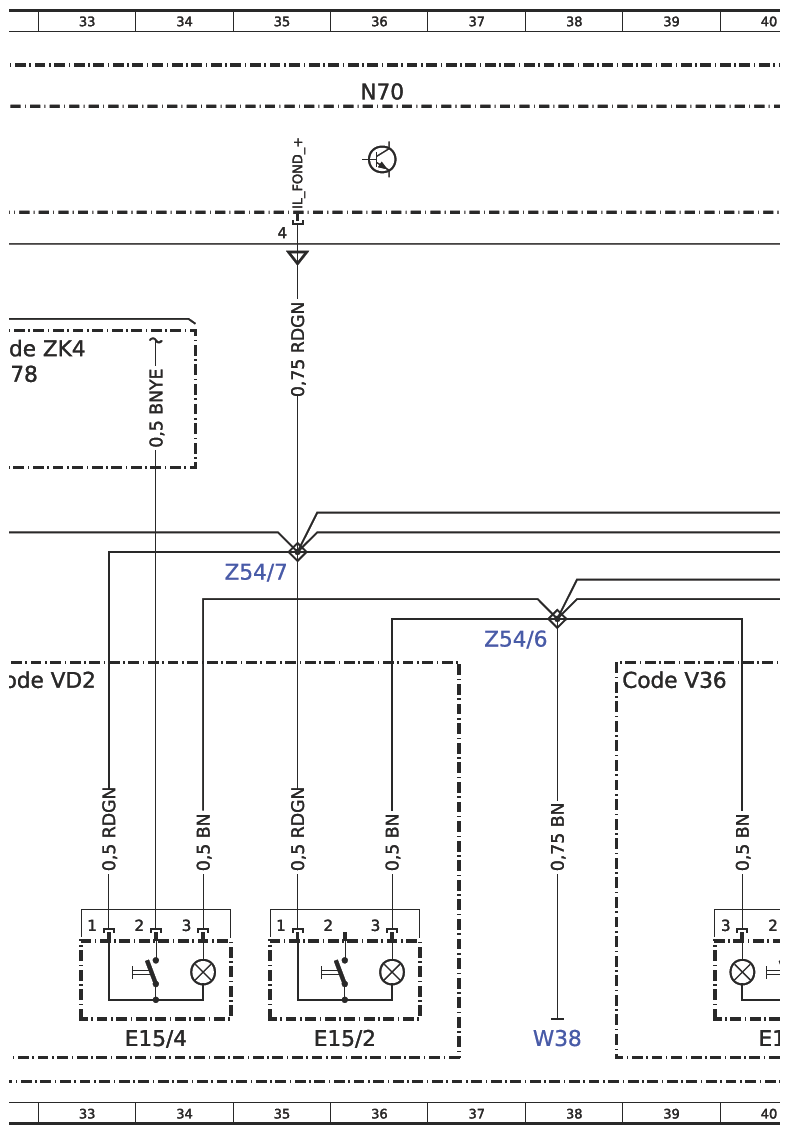

| E15/2 | Dome lamp, front of rear | 36L |

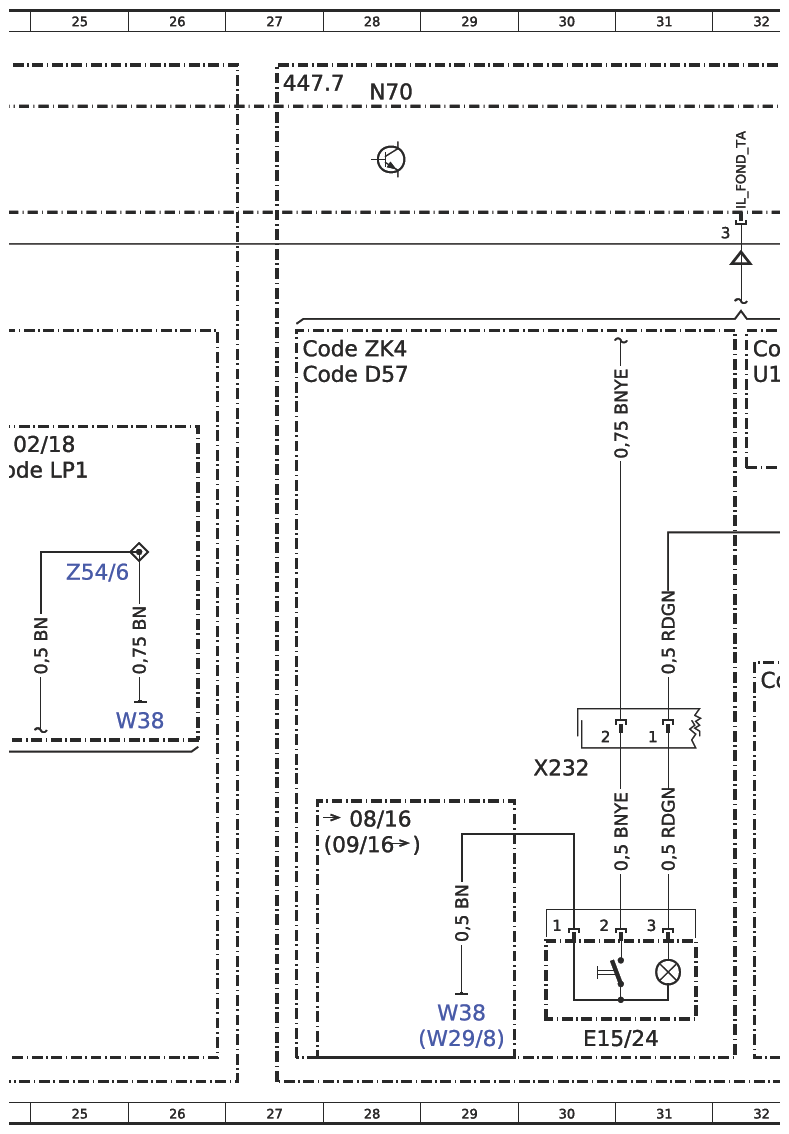

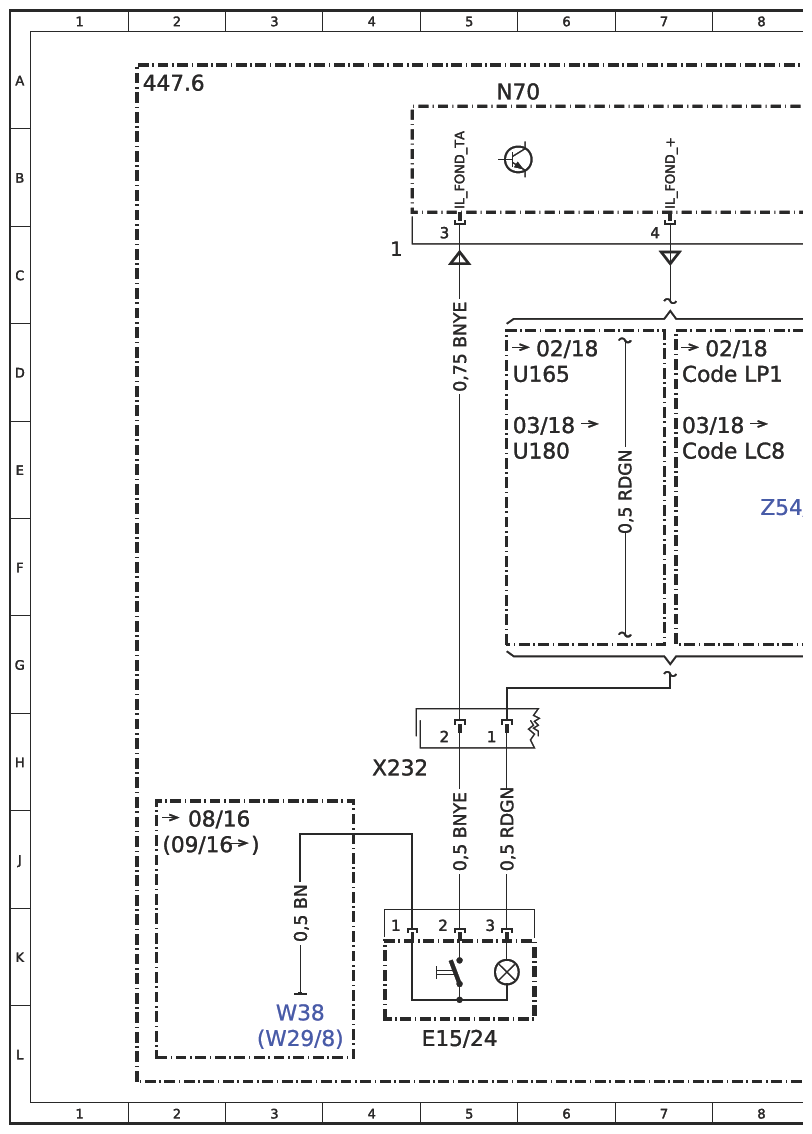

| E15/24 | Left rear load compartment lamp | 5L |
| E15/24 | Left rear load compartment lamp | 30L |

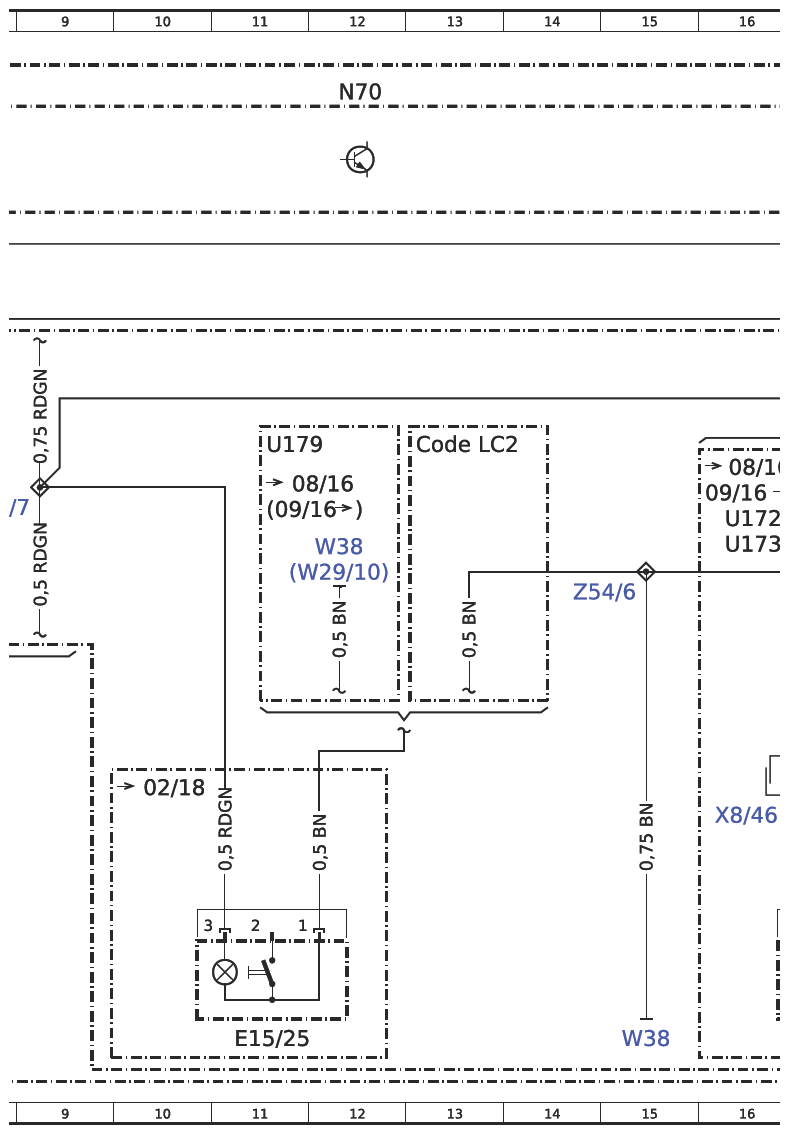

| E15/25 | Right rear load compartment lamp | 11L |
| E15/3 | Dome lamp, front of rear | 40L |
| E15/4 | Dome lamp, rear of rear | 34L |
| E15/5 | Dome lamp, rear of rear | 42L |

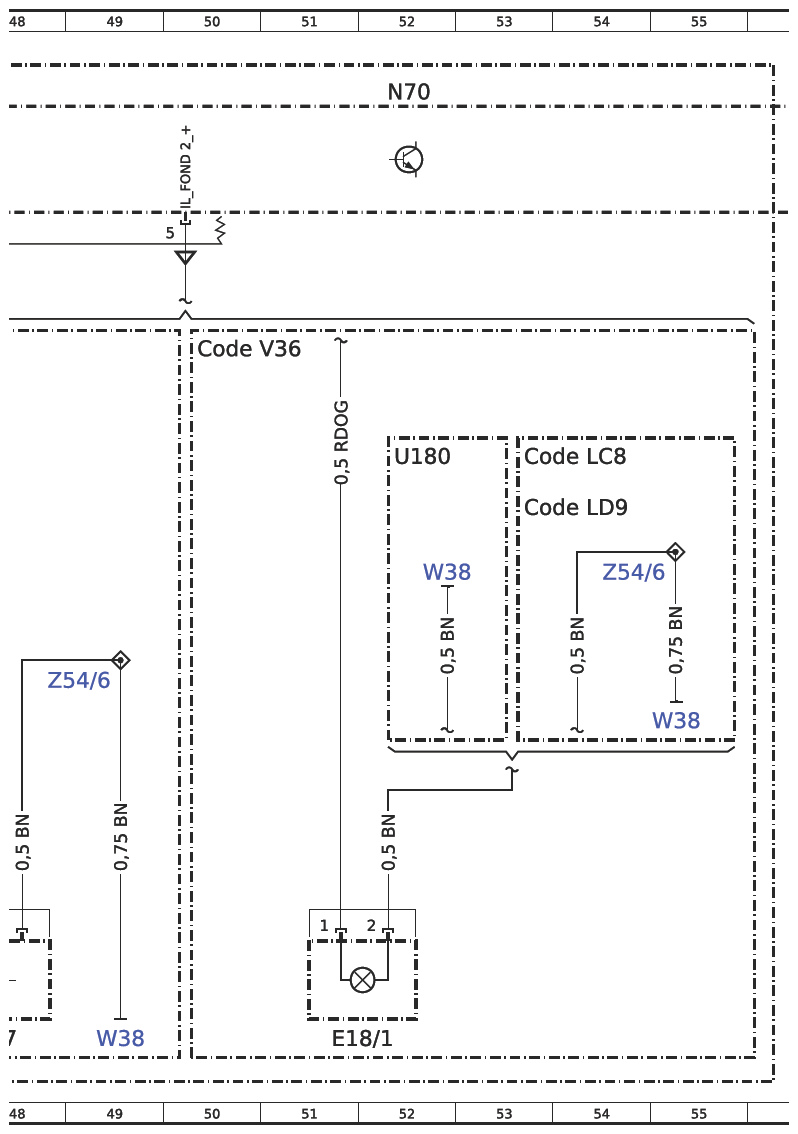

| E18/1 | Center trunk lamp | 51L |

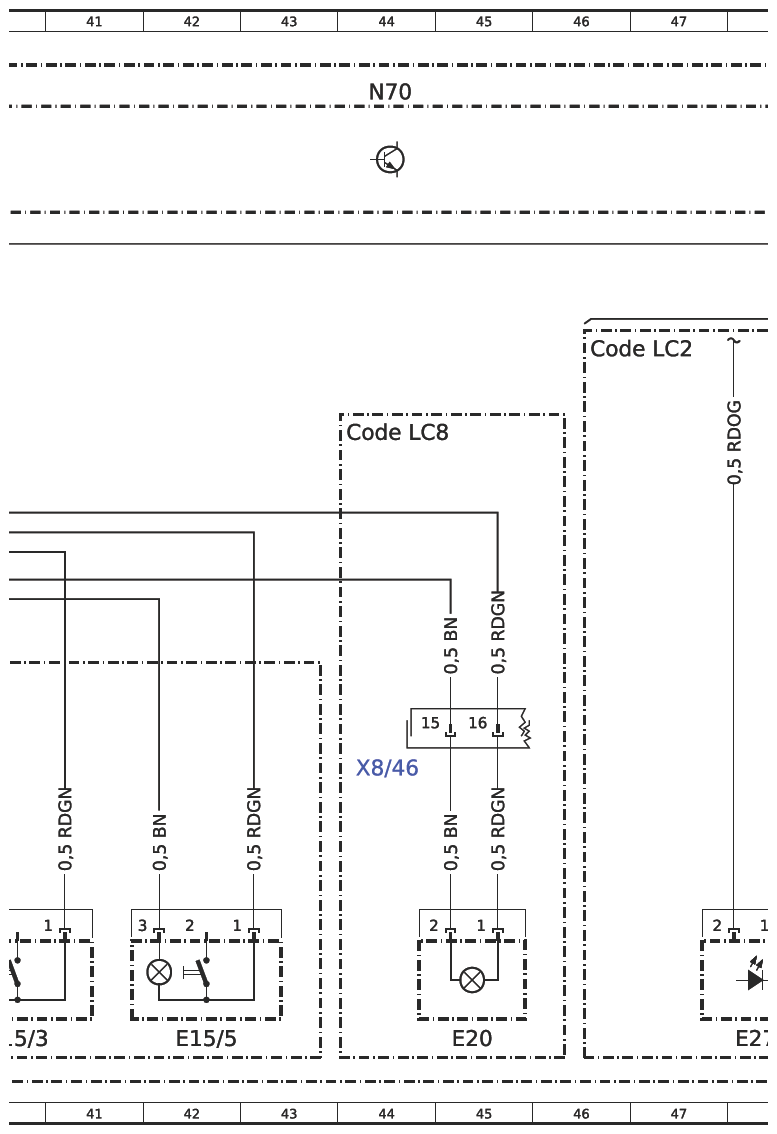

| E20 | Liftgate ambient illumination | 17L |
| E20 | Liftgate ambient illumination | 45L |
| E20 | Liftgate ambient illumination | 19L |
| E27 | Load compartment work lamp LED light strip | 48L |
| E27 | Load compartment work lamp LED light strip | 22L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 5A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 12A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 20A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 28A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 36A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 52A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 60A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 68A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 44A |
| S138/1 | Left sun visor illumination switch | 59L |
| S138/1 | Left sun visor illumination switch | 63L |
| S138/1x1 | Left sun visor illumination switch electrical connector | 59K |
| S138/1x1 | Left sun visor illumination switch electrical connector | 63K |
| S138/2 | Right sun visor illumination switch | 67L |
| S138/2x1 | Right sun visor illumination switch electrical connector | 66K |
| U152 | Valid without code LC4 Comfort overhead control panel | 56D |
| U165 | Valid without code LP1 Panel van interior and ambient illumination | 23E |
| U165 | Valid without code LP1 Panel van interior and ambient illumination | 5D |
| U172 | Valid without code ZU7 Canada version | 16F |
| U173 | Valid without code ZU8 USA version | 16F |
| U177 | Valid without code ZK4 Mixto | 61F |
| U178 | Valid without code D57 Full-width partition wall at C-pillar with window | 32D |
| U179 | Valid without code LC2 LED light strip in load compartment | 11E |
| U180 | Valid without code LC8 Liftgate ambient illumination | 52E |
| W29/10 | Right D-pillar ground point | 12F |
| W29/10 | Right D-pillar ground point | 19G |
| W29/10 | Right D-pillar ground point | 23F |
| W29/8 | Left D-pillar ground point | 3L |
| W29/8 | Left D-pillar ground point | 29L |
| W38 | Roof frame ground point 1 | 55H |
| W38 | Roof frame ground point 1 | 52F |
| W38 | Roof frame ground point 1 | 15L |
| W38 | Roof frame ground point 1 | 3L |
| W38 | Roof frame ground point 1 | 26H |
| W38 | Roof frame ground point 1 | 49L |
| W38 | Roof frame ground point 1 | 38L |
| W38 | Roof frame ground point 1 | 12F |
| W38 | Roof frame ground point 1 | 29L |
| W38 | Roof frame ground point 1 | 23F |
| X232 | Main wiring harness/roof main wiring harness electrical connector | 4H |
| X232 | Main wiring harness/roof main wiring harness electrical connector | 30H |
| X232 | Main wiring harness/roof main wiring harness electrical connector | 57H |
| X232/1 | Main wiring harness/roof main wiring harness electrical connector | 61H |
| X8/46 | Right liftgate electrical connector 2 | 16J |
| X8/46 | Right liftgate electrical connector 2 | 44H |
| X8/46 | Right liftgate electrical connector 2 | 18J |
| Z54/20 | Vanity mirror supply connector sleeve | 59E |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 61E |
| Z54/6 | Roof interior lights tml. 31 connector sleeve | 54F |
| Z54/6 | Roof interior lights tml. 31 connector sleeve | 15F |
| Z54/6 | Roof interior lights tml. 31 connector sleeve | 25F |
| Z54/6 | Roof interior lights tml. 31 connector sleeve | 49G |
| Z54/6 | Roof interior lights tml. 31 connector sleeve | 37G |
| Z54/7 | Roof interior lights supply connector sleeve | 8E |
| Z54/7 | Roof interior lights supply connector sleeve | 35F |
