Wiring Diagram For Windshield Wiper System - PE82.30-S-2003-97VKA
Model 447 with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| Code F48 | Heater for windshield washer system | 16D |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 36C |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 36C |
| Code W64 | Separately opening rear window | 46B |
| Code W65 | Liftgate | 43B |
| Code W68 | EASY PACK liftgate | 43C |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 43C |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 36B |

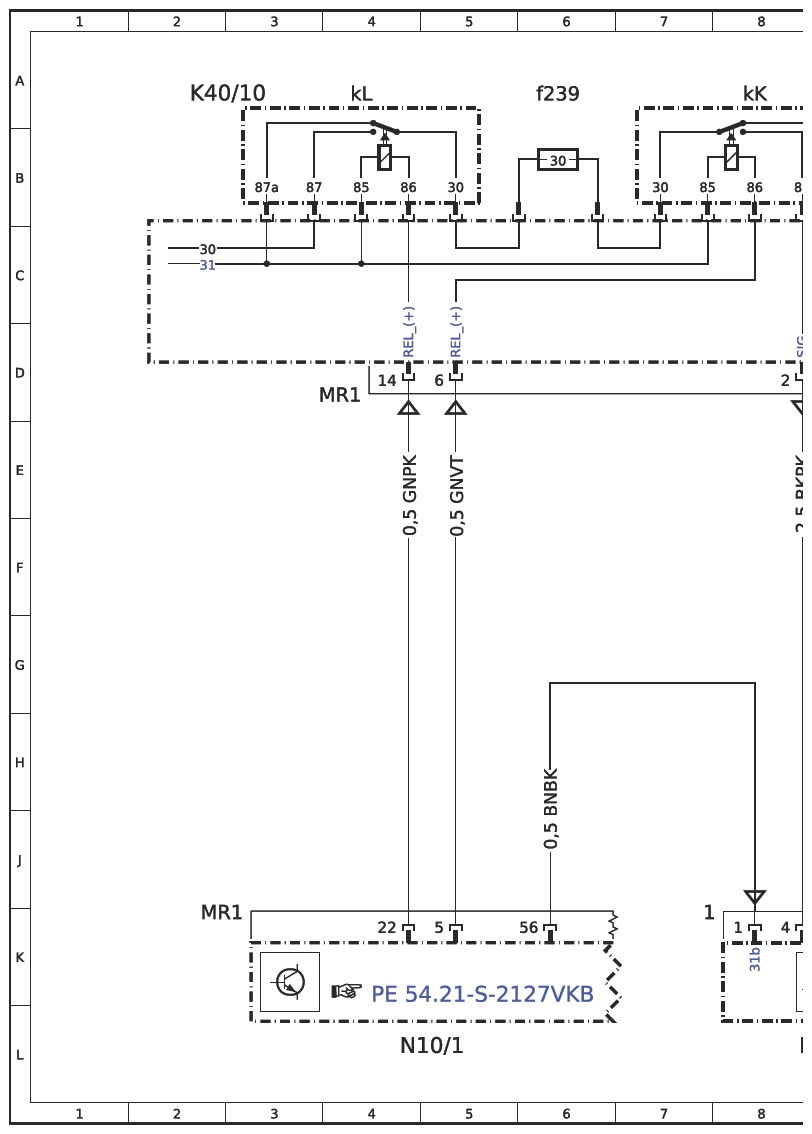

| K40/10 | Engine compartment fuse and relay module | 12A |
| K40/10 | Engine compartment fuse and relay module | 2A |
| K40/10f239 | Fuse 239 | 6A |
| K40/10kK | Wiper level 1/2 relay | 8A |
| K40/10kL | Windshield wiper ON/OFF relay | 4A |
| K40/11 | Firewall fuse and relay module | 22A |
| K40/11 | Firewall fuse and relay module | 31A |
| K40/11f62 | Fuse 62 | 23A |
| K40/11f96 | Fuse 96 | 25A |

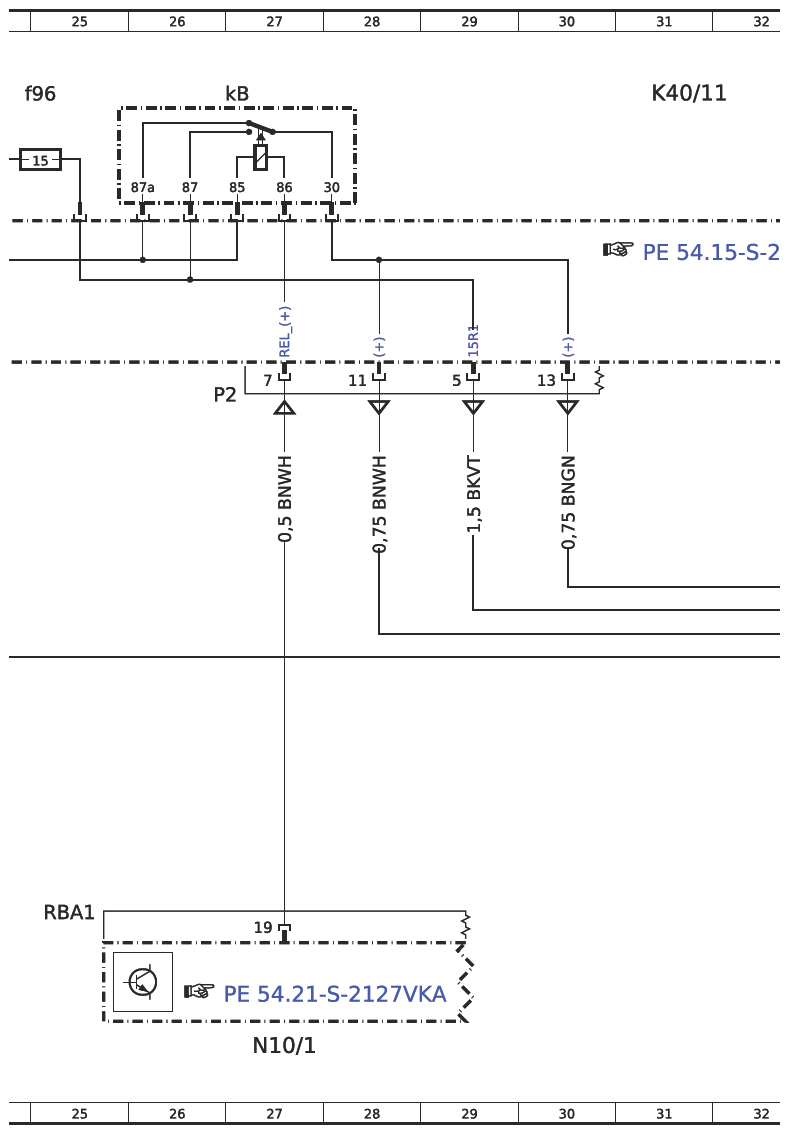

| K40/11kB | Rear window wiper relay | 27A |

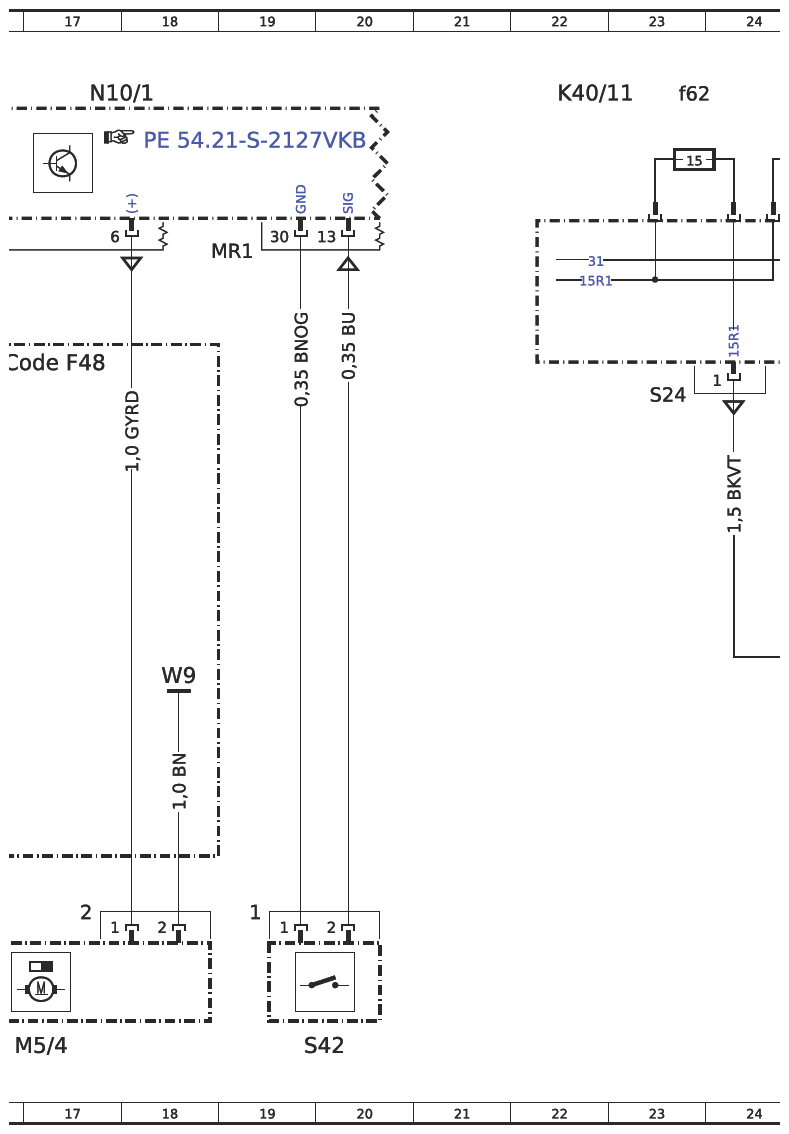

| M5/4 | Windshield washer system pump | 17L |

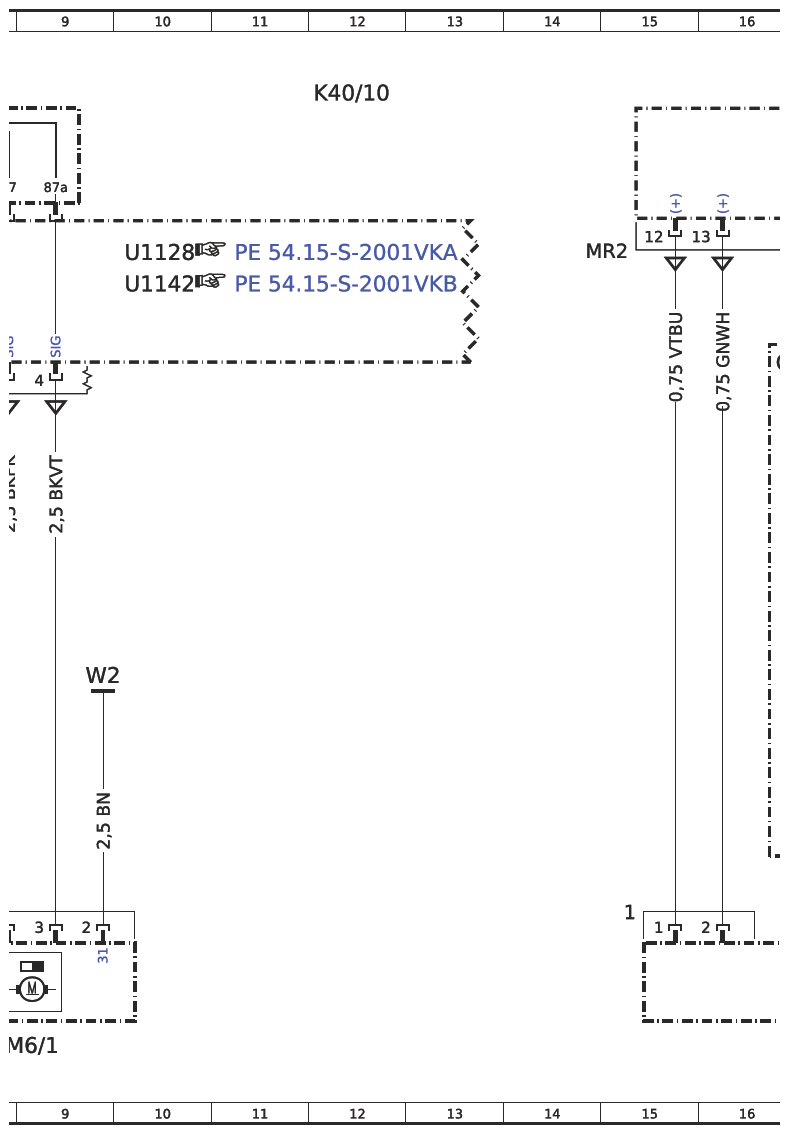

| M6/1 | Wiper motor | 9L |

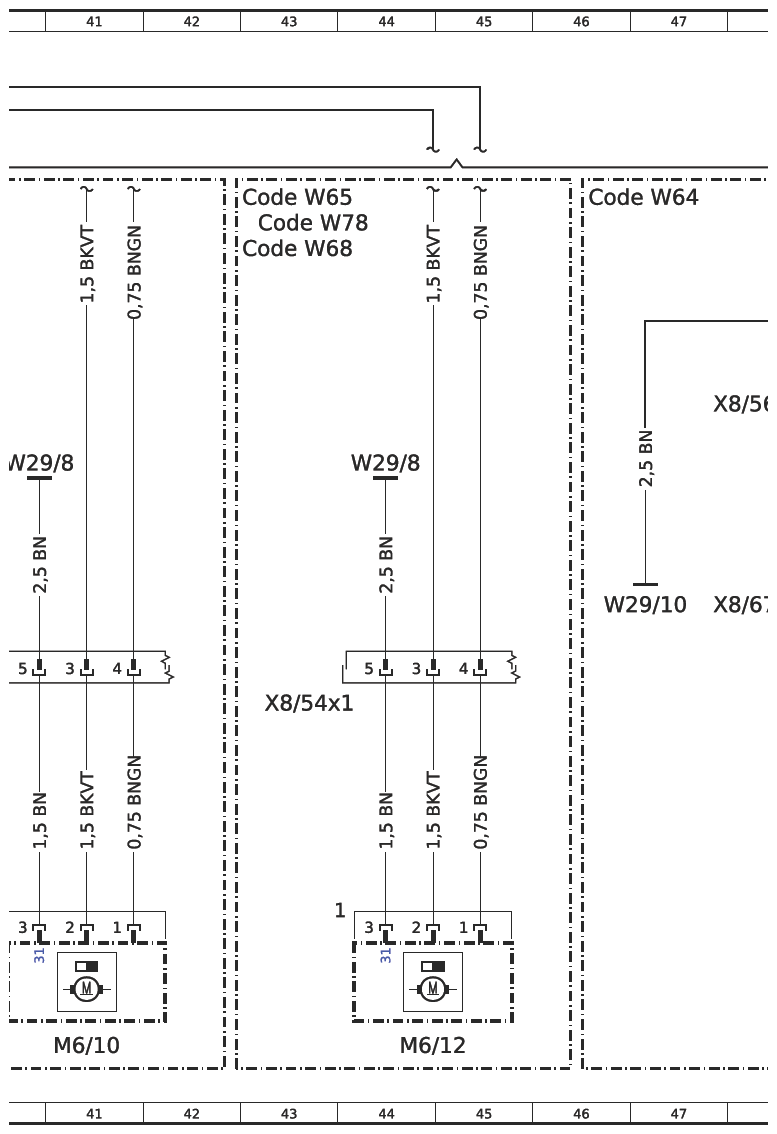

| M6/10 | Left rear-end door wiper motor | 41L |

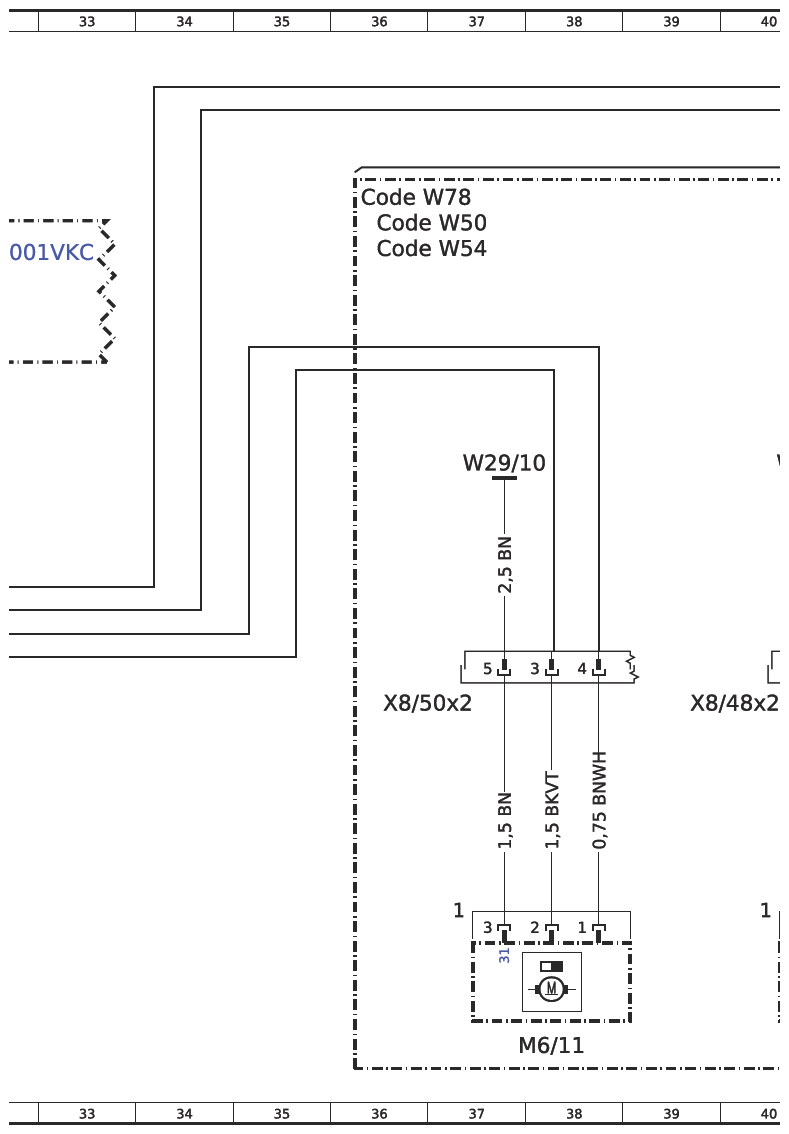

| M6/11 | Right rear-end door wiper motor | 38L |
| M6/12 | Tailgate wiper motor | 44L |

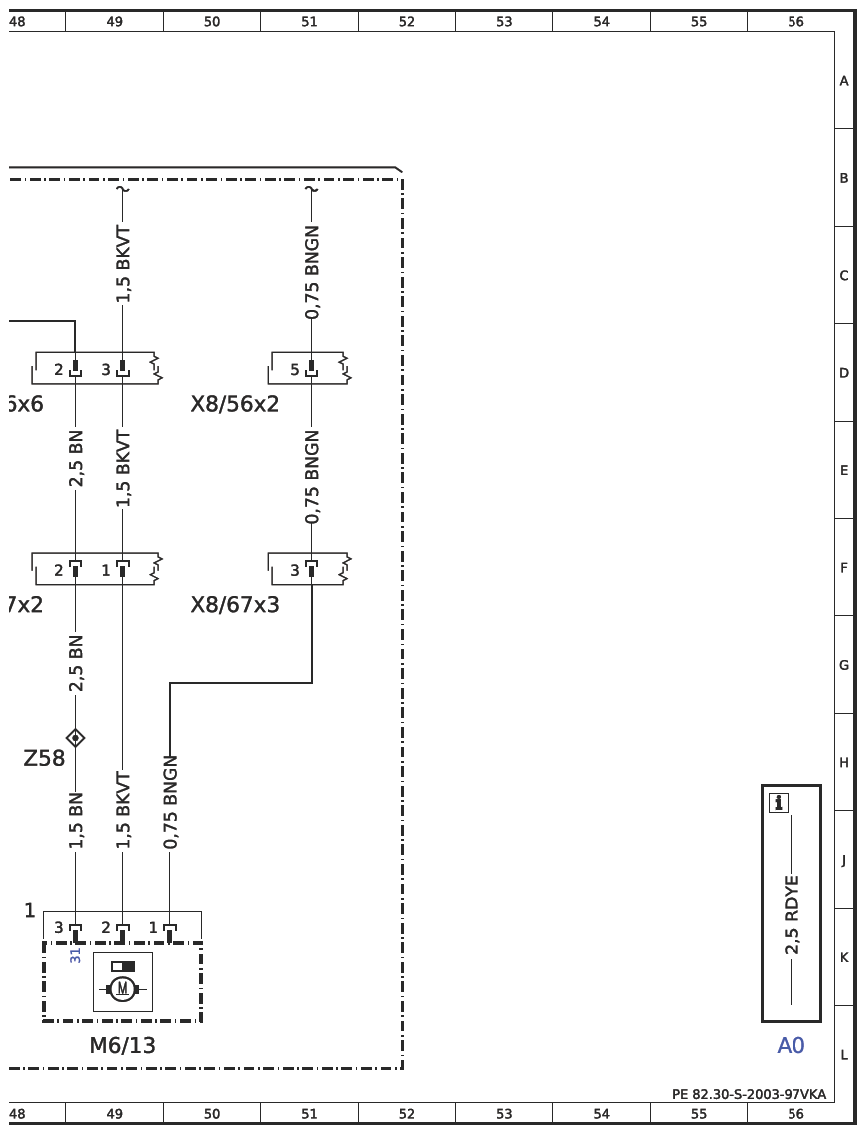

| M6/13 | Wiper motor of separately opening rear window | 49L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 27L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 4L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 17A |
| S42 | Windshield washer system water level indicator switch | 20L |
| U1128 | Valid for combustion engine | 10C |
| U1142 | Valid for electric vehicle | 10C |
| W2 | Right front lamp unit ground point | 9G |
| W29/10 | Right D-pillar ground point | 46F |
| W29/10 | Right D-pillar ground point | 37E |
| W29/8 | Left D-pillar ground point | 44E |
| W29/8 | Left D-pillar ground point | 40E |
| W9 | Left front lamp unit ground point | 18G |
| X8/48x2 | Left rear-end door electrical connector 2 | 40G |
| X8/50x2 | Right rear-end door electrical connector 2 | 37G |
| X8/54x1 | Left liftgate electrical connector 1 | 43G |
| X8/56x2 | Right liftgate electrical connector 2 | 50D |
| X8/56x6 | Right liftgate electrical connector 6 | 48D |
| X8/67x2 | Right liftgate/separately opening rear window electrical connector 2 | 48F |
| X8/67x3 | Right liftgate/separately opening rear window electrical connector 3 | 50F |
| Z58 | Liftgate tml. 31 connector sleeve | 48H |
