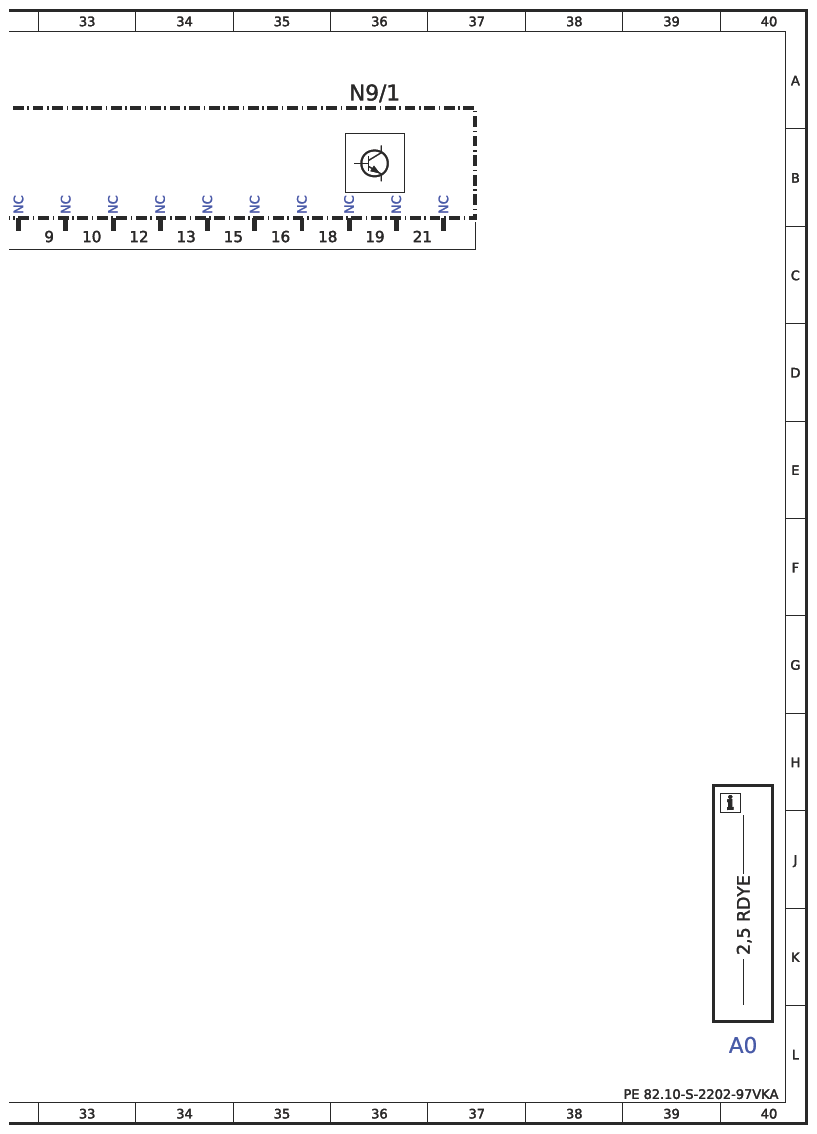

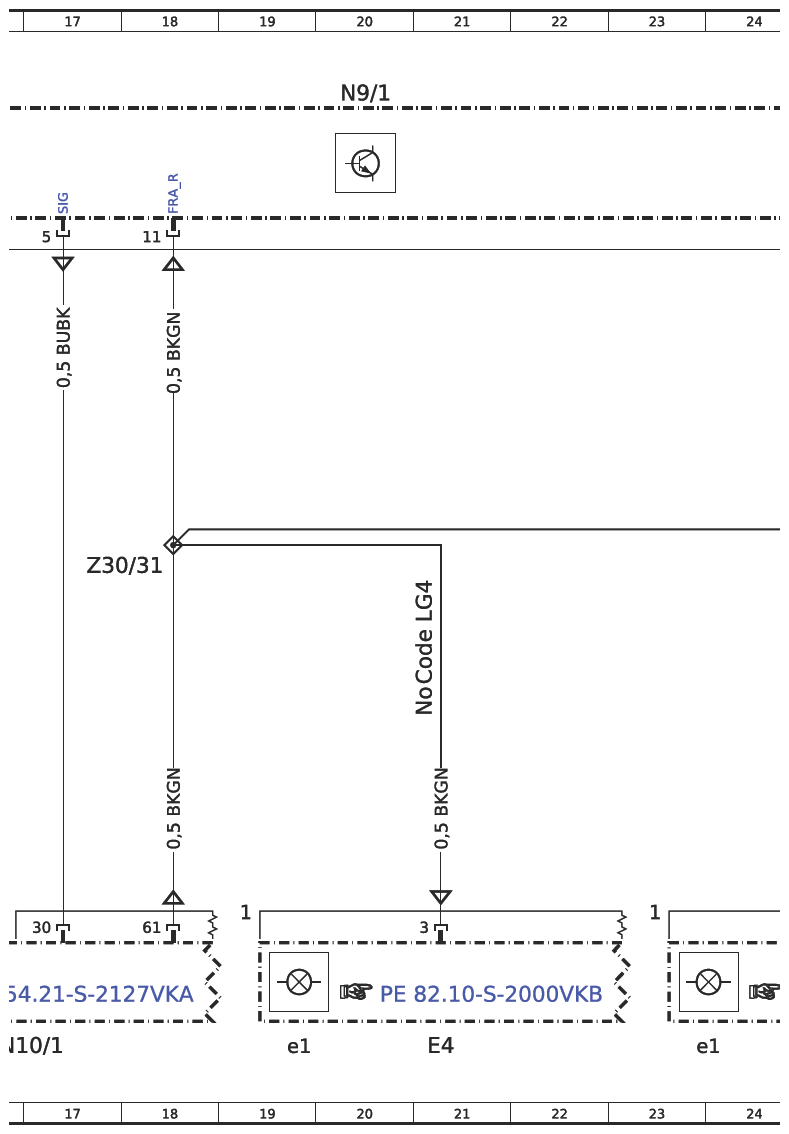

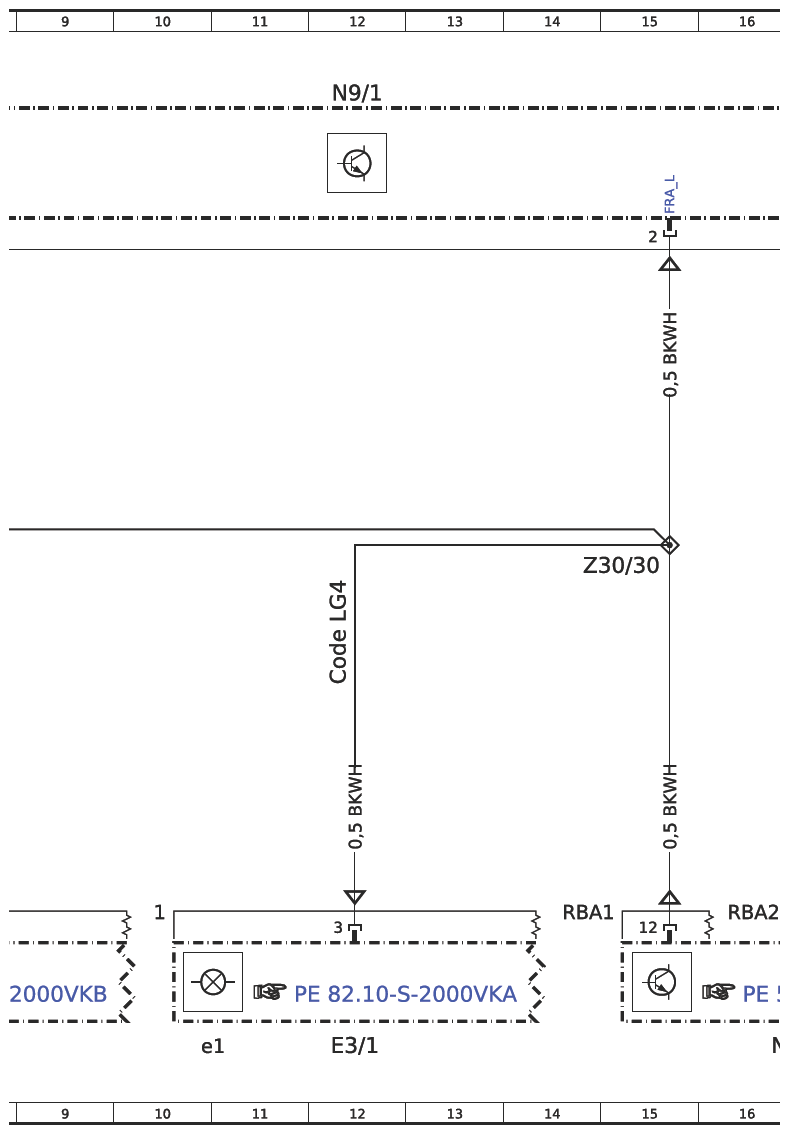

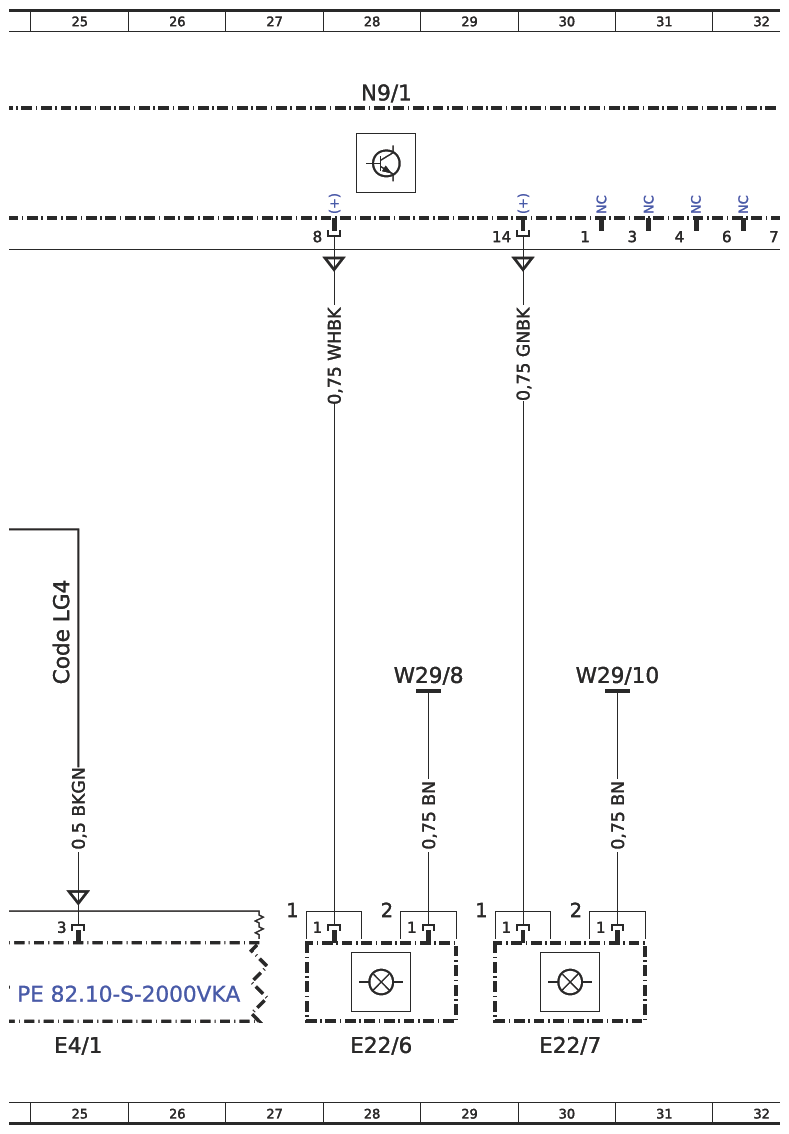

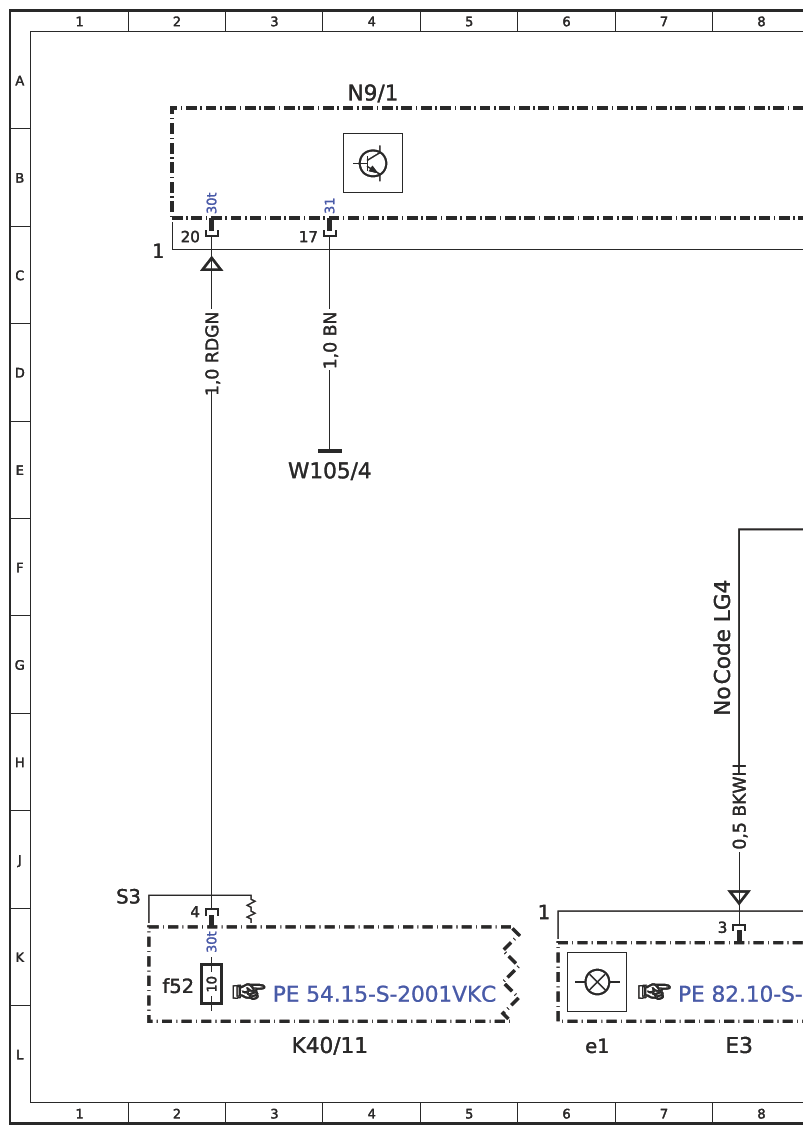

Wiring Diagram For Turn Signal/Hazard Warning Lights - PE82.10-S-2202-97VKA
Model 447 with code L84 (Blinker lights behind on roof) with code XM7 (MOPF II) N9/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 12G |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 8G |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 25G |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 21G |
| E3 | Left rear lamp unit | 8L |
| E3/1 | Left rear LED lamp unit | 12L |
| E3/1e1 | Left rear turn signal lamp | 10L |
| E3e1 | Left rear turn signal lamp | 6L |
| E4 | Right rear lamp unit | 21L |
| E4/1 | Right rear LED lamp unit | 25L |
| E4/1e1 | Right rear turn signal lamp | 23L |
| E4e1 | Right rear turn signal lamp | 19L |
| E22/6 | Left roof additional turn signal lamp | 28L |
| E22/7 | Right roof additional turn signal lamp | 30L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f52 | Fuse 52 | 2K |
| N9/1 | Additional turn signal module control unit | 4A |
| N9/1 | Additional turn signal module control unit | 36A |
| N9/1 | Additional turn signal module control unit | 20A |
| N9/1 | Additional turn signal module control unit | 12A |
| N9/1 | Additional turn signal module control unit | 28A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 16L |
| W29/8 | Left D-pillar ground point | 28G |
| W29/10 | Right D-pillar ground point | 30G |
| W105/4 | - | 3E |
| Z30/30 | Left additional turn signal connector sleeve | 15F |
| Z30/31 | Right additional turn signal connector sleeve | 18F |
