Wiring Diagram For Rear Window Wiper - PE82.30-S-2001-97VVD
Model 447.6 with code XM0 (Facelift) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) M16/10
Model 447.7 with code XM0 (Facelift) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) M16/10
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| Code L | Valid for left-hand drive vehicles | 1E |
| Code L | Valid for left-hand drive vehicles | 44E |
| Code L | Valid for left-hand drive vehicles | 36E |
| Code L | Valid for left-hand drive vehicles | 21F |
| Code R | Valid for right-hand drive vehicles | 1E |
| Code R | Valid for right-hand drive vehicles | 40E |
| Code R | Valid for right-hand drive vehicles | 47E |
| Code R | Valid for right-hand drive vehicles | 21F |
| Code R | Valid for right-hand drive vehicles | 43B |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 16B |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 16C |

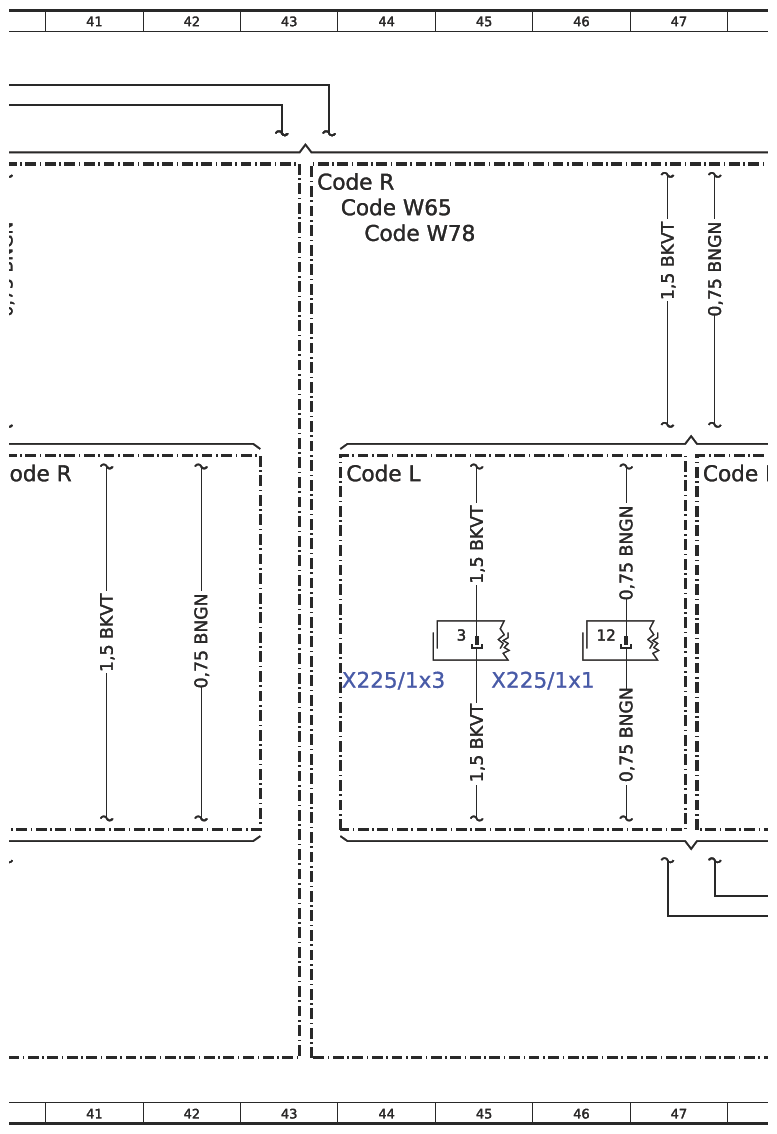

| Code W65 | Liftgate | 44B |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 4E |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 44C |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 15B |

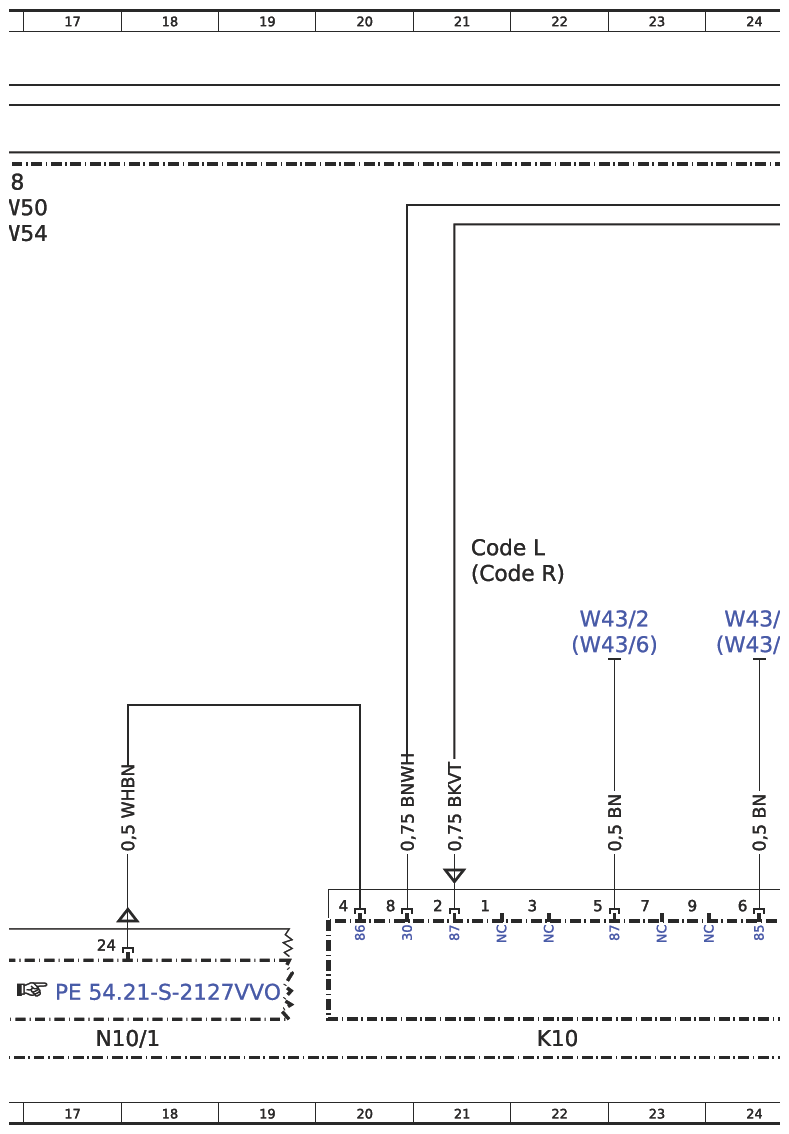

| K10 | Rear window wiper 2 relay | 22L |
| K40/11 | Firewall fuse and relay module | 3A |
| K40/11 | Firewall fuse and relay module | 12A |
| K40/11 | Firewall fuse and relay module | 28L |
| K40/11f66 | Fuse 66 | 27L |

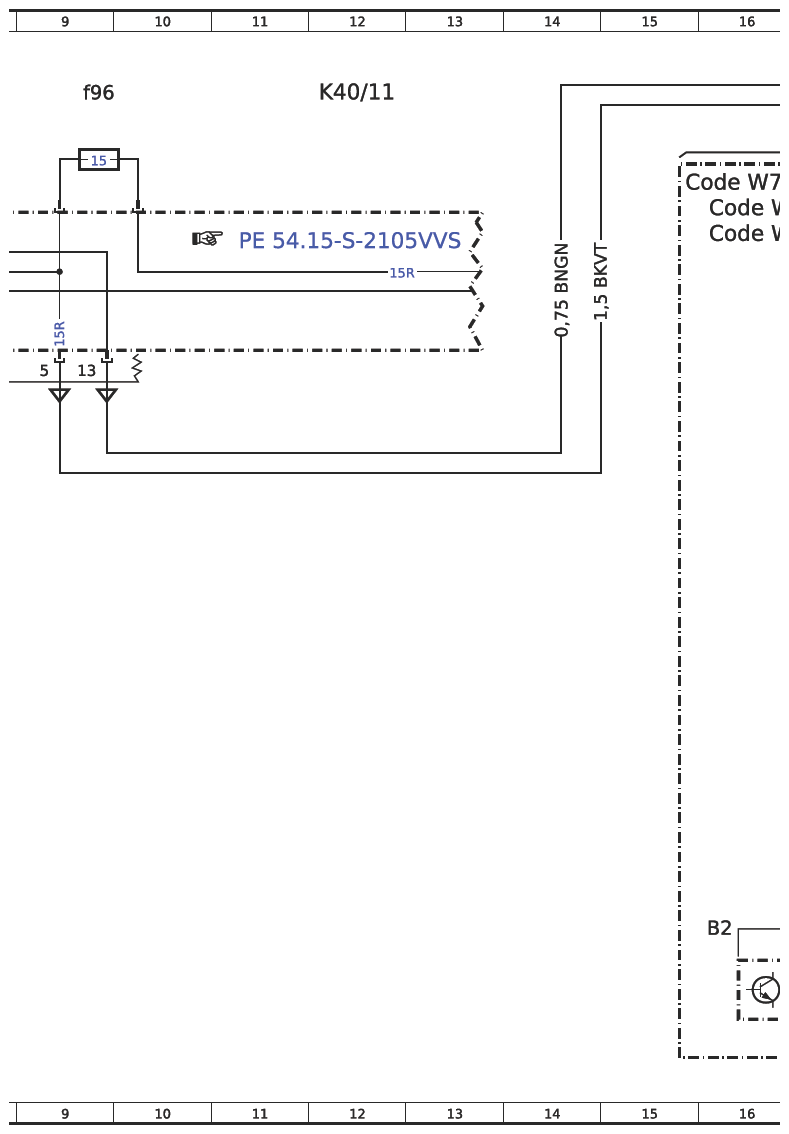

| K40/11f96 | Fuse 96 | 9A |

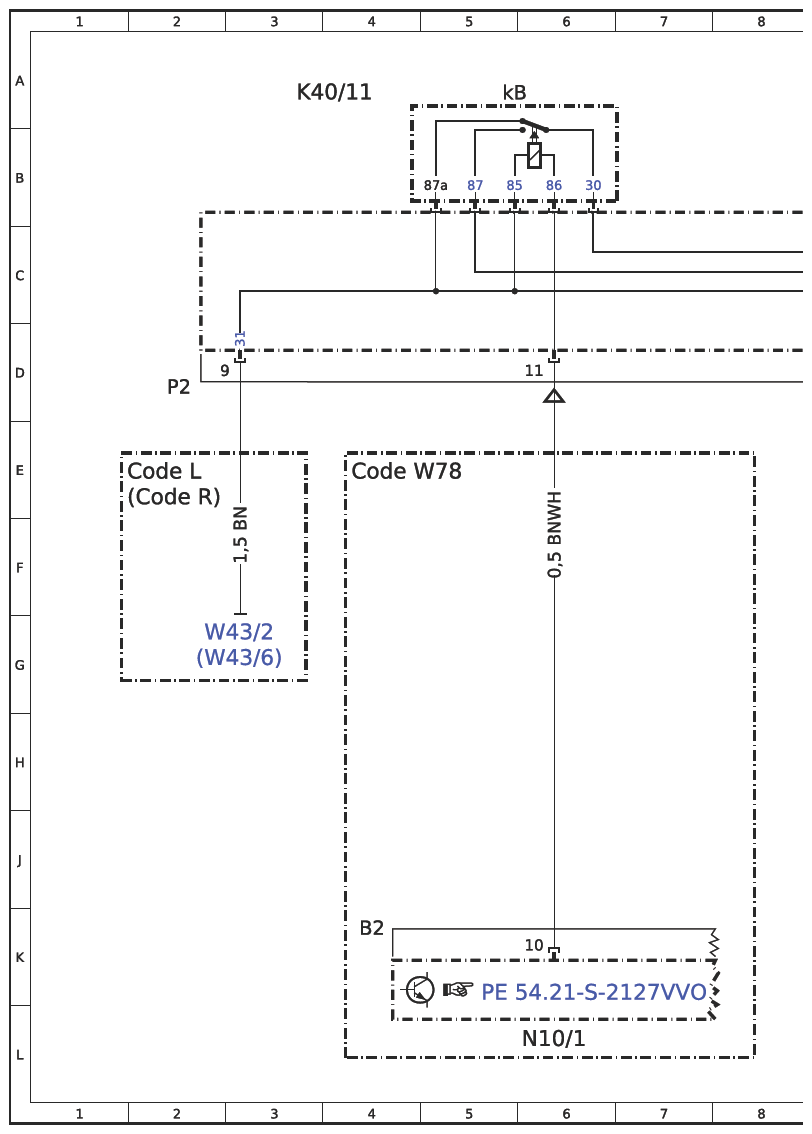

| K40/11kB | Rear window wiper relay | 5A |

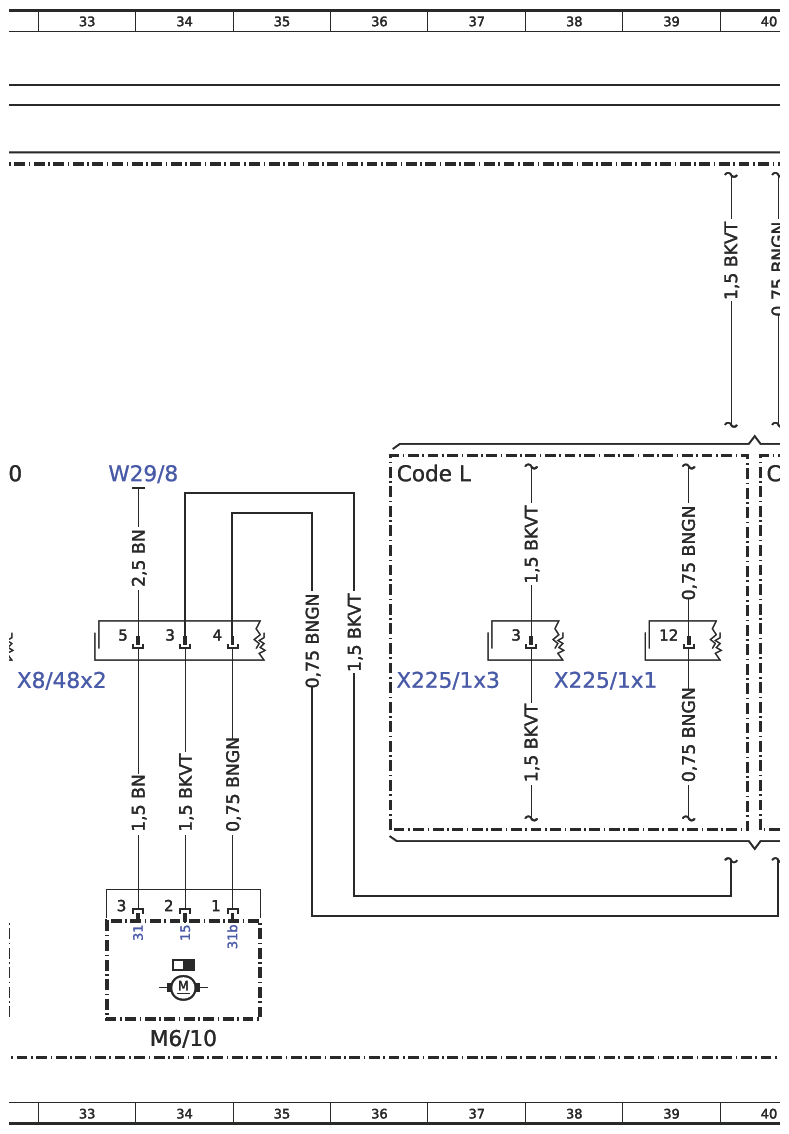

| M6/10 | Left rear-end door wiper motor | 34L |

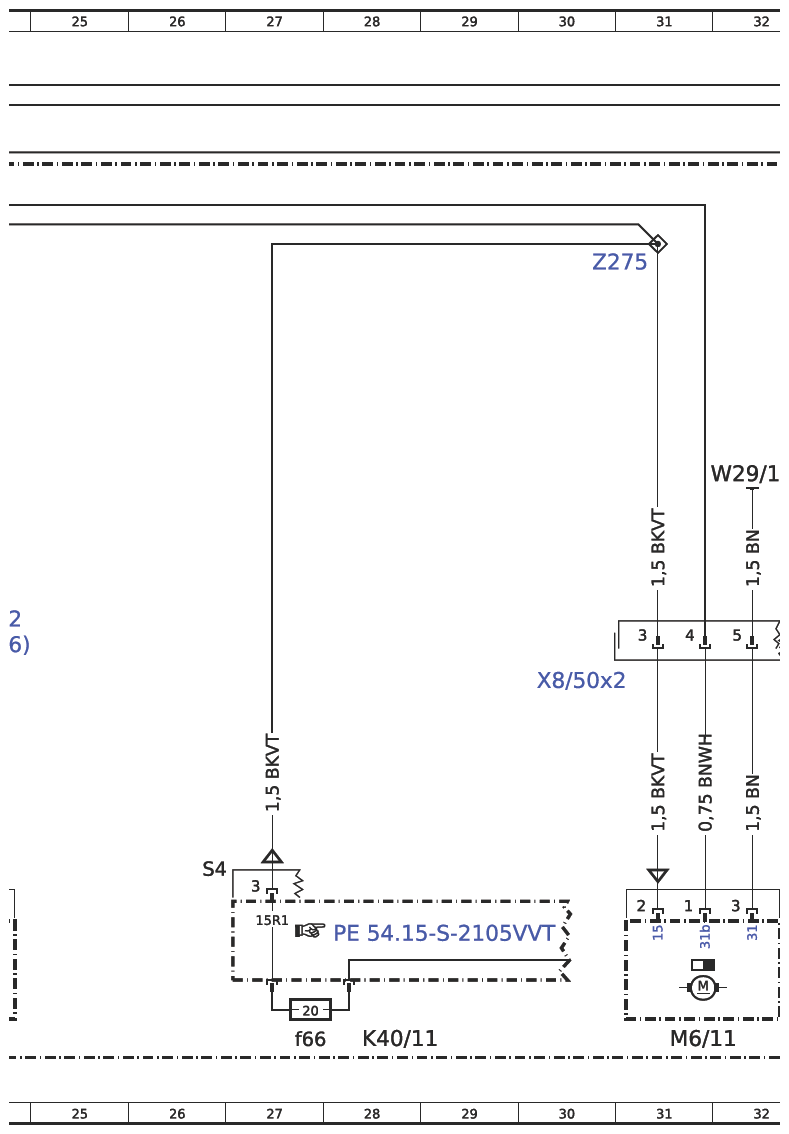

| M6/11 | Right rear-end door wiper motor | 31L |

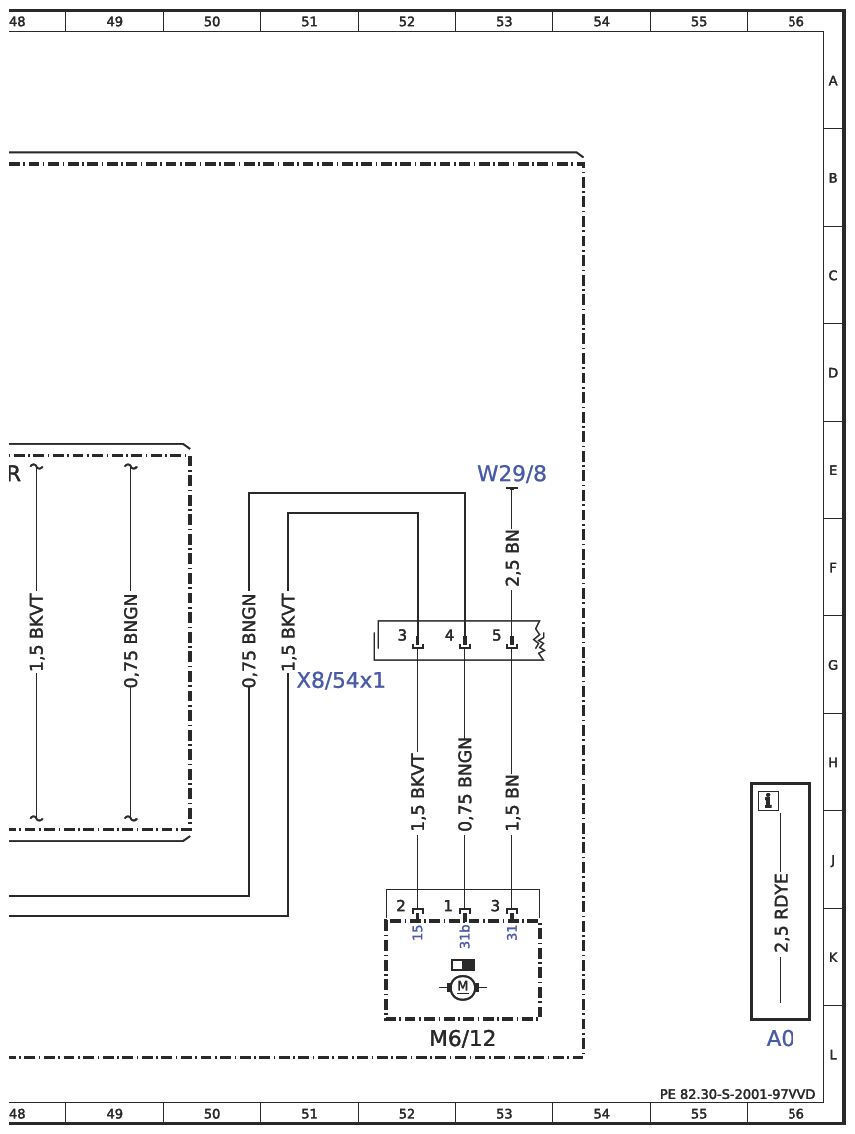

| M6/12 | Tailgate wiper motor | 52L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 6L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 17L |
| W29/10 | Right D-pillar ground point | 32E |
| W29/8 | Left D-pillar ground point | 33E |
| W29/8 | Left D-pillar ground point | 53E |
| W43/2 | Right vehicle interior firewall ground point | 3G |
| W43/2 | Right vehicle interior firewall ground point | 22G |
| W43/2 | Right vehicle interior firewall ground point | 24G |
| W43/6 | Left vehicle interior firewall ground point 2 | 2G |
| W43/6 | Left vehicle interior firewall ground point 2 | 22G |
| W43/6 | Left vehicle interior firewall ground point 2 | 24G |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 46G |
| X225/1x1 | Main wiring harness/firewall main wiring harness 1 electrical connector | 38G |
| X225/1x3 | Main wiring harness/firewall main wiring harness 3 electrical connector | 44G |
| X225/1x3 | Main wiring harness/firewall main wiring harness 3 electrical connector | 37G |
| X8/48x2 | Left rear-end door electrical connector 2 | 33G |
| X8/50x2 | Right rear-end door electrical connector 2 | 30G |
| X8/54x1 | Left liftgate electrical connector 1 | 51G |
| Z275 | Rear window wiper relay tml. 15R connector sleeve | 31C |
