Wiring Diagram For Rear Window Wiper - PE82.30-S-2001-97VVB
Model 447.6 except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) K10
Model 447.7 except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) K10
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 56L |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 15B |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 15B |
| Code W65 | Liftgate | 43B |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 43B |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 15C |
| Code W78 | Window in liftgate/hinged rear door with wash/wipe system | 4E |

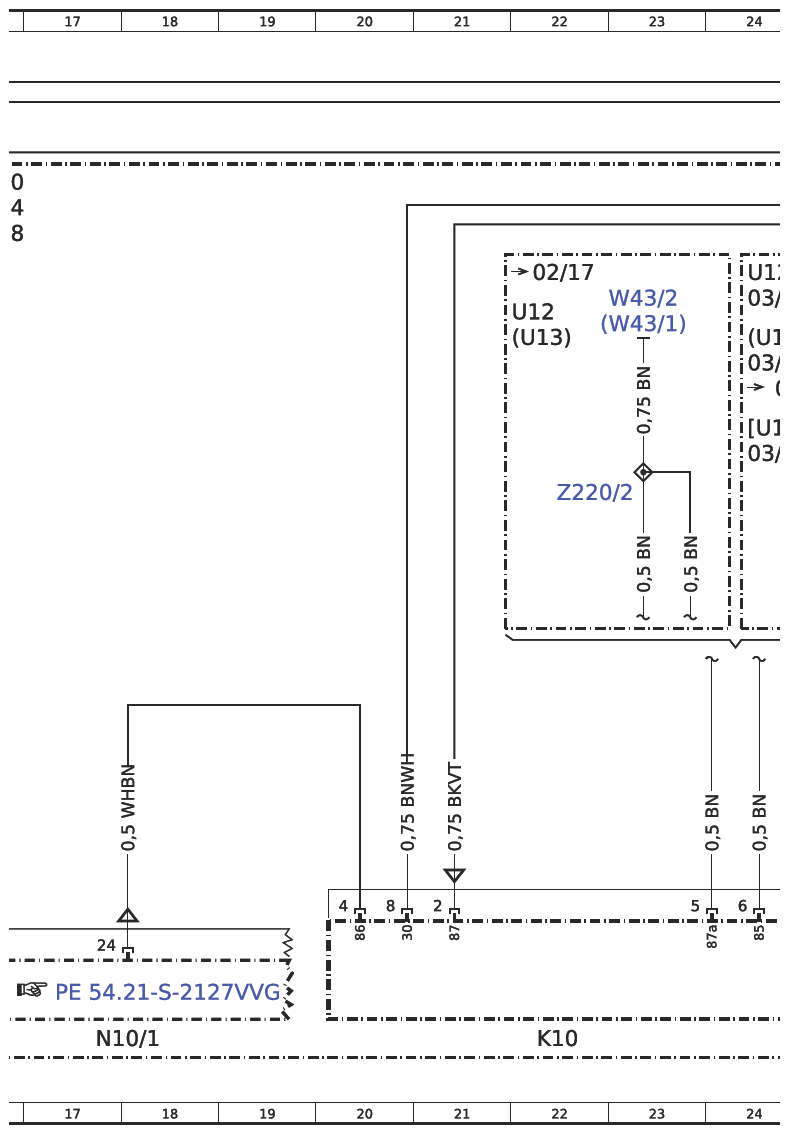

| K10 | Rear window wiper 2 relay | 22L |
| K40/11 | Firewall fuse and relay module | 28L |
| K40/11 | Firewall fuse and relay module | 4A |
| K40/11 | Firewall fuse and relay module | 12A |
| K40/11f66 | Fuse 66 | 27L |

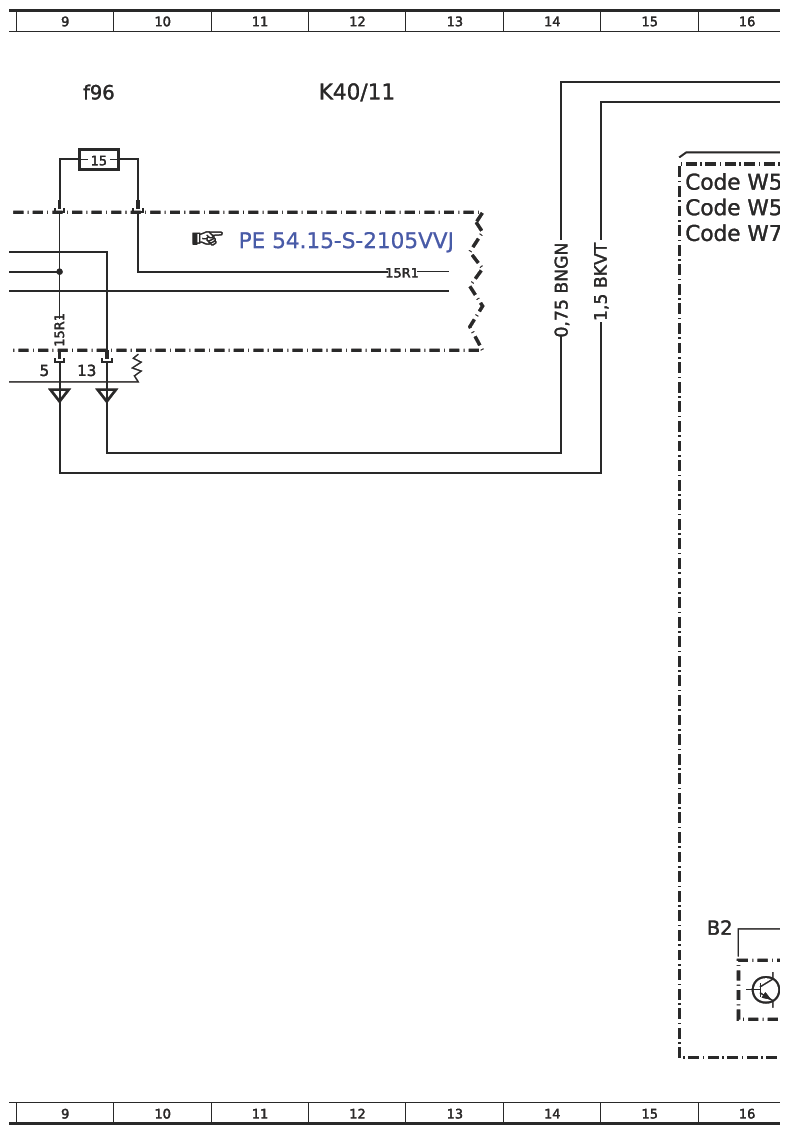

| K40/11f96 | Fuse 96 | 9A |

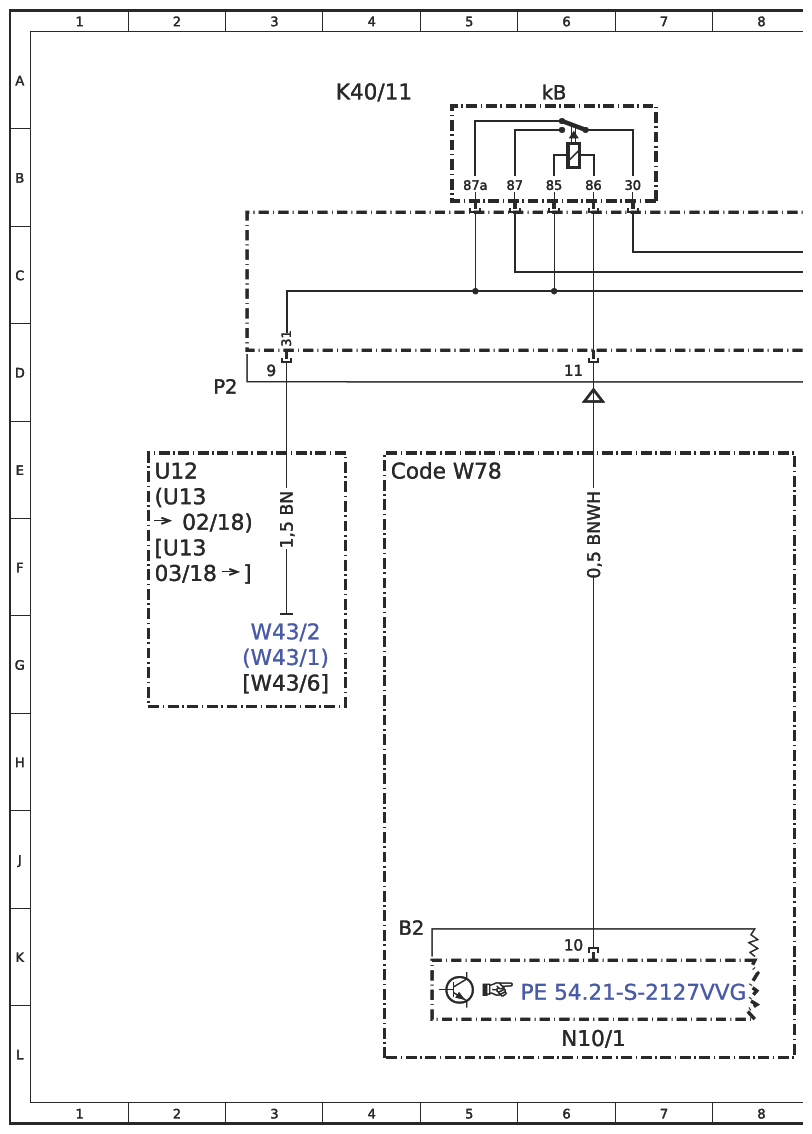

| K40/11kB | Rear window wiper relay | 6A |

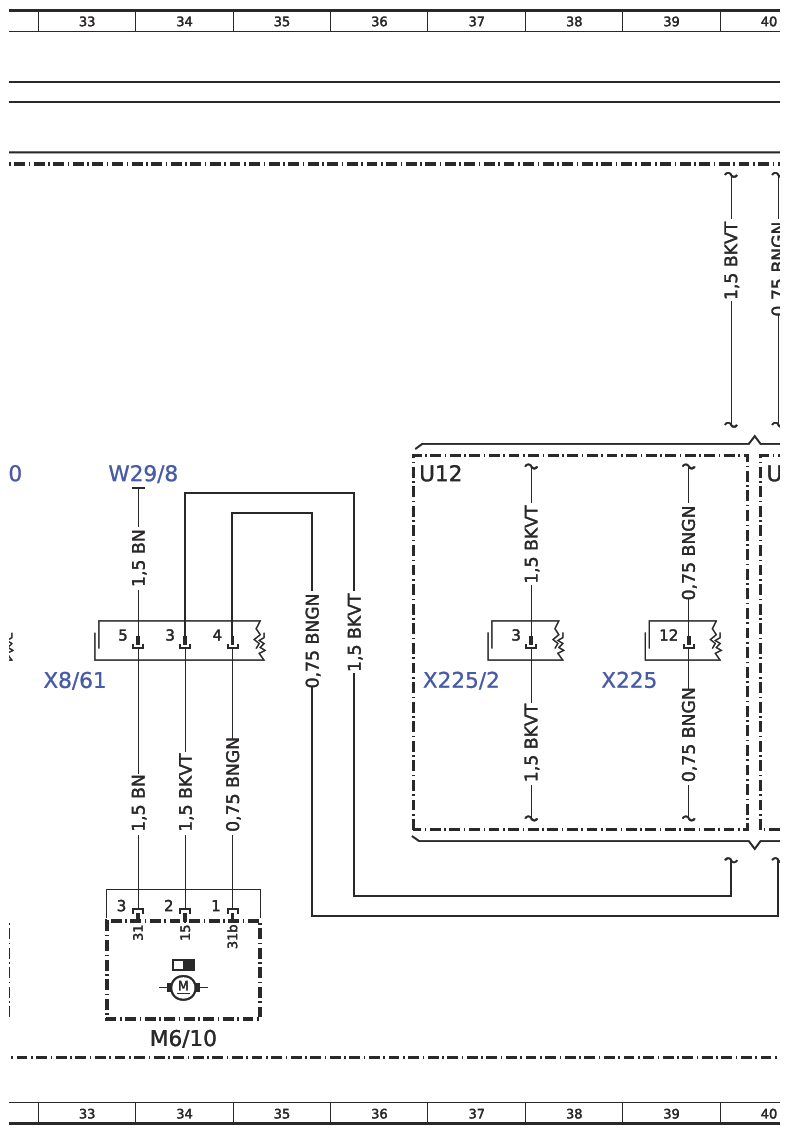

| M6/10 | Left rear-end door wiper motor | 34L |

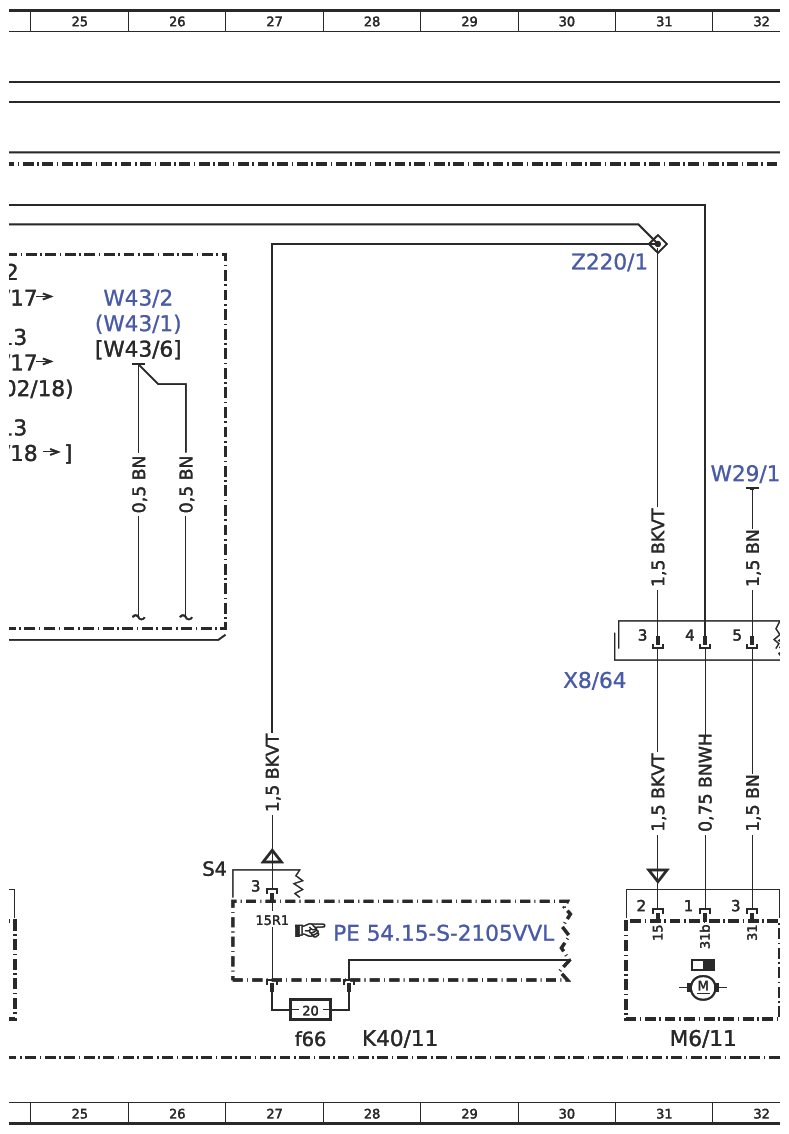

| M6/11 | Right rear-end door wiper motor | 31L |

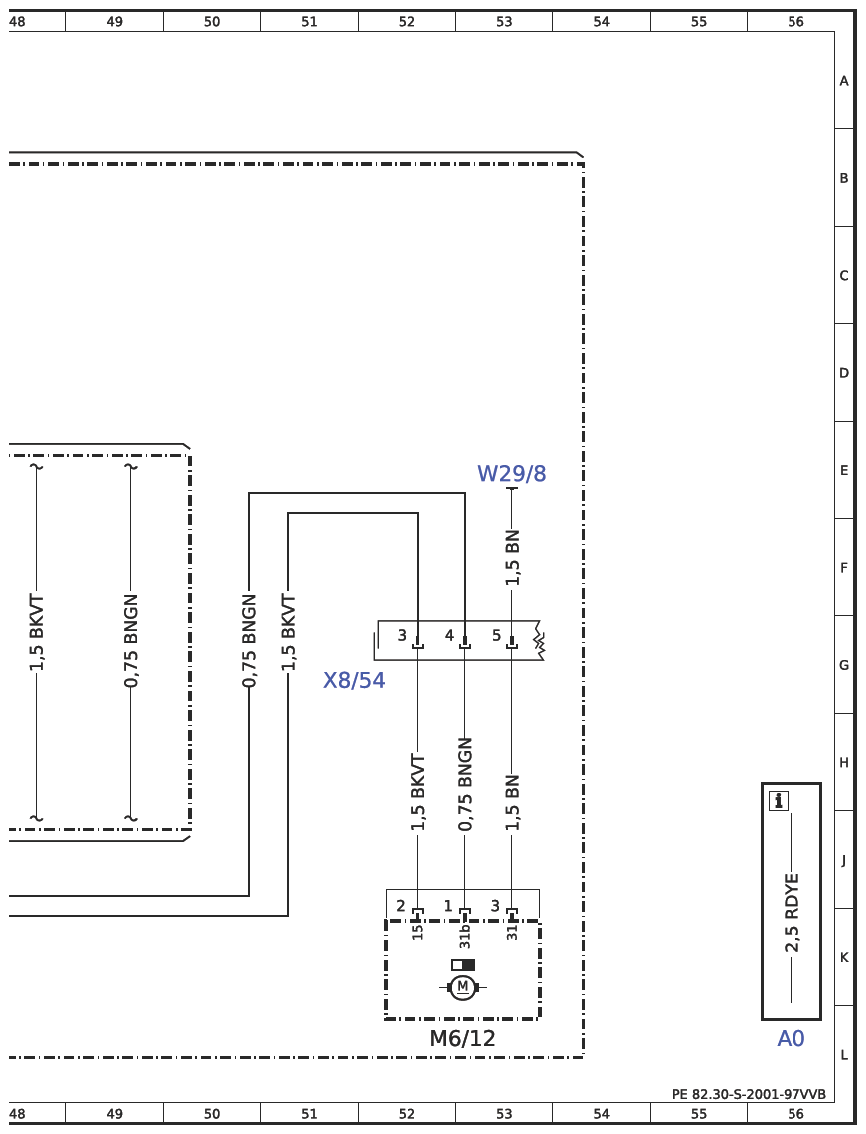

| M6/12 | Tailgate wiper motor | 52L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 17L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 6L |
| U12 | Valid for left-hand drive vehicles | 44E |
| U12 | Valid for left-hand drive vehicles | 36E |
| U12 | Valid for left-hand drive vehicles | 2E |
| U12 | Valid for left-hand drive vehicles | 22C |
| U12 | Valid for left-hand drive vehicles | 24C |
| U13 | Valid for right-hand drive vehicles | 40E |
| U13 | Valid for right-hand drive vehicles | 47E |
| U13 | Valid for right-hand drive vehicles | 2E |
| U13 | Valid for right-hand drive vehicles | 22D |
| U13 | Valid for right-hand drive vehicles | 24D |
| W29/10 | Right D-pillar ground point | 32E |
| W29/8 | Left D-pillar ground point | 33E |
| W29/8 | Left D-pillar ground point | 53E |
| W43/1 | Left vehicle interior firewall ground point | 3G |
| W43/1 | Left vehicle interior firewall ground point | 23D |
| W43/1 | Left vehicle interior firewall ground point | 25D |
| W43/2 | Right vehicle interior firewall ground point | 3G |
| W43/2 | Right vehicle interior firewall ground point | 23C |
| W43/2 | Right vehicle interior firewall ground point | 25C |

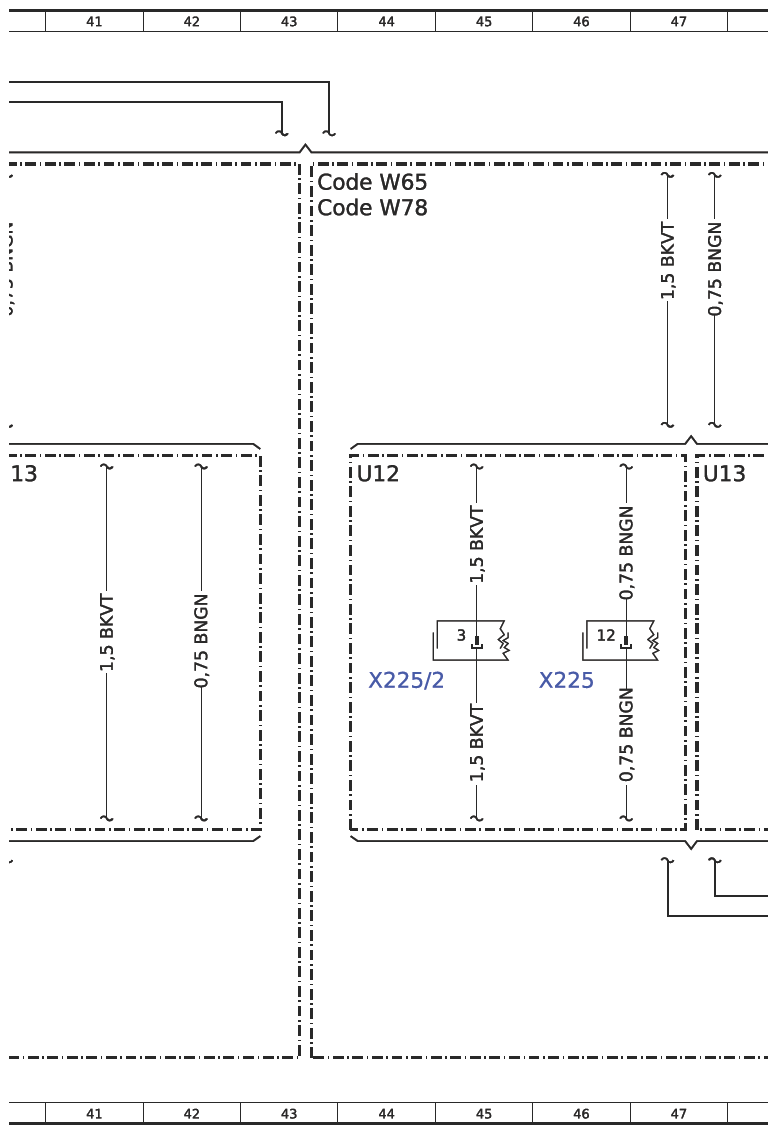

| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 46G |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 39G |
| X225/2 | Main wiring harness/firewall main wiring harness 3 electrical connector | 44G |
| X225/2 | Main wiring harness/firewall main wiring harness 3 electrical connector | 37G |
| X8/54 | Left liftgate electrical connector 1 | 52G |
| X8/61 | Left rear-end door electrical connector 2 | 33G |
| X8/64 | Right rear-end door electrical connector 2 | 30G |
| Z220/1 | Rear window wiper relay tml. 15R connector sleeve | 31C |
| Z220/2 | Rear window wiper relay tml. 31 connector sleeve | 22E |
