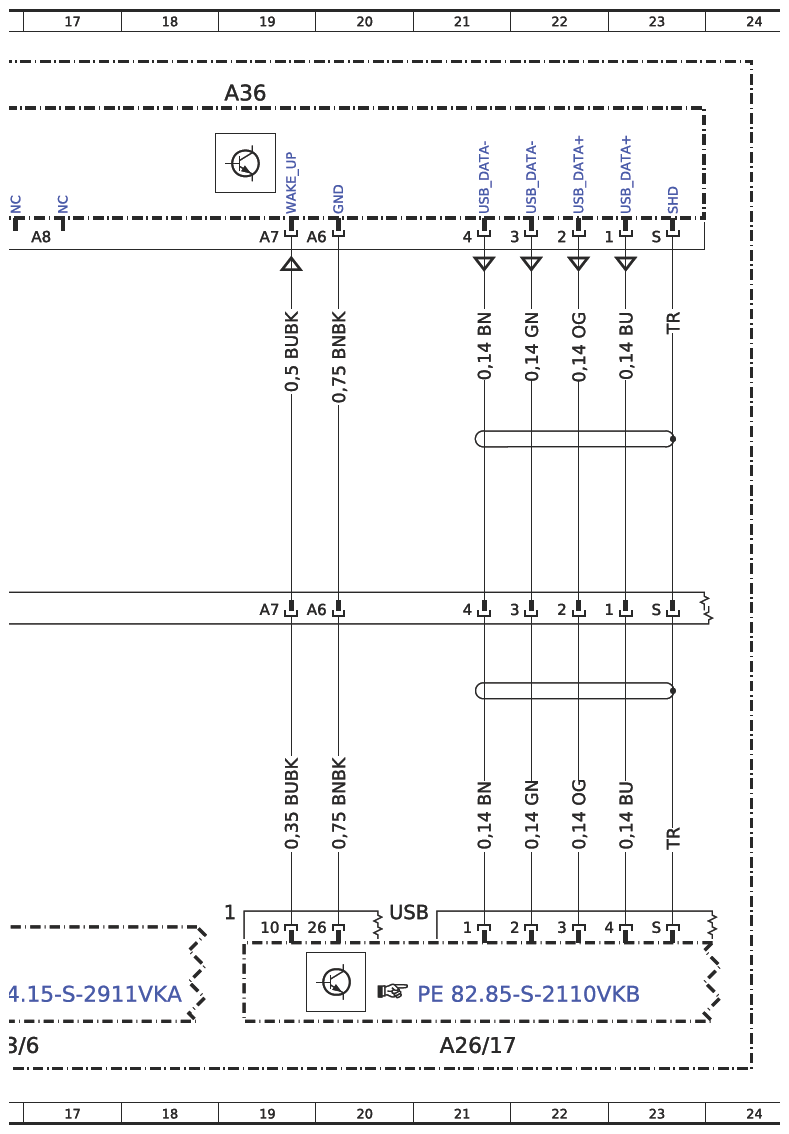

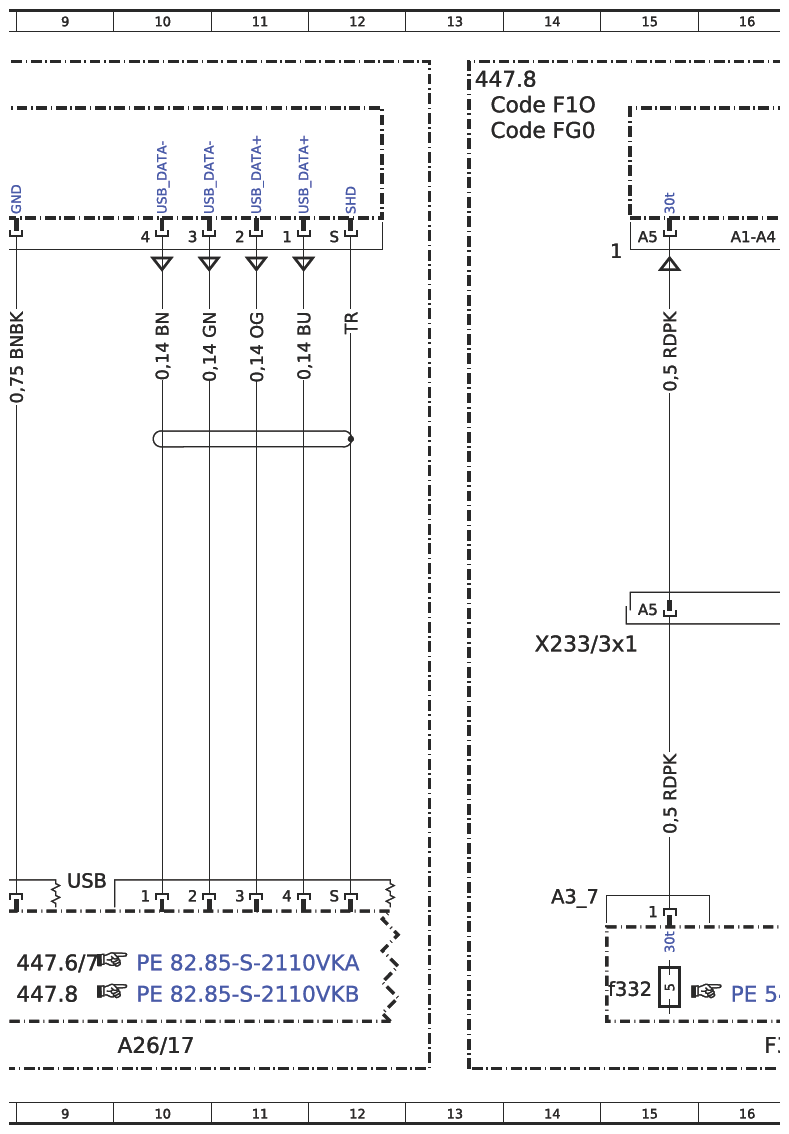

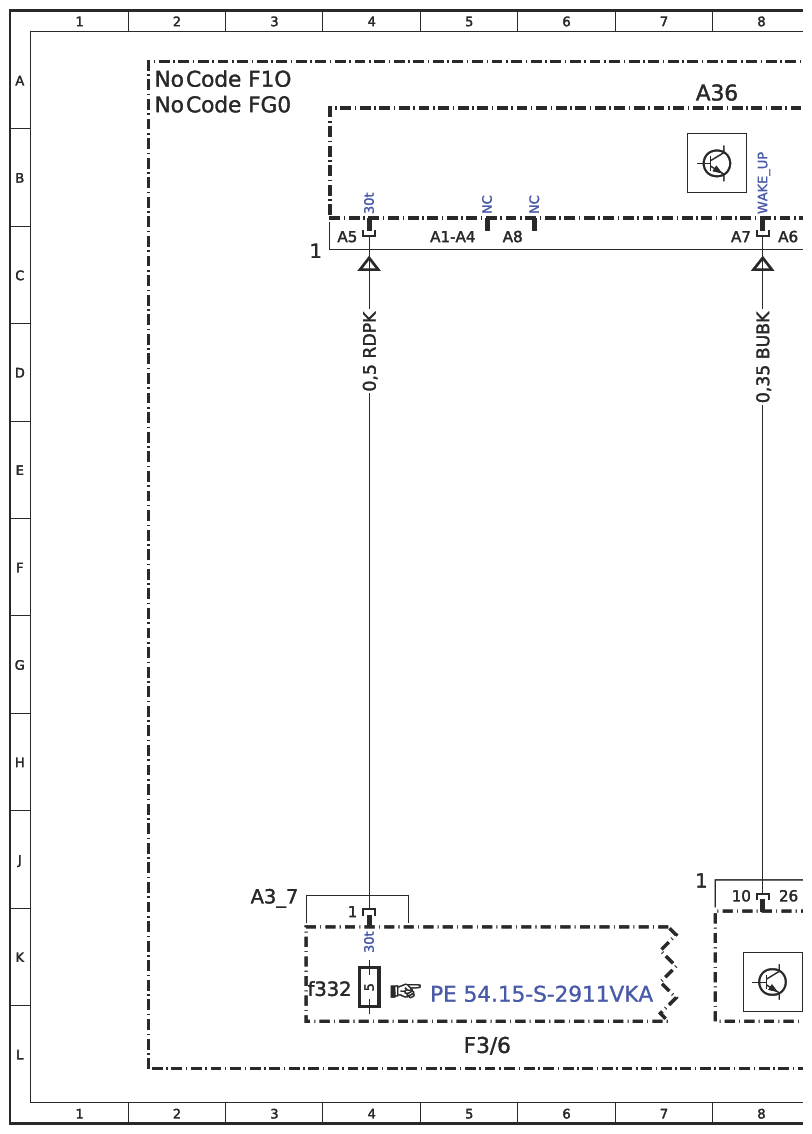

Wiring Diagram For Multimedia Connection Unit - PE82.60-S-2109-97VKA
Model 447 with code XM7 (MOPF II) A36
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A26/17 | Head unit | 21L |
| A26/17 | Head unit | 10L |
| A36 | Multimedia connection unit | 7A |
| A36 | Multimedia connection unit | 19A |
| Code F1O | Center console with stowage compartment and cup holder, cent. vers. | 2A |
| Code F1O | Center console with stowage compartment and cup holder, cent. vers. | 13A |
| Code FG0 | Center console with roller shutter door | 2A |
| Code FG0 | Center console with roller shutter door | 13B |
| F3/6 | Cockpit circuit 30/30t fuse box | 5L |
| F3/6 | Cockpit circuit 30/30t fuse box | 16L |
| F3/6f332 | Fuse 332 | 4K |
| F3/6f332 | Fuse 332 | 15K |
| X233/3x1 | Center console USB electrical connector 1 | 14G |
