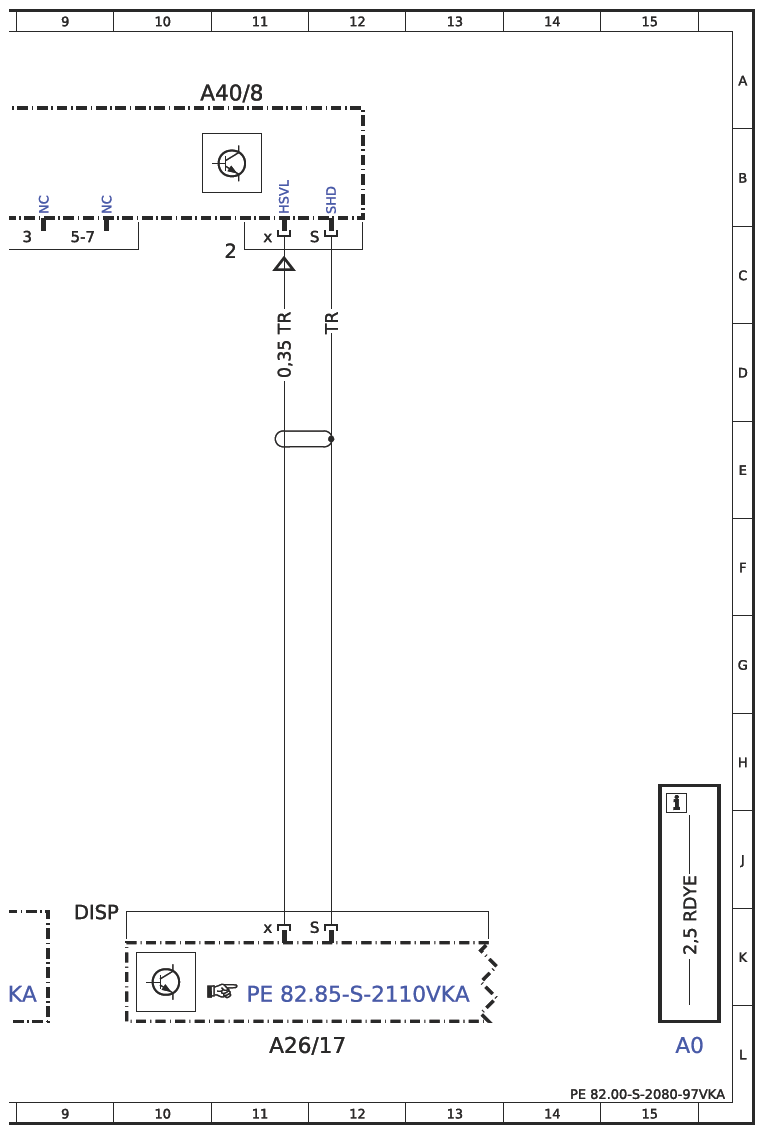

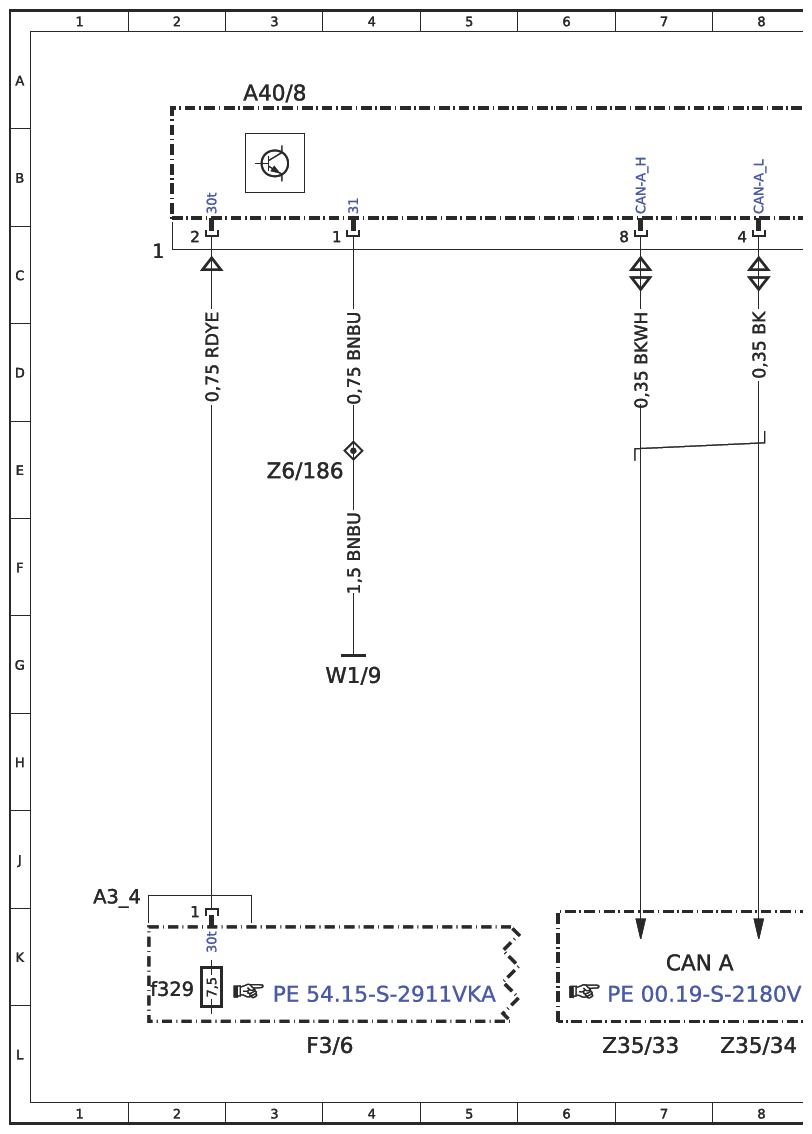

Wiring Diagram For Audio/COMAND Display - PE82.00-S-2080-97VKA
Model 447.6/7 with code E7M (MBUX multimedia system) with code XM7 (MOPF II) A40/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A26/17 | Head unit | 11L |
| A40/8 | Audio/COMAND display control unit | 3A |
| A40/8 | Audio/COMAND display control unit | 11A |
| CAN A | Telematics CAN | 7K |
| F3/6 | Cockpit circuit 30/30t fuse box | 3L |
| F3/6f329 | Electrical fuse 329 | 2K |
| W1/9 | Right cockpit ground point | 4G |
| Z35/33 | Telematics CAN (high) connector sleeve | 7L |
| Z35/34 | Telematics CAN (low) connector sleeve | 8L |
| Z6/186 | Cockpit ground connection connector sleeve 2 | 3E |
