Function Schematic, Intelligent Light Distribution - PE82.10-S-2517-97A
Model 447 with code L45 (Multibeam LED with high beam assist plus) with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 11B |
| 10 | Engine running, signal | 30H |
| 10 | Engine running, signal | 36H |
| 10 | Engine running, signal | 49H |
| 11 | Drivetrain operational, signal | 35H |
| 11 | Drivetrain operational, signal | 49J |
| 12 | Headlamp range adjustment actuator motor, actuation | 40C |
| 12 | Headlamp range adjustment actuator motor, actuation | 49C |
| 13 | Synchronization, signal | 47F |
| 2 | Low beams, request | 20A |
| 2 | Low beams, request | 36D |
| 3 | Variable light distribution function, status | 35D |
| 3 | Variable light distribution function, status | 20D |
| 4 | Map data, signal | 35D |
| 4 | Map data, signal | 20D |
| 5 | Steering wheel angle, signal | 34D |
| 5 | Steering wheel angle, signal | 20F |
| 6 | Wheel speed, signal | 36C |
| 6 | Wheel speed, signal | 20G |
| 7 | Speed, turn rate and lateral acceleration, signal | 20G |
| 8 | Ambient information, data | 20J |
| 8 | Ambient information, data | 35C |
| 8 | Ambient information, data | 50H |
| 9 | Combination switch, status | 35C |
| A26/17 | Head unit | 10E |
| B84/8 | Multifunction camera (MFK) control unit | 5J |
| CAN B | Interior CAN | 17B |
| CAN C1 | Engine CAN | 29J |
| CAN HMI2 | User interface CAN 2 | 17D |
| CAN PER | Peripherals CAN | 34J |
| CAN PER | Peripherals CAN | 26D |
| CAN PER | Peripherals CAN | 33D |
| CAN PER | Peripherals CAN | 43L |
| CAN PER | Peripherals CAN | 43J |
| CAN PER | Peripherals CAN | 43G |
| CAN PER | Peripherals CAN | 50K |
| Code E7M | MBUX multimedia system | 9C |
| Code JA3 | Intelligent body control | 4G |
| Code JB4 | Active Lane Keeping Assist | 4H |

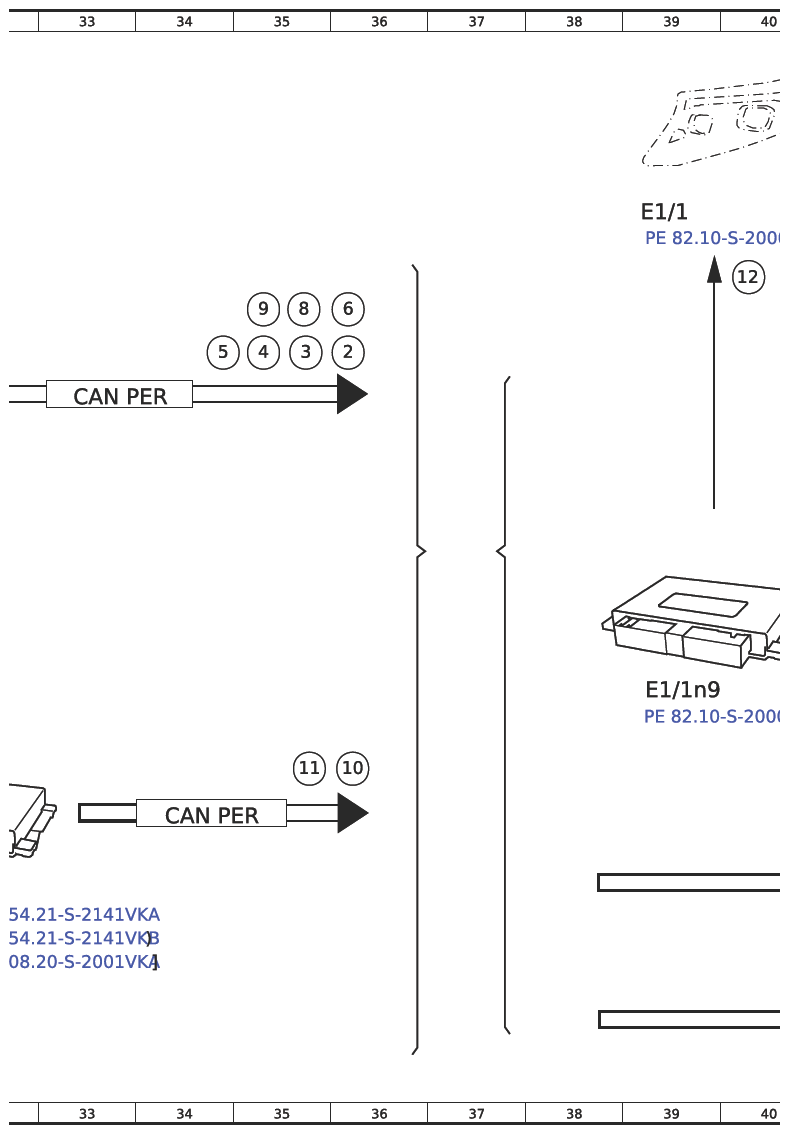

| E1/1 | Left front LED lamp unit | 39B |
| E1/1n9 | Left headlamp control unit | 39G |

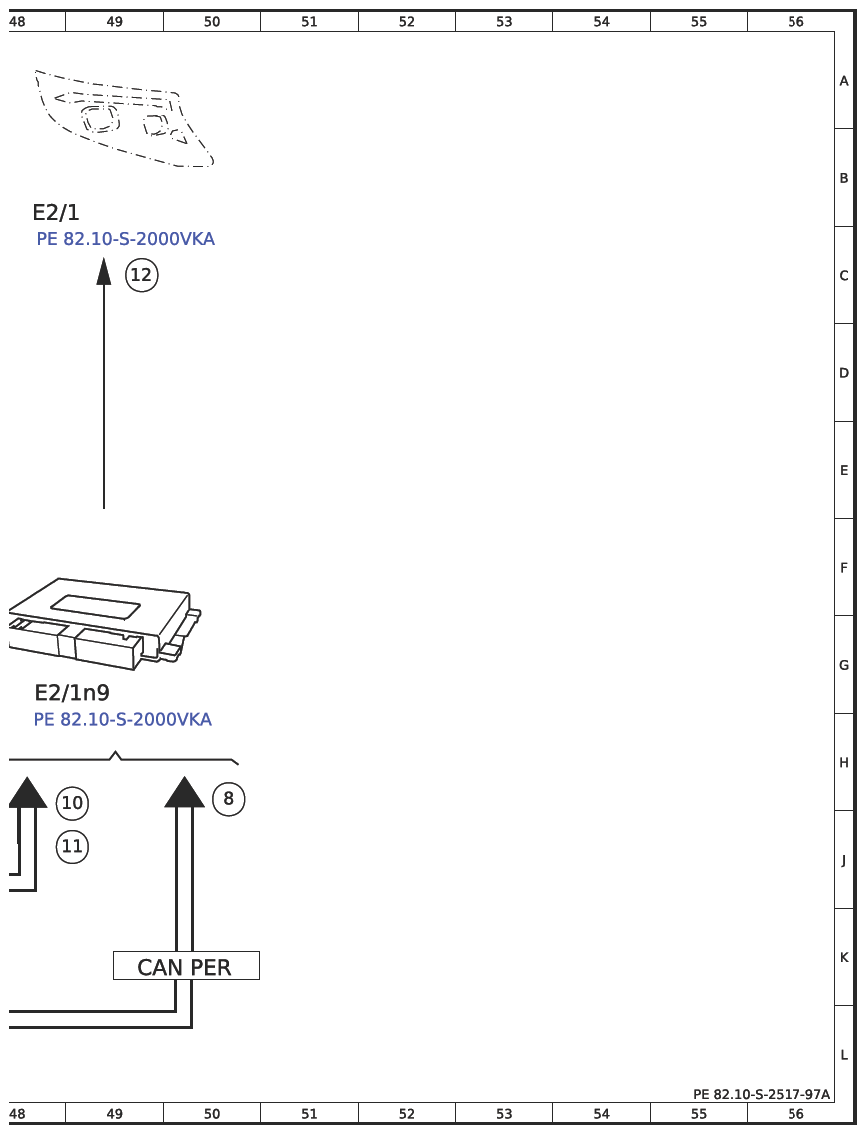

| E2/1 | Right front LED lamp unit | 48B |
| E2/1 n9 | Right headlamp control unit | 48G |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 17H |
| Flex E | Chassis FlexRay | 17J |
| Flex E | Chassis FlexRay | 17F |

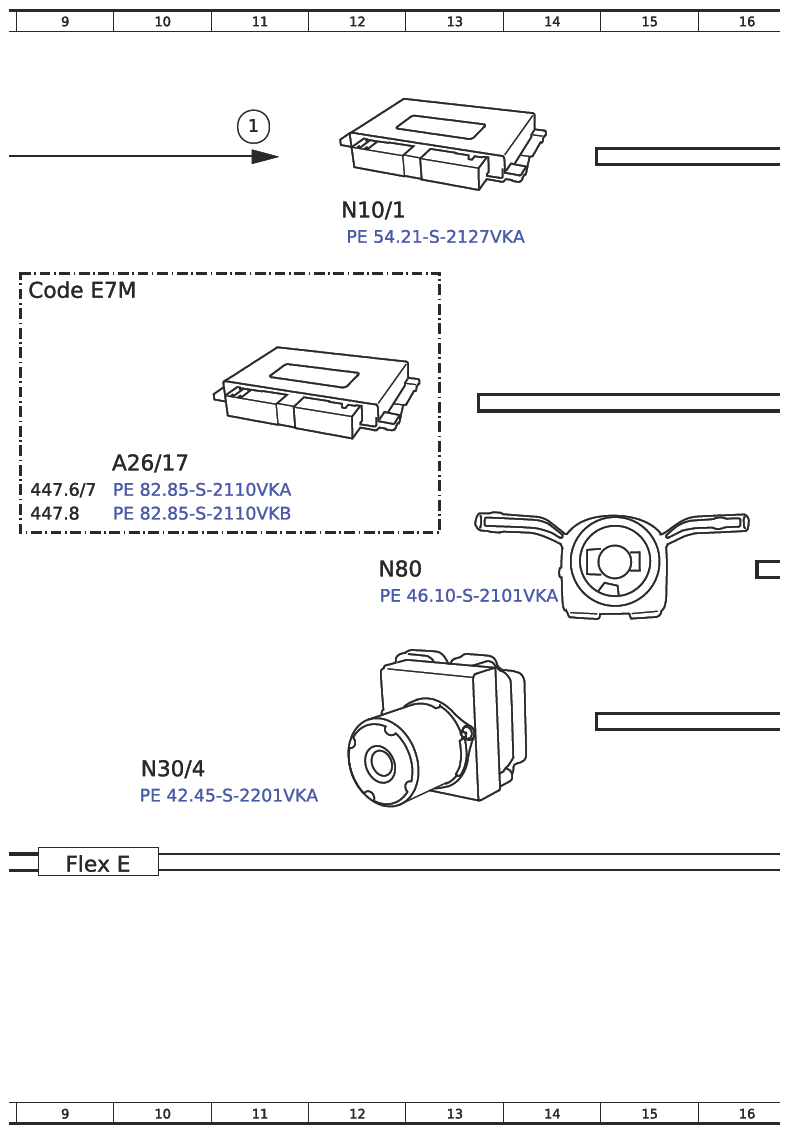

| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12B |

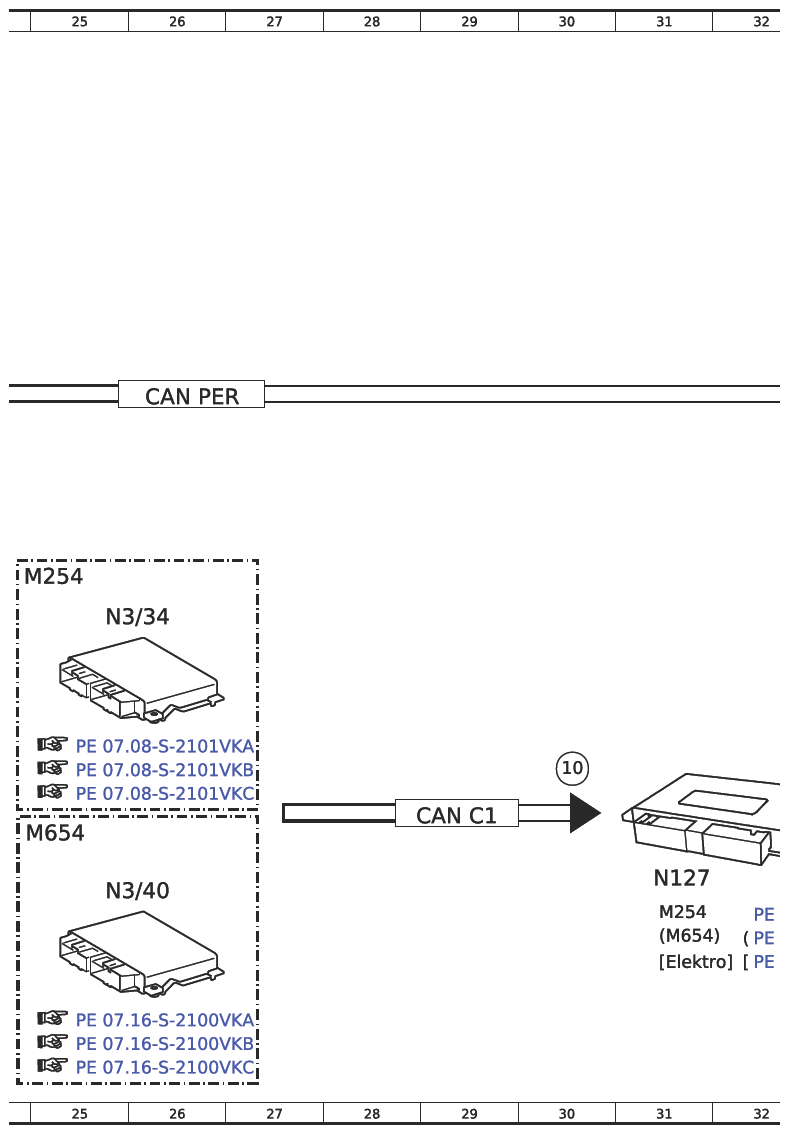

| N127 | Drivetrain control unit | 31J |
| N3/34 | ME-SFI [ME] control unit | 25G |
| N3/40 | CDI control unit | 25J |
| N30/4 | Electronic Stability Program (ESP) control unit | 10H |

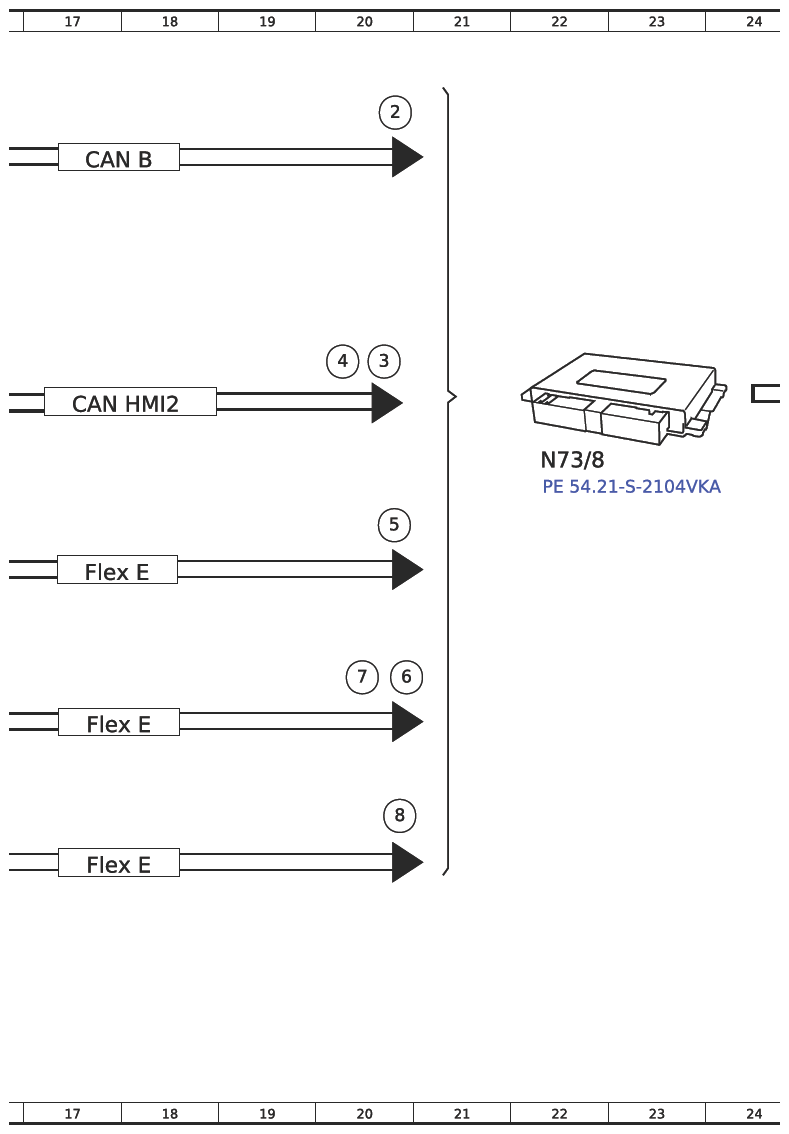

| N73/8 | Electronic ignition lock (EZS) control unit | 22E |
| N80 | Steering column tube module (MRM) control unit | 12F |

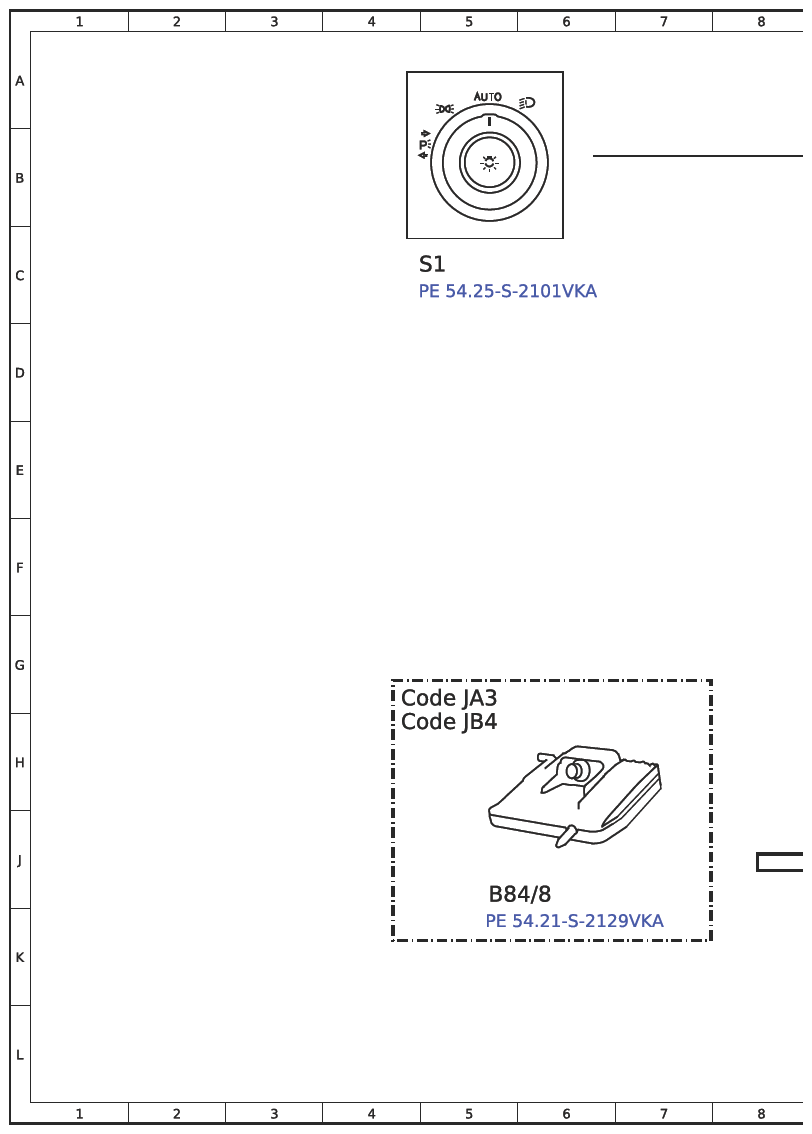

| S1 | Light switch | 4C |
