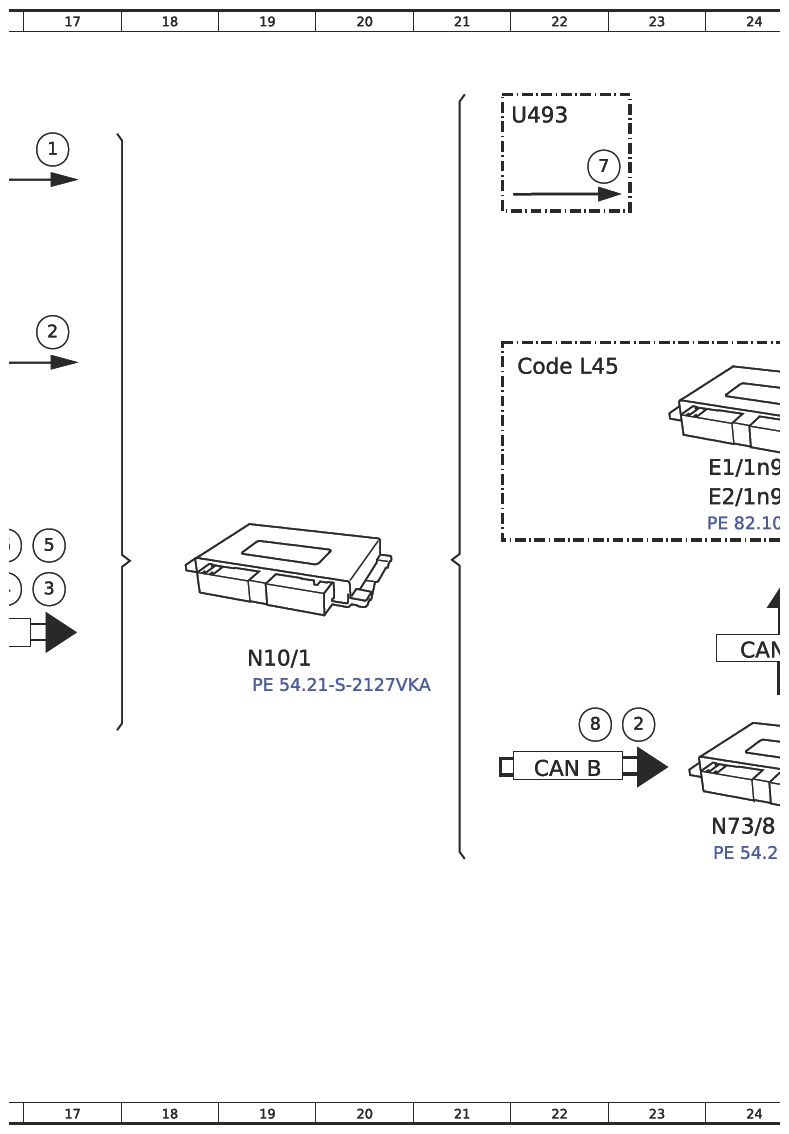

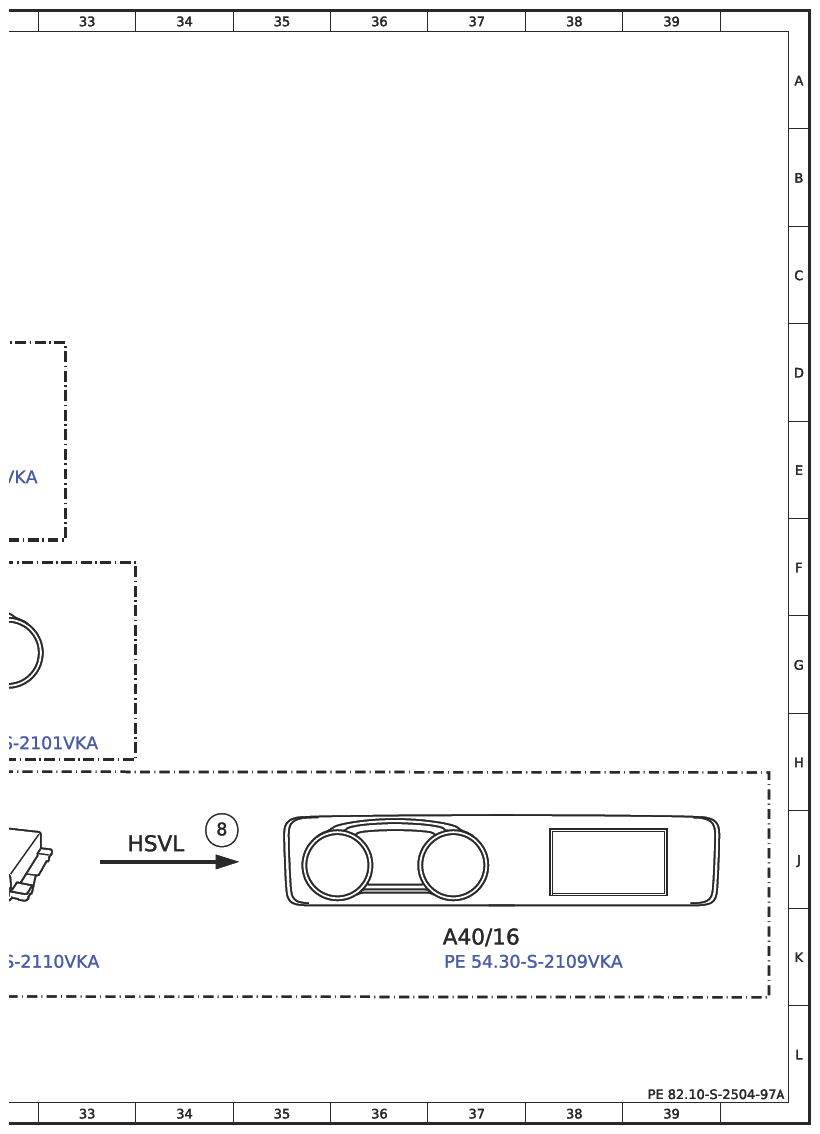

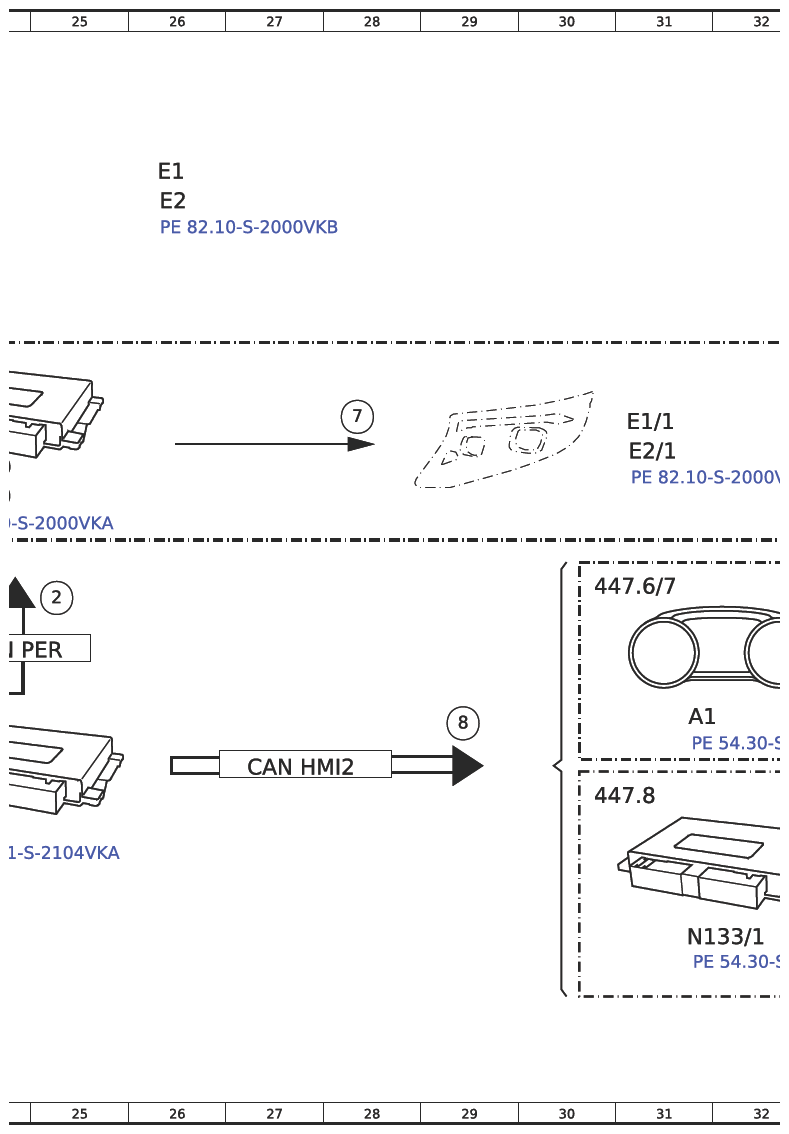

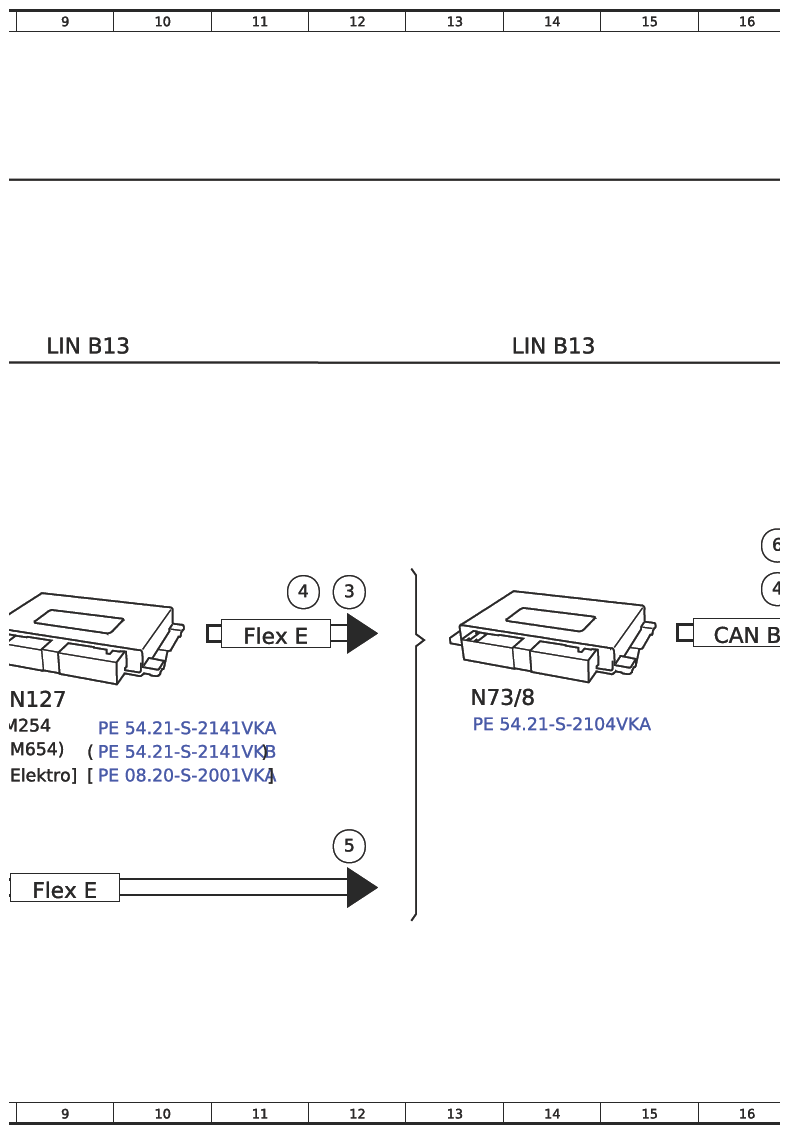

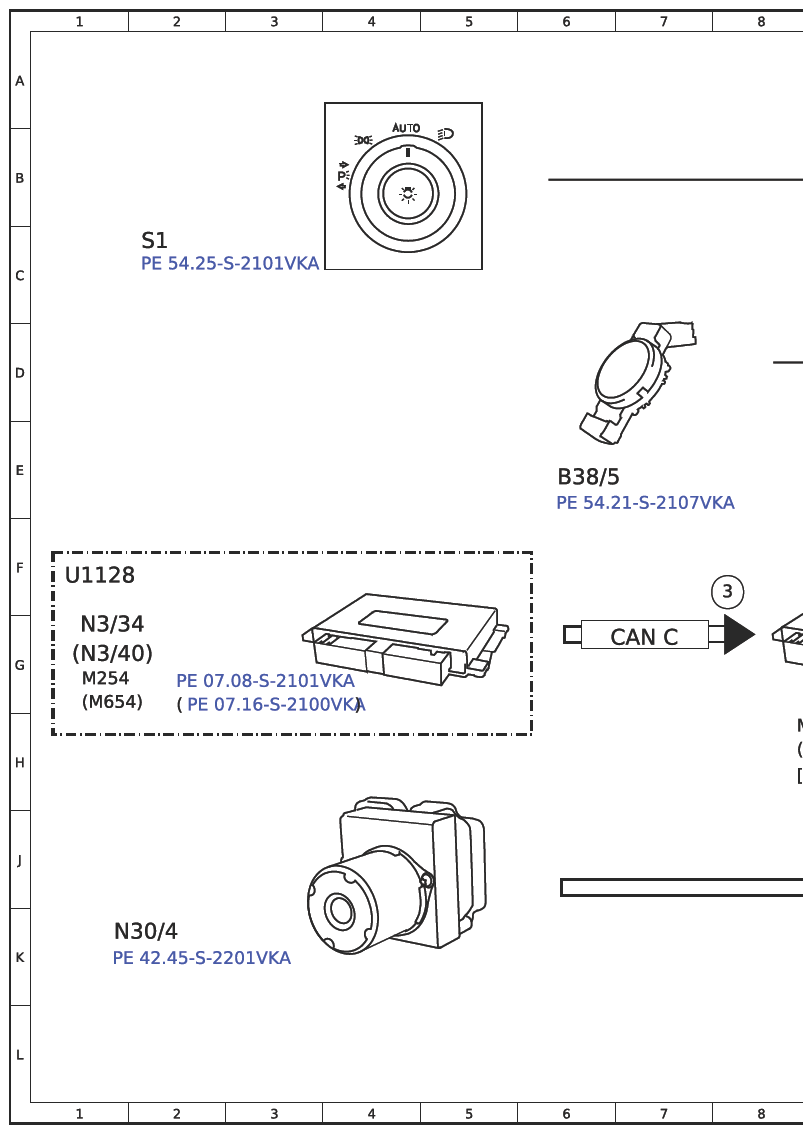

Function Schematic, Actuate Low Beams - PE82.10-S-2504-97A
Model 447 with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 17B |
| 2 | Low beams, request | 17D |
| 2 | Low beams, request | 25F |
| 2 | Low beams, request | 23H |
| 3 | Engine running, signal | 17F |
| 3 | Engine running, signal | 12F |
| 3 | Engine running, signal | 8F |
| 4 | Drivetrain operational, signal | 16F |
| 4 | Drivetrain operational, signal | 11F |
| 5 | Vehicle speed, signal | 17F |
| 5 | Vehicle speed, signal | 12J |
| 6 | Circuit 15, status | 16F |
| 7 | Low beams, actuation | 28E |
| 7 | Low beams, actuation | 22B |
| 8 | Indicator lamp, request | 22H |
| 8 | Indicator lamp, request | 29H |
| 8 | Indicator lamp, request | 34J |
| A1 | Instrument cluster | 31H |
| A40/16 | Head unit/instrument cluster display cluster | 37K |
| B38/5 | Rain/light sensor with additional functions | 6E |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 22H |
| CAN C | Drive train CAN | 7G |
| CAN HMI2 | User interface CAN 2 | 27H |
| CAN PER | Peripherals CAN | 24G |
| Code L45 | MULTIBEAM LED with High Beam Assist Plus | 22D |
| E1 | Left front lamp unit | 26B |
| E1/1 | Left front LED lamp unit | 31E |
| E1/1n9 | Left headlamp control unit | 24E |
| E2 | Right front lamp unit | 26B |
| E2/1 | Right front LED lamp unit | 31E |
| E2/1 n9 | Right headlamp control unit | 24E |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 11G |
| HSVL | High-speed video link | 34J |
| LIN B13 | Roof LIN | 9D |
| LIN B13 | Roof LIN | 14D |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 19G |
| N127 | Drivetrain control unit | 9G |
| N133/1 | Instrument cluster control unit | 31K |
| N3/34 | ME-SFI [ME] control unit | 1G |
| N3/40 | CDI control unit | 1G |
| N30/4 | Electronic Stability Program (ESP) control unit | 2K |
| N73/8 | Electronic ignition lock (EZS) control unit | 13G |
| N73/8 | Electronic ignition lock (EZS) control unit | 24J |
| S1 | Light switch | 2C |
| U1128 | Valid for combustion engine | 1F |
| U493 | Valid for halogen lamp unit | 22A |
