Function Schematic, Actuate High Beams - PE82.10-S-2505-97A
Model 447 with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Combination switch, status | 8E |
| 1 | Combination switch, status | 14E |
| 2 | Circuit 15, status | 13E |
| 3 | Exterior lights switch, status | 16E |
| 4 | High beams, actuation | 19B |
| 4 | High beams, actuation | 27E |
| 5 | High beams, request | 22H |
| 5 | High beams, request | 24G |
| 6 | Indicator lamp, request | 22H |
| 6 | Indicator lamp, request | 28H |
| 7 | Indicator lamp, request | 34J |
| A1 | Instrument cluster | 31H |

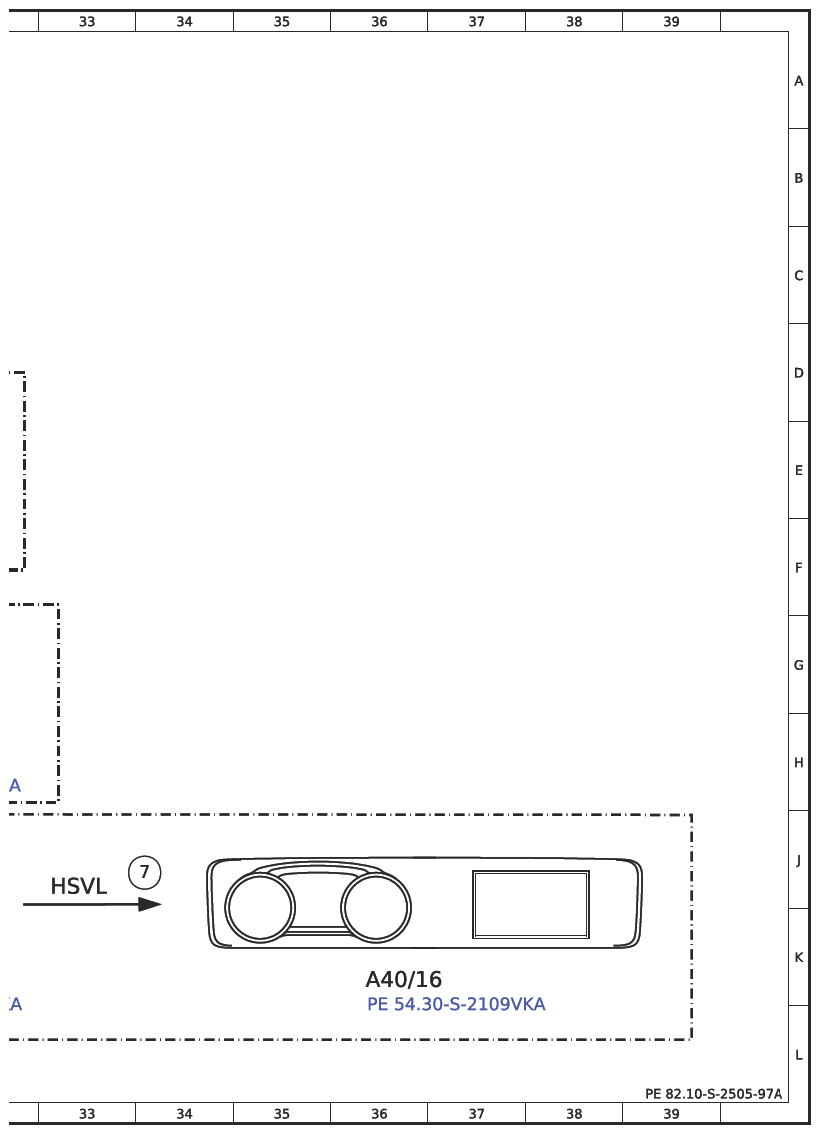

| A40/16 | Head unit/instrument cluster display cluster | 36K |
| CAN B | Interior CAN | 20J |
| CAN B | Interior CAN | 13E |
| CAN HMI2 | User interface CAN 2 | 26J |
| CAN PER | Peripherals CAN | 24G |

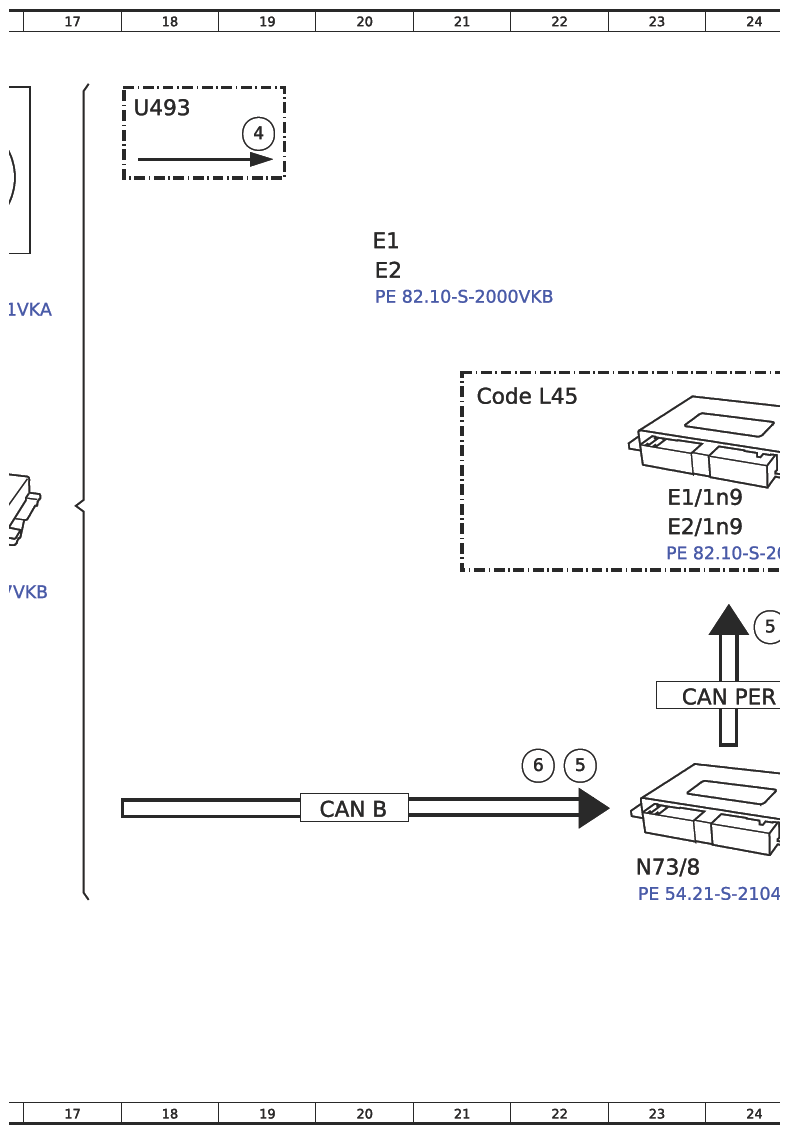

| Code L45 | MULTIBEAM LED with High Beam Assist Plus | 21D |
| E1 | Left front lamp unit | 20C |

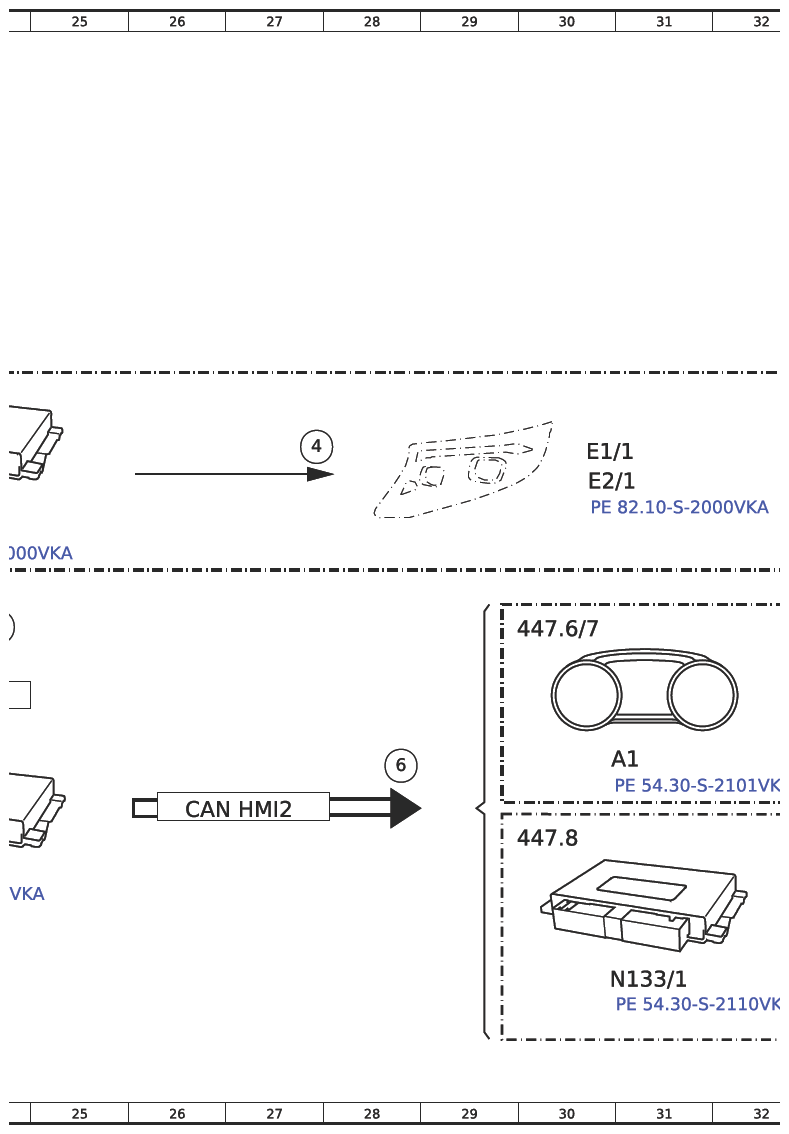

| E1/1 | Left front LED lamp unit | 30E |
| E1/1n9 | Left headlamp control unit | 23E |
| E2 | Right front lamp unit | 20C |
| E2/1 | Right front LED lamp unit | 30E |
| E2/1n9 | Right headlamp control unit | 23F |
| Flex E | Chassis FlexRay | 7E |
| HSVL | High-speed video link | 33J |

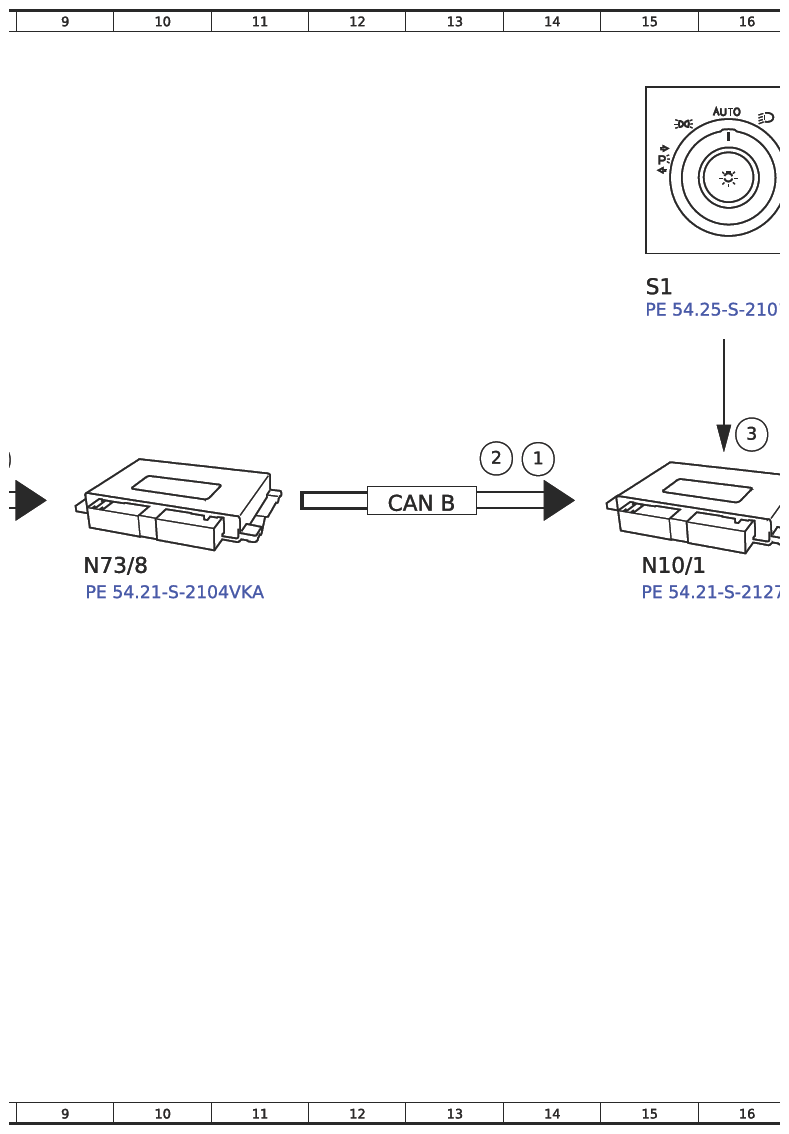

| N10/1 | Signal acquisition and actuation module (SAM) control unit | 15F |
| N133/1 | Instrument cluster control unit | 31K |
| N73/8 | Electronic ignition lock (EZS) control unit | 9F |
| N73/8 | Electronic ignition lock (EZS) control unit | 23J |

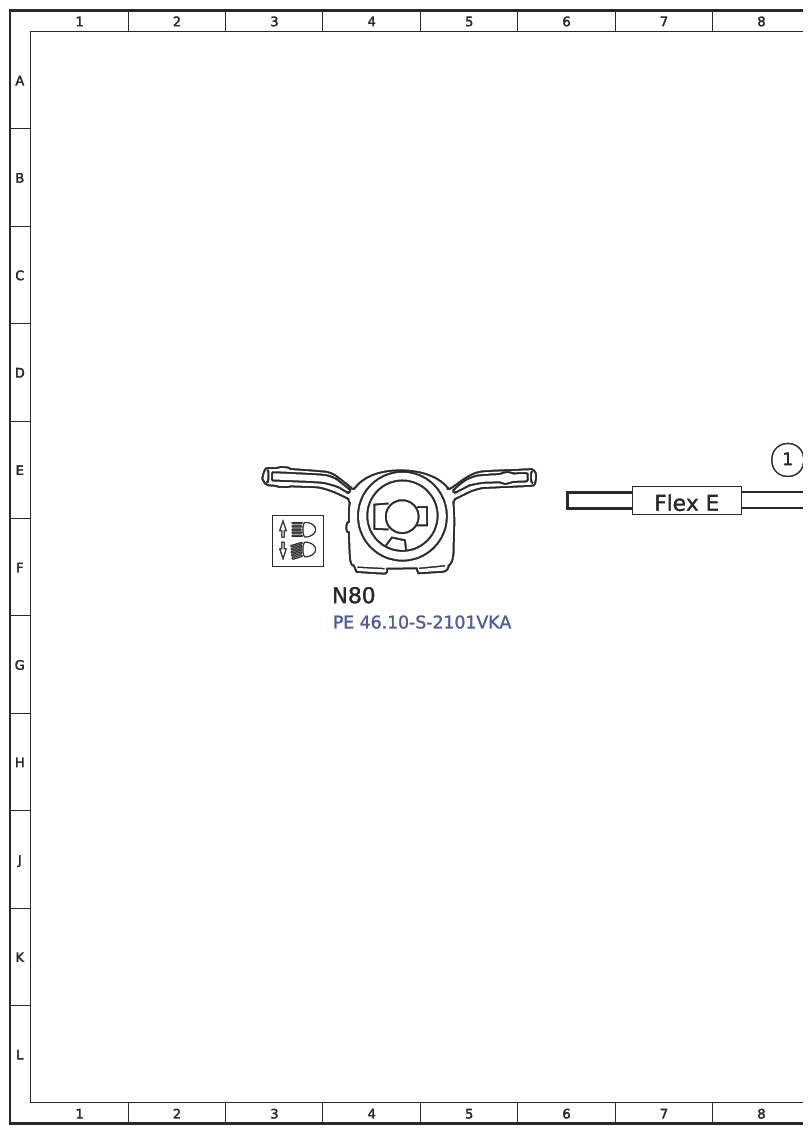

| N80 | Steering column tube module (MRM) control unit | 4F |
| S1 | Light switch | 15C |
| U493 | Valid for halogen lamp unit | 18A |
