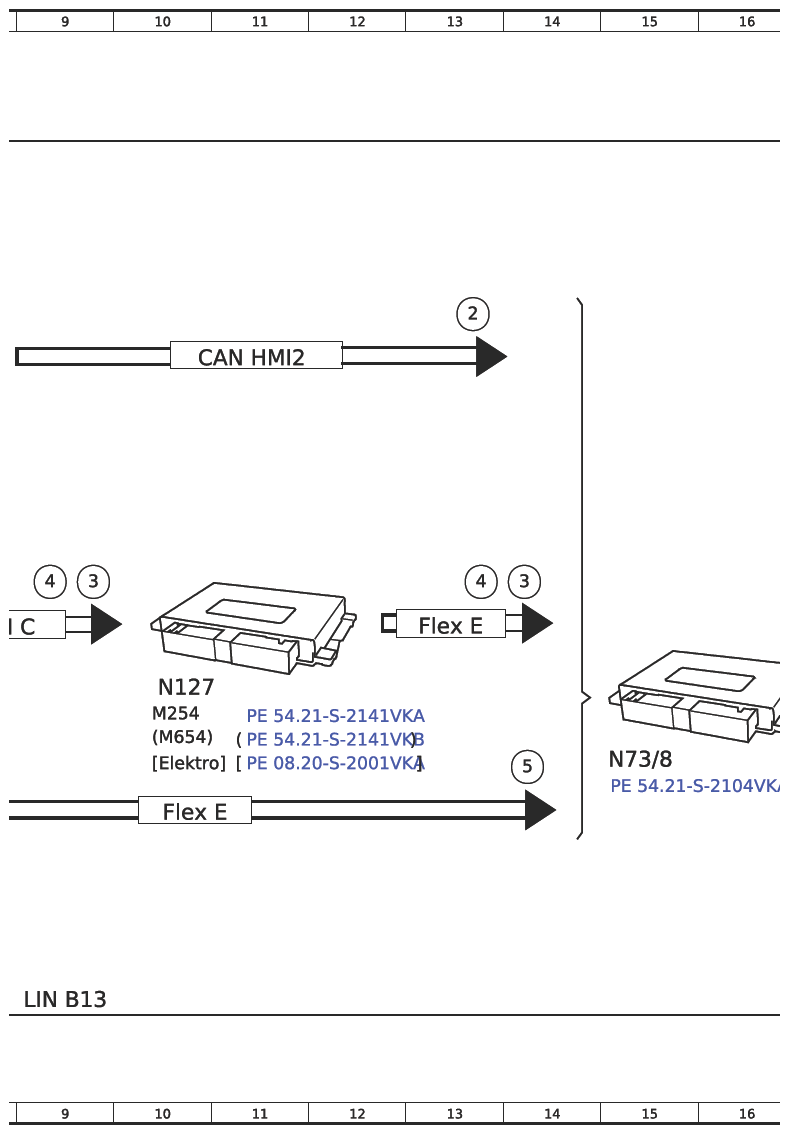

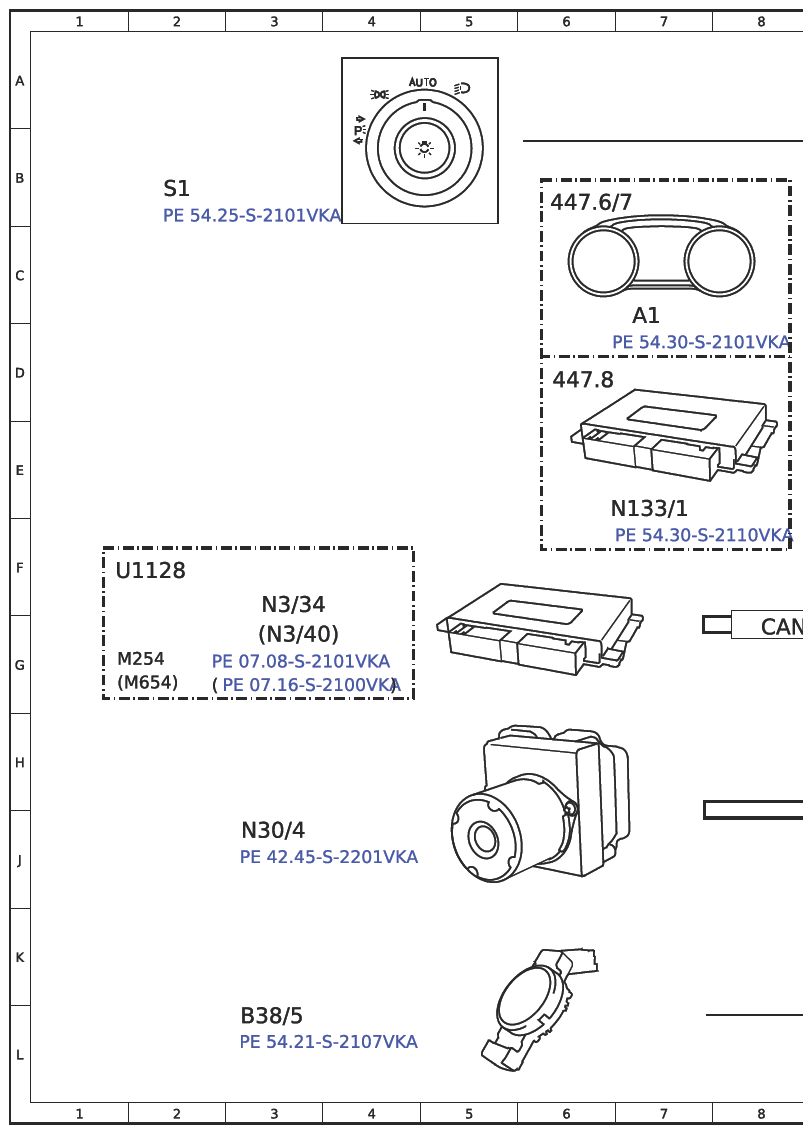

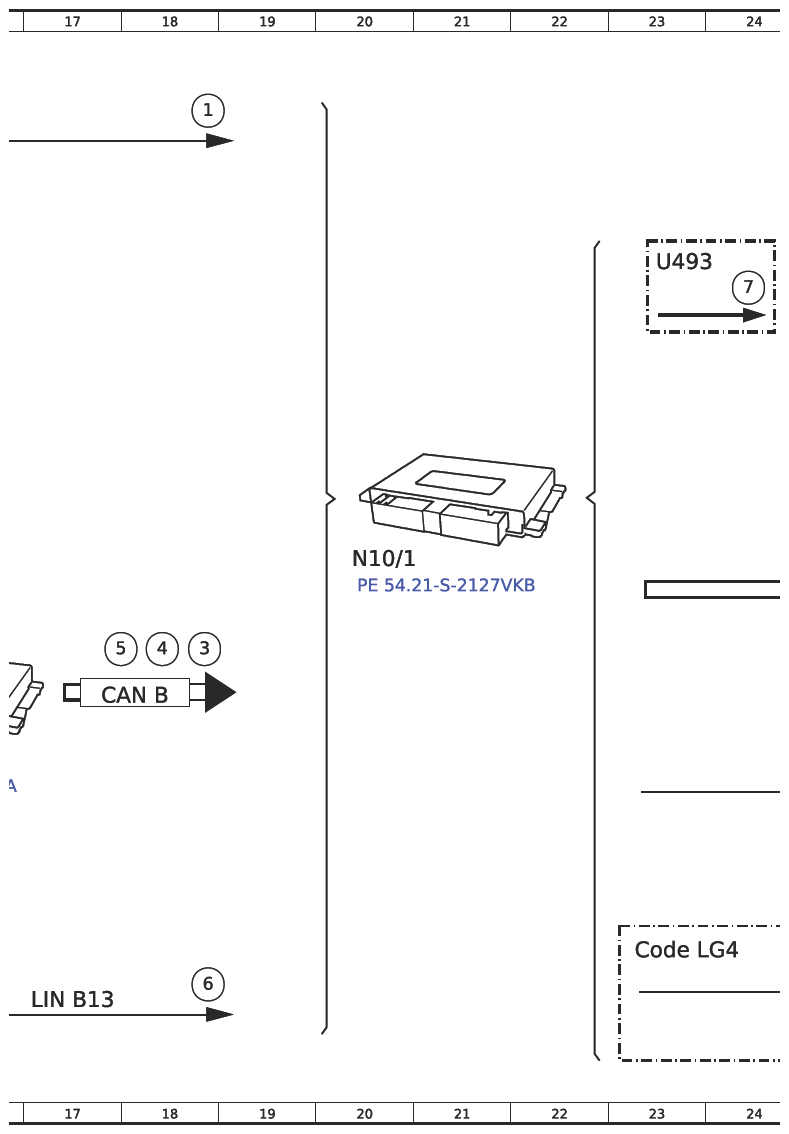

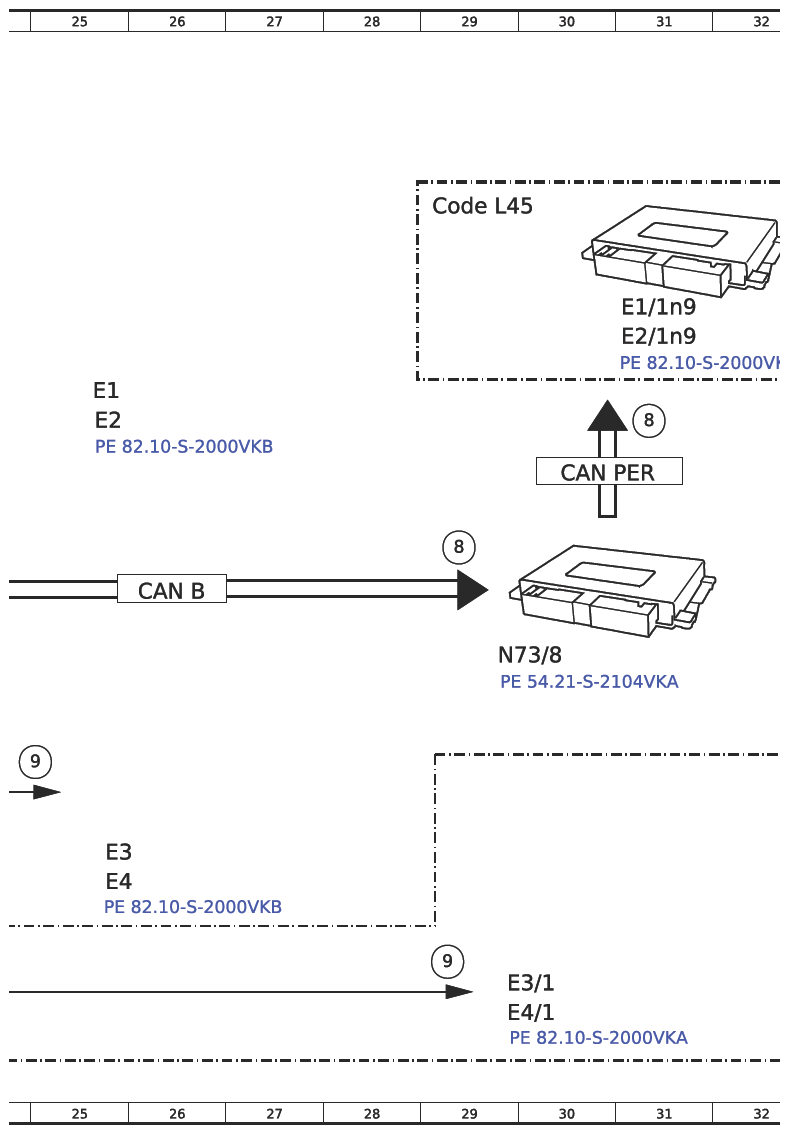

Function Schematic, Actuate Daytime Running Lights - PE82.10-S-2506-97A
Model 447 with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 18A |
| 2 | Indicator lamp, request | 13C |
| 3 | Engine running, signal | 14F |
| 3 | Engine running, signal | 18G |
| 3 | Engine running, signal | 9F |
| 4 | Drivetrain operational, signal | 18G |
| 4 | Drivetrain operational, signal | 13F |
| 4 | Drivetrain operational, signal | 9F |
| 5 | Vehicle speed, signal | 17G |
| 5 | Vehicle speed, signal | 14H |
| 6 | Dusk setting, signal | 18K |
| 7 | Daytime running lights, actuation | 24C |
| 7 | Daytime running lights, actuation | 33C |
| 8 | Daytime running lights, request | 29F |
| 8 | Daytime running lights, request | 31E |
| 9 | Standing/parking lights, actuation | 25H |
| 9 | Standing/parking lights, actuation | 29K |
| A1 | Instrument cluster | 7C |
| B38/5 | Rain/light sensor with additional functions | 3L |
| CAN B | Interior CAN | 26F |
| CAN B | Interior CAN | 18G |
| CAN C | Drive train CAN | 8G |
| CAN HMI2 | User interface CAN 2 | 11D |
| CAN PER | Peripherals CAN | 30E |
| Code L45 | MULTIBEAM LED with High Beam Assist Plus | 29B |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 23K |
| E1 | Left front lamp unit | 25D |
| E1/1 | Left front LED lamp unit | 36C |
| E1/1n9 | Left headlamp control unit | 31C |
| E2 | Right front lamp unit | 25E |
| E2/1 | Right front LED lamp unit | 36D |
| E2/1n9 | Right headlamp control unit | 31D |
| E3 | Left rear lamp unit | 25J |
| E3/1 | Left rear LED lamp unit | 30K |
| E4 | Right rear lamp unit | 25J |
| E4/1 | Right rear LED lamp unit | 30L |
| Flex E | Chassis FlexRay | 13G |
| Flex E | Chassis FlexRay | 10J |
| LIN B13 | Roof LIN | 9L |
| LIN B13 | Roof LIN | 17L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 20F |
| N127 | Drivetrain control unit | 10G |
| N133/1 | Instrument cluster control unit | 7E |
| N3/34 | ME-SFI [ME] control unit | 3F |
| N3/40 | CDI control unit | 3G |
| N30/4 | Electronic Stability Program (ESP) control unit | 3J |
| N73/8 | Electronic ignition lock (EZS) control unit | 15H |
| N73/8 | Electronic ignition lock (EZS) control unit | 29G |
| S1 | Light switch | 2B |
| U1128 | Valid for combustion engine | 1F |
| U493 | Valid for halogen lamp unit | 23C |
