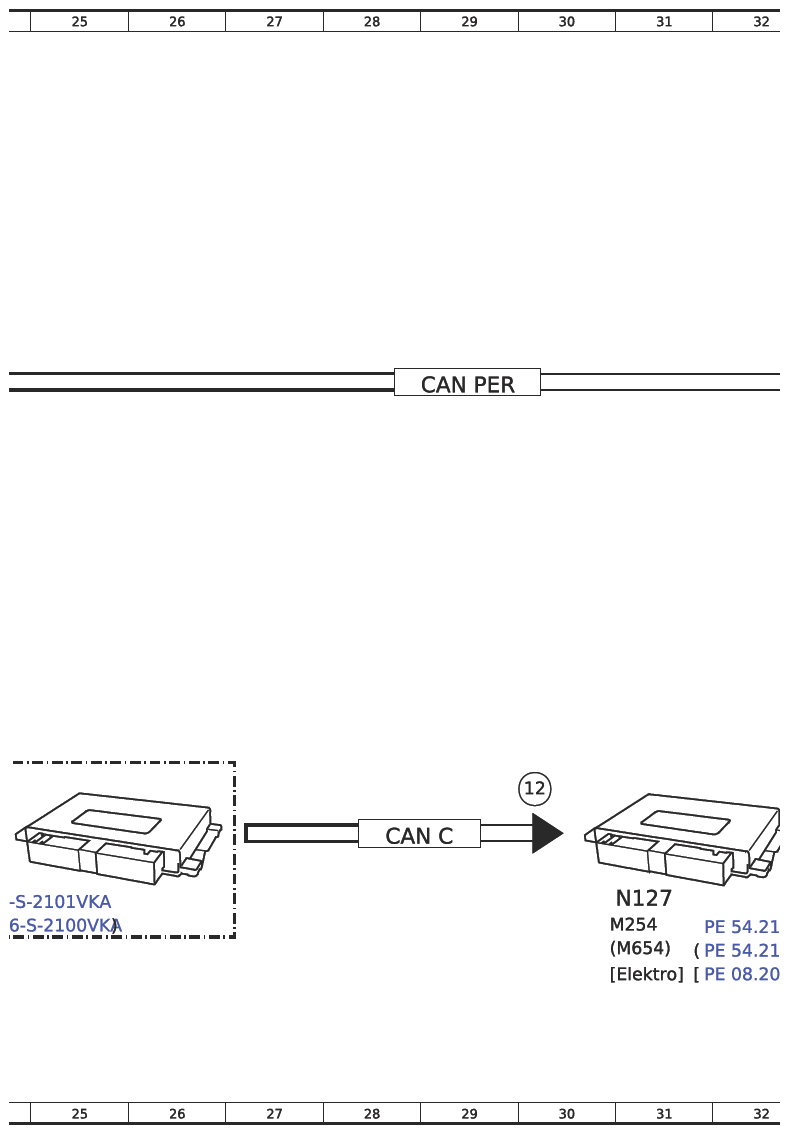

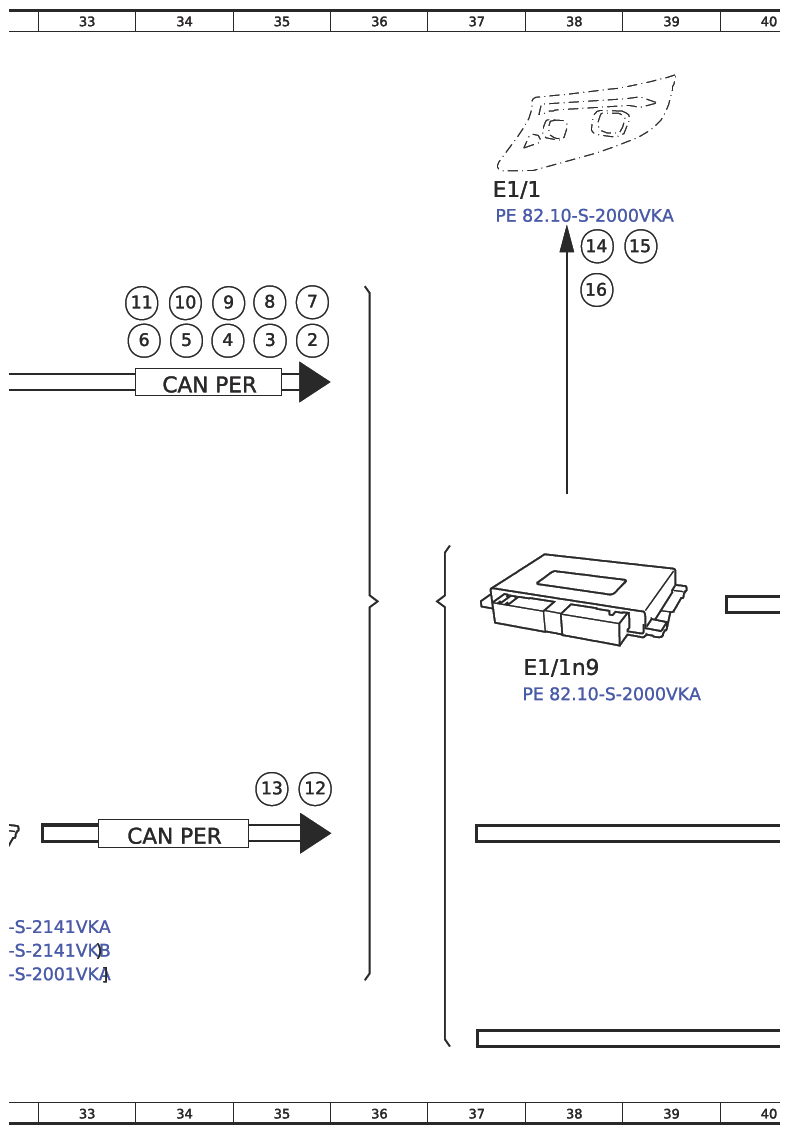

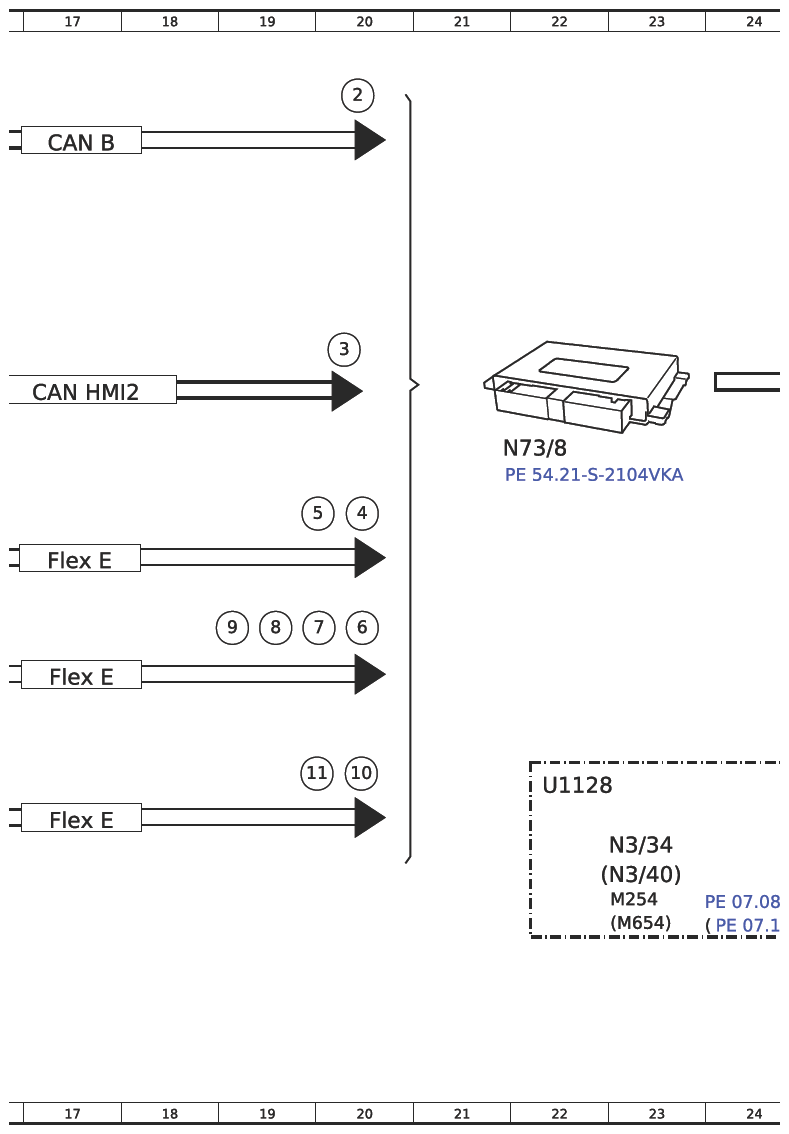

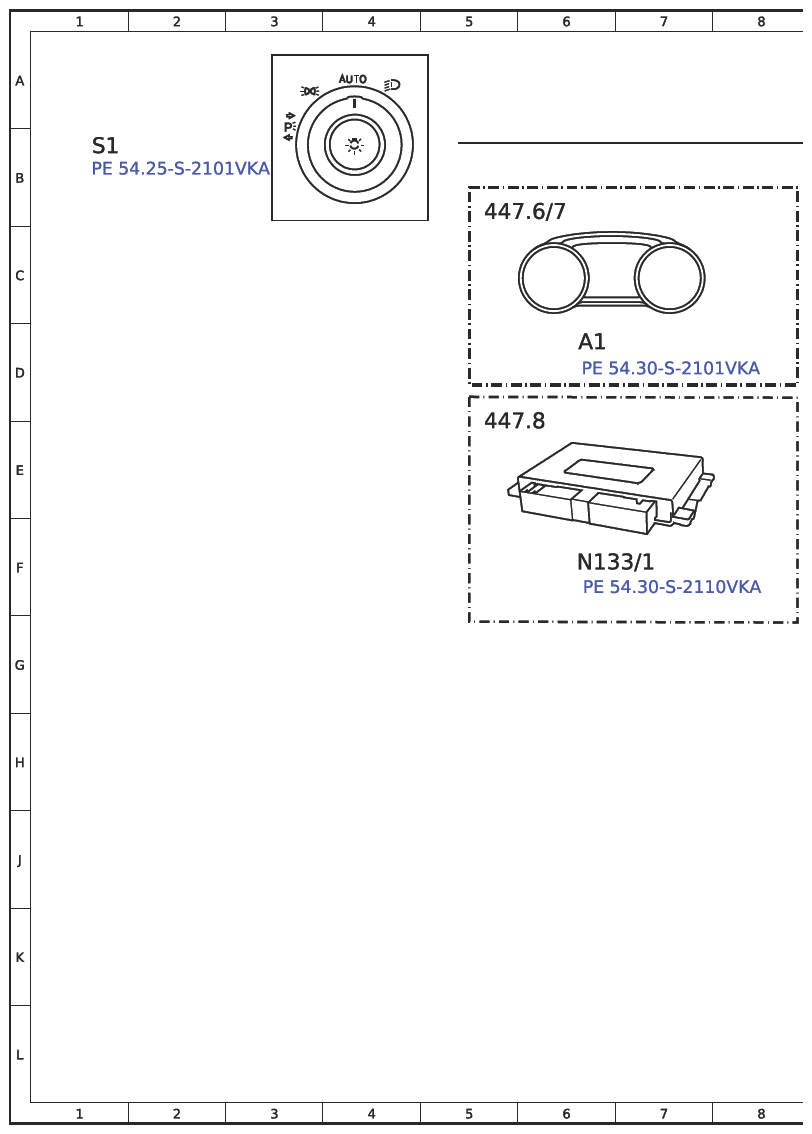

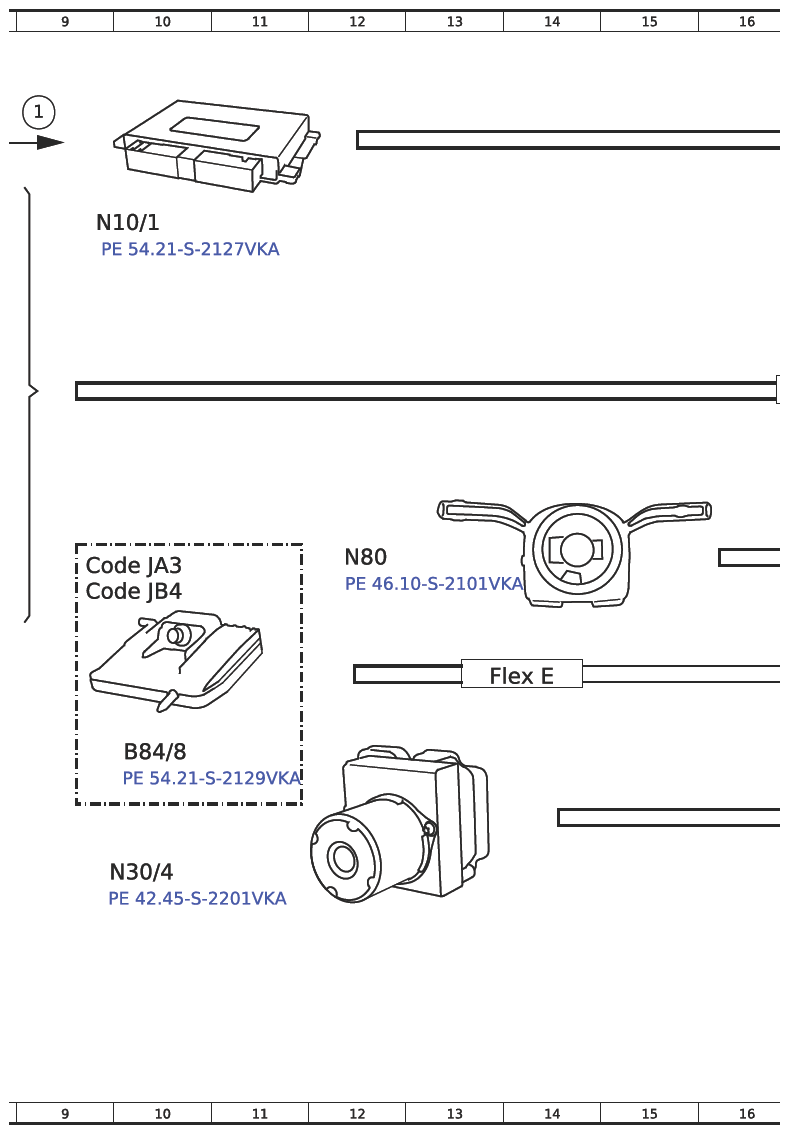

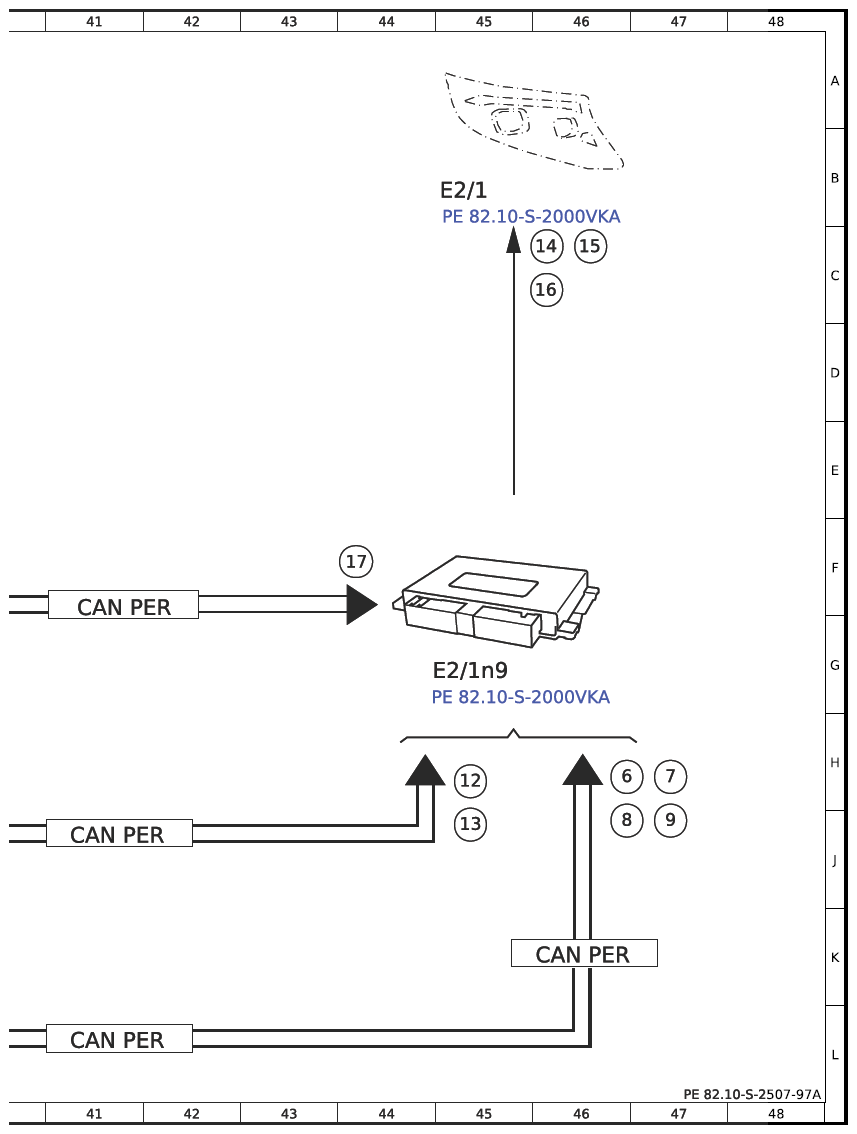

Function Schematic, Actuate Automatic High Beams - PE82.10-S-2507-97A
Model 447 with code L45 (Multibeam LED with high beam assist plus) with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 9A |
| 10 | Wheel speed, signal | 20H |
| 10 | Wheel speed, signal | 34C |
| 11 | Speed, turn rate and lateral acceleration, signal | 19H |
| 11 | Speed, turn rate and lateral acceleration, signal | 34C |
| 12 | Engine running, signal | 30H |
| 12 | Engine running, signal | 35H |
| 12 | Engine running, signal | 45H |
| 13 | Drivetrain operational, signal | 35H |
| 13 | Drivetrain operational, signal | 45J |
| 14 | Headlamp range adjustment actuator motor, actuation | 38C |
| 14 | Headlamp range adjustment actuator motor, actuation | 46C |
| 15 | Adaptive high beam, actuation | 39C |
| 15 | Adaptive high beam, actuation | 46C |
| 16 | High beams, actuation | 38C |
| 16 | High beams, actuation | 46C |
| 17 | Synchronization, signal | 44F |
| 2 | Low beams, request | 20A |
| 2 | Low beams, request | 35D |
| 3 | Variable light distribution function, status | 35D |
| 3 | Variable light distribution function, status | 20D |
| 4 | Combination switch, status | 20F |
| 4 | Combination switch, status | 34D |
| 5 | Steering wheel angle, signal | 19F |
| 5 | Steering wheel angle, signal | 34D |
| 6 | Ambient information, data | 20G |
| 6 | Ambient information, data | 46H |
| 6 | Ambient information, data | 34D |
| 7 | Optical headlamp range adjustment, request | 20G |
| 7 | Optical headlamp range adjustment, request | 47H |
| 7 | Optical headlamp range adjustment, request | 35C |
| 8 | High beams, request | 19G |
| 8 | High beams, request | 46J |
| 8 | High beams, request | 35C |
| 9 | Object information, data package | 19G |
| 9 | Object information, data package | 47J |
| 9 | Object information, data package | 34C |
| A1 | Instrument cluster | 6D |
| B84/8 | Multifunction camera (MFK) control unit | 10H |
| CAN B | Interior CAN | 17B |
| CAN C | Drive train CAN | 28J |
| CAN HMI2 | User interface CAN 2 | 17D |
| CAN PER | Peripherals CAN | 29D |
| CAN PER | Peripherals CAN | 41L |
| CAN PER | Peripherals CAN | 34J |
| CAN PER | Peripherals CAN | 41J |
| CAN PER | Peripherals CAN | 46K |
| CAN PER | Peripherals CAN | 34D |
| CAN PER | Peripherals CAN | 41F |
| Code JA3 | Intelligent body control | 9F |
| Code JB4 | Active Lane Keeping Assist | 9F |
| E1/1 | Left front LED lamp unit | 37B |
| E1/1n9 | Left headlamp control unit | 37G |
| E2/1 | Right front LED lamp unit | 45B |
| E2/1 n9 | Right headlamp control unit | 44G |
| Flex E | Chassis FlexRay | 17F |
| Flex E | Chassis FlexRay | 14G |
| Flex E | Chassis FlexRay | 17J |
| Flex E | Chassis FlexRay | 17G |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 10C |
| N127 | Drivetrain control unit | 31J |
| N133/1 | Instrument cluster control unit | 6F |
| N3/34 | ME-SFI [ME] control unit | 23J |
| N3/40 | CDI control unit | 23J |
| N30/4 | Electronic Stability Program (ESP) control unit | 10J |
| N73/8 | Electronic ignition lock (EZS) control unit | 22E |
| N80 | Steering column tube module (MRM) control unit | 12F |
| S1 | Light switch | 1B |
| U1128 | Valid for combustion engine | 22H |
