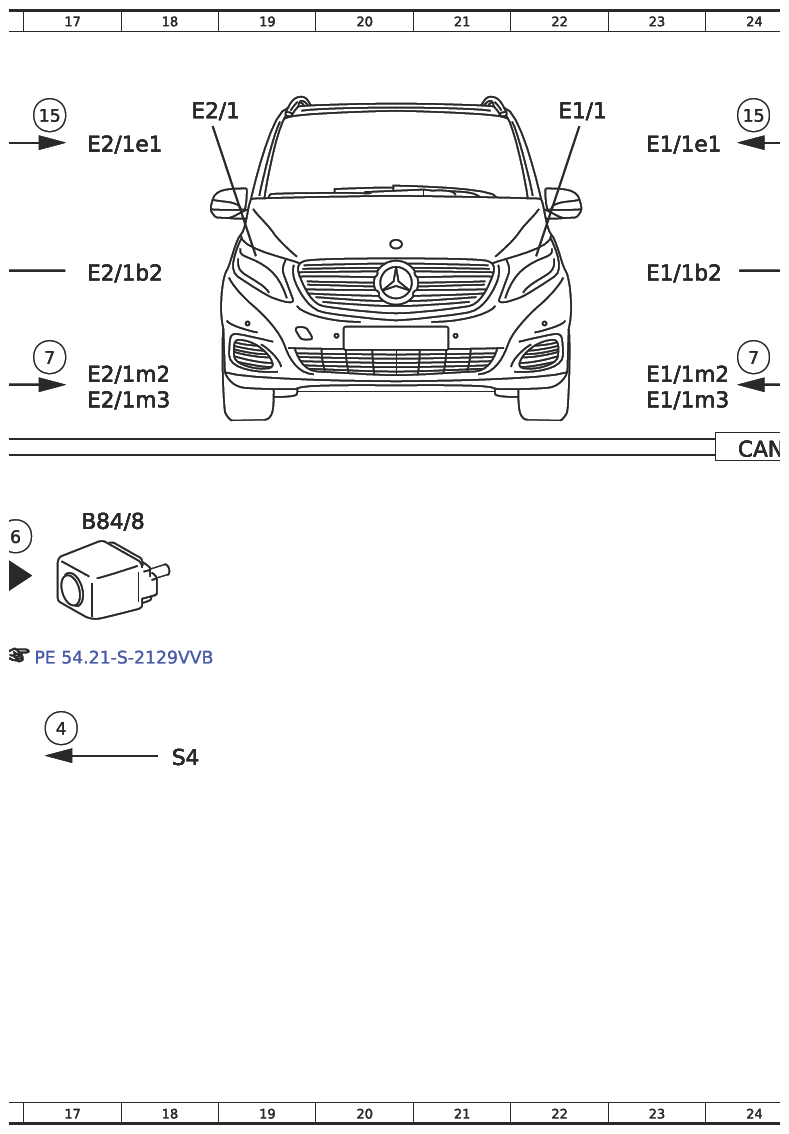

Function Schematic For Adaptive Highbeam Assist - PE82.10-S-2066-97TRB
Model 447.6/7 with code LG2 (LED Intelligent Light System) except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 10H |
| 1 | Engine running, signal | 9E |
| 10 | Yaw rate, signal | 16F |
| 11 | Optical headlamp range adjustment, request | 10C |
| 11 | Optical headlamp range adjustment, request | 13F |
| 11 | Optical headlamp range adjustment, request | 30C |
| 12 | Actuator motors position, signal | 12B |
| 12 | Actuator motors position, signal | 29B |
| 13 | High beams ON, request | 11H |
| 13 | High beams ON, request | 4F |
| 13 | High beams ON, request | 10D |
| 13 | High beams ON, request | 13F |
| 13 | High beams ON, request | 13A |
| 13 | High beams ON, request | 30D |
| 13 | High beams ON, request | 27A |
| 14 | High beam indicator lamp, actuation | 2D |
| 15 | High beams, actuation | 17A |
| 15 | High beams, actuation | 24A |
| 16 | Light output setting, request | 11C |
| 16 | Light output setting, request | 14F |
| 16 | Light output setting, request | 31C |
| 17 | Rotation angle adjustment, request | 11C |
| 17 | Rotation angle adjustment, request | 14F |
| 17 | Rotation angle adjustment, request | 31C |
| 18 | Increase light output, request | 14A |
| 18 | Increase light output, request | 27A |
| 2 | Drivetrain operational, signal | 10H |
| 2 | Drivetrain operational, signal | 8E |
| 3 | Instrument cluster, status | 10H |
| 3 | Instrument cluster, status | 9F |
| 4 | Switch position, signal | 17H |
| 5 | Combination switch, status | 11H |
| 5 | Combination switch, status | 12G |
| 6 | Adaptive high beams enable, status | 16F |
| 6 | Adaptive high beams enable, status | 10G |
| 7 | Actuator motors, actuation | 10C |
| 7 | Actuator motors, actuation | 12F |
| 7 | Actuator motors, actuation | 17D |
| 7 | Actuator motors, actuation | 24D |
| 7 | Actuator motors, actuation | 30C |
| 8 | Steering wheel angle, signal | 12G |
| 8 | Steering wheel angle, signal | 16F |
| 9 | Vehicle speed, signal | 9G |
| A1/1 | Instrument cluster (KI) control unit | 2E |
| A1/1e3 | High beam indicator lamp | 2C |
| B84/8 | Multifunction camera (MFK) control unit | 17F |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 10G |
| CAN E | Chassis CAN | 8H |
| CAN E | Chassis CAN | 12H |
| CAN E | Chassis CAN | 7E |
| CAN G | Front end CAN | 15F |
| CAN G | Front end CAN | 10D |
| CAN G | Front end CAN | 16E |
| CAN G | Front end CAN | 24E |
| CAN G | Front end CAN | 30D |
| E1/1 | Left front LED lamp unit | 22A |
| E1/1b2 | Left light distribution position sensor | 23C |
| E1/1e1 | Left high beam | 23B |
| E1/1m2 | Left active curve illumination actuator motor | 23D |
| E1/1m3 | Left light distribution actuator motor | 23D |
| E1/1n7 | Actuation module for left front exterior lights LED | 26A |
| E1/1n9 | Left headlamp control unit | 30A |
| E2/1 | Right front LED lamp unit | 18A |
| E2/1b2 | Right light distribution position sensor | 17C |
| E2/1e1 | Right high beam | 17B |
| E2/1m2 | Right active curve illumination actuator motor | 17D |
| E2/1m3 | Right light distribution actuator motor | 17D |
| E2/1n7 | Actuation module for right front exterior lights LED | 14A |
| E2/1n9 | Right headlamp control unit | 10A |
| LIN G1 | Left headlamp LIN | 28B |
| LIN G2 | Right headlamp LIN | 12B |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 10J |
| N3/33 | CDI control unit | 5B |
| N3/36 | CDI control unit | 7B |
| N30/4 | Electronic Stability Program (ESP) control unit | 6G |
| N73 | Electronic ignition lock (EZS) control unit | 10E |
| N80 | Steering column tube module (MRM) control unit | 15G |
| S4 | Combination switch | 18H |
| U1186 | Valid for engine 651.9 | 4B |
| U1187 | Valid for engine 622.9 | 6B |
