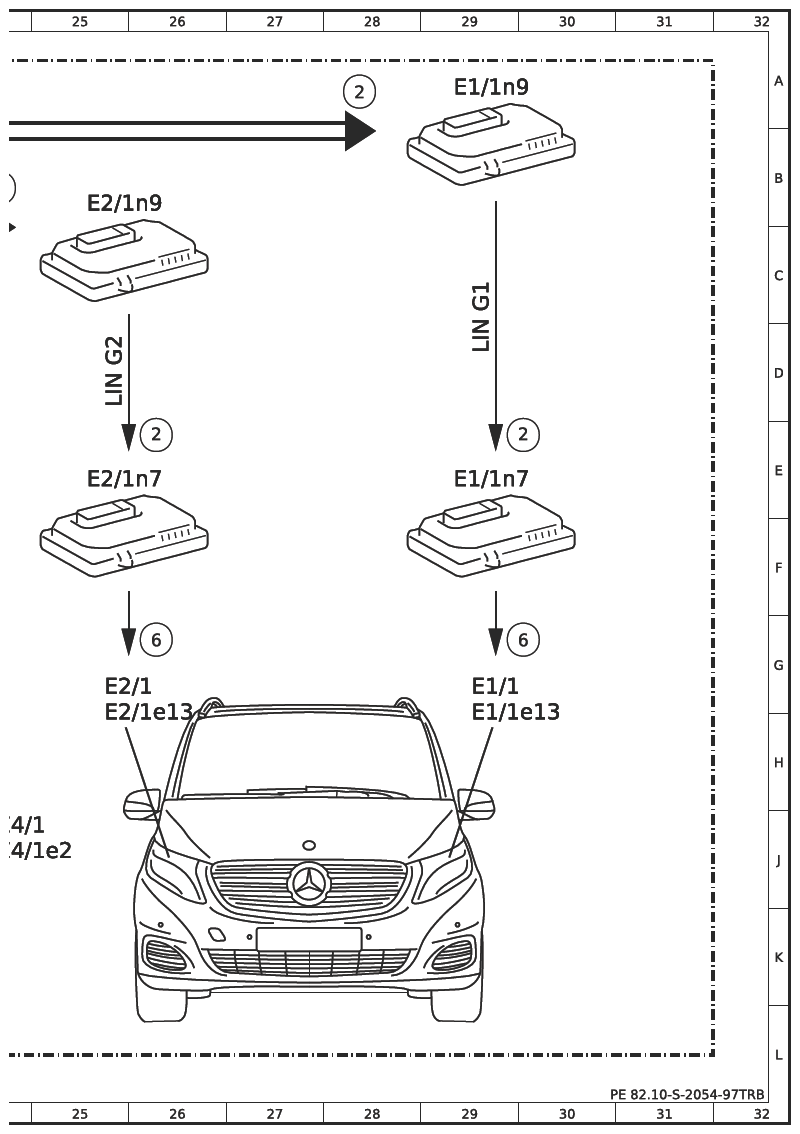

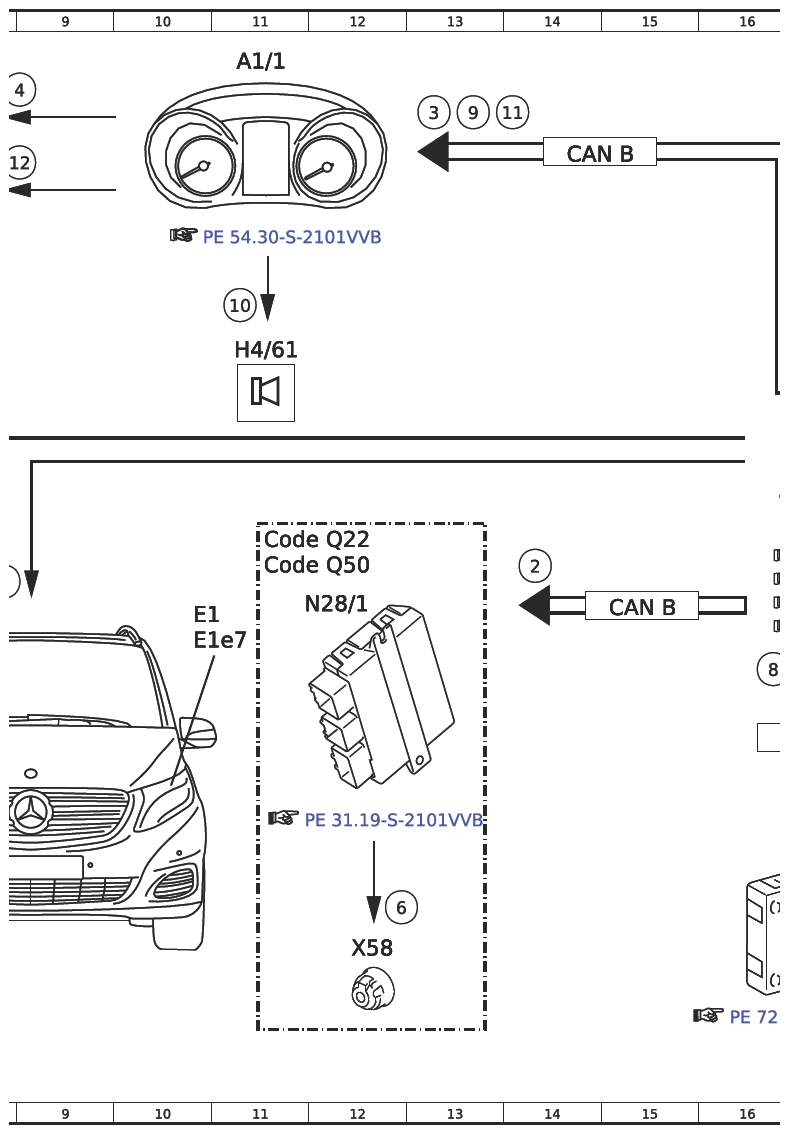

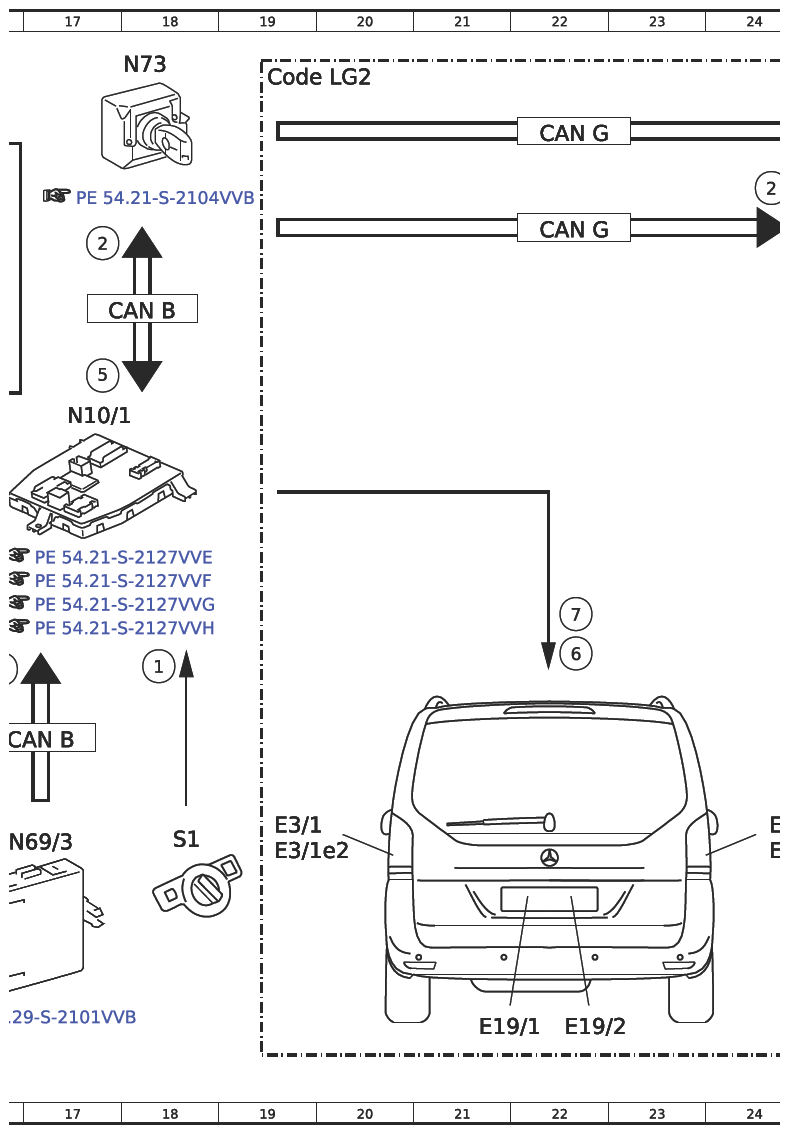

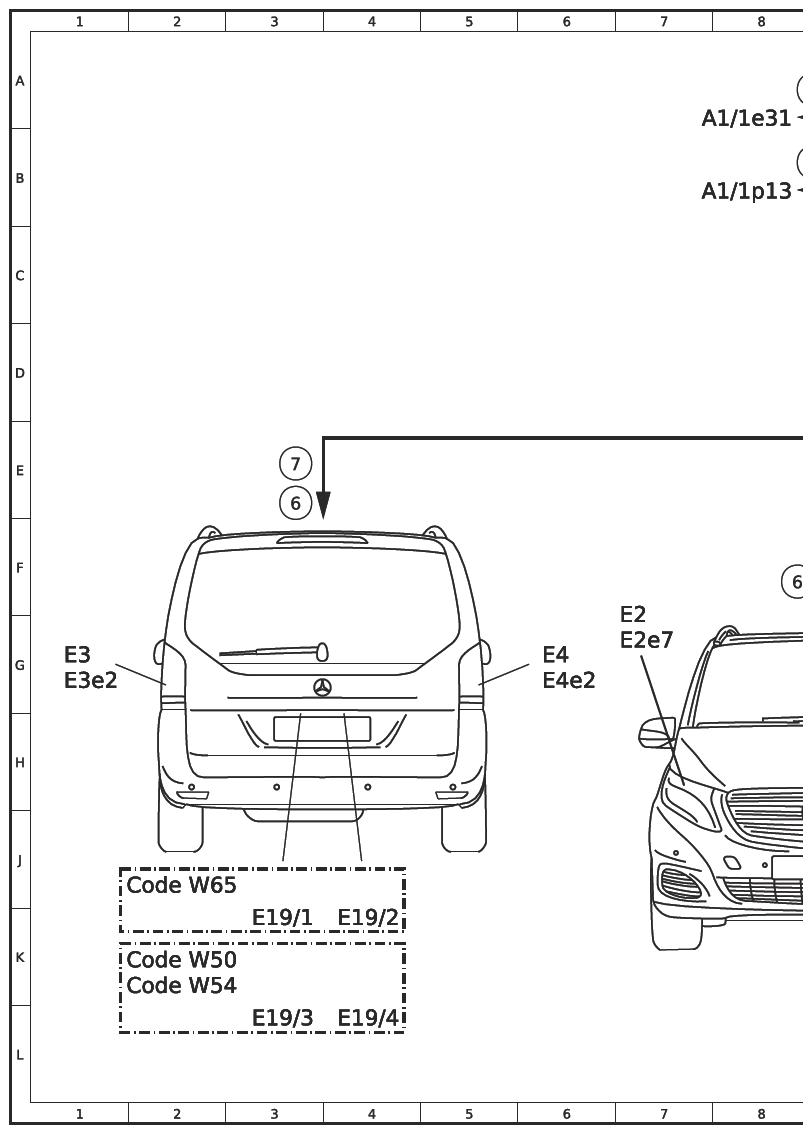

Electrical Function Schematic, Standing Light/Parking Lights Actuation - PE82.10-S-2054-97TRB
Model 447.6/7 except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Rotary light switch, status | 18G |
| 10 | Speaker, actuation | 11C |
| 11 | Instrument cluster message, request | 14A |
| 12 | Instrument cluster message, actuation | 8B |
| 2 | Standing/parking lights, request | 14F |
| 2 | Standing/parking lights, request | 17C |
| 2 | Standing/parking lights, request | 26E |
| 2 | Standing/parking lights, request | 24B |
| 2 | Standing/parking lights, request | 30E |
| 2 | Standing/parking lights, request | 28A |
| 3 | Standing lights indicator lamp, request | 13A |
| 4 | Standing lights indicator lamp, actuation | 9A |
| 5 | Circuit 15, status | 17D |
| 6 | Standing/parking lights, actuation | 8F |
| 6 | Standing/parking lights, actuation | 12K |
| 6 | Standing/parking lights, actuation | 3E |
| 6 | Standing/parking lights, actuation | 26G |
| 6 | Standing/parking lights, actuation | 30G |
| 6 | Standing/parking lights, actuation | 22G |
| 7 | License plate lamp, actuation | 3E |
| 7 | License plate lamp, actuation | 22G |
| 8 | Driver door, status | 16G |
| 9 | Warning tone, request | 13A |
| A1/1 | Instrument cluster (KI) control unit | 11A |
| A1/1e31 | Standing lamps indicator lamp | 8A |
| A1/1p13 | Multifunction display | 8B |
| CAN B | Interior CAN | 17H |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 14B |
| CAN B | Interior CAN | 18C |
| CAN G | Front end CAN | 22C |
| CAN G | Front end CAN | 22B |
| Code LG2 | LED Intelligent Light System | 19A |
| Code Q22 | Trailer hitch with non-removable ball head | 11F |
| Code Q50 | Trailer hitch with removable ball head | 11F |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 1K |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 1K |
| Code W65 | Liftgate | 1J |
| E1 | Left front lamp unit | 10G |
| E1/1 | Left front LED lamp unit | 29G |
| E1/1e13 | Left parking/standing/daytime running light | 29H |
| E1/1n7 | Actuation module for left front exterior lights LED | 29E |
| E1/1n9 | Left headlamp control unit | 29A |
| E19/1 | Left license plate lamp | 3K |
| E19/1 | Left license plate lamp | 21L |
| E19/2 | Right license plate lamp | 4K |
| E19/2 | Right license plate lamp | 22L |
| E19/3 | Left rear-end door license plate lamp | 3L |
| E19/4 | Right rear-end door license plate lamp | 4L |
| E1e7 | Left daytime running light | 10G |
| E2 | Right front lamp unit | 7G |
| E2/1 | Right front LED lamp unit | 25G |
| E2/1e13 | Right parking/standing/daytime running light | 25H |
| E2/1n7 | Actuation module for right front exterior lights LED | 25E |
| E2/1n9 | Right headlamp control unit | 25B |
| E2e7 | Right daytime running light | 7G |
| E3 | Left rear lamp unit | 1G |
| E3/1 | Left rear LED lamp unit | 19J |
| E3/1e2 | Left LED taillight | 19J |
| E3e2 | Left tail lamp and parking lamp | 1G |
| E4 | Right rear lamp unit | 6G |
| E4/1 | Right rear LED lamp unit | 24J |
| E4/1e2 | Right LED taillight | 24J |
| E4e2 | Right tail lamp and parking lamp | 6G |
| H4/61 | Instrument cluster speaker | 11D |
| LIN G1 | Left headlamp LIN | 29C |
| LIN G2 | Right headlamp LIN | 25D |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 17E |
| N28/1 | Trailer recognition (AAG) control unit | 12F |
| N69/3 | Left front door control unit | 17J |
| N73 | Electronic ignition lock (EZS) control unit | 18A |
| S1 | Light switch | 18J |
| X58 | Trailer socket (13-pin) | 12K |
