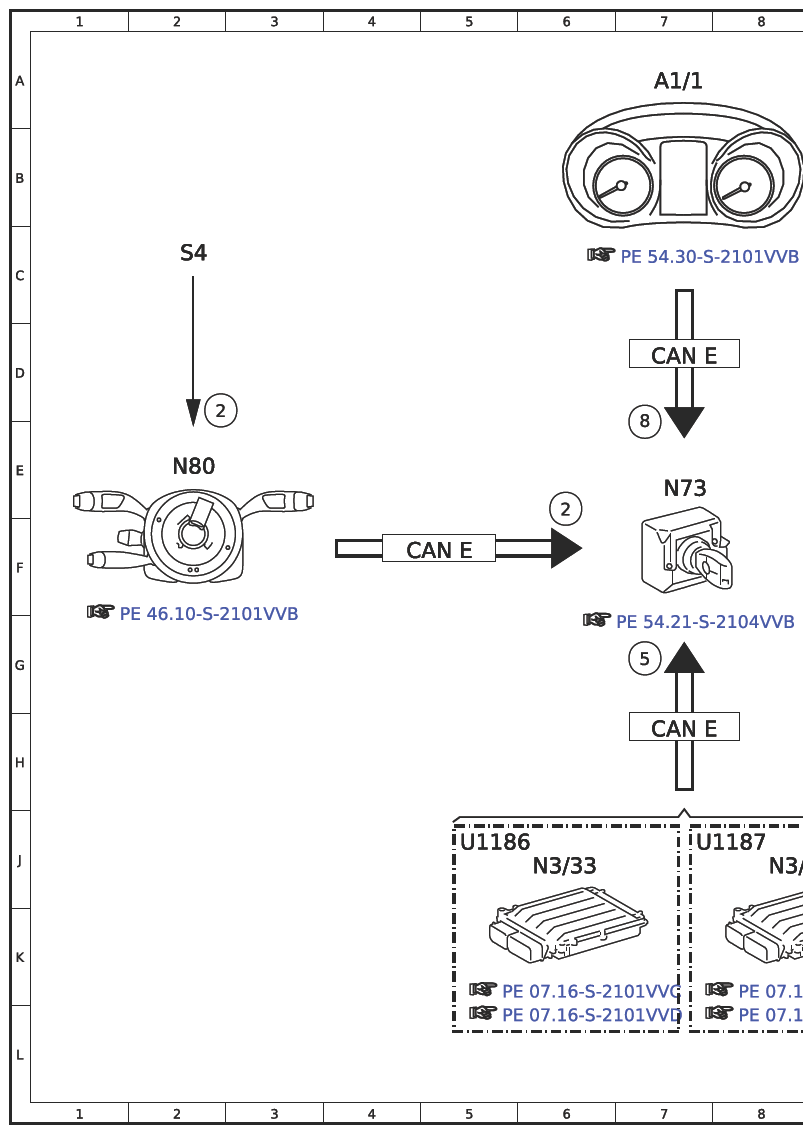

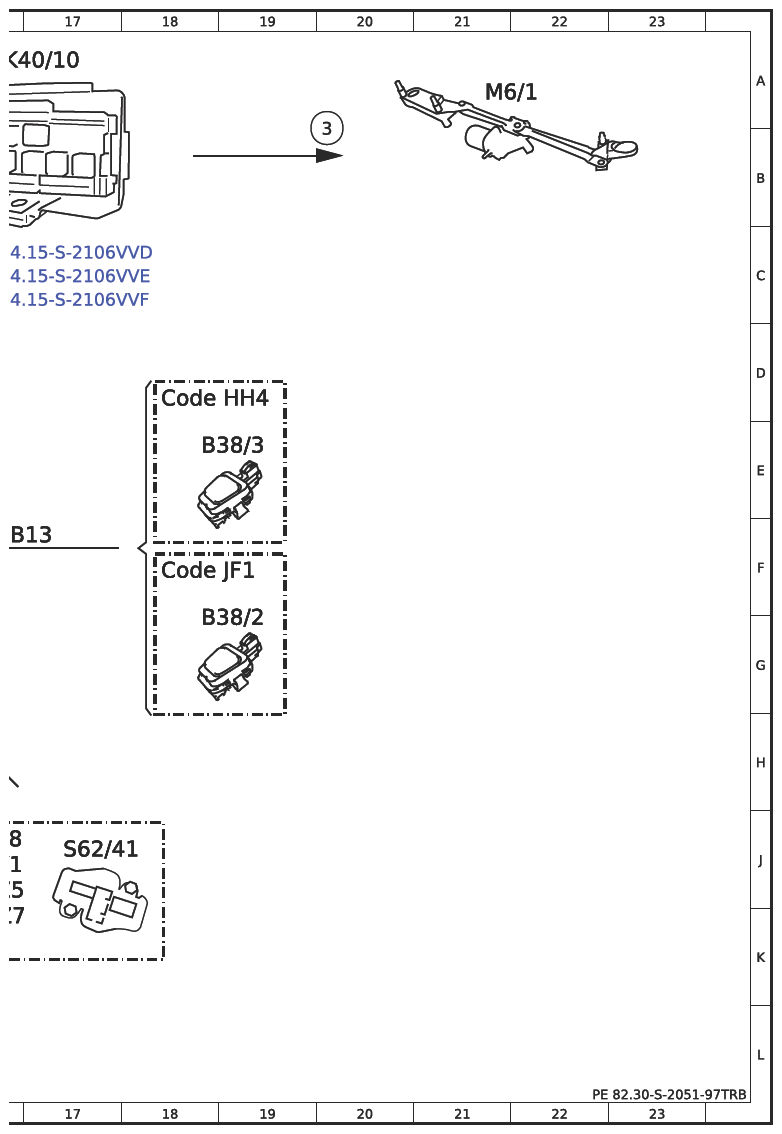

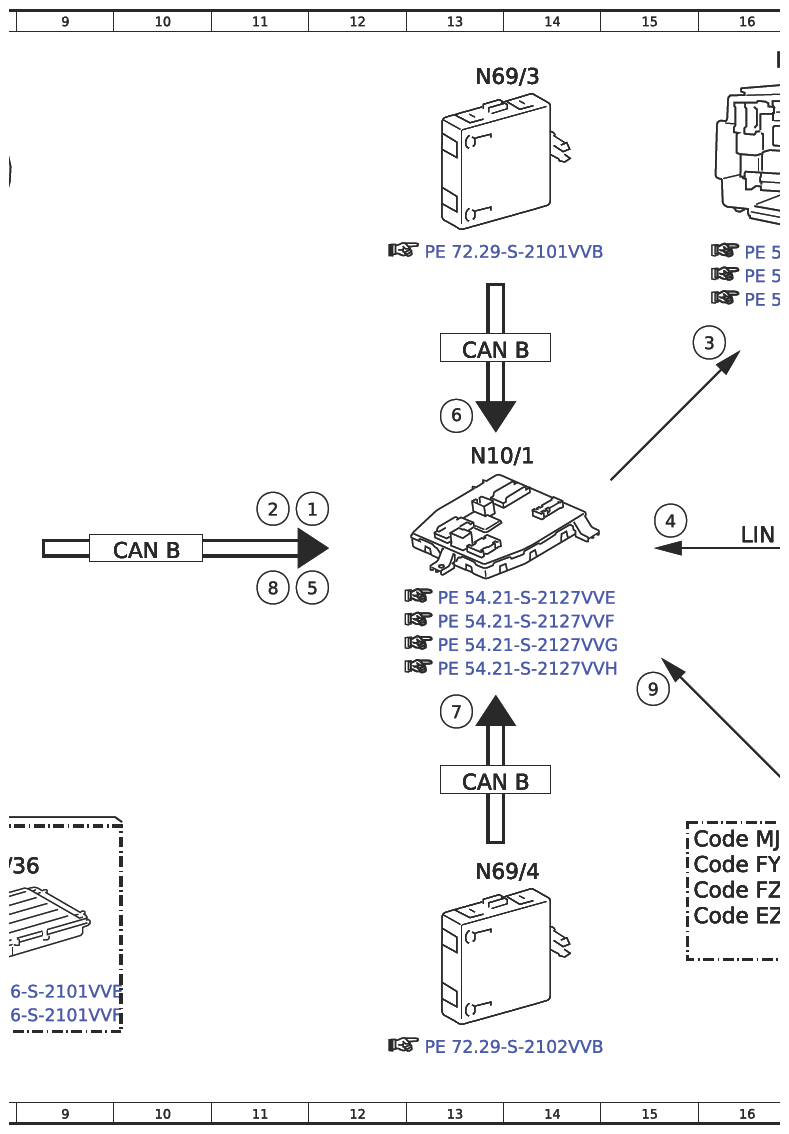

Electrical Function Schematic For Windshield Wiper - PE82.30-S-2051-97TRB
Model 447.6/7 except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12E |
| 2 | Combination switch, status | 2D |
| 2 | Combination switch, status | 6E |
| 2 | Combination switch, status | 11E |
| 3 | Wiper motor, actuation | 16D |
| 3 | Wiper motor, actuation | 20B |
| 4 | Humidity sensor/light sensor/rain sensor/sun sensor, signal | 15F |
| 5 | Engine start, request | 7G |
| 5 | Engine start, request | 12F |
| 6 | Left front door control unit, status | 13E |
| 7 | Right front door control unit, status | 13H |
| 8 | Vehicle speed, signal | 11F |
| 8 | Vehicle speed, signal | 7E |
| 9 | Engine hood contact switch, status | 15G |
| A1/1 | Instrument cluster (KI) control unit | 7A |
| B38/2 | Humidity sensor/light sensor/rain sensor | 19G |
| B38/3 | Rain sensor/humidity sensor/light sensor | 19E |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 13D |
| CAN E | Chassis CAN | 7H |
| CAN E | Chassis CAN | 5F |
| CAN E | Chassis CAN | 7D |
| Code EZ7 | Active Parking Assist | 15K |
| Code FY1 | Theft protection package | 15J |
| Code FZ5 | ATA I, anti-theft alarm system | 15J |
| Code HH4 | THERMOTRONIC automatic air conditioning | 18D |
| Code JF1 | Rain sensor | 18F |
| Code MJ8 | ECO start/stop function | 15J |
| K40/10 | Engine compartment fuse and relay module | 17A |
| LIN B13 | Roof LIN | 16F |
| M6/1 | Wiper motor | 21A |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 13E |
| N3/33 | CDI control unit | 6J |
| N3/36 | CDI control unit | 8J |
| N69/3 | Left front door control unit | 13A |
| N69/4 | Right front door control unit | 13J |
| N73 | Electronic ignition lock (EZS) control unit | 7E |
| N80 | Steering column tube module (MRM) control unit | 2E |
| S4 | Combination switch | 2C |
| S62/41 | Engine hood switch | 17J |
| U1186 | Valid for engine 651.9 | 5J |
| U1187 | Valid for engine 622.9 | 7J |
