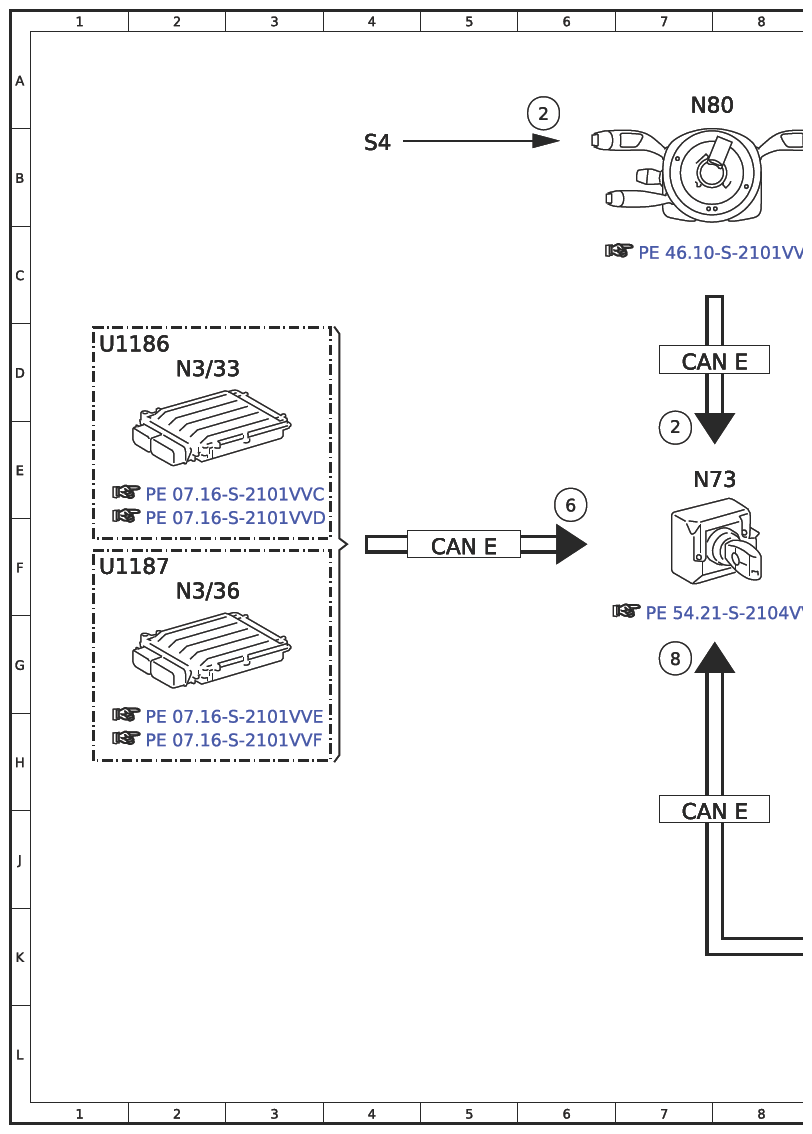

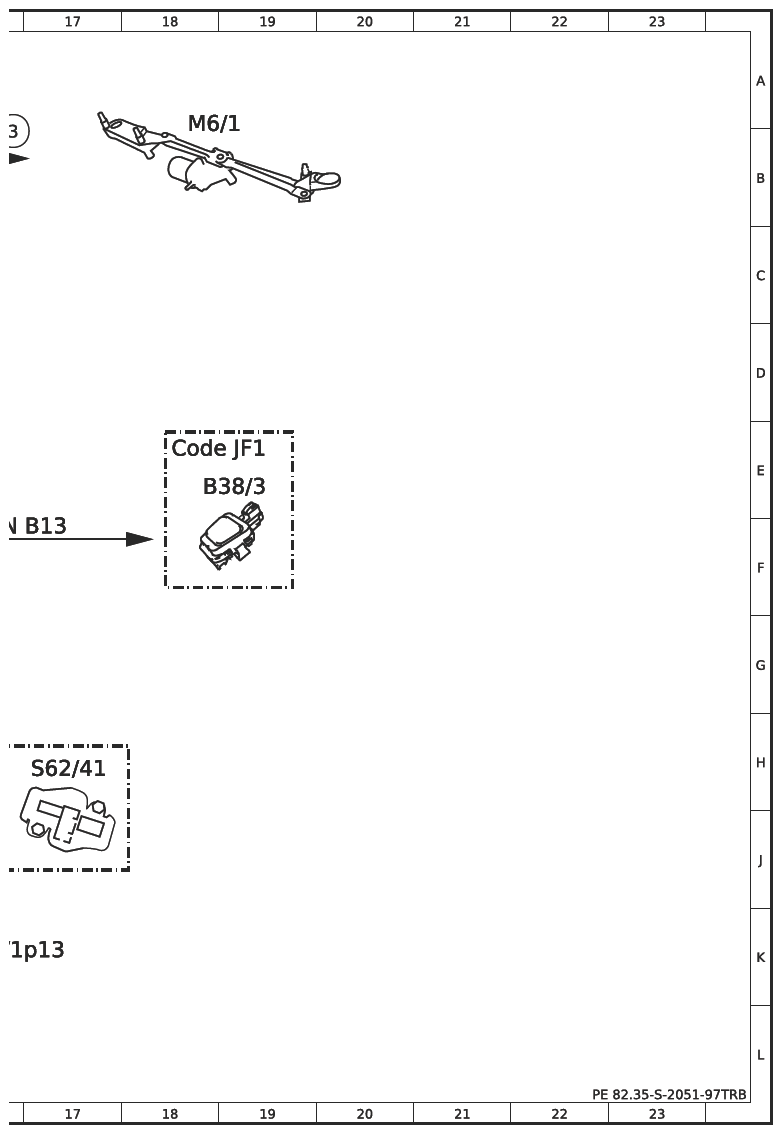

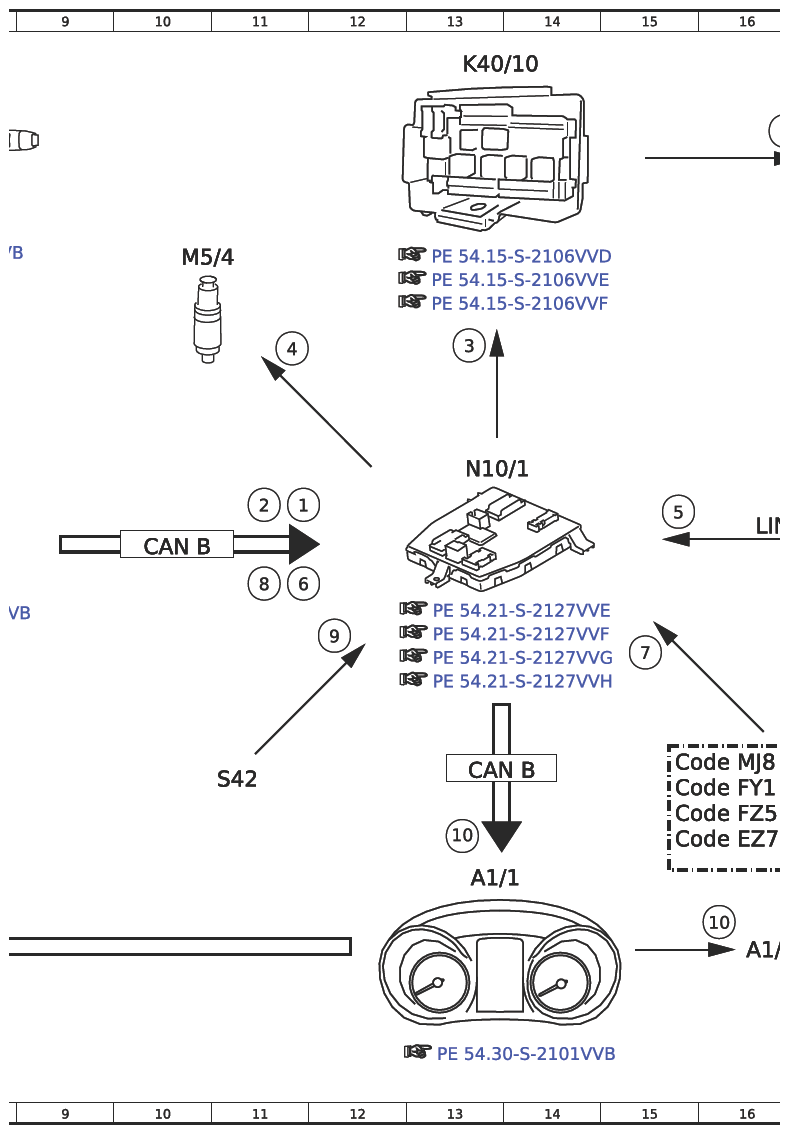

Electrical Function Schematic For Windshield Washer - PE82.35-S-2051-97TRB
Model 447.6/7 except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11E |
| 10 | Instrument cluster display, signal | 13J |
| 10 | Instrument cluster display, signal | 16K |
| 2 | Combination switch, status | 7E |
| 2 | Combination switch, status | 11E |
| 2 | Combination switch, status | 6A |
| 3 | Wiper motor, actuation | 13D |
| 3 | Wiper motor, actuation | 16B |
| 4 | Windshield washer system pump, actuation | 11D |
| 5 | Humidity sensor/light sensor/rain sensor/sun sensor, signal | 15E |
| 6 | Engine start, request | 11F |
| 6 | Engine start, request | 6E |
| 7 | Engine hood contact switch, status | 15G |
| 8 | Vehicle speed, signal | 7G |
| 8 | Vehicle speed, signal | 11F |
| 9 | Washer fluid reservoir fill level, status | 12G |
| A1/1 | Instrument cluster (KI) control unit | 13J |
| A1/1p13 | Multifunction display | 16K |
| B38/3 | Rain sensor/humidity sensor/light sensor | 19E |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 13H |
| CAN E | Chassis CAN | 7J |
| CAN E | Chassis CAN | 5F |
| CAN E | Chassis CAN | 7D |
| Code EZ7 | Active Parking Assist | 15J |
| Code FY1 | Theft protection package | 15H |
| Code FZ5 | ATA I, anti-theft alarm system | 15J |
| Code JF1 | Rain sensor | 18E |
| Code MJ8 | ECO start/stop function | 15H |
| K40/10 | Engine compartment fuse and relay module | 13A |
| LIN B13 | Roof LIN | 16F |
| M5/4 | Windshield washer system pump | 10C |
| M6/1 | Wiper motor | 18B |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 13E |
| N3/33 | CDI control unit | 2D |
| N3/36 | CDI control unit | 2F |
| N73 | Electronic ignition lock (EZS) control unit | 7E |
| N80 | Steering column tube module (MRM) control unit | 7A |
| S4 | Combination switch | 4B |
| S42 | Windshield washer system water level indicator switch | 11H |
| S62/41 | Engine hood switch | 17H |
| U1186 | Valid for engine 651.9 | 1D |
| U1187 | Valid for engine 622.9 | 1F |
