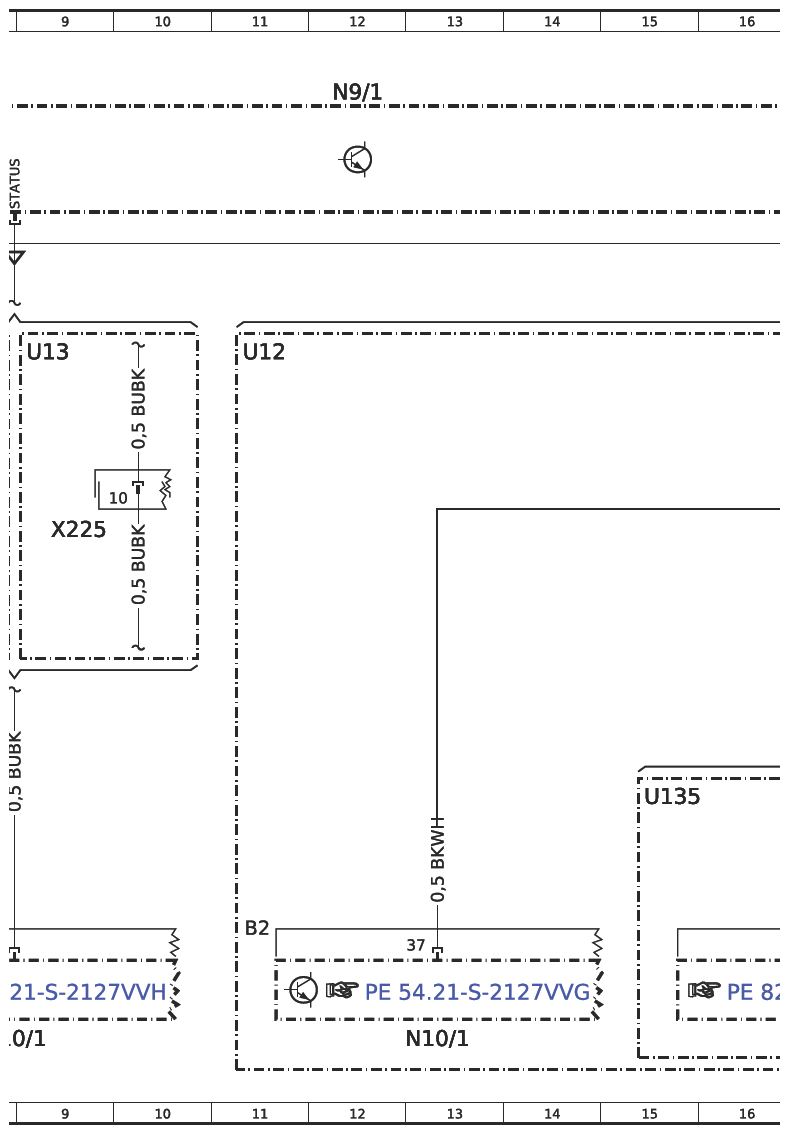

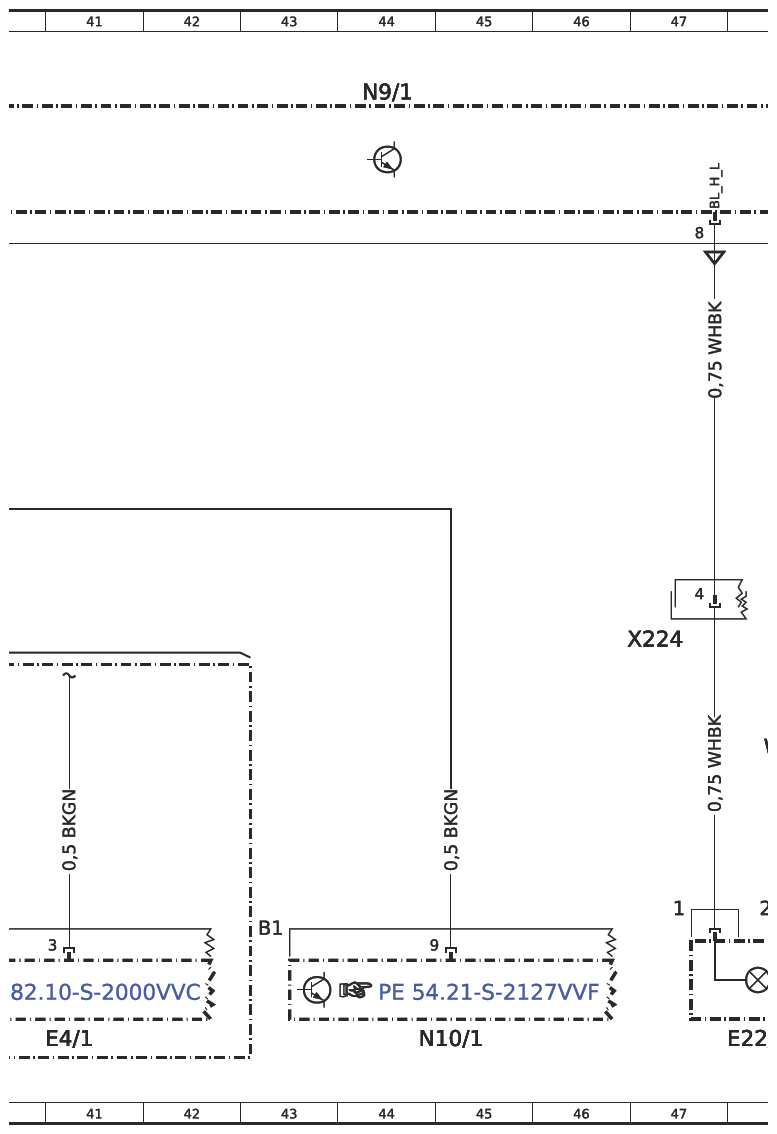

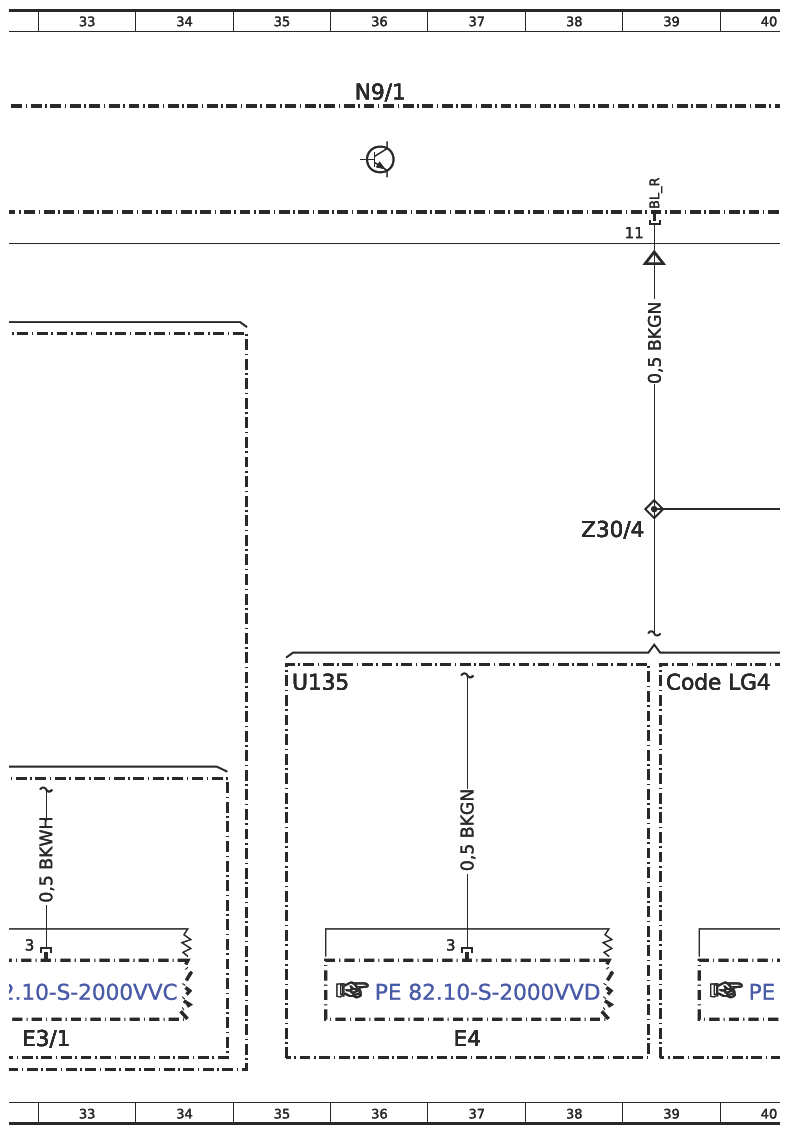

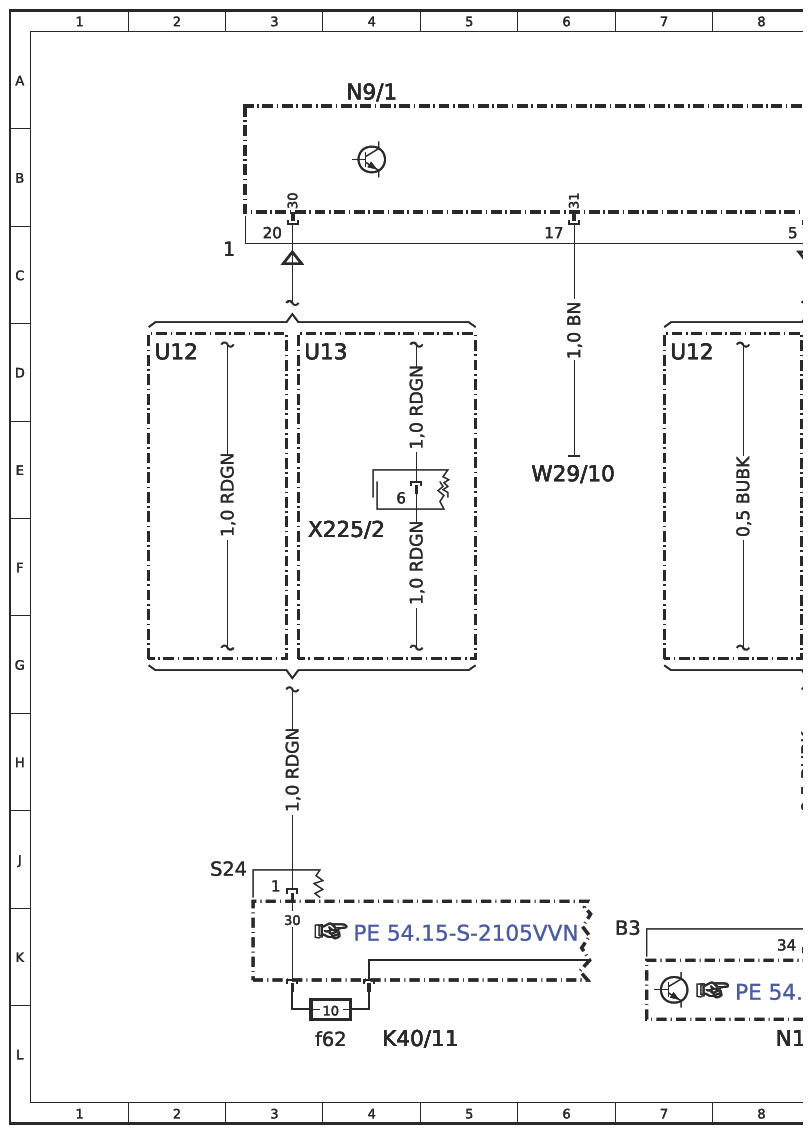

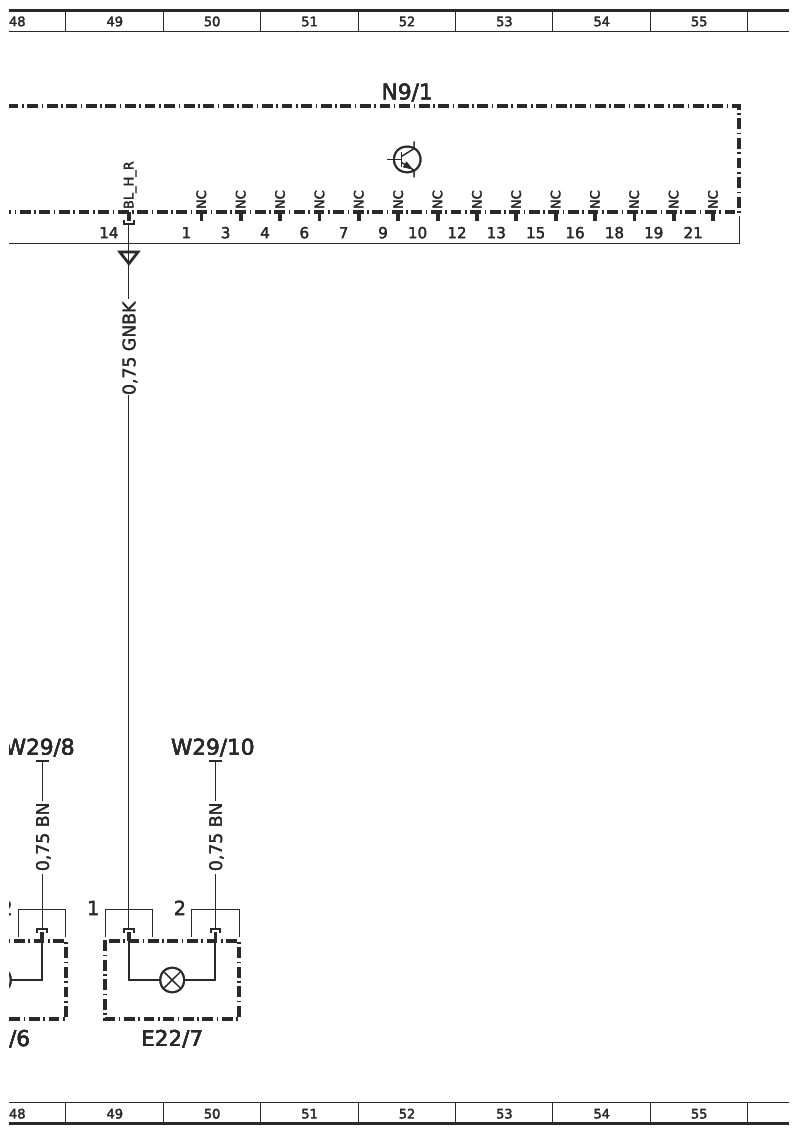

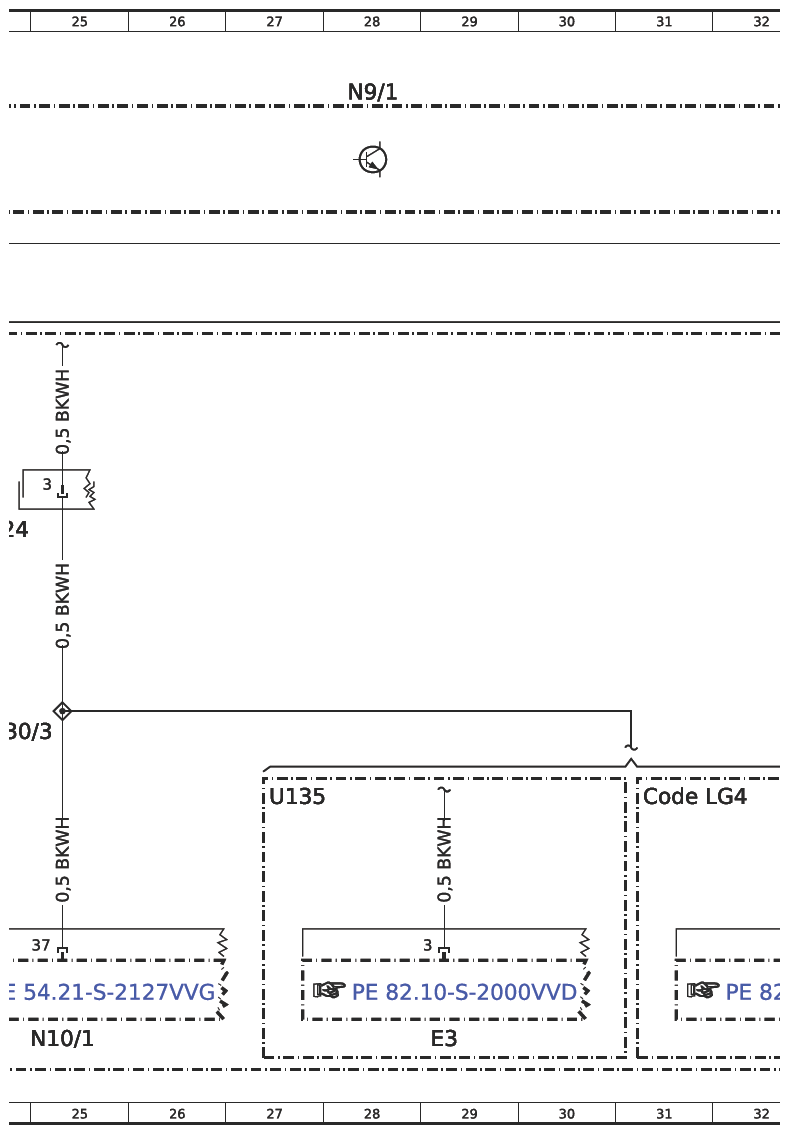

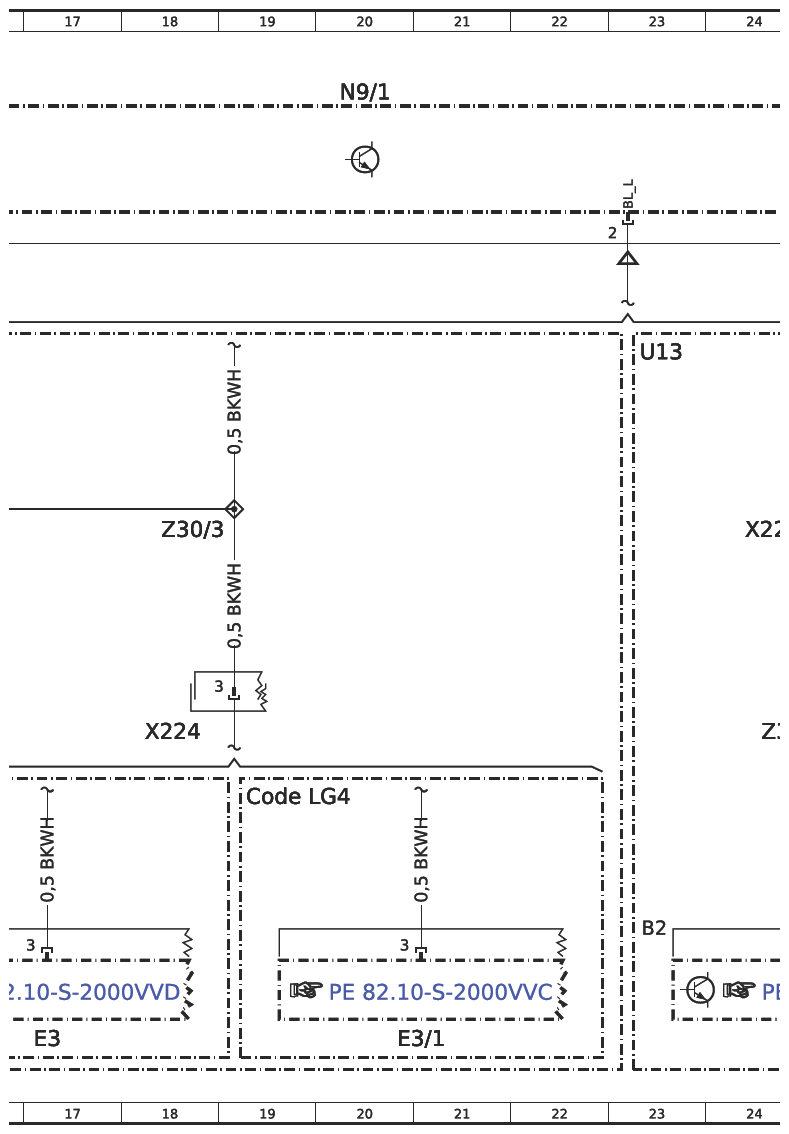

Electric Wiring Diagram Of Turn Signal/Hazard Warning Lamps - PE82.10-S-2200-97VVA
Model 447.6 with code L84 (Blinker lights behind on roof) except code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) N9/1
Model 447.7 with code L84 (Blinker lights behind on roof) except code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code ME0 (Electric motor 85 kW) except code ME4 (Electric motor 145 kW) except code XM0 (Facelift) except code XM7 (MOPF II) except code ZL3 (National version for Latin America) N9/1
| Code: | Designation: | Position: |
|---|---|---|

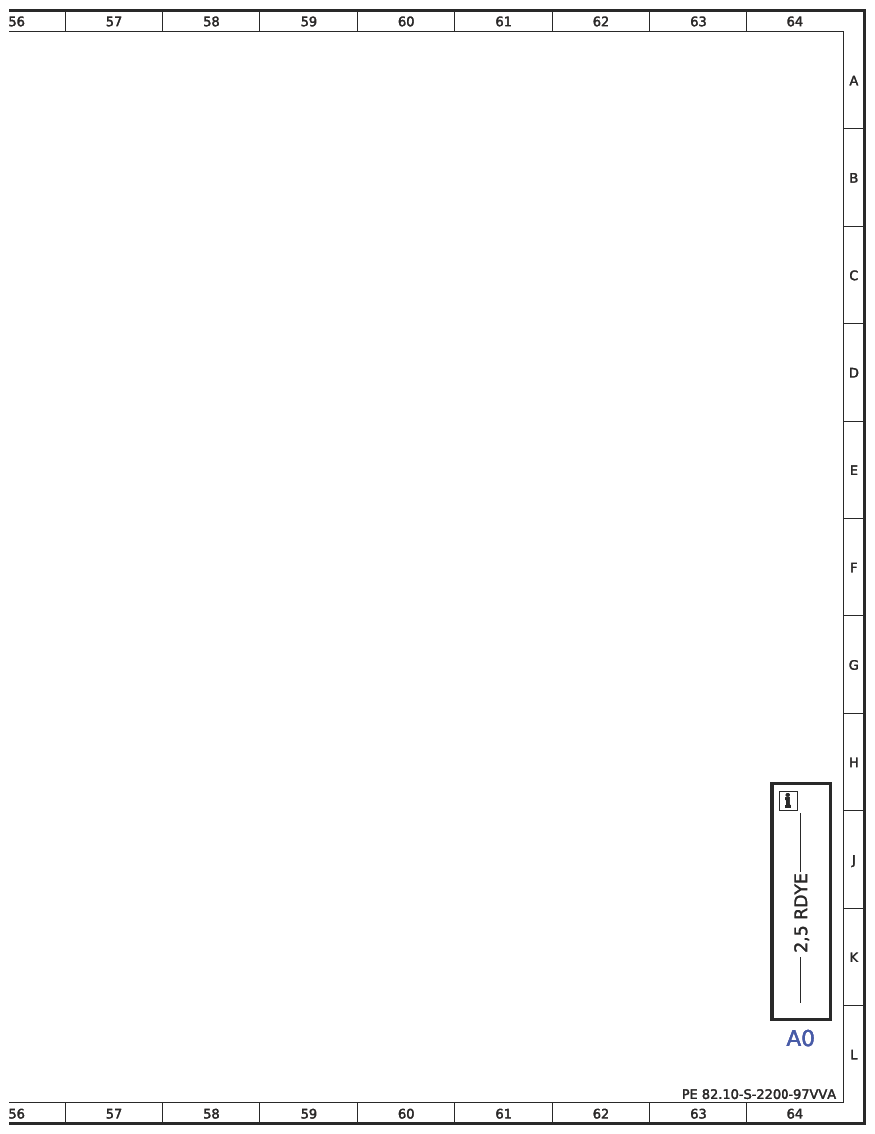

| A0 | Color code key | 64L |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 39G |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 19H |
| Code LG4 | LED tail lamps, brake lamps and turn signal lights | 31H |
| E22/6 | Left roof additional turn signal lamp | 48L |
| E22/7 | Right roof additional turn signal lamp | 49L |
| E3 | Left rear lamp unit | 17L |
| E3 | Left rear lamp unit | 29L |
| E3/1 | Left rear LED lamp unit | 20L |
| E3/1 | Left rear LED lamp unit | 32L |
| E4 | Right rear lamp unit | 37L |
| E4/1 | Right rear LED lamp unit | 41L |
| K40/11 | Firewall fuse and relay module | 4L |
| K40/11f62 | Fuse 62 | 4L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 8L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 45L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 25L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 13L |
| N9/1 | Additional turn signal module control unit | 4A |
| N9/1 | Additional turn signal module control unit | 12A |
| N9/1 | Additional turn signal module control unit | 20A |
| N9/1 | Additional turn signal module control unit | 28A |
| N9/1 | Additional turn signal module control unit | 36A |
| N9/1 | Additional turn signal module control unit | 44A |
| N9/1 | Additional turn signal module control unit | 52A |
| U12 | Valid for left-hand drive vehicles | 2D |
| U12 | Valid for left-hand drive vehicles | 7D |
| U12 | Valid for left-hand drive vehicles | 11D |
| U13 | Valid for right-hand drive vehicles | 3D |
| U13 | Valid for right-hand drive vehicles | 9D |
| U13 | Valid for right-hand drive vehicles | 23D |
| U135 | Valid without code LG4 LED tail lamps, brake lamps and turn signal lights | 35G |
| U135 | Valid without code LG4 LED tail lamps, brake lamps and turn signal lights | 15H |
| U135 | Valid without code LG4 LED tail lamps, brake lamps and turn signal lights | 27H |
| W29/10 | Right D-pillar ground point | 6E |
| W29/10 | Right D-pillar ground point | 50H |
| W29/8 | Left D-pillar ground point | 48H |
| X224 | Right/left rear-end door electrical connector | 47G |
| X224 | Right/left rear-end door electrical connector | 24F |
| X224 | Right/left rear-end door electrical connector | 18H |
| X225 | Main wiring harness/firewall main wiring harness 1 electrical connector | 9F |
| X225/2 | Main wiring harness/firewall main wiring harness 3 electrical connector | 4F |
| Z30/3 | Left rear turn signal light connector sleeve | 24H |
| Z30/3 | Left rear turn signal light connector sleeve | 18F |
| Z30/4 | Right rear turn signal light connector sleeve | 38F |
