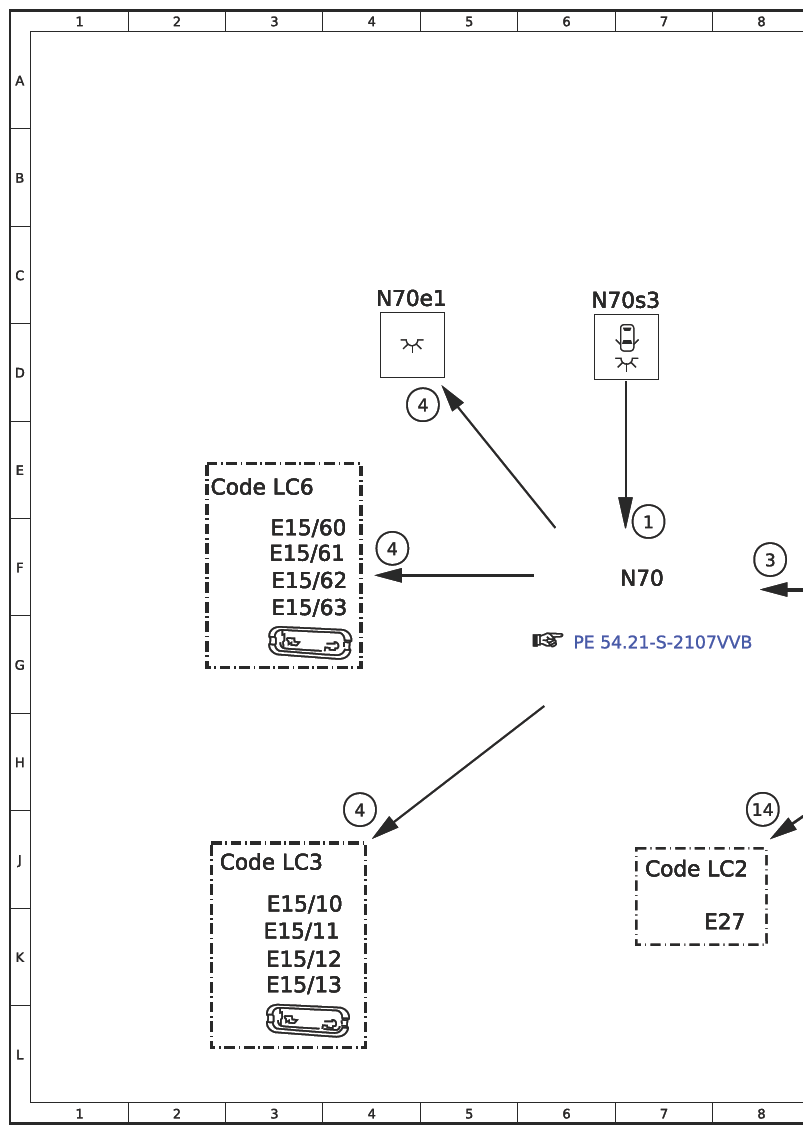

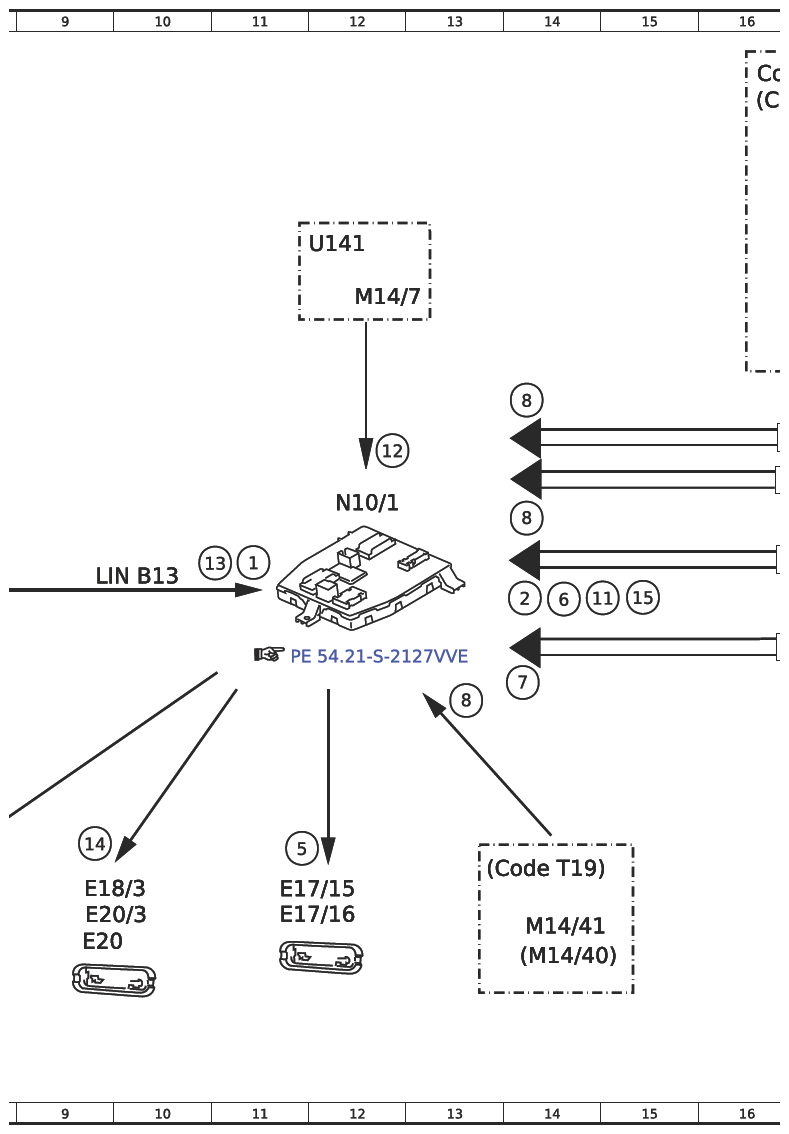

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-S-2052-97TRB
Model 447.6 except code XM0 (Facelift)
Model 447.7 except code XM0 (Facelift) except code ZH6 (Marco Polo ACTIVITY)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 11F |
| 1 | Automatic function switch, status | 7F |
| 10 | Exit and warning lamp, actuation | 26B |
| 11 | Dusk setting, signal | 29H |
| 11 | Dusk setting, signal | 14F |
| 12 | Vehicle speed, signal | 12E |
| 13 | Trunk lid/liftgate lock main catch switch, status | 10F |
| 14 | Ambient lamp, request | 9J |
| 14 | Ambient lamp, request | 8J |
| 15 | Ambient lamp, actuation | 27K |
| 15 | Ambient lamp, actuation | 15F |
| 2 | Central locking (CL [ZV]), status | 14F |
| 3 | Interior lamp, request | 8F |
| 4 | Interior lamp, actuation | 4F |
| 4 | Interior lamp, actuation | 5D |
| 4 | Interior lamp, actuation | 4J |
| 5 | Footwell lamp, actuation | 11J |
| 6 | Circuit 15, status | 14F |
| 7 | OFF delay time, status | 27H |
| 7 | OFF delay time, status | 14G |
| 8 | Door rotary tumbler switch, status | 14D |
| 8 | Door rotary tumbler switch, status | 14F |
| 8 | Door rotary tumbler switch, status | 13G |
| 9 | Exit and warning lamp, request | 23D |
| A1/1 | Instrument cluster (KI) control unit | 18H |
| CAN B | Interior CAN | 17F |
| CAN B | Interior CAN | 17E |
| CAN B | Interior CAN | 25H |
| CAN B | Interior CAN | 17E |
| CAN B | Interior CAN | 17G |
| CAN E | Chassis CAN | 28G |
| CAN E | Chassis CAN | 26K |
| Code LC2 | - | 7J |
| Code LC3 | Illumination in rear grab handle | 2J |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 2E |
| Code T19 | Left sliding door | 13J |
| Code T55 | Electric controls for right sliding door | 16A |
| Code T56 | Electric controls for left sliding door | 16A |
| E15/10 | Dome lamp in left front grab handle | 3K |
| E15/11 | Dome lamp in right front grab handle | 3K |
| E15/12 | Dome lamp in left rear grab handle | 3K |
| E15/13 | Dome lamp in right rear grab handle | 3K |
| E15/60 | Left front grab handle ambiance illumination | 3F |
| E15/61 | Right front grab handle ambiance illumination | 3F |
| E15/62 | Left rear grab handle ambiance illumination | 3F |
| E15/63 | Right rear grab handle ambiance illumination | 3F |
| E17/15 | Right front footwell lamp | 11J |
| E17/16 | Left front footwell lamp | 11K |
| E18/3 | Left luggage compartment lamp | 9J |
| E20 | Liftgate front area illumination 1 | 9K |
| E20/1 | Liftgate ambient illumination 1 | 27B |
| E20/2 | Right exit and warning lamp | 27C |
| E20/3 | Liftgate ambient illumination 2 | 9K |
| E27 | Load compartment work lamp LED light strip | 8K |
| LIN B13 | Roof LIN | 10F |
| M14/40 | Left manual sliding door central locking actuator | 14K |
| M14/41 | Right manual sliding door central locking actuator | 14K |
| M14/7 | Rear-end door central locking actuator | 12C |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 12E |
| N2/18 | Supplemental restraint system (SRS) control unit | 23K |
| N30/4 | Electronic Stability Program (ESP) control unit | 28D |
| N69/3 | Left front door control unit | 23A |
| N69/4 | Right front door control unit | 23A |
| N69/6 | Right sliding door (E-LSTR) control unit | 18A |
| N69/7 | Left sliding door (E-LSTL) control unit | 18A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 7F |
| N70e1 | Front interior lamp | 4C |
| N70s3 | Interior lamp automatic function button | 6C |
| N73 | Electronic ignition lock (EZS) control unit | 28J |
| U141 | Valid without code W68 Electrically operated liftgate | 12C |
