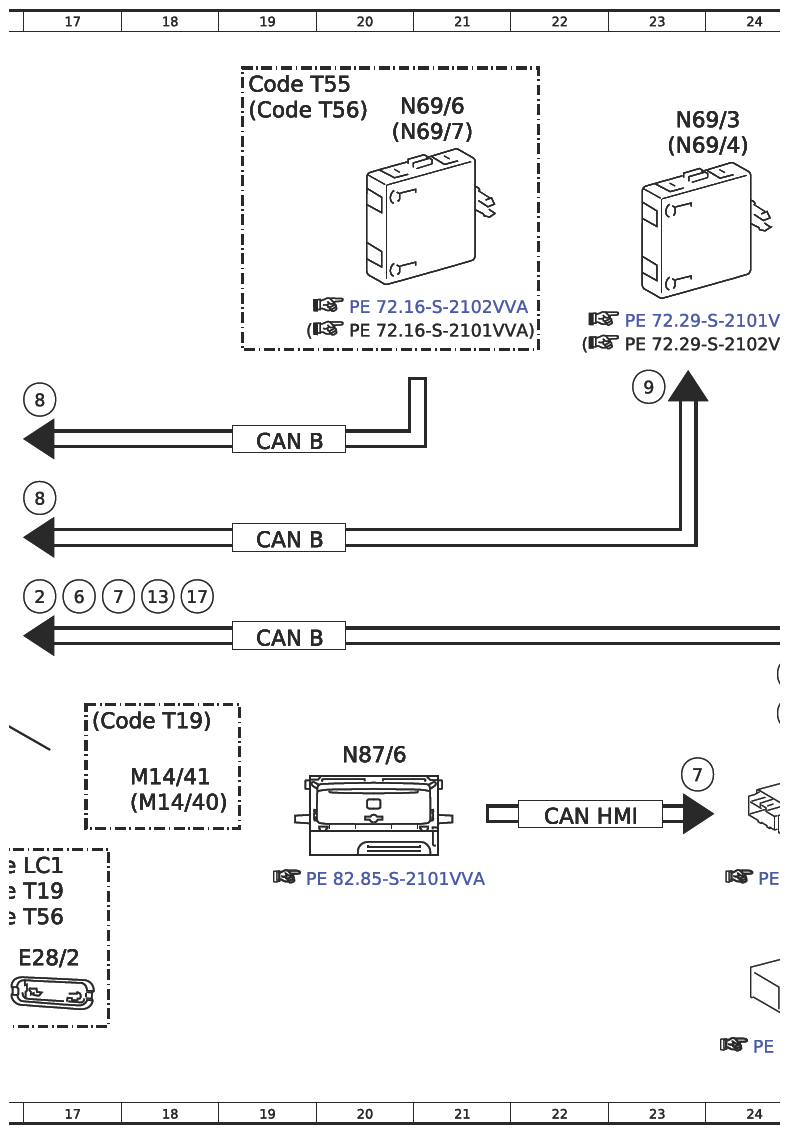

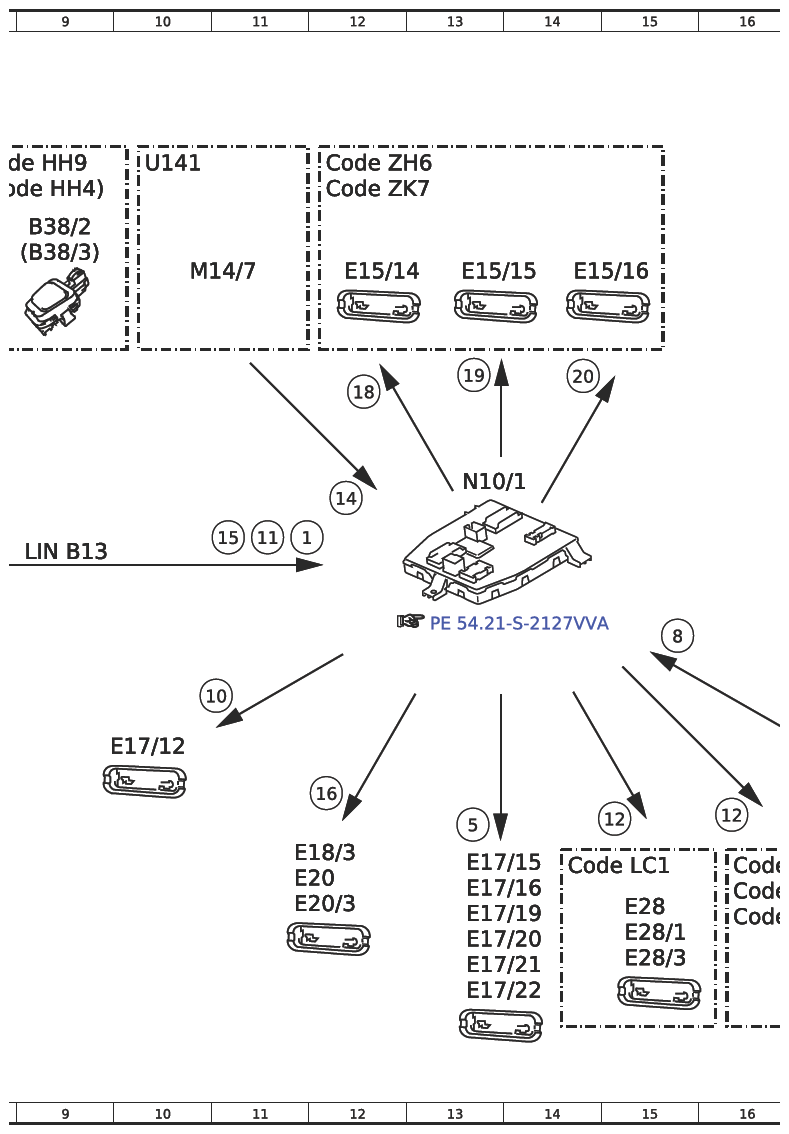

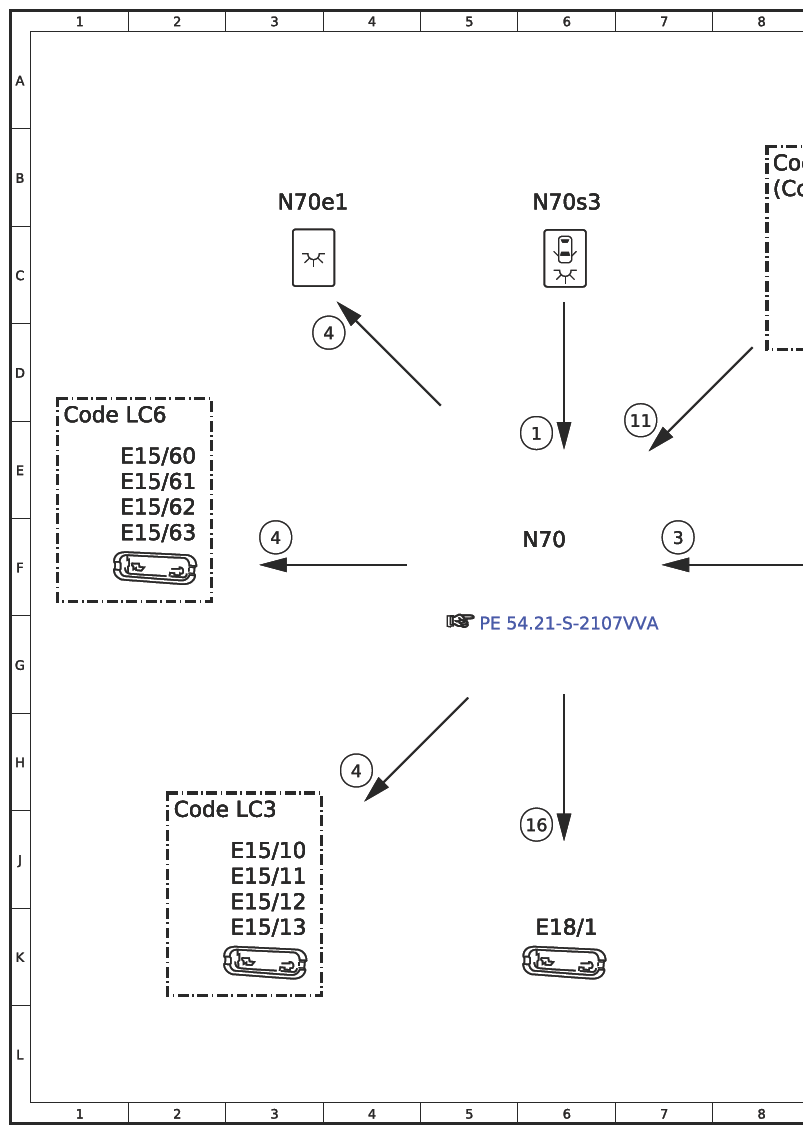

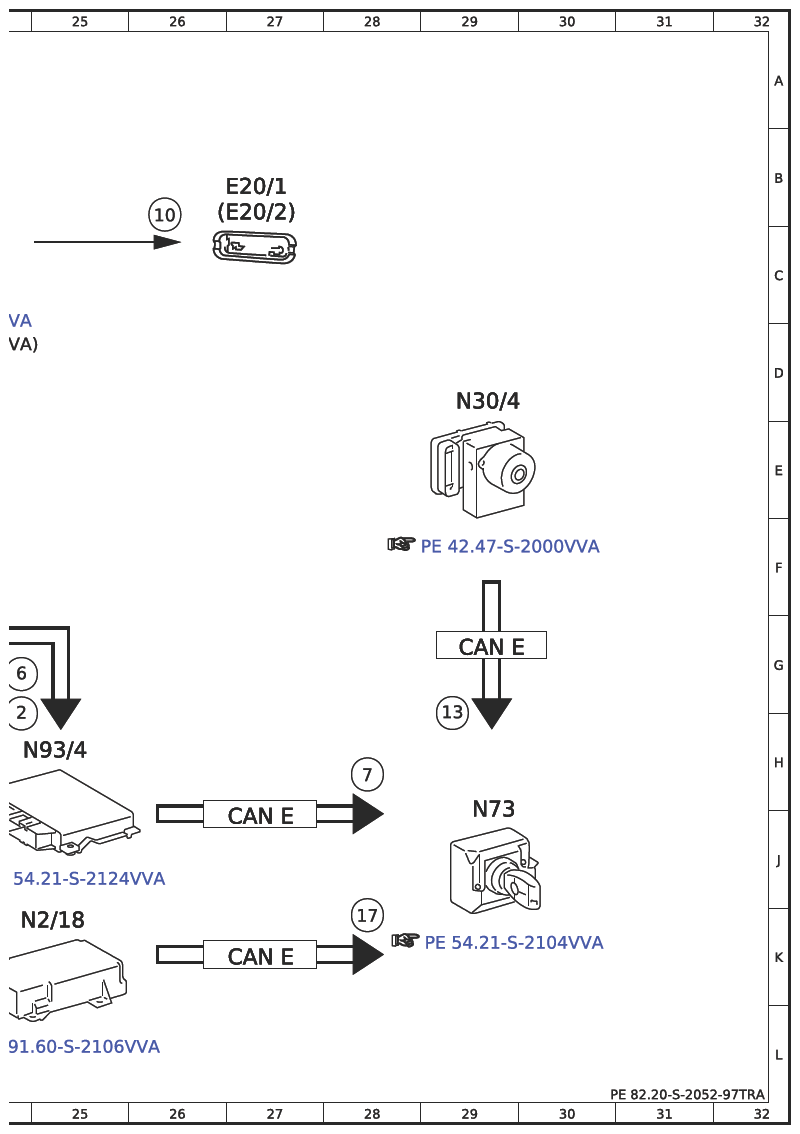

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-S-2052-97TRA
Model 447.7
with code ZH6 (Marco Polo ACTIVITY)
Model 447.8
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 6E |
| 1 | Automatic function switch, status | 11F |
| 10 | Exit and warning lamp, actuation | 10G |
| 10 | Exit and warning lamp, actuation | 26B |
| 11 | Dusk setting, signal | 7E |
| 11 | Dusk setting, signal | 11F |
| 13 | Vehicle speed, signal | 18F |
| 13 | Vehicle speed, signal | 29H |
| 14 | Trunk lid/liftgate lock main catch switch, status | 12E |
| 15 | Ambient lamp, request | 11F |
| 16 | Ambient lamp, actuation | 6J |
| 16 | Ambient lamp, actuation | 12H |
| 17 | Crash, signal | 18F |
| 17 | Crash, signal | 28K |
| 18 | - | 12D |
| 19 | - | 13D |
| 2 | Central locking (CL [ZV]), status | 17F |
| 2 | Central locking (CL [ZV]), status | 24H |
| 20 | - | 14D |
| 3 | Interior lamp, request | 7F |
| 4 | Interior lamp, actuation | 4H |
| 4 | Interior lamp, actuation | 3F |
| 4 | Interior lamp, actuation | 4D |
| 5 | Footwell lamp, actuation | 13J |
| 6 | Circuit 15, status | 17F |
| 6 | Circuit 15, status | 24G |
| 7 | OFF delay time, status | 17F |
| 7 | OFF delay time, status | 23H |
| 7 | OFF delay time, status | 28H |
| 8 | Door rotary tumbler switch, status | 15G |
| 8 | Door rotary tumbler switch, status | 17E |
| 8 | Door rotary tumbler switch, status | 17D |
| 9 | Exit and warning lamp, request | 23D |
| B38/2 | Humidity sensor/light sensor/rain sensor | 9C |
| B38/3 | Humidity sensor/light sensor/rain sensor/sun sensor | 9C |
| CAN B | Interior CAN | 19E |
| CAN B | Interior CAN | 19F |
| CAN B | Interior CAN | 19G |
| CAN E | Chassis CAN | 27K |
| CAN E | Chassis CAN | 27J |
| CAN E | Chassis CAN | 29G |
| CAN HMI | User interface CAN | 22J |
| Code HH4 | THERMOTRONIC automatic air conditioning | 8B |
| Code HH9 | Semi-automatically controlled air conditioning, TEMPMATIC | 8B |
| Code LC1 | Interior ambiance illumination | 16J |
| Code LC1 | Interior ambiance illumination | 14J |
| Code LC3 | Illumination in rear grab handle | 2J |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 1E |
| Code T19 | Left sliding door | 16J |
| Code T19 | Left sliding door | 17H |
| Code T55 | Electric controls for right sliding door | 19A |
| Code T56 | Electric controls for left sliding door | 19A |
| Code T56 | Electric controls for left sliding door | 16K |
| Code ZH6 | Camper Basic package | 12B |
| Code ZK7 | Marco Polo CAMPER | 12B |
| E15/10 | Dome lamp in left front grab handle | 3J |
| E15/11 | Dome lamp in right front grab handle | 3J |
| E15/12 | Dome lamp in left rear grab handle | 3K |
| E15/13 | Dome lamp in right rear grab handle | 3K |
| E15/14 | Center rear interior lamp | 12C |
| E15/15 | Left kitchen interior lamp | 13C |
| E15/16 | Right sliding door interior lamp | 14C |
| E15/60 | Left front grab handle ambiance illumination | 1E |
| E15/61 | Right front grab handle ambiance illumination | 1E |
| E15/62 | Left rear grab handle ambiance illumination | 1E |
| E15/63 | Right rear grab handle ambiance illumination | 1F |
| E17/12 | Right sliding door step illumination | 9H |
| E17/15 | Right front footwell lamp | 13J |
| E17/16 | Left front footwell lamp | 13J |
| E17/19 | Left B-pillar footwell lamp | 13K |
| E17/20 | Right B-pillar footwell lamp | 13K |
| E17/21 | Left C-pillar footwell lamp | 13K |
| E17/22 | Right C-pillar footwell lamp | 13K |
| E18/1 | Center trunk lamp | 6K |
| E18/3 | Left luggage compartment lamp | 11J |
| E20 | Liftgate ambient illumination | 11J |
| E20/1 | Left exit and warning lamp | 27B |
| E20/2 | Right exit and warning lamp | 27B |
| E20/3 | Liftgate ambient illumination 1 | 11K |
| E28 | Left front illuminated door sill molding | 15K |
| E28/1 | Right front illuminated door sill molding | 15K |
| E28/2 | Left sliding door illuminated door sill molding | 16K |
| E28/3 | Right sliding door illuminated door sill molding | 15K |
| LIN B13 | Roof LIN | 9F |
| M14/40 | Left manual sliding door central locking actuator | 18H |
| M14/41 | Right manual sliding door central locking actuator | 18H |
| M14/7 | Liftgate central locking actuator | 10C |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 13E |
| N2/18 | Supplemental restraint system (SRS) control unit | 25K |
| N30/4 | Electronic Stability Program (ESP) control unit | 29D |
| N69/3 | Left front door control unit | 23A |
| N69/4 | Right front door control unit | 23B |
| N69/6 | Right sliding door (E-LSTR) control unit | 21A |
| N69/7 | Left sliding door (E-LSTL) control unit | 21B |
| N70 | Overhead control panel (OCP [DBE]) control unit | 6F |
| N70e1 | Front interior lamp | 3B |
| N70s3 | Interior lamp automatic function button | 6B |
| N73 | Electronic ignition lock (EZS) control unit | 29J |
| N87/6 | Radio (Audio/COMAND) | 20H |
| N93/4 | Gateway for user interface CAN | 25H |
| U141 | Valid without code W68 Electrically operated liftgate | 10B |
