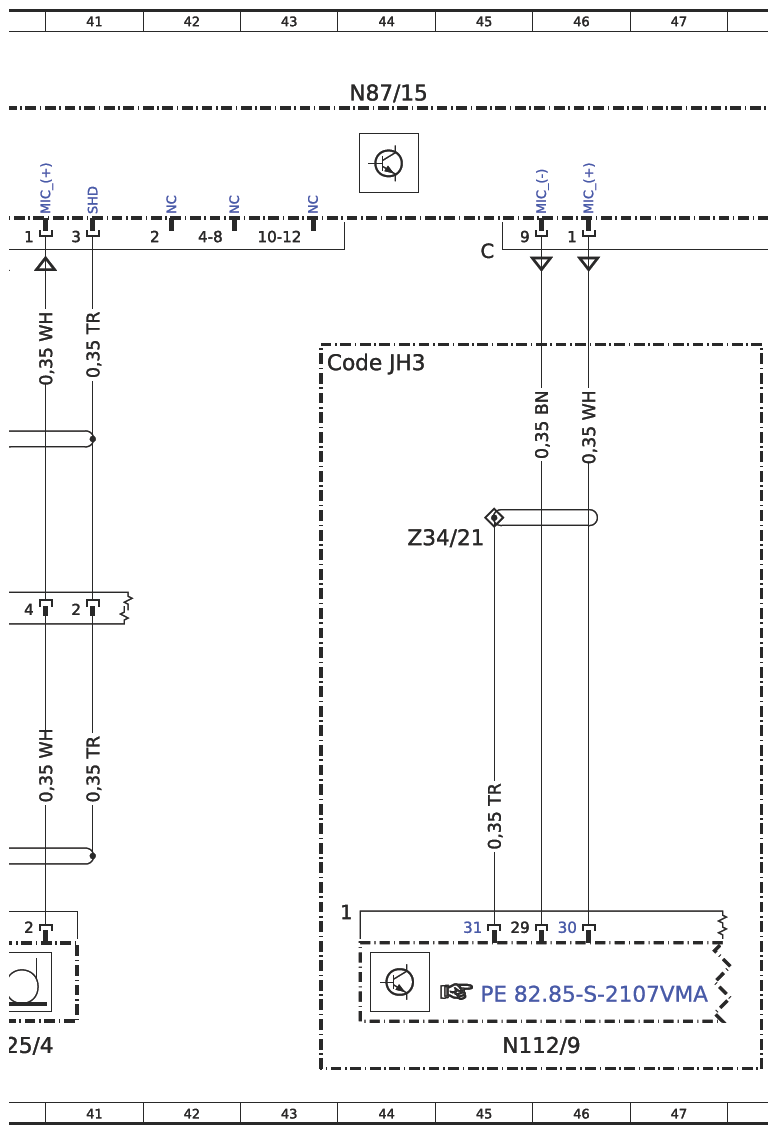

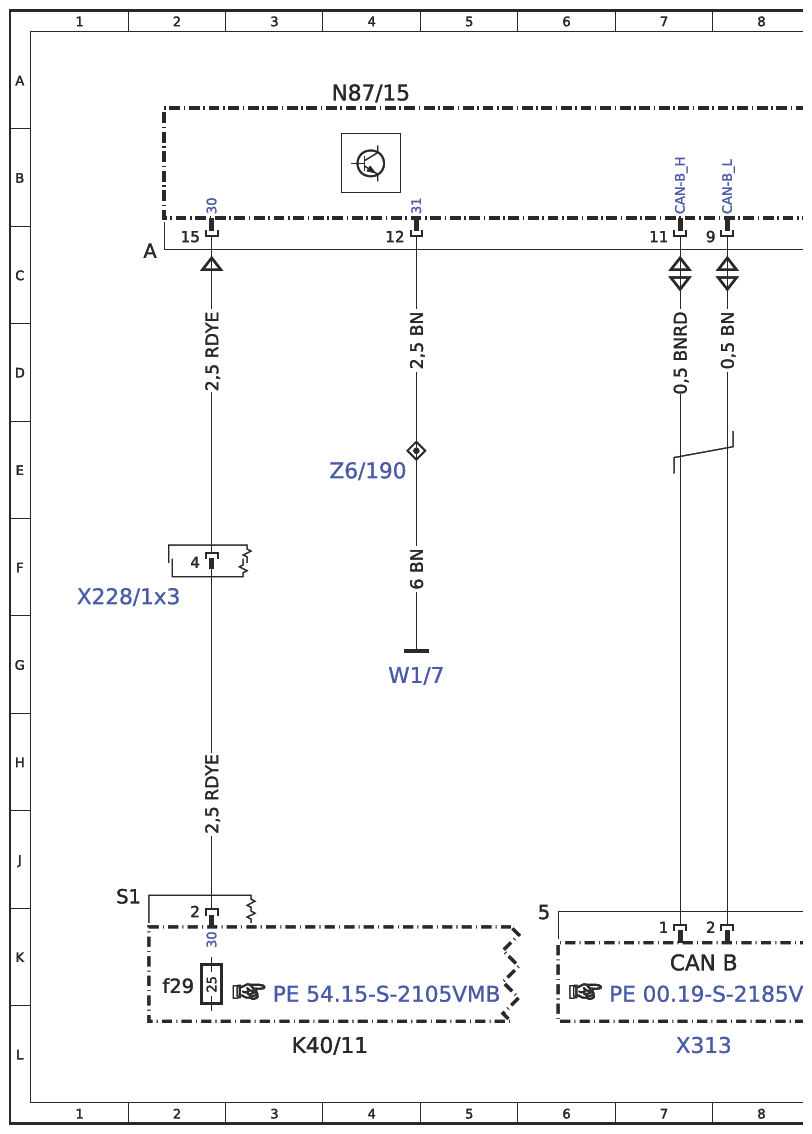

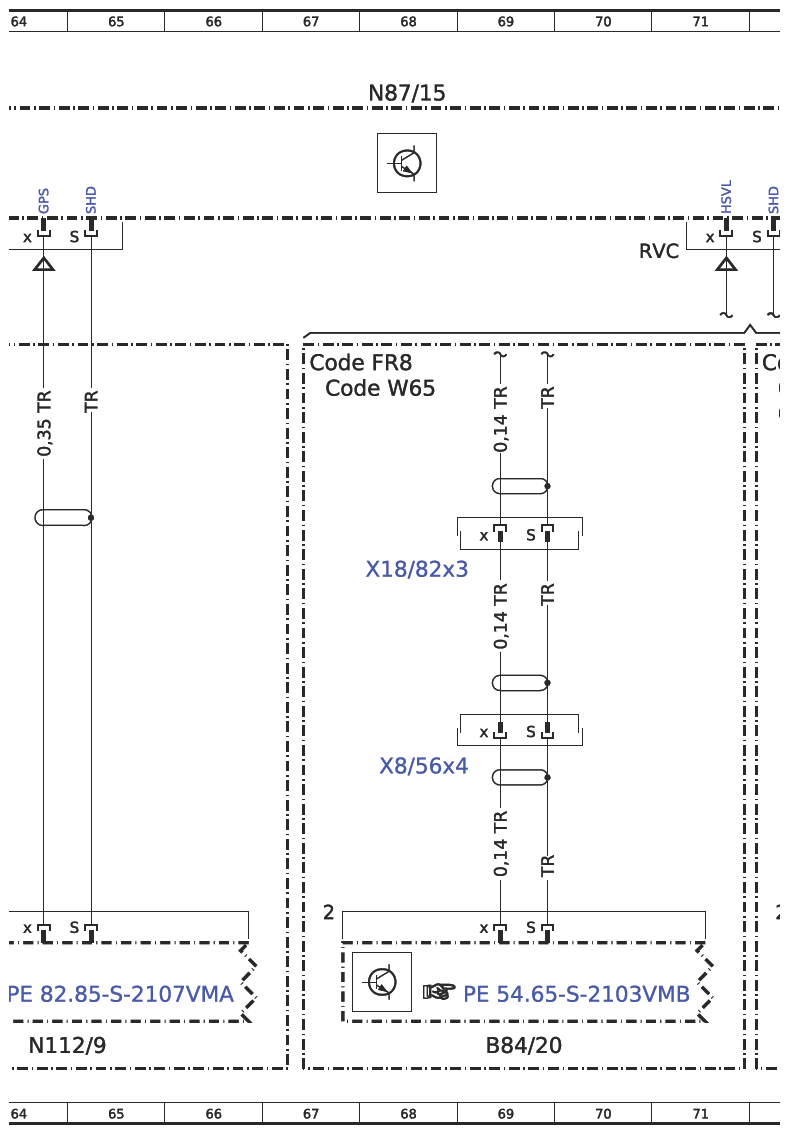

(Wiring Diagram Of Radio - PE82.60-S-2000-97VMB)
Model 447.6/7 with code E2R (Radio generation 2) with code ME0 (Electric motor 85 kW) except code XM7 (MOPF II) N87/15
Model 447.6 with code E2R (Radio generation 2) with code M8E (Electric motor 85 kW/battery 60 kWh (usable)) except code XM7 (MOPF II) N87/15
Model 447.7 with code E2R (Radio generation 2) with code M7E (Electric motor 150 kW/battery 60 kWh (usable)) except code XM7 (MOPF II) N87/15
Model 447.7 with code E2R (Radio generation 2) with code ME4 (Electric motor 145 kW) except code XM7 (MOPF II) N87/15
| Code: | Designation: | Position: |
|---|---|---|

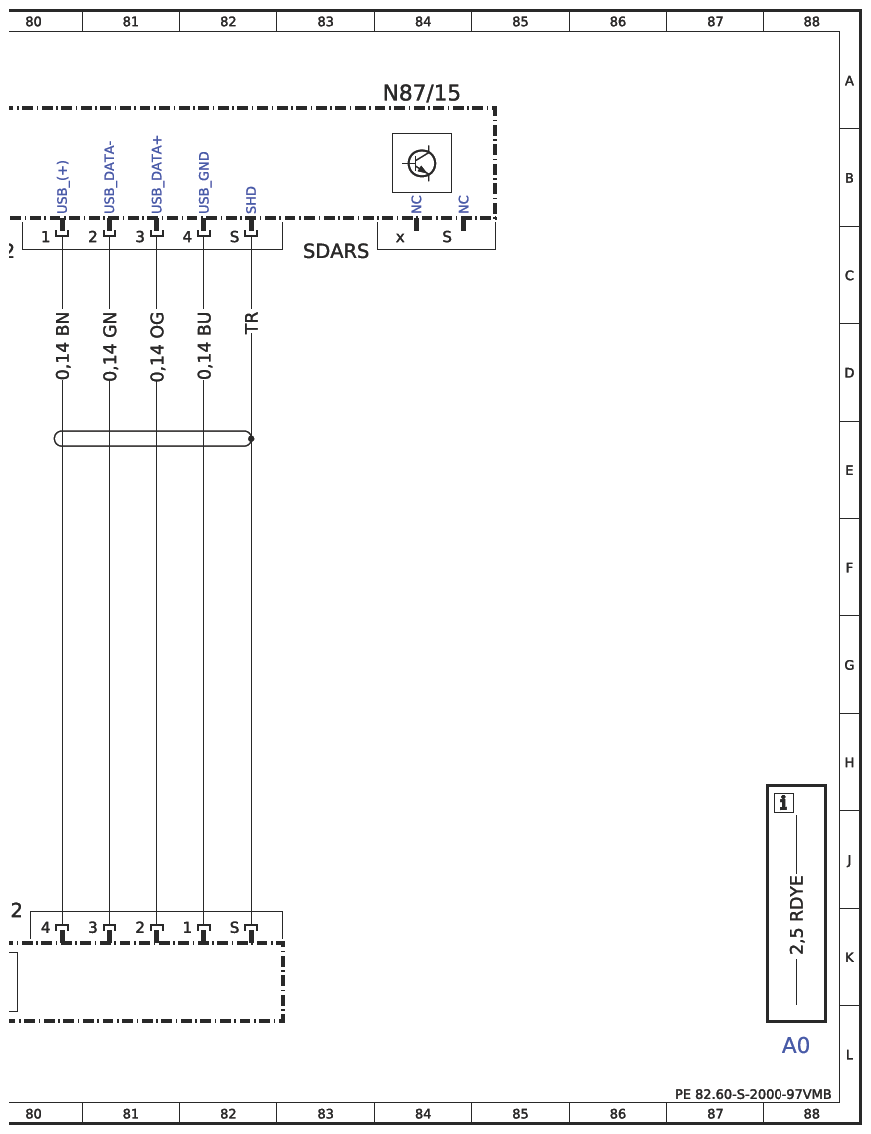

| A0 | Color code key | 88L |

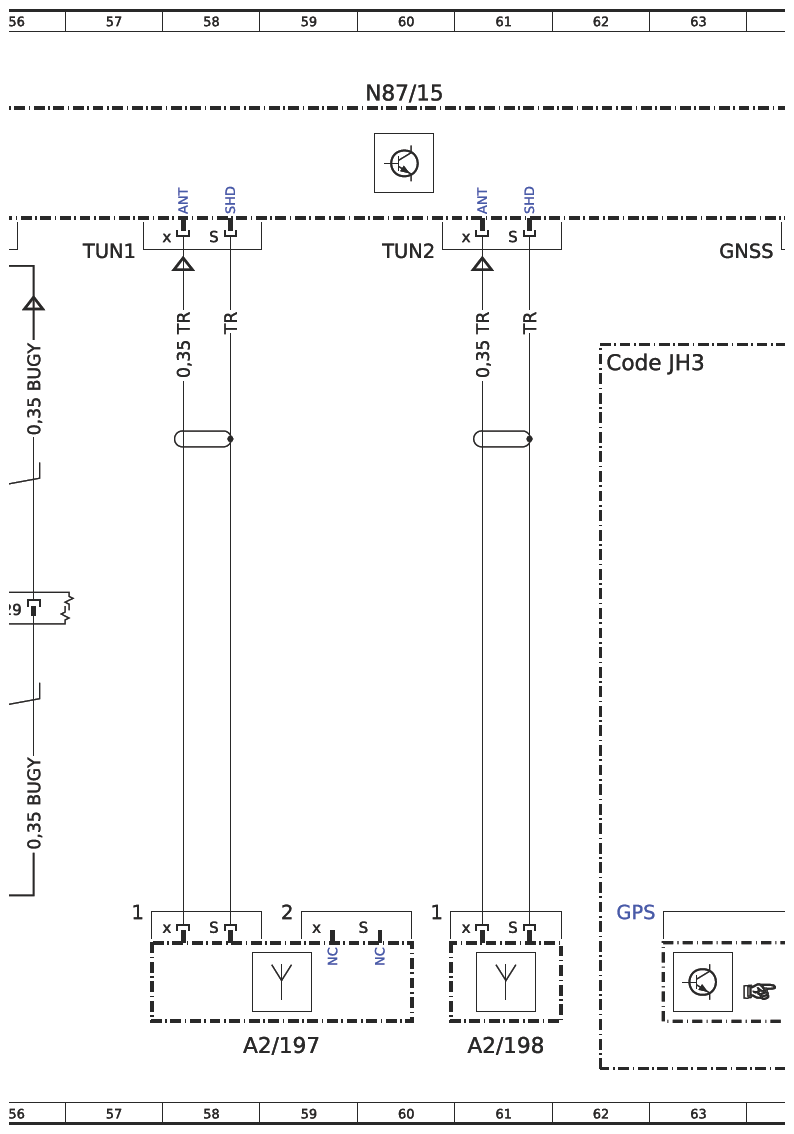

| A2/197 | AM, FM1, DAB1 antenna | 59L |
| A2/198 | AM, FM2, DAB2 antenna | 61L |
| A36 | Multimedia connection unit | 79L |
| B25/4 | Hands-free system microphone | 40L |

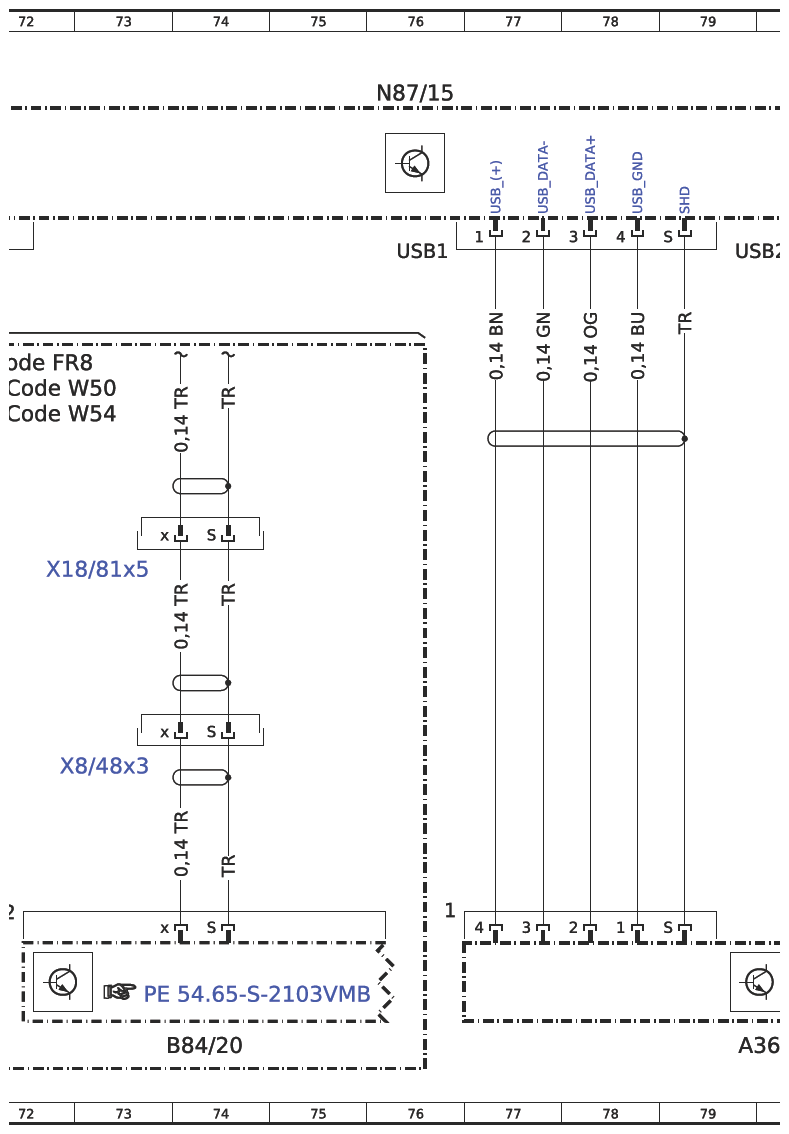

| B84/20 | Reversing camera (RFK) control unit | 69L |
| B84/20 | Reversing camera (RFK) control unit | 74L |
| CAN B | Interior CAN | 7K |
| Code EL8 | Front two-way speaker | 14A |
| Code EL9 | Front and rear two-way speakers | 14A |
| Code EL9 | Front and rear two-way speakers | 27A |
| Code FR8 | Backup camera | 67D |
| Code FR8 | Backup camera | 72D |
| Code JH3 | Communication module (LTE) for digital services | 9D |
| Code JH3 | Communication module (LTE) for digital services | 43D |
| Code JH3 | Communication module (LTE) for digital services | 62D |
| Code L | Valid for left-hand drive vehicles | 48G |
| Code L | Valid for left-hand drive vehicles | 53F |
| Code R | Valid for right-hand drive vehicles | 48G |
| Code R | Valid for right-hand drive vehicles | 55F |
| Code W50 | Rear-end door, two-leaf, 180 degrees without window | 72D |
| Code W54 | Rear-end doors, two-leaf, opening as far as side wall | 72E |
| Code W65 | Liftgate | 67D |
| H4/1 | Left front door bass/midrange speaker | 16L |
| H4/2 | Right front door bass/midrange speaker | 25L |

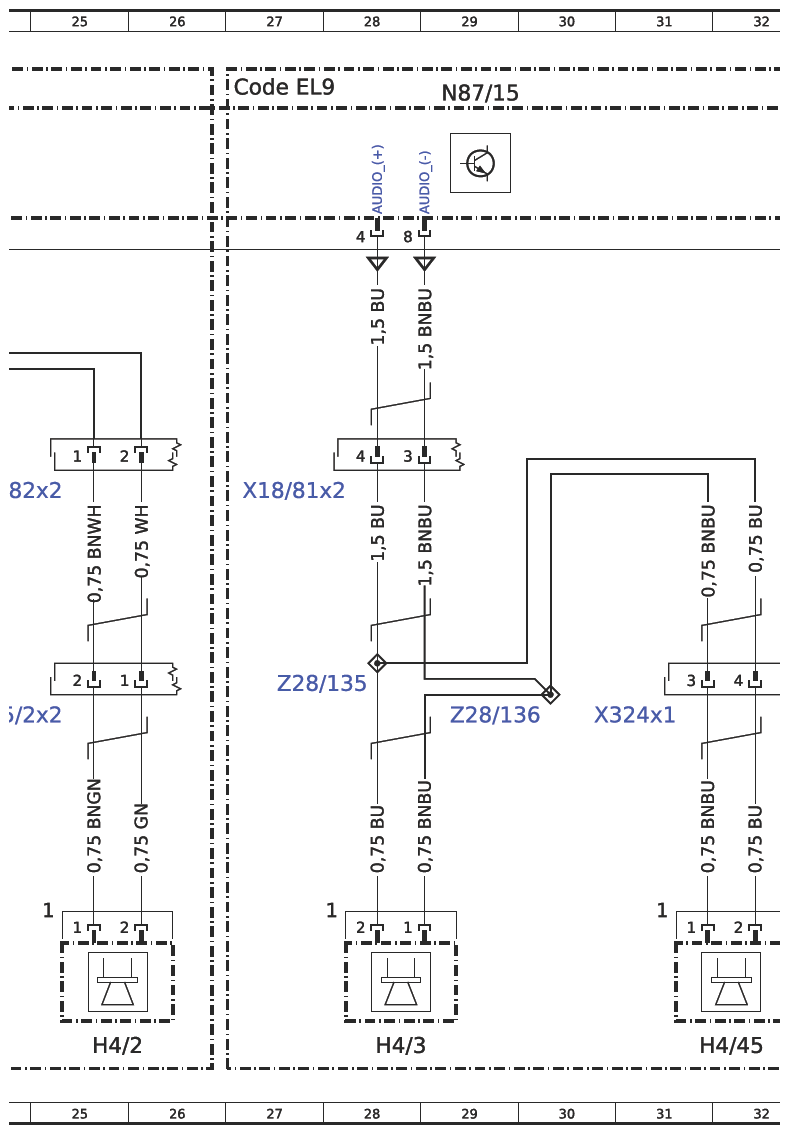

| H4/3 | Left rear side wall speaker | 28L |

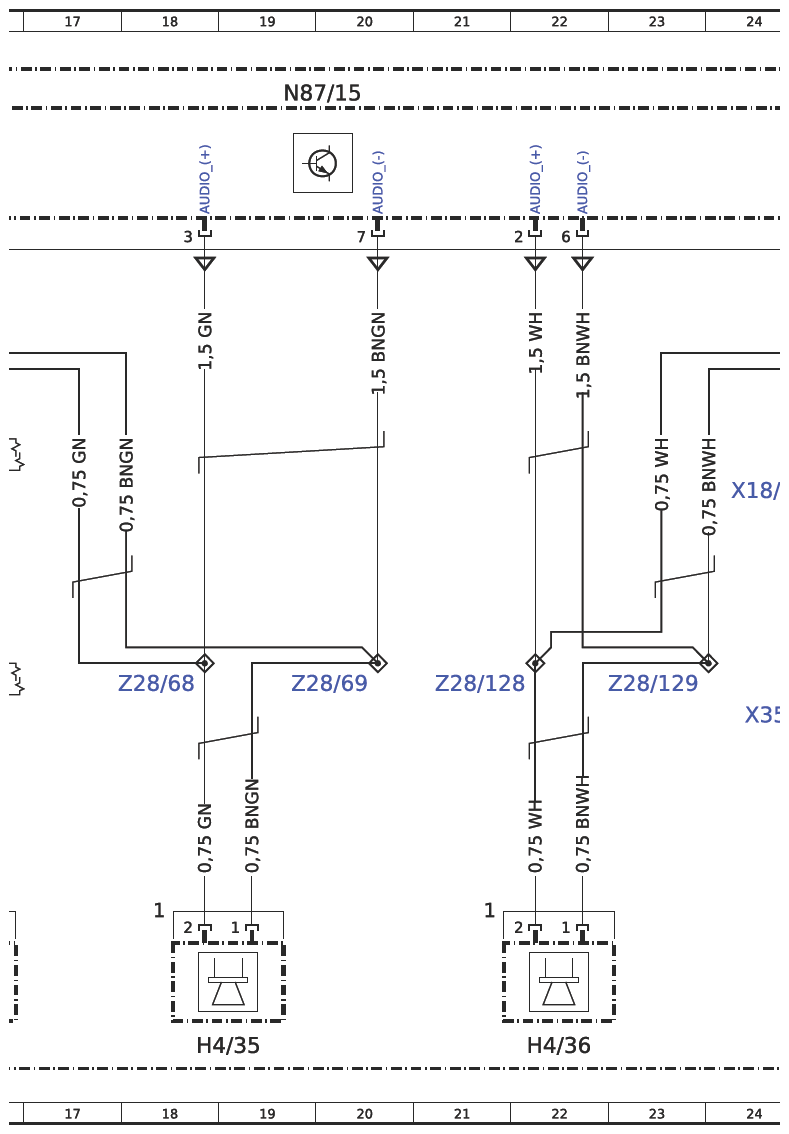

| H4/35 | Left instrument panel speaker | 18L |
| H4/36 | Right instrument panel speaker | 22L |

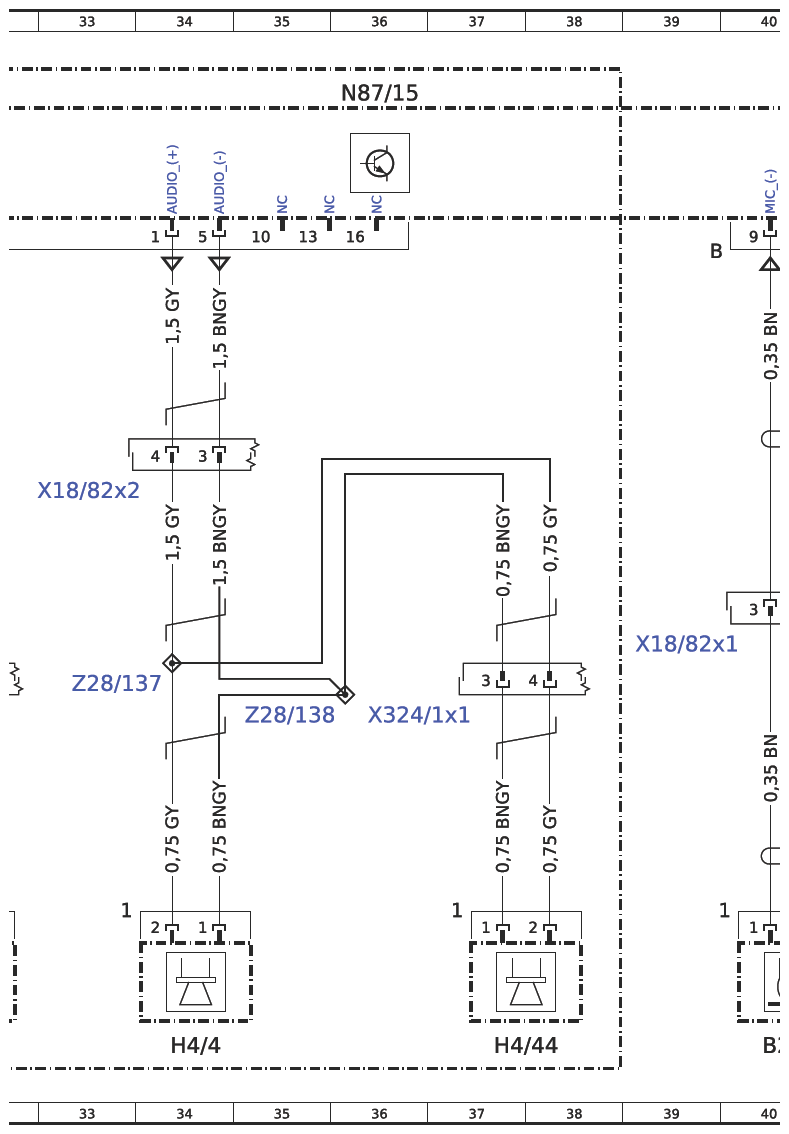

| H4/4 | Right rear side wall speaker | 34L |
| H4/44 | Right rear side wall tweeter | 37L |
| H4/45 | Left rear side wall tweeter | 32L |
| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f29 | Fuse 29 | 2K |

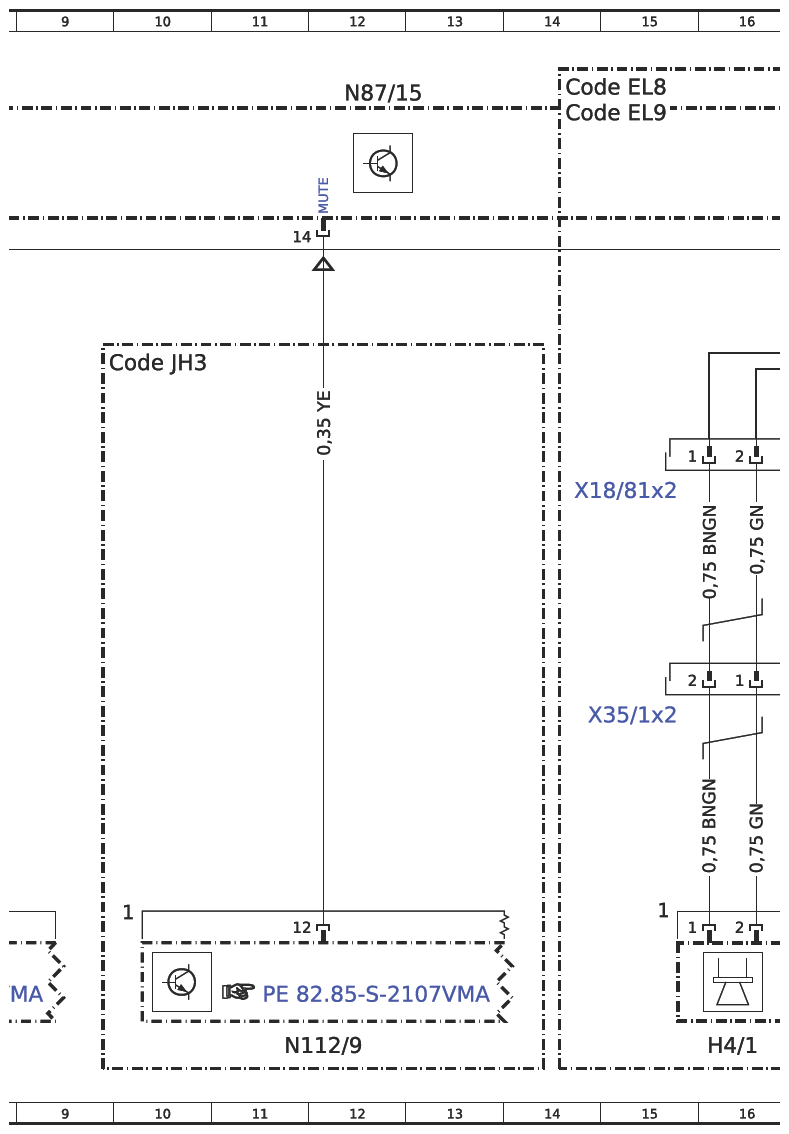

| N112/9 | HERMES control unit | 11L |
| N112/9 | HERMES control unit | 45L |
| N112/9 | HERMES control unit | 64L |
| N87/15 | Radio/radio navigation | 4A |
| N87/15 | Radio/radio navigation | 12A |
| N87/15 | Radio/radio navigation | 19A |
| N87/15 | Radio/radio navigation | 29A |
| N87/15 | Radio/radio navigation | 36A |
| N87/15 | Radio/radio navigation | 44A |
| N87/15 | Radio/radio navigation | 52A |
| N87/15 | Radio/radio navigation | 60A |
| N87/15 | Radio/radio navigation | 68A |
| N87/15 | Radio/radio navigation | 76A |
| N87/15 | Radio/radio navigation | 84A |
| W1/7 | Cockpit ground point | 4G |

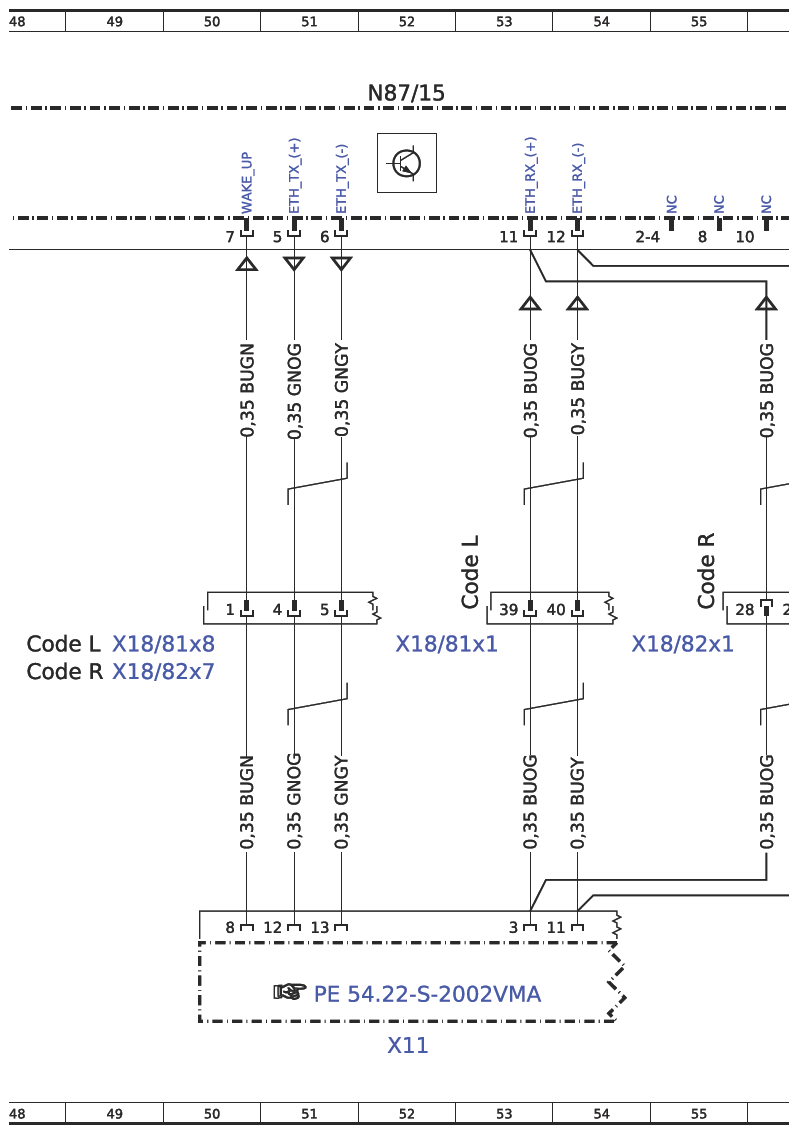

| X11 | Diagnostic connector | 52L |
| X18/81x1 | Left cockpit/main wiring harness electrical connector 1 | 53G |
| X18/81x2 | Left cockpit/main wiring harness electrical connector 2 | 15E |
| X18/81x2 | Left cockpit/main wiring harness electrical connector 2 | 27E |
| X18/81x5 | Left cockpit/main wiring harness electrical connector 5 | 73F |
| X18/81x8 | Left cockpit/main wiring harness electrical connector 8 | 50G |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 39G |
| X18/82x1 | Right cockpit/main wiring harness electrical connector 1 | 55G |
| X18/82x2 | Right cockpit/main wiring harness electrical connector 2 | 24E |
| X18/82x2 | Right cockpit/main wiring harness electrical connector 2 | 33E |
| X18/82x3 | Right cockpit/main wiring harness electrical connector 3 | 68F |
| X18/82x7 | Right cockpit/main wiring harness electrical connector 7 | 50G |
| X228/1x3 | Cockpit wiring harness/fuse and relay module electrical connector 3 | 2F |
| X313 | Interior CAN (CAN B) potential distributor electrical connector | 7L |
| X324/1x1 | Main wiring harness/right sidewall electrical connector | 37H |
| X324x1 | Main wiring harness/left sidewall electrical connector | 31H |
| X35/1x2 | Left front door electrical connector 2 | 15H |
| X35/2x2 | Right front door electrical connector 2 | 24H |
| X8/48x3 | Left rear-end door electrical connector 3 | 73H |
| X8/56x4 | Right liftgate electrical connector 4 | 68H |
| Z28/128 | Right cockpit speaker (+) connector sleeve | 21G |
| Z28/129 | Right cockpit speaker (-) connector sleeve | 23G |
| Z28/135 | Left side wall speaker (+) connector sleeve | 28G |
| Z28/136 | Left side wall speaker (-) connector sleeve | 29H |
| Z28/137 | Right side wall speaker (+) connector sleeve | 33G |
| Z28/138 | Right side wall speaker (-) connector sleeve | 35H |
| Z28/68 | Left cockpit speaker (+) connector sleeve | 18G |
| Z28/69 | Left cockpit speaker (-) connector sleeve | 20G |
| Z34/21 | Screening end connector sleeve | 45F |
| Z6/190 | Cockpit ground connection connector sleeve 6 | 4E |
