Perform SIM Card Update (Code: VS2SIMKOW, Acc. No.: 54 963 42) - SM82.95-S-0025-03A

Model 447.603/605/703 13 as of 153001 up to 913143

with code JH3 (Communication module (LTE) for digital services)

with code ZU8 (National version for USA)

Courtesy of MERCEDES-BENZ USA

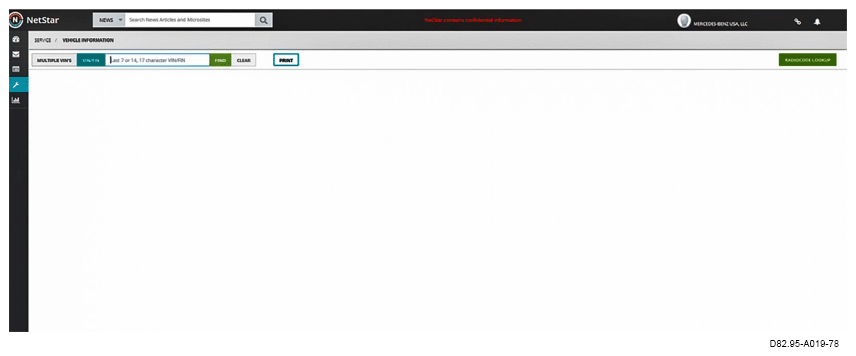

VMI screen on "NetStar" system (shown in English)

1. Login to the "NetStar" system and call up the VMI mask.

   Courtesy of MERCEDES-BENZ USA

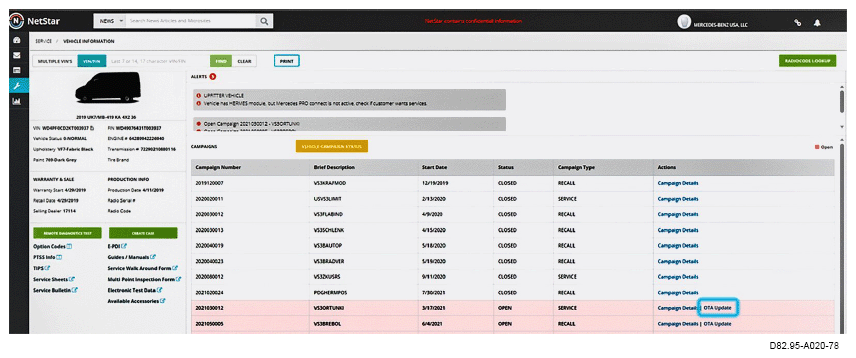

   Search for vehicle identification number (VIN/FIN) on "NetStar" system (shown in English)

2. Search for vehicle identification number (VIN/FIN).

   You can see the update link (over-the-air update (OTA update)) in the campaign table on the VMI mask when the update campaign (over-the-air update (OTA update)) for the vehicle identification number (FIN) is open.

3. Click on the "OTA update" link.

   Courtesy of MERCEDES-BENZ USA

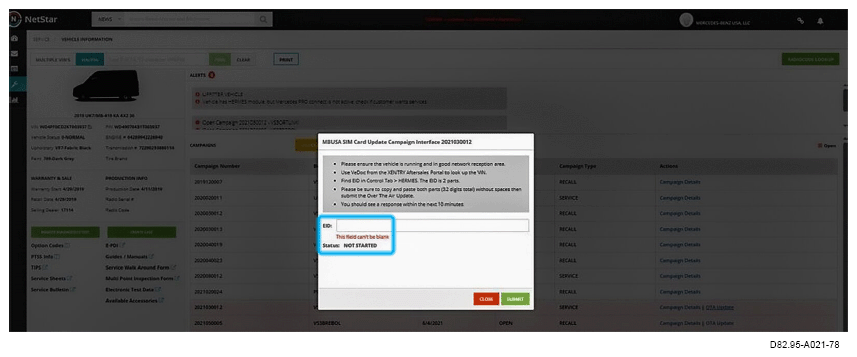

   Query for EID number on "NetStar" system (shown in English)

   A pop-up window displays a prompt for the EID number for the update (over-the-air update (OTA update)).

   Courtesy of MERCEDES-BENZ USA

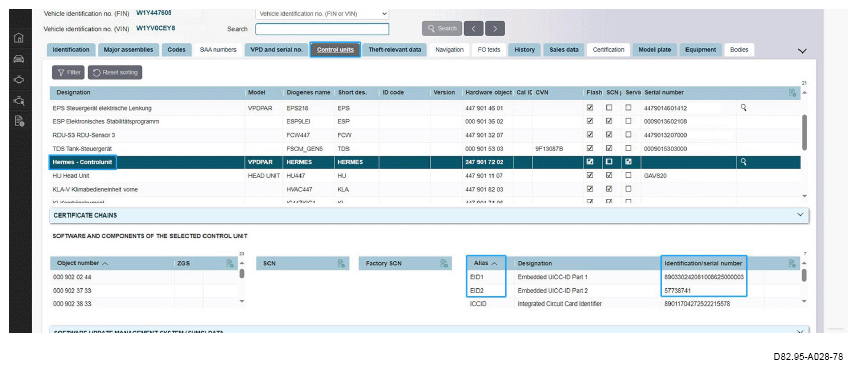

   Search for the vehicle's EID number in "Vehicle Documentation" (VeDoc) (shown in English)

4. Search for the vehicle's valid EID number in "Vehicle Documentation" (VeDoc).

   To do so, enter vehicle identification number (VIN/FIN), select "Control units" and click on "Hermes - Control unit".

   Courtesy of MERCEDES-BENZ USA

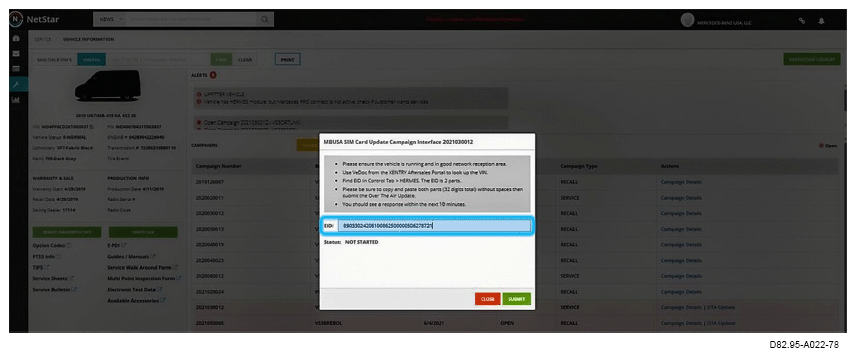

   Enter EID number on "NetStar" system (shown in English)

5. Enter valid EID number and click on "Submit" button.

   To do so, enter EID1 and EID2 number from "Vehicle Documentation" (VeDoc) together, as shown (e.g.: 890330242081008625000000 + 69027456).

   After clicking on the "Submit" button, the following screens are displayed depending on the case involved:

Courtesy of MERCEDES-BENZ USA

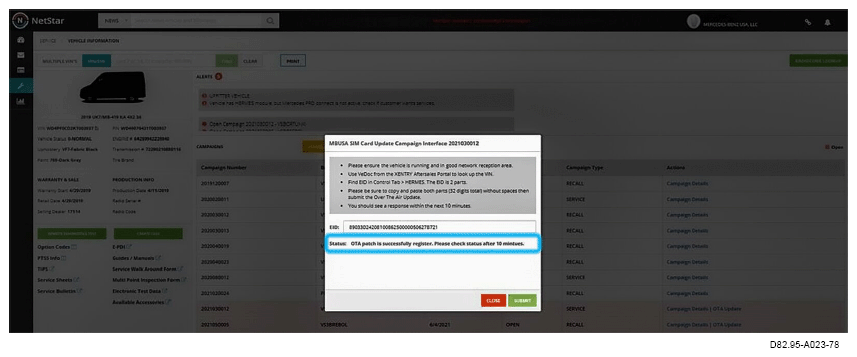

Successful registration of the update (over-the-air update (OTA update)) on the "NetStar" system (shown in English)

Screen on "NetStar" system when the update is successful (over-the-air update (OTA update)).

Courtesy of MERCEDES-BENZ USA

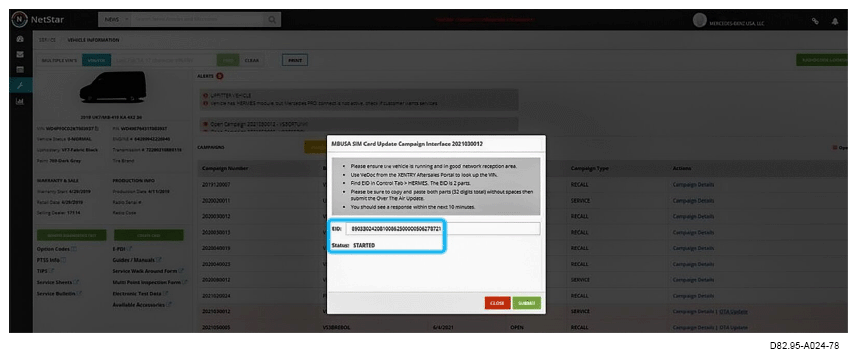

Update (over-the-air update (OTA update)) started on "NetStar" system (shown in English)

Screen on "NetStar" system if "OTA Update" is clicked again during the update process (over-the-air update (OTA update)).

Courtesy of MERCEDES-BENZ USA

Update successful (over-the-air update (OTA update)) on "NetStar" system (shown in English)

Screen on "NetStar" system when the update is successful (over-the-air update (OTA update)).

Courtesy of MERCEDES-BENZ USA

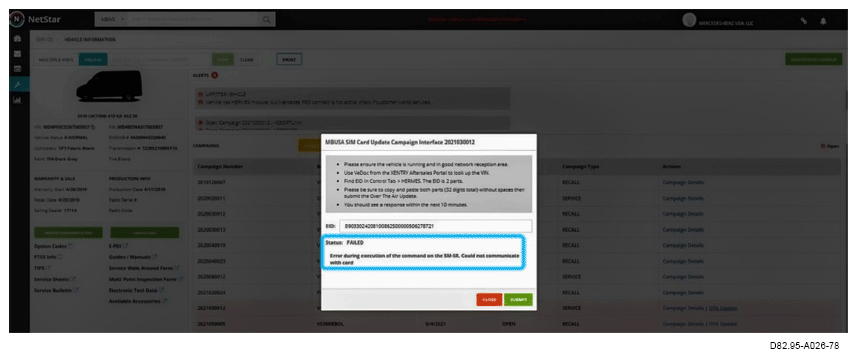

Update not successful (over-the-air update (OTA update)) on "NetStar" system (shown in English)

Screen on "NetStar" system when update is not successful (over-the-air update (OTA update)).

Courtesy of MERCEDES-BENZ USA

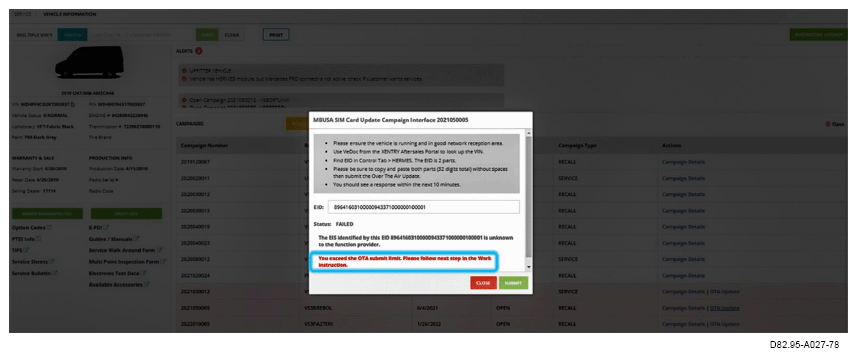

Update not successful (over-the-air update (OTA update)) after three successive attempts on the "NetStar" system (shown in English)

Screen on the "NetStar" system with three consecutive unsuccessful updates (over-the-air update (OTA update)).
