Check Washer Fluid Reservoir And Windshield Washer System Pump - SM82.35-S-0004A
Model 447.6##/7## ## as of 002144 up to 002899
OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES
| Category | Op. no. | Operation text | Time | Acc. no. | Code |
|---|---|---|---|---|---|
| P | 02 8690 | Operations: Check washer fluid reservoir and washer fluid pump of windshield washer system | 60 900 86 | VIVAWISCH | |
| P | 02 8691 | Operations: Replace washer fluid reservoir and washer fluid pump of windshield washer system (after check) | 60 900 86 | VIVAWISCH | |
| P | 02 8701 | Operations: Replace washer fluid reservoir of windshield washer system (after check) | 60 900 86 | VIVAWISCH | |
| P | 02 8702 | Operations: Replace washer fluid pump of windshield washer system (after check) | 60 900 86 | VIVAWISCH |
| Check | |||
| 1 | Check whether vehicle is affected by measure | MODEL 447.6##/7## ## as of 002144 up to 002899 | SM82.35-S-0004-01AAA |
| Remove | |||
| 2 | Detach left fender liner in front area of fender | ||
| Remove/install fender liner in front fender | AR88.10-S-1300E | ||
| Check | |||
| 3 | Check pump for windshield washer system (M5/4) | If the windshield washer system pump (M5/4) shown here is installed (windshield washer system pump (M5/4) with two hose fittings): ↓ Replace windshield washer system pump (M5/4) and continue with operation step 4. |
|
| Remove/install windshield washer system pump If the windshield washer system pump (M5/4) shown here is not installed (windshield washer system pump (M5/4) with one hose fitting): ↓ Continue with operation step 4. |
AR82.35-S-6002E | ||

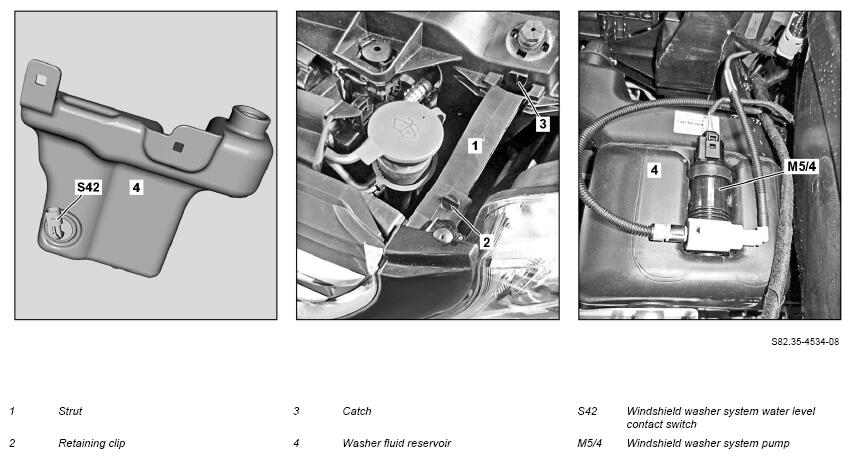

| 4 | Check washer fluid reservoir (4) | If the washer fluid reservoir (4) without windshield washer system water level contact switch (S42) is installed: ↓ Replace washer fluid reservoir (4). To do this, twist retaining clip (2), unlock catch (3) and remove/install strut (1). |
|
| Remove/install washer fluid reservoir of windshield washer system If the washer fluid reservoir (4) with windshield washer system water level contact switch (S42) is installed: ↓ Continue with step 5. |
AR82.35-S-6000E | ||
| Install | |||
| 5 | Install left fender liner in front area of fender | ||
| Remove/install fender liner in front fender | AR88.10-S-1300E |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| A 000 869 01 00 | Windshield washer system washer fluid reservoir (for vehicles with CODE F48 (Heater for windshield washer system)) | 1 |
| A 000 869 02 00 | Windshield washer system washer fluid reservoir | 1 |
| A 231 866 01 21 | Windshield washer system pump | 1 |
