Subsequently Modify Antenna Line At Antenna Splitter For CNS - AZ82.85-S-0008-08E
Model 447.6/7
with code E1N (Becker® MAP PILOT) Model 447.6/7
with code EV6 (Becker® MAP PILOT pre-installation)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS |

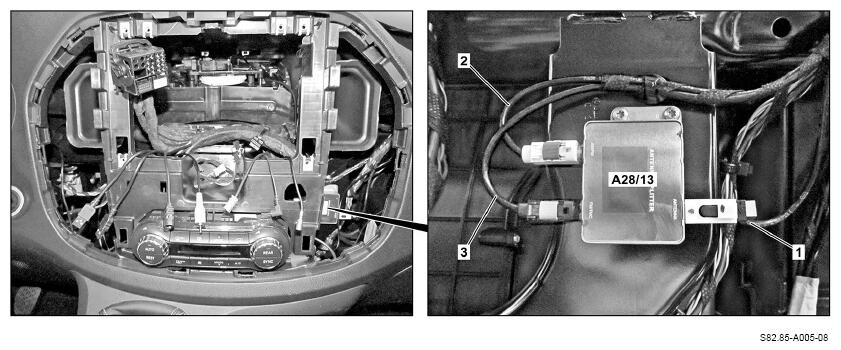

- Disconnect antenna line (1) of FM, AM antenna amplifier (A2/18) from TMC antenna splitter (A28/13).
- Disconnect antenna line (2) of radio (Audio) (N87/2) from TMC antenna splitter (A28/13).
- Remove white plug housing from antenna line (2).
Use basic wiring harness repair kit.
- Disconnect antenna line (3) of Becker® MAP PILOT control unit support (N41-1) from TMC antenna splitter (A28/13).
- Remove black plug housing from antenna line (3).
- Mount black plug housing onto antenna line (2).
- Mount white plug housing onto antenna line (3).
- Connect antenna line (3) to TMC antenna splitter (A28/13).
The antenna line (3) of the Becker® MAP PILOT control unit support (N41-1) remains nonfunctional.
- Connect antenna line (1) of FM, AM antenna amplifier to black plug housing of antenna line (2).
