Replace Bulb Of Additional Turn Signal Lamp - AR82.10-S-1203E

Model 447.6/7

Model 448

Courtesy of MERCEDES-BENZ USA

	Remove/install

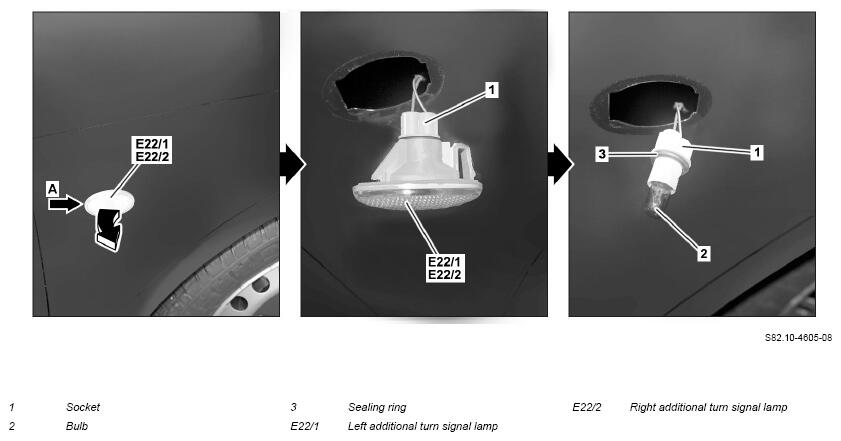

1	Release left additional turn signal lamp (E22/1) or right additional turn signal lamp (E22/2) in rear area (arrow A) using a suitable tool and swivel out in direction of arrow
2	Turn socket (1) counterclockwise and remove
3	Remove bulb (2) from socket (1)	Do not touch the glass of the bulb (2) with bare fingers. Use a non-greasy, soft cloth. Check sealing ring (3) for damage. If the sealing ring (3) is damaged ↓ Replace sealing ring (3).
4	Install in the reverse order
	Check
5	Perform function check of left additional turn signal lamp (E22/1) or right additional turn signal lamp (E22/2)
